AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-48


Cruise control system,
removing and installing

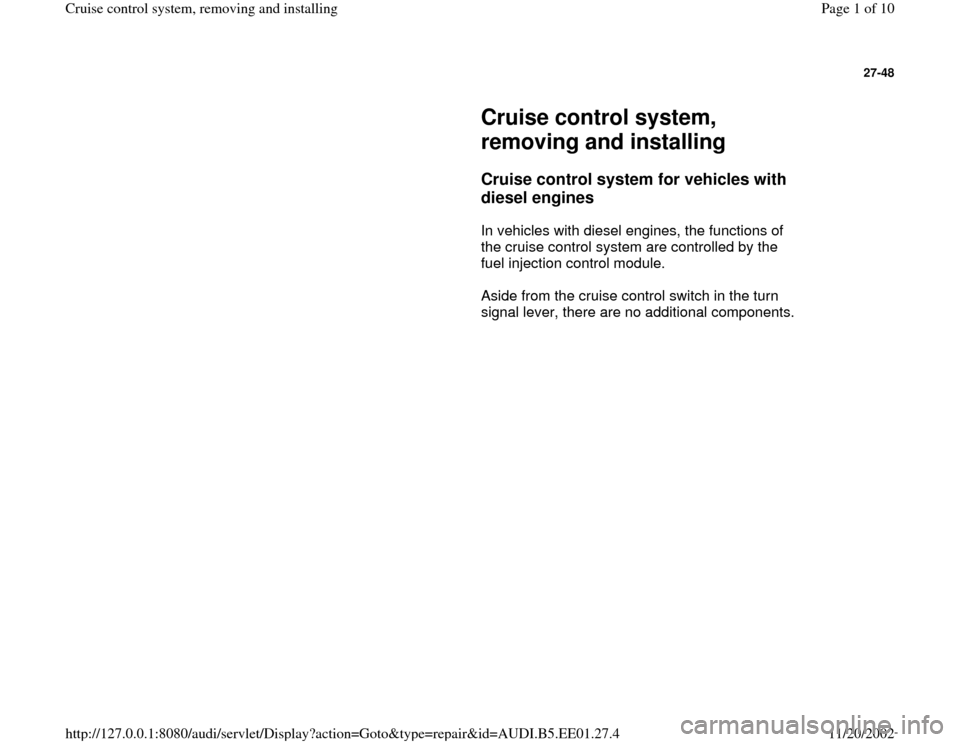

Cruise control system for vehicles with
diesel engines

      In vehicles with diesel engines, the functions of
the cruise contr

Page 2 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-49

Cruise control system for vehicles with
4 and 6-cylinder gasoline engines


CAUTION!

Disconnect the battery Ground (GND) strap
before working on the electrical system.

Page 3 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual       The cruise control, control module -J213- is
located behind the airbag unit on the passenger
side.
Pa
ge 3 of 10 Cruise control s
ystem, removin
g and installin
g
11/20/2002 htt
p://127.0.0.

Page 4 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-50

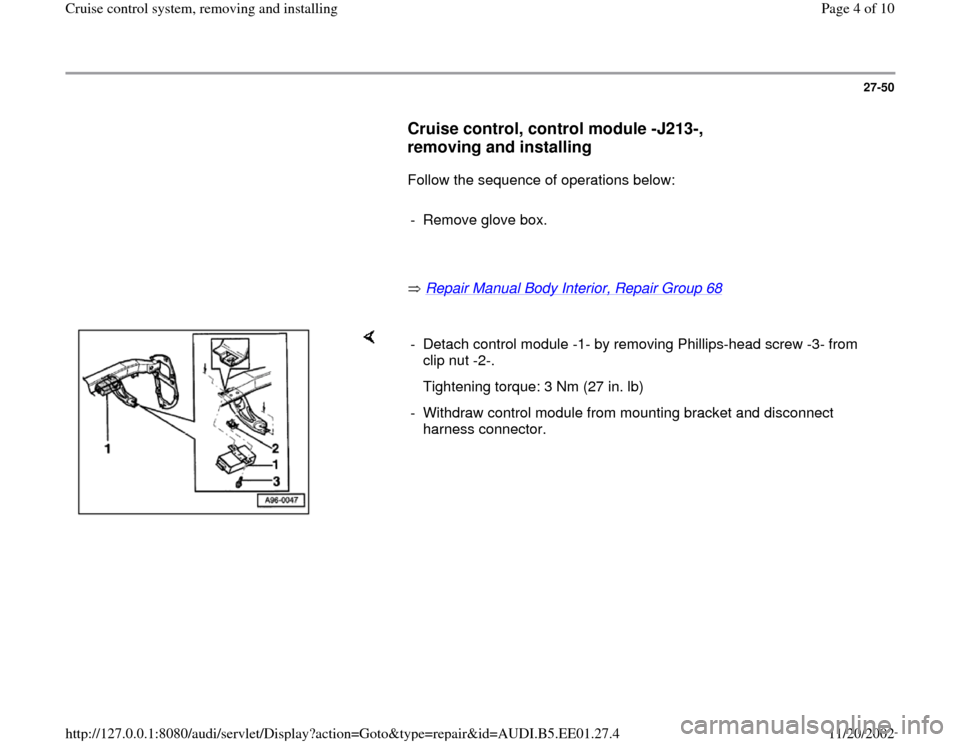

Cruise control, control module -J213-,
removing and installing

      Follow the sequence of operations below:

-  Remove glove box.

       Repair Manual Body Interior, Rep

Page 5 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-51

Actuator linkage, adjusting


4-cylinder engines
Depending on the engine, only the installation position of the linkage
varies in the different 4-cylinder engines.
Follow the se

Page 6 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-52

Actuator, removing and installing

      Depending on the engine, the installation position
of the individual actuators can vary.
      Follow the sequence of operations below:

Page 7 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-53

Vacuum pump, removing and installing

      The vacuum pump is located under the ABS unit
and can be removed after removing the left-front
wheel housing liner.
      Follow the seque

Page 8 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-54

Vent valves, removing and installing


Follow the same procedure for both valves when removing and installing
the clutch pedal vent valve -1- and the brake pedal vent valve -2-.
Re

Page 9 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-55


A new bracket is being used as of model year 1998  .
After installation, the vent valve must be in the following position:  a - 0 - 0.7 mm
1 - Pedal stop surface
2 - Pedal bracket
3 - B

Page 10 of 10

AUDI A4 1999 B5 / 1.G Cruise Control System Workshop Manual 27-56

Cruise control vacuum system,
checking for leaks

      Follow the sequence of operations below:

-  Remove vacuum line from vacuum pump.

-  Push diaphragm on actuator inwa
