maintenance schedule AUDI A4 1999 B5 / 1.G Instrument Cluster OBD From Model Year 1999 Workshop Manual

01-48

Adapting SRI for oil change service interval
(distance in km)
This function is used to enter the distance (in km)
until the next oil change service is due (see
service schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -5- to insert channel 05.
- Press -Q- button to confirm input.
Pa
ge 59 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

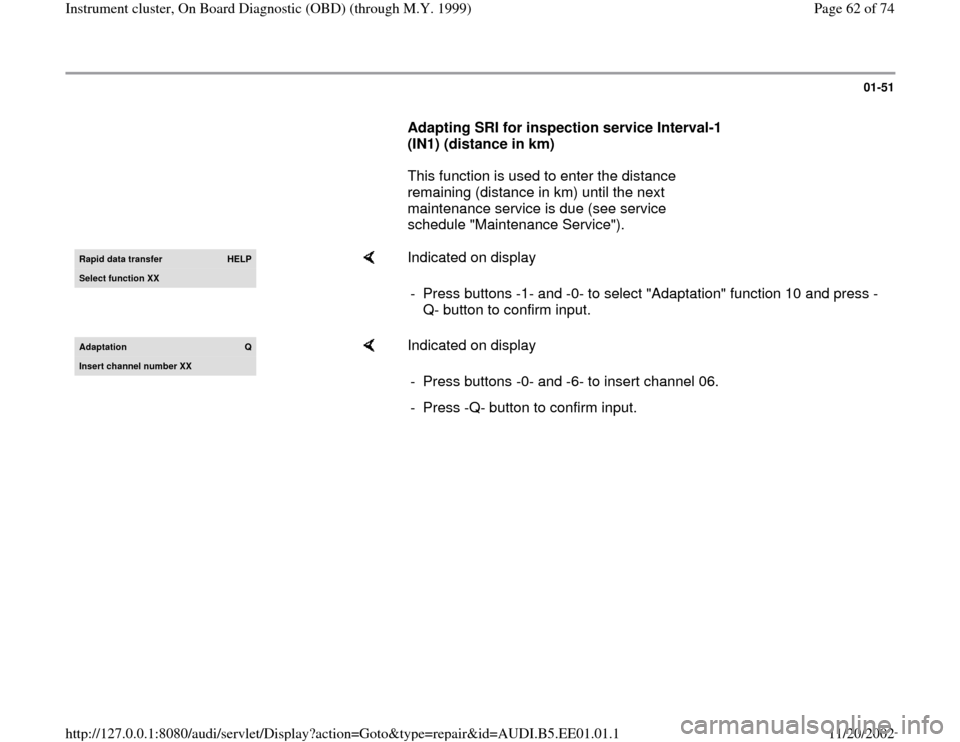

01-51

Adapting SRI for inspection service Interval-1
(IN1) (distance in km)
This function is used to enter the distance
remaining (distance in km) until the next
maintenance service is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -6- to insert channel 06.
- Press -Q- button to confirm input.
Pa
ge 62 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-54

Adapting SRI for inspection service Interval-1
(IN1) (time in days)
This function is used to enter the time until the
next inspection service 1 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -7- to insert channel 07.
- Press -Q- button to confirm input.
Pa
ge 65 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-57

Adapting SRI for inspection service Interval-2
(IN2) (time in days)
This function is used to enter the time until the
next inspection service 2 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -8-.
- Press -Q- button to confirm input.
Pa
ge 68 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1
