Page 1 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-41


Brake master cylinder with 25.4
mm (0.999 in.) diameter piston
and brake servo, component
summary Note:

Brake master cylinders can no longer be
disassembled, i.e. there is no provisi

Page 2 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-42


3 -
Flange nut
Always replace50 Nm (37 ft lb)
4 -
Sealing plug Moisten with brake fluid and insert into
brake master cylinder Press brake fluid reservoir into sealing
plugs
5 -
Brake

Page 3 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-43


7 -
Brake fluid reservoir cap
8 -
Fluid supply hose
From brake fluid reservoir to clutch master
cylinder
9 -
Seal Install in groove in brake master cylinderReplace after removing bra

Page 4 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-44


11 -
Gasket
Brake servo supplied with gasket glued onReplace only if damaged
12 -
Vacuum hose
  - Install into brake servoOn gasoline engines vacuum is supplied
from intake manifold
1

Page 5 of 11

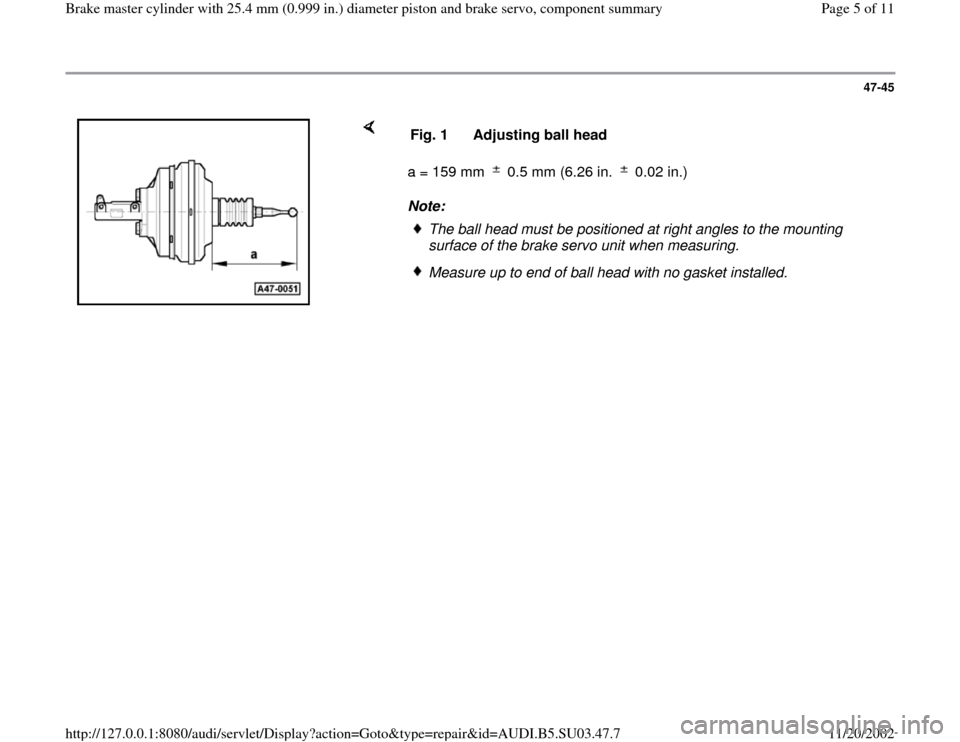

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-45


a = 159 mm   0.5 mm (6.26 in.   0.02 in.)
Note:  Fig. 1  Adjusting ball head
The ball head must be positioned at right angles to the mounting
surface of the brake servo unit when measu

Page 6 of 11

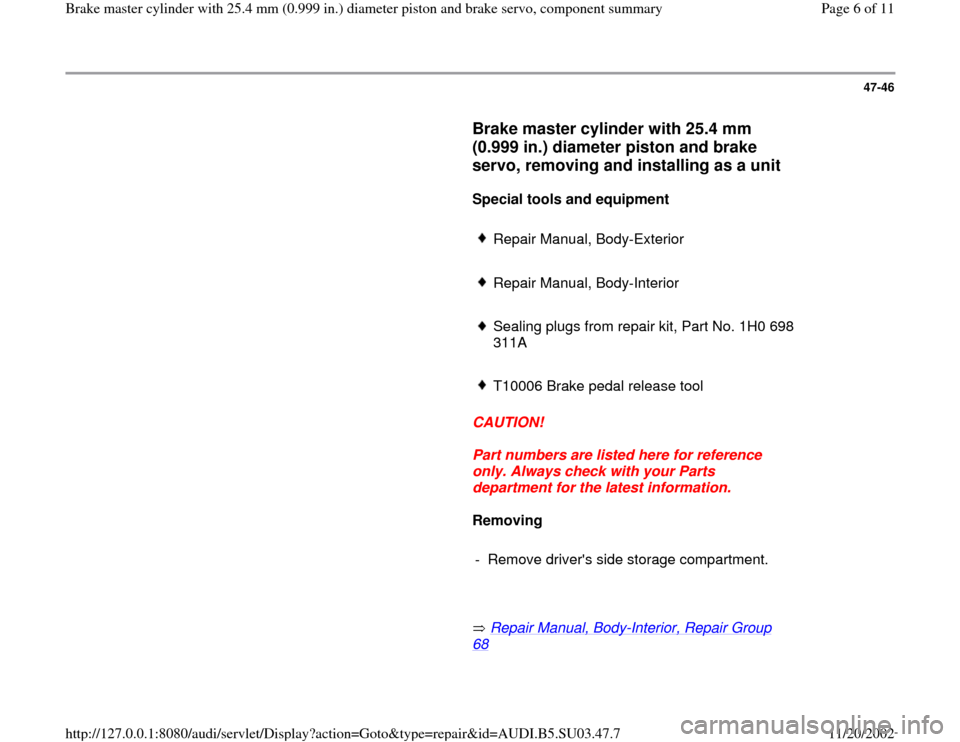

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-46

Brake master cylinder with 25.4 mm
(0.999 in.) diameter piston and brake
servo, removing and installing as a unit


Special tools and equipment

Repair Manual, Body-Exterio

Page 7 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-47


Releasing brake pedal
-  Remove brake light switch.
1 -
Inserting T10006 brake pedal release tool
Insert the tool from below
2 -
Release procedures
  - Tightly hold brake pedal.
 - Li

Page 8 of 11

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-48

-  Attach bleeder hose and bleeder bottle to left-
front brake caliper bleeder screw and open
bleeder screw.

-  Operate brake pedal to pump out as much brake
fluid as possible.

Page 9 of 11

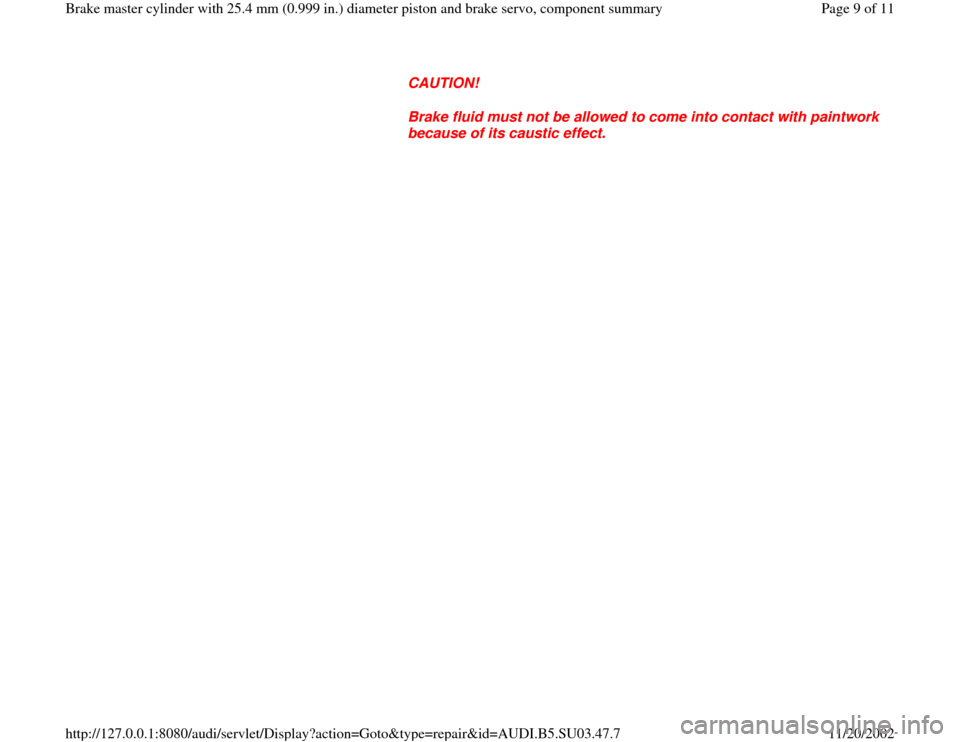

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual CAUTION!
Brake fluid must not be allowed to come into contact with paintwork
because of its caustic effect.
Pa
ge 9 of 11 Brake master c
ylinder with 25.4 mm
(0.999 in.
) diameter
piston and brak

Page 10 of 11

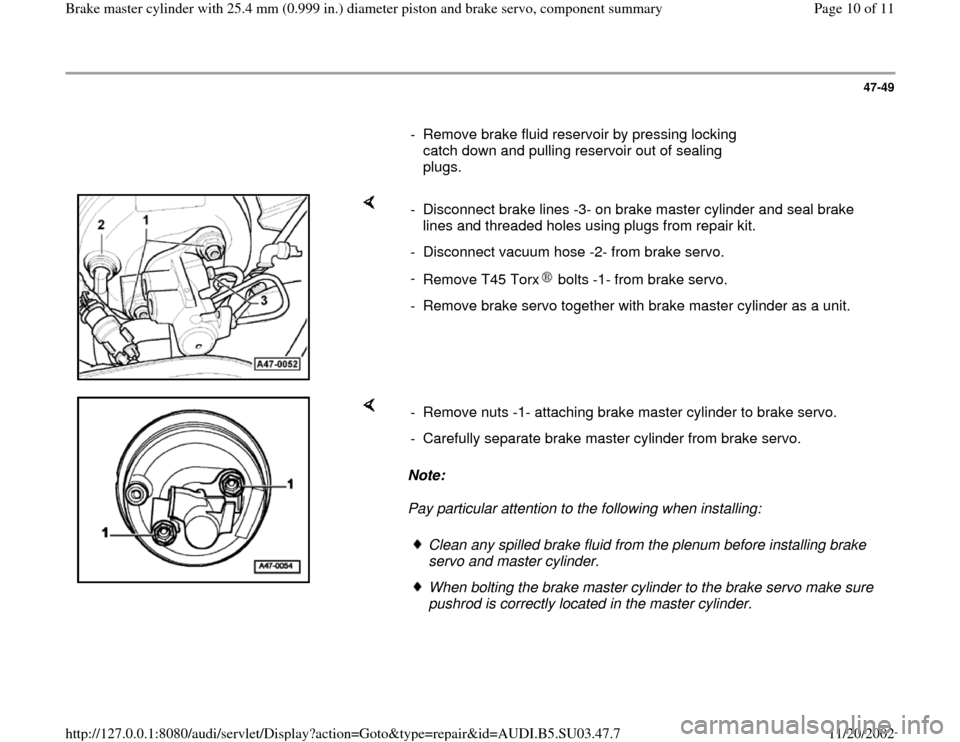

AUDI A4 1999 B5 / 1.G Master Cylinder 25mm Workshop Manual 47-49

-  Remove brake fluid reservoir by pressing locking
catch down and pulling reservoir out of sealing
plugs.

-  Disconnect brake lines -3- on brake master cylinder and seal brake
l
