AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-10


Fig. 9  Driving in roller sleeve

Fig. 10  Pressing off 5th gear
-  Remove circlip before pressing off.
A- Separating device 22-115 mm (0.866-4.527 in.), e.g. Kukko 17/2
separating t

Page 12 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-11


Fig. 11  Pressing off synchronizer hub for 3rd and 4th gears
-  Remove circlip before pressing off.
-  Press 3rd gear synchronizer ring (arrow) toward 3rd gear and install
separating dev

Page 13 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-12


The calculated gap must not be less than 0.5 mm (0.019 in.).  Fig. 13  Checking synchronizer-ring for wear
-  Press synchronizer-ring into operating sleeve and measure gap -a-
using feel

Page 14 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-13


Fig. 14  Allocation of circlips
The circlips -1- and -2- secure the input shaft ball bearing.
 Determining thickness   Page 35
-17
 , input shaft, adjusting
The circlip -3- secures the 3r

Page 15 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-14


The following circlips are available for synchronizer hub for 3rd and
4th gear
The following circlips are available for 5th gear   Fig. 15  Determining thickness of circlip
-  Determin

Page 16 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-15

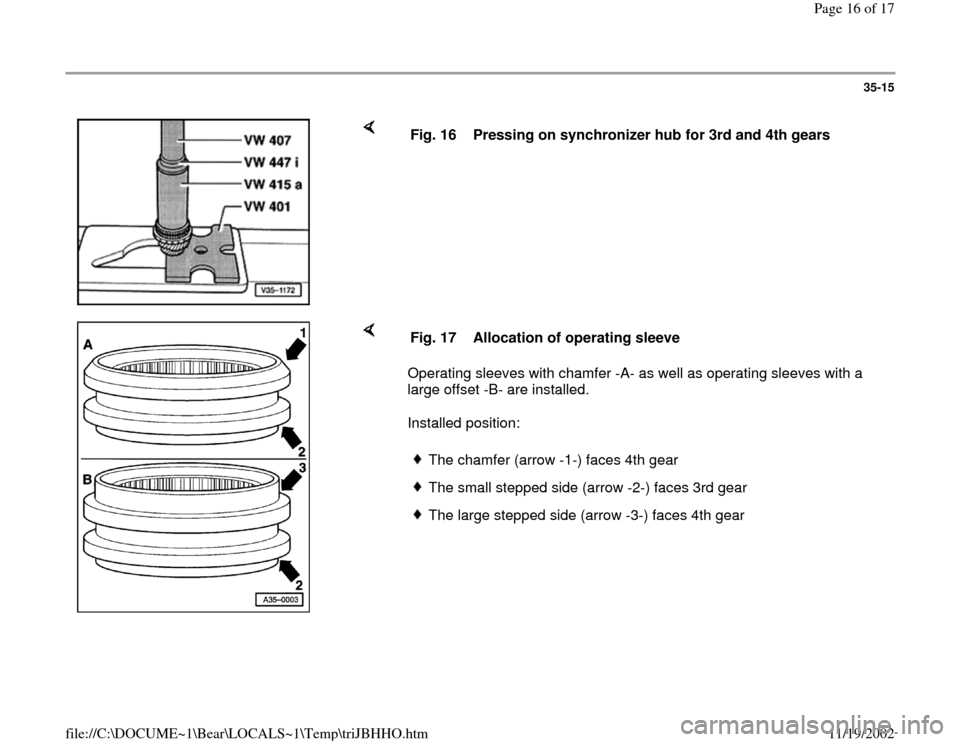

Fig. 16  Pressing on synchronizer hub for 3rd and 4th gears

Operating sleeves with chamfer -A- as well as operating sleeves with a
large offset -B- are installed.
Installed positi

Page 17 of 17

AUDI A4 2000 B5 / 1.G 01A Transmission Input Shaft Assembly User Guide 35-16


WARNING!
Wear protective gloves.
Allocation: wider collar faces reverse gear.  Fig. 18  Pressing on 5th gear
-
Heat 5th gear to approx. 100 C (212 F) before pressing on.
Pa
ge 17 of 17
