A/C system, electrical testing

Notes:

Vehicles 1997     page 01
-135
 .

VAG1598 test box must not be connected to -
E87- when performing On Board Diagnostic
with V

Page 2 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual connecting the test leads to avoid damaging electronic components.
Pa
ge 2 of 47 A/C s
ystem, electrical testin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id

Page 3 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-116

VAG1598 test box, connecting


-  Switch off ignition.

-  Remove A/C control head -E87- and disconnect
all connectors, -A-, -B-, -C- and -D-   page 87
-
120
 .

Notes:

Page 4 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-117
 Connector terminal assignment of VAG1598 test box with VAG1598/11 adapter cable
Notes:

The terminal assignment of VAG1598/11adapter cable connectors A and B is not identical to the termi

Page 5 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-118

Connector A -E87-
VAG1598 Socket
E87 Connector B
VAG1598 Socket
E87 Connector C
VAG1598 Socket
1   41   1   21   1   1
2   42   2   22   2   2
3   43   3   23   3   3
4   44

Page 6 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual       20   40
Pa
ge 6 of 47 A/C s
ystem, electrical testin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.HA01.01.2

Page 7 of 47

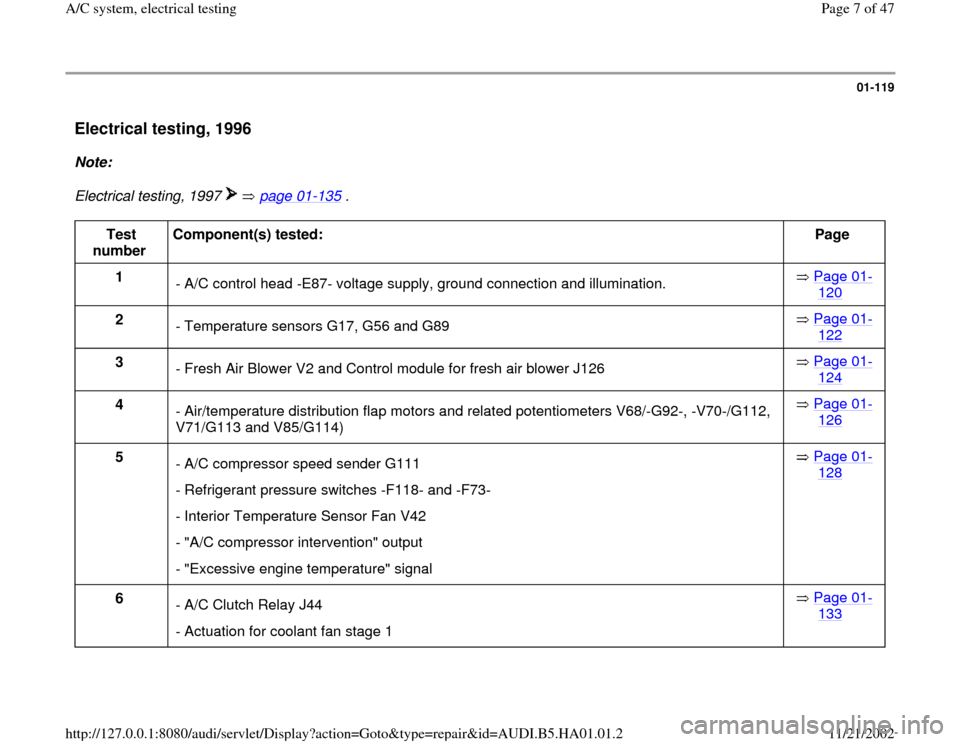

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-119
 Electrical testing, 1996

Note:
Electrical testing, 1997     page 01
-135
 .
Test
number  Component(s) tested:
Page
1
- A/C control head -E87- voltage supply, ground connection and

Page 8 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-120
 Test No. 1 (A/C control head -E87- voltage supply, ground connection and illumination)  VAG1598/12 adapter cable Measuring range: Voltage measurement (20 V)
Test
step  VAG1598
socket  Test

Page 9 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-121

VAG1598/12 adapter cable Measuring range: Voltage measurement (20 V)
Test
step  VAG1598
socket  Test of
Test
conditions
- additional
steps  Specified values
Corrective action
1.

Page 10 of 47

AUDI A4 2000 B5 / 1.G AC System Electrical Testing Workshop Manual 01-122
 Test No. 2 (temperature sensors G17, G56 and G89)  VAG1598/11 adapter cable Measuring range: Resistance measurement (20 kohm)
Test
step  VAG1598
socket  Test of
Test conditions
- addit
