AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-41


Speedometer Vehicle Speed
Sensor (VSS), removing and
installing

Total shim thickness Stotal for
shim S3 + S4, determining
      Adjust preload of tapered roller bearings for

Page 2 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-42


-  Install double tapered roller bearing outer race for pinion shaft in
transmission housing without shims   Fig. 3, Page 35
-31
 .

Notes:  -  Install tapered roller bearing outer

Page 3 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-43

-  Install transmission cover and tighten bolts to 22
Nm (16 ft lb).

-  Turn transmission so transmission cover faces
downward.

-  Press down on face of pinion shaft using

Page 4 of 34

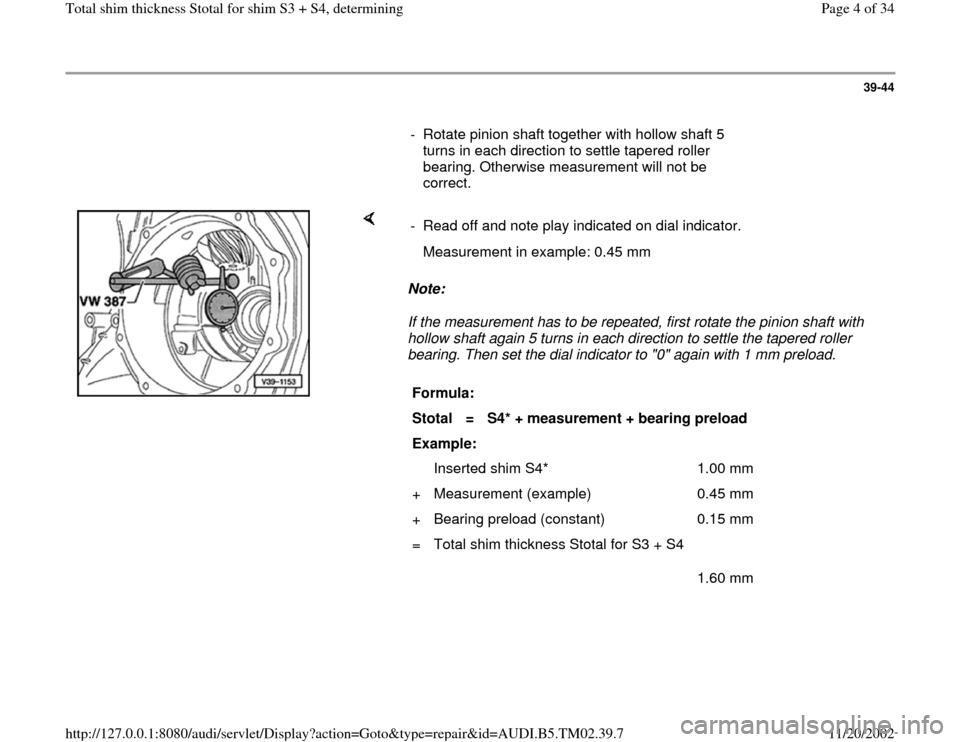

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-44

-  Rotate pinion shaft together with hollow shaft 5
turns in each direction to settle tapered roller
bearing. Otherwise measurement will not be
correct.

Note:
If the measuremen

Page 5 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-45

Determining thickness of shim S3*

Formula:
S3*
=
Stotal - S4*

Example:


  Total shim thickness Stotal for S3 +
S4
1.60
mm
-   Inserted shim S4*   1.00

Page 6 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual separately in relation to hollow shaft 5 turns in
each direction, to settle tapered roller bearings.
Pa
ge 6 of 34 Total shim thickness Stotal for shim S3 + S4, determinin
g
11/20/2002 htt
p://127.0

Page 7 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-46


-  Install measuring tools and secure to transmission housing using bolt
(arrow).
-  Set dial indicator (3 mm measuring range) to "0" with 2 mm preload.
-  Loosen transmission cover bol

Page 8 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-47

Determining measurement "e"

Note:
     Measurement "e" is required to determine the
final shim thickness of S3 and S4.

-  Set adjustment rings of universal mandrel using

Page 9 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-48


Note:
Make sure gauge contact surface is precisely installed and free of oil.  -  Place end gauge on face of pinion shaft.

-  Remove master gauge and install measuring mandrel into

Page 10 of 34

AUDI A4 2000 B5 / 1.G 01A Transmission Total Shim Thickness Workshop Manual 39-49


Measurement in following example "e" = 0.26 mm (red scale)
Note:
After removing universal mandrel, and with VW385/30 master gauge in
place, check dial indicator again to see if it in
