lock AUDI A4 2000 B5 / 1.G AFC Engine On Board Diagnostic Multiport Fuel Injection Workshop Manual

Function
04: Basic Setting Let engine idle
Function
07: Code Control Module Switch ignition on
Function
08: Read Measuring Value
Block Switch ignition on or let engine idle, or driving
Pa
ge 4 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-9

For the function:

02: Check DTC
Memory - Let engine idle, or, crank
engine with starter for at
least 5 seconds without
switching ignition off
03: Output
Diagnostic
Test Mode - Switch ignition on
04: Basic Setting
- Let engine run or switch
ignition on
07: Code Control
Module - Switch ignition on
08: Read
Measuring
Value Block - Let engine run or switch
ignition on

- Switch printer on with PRINT button (indicator
light in the button lights up).

- Press button -1- for "rapid data transfer"
operating mode.
Rapid data transfer
HELP
Insert address word XX

Indicated on display
Note:
After inserting address word 00 and pressing -Q- button to confirm input,
Pa
ge 14 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-43

Output on GST and/or
on VAG 1551 scan tool Possible malfunction cause

Malfunction repair
P0141 / 16525
O2 Sensor Heater Circuit
Malfunction (Bank 1
Sensor 2) Harness connector for Oxygen Sensor
(O2S) heater -Z29- (B1-S2) loose or
corroded due to moisture in the harness
connector

- Check harness connector for tight fit and
contact corrosion, if necessary reconnect
and/or clean, installation location page 24
-1

Malfunction cause found: Yes
No

- Erase DTC memory, test drive and check
DTC memory again
MIL Status:
MIL lights up immediately
Wiring connection for Oxygen Sensor
(O2S) heater -Z29- (B1-S2) faulty, or heater
-Z29- faulty

- Check O2S heater -Z29- (B1-S2) page 24
-55


Malfunction cause found: Yes
No

- Erase DTC memory, test drive and check
DTC memory again
For troubleshooting
Display group 040
Engine Control Module (ECM) -J192-
faulty

- Replace and code engine control module
page 01
-265
erase DTC memory and
test drive check DTC memory
Notes:
The heater for the O2S behind the Three Way Catalytic Converter (TWC) is not switched on immediately at engine start, but
only when the calculated exhaust gas temperature exceeds 308 C (586 F)( Read measuring value block, display group
42, channel 1).
Pa
ge 59 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-51

Output on GST and/or
on VAG 1551 scan tool Possible malfunction cause

Malfunction repair
P0161 / 16545
O2 Sensor Heater Circuit
Malfunction (Bank 2
Sensor 2) Harness connector for Oxygen Sensor
(O2S) heater -Z30- (B2-S2) loose or
corroded due to moisture in the harness
connector

- Check harness connector for tight fit and
contact corrosion, if necessary reconnect
and/or clean, installation page 24
-1

Malfunction cause found: Yes
No

- Erase DTC memory, test drive and
check DTC memory again
MIL Status:
MIL lights up immediately
Wiring connection for Oxygen Sensor
(O2S) heater -Z30- (B2-S2) or heater -Z30-
(B2-S2) faulty

- Check O2S heater -Z30- (B2-S2)
page 24
-55


Malfunction cause found: Yes
No

- Erase DTC memory, test drive and
check DTC memory again
For troubleshooting
Display group 040
Engine Control Module (ECM) -J192-
faulty

- Replace and code engine control
module page 01
-265
erase DTC
memory and test drive check DTC
memory
Notes:
The heater for O2S behind Three Way Catalytic Converter (TWC) is not switched on immediately at engine start, but only
when the calculated exhaust gas temperature exceeds 308 C (586 F) ( Read measuring value block, display group 42,
channel 1).
Pa
ge 69 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-96
Notes:

The heating for Oxygen Sensor Probes behind Three Way Catalytic Converter (TWC) is not switched on immediately at
engine start, but when the calculated exhaust gas temperature drops below 308 C (586 F) ( Read measuring value
block, display group 42, channel 1). The malfunction "P1105 / 17513" is set as soon as the probe heater is switched on (the vehicle must be driven approx. 60
sec. under load) and the heating current is greater than 10 A for longer than 80 ms.
Pa
ge 128 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

block, display group 42, channel 1).
The malfunction "P1105 / 17513" is set as soon as the probe heater is switched on (the vehicle must be driven approx. 60
sec. under load) and the heating current is greater than 10 A for longer than 80 ms.
Pa
ge 137 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-104
Notes:

If the malfunction "P1201 / 17609" and/or "P1202 / 17610" and/or "P1203 / 17611" is recognized by the engine control
module, the oxygen sensor control for bank 1 is blocked.
If all 6 fuel injectors are stored with the malfunction type "Cyl. X Electrical circuit electrical malfunction", the malfunction
"P1500 / 17908" is also stored.
Pa
ge 140 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-106
Notes:

If the malfunction "P1204 / 7612" and/or "P1205 / 17613" and/or "P1206 / 17614" is recognized by the engine control
module, the oxygen sensor control for bank 2 is blocked.
If all 6 fuel injectors are stored with the malfunction type "Cyl. X Electrical circuit electrical malfunction" the malfunction
"P1500 / 17908" is also set.
Output on GST and/or on VAG
1551 scan tool Possible malfunction cause

Malfunction repair
P1213 / 17621
Cyl.1-Fuel Injector Circ.
Short to B+
-----------------------
P1214 / 17622
Cyl.2-Fuel Injector Circ.
Short to B+
_______________________
P1215 / 17623
Cyl.3-Fuel Injector Circ. Wiring connection to Cylinder 1, 2,
or 3 fuel injectors faulty, or fuel
injectors -N30-, -N31- or -N32- faulty
Yes

- Check fuel injectors page 24
-29
Pa
ge 143 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

Short to B+
_______________________
MIL Status:
MIL lights up immediately

Malfunction cause found: Yes
No

- Erase DTC memory, test drive and
after test drive, check DTC memory
again

Engine Control Module (ECM) -
J192- faulty

- Replace and code engine control
module page 01
-265
erase DTC
memory and test drive check DTC
memory
Note:
If the malfunction "P1213 / 17621" and/or "P1214 / 17622" and/or "P1215 / 17623" is recognized by the engine control
module, the corresponding fuel injector is no longer triggered and the oxygen sensor control is blocked until ignition on.
Pa
ge 144 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

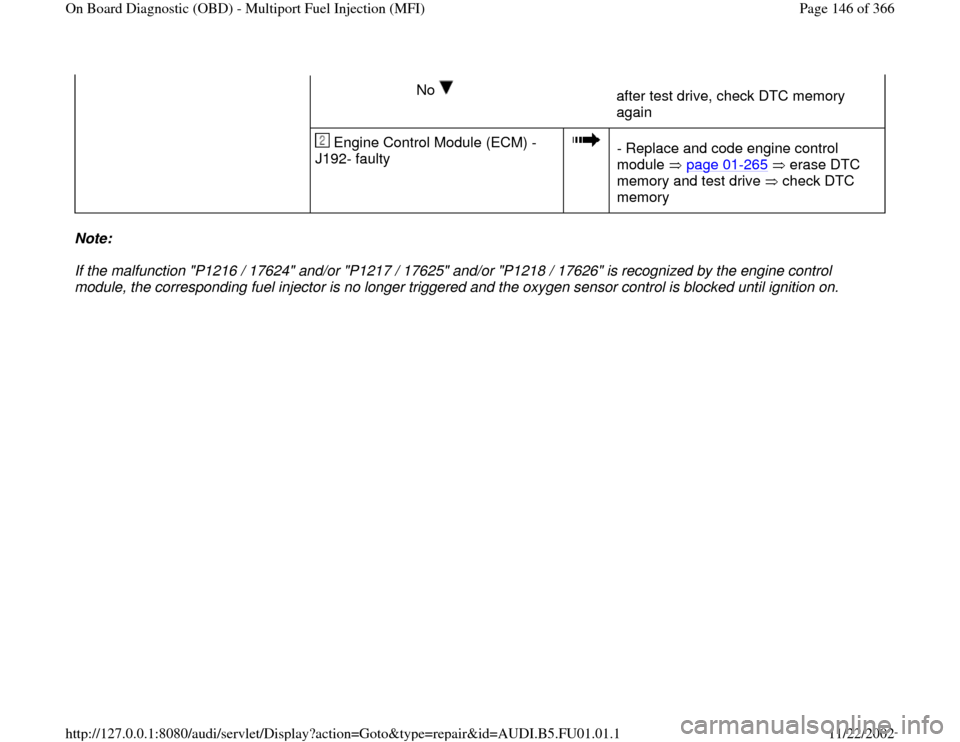

No
after test drive, check DTC memory
again

Engine Control Module (ECM) -
J192- faulty

- Replace and code engine control
module page 01
-265
erase DTC
memory and test drive check DTC
memory
Note:
If the malfunction "P1216 / 17624" and/or "P1217 / 17625" and/or "P1218 / 17626" is recognized by the engine control
module, the corresponding fuel injector is no longer triggered and the oxygen sensor control is blocked until ignition on.
