Fuses and bulbs
Fuses
Replacing a fuse
Fuses that have blown will have metal strips
that have burned through.
Fig. 207 Left cockp it: fuse panel cover
The fuses are located at the front left and
r igh t of the cockpit and behi nd the trim on
the right side of the luggage compartment .
.. Turn
off the ignit ion a nd the affected electri­
ca l consume rs .
.. Check the following table to see which fuse
belongs to the consumer .
.. Remove the appropriate cover
Q fig. 207 or
Q page 211, fig. 178 .
.. To remove the purple plastic clip if necessa­
ry
ll, hold onto it at the small side and pull
it out of the fuse panel¢
page 269,
fig. 208 .
.. Remove the clamp from the rea r side of the
fuse cover ¢
fig. 207 .
.. Remove the fuse using the clamp and re­
pla ce the blown fuse w ith an identical new
one.
& WARNING , -
Do not repair f uses and never replace a
blown fuse w ith one that has a higher amp
rating. This can cause damage to the elec­
trical system and a fire.
"' rl
~ 11 You can dispose of the plastic clip after removing it.
Fu se s and bulb s 269
(D Note
If a new fuse burns out again after short ly
have you have insta lled it, have the electri ­
ca l system checked by your authorized
Audi dealer .
{!) Tips
-The following table does not list fuse lo ­
cat ions that are not used.
- Some of the equipment items listed are
opt ional or only available on certa in
mode l configurations.
Left cockpit fuse assignment
Fi g. 208 Left cockpit: fuse panel with plastic clip
Fuse panel @ (b lack )
No . Consumer Amps
1 Dynamic steering 5
2
Electronic Stabilization Con-
5 trol (module)

2 70 Fuses and bulbs
No. Consumer Amps No. Consumer Amps
A/C system pressure sensor, Two-door models: rear left
electromechanical parking window regulator; Four-
brake, Homelink, automatic 11 door models: rear
left door
30
3 dimming interior rear view
5 (window regulator, central
m irror, air quality/outside locking, switch, lighting)
air sensor, Electronic Stab ili-
12 Rain
and light sensor
5
zation Control (button)
5 Sound actuator 5
Fuse panel© (red)
6 Headlight
range control/
5/7,5
head light (corner ing light)
No . Consumer Amps
3 Lumbar support 10
7 Headlight (cornering light) 7,5
4 Dynamic steering
35
Contro l modu les (electro-
5 Interior lighting (Cabriolet)
5
8 mechanical parking brake,
5
shock absorber, quattro
sport), DCDC converter
9 Adaptive cruise control 5 6
W
indshield washer system,
35
headlight washer system
7 Vehicle electrical system
20
control module 1
10 Shift gate/clutch sensor
5
11 Side ass ist 5
8
Vehicle electr ica l system
30
control module 1
12 Headlight range control,
5
parking system 9 Left rear window regulator
7,5/20
motor (Cabriolet)/sunroof
13 Airbag 5
14 Rear wiper (allroad) 15 10
Vehicle e
lectrica l system
30
control module 1
15 Auxiliary fuse (instrument
10
pane l) 11 Right
rear window regulator
7,5/20
(Cabriolet)/sun shade motor
16 Aux
iliary fuse terminal 15
40
(engine area) 12 Anti-theft alarm warning
s system
Fuse panel
@ (brown)
No. Consumer Amps
2 Brake light sensor 5
3 Fuel pump 25
4 Clutch sensor 5
5 Left seat heating with/with-
15/30
out seat ventilation
6 Electronic Stabilization
Con-
5
trol (electric)
7 Horn 15
Front left door (window reg-
8 ulator, centra
I locking, mi r-
30
ror, switch, lighting)
9 Windshield wiper motor 30
10 Electronic Stabi
lization Con-
25
trol (valves)

M N
~ co
rl I.O
"' rl
"' rl
Right cockpit fuse assignment
Fig. 209 Right cockpit: fuse pane l wit h plastic cl ip
Fuse panel @ (black )
No . Consumer
Amps
5 Steering
column switch
5
modu le
7
Termina l 15 d iagnostic con-
necta r 5
8
Gateway (Databus diagnos-
5
tic interface)
9 Supplementary heater 5
Fuse panel@ (brown )
No .
Consumer Amps
1 CD/DVD player 5
2 Wi-Fi
5
3 MMI/Radio 5/20
4 Instrument cluster
5
5 Gateway
(instrument cluster
5
control module)
6 Ignition lock
5
7 Light switch
5
8
Climate control system
40
blower
9 Steering column lock
5
Fuse s and bulb s 2 71
No. Consumer
10 Climate
control system
11 Te
rm inal 30 diagnostic con-
n ectar
12 Steer
ing column switch
module
Right luggage compartment fuse
assignment Amps
10
10
5
F
ig . 210 Right luggage compartment: fuse panel w ith
plast ic cl ip
Fu se panel @ (bla ck)
No . Consumer Amps
2 Rear window heater (Ca b
rio-
30
let)
3 Power
top latch (Cabriolet)
30
4 Power top hydraul ics (Cab-
so riolet)
Fuse pan el@ (black )
No. Consumer Amps
Luggage compartment lid
1 control
module (allroad)/
30/10
Power top contro l modu le
(Cabriolet)
2 Re
tractable rear spoiler
10
(RS 5 Coupe)

272 Fuses and bulb s
No. Consumer
5 Electromechanical parking
brake
6 Electronic damping control
7
Electromechanical parking
brake
8 Rear exterior lighting
9 quattro sport
10 Rear exterior lighting
11 Central locking
12 Terminal
30
Fuse panel © (brown)
No. Consumer
1 Luggage compartment lid
contro l module (allroad)
2 12-volt
socket, cigarette
lighter
3 DCDC converter path 1
4 DCDC converter path 2,
so und amp lifier, radio
6
Right upper cab in heat ing
(Cabr iolet)
7
Electromechanical parking
brake
Right front door (w indow
9 regu lator, central locking,
mirror, switch, lighting)
1 0 Left upper cabin
heating
(Cabr iolet)
T wo -door models : rear right
window regu lator; Four-
11 door models: rear r
ight door
(window regulator, central
locking, sw itch, lighting)
12 Cell phone prep
Fuse panel © (black)
No. Consumer
1 Right front seat heating
4
MMI
5 Radio
6 Rear view camera
Amps
5
15
30
30
35
30
20 5
Amps
30
20
40
30
30
30
30
30
30
5
Amps
15
7,5
5
5
No . Consumer Amps
7 Rear window heater (all-
30
road)
8 Rear Seat Entertainment s
Bulbs
Replacing bulbs
For your safety, we recommend that you hove
your authorized Audi dealer replace any bulbs
for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bulb. This applies especially to the light bulbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause serious cuts, parts must
be correctly taken apart and then properly put
back together to help prevent breakage of
parts and long term damage from water that
can enter housings that have not been p roper­
l y resea led.
For your safety, we recommend that you have
you r authorized Aud i dea ler replace any bulbs
for you, since yo ur dealer has the proper too ls,
the correct bulbs and the expertise .
Gas discharge lamp s (Xenon lights)*:
Due to the high electr ical voltage, have the
bulbs replaced by a qualif ied techn ic ian.
Headlights wit h Xenon light are identified by
the high voltage sticker.
_&. WARNING
Changing Xenon lamps witho ut the neces­
sa ry equipment can cause serious persona l
injury.
- Bulbs are pressurized and can explode
when being changed. Potential risk of in­
jury!
-

"" N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
-On vehicles equipped with gas discharge
bulbs (Xenon light)* life-threatening in­
jur ies can result from improper handling
of the high-voltage portions of such
lamps!
- Only your authorized Audi dealer or
qualified workshop should change the
bulbs in gas discharge lamps. There are
parts w ith sharp edges on the openings
and on the bulb holders that can cause
serious cuts.
If yo u are uncertain about
what to do, have the work performed by
an authorized Audi dealer or qualified
workshop. Serious personal injury may
result from improperly performed work.
(D Tips
- If you still prefer to replace the light
bulbs yourse lf, be aware that the engine
compartment is a hazardous area to
work
inqpoge 212 ¢ A .
-It is best to ask your authorized Audi
dealer whenever you want to change a
bulb.
Fu ses and bulb s 273
•
•

2 7 4 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working per sonnel who
have the necessary tools and equ ipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicle s with an automati c transmission
cannot be started by pushing or towing .
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discha rged or wea k batte ry, the battery can be
connected to the battery o f
another vehicle,
using a
pair of jumper cables to start the en­
g ine .
Jumper cables
Use only jumper cab les of sufficiently
large cross section to carry the starter cur rent
safely. Refer to the manufact urer's spec ifica­
ti ons.
Use on ly jumper cables with
insulated te rmi­
na l clamps wh ic h are d istinctly mar ked :
plus (+) cable in most c ases co lore d red
minu s (-) cable
in most cases colored black .
A WARNING
Batterie s cont ain e lec tricity, a cid, a nd gas.
A ny o f these c an ca use ve ry ser io us or f atal
in ju ry . F ollow the i nstruc tio ns below for
safe ha ndling of your ve hicle's bat tery.
- Alw ay s sh ield yo ur eye s and a vo id le an­
ing over the batte ry w henever p ossib le . -
A discharged battery can freeze at tem­
pe rat ures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the fr ozen battery complete ly , ot h­
e rwise it cou ld explode.
- Do not allow batte ry acid to contact eyes
or skin . Fl ush any contacted a rea wi th
wate r im media tely.
- Imp roper use of a booster battery to
s tart a vehicle may cause an explosion.
- Vehicle batter ies generate explosive gas­
es . Keep sparks, flame and lighted ciga­
rettes away from ba tte ries .
- Do not try to jump start a ny ve hicle w ith
a low ac id leve l in the battery .
- The vo ltage of the booster batte ry m ust
a lso have a 12-Vo lt rat ing . The capacity
(A h) of the booster batte ry should not b e
lowe r than that of the discharged bat­
tery . U se o f batt erie s of d iffe ren t voltage
or subs tanti ally diffe ren t "Ah" rat ing
may c ause an exp losion and person al in­
ju ry .
- N ever ch arge a fr ozen bat te ry. Gas t rap ­
ped in the ice may ca use an ex plosion .
- N ever ch arge o r use a batt ery th at has
been fro zen. T he battery case may have
be weakened.
- Us e of batt erie s of di ffere nt vo ltag e or
substan tially differen t ca pa city (Ah) rat ­
i ng may cause an exp losion and injury.
T he capac ity (Ah) of the booster battery
should not be lower than that of the dis­
charged batte ry.
- Before you check anything in the engine
compartment, always read and heed a ll
W ARNI NGS¢
page 212.
(D Note
- App lyi ng a hig her voltage booste r bat­
tery wi ll cause expens ive damage to sen­
sitive e lectronic components, such as
cont ro l units, relays, rad io, etc.
- There must be no electrical contact be­ twee n the vehicles as otherwise current
co uld already start to f low as soon as t he
posi tive(+) terminals a re con nected . ..,.

M N
~ co
rl I.O
"' rl
"' rl
@ Tips
The discharged battery must be properly
connected to the vehicle's electrical sys­
tem. When jump starting or charg ing the
battery, never connect the negative
ground cable to the battery negat ive post
because the ba ttery manager system must
be ab le to detect the battery's state of
charge. Always connect the negative
g round cab le to the negative ground pos t
of t he battery manager cont ro l unit.
Use of jumper cables
Make sure to connect the jumper coble
clomps in exactly the order described b elow!
Fi g. 21 1 Eng ine co mpar tment: Co nnecto rs fo r jum per
c ab les a nd c har ge r
F ig. 212 Jump start in g w ith t he ba ttery of a not her ve ·
hi cle :@ booster battery, @ disc harged veh icle battery
The procedure described below for connecting
jumper cables is intended to provide a jump
start for your veh icle .
Vehicle with di scharged battery :
~Turnoff lights and accessories , move lever
of automatic transmission to N (Neutral) or P (Park) and set parking brake .
Emergency situ ation s 2 7 5
Connect POSITIVE(+) to POSITIVE(+ )
(red )
~ Remove the cover above the jump start con­
nection .
~ Open the cover on the positive pole
¢fig . 211 .
1. Connect one end of the red positive cable
on the
jump sta rt bolt c::;, fig. 212 (D
(Bolts under cove r= "posit ive ") of the ve­
hicle to be started @.
2 . Conne ct the othe r end to the pos itive ter -
mina l@ of the booster battery @.
Connect NEGATIVE (-) to NEGATIVE (-)
(black )
3. Co nnect one end o f the b lack neg ative c a­
ble to the nega tive te rmi na l@ of the
booster battery @.
4 . Connect the other end to the
jump start
bolt @
(Bolts with hex head = "negative")
of the vehicle to be started @.
Starting the engine
~ Start the engine of the ve hicle with the
booste r battery @. Run the engine at a
moderate speed.
~ Start engine with d ischarged vehicle battery
® in the usual manner .
~ If the engine fails to start: do not keep t he
starter cran king for lo nger than 10 seconds .
Wait for about 30 seco nds and the n try
aga in.
~ W ith engi ne runni ng, remove jumpe r cab les
from both vehicles in the exa ct
reverse o r­
der .
~ Close the cover on the positive pole .
T he b attery is vented to the o utside to p reven t
gases from en tering the veh icle in ter ior . Ma ke
s ur e that the j umper clamps a re well connect­
e d with their
metal ports in full contact with
the batte ry term inals.
A WARNING
To avoid serious personal injury and dam­
age to the vehicle, heed all warnings and
in structions of the jumper cable ma nufac-
turer . If i n dou bt, call for road servic e.
Ill>

2 76 Em ergency sit uat ions
-Jumper cables must be long enough so
that the vehicles do not touch.
- When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the eng ine compart­
ment.
- Do not bend over the batteries - danger of chemical burns!
- The battery ce ll locking screws must be
tightened securely .
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
9 page 212.
Improper hook-up of jumper cables can ru ­
in the generator.
- Always connect POSITIVE( +) to POS I­
TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that a ll screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs p rior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­ nect ing a jumper cable as described
above applies spec ifically to the case of
your vehicle being jump started. When
you are giving a jump start to another ve­ hicle, do
not connect the negat ive( -) ca­
ble to the negat ive (-) term inal on the
discharged battery@)
9fig. 212. In­
stead, securely connect the negative(- )
cable to e ither a solid metal component
that is firm ly bolted to the engine block
or to the engine block itself. If the bat­
tery that is being charged does not vent
to the outside, escaping battery gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
ing.
T he following information is to be used by
commercial tow truck operators who know
how to operate their equipment safely.
- Nev er tow your Audi , towing will cau se
damage to the engine and tr an smi ssion .
- Ne ver wrap th e safety chain s or winch ca­
ble s around the brak e lines.
- To pre vent unne ce ss ary dam age, your Audi
mus t be tr an sp o rt ed with a flat bed tru ck.
- To load th e vehicle on to th e flat b ed, use
the towing l oop found in t he vehicle to ols
a nd att ach to th e front or rea r a nchor age
c;,page 277 and c;,page 277 .
& WARNING
= -
A vehicle being towed is not safe for pas-
sengers. Never allow anyone to ride in a
vehicle being towed, for any reason.

M N
~ co
rl I.O
"' rl
"' rl

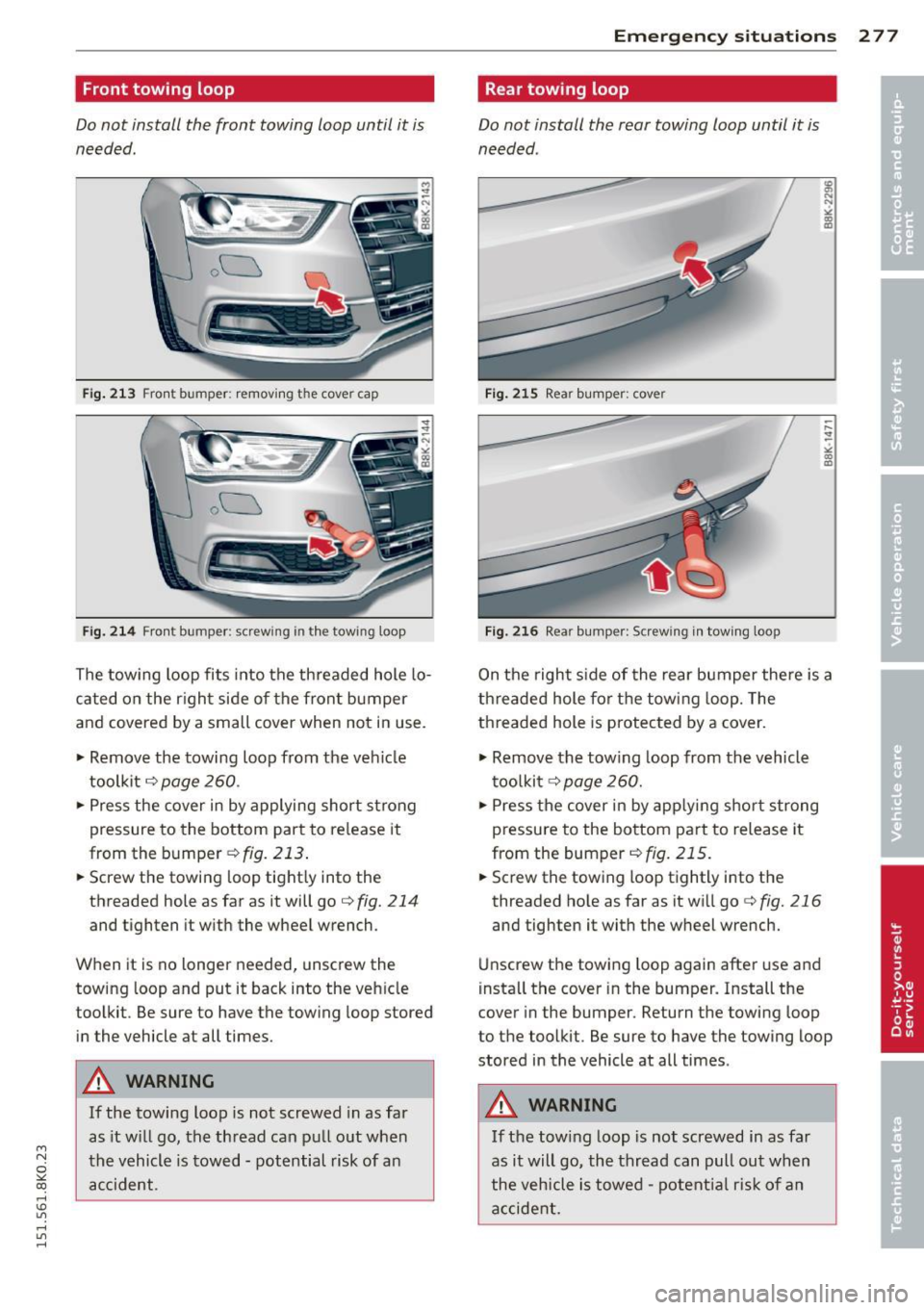

Front towing loop
Do not install the front towing loop until it is
needed.
o u
Fig . 2 13 Fro nt bumper : removing the cover cap
ou
Fi g. 21 4 Front bumper: screwing in the towing loop
The towing loop fits into the th readed hole lo­
cated on the righ t side of the fron t bumper
and covered by a small cover when not in use.
"' Remove the towing loop from the vehi cle
toolkit
c:::> page 260.
"' Press the cover in by applying short strong
pressure to the bottom part to release it
from the bumper
c:::>fig. 213.
"'Screw the towing loop tight ly into the
threaded hole as far as it will go
c:::> fig. 214
and tighten it w ith the wheel wrench.
When it is no longer needed, unscrew the
towing loop and put it back into the vehicle
toolkit. Be sure to have the tow ing loop stored
in the vehicle at all times.
A WARNING
If the towing loop is not screwed in as far
as it w ill go, the thread can pull out when
the vehicle is towed - potential risk of an
accident.
-
Emergenc y situ ation s 2 77
Rear towing loop
Do not install the rear towing loop until it is
needed .
Fig . 215 Rear bu mper: cover
Fig. 216 Rear bumper: Screwing in tow ing loop
"' "' N N
"' CD CD
On the right side of the rear bumper there is a
th readed hole for the towing loop. The
threaded hole is protected by a cover.
"' Remove the towing loop from the vehicle
too lki t
c:::> page 260.
"' Press the cover in by app lying shor t strong
pressure to the bottom part to release it
from the bumper
c:::>fig. 215.
"' Screw the towing loop tightly in to the
threaded ho le as far as it wi ll go
c:::> fig. 216
and tighten it with the wheel wrench.
Unscrew the towing loop again after use and
install the cover in the bumper. Install the
cover in the bumper. Return the towing loop
to the toolkit. Be sure to have the towing loop
stored in the vehicle at all times .
A WARNING
-
If the towing loop is not screwed in as far
as it will go, the thread can pull out when
the vehicle is towed -potent ia l ris k of an
a ccide nt.

2 78 Emergency situations
loading the vehicle onto a flat bed truck
Fig. 217 Vehicle on flat bed tr uck
Front hook up
• Align the vehicle with the centerline of the
car carr ier ramp .
• Attach the winch hook to the front towline
eye previously insta lled .
Rear hook up
• Align the vehicle with the centerline of the
car carr ier ramp.
• Attach the winch hook to the rear towline
eye previously insta lled.
@ Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat·
bed truck ramp .
Lifting vehicle
lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 218 Front lift ing po int
:g 0 N
" O> a,
Fig. 219 Rear lifting point
• Read and heed WARNING ¢ &_ .
• Locate lifting points r::!> fig . 218 and
¢ fig. 219 .
• Adjust lifting arms of workshop hoist or
floor jack to match vehicle lifting points .
• Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose.
Front lifting point
The lifting point is located on the floor pan re­
i nforcement about at the same leve l as the
jack mounting point
¢ fig. 218. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located on the vert ical rein­
forcement of the lower sill for the onboard
jack ¢
fig. 219 .
lifting with vehicle jack
Refer to r:!> page 265 .
A WARNING
= -
-To reduce the risk of ser ious injury and
veh icle damage.
- Always lift the vehicle only at the spe­
cial workshop hoist and floor jack lift
points illustrated
¢ fig. 218 and
¢ fig. 219.
- Failure to lift the vehicle at these
points could cause the vehicle to tilt or
fall from a lift if there is a change in ve-
hicle weight distribution and balance.
~
