Instrument s and warnin g/indic ator ligh ts 19
A WARNING ,~ ~
If the ~ (USA models)/ . (Canada
models) brake system indicator light turns
on together with the ABS and ESC indica­
tor lights, the ABS/ESC regulating function
may have failed. Functions that stabilize
t he vehicle are no longer avai lab le. This
cou ld cause the vehicle to swerve and in­
crease the risk of sliding . Drive caref ully to
the nearest a uthorized Audi dea ler and
have the malfunction corrected.
(D Tips
For addit ional information on ESC and
ABS, refer to
c::> page 185 .
ABS/(@!) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The warning/indicator light rII:1 (USA mod ­
els)/ [I] (Ca nada models) w ill come o n for a
few seconds when the ignition is switched on.
The light will go out after an a utomatic chec k
sequence is completed.
There is a malfunction in the ABS when :
- The warning/ indicator lig ht does not illumi ­
na te when you swi tc h t he ignition on.
- T he warning/i ndicator lig ht does not go out
after a few seconds .
- T he warn ing/ind icator lig ht illuminates
wh ile driving.
T he ESC indicator light also illuminates if
there is a malfunction in the ABS . The mes­
sage
Stabilization contro l (ESC) : Fault! See
owner 's manual
also appears in the inst ru­
men t clus ter display and a war ning tone
sounds.
Th e brake sy ste m will still respond even
without th e assi stan ce of the ABS sy ste m .
See y our authoriz ed Audi dealer a s soon a s
po ssibl e to re store full braking performan ce .
For more informat ion regarding the ABS
c::> page 185.
Malfunction in the brake system
If the brake war ning l igh t c::> page 15 and the
ABS wa rning illuminate
together there may be
a malfunct ion in the ABS , and there may a lso
be a malfunction in the brake system itself
c::> A . The AB S will not wo rk and you w ill no ­
tice a change in b raking response and per ­
formance .
In the event of a malfunction in the brake
s y stem
the warning/indicator light~
(USA mode ls)/ . (Can ada models) in the in­
strument cluster flas hes
c::> page 15.
Malfunction in th e electronic diff erential
lock (EDL)
The EDL works together w ith the ABS. The
ABS warning light will come on if there is a malfunction in the EDL system
c::> page 185 .
See your author ized Audi dealer as soon as
poss ible.
A WARNING
- I f the trm (USA mode ls)/ [I] (Canad a
models) warning light does not go ou t,
-
or if it comes on while dr iving, the ABS
system is not wor king p roperly. The vehi­
cle can then be stopped only w it h the
standard brakes (without ABS). You w ill
not have the protect ion ABS prov ides.
Contact your authorized Audi dealer as
soon as possible .
-USA models: If the ~ warning light
a nd the
trm warning light come on to­
gethe r, the rear wheels could lock up
f ir st under hard bra king. R ear wh eel lock­
up can ca use loss of vehicle control and
a n ac cident . H ave yo ur vehicle repaire d
immed iate ly by yo ur authorize d Aud i
dea le r o r qualified works hop. Drive slow­
ly and avo id sudden, hard brake applica­
tions.
- Canada models: If the brake warning
light . and the ABS warning light
[I]
come on together, the rear wheels could
lock up first under hard braking. Rear
wheel lock-up can cause loss of vehicle
con tro l and an accident. Have your

20 Instruments and warning /indicator lights
vehicle repaired immediately by your au­
thorized Audi dealer or qualified work­
shop. Drive slowly and avo id sudden,
hard brake applications.
~ J!f Safety systems
The
II (USA models)/ m (Canada models) in­
d icator light monitors the safety systems (e .g .
a ir bags, pretensioners) and illuminates for a
few seconds each time you switch the ignition
on.
If the
ffl (USA models)/ EI (Canada models)
indicator light does not go out, or if it illumi­
nates whil e you are driv ing, or if it sta rts to
b link , then there is a malf unction somewhere
in the system. If the light does not illuminate
when you switch the ignition on, this also
means there is a ma lfunction.
A WARNING
If you have a malfunction in the safety sys­
tems, contact your authorized Audi dealer
immediately . Otherwise the safety sys­
tems may not work properly in an acci­
dent .
(0) Worn brake pads
Ell Brake pads!
If the warning light illumina tes, immediately
contact your authorized Audi dealer or quali ­
fied workshop to have all brake pads inspect­
ed. On USA models the warning light
Ei'I
comes on together with the warn ing light
1111 -Both sets of b rake pads on an axle
must always be replaced at the same time .
A WARNING
Driving with bad brakes can cause a colli­
sion and serious personal injury.
- If the warning light
Ell and the warning
light
11111 ) with the message Brake
pads! comes on in the instrument cluster
l) - : USA mod els only
-
display, immediately contact your au­
thorized Audi dealer or qualified work­
shop to have all brake pads checked or replaced if necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
The ~ warning/indicator light (Electronic
Power Control) illuminates when you switch
the ignition on as a function check.
(D Tips
If this warning/indicator light illuminates
while you are driving, then there is a mal­
function in the engine electronics. Have
the malfunct ion corrected as soon as pos­
sible by your authorized Audi dealer or a
qualified repair facility.
0 Malfunction Indicator Lamp (MIL)
Th e Ma lfunction Indicator Lamp (MIL) is part
of the On-Board Diagnostic (OBD II) system.
T he symbo l¢• lights up when the ignition is
switched on and will turn off after the engine
has started and has settled at a constant idle
speed. This indicates that the MIL is working
properly.
T he warning light illuminates when there is a
malfunction in the engine electronic system .
Contact your authorized Audi dea ler and have
the malfunction corrected.
An improperly closed fuel filler cap may a lso
cause the MIL light to illuminate
~ page 210.
For more information ~page 29.
!?; Engine speed limitation
Applies to vehicles: with engine speed limitation
(II Do not exceed max. engine speed of
XX.XX rpm

'"" N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
Instruments and warning/indicator lights 21
The IJI symbol illuminates when there is an
engine control malfunction. The
[3i indicator
light in the instrument cluster also illumi­
nates . The engine speed is limited to the
speed d isplayed in the driver information sys­
tem . Keep in mind that the eng ine speed will
not exceed the value displayed in the drive r in­
formation system , for example when down­
shifting.
Drive to your authorized Aud i dealer immedi ­
ately to have the malfunct ion corrected.
'l=cr .., Engine oil sensor
• Oil level! Sen sor defective
If the symbol illuminates, contact your au­
thor ized Audi dealer and have the o il sensor
i nspected . Until you have th is done, check the
oil level each time you refuel just to be on the
safe side
c::> page 216.
Bil Tank system
mJ Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2.1- 2.4 gallons (7 -9 liters) of fuel left
in the tank. Time to refuel
c::> page 209 .
DD Fuel tank system malfunction! Contact
dealer
If the indicator light turns on and th is mes ­
sage appears, there is a malfunction in the
tank system .
Drive to your authori zed Aud i dealer immedi­
ately to have the malfunction corrected.
<:o Windshield washer fluid level
B Please refill washer fluid
If the symbol illumina tes, add windshield
washer fluid to the washer system and also to the headlight washer system *
c::> page 225.
~ Windshield wipers
m Windshield wiper defective
There is a malfunction with the windshie ld
wipers .
Drive to your authorized Audi dealer immed i­
ate ly to have the malfunction corrected .
~/ }D 10$ Defective light bulb warning
If the f:I indicator light turns on, a bulb has
failed. Th e message indicates the location of
the bu lb .
- If the
II indicator light also turns on, then
a fog light has failed . The position of the in­
dicator light corresponds with the location
on the vehicle .
- If the
IJ indicator light also turns on, then
a rear fog* light has failed . The position of
the indicator light corresponds with the lo­
cation on the vehicle.
T his warning can also occ ur if the light switch
is in an unengaged position between two sym­
bols.
Vehicle lights : System fault!
If the message appears, there is a malfunc­
tion in the headlights or light sw itch.
Drive to your au thorized Audi dealer immedi­
ately to have the malfunction corrected .
A WARNING
-Light bulbs a re p ressurized and could ex­
plode wh ile they are being changed caus­
ing serious personal injury.
- Work with due care when hand ling the
high-voltage section of gas discharge
(xenon) lights*. Failure to do so could re­
sult in death or serious injury .
(D Tips
Have the bu lb replaced or the connection
r epaired by your authorized Audi Service
department .
i,0 Headlight range control
Applies to veh icles : w ith headli ght ra nge control
liJ Headlight range control defective !

22 Instruments and warning/indicator lights
If the symbol II illuminates, the dynam ic
headlight range cont rol is no longer wo rking
properly. Have the system checked and re­
pa ired at your author iz ed Audi dealer.
~O Adaptive Light
Applies to vehicles: with adaptive light
111 Aud i adaptive l ight: defective
If t he indicator lig ht t urns on a nd th is mes­
sage appears, t he re is a ma lfunction in the
adapt ive light system. The headlig hts still
function.
Go to an a uth o rized dea le rship to have the
headlights or the contro l unit for the adapt ive
light repa ired.
~ o Light/rain sensor
Applies to vehicles: with light/rain sensor
£I Automatic headlights/ automatic wipers
defectiv e
If the indicator light t urns on and th is mes­
sage appears, the lig ht/ra in sensor is n ot
f u nctioning cor rectly .
For safety reasons the low beams are turned
on permanent ly w ith the switch in AUTO .
H owever, you can c ontinue to turn the lights
on and off using the light switc h. You can still
con trol a ll funct ions tha t are in depe nden t of
the rai n sensor through the wi ndshi eld wipe r
l eve r.
Contact your author ized Audi dealer as soon
as possible to have the prob lem cor rected .
Q Adaptive dampers
Applies to vehicles: with Audi drive select and adaptive
dampers
H Suspension: System fault!
If t he
H symbol in the disp lay comes on,
there is a malfunction in the adaptive damp ­
e rs . Please go to an authorized Audi dea ler or
qua lified workshop to have the malfu nction
repaired.
I-: Sport differential
Applies to vehicles: with Audi drive select and sport dif­
ferential
Sport differential : System fault!
There is a malfunction with t he sport d iffe ren­
tia l.
D rive to your au thorized A udi dealer immedi ­
ate ly to have the ma lfunction corrected.
Sport differential : Overheating
T he trans missio n tempera ture has inc reased
s ignifica ntly due to t he spor ty d riving manner .
Dr ive in a less sporty ma nner until the tem­
p era ture re tur ns to the normal range and t he
in dica to r li ght switc he s of.
_& WARNING ... -
Co ntac t your author ized Audi dealer or
qu alified wor kshop if the s port differential
i s faulty or malfunct io ning. T he repair
must be perf ormed by t rained personnel
usi ng the co rrect oil in o rder to ensure
safety.
~ Ignition lock
l3 Ignition lock defective
There is a malfunction in the e lectronic igni­
t ion loc k. Please go to a n author ized Audi
dealer or other qualified worksh op to have t he
malfu nction repa ired .
¢ Q Turn signals
Wh eneve r yo u use the left
Ill o r th e r ight 8]
tu rn s ignal, the in dicato r li ght blin ks. W he n
yo u use t he emerge ncy fla she rs, bo th indic a­
tor lights flash.
If one of the turn s igna l light bulbs bu rn o ut,
t h e tur n sig nal w ill bli nk twi ce as fast as no r­
m al. Ca ref ully dr ive to you r a utho rized Aud i
dealer imme diate ly to have the m alfunction
cor rected.

M N
~ co
rl I.O
"' rl
"' rl
Driver information
display
Introduction
The Driver information display inside the in ­
strument cluster provides you, the driver ,
with important information .
Fig. 7 In strum en t cl ust er: center displa y
Fi g. 8 Wi per lever: con trols fo r the menu display
Cent er d ispla y
With the ignition on, the display in the Dr iver
I nforma tion System shows the fo llowing in­
formation :
- CD* inserted or Radio* station set
- Outs ide temperature* : At temperatures be-
low 41 °F (+S
0 (), a snowflake symbol ap­
pears in front of the temperature display
c::> &_ .
- Warning if one of the doors, front lid or en-
gine compartment lid is not closed .
Additional function s
You can open the following functions in the
Driver Informat ion System display by pressing
the
! R ES ET I button c::> fig . 8 one or more times:
Digital speedometer *
Tire pressure monitoring*
c::> page 257
Dri ver inform ation di spl ay 23
Trip computer* c::> page24
Effi ciency program* c::> page 26
Service in terval display c::> page 28
Speed war ning c::> page 89
Gearshift selector positions <=> page94
Automatic transmission
Adaptive cr uise control *
c::> page 101
Auto Check C ontrol
Some f unctions and vehicle components are
scanned for their operating sta tus when yo u
switch the ign ition on and wh ile you are driv ­
ing . Malfunctions or required s ervice proce­
dures are signaled audib ly and indicated by
red and yellow illuminated symbols and re­
minders in the display .
A WARNING
-
- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy o r not . Keep in m ind
th at r oad surfaces, espec ia lly br idges
and overpasses, co uld be ice covered and
slippery even at an outside tempe ratu re
above 41 ° F (+S °C).
- Always remember , even if the "snow­
f lake" symbo l (ice warning) does not ap­
pear in the d isp lay, black ice cou ld be on
the road .
- Always reduce your speed and drive with
special care in cold weather conditions
when the chance of encountering icy
road surfaces increases.
{I) Tips
If the vehicle is stationary, or if yo u a re
driving at a very lo w speed, the tempera­
ture shown in the display might be s light ly
higher than the actua l outs ide tempera­
ture. This is caused by the heat be ing radi­
ated from the engine .

24 Driver information d isplay

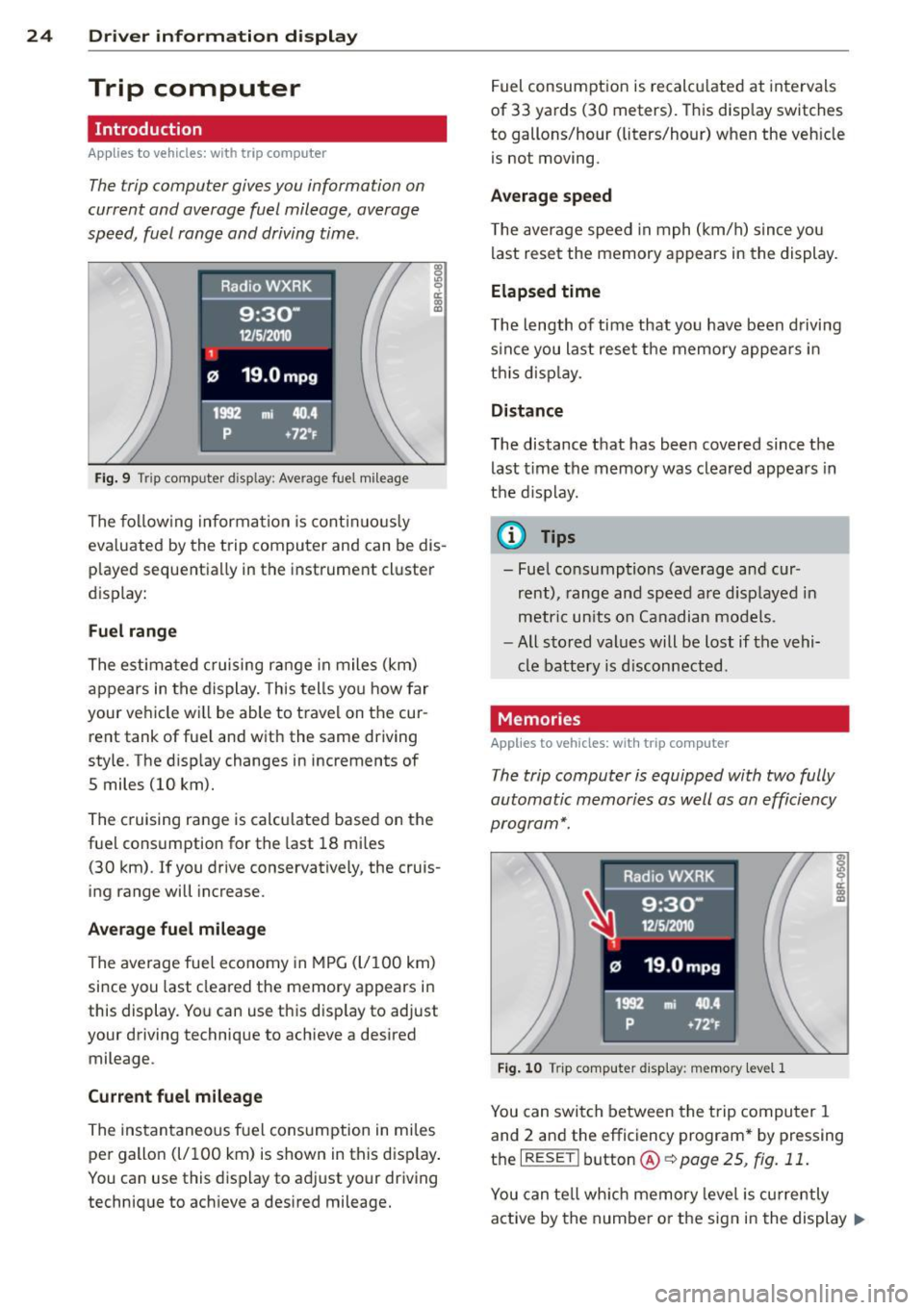

Trip computer
Introduction
Applies to vehicles: wit h trip computer
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Tri p comp uter d isp lay: Ave rage fuel mileage
The follow ing informat ion is continuously
evaluated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to t ravel on the cur ­
rent tank of fue l and with the same driving
style. The display changes in increments of
5 miles (10 km).
The cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adjust your driving
technique to achieve a desired mileage. Fuel
consumption is recalcu lated at intervals
of 33 yards (30 meters). This disp lay switches
to gallons/hour (liters/hour) when the vehicle is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that you have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last t ime the memory was cleared appears in
the display.
(0 Tips
- Fuel consumptions (average and cur ­
rent), range and speed are displayed in
metric units on Canadian models.
- All stored values will be lost if the vehi­
cle battery is disconnected .
Memories
Applies to veh icles: w ith t rip co mputer
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig. 10 Trip computer d isp lay : memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET ! button@<=:> page 25 , fig . 11.
You can tell which memory leve l is cu rrently
active by the number o r the sign in the display
IJ,-

"' N
0 :,,: co ,...., \!) ..,.,
,...., ..,., ,....,
¢fig. 10. The data from the single-trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display. If a fJ is shown, then
the data from the total-trip memory is being
d isplayed (memory level
2). The fuel pump
nozzle
ii indicate s the efficiency program*
¢page 26 .
Single-trip memory (Trip computer 1)
The single -trip memory stores the trip infor­
mat ion from the time the ignition is turned on
until it is turned off. If the trip is continued
within 2 hours from the time the ignition was
turned off, the new data will be included in
the calculation of the current trip informa­
tion. If the trip is interrupted for
more than 2
hours the memory is reset automatically.
Total-trip memory (Trip computer 2)
Unlike the sing le-trip memory, the total-trip
memory is not reset automatically. This per­
mits you to evaluate your driving data for the
enti re pe riod between manual resets.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 26.
Operation
Applies to vehicles: with trip computer
The trip computer is controlled by two
switches on the windshield wiper lever.
Fig. 11 Wind shi eld w iper lever: controls for the t rip
comp uter
Operating
~ To display the trip computer memory leve ls,
press the
I RESE T I button @¢ fig. 11 re-
Driver information display 25
peated ly until the desi red memory level is
show n in the display.
~ To display trip informat ion with in a memory
level, press the top or bottom part of the
function selection switch @.
The trip computer will not operate un less the
ignition is on. When you turn on the ign it ion,
the function that was in use when you last
turned the ignition off will be displayed .
In addition to information about the trip com­
puter (trip computer 1, 2 and the efficiency
program*), information about other systems
can also be shown in the disp lay. To switch the
display between the different information ,
tap the
! RESET I button @briefly.
Resetting values to zero
~ Select a value in the desired tr ip computer
or in the eff iciency program".
~ Press and hold the I RESE T I button @for at
least one second . All values in the selected
trip computer or in the efficiency program*
are reset to zero.
If the data in trip computer
1 are deleted ,
then the values in the efficiency program* w ill
also be reset.
With some vehicle equipment levels, the val­
ues for the single trip or total trip memory
can a lso be reset in the Infotainment system
¢page 25 .
(D Tips
All stored va lues w ill be lost if the vehicle
battery is disconnected.
Basic Settings for the trip computer
App lies to vehicles : wit h trip co mputer
The radio or MM!* operating unit is used for
setting the trip computer's basic settings.
~ Select: Function button !CAR !> Instrument
cluster > On-board computer 1
or On-board
computer 2 . .,.

26 Driver information d isplay

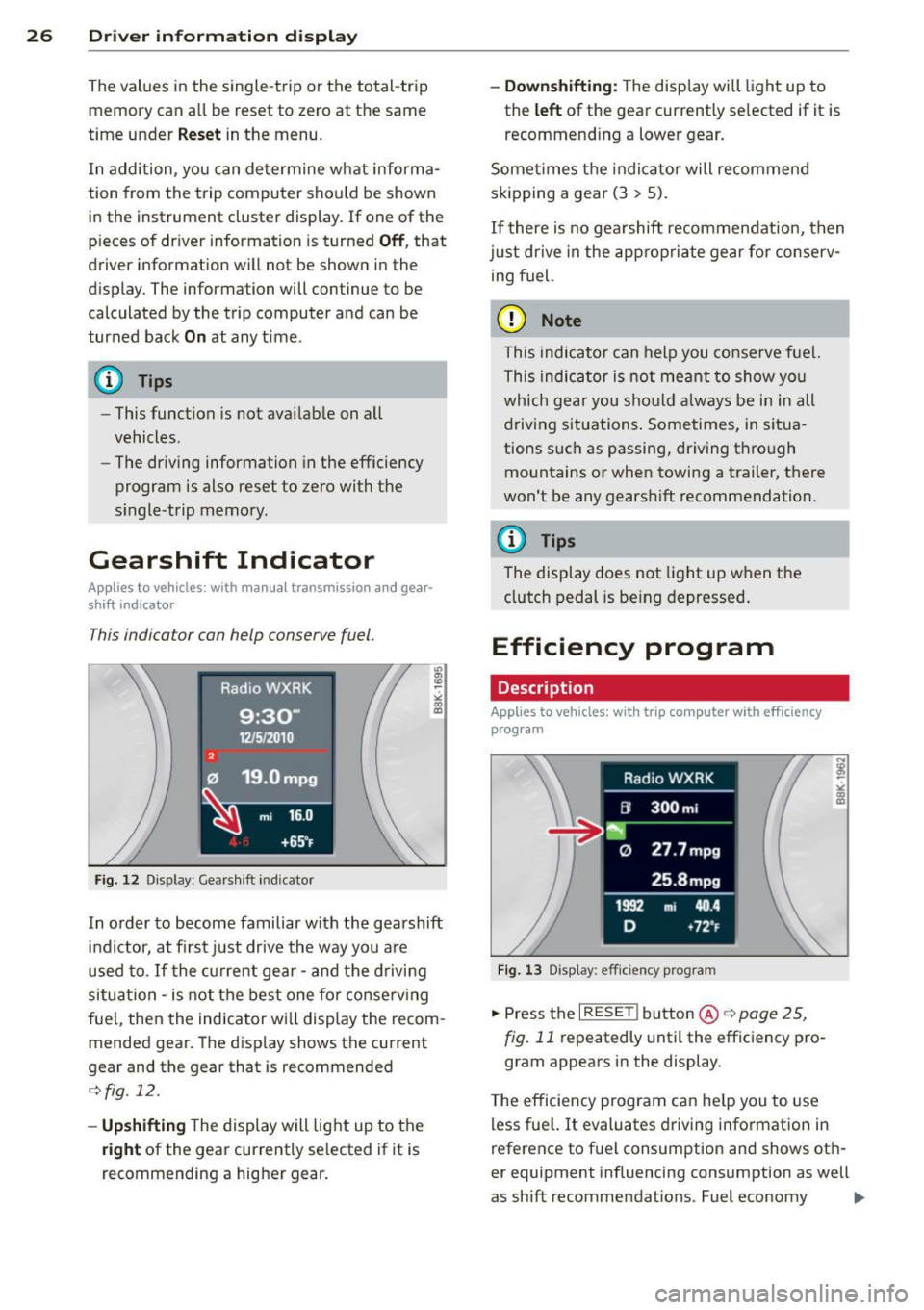

The values in the single -trip or the total-trip
memory can a ll be reset to zero at the same
time under
Reset in the menu.
I n addition, you can determine what informa­
tion from the trip computer should be shown
in the instrument cluster d isplay. If one of the
p ieces of driver information is turned
Off, that
driver information will not be shown in the
display. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
@ Tips
-This function is not available on all
vehicles.
- The dr iving information in the efficiency
program is also reset to zero with the
s ingle-trip memory.
Gearshift Indicator
App lies to vehicles: with manua l transmission and gear­
shift indicator
This indicator can help conserve fuel.
F ig. 12 Disp lay : Gea rs hift indicator
In order to become familiar with the gearshift
indictor, at first just drive the way you are
used to. If the current gear -and the driving
situa tion -is not the best one for conserving
fuel, then the indicator will display the recom­
mended gear. The display shows the current
gear and the gear that is recommended
¢ fig. 12.
- Upshifting The display will light up to the
right of the gear currently se lected if it is
recommending a higher gear.
-Downshifting: The display will light up to
the
left of the gear currently selected if it is
recommend ing a lower gear.
Sometimes the indicator will recommend
skipping a gear (3
> S).
If there is no gearshift recommendation, then
j us t drive in the appropriate gear for conserv­
ing fuel.
(D Note
This indicator can help you conserve fuel.
This indicator is not meant to show you
which gear you should always be in in all
driving situations . Sometimes, in situa­
tions such as passing, driving through
mountains or when towing a trailer, there
won't be any gearshift recommendation.
@ Tips
The display does not light up when the
clutch pedal is being depressed.
Efficiency program
Description
Applies to vehicles: with trip computer with efficiency
program
Fig. 13 Display: efficie ncy prog ra m
.. Press the I RESE T! button @~ page 25,
fig.
11 repeatedly until the efficiency pro­
gram appears in the display .
T he efficiency program can help you to use
less fue l. It evaluates driving information in
reference to fuel consumption and shows oth­
er equipment influencing consumption as well
as shift recommendat ions . Fuel economy
ll>

M N
~ co
rl I.O
"' rl
"' rl
messages ¢ page 28 provide tips for effi­
cient driving.
The effic iency program uses distance and con ­
sumpt ion data from trip computer
1. If the
data are deleted in the efficiency prog ram,
those values are also reset in trip computer
1.

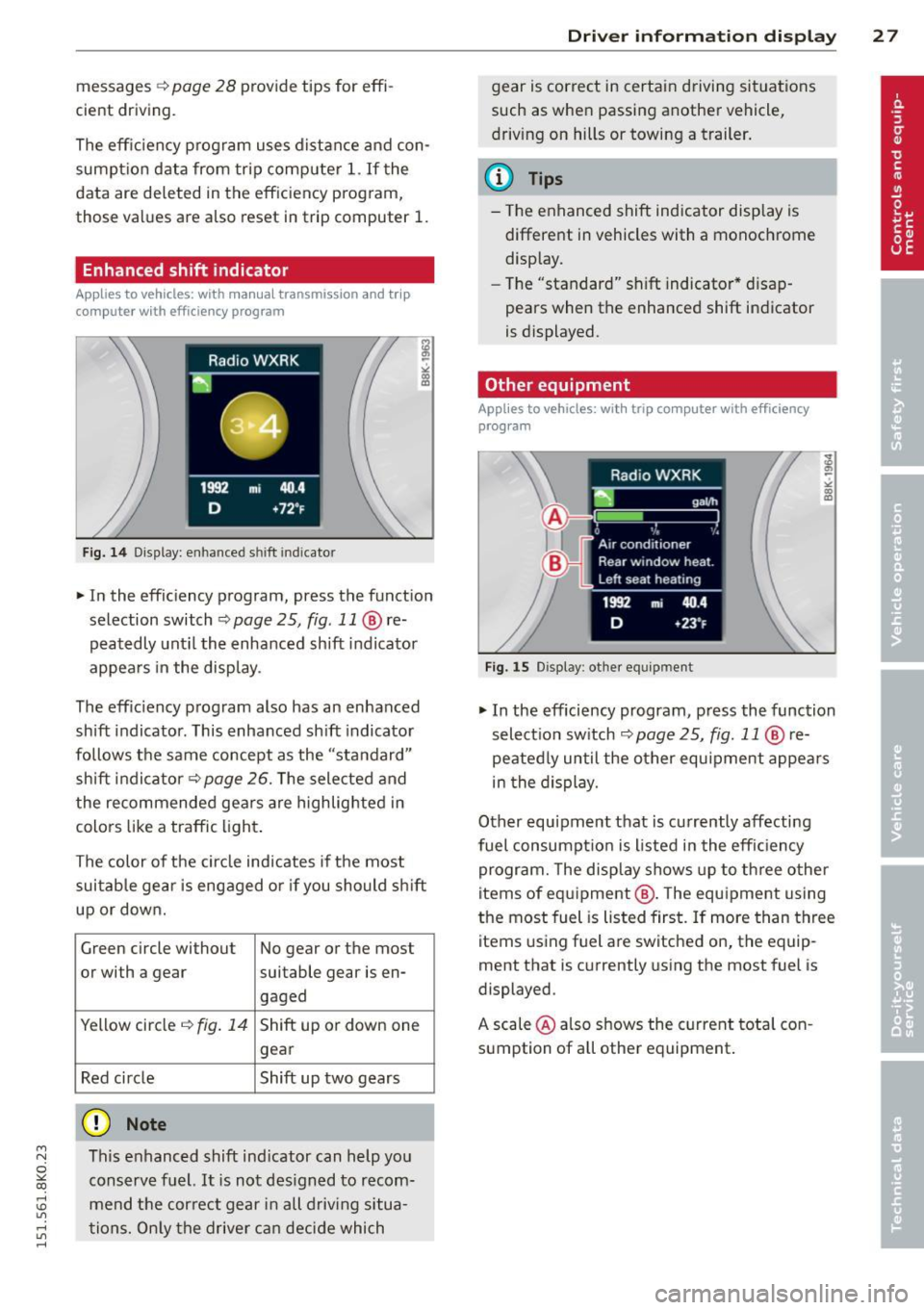

Enhanced shift indicator
Applies to vehicles: with manual transmission and trip
computer with efficiency program
Fig. 1 4 Display: enhanced shift indicator
~ In the efficiency program, press the function
selection switch ¢
page 25, fig. 11 @ re­
peatedly unt il the enhanced sh ift indicator
appea rs in the di sp lay .
The eff ic iency program also has an enhanced
shift indicator. This enhanced sh ift indicator
follows the same concept as the "standard"
shift indicator¢
page 26. The selected and
the recommended gea rs a re highlig hted in
colors like a traffic light .
The color of the circle indicates if the most
suitab le gear is engaged or if you sho uld sh ift
up or down.
Green circle without No gear or the most
or with a gear suitable gear is en-
gaged
Yellow circle ¢
fig. 14
Shift up or down one
gear
Red circle Shift up two gears
(D Note
This enhanced shift ind icator can help you
conserv e fuel. It is not des ign ed to recom­
mend the cor rect gear in a ll driving situa­
tions. Only the driver ca n dec ide which
Dri ver inform ation di spl ay 2 7
gear is correct in certain d riving situations
such as when passing another vehicle,
driving on hills or towing a trailer .
(D Tips
- The e nhanced shift indicator display is
different in vehicles with a monochrome
display.
- The "standard" shift indicato r* d isap­
pears when the enhanced shift indicator
is displayed.
Other equipment
Appl ies to vehicles : with trip computer with efficiency
program
F ig. 15 Display: othe r equipment
~ In the efficiency program, p ress the function
selectio n sw itch
¢ page 2 5, fig. 11 @ re­
peated ly until the ot her equ ipment appea rs
in the display.
Other equ ipment that is currently affecting
fuel consump tion is listed in the effi ciency
program. The disp lay shows up to th ree other
items of eq uipment @. The equ ipment using
the most fuel is listed first. If more than three
items using fuel a re switched on, the equip­
ment that is currently using the most fuel is
displayed.
A scale @also shows the c urrent tota l con ­
sumption of all othe r equipment .

28 Driver information d isplay

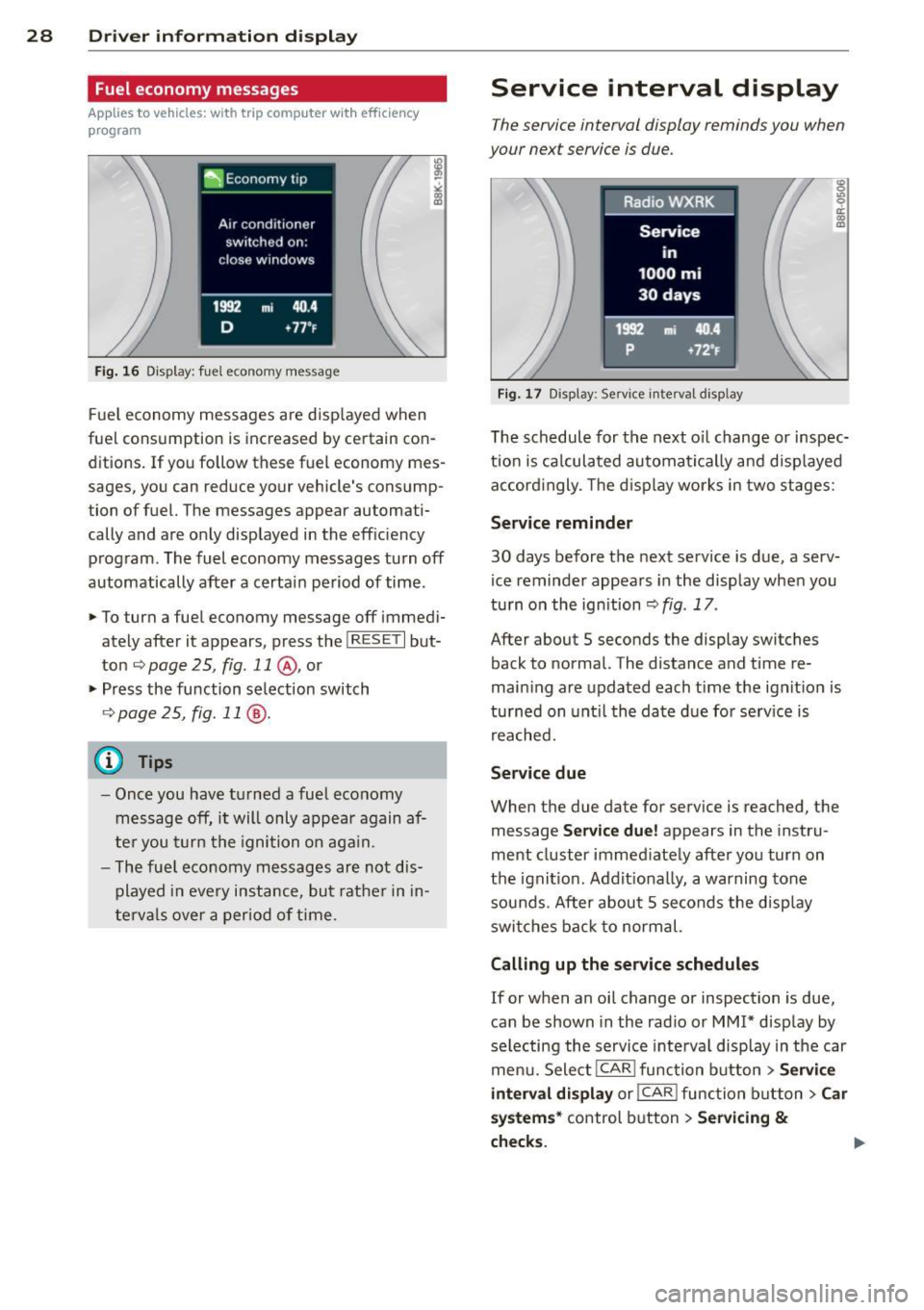

Fuel economy messages
App lies to vehicles: with trip computer w ith eff ici ency
program
Fig. 16 Display: fuel economy message
F ue l economy messages are disp layed when
fuel consumption is increased by certain con­ ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump­
tion of fuel. The messages appear automati­
cally and are only displayed in the efficiency program. The fuel economy messages turn
off
automatically after a certain period of time.
~ To turn a fuel economy message off immedi­
ately after it appears, press the lRESET I but­
ton
c::> page 25, fig. 11 @ , or
~ Press the function selection switch
c::> page 2 5, fig. 11 @ .
(D Tips
-Once you have turned a fuel economy
message
off, it will only appear again af­
ter you turn the ignition on aga in.
- The fuel economy messages are not dis­
played in every instance, but rather in in­
tervals over a period of time.
Service interval display
The service interval display reminds you when
your next service is due.
Fig. 17 Display: Service interval display
The schedule for the next o il change or inspec­
tion is ca lculated automatically and displayed
accord ingly. The d isp lay works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
turn on the ign ition
c::> fig . 17 .
After about 5 seconds the display switches
back to normal. The distance and time re­
main ing are updated each time the ignit ion is
turned on until the date due for serv ice is
reached.
Service due
When the due date for service is reached, the message
Service due! appears in the instru­
ment cluster immed iately after you turn on
the ignition. Additional ly, a warning tone
sounds. After about 5 seconds the disp lay
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the rad io or MMI* display by
selecting the service interval display in the car
menu. Select !CAR I function button
> Service
interval display
o r! CAR I function button > Car
systems*
control button > Servicing &
checks.
