AUDI A4 2019 Owners Manual

8W0012721BG
CheckingandFilling

Leadbattery
Explanationofwarnings:

Alwaysweareyeprotection.

Batteryacidishighlycorrosive.Always
wearprotectiveglovesandeyeprotection.

Fire,sparks,openflame,andsmokingare
forbidden.

A
Ahighlyexplosivemixtureofgasescan
formwhenchargingbatteries.

® ®
Alwayskeepchildrenawayfrombattery
acidandthebattery.

e/
oo

Alwaysfollowtheinstructionsintheoper-
atingmanual.

@

Forthesakeoftheenvironment
¥Donotdisposeofleadbatteriesin
householdtrash.Theycontainharmfulsub-
stances,suchassulfuricacidandlead,andal-
sorecyclablerawmaterials.Contactanau-
thorizedAudidealerorauthorizedAudiServ-
iceFacilityformoreinformation.
oyi1ayh48
Explanationofwarnings:

®
Fire,sparks,openflame,andsmokingare
forbidden.

®
Alwayskeepchildrenawayfrombattery
acidandthebattery.

@/
faa)

Alwaysfollowtheinstructionsintheoper-
atingmanual.


Havetheaffectedareaexaminedbyamedi-

calprofessional.


ZN
-Th

Allworkonthebatteriesmustonlybeper-
formedbyanauthorizedAudidealerorau-
thorizedAudiServiceFacility.
—Gasesthatescapefromthesedifferentbat-
terytypescanbepoisonousorflammable.
corrosive.Ifanybatterycontentscomeinto
contactwiththeskin,flushtheaffected
areaforatleast15minuteswithcleanwa-
ter.Thenwashtheaffectedareawithsoap.
WARNING
econtentsofthesebatterytypescanbe

()Note
Components mustnot beconnectedtothe
batteryterminalsandwiresonthesebattery
typesbecausethisincreasestheriskofdam-
age,forexampleduetoovervoltage.
@)Forthesakeoftheenvironment

iesinhouseholdtrash.Theycontainharmful
substancesandrecyclablerawmaterials.Con-
tactanauthorizedAudidealerorauthorized
AudiServiceFacilityformoreinformation.
Chargingthebattery

Fig.260Enginecompartment:connectorsforachargeror
jumpstartcables
Notethesafetyprecautions>page309,Work-
ingintheenginecompartment,>/\inBattery
generalinformationonpage318and>/\.
Requirement:onlyusechargers withamaximum
chargingcurrentof14.8volts.Thebatteryca-
blesremainconnected.
>Switchofftheignitionandallelectricalequip-
ment.
>Openthehood>page310.
>Opentheredcoveronthepositiveterminal
>fig.260.
>Clampthechargerterminalclampstothejump
startpinsaccordingtotheinstructions.(pinun-
der thecover=“positive”,pinwithhexagonal
head=“negative”).
>Insertthepowercableforthechargingdevice
intothesocketandswitchthedeviceon.
319
XXDonotdisposeofthesetypesofbatter-
>

CheckingandFilling

>Attheendofthechargingprocess,switchthe
chargeroffandpullthepowercableoutofthe
socket.
>Removethechargingdeviceterminalclamps.
>Closetheredcoveronthepositiveterminal.
>Closethehood>page310.

ZXWARNING
—Neverconnectthechargingcabledirectlyto
yourvehiclebattery.Onlyuse the connec-
tionsintheenginecompartment
=>page319.
—Ahighlyexplosivemixtureofgasescanform
whenchargingbatteries.Onlychargethe
batteryinwell-ventilatedareas.
—Adrainedbatterycanfreezeattempera-
turesaround329F(02C).Donotchargeor
useafrozenorthawedbattery.If iceforms,
thebatteryhousingcancrackandbattery
electrolytecanleakout,whichincreasesthe
riskofanexplosionandchemicalburns.
Contact anauthorizedAudidealerorauthor-
izedAudiServiceFacilityformoreinforma-
tion.
—Donotconnectordisconnectthecharging
cablewhilechargingbecausethisincreases
theriskofanexplosion.

@)Tips
Readallofthemanufacturer'sinstructions
forthechargerbeforechargingthebattery.
Windshieldwasher
system

B8W-0125



Fig.261Enginecompartment:washerfluidreservoircap
ThewindshieldwasherfluidreservoirScontains
thecleaningsolutionforthewindshieldandthe
320
headlightwashersystem*>page311,fig.256.
Thereservoircapacitycanbefoundin
=>page373.
Toreducetheriskoflimescaledepositsonthe
spraynozzles,usecleanwaterwithlowamounts
ofcalcium.Alwaysaddwindowcleanertothewa-
ter.Whentheoutsidetemperaturesarecold,an
anti-freezingagentshould beaddedtothewater
sothatitdoesnotfreeze.
C)Note
— Theconcentrationofanti-freezingagent
mustbeadjustedtothevehicleoperating
conditionsandtheclimate.Aconcentration
thatistoohighcanleadtovehicledamage.
—Neveraddradiatoranti-freezeorotheraddi-
tivestothewasherfluid.
—Donotuseaglasscleanerthat contains
paintsolvents,becausethiscoulddamage
thepaint.
Serviceintervaldisplay
Theserviceintervaldisplaydetectswhenyourve-
hicleisdueforservice.
Checkingserviceintervals
Youcan checktheremainingdistanceortimeun-
tilthenextoilchangeornextinspectioninthe
Infotainmentsystem.

>SelectintheInfotainmentsystem:the[MENU
button>Vehicle>leftcontrolbutton>Service
&checks>Serviceintervals.

Resettingtheindicator
AnauthorizedAudidealerorauthorizedAudi
ServiceFacilitywillresettheserviceintervaldis-
playafterperformingservice.
Ifyouhavechangedtheoilyourself,youmustre-
settheoilchangeinterval.

>SelectintheInfotainmentsystem:the|MENU
button>Vehicle>leftcontrolbutton>Service
&checks>Serviceintervals>Resetoilchange
interval.

8W0012721BG
CheckingandFilling

Ifanoilchangeorinspectionisdue,youcanac-
cessitintheInfotainmentsystem.Thedisplay
worksintwostages:
—Servicereminder:afteracertaindistanceis
driven,amessageappearsintheinstrument
clusterdisplayeverytimetheignitionisswitch-
edon.Theremainingdistanceandtimeisdis-
playedbriefly.
—Servicedue:ifyourvehiclehasreachedaserv-
iceinterval,amessageappearsbrieflyafter
switchingtheignitionon.
()Note
—Onlyresettheoilchangeindicatoriftheoil
waschanged.
—Followingtheserviceintervalsiscriticalto
maintainingtheservicelifeandvalueof
yourvehicle,especiallytheengine.Evenif
themileageonthevehicleislow,donotex-
ceed thetimeforthenextservice.
321

Wheels

Wheels Wheels
andTires
Generalinformation
>Checkyourtiresregularlyfor
damage,suchaspunctures,
cuts,cracks,andbulges.Remove
foreignobjectsfromthetire
tread.
>Ifdrivingovercurbsorsimilar
obstacles,driveslowlyandap-
proachthecurbatanangle.
>Havefaultytiresorrimsre-
placedimmediately.
>Protectyourtiresfromoil,
grease,andfuel.
>Marktiresbeforeremoving
themsothatthesamerunning
directioncanbemaintainedif
theyarereinstalled.
>Laytiresflatwhenstoringand
storetheminacool,drylocation
withaslittleexposuretolightas
possible.

AWARNING
—Neverdrivefasterthanthe
maximumpermittedspeedfor
yourtires.Thiscouldcausethe
tirestoheatuptoomuch.This
increasestheriskofanacci-
dentbecauseitcancausethe
tiretoburst.

322


—Alwaysadaptyourdrivingto
theroadandtrafficcondi-
tions.Drivecarefullyandre-
duceyourspeedonicyorslip-
peryroads.Evenwintertires
canlosetractiononblackice.

()Note
—Pleasenotethatsummerand
wintertiresaredesignedfor
theconditionsthataretypical
inthoseseasons.Audirecom-
mendsusingwintertiresdur-
ingthe wintermonths.Low
temperaturessignificantlyde-
creasetheelasticityofsumm-
ertires,whichaffectstraction
andbrakingability.Ifsummer
tiresareusedinverycoldtem-
peratures,crackscanformon
thetreadbars,resultingin
permanenttiredamagethat
cancauselouddrivingnoise
andunbalancedtires.
—Burnished,polishedor
chromedrimsmustnotbe
usedinwinterdrivingcondi-
tions.Thesurfaceoftherims
doesnothavesufficientcorro-
sionprotectionforthisand
couldbepermanentlydam-
agedbyroadsaltorsimilar
substances.

8W0012721BG
Wheels

Tiredesignations

B8K-2316


Fig.262Tiredesignationsontheside-
wall
@Tiresforpassengervehicles
(ifapplicable)
"P"indicatesatireforapassenger
vehicle."T"indicatesatiredesig-
natedfortemporaryuse.
@Nominalwidth
Nominalwidthofthetirebe-
tweenthesidewallsinmillime-
ters.Ingeneral:thelargerthe
number,thewiderthetire.
@)Aspectratio
Height/widthratioexpressedasa
percentage.
@Tireconstruction
“R"indicatesaradialtire.
©)Rimdiameter
Sizeoftherimdiameterininches.
©Loadindexandspeedrating
Theloadindexindicatesthetire's
load-carryingcapacity.
Thespeedratingindicatesthe
maximumpermittedspeed.Also
see>AinGeneralinformationon
page322.
“EXTRALOAD”,“xl”or“RF”indi-
catesthatthetireisreinforcedor
isanExtraLoadtire.






Speedrat-/Maximumpermittedspeed
ing
Pupto93mph(150km/h)
Qupto99mph(160km/h)
Rupto106mph(170km/h)
Supto110mph(180km/h)
Tupto118mph(190km/h)
Uupto124mph(200km/h)
Hupto130mph(210km/h)
Vvupto149mph(240km/h)?
Zzabove149mph(240km/h)?
wupto168mph(270km/h)?
Yupto186mph(300km/h)?

@)Fortiresabove149mph(240km/h),
tiremanufacturerssometimesusethe
code“ZR”.
323

Wheels

@USDOTnumber(TIN)and
manufacturedate
Themanufacturedateislistedon
thetiresidewall(itmayonlyap-
pearontheinnersideofthetire):
DOT...2218...
means,forexample,thatthetire
wasproducedinthe22ndweekof
theyear2018.
@)AudiOriginalTires
AudiOriginalequipmenttires
withthedesignation“AO”have
beenspeciallymatchedtoyour
Audi.Whenusedcorrectly,these
tiresmeetthehigheststandards
forsafetyandhandling.Anau-
thorizedAudidealerorauthor-
izedAudiServiceFacilitywillbe
abletoprovideyouwithmorein-
formation.
@)Mudandsnowcapability
“M/S”or“M+S”indicatesthetire
issuitablefordrivingonmudand
snow./A\indicatesawintertire.
Compositionofthetirecord
andmaterials
Thenumberofpliesindicatesthe
numberofrubberizedfabriclay-
ersinthetire.Ingeneral:the
morelayers,themoreweighta
tirecancarry.Tiremanufacturers
324
mustalsospecifythematerials
usedinthetire.Theseinclude
steel,nylon,polyesterandother
materials.
@)Maximumpermittedload
Thisnumber indicatesthemaxi-
mumloadinkilogramsand
poundsthatthetirecancarry.
@Uniformtirequalitygrade
standardsfortreadwear,
tractionandtemperature
resistance
Treadwear,tractionand tempera-
tureranges>page339.
@Runningdirection
Thearrowsindicatetherunning
directionofunidirectionaltires.
Youmustalwaysfollowthespeci-
fiedrunningdirection
>page354.
Maximumpermitted
inflationpressure
Thisnumber indicatesthemaxi-
mumpressuretowhichatirecan
beinflatedundernormaloperat-
ingconditions.

8W0012721BG
Wheels

Glossaryoftireandloading
terminology
Accessoryweight
meansthecombinedweight(in
excessofthosestandarditems
whichmaybereplaced)ofauto-
matictransmission,powersteer-
ing,powerbrakes,powerwin-
dows,powerseats,radio,and
heater,totheextentthatthese
itemsareavailableasfactory-in-
stalledequipment(whetherin-
stalledornot).
Aspectratio
meanstheratioofthe heightto
thewidthofthetireinpercent.
Numbersof55orlowerindicatea
lowsidewallforimprovedsteer-
ingresponseandbetteroverall
handlingondrypavement.
Bead
meansthepartofthetirethatis
madeofsteelwires,wrappedor
reinforcedbyplycordsandthatis
shapedtofittherim.
Beadseparation
meansabreakdownofthebond
betweencomponentsinthebead.
Cord
meansthestrandsformingthe
pliesinthetire.
Coldtireinflationpressure
meansthetirepressurerecom-
mendedbythevehiclemanufac-
turerforatireofadesignated
sizethathasnotbeendrivenfor
morethanacoupleofmiles(kilo-
meters)atlowspeedsinthethree
hourperiodbeforethetirepres-
sureismeasuredoradjusted.
Curbweight
meanstheweightofamotorve-
hiclewithstandardequipmentin-
cludingthemaximumcapacityof
fuel,oil,andcoolant,aircondi-
tioningandadditionalweightof
optionalequipment.
Extraloadtire
meansatiredesignedtooperate
athigherloadsandathigherin-
flationpressuresthanthecorre-
spondingstandardtire.Extraload
tiresmaybeidentifiedas“XL”,
“xL’,“EXTRALOAD”,or“RF”on
thesidewall.
325

Wheels

GrossAxleWeightRating
(“GAWR”)
meanstheload-carryingcapacity
ofasingleaxlesystem,measured
atthetire-groundinterfaces.
GrossVehicleWeightRating
(“GVWR”)
meansthemaximumtotalloaded
weightofthevehicle.
Groove
meansthespacebetweentwoad-
jacenttreadribs.
Loadrating(code)
meansthemaximumloadthata
tireisratedtocarryforagivenin-
flationpressure.Youmaynotfind
thisinformationonalltiresbe-
causeitisnotrequiredbylaw.
Maximumloadrating
meanstheloadratingforatireat
themaximumpermissibleinfla-
tionpressureforthattire.
Maximumloadedvehicle
weight
meansthesumof:
(a)Curbweight
(b)Accessoryweight
(c)Vehiclecapacityweight,and
(d)Productionoptionsweight
326
Maximum(permissible)
inflationpressure
meansthemaximumcoldinfla-
tionpressuretowhichatiremay
beinflated.Alsocalled“maxi-
muminflationpressure.”
Normaloccupantweight
means150lbs.(68kilograms)
timesthenumberofoccupants
seatedinthevehicleuptotheto-
talseatingcapacity ofyourvehi-
cle.
Occupantdistribution
meansdistributionofoccupants
inavehicle.
Outerdiameter
meanstheoveralldiameterofan
inflatednewtire.
Overallwidth
meansthelineardistancebe-
tweentheexteriorsoftheside-
wallsofaninflatedtire,including
elevationsduetolabeling,deco-
rations,orprotectivebandsor
ribs.
Ply
meansalayerofrubber-coated
parallelcords.

8W0012721BG
Wheels

Productionoptionsweight
meansthecombinedweightof
thoseinstalledregularproduction
optionsweighingover5lbs.
(2.3kg)inexcessofthosestand-
arditemswhichtheyreplace,not
previouslyconsideredincurb
weightoraccessoryweight,in-
cludingheavy dutybrakes,ride
levelers,roofrack,heavyduty
battery,andspecialtrim.
Radialplytire
meansapneumatictireinwhich
theplycordsthatextendtothe
beadsarelaidatsubstantially
90degreestothecenterlineof
thetread.
Recommendedinflation
pressure
see>page325,Coldtireinfla-
tionpressure.
Reinforcedtire
meansatiredesignedtooperate
athigherloadsandathigherin-
flationpressuresthanthecorre-
spondingstandardtire.Rein-
forcedtiresmaybeidentifiedas
“XL”,“xl”,“EXTRALOAD”,or“RF”
onthesidewall.
Rim
meansametalsupportforatire
oratireandtubeassemblyupon
whichthetirebeadsareseated.
Rimdiameter
meansnominaldiameterofthe
beadseat.Ifyouchangeyour
wheelsize,youwillhavetopur-
chasenewtirestomatchthenew
rimdiameter.
Rimsizedesignation
meansrimdiameterandwidth.
Rimwidth
meansnominaldistancebetween
rimflanges.
Sidewall
meansthatportionofatirebe-
tweenthetreadandbead.
Speedrating(lettercode)
meansthespeedatwhichatireis
designedtobedrivenforextend-
edperiodsoftime.Theratings
rangefrom93mph(150km/h)
to186mph(298km/h)>table
onpage323.Youmaynotfind
thisinformationonalltiresbe-
causeitisnotrequiredbylaw.
Thespeedratinglettercode,
whereapplicable,ismoldedon
thetiresidewallandindicatesthe>
327

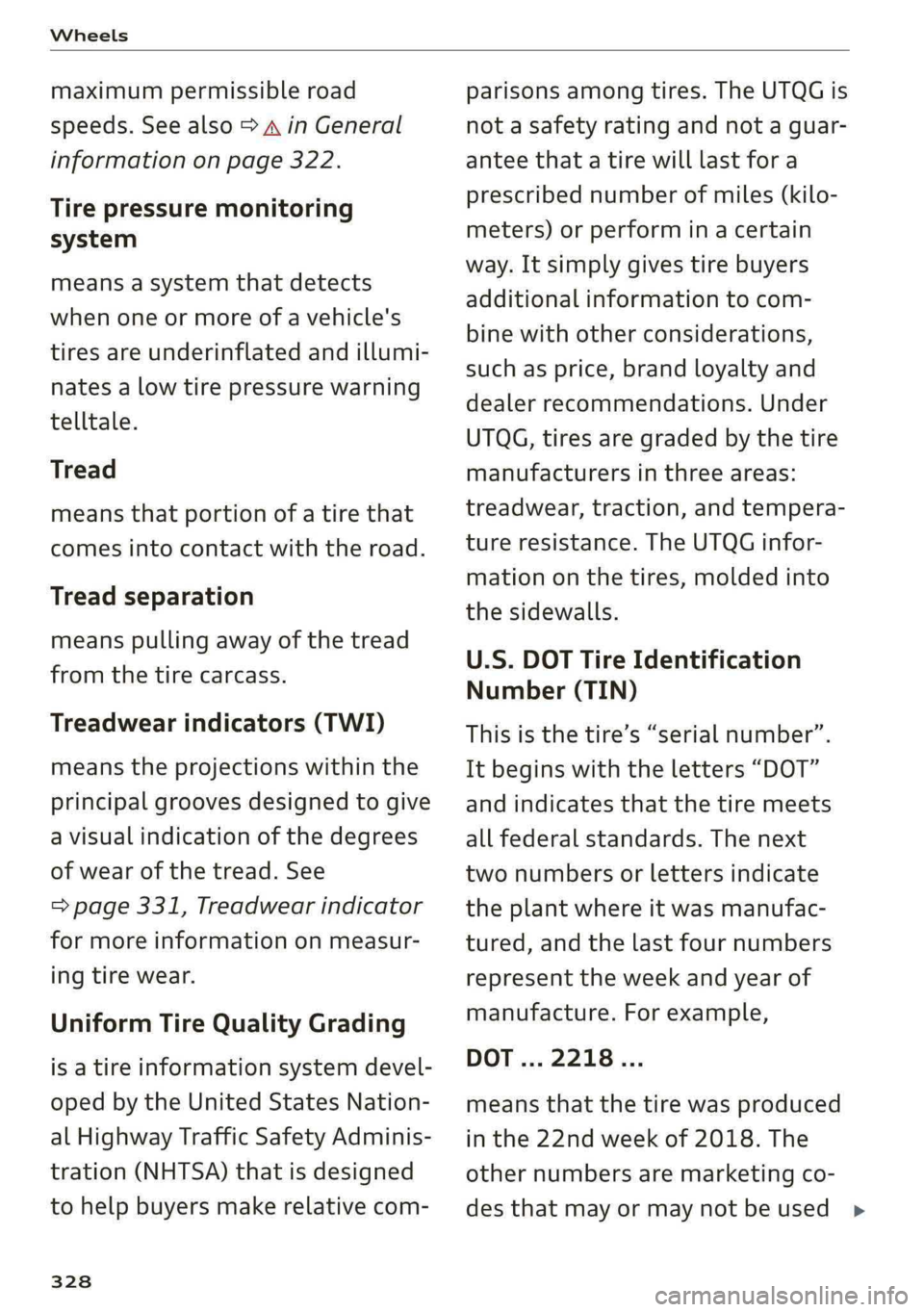

Wheels

maximumpermissibleroad
speeds.Seealso>AinGeneral
informationonpage322.
Tirepressuremonitoring
system
meansasystemthat detects
whenoneormoreofavehicle's
tiresareunderinflatedandillumi-
natesalowtirepressurewarning
telltale.
Tread
meansthatportionofatirethat
comesintocontactwiththeroad.
Treadseparation
meanspullingawayofthetread
fromthetirecarcass.
Treadwearindicators(TWI)
meanstheprojectionswithinthe
principalgroovesdesignedtogive
avisualindicationofthedegrees
ofwearofthetread.See
=>page331,Treadwearindicator
formoreinformationonmeasur-
ingtirewear.
UniformTireQualityGrading
isatireinformationsystemdevel-
opedbytheUnitedStates Nation-
alHighwayTrafficSafetyAdminis-
tration(NHTSA)thatisdesigned
tohelpbuyersmakerelativecom-
328
parisonsamongtires.TheUTQGis
notasafetyratingandnotaguar-
anteethatatirewill lastfora
prescribednumberofmiles(kilo-
meters)orperforminacertain
way.Itsimplygivestirebuyers
additionalinformationtocom-
binewithotherconsiderations,
suchasprice,brandloyaltyand
dealerrecommendations.Under
UTQG,tiresaregradedbythetire
manufacturersinthreeareas:
treadwear,traction,andtempera-
tureresistance.TheUTQGinfor-
mationonthetires,moldedinto
thesidewalls.
U.S. DOTTireIdentification
Number(TIN)
Thisisthetire’s“serialnumber”.
Itbegins withtheletters“DOT”
andindicatesthatthetiremeets
allfederalstandards.Thenext
twonumbersorlettersindicate
theplantwhereitwasmanufac-
tured,andthelastfournumbers
representtheweekandyearof
manufacture.Forexample,
DOT...2218...
meansthatthetirewasproduced
inthe22ndweekof2018.The
othernumbersaremarketingco-
desthatmayormaynotbeused>
