___ T_ i_ r_e _s_ a_ n_ d_ vv_ h_ e_ e _ ls _________________________________________________ _

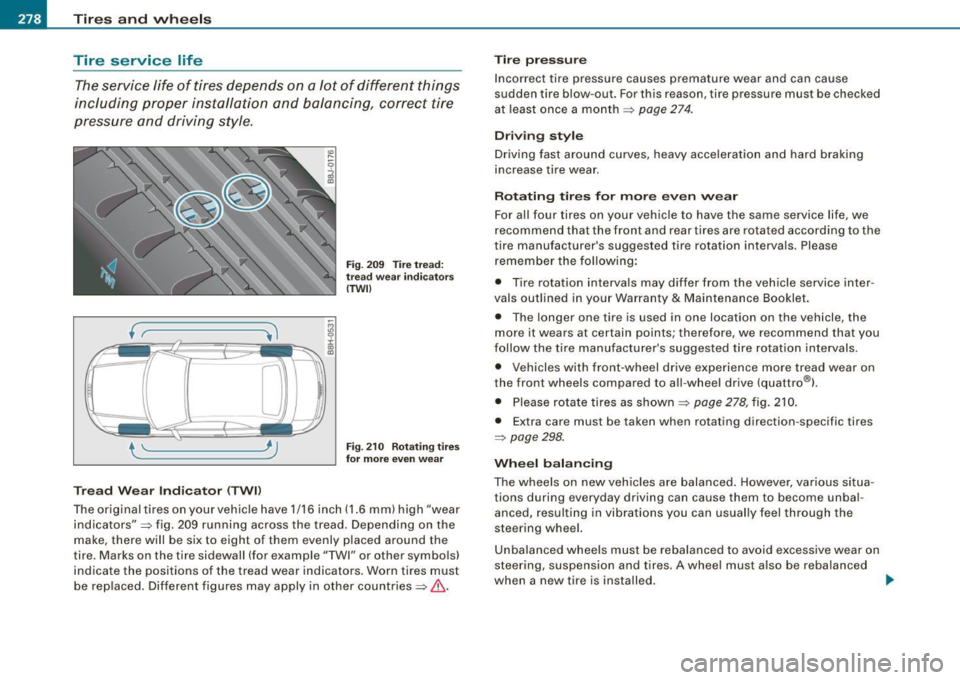

Tire service life
The service life of tires depends on a lot of different things
including proper installation and balancing, correct tire
pressure and driving style .
(r------,')
l "------J)
Tread Wear Indicator ( TWll
ij
:c ., m
Fig. 209 Tire tre ad:
t read wear ind ica to rs
(TW IJ
Fig . 2 10 Rot ati ng tire s
for mo re even w ear
The orig inal tires on your vehic le have 1 /16 inch (1.6 mm) high "wear
indicators "~ fig. 209 running across the tread . Depending on the
make , there will be six to eight of them evenly p laced around the
tire . Marks on the tire sidewall (for example "TWI" or other symbo ls)
indicate the positions of the tread wear indicators . Worn tires must
be replaced. Dif ferent figures may apply in other countries~&.
Tire pre ssure
Incorrect tire pressure causes premature wear and can cause
sudden tire blow-out . For this reason , tire pressure mus t be checked
at least once a month~
page 274.
Driving style
Driving fast around curves, heavy acce leration and hard braking
increase tire wear .
Rotating t ires for more even wear
For all four tires on your vehicle to have the same service life, we
recommend that the front and rear tires are rota ted according to the
tire manufacturer's suggested tire rotation interva ls . Please
remember the following:
• Tire rotation interva ls may differ from the vehicle service inter­
vals out lined in your Warran ty
& M aintenance Booklet .
• The longer one tire is used in one locat ion on the vehicle, the
more it wears at certain po ints; therefore, we recommend that you
follow the tire manufacturer 's suggested t ire rotation intervals .
• Vehicles with front -wheel drive experience more tread wear on
the front wheels compared to al l-wheel drive (quattro®) .
• Please rotate tires as shown ~
page 278, fig. 210 .
• Extra care must b e taken wh en rotat ing dir ection -specific tires
~ page 298.
Wheel balan cing
The wheels on new vehicles are balanced. However, various situa­
tions during everyday dr iving can cause them to b ecome unbal ­
anced, resulti ng in vibra tions you can usually feel through the
ste ering whee l.
Unbalanced wheels must be rebalanced to avoid excessive wear on
steering , suspension and tires . A wheel must also be reba lanced
when a new tire is installed.
~

-~_T_ ir_e_ s_ a_ n_d _ w_ h_ e_e _l_s _________________________________________________ _
toring system* would not be able to monitor the tire pressure or
warn you if it is necessa ry.
• T he battery inside of the tire pressure sensor has a limited
service life.
• Always drive with the valve stem caps securely mounted. We
r ecommend us ing facto ry insta lled va lve stem caps. Ask you r autho ­
rized Audi dealer to replace lost va lve stem caps.
T he installation of rep lacement tires with steel cord body p lies in
t he tire sidewall may cause mal functi on of the tir e pressure mo ni­
toring system , and is not recommended (cord material information
in mo lded o n th e ti re sid ewa ll) .
Always check your tire pressure monitoring system * indicator after
r eplacing one or mo re ti res on your veh ic le . I f the ti re p ress ure
m onito ring syste m* ind icator flashes, or is o n, your s ystem is not
wo rking properly . Your replacement t ire might be incompatible with
yo ur tir e pressure mon ito ring system* , o r so me compo nen t of th e
tire p ressure monitoring system * may be damaged .
& WARNING
• Using incorrect or unmatched tires and I or wheels or improper
tire and wheel combinations can lead to loss of control , collision
and serious personal injury .
• Always use t ires , rims and wheel bolts that meet the specifica­
tions of original factory-installed tires or other combinations that
have been specifically approved by the vehicle manufacturer.
• Tires age even if they are not being used and can fa il suddenly,
espe cially at high speeds . Tires that are more than 6 years old can
only be used in an emergency and then with special care and at
lower speed s.
• Never mount used tire s on your vehicle if you are not sure of
their "previous history ." Old used tire s may have been damaged
even though the damage cannot be seen that can lead to sudden
tire f ailure and loss of vehicle control.
& W ARNING (continued )
• All four wheels mu st be fitted with radial tires of the same type,
size (rolling circumference ) and the same tread pattern. Driv ing
with different tires redu ces vehicle h andling and can lead to a loss
of control.
• If the spare tire is not the same as the tires that are mounted
on the vehicle - for e xample with winter tire s - only u se the spare
tire for a short period of time and drive with extra care . Refit the
normal road wheel as soon as safely possible.
• Never drive faster than the maximum speed for which the tires
on your vehicle are rated because tires that are driven faster than
the ir rated speed can fail suddenly .
• Overloading tires cause heat build-up, sudden tire failure ,
including a blowout and sudden deflation and loss of control .
• Temperature grades apply to tires that are properly inflated and
not over or underinflated .
• For te chnical reasons it is not always possible to use wheels
from other vehicle s -in some cases not even wheels from the
same vehicle model.
• If you install wheel trim discs on the vehicle wheels, make sure
that the air flow to the brakes is not blocked. Redu ced airflow to
the brakes can them to overheat , increasing stopping distances
and causing a collision.
• Run flat tire s may only be used on vehicle s that were equipped
with them at the fa ctory . The vehicle must have a cha ssis designed
for run flat tires and a factory -installed tire pressure monitoring
s ystem that indicate s a loss of tire pressure . Incorre ct use of run
flat tires can lead to vehicle damage or accidents . Check with an
autho rized Audi dealer or t ire specialist to see if your vehicle can
be equipped with run flat tires .
If run flat tires are used , they mu st
be installed on all four wheels . Mixing tire types is not permitted. .,
