___ C_ le_ a _ n_i_n ~g _ a_ n_ d __ p_r _o _t _e _c_ t_ i_o _n ___________________________________________ _
in pores, folds, and seams can have an abrasive effect and can
damage the leather surface as well as weaken seams.
The leather should be cleaned regularly as needed . After having
been used for a relatively long time, your leather seats will acquire
a rich aged finish. This is a characteristic of natural leather and a
sign of true quality.
In order to maintain the value of this natural product over the life of
your vehicle, you should follow the recommendations below :
0 Note
• To keep your leather from bleaching out, do not allow it to be
exposed to bright sunlight for long periods of time. If you have to
leave the vehicle parked outside for long periods, cover the leather
to protect it from direct exposure to sunlight.
• Sharp objects on clothing, such as zippers, rivets or sharp pieces
on belts can leave permanent scratches or scrape marks on the
surface of the leather .
[ i ] Tip s
• After each time you clean the leather and at regu lar intervals, use
a leather preservative creme that contains UV -blockers and that
works into the leather. This creme will nourish and moisturize the leather, helping it to breathe and stay supple . It also helps to build
up a protective coating on the surface .
• Clean the leather every 2 -3 months, and clean any areas that get
soiled.
• Remove fresh marks made by ballpoint pens, ink, lipstick, shoe
polish, etc . as soon as possible.
• Preserve the color of the leather as needed by using a special
colored leather care creme to touch up areas of uneven color .•
Ap plies to vehi cles: w it h n atu ral leather

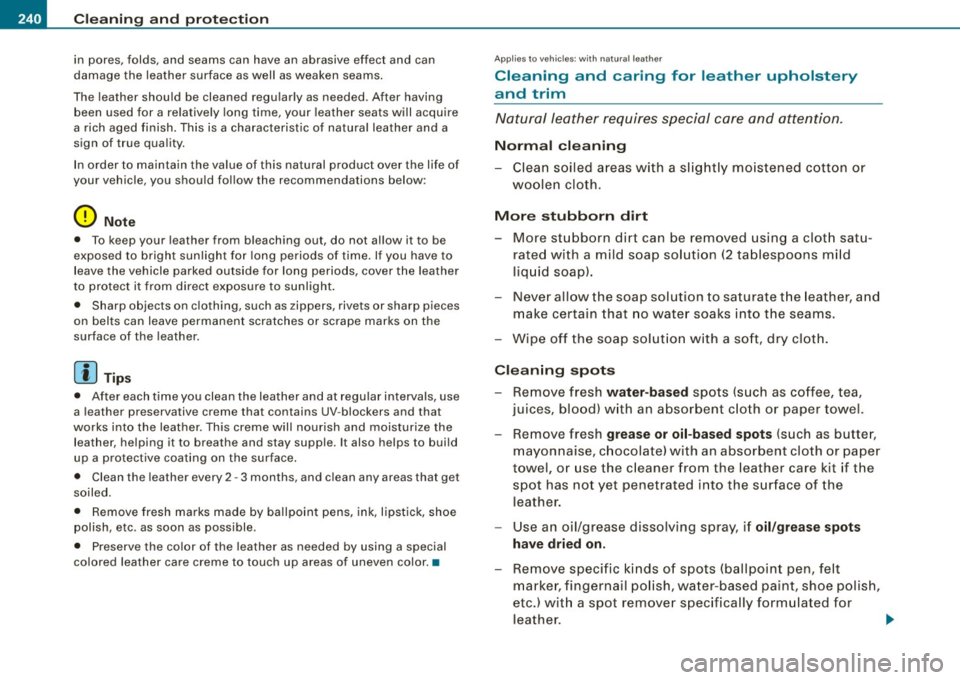

Cleaning and caring for leather upholstery
and trim
Natural leather requires special care and attention.
Norm al c leaning
- Clean soiled areas with a slig htly mo istened cotton or
woolen cloth.
Mor e stubborn dirt
- More stubborn dirt can be removed using a cloth satu­
rated with a mild soap solution (2 tablespoons mi ld
liquid soap).
- Never allow the soap solution to saturate the leather, and
make certain that no water soaks into the seams .
Wipe off the soap solution with a soft, dry cloth.
Cl eaning spot s
- Remove fresh wate r-ba sed spots (such as coffee, tea,
juices, blood) w ith an absorbent c loth or paper towe l.
- Remove fresh greas e or oil-ba sed spots (such as butter,
mayonnaise, chocolate) with an absorbent cloth or paper
towel, or use the c leaner from the leather care kit if the
spot has not yet penetrated into the surface of the leather.
- Use an oil/grease dissolving spray, if oil /gr ease spots
h ave dried on .
- Remove specific kinds of spots (ballpoint pen, felt
marker, fingernail polish, water-based paint, shoe polish,
etc.) with a spot remover specifically formulated for leather . .,_

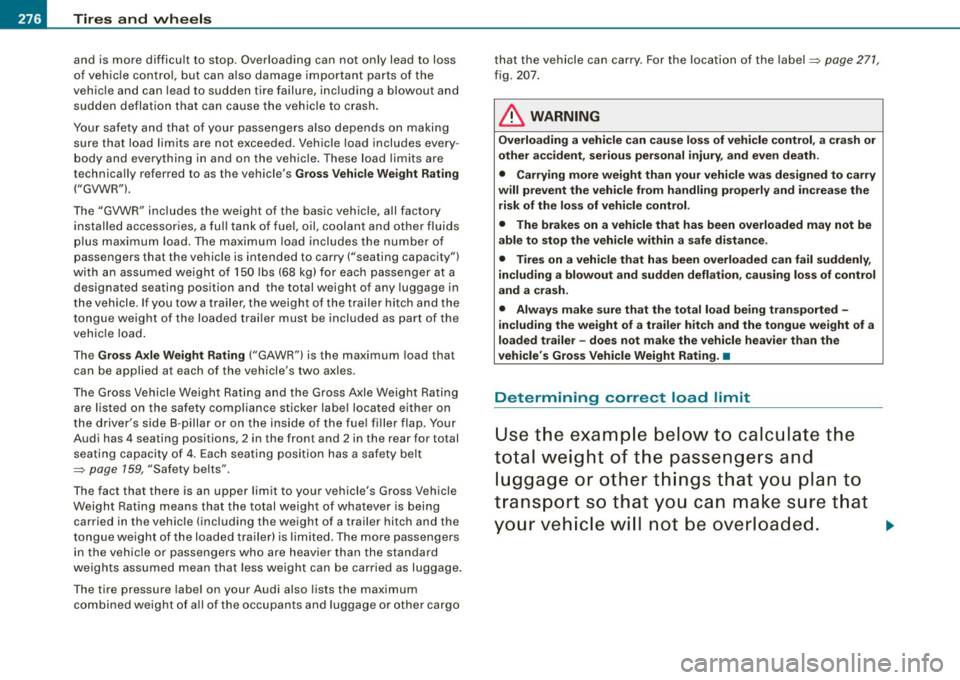

-~_T_ ir_e_ s_ a_ n_d _ w_ h_ e_e _l_s _________________________________________________ _
and is more difficult to stop. Overloading can not only lead to loss
of vehic le contro l, but can also damage important parts of the
vehic le and can lead to sudden tire failure, including a blowout and
sudden deflation that can cause the vehicle to crash .
Your safety and that of your passengers also depends on making sure that load limits are not exceeded . Vehicle load includes every ­
body and everything in and on the veh icle . These load lim its are
technically referred to as the vehicle's
G ross Vehicle Weight R ating
("GVWR").
The "GVWR" includes the weight of the basic vehic le, all factory
installed accessories, a ful l tank of fuel, oil, coolant and other fluids
p lus maximum load. The maximum load includes the number of
passengers that the vehicle is intended to carry ("seating capacity")
with an assumed we ight of 150 lbs (68 kg) for each passenger at a
designated seating position and the total weight of any luggage in
t he vehicle. If you tow a trai ler, the weight of the trailer hitch and the
tongue weight of the loaded trai ler must be included as part of the
vehic le load .
T he
G ros s Axle Weight Rating ("GAWR") is the maximum load that
can be applied at each of the vehicle's two axles .
The Gross Vehicle Weight Rat ing and the Gross Axle Weight Rating
are listed on the safety compliance sticker labe l located either on
the d river's side B -pillar o r on t he inside of the f ue l fi ller flap. Yo ur
Audi has 4 seating positions, 2 in the front and 2 in the rear for total
seating capaci ty of 4. Each seating posi tion has a safety belt
=>
page 159, "Safety be lts" .
T he fact that there is an upper limit to your vehicle's Gross Vehicle
Weight Rating means that the total weight of whatever is being carried in the vehicle (including the weight of a trailer hitch and the
tongue weigh t of the loaded trailer) is lim ite d. The more passengers
in the vehicle or passengers who are heavier than the standard
weights assumed mean that less weight can be carried as luggage.
The tire pressure labe l on your Audi also lists the maximum
combined weight of a ll of the occupants and luggage or othe r cargo that the vehicle can carry
. For the location of the label=>
page 271,
f ig. 207 .
& WARNING
Overloading a vehicle can cau se lo ss of vehicle control , a cra sh or
other a ccident , seriou s personal injury , and even de ath .
• Carrying more weight th an your vehi cle w as designed to ca rry
will prevent the vehi cle from handling properly and in cre ase the
ri sk of the lo ss of vehicle control.
• The brakes on a veh icle th at ha s been overloaded ma y not be
able to stop the vehicle within a safe distance .
• Tire s on a vehicle that has been overloaded can fail suddenly,
i ncluding a blowout and sudden defla tion , cau sin g los s of control
and a crash .
• Alwa ys make sure that the tot al l oad be ing tran sported -
including the weight of a trai ler hit ch and the tongue weight of a
loaded trailer -does not m ake the vehicle heavie r than the
v ehicle 's Gro ss Vehicle Weight Rat ing .•
Determining correct load limit
U se th e exa mple below to calculat e the
total weight of the passengers and luggage or other things that you plan to
tran sport so that you can make sure that
your vehi cle will n ot be ov erlo ad ed.
~

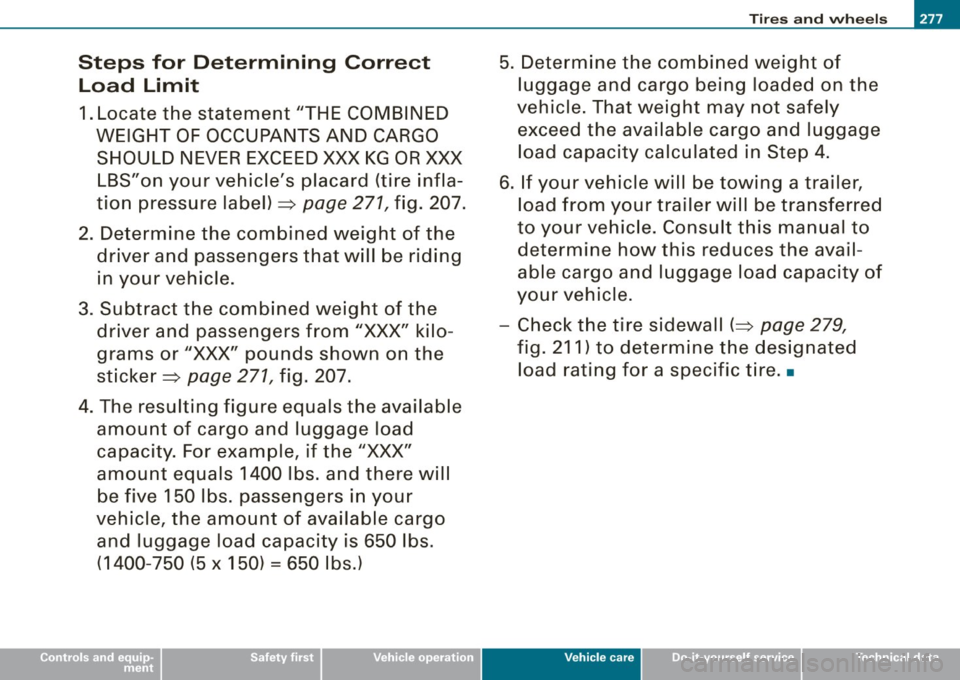

Steps for Determining Correct Load Limit
1. Locate the statement "THE COMBINED
WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX KG OR XXX
LBS"on your vehicle's placard (tire infla­
tion pressure label)=>
page 271, fig. 207.
2. Determine the combined weight of the
driver and passengers that will be riding
in your vehicle.
3. Subtract the combined weight of the
driver and passengers from
"XXX" kilo­
grams or
"XXX" pounds shown on the
sticker=>
page 271, fig. 207.
4. The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the
"XXX"
amount equals 1400 lbs. and there will
be five
150 lbs. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is
650 lbs.
( 1400- 750 (5 x 150) = 650 I bs.)
Tires and wheels 1111111
5. Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step
4.
6. If your vehicle will be towing a trailer,
load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the avail­
able cargo and luggage load capacity of
your vehicle.
- Check the tire sidewall (=>
page 279,
fig. 211) to determine the designated
load rating for a specific tire. •
Vehic le care

1111...__W_ h_ a_ t_d_ o_ l _d _o_ n_ o_ vv_ ? ______________________________________________ _
What do I do now?

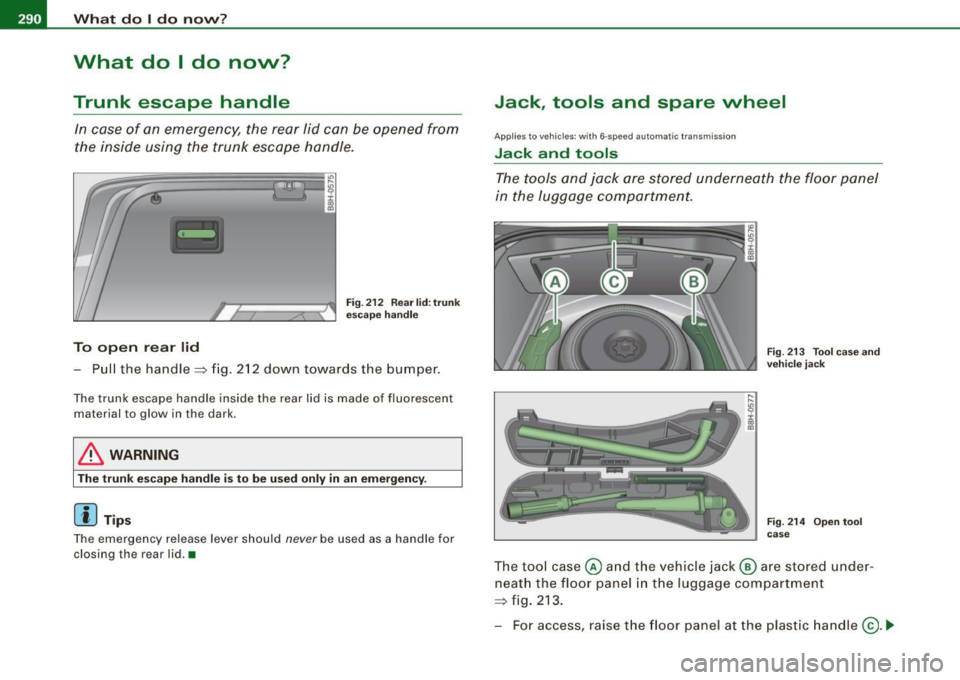

Trunk escape handle
In case of an emergency, the rear lid can be opened from
the inside using the trunk escape handle.
To open rear lid
Fig. 212 Rear lid: trunk
escape handle
-Pull the handle~ fig. 212 down towards the bumper.
The trunk escape handle inside the rear lid is made of fluorescent
material to glow in the dark.
& WARNING
The trunk escape handle is to be used only in an emergency.
[ i ] Tips
The emergency release lever should never be used as a handle for
closing the rear lid. •
Jack, tools and spare wheel
Applies to vehicles: with 6 -speed automatic transmission
Jack and tools
The tools and jack are stored underneath the floor panel
in the luggage compartment.
Fig. 213 Tool case and
vehicle jack
Fig. 214 Open tool
case
The tool case @ and the vehicle jack @ are stored under­
neath the floor panel in the luggage compartment
~ fig. 213.
- For access, raise the floor panel at the plastic handle
@. ~

_______________________________________________ W_ h_ a _ t_d_ o_ l _d _o_ n_ o_ w_ ? _ __,_
- Se curely en gage the han dle in th e lu ggage com partm ent
se al as illust rate d to k eep th e flo or panel up.
- Take o ut tool case and/or jack .
- Dise ngage and lower the floo r panel befo re yo u close the
luggage compa rtment lid again .
The onboard tool kit inc ludes:
• Hook for re moving whee l cove rs*
• Plastic hook to remove wheel bolt covers
• Wheel bolt wrench
• Alignment pin for changing wheels
• Screwdriver with reversible b lade
• Tow ing eye
Before storing the jack, make sure it is wound back down as far as it
wi ll g o.
After use , the jack and tools must be put back in place underneath
the floor panel in the luggage compartment .
Note : some o f the o n board i te m s liste d abo ve are provi ded on
certain models on ly or are optional extras .
& WARNING
Improper use of the vehicle ja ck can cause serious personal inju­
ries .
• Using a bumpe r jack to raise the vehicle will damage the
bumper system . The jack may slip , causing injury .
• Never support your vehicle on cinder blocks , bricks or other
objects . These may not be able to support the load and could
c ause injury when they fail.
• Never start o r run the engine while the vehicle is supported by
the jack.
& WARNING (continued )
• If you must work under the vehicle, always use safety stands
specifically designed for this purpose .
• Never try and use the hexagonal socket in the handle of the
screwdriver to loosen or tighten the wheel bolts.
• Always make sure the spare tire and even a flat tire are secured
in pla ce and not loose , otherwise they could fly forward , causing
personal injury to passengers in the vehicle in an accident or
s udden maneuver .
• Never use the jack supplied with your Audi on another vehicle,
particularly on a heavier one. The jack i s only suitable for use on
the vehicle it came with. •
App lie s to ve hic les : w ith a reg ular sp are whee l

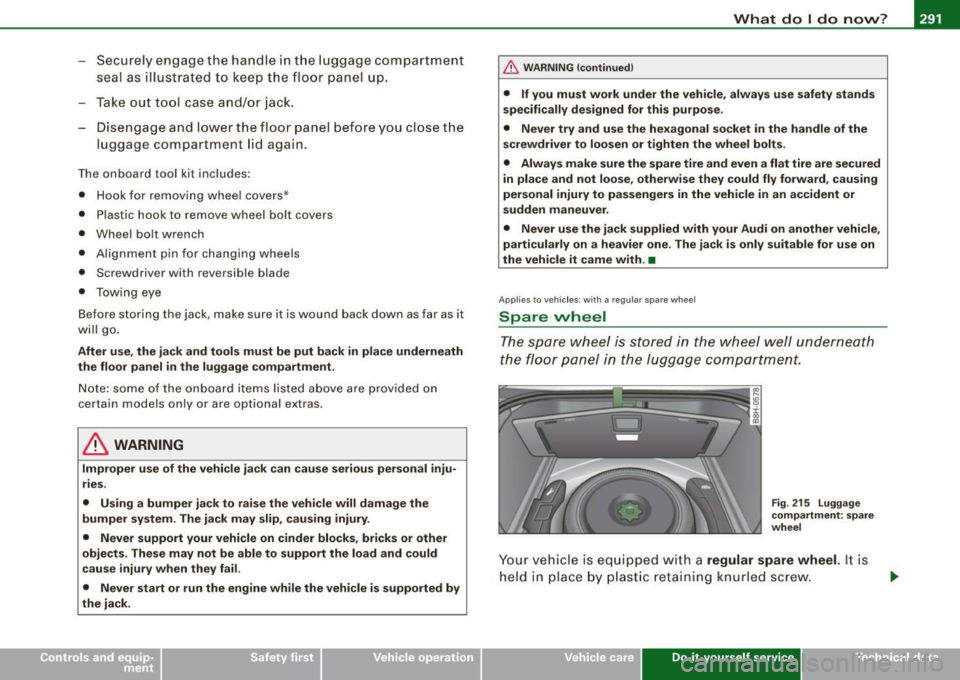

Spare wheel
Th e s pare whe el i s stor ed in th e wh eel w ell unde rneath
the fl oor pan el in th e lugg age c omp artme nt.
Fig . 21 5 luggage
compartment: spa re
w heel
Yo ur v ehi cle is equi pped wi th a regular spare wheel. It i s
h eld in pla ce by pla stic re tainin g knur le d sc re w .
~ehicle care Do-it-yourse lf service irechnical data

_____________________________________________ W_ h _a_t _ d_ o_ l _d _o _ n_o_ w_ ?_ . _ ..... 19111
•
& WARNING (continued)
pressure table - risk of accident! Use the highest tire pressure in
the table.
• Do not drive faster than 50 mph (80 km/h) - risk of accident!
• Avoid full-throttle acceleration, sharp braking, and fast
cornering - risk of accident!
• Never drive using more than one space-saving spare wheel -
risk of accident!
• Normal summer or winter tires must not be fitted on the space­
saving spare wheel rim. •
Wheel change
Before changing a wheel
Follow these points for your own and your passenger's
safety when replacing a wheel.
-After you experience a tire failure, pull the car well away
from moving traffic and try to reach level ground before
you stop => & .
- All passengers should leave the car and move to a safe
location (for instance, behind the guardrail)=>& .
- Apply the parking brake firmly=>&.
- Move selector lever to position Pon an automatic trans-
mission; put manual transmission in first gear =>& .
- If you are towing a trailer: unhitch the trailer from your
vehicle.
- Take the tool case and the spare tire=>
page 290 out of
the luggage compartment.
& WARNING
You or your passengers could be injured while changing a wheel if
you do not follow these safety precautions:
• If you have a flat tire, move a safe distance off the road. Turn off
the engine, turn the emergency flasher on and use other warning devices to alert other motorists .
• Make sure that passengers wait in a safe place away from the
vehicle and well away from the roadway and traffic.
• To help prevent the vehicle from moving suddenly and possibly
slipping off the jack, always fully set the parking brake and block
the wheel diagonally opposite the wheel being changed. When one
front wheel is lifted off the ground, placing the Automatic Trans­
mission in "P" (Park), or engaging a gear in a manual transmission
will
not prevent the vehicle from moving .
• Before you change a wheel, be sure the ground is level and firm.
If necessary, use a sturdy board under the jack.
• After installing the spare wheel, make sure that you remount
the flat tire/wheel in its storage area properly and tighten the
knurled retaining screw securely. •
Changing a wheel
When you change a wheel, follow the sequence described
below step-by -step and exactly in that order.
1. Remove the decorative wheel cover*. For more details
see also =>
page 294, "Decorative wheel covers" or
=>
page 295, "Wheels with cap-covered wheel bolts".
2. Loosen the wheel bolts=>
page 295.
3. Locate the proper mounting point for the jack and align
the jack below that point=>
page 296.
4. Lift the car with the jack=> page 296. _,..
Do-it-yourself service

_________________________________________________ F_ u_ s_ e_s _ a_n _ d_ b_ u_lb _ s ____ llll
[ i ] Tip s No . Equipm ent Amps
You are wel l adv ised to keep a supply of spare fuses in your vehic le.
15 Instrument c luster, Navigation system 10
Fuses with the proper ampere ratings are available at your Audi 16 Garage door opener 5
dea ler. •
17 Level , tire pressure control , park assist, 10 light/rain sensor
Fuse list Automatic headlig ht range control, left 5
Fuses which con be replaced. 19 Fog lights 15
Vacant
N o. Equipm ent Amps
21 Vacant
1 Air conditioner 10
22 Doors 15
2 Footwell illumination 5 23 Vacant
3 Heated washer jets 5 Central convenience electrical system 20
Radiator fan 5 25 Heater blower 30
5
Telephone, oil level sensor, multifunction 10 Rear window defogger 30 switch, rear heated seat, shift gate
Air conditioner (air quality sensor), air pressure
27 Socket for tra iler towing (controller) 30
6 5
sensor 28 Fuel pump 20
Electronic Stabil izat ion Program (ESP), bra ke 29 Vacant
7 light switch, clutch peda l switch, steering angle 10
sensor
30 Power top control un it 30
8 Telephone 5 31
Automatic transmission, mirror dimming, diag-15 nosis socket
9 Brake booster (vacuum pump) 15 Towing assembly 15
10
Automatic headl ight beam adjustment, auto -5 33 Cigarette
lighter 20 matic headlight range control, right
34 Electrical socket 20
11
Airbag control unit, front passenge r seat recog -10 nition USA (bladder mat) 35 Luggage compartment socket 20
Diagnosis socket 10 Windshield wiper system 30
13
Steering c olumn module 10
37 Pump for windshie ld an d head light washer* 30
14
Brake lights 10
system
• Do-it-yourself service

111!1.___E_ m __ e_r -=g :...e_ n_ c-=y _ s_ i_t _u _a _t_ i_o _n_ s _______________________________________________ _

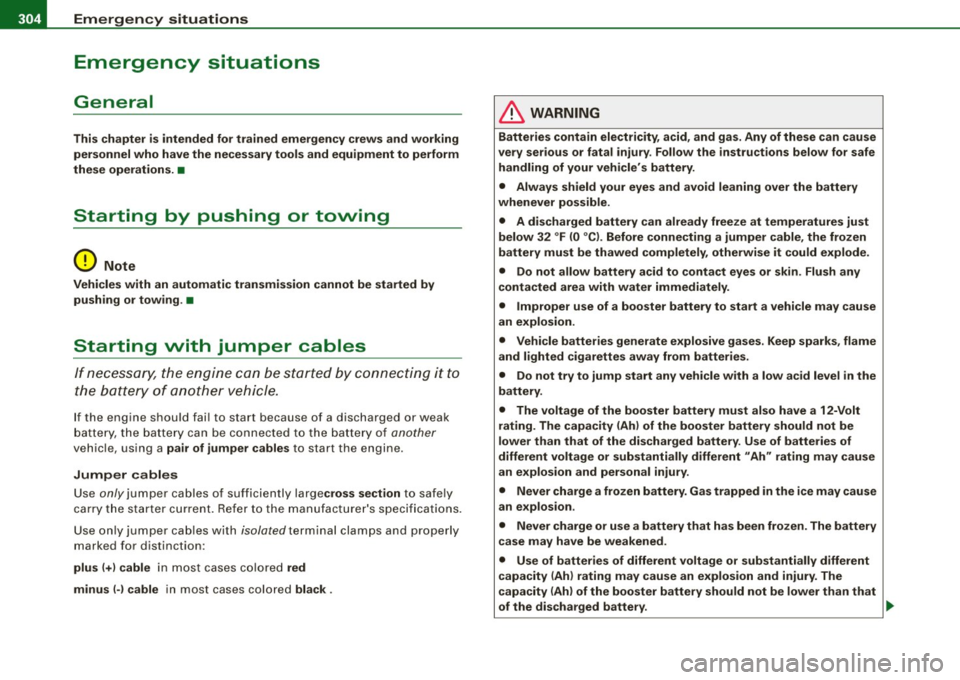

Emergency situations
General
This chapter is intended for trained emergency crew s and working
personnel who have the necessary tools and equipment to perform
these operations. •
Starting by pushing or towing
0 Note
Vehicles with an automatic tran smission cannot be started by
push ing o r towing . •
Starting with jumper cables
If n ece ssa ry, th e engin e ca n be sta rte d by conne cti ng it to
the battery of another veh ic le .
If the engin e should fai l to start because of a discharge d or weak
b at te ry, the batt ery can be con nected t o the batt er y of
another
ve hic le, using a pair of jumper cables to start the engine.
Jumper cables
Use
only jumper cables of suffici ently large cross section to safely
c arry the st ar ter curre nt. Refer to th e m anuf actu rer's sp ec ificati ons.
Use on ly j umper ca bles with
isolated termi na l clam ps and properly
marked fo r distinct ion :
plus (+l cable in mo st c ases c olor ed red
minus (-l cable in most cases colored black.
& WARNING
Batteries contain electricity , acid, and gas. Any of these can cause
very serious or fatal injury. Follow the instructions below for safe
handling of your vehicle 's battery .
• Always shield your eyes and avoid leaning over the battery
whenever possible .
• A discharged battery can already freeze at temperatures just
below 32 °F (0 °C). Before connecting a jumper cable, the frozen
battery must be thawed completely, otherwise it could explode.
• Do not allow battery acid to contact eyes or skin . Flush any
contacted area with water immediately.
• Improper use of a booster battery to start a vehicle may cause
an explosion.
• Vehicle batteries generate e xplosive gases . Keep sparks , flame
and lighted cigarettes away from batteries.
• Do not try to jump start any vehicle with a low acid level in the
battery.
• The voltage of the booster battery must also have a 12-Volt
rating . The capacity (Ahl of the booster battery should not be
lower than that of the discharged battery . Use of batteries of
diffe rent voltage or substantially different "Ah " rating may cause
an explosion and personal injury .
• Never charge a frozen battery. Gas trapped in the ice may cau se
an explosion .
• Never charge or use a battery that has been frozen . The battery
case may have be weakened.
• Use of batteries of different voltage or substantially different
capacity (Ah ) rating may cause an explosion and injury . The
capacity (Ahl of the booster battery should not be lower than that of the discharged battery . ...

111!1.___E_ m __ e_r -=g :...e_ n_ c-=y _ s_ i_t _u _a _t_ i_o _n_ s _______________________________________________ _

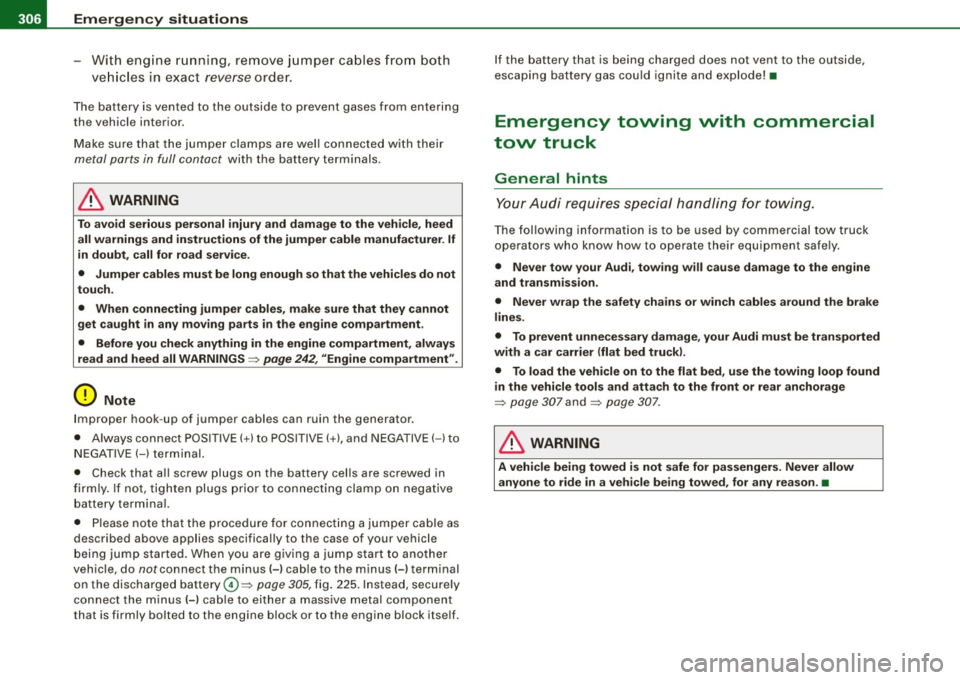

-With en gine run ning, r em ove jum per ca bles from both
v ehi cle s in exact
reve rs e o rd er.
T he battery is ve nted t o th e outs ide to preve nt gases from enter ing
the vehicle interior.
M ake s ure t hat th e jum per cla m ps are well co nnecte d with th eir
metal parts in full contact with the battery t erminals .
& WARNING
To avoid serious personal injury and damage to the vehicle , heed
all warnings and instructions of the jumper cable manufacturer. If
in doubt , call for road service .
• Jumper cables must be long enough so that the vehicles do not
touch .
• When connecting jumper cables , make sure that they cannot
get caught in any moving parts in the engine compartment .
• Before you check anything in the engine compartment, always
read and heed all WARNINGS=>
page 242, "Engine compartment ".
0 Note
Improper hook -up of jumper cables can ruin the generator.
• Always connec t POSIT IVE( +) to POS ITIVE ( +J, and NEG ATIV E (- J to
N EGAT IVE(-) te rminal.
• C heck that a ll screw plugs on the battery cel ls are screwed in
firm ly . I f not, tighten plugs prior to connec ting cla m p on nega tive
battery te rminal.
• P lease no te tha t th e procedure fo r con nec ting a ju mp er ca ble as
described above app lies specifical ly to t he case of your vehicle
b eing j ump st arted. When yo u are g iv in g a jum p start to another
veh ic le, do
not conn ect the minus(-) ca ble to the m inus( -) te rmina l
on the discha rge d battery ©=>
page 305, fig. 225. In stead , secu rely
co nnect the m inus(-) cable to e ither a m ass ive metal compone nt
that is firmly bo lted to the engine bloc k or to the engine b lock itse lf. I
f th e battery that is b ein g charged does not vent to the outside,
escapi ng battery ga s cou ld ignit e a nd ex plod e!•
Emergency towing with commercial
tow truck
General hints
Yo ur A udi requires s pecial handl in g f or t owing.
The fol lowing information i s to be used by commercial tow truck
operators who know how to operat e their equ ipment safe ly.
• Never tow your Audi, towing will cause damage to the engine
and transmission.
• Never wrap the safety chains or winch cables around the brake
lines.
• To prevent unnecessary damage , your Audi must be transported
with a car carrier (flat bed truck ).
• To load the vehicle on to the flat bed , use the towing loop found
in the vehicle tools and attach to the front or rear anchorage
=> page 3 07 and => page 307.
& WARNING
A vehicle being towed is not safe for passengers. Never allow
anyone to ride in a vehicle being towed , for any reason. •

________________________________________________ E_ m_ e_r ""g '-e_ n _ c..::y;..._ s_ i_t _u _a_ t_ i_o _n_ s _ __,_
Front towing loop
Do not install the front towing loop until it is needed.
Fig. 226 Front
bumper: removing the
cover cap
Fig . 227 Front
bumper: screwing in
the towing loop
The towing loop fits into the threaded hole located on the
right side of the front bumper and covered by a small cap
when not in use. -
Remove the towing loop from the vehicle tools
=> page 290.
-Press on the bottom edge of the cover cap to disengage
it from the bumper. The cap remains connected to the
bumper => fig. 226.
- Screw the towing loop into the threaded hole as far as it
will go
=> fig. 227, then tighten it with the wheel bolt
wrench.
When it is no longer needed , unscrew the towing loop and put it
back into the onboard toolkit. Make sure to have the towing loop
stored in the vehicle at all times .
& WARNING
If the towing loop is not screwed in as far as it will go, the thread
can pull out when the vehicle is towed -potential risk of an
accident. •
Rear towing loop
Fig. 228 Rear bumper,
right side: location of
rear towing loop
The rear towing eye is welded to the chassis under the rear bumper
on the right side.•
~ehicle care Do-it-yourse lf service Technical data
