Page 227 of 340
Trailer lights
Trailer lights must meet all regulations. Be sure to check with your autho rized Audi dealer for correct wiring , switches and relays .
Mirrors
If you are unable to see the traffic behind you using the regular
outside mirrors, then you
must install extended mirrors. It is impor
tant that you always have clear vision to the rear .
& WARNING
After removing the trailer hitch, do not store it in your vehicle. In
case of sudden braking, the hitch could fly forward and injure you
or your passengers .
.1
Operating instructions
Maximum trailer weight
A trailer for your vehicle is limited to a typical class 1 or class 2
trailer .
Trailer load distribution
Be sure the load in the trailer is held securely in place to guard
against shifting, be it forward, backward or sideways.
Never allow a passenger to ride in a trailer~&, in "Driving instruc
tions".
Tire pressure
When towing a trailer, inflate the tires of your vehicle to the cold tire
pressure listed under "Full load" on the sticker on the right door
jamb. Inflate trailer tires to trailer and tire manufacturers' specifica
tions.
Controls and equip ment Safety first Vehicle operation
Trailer towing
Lights
The
headlight settings should be checked with the trailer attached
before driving off. Adjust as necessary so that you can see the road
ahead but not blind on -coming traffic.
Check proper working of vehicle and trailer lights .
Safety chains
Be sure trailer safety chains are properly connected from the trailer
to the hitch on the vehicle. Leave enough slack in the chains to
permit turning corners. When you install safety chains, make sure
they will not drag on the road when you are driving.
The chains should cross under the trailer tongue to prevent it from
dropping in case of separation from the hitch .•
Driving instructions
Driving with a trailer always requires extra care and
consideration.
To obtain the best possible handling of vehicle and trailer,
please note the following:
Do not tow a loaded trailer when your car itself is not
loaded.
- Be especially careful when passing other vehicles.
Observe speed limits.
Do not drive at the maximum permissible speed.
- Always apply brakes early.
Monitor the temperature gauge.
Vehicle care Do-it-yourself service Technical data
Page 229 of 340
![AUDI A4 CABRIOLET 2009 Workshop Manual [ i ] Tip s
• Do not tow a trailer during the break-in period of your vehicle.
• If you tow a trailer, your Audi may require more frequent mainte
nance due to the ex](/img/6/57553/w960_57553-228.png "AUDI A4 CABRIOLET 2009 Workshop Manual [ i ] Tip s
• Do not tow a trailer during the break-in period of your vehicle.
• If you tow a trailer, your Audi may require more frequent mainte
nance due to the ex")
[ i ] Tip s
• Do not tow a trailer during the break-in period of your vehicle.
• If you tow a trailer, your Audi may require more frequent mainte
nance due to the ex tra load=>
page 316 . •
Parking on a slope
---'--------------------
Do not park with a trailer on a slope. If it cannot be
avoided, do so only after doing the following:
Wh en p arking :
-Apply the foot brake.
- Have someone p lace chocks under both the veh ic le and
the trailer wheels .
- Wit h chocks in p lace, s low ly release t he brakes until
wheel blocks absorb t he load.
- T urn t he wheels towards the curb .
- Apply the parking brake .
- Place an automatic transmission in
P , respect ively a
manual transmission in first or reverse gear.
Wh en restarting after p arking :
- Start the e ngine .
- Shift transmiss ion into gear.
- Re lease the parking brake and slowly pull out and away
from the w heel blocks.
- Stop and have someone retr ieve t he wheel blocks.
Controls and equip
ment Safety first Vehicle operation
Tr
aile r to wing
[ i ] Tip s
If you move the selector lever of the automatic transmission to P
before applying the parking brake and before blocking the wheels,
you may have to use more force later to move the lever out of the
P
position .•
Vehicle care Do-it-yourself service Technical data
Page 307 of 340
______________________________________________ E_ m_ e_r -=g :...e _ n_ c __a. y_ s_it _u_ a_ ti_o _ n_ s _ __,11111
& WARNING (continued)
• Before you check anything in the engine compartment, always
read and heed all WARNINGS~ page 242, "Engine compartment".
0 Note
• Applying a higher voltage booster battery will cause expensive
damage to sensitive electronic components, such as control units,
relays, radio, etc .
• There must be no electrical contact between the vehicles as
otherwise current could already start to flow as soon as the positive
(+) terminals are connected.
[ i] Tips
The discharged battery must be properly connected to the vehicle's
electrical system. •
Use of jumper cables
Make sure to connect the jumper cable clamps in exactly
the order described below!
Fig. 225 Jump·
starting with the
battery of another
vehicle : A -discharged
vehicle battery, B -
booster battery
Vehicle with discharged battery:
- Turn off lights and accessories, move lever of automatic
transmission to
N (Neutral) or P (Park) and set parking
brake.
Connect POSITIVE (+) to POSITIVE (+) (red)
1. Connect clamp of plus cable to positive(+) terminal G)
~ fig. 225 of discharged vehicle battery@.
2. Connect clamp on opposite end of cable to positive(+)
terminal
® of booster battery@.
Connect NEGATIVE (-) to NEGATIVE (-) (black)
3. Connect clamp of minus cable (black) to negative( -)
terminal
0 of booster battery@.
4. Connect clamp on opposite end of negative cable to the
negative( -) terminal © of the discharged vehicle battery
@.
- Check that all screw plugs on the battery cells are
screwed in firmly. If not, tighten plugs prior to
connecting clamp on negative battery terminal.
Starting the engine
- Start the engine of the vehicle with the booster battery.
Run the engine at a moderate speed.
- Start engine with discharged vehicle battery in the usual
manner.
- If the engine fails to start: do not keep the starter
cranking for longer than 10 seconds. Wait for about 30
seconds and then try again. .,,.
~ehicle care Do-it-yourse lf service Technical data
Page 309 of 340
________________________________________________ E_ m_ e_r ""g '-e_ n _ c..::y;..._ s_ i_t _u _a_ t_ i_o _n_ s _ __,_
Front towing loop
Do not install the front towing loop until it is needed.
Fig. 226 Front
bumper: removing the
cover cap
Fig . 227 Front
bumper: screwing in
the towing loop
The towing loop fits into the threaded hole located on the
right side of the front bumper and covered by a small cap
when not in use. -
Remove the towing loop from the vehicle tools
=> page 290.
-Press on the bottom edge of the cover cap to disengage
it from the bumper. The cap remains connected to the
bumper => fig. 226.
- Screw the towing loop into the threaded hole as far as it
will go
=> fig. 227, then tighten it with the wheel bolt
wrench.
When it is no longer needed , unscrew the towing loop and put it
back into the onboard toolkit. Make sure to have the towing loop
stored in the vehicle at all times .
& WARNING
If the towing loop is not screwed in as far as it will go, the thread
can pull out when the vehicle is towed -potential risk of an
accident. •
Rear towing loop
Fig. 228 Rear bumper,
right side: location of
rear towing loop
The rear towing eye is welded to the chassis under the rear bumper
on the right side.•
~ehicle care Do-it-yourse lf service Technical data
Page 314 of 340
-Gen eral inf orm ation PW'f,___ ______________ _
General information
Explanation of technical data
Some of the technical data listed in this manual requires
further explanation .
The technical data for your vehicle is listed in the charts starting on
~ page 314 . This section provides general information, notes and
restrictions which apply to this data. •
Vehicle identification
The key data is given on the vehicle identification number
(VIN) plate and the vehicle data sticker.
F ig . 232 Ve hicle Iden ti
fi cati on N umber (VI N)
p late: loca tio n
on
driv er's side das h
pa nel
Fi g. 233 The vehi cle
i d e ntifi cat ion la be l -
insid e th e lu gga ge
co mp art me nt
T he Vehicle Identificati on Number (VIN )
is located on the driver's side so that it is visible from the outside
through the windshield ~ fig . 232 .
The veh icle ide ntification lab el
is located in the luggage compartment in the spare whee l well.
The label
~ fig . 233 shows the following vehicle data :
0 Production control No.
0 Vehicle identification No.
G) Type code number
© Type designation/engine output in Ki lowatts
© Engine and transmission code letter
© Paint No./lnterior
0 Optiona l equipment No.'s
Vehicle data 2 to 7 are also found in your Warranty
& Maintenance
booklet.
The safet y co mpliance sti cke r
is your assurance that your new vehicle complies with a ll app licable
Federa l Motor Vehic le Safety Standards which were in effect at the
time the veh ic le was manu factured. You can find this sticker on the
left door jamb. It shows the month and year of production and the .,,_
Page 327 of 340
Alph ab eti ca l ind ex -
-------------=----
AUTO
Climate controls .. ...... ..... .... . 112
Switching on .... .... .... .... .... 112
When should I use AUTO? ....... .. 112
Auto Safety Hotl ine .. ..... ... ... .... . 155
Auto-Check Control .. ... ... .... ... .. .. 28
Automat ic air recirculation ........... 114
Automatic belt retractor .... ...... .... 163
Automatic car wash
See Washing .. .... .... ... ...... .. 231
Automatic headlight con trol ....... .... 77
Automatic rollover protection system . . 156
Automatic Shift Lock (ASLl ....... 128, 135
Automatic transm ission
6 -spe ed automatic transmission .... 126
Automatic Shi ft Lock (ASLl .... . 128, 135
Driving ........ ..... ....... ..... 126
Dynamic shif t prog ram ... .... .... . 129
Fail-safe mode ... ...... ........ .. 13 1
Ignition key safety lock ... ... ... .. . 119
Kick-down ... .... .... .... ... .... . 129
Manual sh ift program . ... .... .... . 130
multitronic® ... ... ... .... ... ..... 131
Se lector lever ..... .... ...... . 127, 133
Shift but tons . ... .... .... .... 131, 137
Steering wheel with tiptronic® . 131,137
Average speed ... ... ... ... .. ...... ... 37
Avoid damaging the v ehicle .. ... .... . 22 1
Controls and equip
ment Safety first
B
Battery .
.... .... ...... .... ... .. 261, 264
Charging ...... .. ... ..... .. .. .... 265
Checking battery acid level . .... .... 264
Important warnings when working on the batte ry . .......... .... ... .. ... . 263
Low vol tage symbo l .. ....... .... ... 34
Replacing the battery . ...... .. .... 262
Winter opera tion ... .. ...... ...... 261
Working on the battery .......... .. 263
B efore driving ... ..... .. ...... ...... 146
Blended gasoline ... ... .. .. .. .... .... 244
Body cavity sealing .. .. .. ...... .... .. 237
Boos ter seats .... .... .... .... .... ... 198
How do I properly instal l a booster seat in
my vehicle? . .......... ...... ... 198
Sa fety instructions . .... .... .... ... 198
Brake f luid
Changing the brake fluid .......... 261
Checking the brake fluid leve l .. .... 260
Reservoir . ... .... .... ....... .... . 260
What is the correct brake fluid level? 260
What shou ld I do if the brake fluid warning
light comes on? . ..... ... .... .... 260
Brake system .. ...... .... .... .... ... 260
An ti- lo ck brake system (ABS) ... .... . 20
Brake ass istant . .... .. .... .... ... . 217
Brake booster .... .... .... .... .... 216
Brake flu id .... ... .... .... .... .... 260
Brake f luid specifications for refi ll and
rep lacement . ... ..... ... .... .... 261
Brake pads ...... .... .... .... .... 220
Genera l informa tion ....... .. .... . 215 How does the moisture or road salt affect
the brakes? ....... ... .... .... ... 215
Ma lfunction ... .. .... .... .... .. .. . 30
Warning/indicator lights .. .. .... .... 23
Worn brake pads symbol . ..... .. .. . 33
B reak -in period ...... .... .... .... ... 219
B rake pads ... .... .... .. . .... .... 220
Tires ..... .... .... .... ... .... .. .. 219
Bu lbs ... ... .... ... ... ... .... ...... . 302
C
California Proposition 65 Warning . .... 251
Battery specific ..... ...... .... .... 264
Capacities Eng ine oil .... .... .... ... .... .... 31 4
Fuel tank ..... ...... .. ...... .... . 314
Windshield washer fluid ... .... .... 314
Car care ... .. .... ... .... .... .... .. .. 230
Interior ... .... .... .... ... .... .... 238
Plastic and v inyl .... ... .... .... ... 234
Weatherstr ips . .... .... .... ...... . 236
Care of exterior ..... .... .... .... .. .. 230
Cargo area
See Loading the luggage compartment .
153
Catalytic converter .. ...... ...... .... 220
Centigrade Switching between Centig rade and
Fahrenheit ...... .... .. .. ... .. .. 11 3
Certification . ............ ...... .... . 320
Changing a flat tire ....... ... .... .. .. 293
Chan ging a wheel .... .... ... .... .... 293
Vehicle operation Vehicle care Do-it-yourself service Technical data
Page 329 of 340
Alph ab eti ca l ind ex --------------=-----
Convertible locking retractor
Activating ...... ... .. .... ...... .. 202
Deactivating .. ... ..... ..... .. ... . 203
Using to secure a child safety seat 200 ,
202
Convertible top ........ .... .... .... .. 61
Coolant system
Cooling System 257
Expansion tank ... .... ...... .... .. 258
cornering light . .......... .. .... .... .. 79
Cruise control .. ... ... ...... ...... .. 123
Changing a stored sp eed . .... .... . 124
Setting and storing a vehicle speed . 124
Switching off .................... 125
Switching off temporari ly .. ........ 124
Switching on .... .... .... ...... .. 124
Warning/indicator lights ... ... .... .. 20
Cruising range .. .... .... .... ...... ... 37
Cupholder . ... .. ...... ..... .. .. .... 104
D
Data . .... ... . ... .. ... ... .... ..... . 314
Data recorder ... .... ...... ..... .... . 212
Date dis play . . . . . . . . . . . . . . . . . . . . . . . . . 14
Daytime running lights ... .. ... .. ... ... 78
Declaration of compliance Cell phone package .. .. .... .... ... 320
Elect ronic immobilizer . ..... .. .... 320
Homelink® universal remote con trol 320
Remote control key .. .... .... .... . 320
Tire pressure monitoring system ... 320
Controls and equip
ment Safety first
def
Dublicate key ... ...... ... .. . ... .... .. 47
What does this mean when it appears in
Dynamic shift program ....... ... ... . . 136
the trip odometer display? .. ...... . 15
Defogging the windows . ....... ..... . 116
E
Defrosting the windows .. ... ..... ... . 116
Determining correct load lim it ... .... . 276 ECON
Digi tal clock ............. .. ... ... .... 14 When should I use ECON?
... .... .. . 113
Setting the time ......... .... .... .. 14 EDL
Digital compass . ... ... . ... ... .. .... .. 90 See Electronic differential lock (EDU . 213
Dimensions ..... .... .... .... .... ... 313 Electric roof .
..... ... ..... .. .... .... . 61
Dipstick Electrically heated front seats .
.. .... .. 116
Reading the dipstick properly ...... 254 Electronic differential lock
Distance ... .... ... ... .. ... .... .... .. 38 Warning/indicator
lights ..... ... .... 20
Doors, power locks ........ ....... .... 53
Driver Electronic differ
ential lock (EDU
How the system works ...... .. .... 213
See S eating position .. ... ... ... ... 148 Electronic immobilizer ..
.. .. . .. .. .. 15, 49
Driver information dis play
Miles (kilometers) to empty .. .. ... .. 26 Electronic power control
EPC warning/indicator light ......... 22
Parking brake warning ... ... ..... .. 30 Electronic sp
eed limiter ..... .. .... .... 28
D river information sys.tern . .... ...... .. 24 Electronic stabilization program (ESP)
Driver information messages .. .... .. 29 How the system works ...
..... .. .. 212
Fuel filler cap . .. . ........ ....... .. 27 Elec
tronic stabiliza tion program (ESP)
Menu button .... . .. .. .... .... .... . 40 Warning/indicator lights
.... ...... .. 22
Menu display .... ... .... .... . ... .. 39 Emerg
ency flasher ... .... ... .. ....... 82
Open door or rear lid warning ...... . 26 Warning/indicator
lights .... ...... .. 21
Outside temperatu re disp lay ... ..... 25
Emergency locking . .... .... ... .. .. . .. 55
Sound system display .... .... .... .. 25
Emergency starting ..... ....... .. .... 304
Driver's seat memory ... .... .... ..... 101
Emergency towing . .. ... .. .. .... .... 306
Recalling a seat position .... .... ... 102
Engine
Storing a seat position ... ... .... .. 102
4-cylinder (200 hp) . ... .. .. .... .. .. 251
Driving messages ...... ........ ..... . 29
6-cylinder (255 hp) . ... .. .. .... .. .. 252
Driving safely . ... .. . ... .. .... .... ... 146
Compartment .... ... .. ...... .... . 251
Driving time . .... ...... .... ... .. .... . 37 Coolant ...
.. ... .... .... .... ..... 257
Vehicle operation Vehicle care Do-it-yourself service Technical data
Page 331 of 340
______________________________________________ A_ l_,_ p _h_ a_ b_e _t_i c_ a _ l _in _ d_e _ x __ fflll

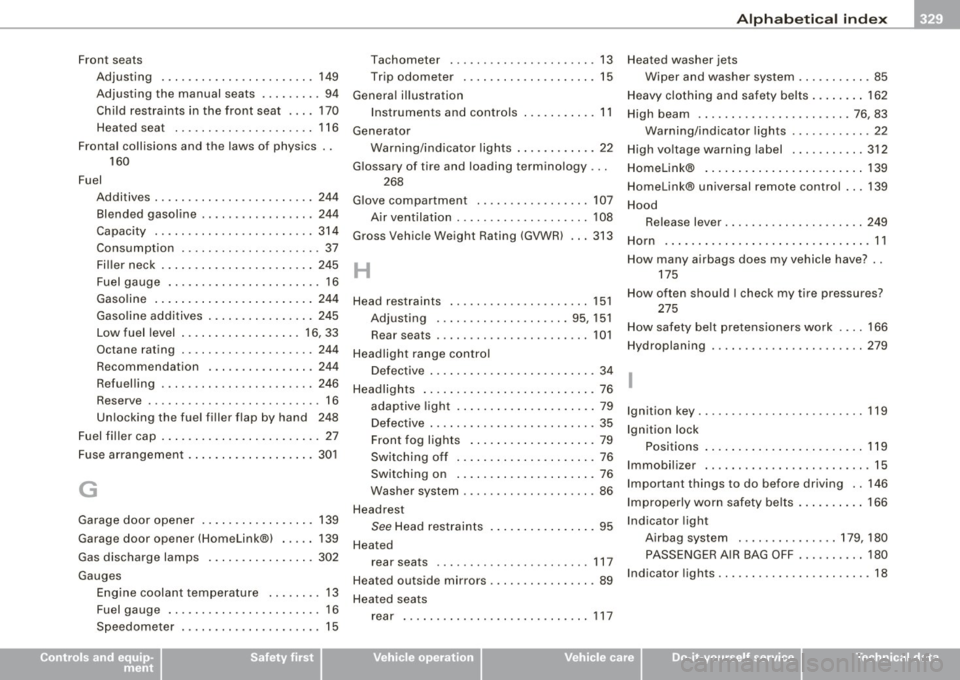

Front seats
Adjusting .... ........... .... .... 149
Adjusting the manual seats ........ . 94
Child restraints in the front seat .... 170
Heated seat . . . . . . . . . . . . . . . . . . . . . 116
Frontal collisions and the laws of physics 160
Fuel Additives ............. .... .... ... 244
Blended gasoline ................. 244
Capacity ................. ....... 314
Consumption ..................... 37
Filler neck .. ...... .... ...... ... .. 245
Fuel gauge ...... .... .... ... .... .. 16
Gaso li n e ... .. .... .... ... .... .... 244
Gaso line additives ..... ... .... .... 245
Low fuel level ... .. .... .... .... . 16, 33
Octane rating ............. ....... 244
Recommendation ................ 244
Refuelling ..... ... ....... ..... ... 246
Reserve . .......... ............... 16
Unlocking the fuel filler flap by hand 248
Fuel filler cap . ...... .... .... ... .... .. 27
Fuse arrangement ... .... .... ... .... . 30 1
G
Garage door opener .. ...... .... .... . 139
Garage door opener {Homelink®) ..... 139
Gas discharge lamps .. ...... ... .... . 302
Gauges Eng ine coolant temperature ... ... .. 13
Fuel gauge ....................... 16
Speedome ter . ....... ..... ... .... . 15
Controls and equip
ment Safety first
T
achometer .... ... .. ... ... .. .... . 13
Trip odometer ...... .. .... ....... . 15
Genera l illus tration
Instruments and controls .... ... .. .. 11
Generator Warning/ind icator lights ...... .... .. 22
G lossary of tire and loading terminology .. .
268
G love compar tment . .... .... .... .... 107
A ir vent ilat ion . ........ .... ....... 108
Gross Vehicle Weight Rating {GVWR) ... 313
H
Head restraints .. .... ...... ... ...... 151
Adjusting .......... .......... 95, 151
Rear seats ... , .. , ...... , ........ , 101
Headlight range c ontr ol
Defective ... .. ... .... .... .... .... . 34
Headlights ...... ... .... .... .... .... . 76
adaptive ligh t .... ... .... .... ..... . 79
De fective ... .. ... .... .... .... .... . 35
Fr ont fog light s ...... .... .... .... . 79
Swi tching off .... .... .... .... .... . 76
Switching on .... .... .... .... .... . 76
Washer system .... ........ ........ 86
Headrest
See Head restrain ts . ...... .... .... . 95
Heated rear seats ....... ....... ... .... .. 117
Heated outside mirrors .... .... ....... . 89
Heated seats rear ... .. .... ...... ... .. .... .... 1 17 Heated washer jets
Wiper and washer system ... .... ... . 85
Heavy cl othing and safety belts .. ...... 162
High beam ....................... 76, 83
Warning/ind icator lights ............ 22
High vo ltage warning label ........... 312
Home link® ...... .... ... .... .... ... 1 39
Homelink® universal remote control .. . 139
Hood Release lever ... ........ ... ..... .. 249
Horn . ...... .... .... .... ... .... .... . 11
How many airbags does my vehicle have? ..
175
How often should I check my tire pressures?
275
How safety be lt p retensioners wo rk .... 166
Hydroplaning ....................... 279
I
Ignition key ............ ........ .... . 119
Ign it io n l ock
Positions ...... .... ... .... .... ... 11 9
Immob ilizer ...... ....... .... ....... . 15
Important things to do before driving .. 146
Imp roperly w orn safety be lts .. ....... . 166
Indicator light
Airbag system ............... 179, 180
PASSENGER A IR BAG OFF .......... 180
Indicator lights ... .... .... ..... .. .... . 18
Vehicle operation Vehicle care Do-it-yourself service Technical data
Page 333 of 340
Alph ab eti ca l ind ex -
-------------=----
Master key ........ .... . .... .. .. .... . 48
Battery replacement . .... .... ...... 49
Menu button ... .. ...... .... ...... ... 40
Menu display .... .... .... ... .... .... . 39
Mi leage
Average . ...... .. .... .... .... ..... 37
Instantaneous .................... 37
Mi les to empty . ... .. .... .... ...... ... 26
Mirrors Activating the digita l compass ..... . 90
Adjusting the ant i-g lare ... .... .... . 88
Automatic dimming for the outside mirrors . .... .... ....... ....... .. 90
Automatically dimming inside mirror . 88
Inside rearview mirror . .... ...... ... 88
Interior mirror .... .... .... .. ...... 88
Manual glare dimming ............ . 88
Outs ide mirrors . ........ ... .... ... 89
Recalling posit ion of outside mirrors 102
Storing positio n of outside mirrors .. 102
Monitoring the Advanced Airbag System ..
179
multitronic® ... ..... ... .... .... .... 131
Automatic Shift Lock (ASU . .... .... 135
Dr iving the multitronic® . ..... .... . 132
Dynamic shift program ... .... .... . 136
Fail -safe mode ... .... .... .... .... 137
Kick -down ... .... .... .... ... .... . 135
Manual sh ift program .. ...... .... . 136
Selector lever . . . . . . . . . . . . . . . . . . . . 133
Steering wheel with tiptronic® ..... 137
tiptronic .. ... .... .... ... .... .... 136
Controls and equip
ment Safety first
N
Natural leather
... .... .... .... ... .... 239
New tires and whee ls ...... ... .... ... 279
NH TSA
Contacting . ...... ..... .. .... .... 155
Number of seats .................... 159
0
Occupant seating positions . .... ...... 148
Octane rating .... .... .... .... .... ... 244
Odometer ........ ..... .. .... .... ... . 15
Oil See Engine oi l ....... ....... .. .... 252
O lder chi ldren and safety bel ts . ...... . 199
On -Board Diagnostic System ... .. .. .. .. 28
Electronic speed limiter ............ 28
Malfunction Indicator Lamp (MIU .... 27
On-Board Diagnostic System (OBD) .... . 28
Data Link Connector (DLC) ...... .... 28
Open do or o r rear l id wa rn ing ... .. .... . 26
Opening Power top .... ...... .... ..... .... . 62
Operate your vehicle economically and mini -
mize po llution ...... .... .... .... 221
Optional equipment Marked with an asterisk ... .... .... .. 6
Outlets ... .. .... ..... .. .... .... .... 1 06
Outside air pollution How to prevent from entering the vehicle 113
Outside mirrors ..... .... .... .... .... . 89 Outside temperature display
...... ..... 25
Owner's manual How the Owne r's Manual is orga nized . 6
p
Paint
Touch -up ... .. .... .... ... .... .... 235
Paint No ... ... .... .... ....... .... ... 312
Park assist ... .... .... ... .... ..... .. 122
Parking ...... .... .... ... .... .... ... 1 21
Automatic transmission .. ..... .... 126
multitronic® ....... ... .... .... ... 1 32
Parking brake ........ .... ... ........ 121
B rake warn ing .................... 30
Set ting a nd re leasi ng ..... .... .... 121
Parking light Defective . .... ........ .... ........ 35
Parking on a decline (downhill) ... ... .. 121
Parking on an incline (uphill) ... .... ... 121
Parktronic See Acoustic park assist .. ... ..... . 122
Parts rep lacement . ....... ... .... .... 318
PASSENGER A IR BAG OFF light ........ 180
Passive safety system . .... ...... .... . 146
Pedals . ... .. .... .... .... ... .... .... 152
Physica l principles of a frontal collision . 160
Po lishing ... .. .... .... ... .... .... ... 234
Power lock ing system ..... .... .... .... 50
Conven ience close/open feature .... . 53
Lock ing and unlocking the vehicle fr om
inside ... .... .... ... .... ..... .. . 54
Locking switch .... .... ... .... ..... 5 4
Vehicle operation Vehicle care Do-it-yourself service Technical data
Page 335 of 340
Alphabetical index -
-------------=----
Rollover bars
Lowering ... .. .... ....... ...... .. 157
See also Automatic rollover pro tection
system ... .. .... .... .... ... .... 156
Roof, e lectric ... .... .... .... ... .... .. 61
s
SAFE ...... ... .. .... .... ... .... .... . 15
Sa fe driv ing habits . ......... ....... . 146
Safety belt position .. ............. ... 164
Safety belts worn by pregnant women ..
165
Safety belt pretensioner Service and disposal . ..... .. ...... 167
Safety belt warning light .... .... .. 21,159
Sa fety be lts . . . . . . . . . . . . . . . . . . . . . . . . 163
cleaning ... .. ... ... .. ... ..... ... 242
Dange r to passengers who do not wear a
safety belt . . . . . . . . . . . . . . . . . . . . . 161
Fastening ... .... .... .... ... .... . 163
Improper ly worn . .... .... ...... .. 166
Not worn . ...... ........ ......... 161
pre tensioners ... .... .. ... .... .... 166
Safety bel t position .. .... .... .... . 164
Safety instructions ... ..... .. ... .. 162
Securing child safety seats . .... ... 200
Special considerations for pregnant
wom en . .... .... .... ... .... .... 165
Un fast ening . .... ... ..... .. .. ... . 165
Warning /indicator ligh t ..... ..... .. 159
Why YOU MUST wear them ........ 159
Worn properly .. ... ...... ... .... . 162
Safety compliance sticker .. ...... .... 312
Controls and equip
ment Safety first
Safety equipment
.... ....... .. .. .... 146 Occupants .... .... .... .... ..... .. 148
Safety features for occupant restraint and Rear passengers
... .... ...... .... . 150
pro tection . .... ...... .... ... .. . 146
Seats
Safe ty instructions Manual adjustment controls ........ 93
Eng in e compartm ent .. ... .... .... . 250 Number of seats .. .... .... .... .... 159
for booster seats . ...... .... ...... 198
Selector lever ............ .. . ..... ... 127
for using child safe ty s eats . .... .... 193
Selector lever multitronic ® ......... .. 133
for using convertible child sea ts .... 196
for using infant seats . ........... . 195
for using safety be lts . ...... .... ... 162
Monitoring the Advanced Airbag System
181 Service and
disposal
Safety belt pretensioner .. ..... .. .. 167
Service interval display .... ... .... ... .. 17
Servotron ic
Safety lock Ignition key, Automatic transmission 119
Seat adjustment Driver seat ... ...... ... .. .... ... .. 92
D river's seat memory . .......... .. 101
Front passenger seat . .... .... .... .. 93
Head restraints ................ 98, 151
Lumbar support . ...... ... .... .... . 98 Power steering
...... ............. 217
Setting Date display ............ .. ... ... .. 14
Digital clock ... .. .... .... .... .. .. . 14
Shift buttons .... .... .... ... .... 131, 137
Side airbags Description ... .... .... .. . .... .... 187
How they work .... ...... .... .... . 188
Power seats ... .. ........ .... .... . 96 Ski sack
... .............. ........... 103
Safety guidelines ... ... ....... .... . 92 Snow chains .
.... .... .... ... .... .... 285
Seat cushion extension ..... ... .... 100 Sockets
........... .... ... .. .... 105, 106
Seat belts Soft
top ... .. .... ....... .... .... ..... 61
Why YOU MUST wear them .... ... . 159 Care and cleaning
........ .... .. . . 233
Seat memory ....... ... .... .... .... . 101 Manual
operation ... ...... .... .. .. . 68
Seat position Sound system
Incorrect seat position .... .... .... 151 Replacing
.... .... .... ... .... .... 319
Seating capacity . ... .... .... .... .... 159 Sound system display
S eating position D
river information display . .... ..... 25
Driver .... .... ...... .... ... .. .... 148 Space
-saving spare wheel ... . ........ 292
Front passenger ......... ......... 149 Spare wheel ..
...... .... ... .... .... . 291
How to adjust the front sea ts .. .... . 149
Speed rat ing letter code ... ...... .... . 281
Vehicle operation Vehicle care Do-it-yourself service Technical data
