_& WARNING
-Sensors have dead spaces in which ob­
jects cannot be detected. Be especially
alert for small children and animals,
since they are not always detected by the
sensors.
- The acoustic park ing system is not a sub­
st itute for the driver 's own caution and
alertness. Ultimate responsibi lity always
remains with the driver during parking
and simi lar maneuvers . Always watch
where you are driving.
- You should always adjust the volume and
frequency of the warning tones so that
yo u can easily hear the acoustic distance
warning even if the radio is p laying, the
air-cond itioner blower is on High or there
is a high level of outside noise .
- Check the settings whenever anyone
else has driven the vehicle before you.
(D Note
-Remember that low obstacles for which
a warn ing has already been issued may
"dive" below the system's sensing zone if
the vehicle is being backed up closer. In
this case, the warning sound shutting off
does
not in dicate that you have cleared
the obstacle . Instead, impact is immi­
nent.
- Objects such as trailer hitches, chains,
narrow posts or fences covered by a th in
l ayer of paint may not always be detect­
ed by the system. They can still damage
your vehicle without warning .
@ Tips
Keep the sensors in the rear bumper clean
and free of snow and ice so that the acous­
tic parking assist system can function
properly.

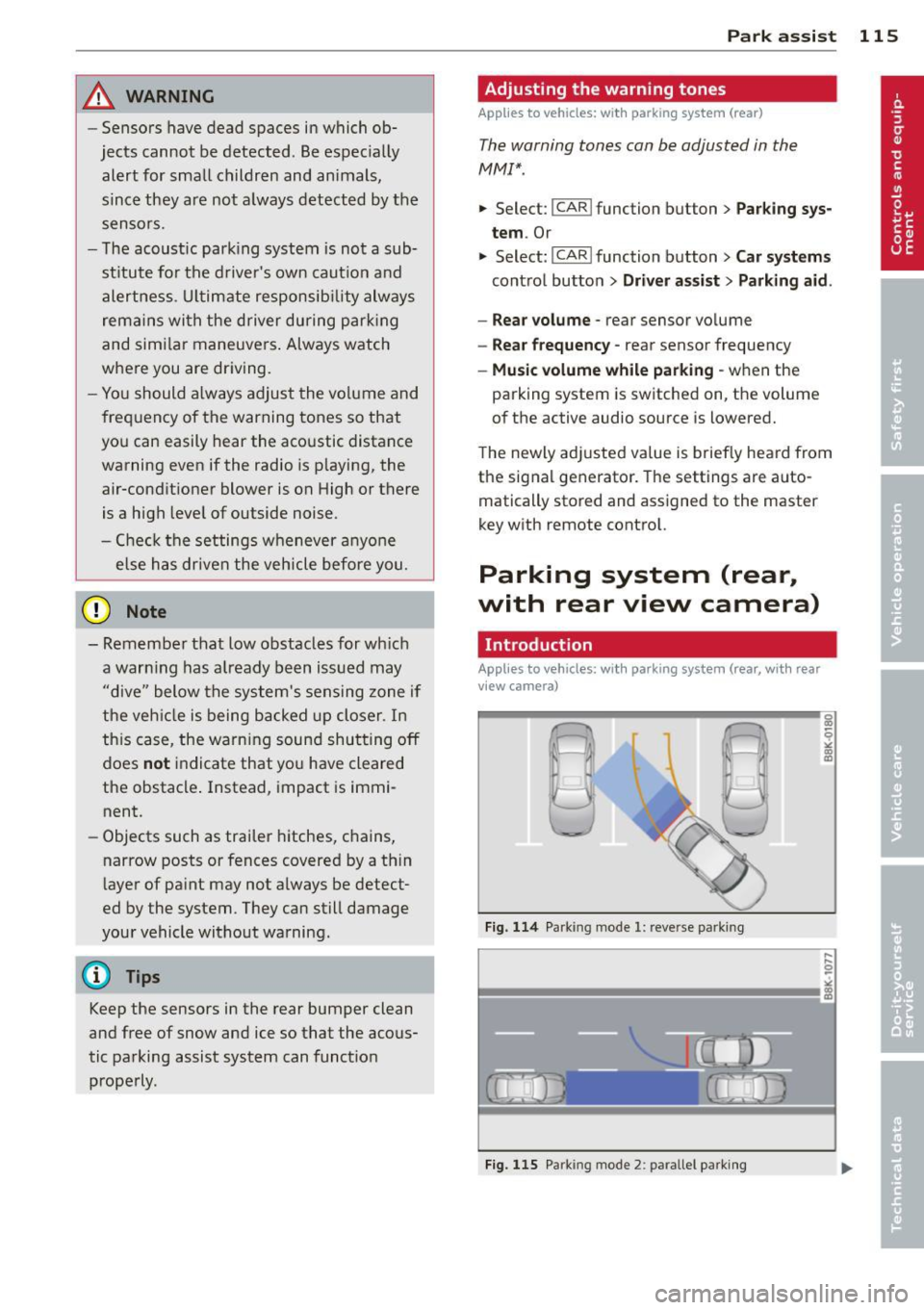

Park assist 115
Adjusting the warn ing tones
Applies to vehicles: with parking system (rear)
The warning tones can be adjusted in the
MM!*.
.. Select: I CAR ! function button > Parking sys­
tem .
Or
.. Select:
I CAR I function button > Car systems
contro l butto n > Driver assist > Parking aid .
- Rear volume -
rear sensor vo lume
- Rear frequency -rear sensor frequency
-Music volume while parking -when the
parking system is switched on, the volume
of the active audio source is lowered.
The newly adjusted value is briefly heard from
the signal generator. The settings are auto­
matically stored and assigned to the master
key w ith remote control.
Parking system (rear,
with rear view camera)
Introduction
Applies to vehicles: with parking system (rear, wit h rear
view camera)
Fig . 114 Parking mode
1: reve rse parki ng
Fig . 115 Parking mode 2 : pa rallel parki ng
q
" "' CD

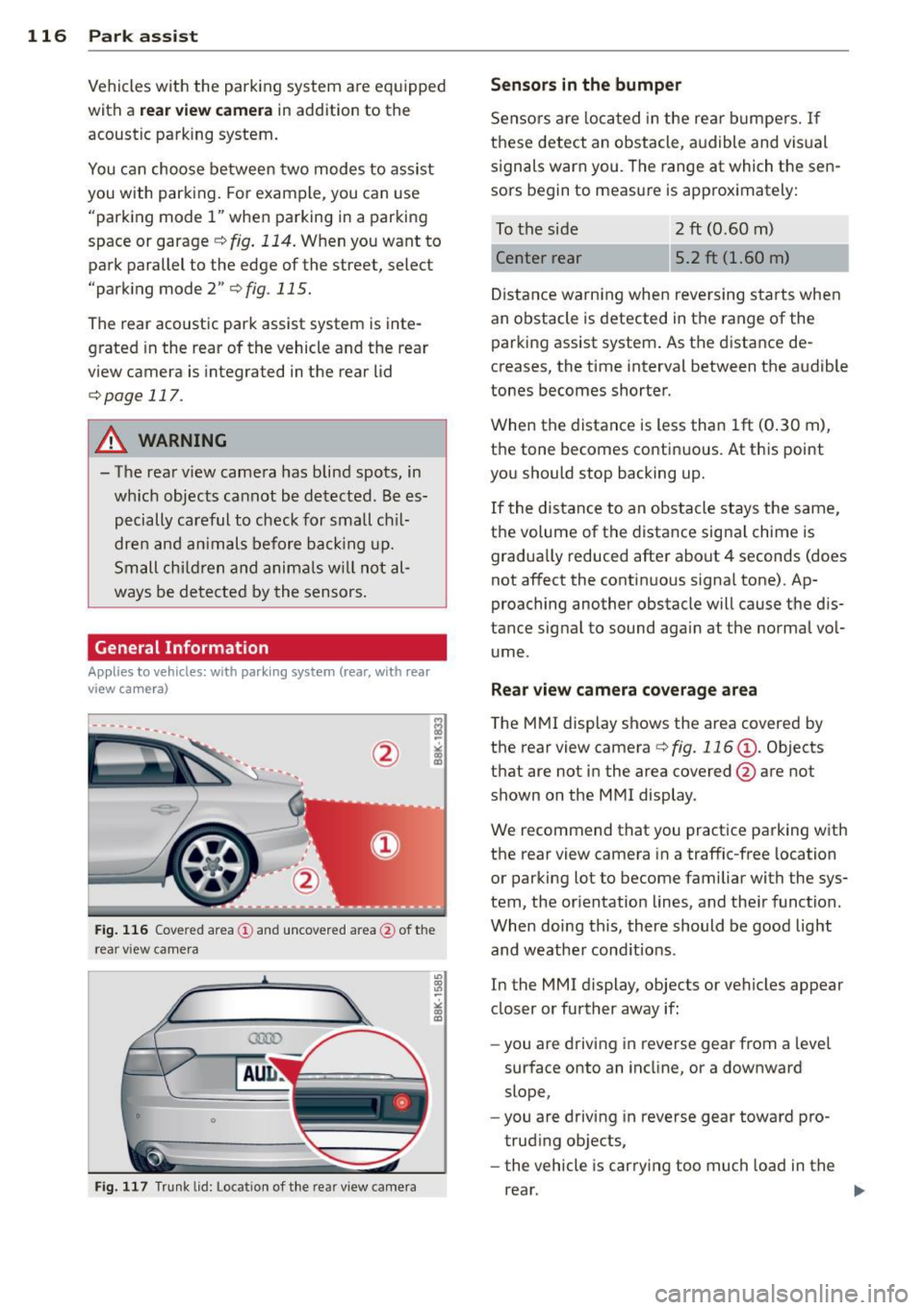

116 Park assist
Vehicles with the parking system are equipped
with a rear view camera in addition to the
acoustic parking system.
You can choose between two modes to assist
you with park ing. For example, you can use
"parking mode 1" when parking in a parking
space or garage
c:> fig . 114. When you want to
park parallel to the edge of the street, select
"park ing mode 2"
c:>fig . 115.
The rear acoustic park assist system is inte ­
grated in the rear of the vehicle and the rear
view camera is integrated in the rear lid
c:>page 117.
A WARNING
- The rear view camera has blind spots, in
wh ich objects cannot be detected . Be es­
pecially careful to check for small chil­
dren and animals before backing up.
Small children and animals will not al­
ways be detected by the sensors.
General Information
Applies to vehicles: with parking system (rear, with rear
view camera)
Fig. 116 Cove red area (!) and uncovered area @ of the
rea r view ca mera
• 0
Fig . 117 Trun k lid : Location of the rear view camera
"'
"' "'
~ Sensors in the bumper
Sensors are loca ted in the rear bumpers. If
these detect an obstacle, audible and visual
s ignals warn you. The range at which the sen­
sors begin to measure is approx imately:
To the side 2
ft (0.60 m)
Center rear 5.2 ft (1.60 m)
Distance warning when reversing starts when
an obstacle is detected in the range of the
parking assist system. As the distance de­
creases, the time interval between the audible
tones becomes shorter.
When the distance is less than 1ft (0.30 m),
t h e tone becomes continuous. At thi s point
you should stop backing up.
If the distance to an obstacle stays the same,
the volume of the distance signal chime is
gradually reduced after about 4 seconds (does
not affect the contin uous signa l tone) . Ap­
proaching another obstacle will cause the d is­
tance signal to sound agai n at the normal vol­
ume.
Rear view camera coverage area
T he MMI display shows the area covered by
the rear view camera
c:> fig. 116 (D . Objects
that are not in the area covered @are not
shown on the MMI display .
We recommend that you practice parking with
the rear view camera in a traffic-free location
or parking lot to become familiar with the sys­
tem, the orientation lines, and the ir function.
When doing this, there should be good light
and weathe r cond itions.
In the MMI display, objects or vehicles appear
closer or further away if:
- you are driving in reverse gear from a leve l
surface onto an incline, or a downward
slope,
- you are driving in reverse gear toward pro­
trud ing ob jects,
- the vehicle is car ry ing too much load in the
rear.

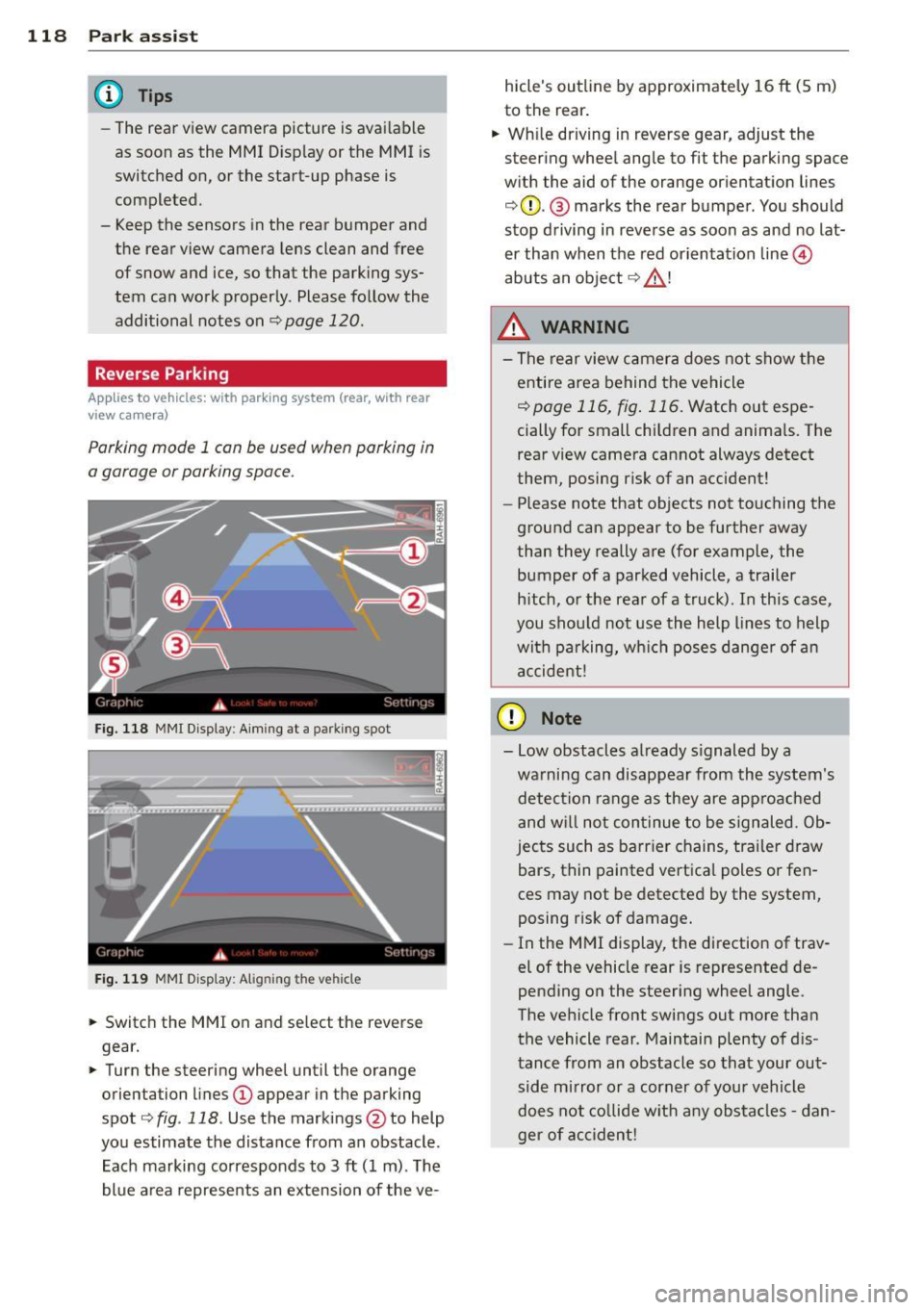

118 Park ass is t
@ Tips
- The rear view camera picture is avai lable
as soon as the MMI D isplay or the MMI is
switched on, or the start-up phase is
completed.
- Keep the sensors in the rear bumper and the rear view camera lens clean and free
of snow and ice, so that the parking sys­
tem can work properly . Please follow the
additional notes on
~ pag e 120.
Reverse Park ing
App lies to vehicles: with parking system (rear, wit h rear
view came ra)
Parking mod e 1 can be used when parking in
a garage or parking space.
F ig. 1 18 MMI Di splay : Aim ing at a p arkin g spot
F ig . 119 MMI Disp lay: Ali gning th e vehi cle
"' Switch the MMI on and se lect the reverse
gear.
"' Turn the steering wheel until the orange
orienta tion lines
(D appear in the parking
spot ¢
fig. 118 . Use the mark ings @to help
yo u estimate the distance from an obstacle .
Each marking corresponds to 3
ft (1 m) . T he
blue a rea represents an extension of the ve- hicle's outline by approximate
ly 16
ft (5 m)
to the rear .
"' Wh ile driving in reverse gear, adjust the
steering whee l angle to fit the parking space
w ith the aid of the orange or ientation lines
¢ 0 . @ marks the rear bumper . You should
stop d riving in reve rse as soon as and no lat­
er than when the red orientation line©
abuts a n obje ct ¢ _&. !
_& WARNING
- The rear view c amera does not show t he
e ntire area behind t he vehicle
¢ page 116, fig . 11 6. Watch out espe­
cially for small children and anima ls. The
rear view camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really a re (for example, the
bumper of a parked vehicle , a trailer
h itch, o r the rea r of a truck). In this case,
you shou ld not use the h elp lines to help
wit h pa rking, wh ich poses danger of a n
a ccident!
(D Note
- Low obstacles a lready s ignaled by a
wa rning can disappear from th e system's
detec tion range as they are approa ched
and w ill not con tinue to be signaled. Ob­
jec ts such as barr ier chains, tr ailer draw
bars, thin painted vertica l poles or fen ­
ces may not be detecte d by the system,
posing risk of damage.
- In the MMI display, t he direction of trav­
el of the vehicle rear is represented de ­
pending on the steering wheel angle.
The ve hicle fro nt swings out more tha n
the vehicle rear . Maintain plenty of d is­
tance from an obstacle so that your out­ side mirror o r a corner of you r vehicle
d oes not co llide w it h any obs ta cl es -d an­
ger of accident!

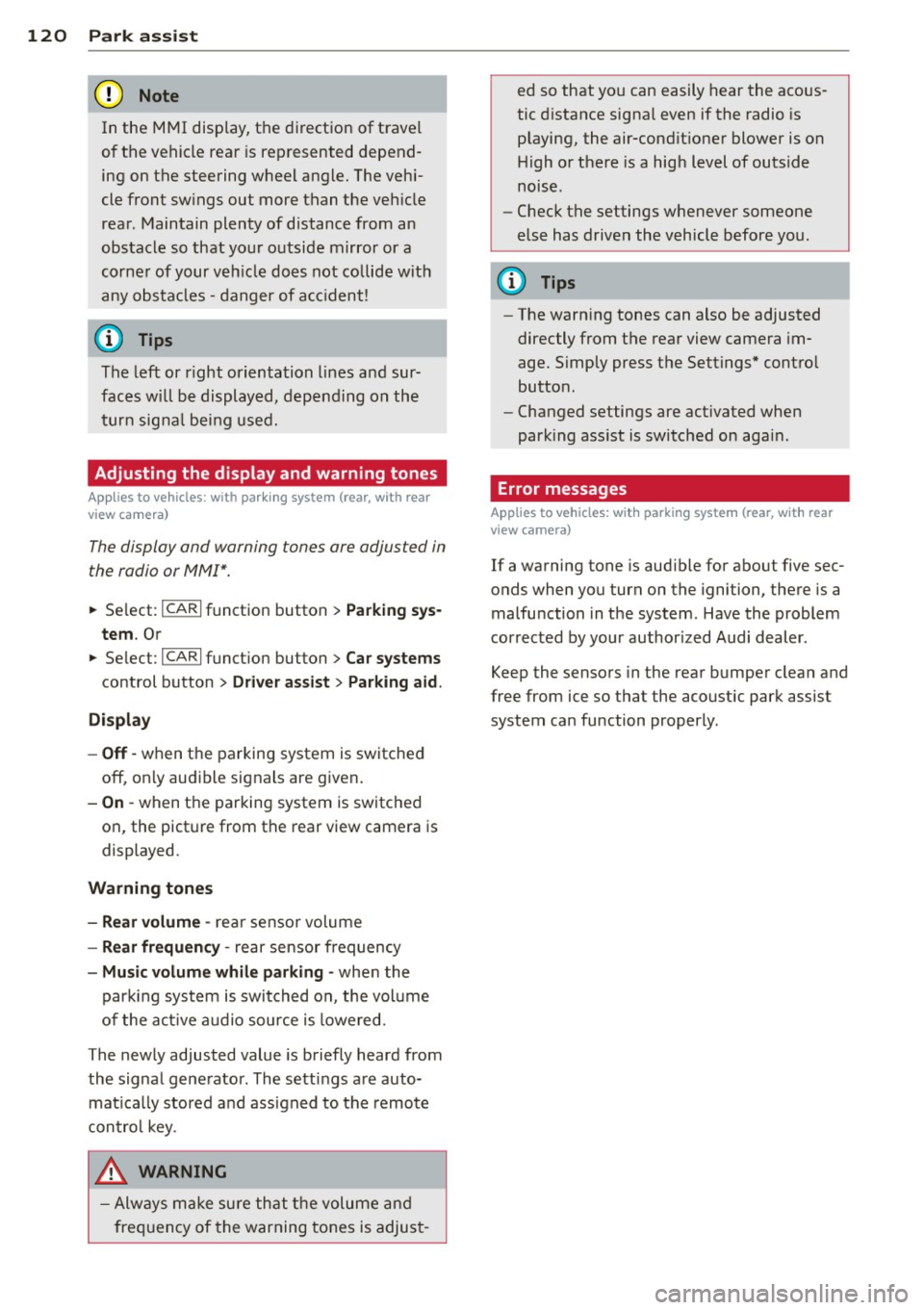

120 Park assis t
In the MMI display, the d irection of travel
of the vehicle rear is represented depend­ ing on the steering wheel angle. The vehi­
cle front sw ings out more than the ve hicle
rear. Maintain plenty of distance from an
obstacle so that your o utside mirror or a
corne r of your veh icle does not co llide with
any obs ta cl es -danger of ac cident!
@ Tips
The left or right orientation li nes and sur­
faces wi ll be displayed, depending on the
t urn sig na l being used.
Adjusting the display and warning tones
A ppl ies to vehicles: with pa rk in g system (rear, with rea r
view ca mera )
The display and warning tones are adjusted in
the radio or MM!*.
"' Se lect:
I CARI f u nction button > Parking sys ·
tern .
Or
"' Se lect: ~I C~A~R~I funct ion button > Car systems
control button > Dr iver assist > Parking aid .
Display
- Off -when the parking system is switched
off, on ly aud ible signals are given .
-On -when t he parking system is switched
on, the pict ure from the rear view camera is
displayed.
Warning tone s
- Rear volume -
rear sensor volume
-Rear frequency -rear sensor frequency
-Music volum e while parking -when the
park ing system is switched on, the volume
of the act ive a udio source is lowered.
The new ly adjusted value is briefly heard from
the signal gene rator. The sett ings a re auto­
mat ica lly stored and assigned to the remote
con trol key.
_& WARNING
- Alw ays m ake su re th at the volume and
freq uency of the warning tones is adjus t-
-
ed so that you can easily hear the acous­
tic d istance signa l even if the radio is
playing, the air-cond it ioner blower is on
H igh or there is a hig h level of outside
noise.
- Check the settings w henever someone
else has driven the vehicle before you.
(D Tips
- The warn ing tones can also be adjusted
directly from the rear view camera im­
age. Simply press the Settings* contro l
butto n.
- Changed settings are activated when
park ing ass ist is switc hed on aga in.
Error messages
App lies to vehicles: wit h parking system (rear, wit h rear
v iew camera)
If a warning tone is aud ible for about five sec­
onds when you turn on the ignition, there is a
malfunction in the system . Have the problem
cor rected by your author ized Audi dealer.
Keep the senso rs in the rear bumpe r clean and
free from ice so that the acoustic park assist
system can function properly.

Homelink®
Universal remote
control
Description
Appl ies to vehicles: with Horne Link
The Homelink universal remote control can
be programmed with the remo te control for
devices that are already present.
With Home Link, you can control devices such
as the garage door, security systems, house
l ights , etc. comfortab ly from the inside of you
veh icle .
H ome Link ma kes it possible for you to rep lace
three differen t remote controls from dev ices
in your home with one universal remote. This
feature works for most garage door and exte­
rior door motor signals. Programming the in­
dividual remote control for your remote con ­
trol takes p lace near the center of the radiator
grille. There is a control module attached at
this location .
A one-t ime programming of the sensor must
be perfo rmed before you are able to use sys­
t ems w ith Homelink. If the system does not
activate after performing the one-t ime pro­
gramming, check whether the system uses a rolling codec:>
page 124 for veh icles without
the M MI*.
_& WARNING
- Never use the Homelink ® transmi tte r
with any garage door opener that does have not the sa fety stop and reverse fea ­
tu re as req uired by federa l safety stand­
ards. Th is includes any garage door open­
er mode l manufact ured before April 1,
1982.
- A garage door opener which cannot de­
tect an object, signaling the door to stop
and reverse does not meet current feder­
al safety standards . Us ing a ga rage door
opener without these features increases
risk of serious in ju ry or death.
Homelink ® 121
-For safety reasons never re lease the
parking brake or start the engine while
anyone is standing in front of the vehicle.
- A garage door or an estate gate may
sometimes be set in mot ion when the
Homelink ® remote control is being pro­
grammed . If the device is repeatedly ac ­
tivated, th is can overstrain motor and
damage its e lectrical components -an
overhea ted mo to r i s a fire hazard !
- To avo id possib le injuries or p roperty
damage, please always make abso lutely
certain that no persons o r ob je cts are lo­
ca ted in the range of mo tion of any
equi pment being ope rated .
(D Tips
- If you would li ke more information on
H ome link ®, where to purchase the
Home link ® compa tib le produc ts, or
would like to purchase the Homelink ®
Home Lighting Package, please call to ll­
free: 1-800-355-3515.
- For Declaration of Compliance to United
States FCC and Ind ustry Canada reg ula­
tions c:>
page 275.

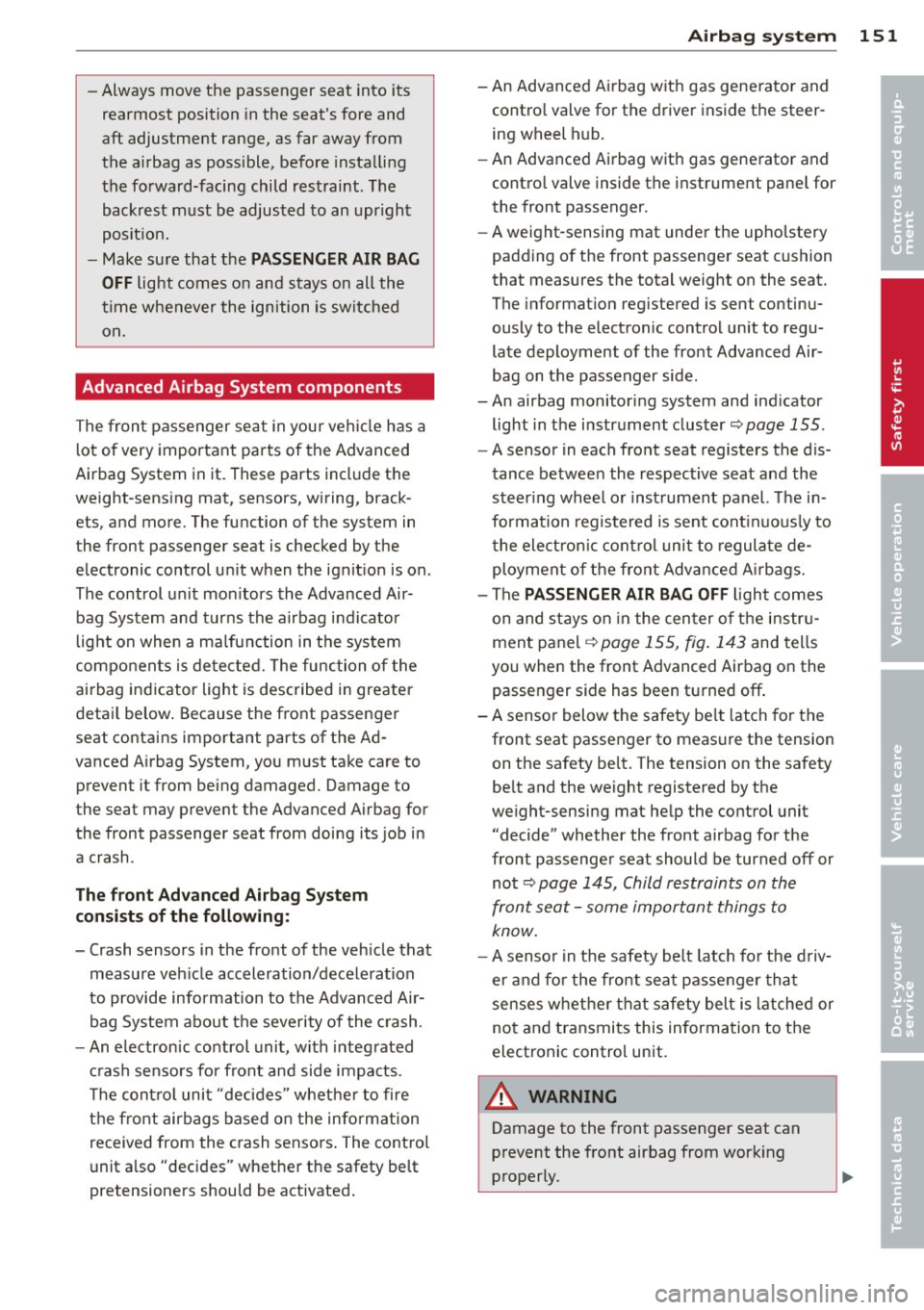

-Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before installing
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is sw itched
on.
Advanced Airbag System components
The fron t passenger seat in your vehicle has a
lot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sensing mat, sensors, wiring, brack ­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on .
The control un it mon itors the Advanced Air­
bag System and turns the airbag indicator
l ight on whe n a ma lfunction in t he sys tem
components is de tected. The function of the
airbag indicator light is described in greater
detai l below . Because the front passenger
seat contains important parts of the Ad ­
vanced A irbag System, you m ust take care to
prevent it from being damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/decele ration
to provide information to the Advanced Air­
bag System about the seve rity of the crash.
- An electronic co ntrol unit, with integrated
c rash se nsors for front and side impacts .
T he cont ro l unit " decides " whethe r to fire
the front airbags based on the inform ation
received from the crash senso rs . The contro l
unit a lso "decides" whether the safety belt
pretensioners should be activated .
Airbag system 15 1
-An Advanced A irbag w ith gas gene rator and
contro l valve fo r the driver ins ide the steer ­
ing wheel h ub.
- An Advanced Airbag w ith gas gene rator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight-sensing mat under the upholstery
padding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion reg istered is sent continu­
ously to the electronic control unit to regu­
late deployment of the front Advanced Air­
bag on the passenger side.
- An airbag monitor ing system and ind icator
light in the instrument cluster
q page 155 .
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steer ing whee l o r inst rument panel. The in­
forma tion registered is sent cont inuo usly to
t he elect ron ic cont ro l uni t to regula te de ­
ployment o f the front Advance d Airbags .
- The
PASSENGER AIR BAG OFF ligh t comes
on and st ays on in the cen ter o f th e instr u­
ment panel
<:!;> page 155, fig . 143 and tells
you whe n the front Advanced Airbag on the
passenger side has been tu rned
off .
-A sensor below the safety be lt latch fo r the
front seat passenger to measure the tension on the safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensi ng mat he lp the control unit
"decide" whether the front a irbag for the
front passenge r seat should be turned
off or
not
r:!;> pag e 145, Child restraints on the
front seat -some important things to
know.
- A senso r in the safety belt latch fo r the d riv­
er and fo r the front sea t passenger tha t
senses w hethe r that safe ty belt is latched or
not and transmi ts this informa tion to the
electronic control unit.
_&. WARNING
Damage to the front passenger seat can
prevent the front airbag from work ing
properly.
-
•
•

152 Airbag sys te m

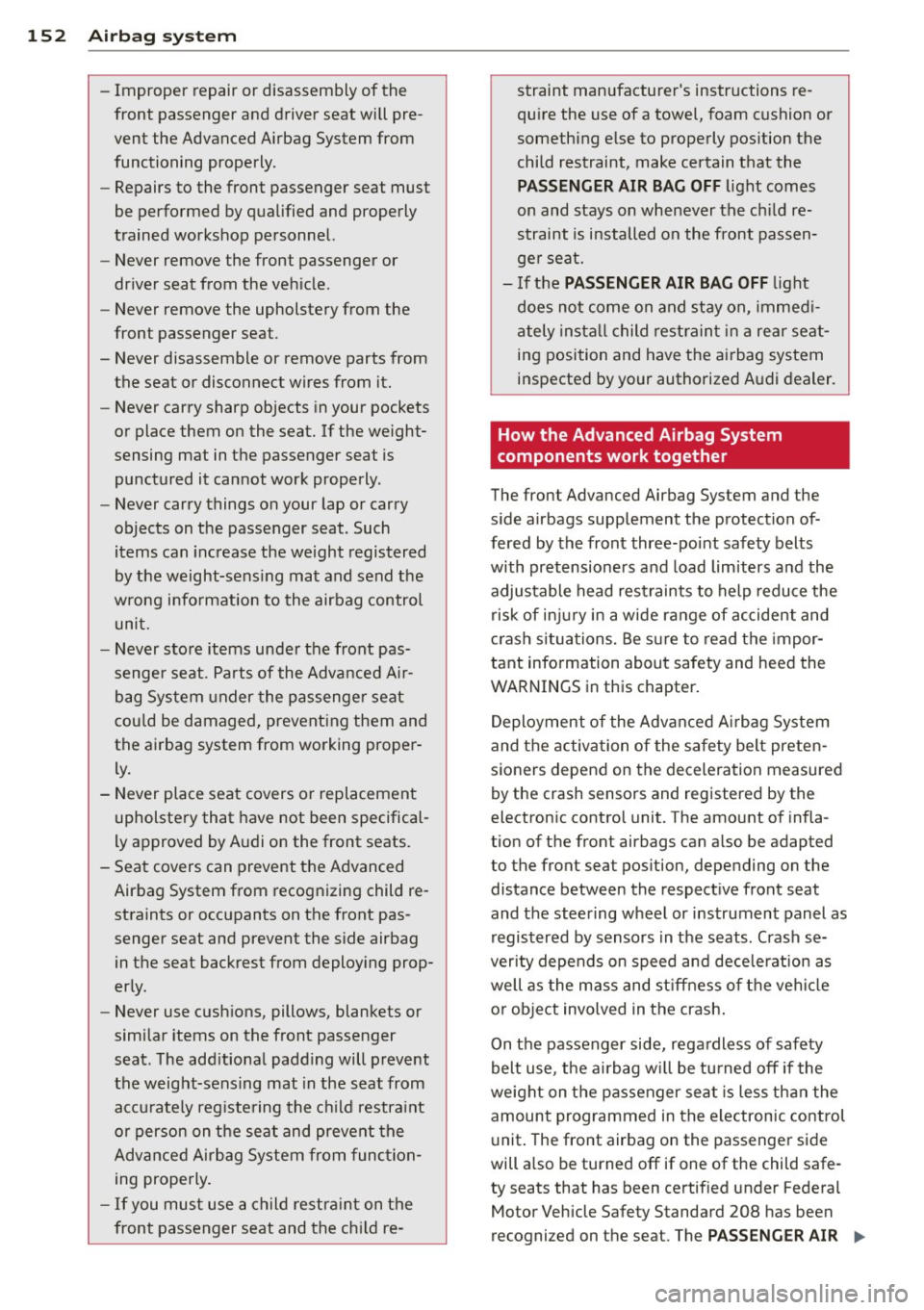

- Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
dr iver seat from the veh icle .
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-sens ing ma t and send the
wrong info rmation to the airbag control
uni t.
- Never sto re items under the front pas·
senger seat. Parts of the Advanced Ai r­
b ag System under the p assenge r seat
cou ld be damaged, prevent ing them and
the airbag system from wo rking proper ­
ly .
- Never place seat covers or replacement
upholste ry that have not been specifical­
ly approved by A udi on the front seats.
- Seat covers can prevent the A dvanced
Air bag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag in the seat backrest from deploy ing prop­
erly.
- Never use c ush ions, pillows, blankets or
similar items on the front passenger
seat. The add it iona l padd ing will prevent
the weight-sensing mat in the seat from
accu rately reg iste ring the c hild restra int
or person on the seat and prevent the
Adva nce d Airb ag System from func tion­
ing properly .
-If you mus t use a child restra int on the
front passenger seat and the ch ild re- straint manufacture
r's instructions re­
qu ire the use of a towel, foam cushion or
something e lse to properly pos ition the
child restraint, make certain that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the ch ild re·
s t raint is installed on the front passen ­
ge r seat.
- If the PASSENGER AIR BAG OFF light
does not come on a nd stay on, immed i­
a tely insta ll child restrain t in a rear se at­
ing position and have the ai rbag system
inspected by your authorized A udi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
s ide airbags supp lement the protection of­
fered by the front three-poi nt safety belts
with pretensioners and load limiters a nd the
adjustable head rest raints to help redu ce the
risk of inj ury in a wide range of accident and
c rash situations. Be s ure to read the impor ­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need A irba g System
and t he activation of the safety belt preten­
sioners depend on the deceleration measured
by the crash sensors and registered by the
electron ic control unit. The amount of infla­
tion of the front airbags can a lso be adapted
to the front sea t pos ition, depending on the
distance between the respect ive front seat
and the steer ing w heel or instrument panel as
registered by sensors in the seats. Crash se·
verity depends on speed and decelerat ion as
well as the mass and st iffness of t he vehicle
o r object involved in the crash .
On the passenger side, regardless of safety
belt use, the ai rbag w ill be tu rned off if the
we ight on the passenger seat is less than the
amount programmed in the e lectron ic control
u nit. The front airbag on the passenger side
will a lso be turned off if one of the child safe -
ty seats that has been certified under Federal
Motor Vehicle Safety Standard 208 has been
recogni zed on the seat . The
PAS SENGER AIR .,..

Monitoring the
Advanced Airbag
System
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PAS SEN ­
G ER AIR B AG
OFF light.
The Advanced Airbag System (including the
e lectronic control unit, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioning properly
whenever the ignit ion is on . Each t ime you
turn on the ignition, the
I airbag monitoring
i ndicator light w ill come on for a few seconds
(self diagnostics) .
The system mu st be in spected when the
I indicator l ight:
- does not come on when the ignit ion is
switched on,
- does not go out a few seconds after yo u
have switched on the ignition, o r
- comes on while driving .
If an airbag system malfunction is detected,
the indicator light will first start flashing to
catch the driver's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immediately.
If a malfunction occurs that turns the front
airbag on the passenger side off, the
PASSEN­
GER AIR BAG
OFF li ght will come on and stay
on whenever the ignition is on.
_& WARNING
An airbag system that is not funct ioning
properly cannot provide supp lemen tal p ro­
tection in a frontal crash.
- If the airbag indicator l ight c::> page 20
comes when the vehicle is be ing used,
have the system inspected immediately
by your authorized Audi dea ler .
It is pos­
sible that the airbag will inflate when it is not supposed to, or w ill not inflate
when it should.
-
A irba g sy stem 155
PASSENGER AIR BAG OFF light
Fig. 143 Sect io n fro m the instrument panel: PASSEN­
GER AIR BAG OFF light
The PAS SENG ER AIR BAG OFF light is located
in the center of the instrument pa ne l
¢ fig. 143 .
The PAS SENG ER AIR BA G OFF light will come
on and stay on to tell you when the front Ad­
vanced Airbag on the passenger s ide has been
tu rned off by the electronic cont rol unit. Each
time you turn on the ignition, the
PASSEN­
GE R AIR BA G OFF
light will flash for a few
seconds and:
- wi ll stay on if the front passenger seat is not
occupied,
-w il l stay on if there is a small ch ild or child
restraint on the front passenger seat,
- w ill go out if the front passenger seat is oc­
cupied by an adult as registered by the
weight-sensing mat .
The
PAS SEN GER AIR BAG OFF li ght mu st
co m e on and st ay o n if the ignition is on and
- a car bed has been installed on the front
seat, or
- a rearward -facing child restraint has been
installed o n the front passenger seat, or
- a forward-fac ing child restraint has been in­
stalled on the front passenger seat , or
- the weight registered on the front passen­
ger seat is equal to or less than the com­
bined weight of a typical 1 year-old restra in­
ed in one of the rear-facing or forward-fac­
ing infan t restra ints listed in Federal Motor
Veh icle Safety Standard 208 wi th which the
Advanced A irbag System in your vehicle was
certified.
111-

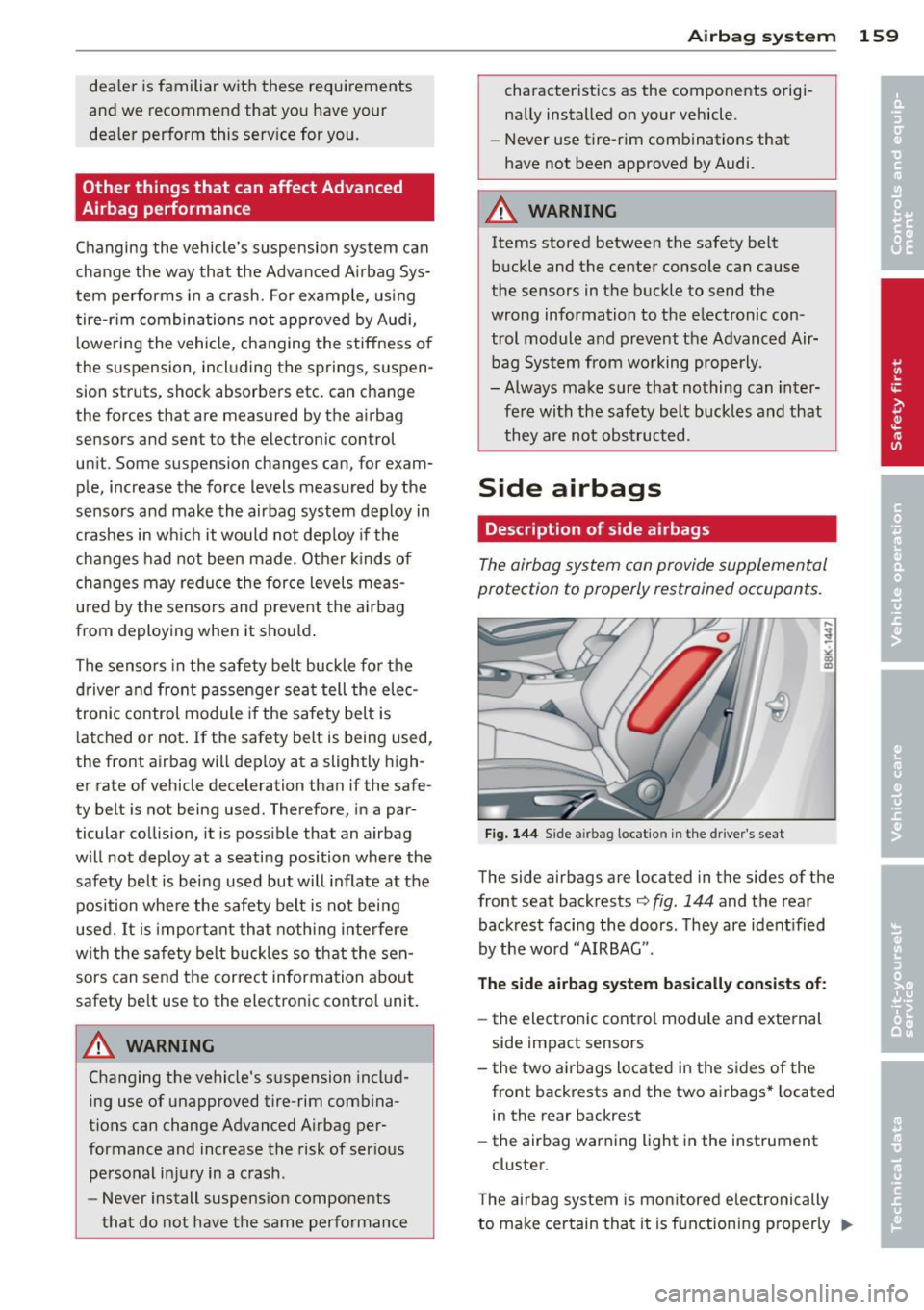

dealer is familiar with these requi rements
and we recommend that you have your
dea ler perform this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced A irbag Sys­
tem performs in a crash. For example, us ing
tire-r im combinations not app roved by Aud i,
l owering the vehicle, changing the stiffness o f
the suspension, incl uding the sp rings, s uspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag sensors and sent to the electronic control
un it. Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in wh ic h it would not dep loy if the
changes had not been made. Other k inds of
changes may reduce the force levels meas ­
u red by the sensors and prevent the a irbag
from deploying when it shou ld .
The senso rs in the safety belt buckle fo r the
d river and front passenger sea t tell the elec ­
tronic control module if the safety belt is
l atched or not . If the safety belt is being used,
the front airbag will dep loy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular co llision, it is poss ible that an airbag
will not deploy at a seating position where the
safety belt is being use d but will inflate at the
position whe re the safety belt is not being
used. It is important tha t nothing i nterfe re
w it h the safety belt buckles so t hat the sen ­
sors can send t he correct information abo ut
safety belt use to the electronic contro l unit.
.&_ WARNING
Changing the vehicle 's s uspension includ­
ing use of unapproved tire-rim c ombina­
tions can change Advanced Airbag pe r­
formance and increase the risk of ser ious
personal i njury in a crash.
- Never install suspens ion components
that do not have the same performance
A irba g sy stem 159
characteristics as the components o rigi­
na lly installed on your vehicle.
- Never use tire-rim com binations that
have not been approved by Audi.
.&_ WARNING
= -
Items stored between the safety be lt
b uckle and the center console can cause
the sens ors in t he buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­ bag Syst em from wo rking properly.
- Always make s ure that nothing can in ter-
fe re with the safety b elt buckles and that
they are no t obstructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fi g. 144 Side airbag location in t he drive r's seat
The side airbags are located in the sides of the
front seat backrests¢
fig. 144 and the rea r
backrest faci ng the doors. They are ident ified
by the word "AIRBAG".
The side airbag system basically consists of :
-the electronic control modu le and external
side impact sensors
- the two a irbags located in the sides of the
front backrests and the two a irbags* located
in the rear backrest
- the airbag warn ing light in the instrument
cl uster .
T he airbag system is mo nitored e lec tronically
t o make ce rtain tha t it is f unction ing p ro perly
Ill-

160 Airbag sys te m

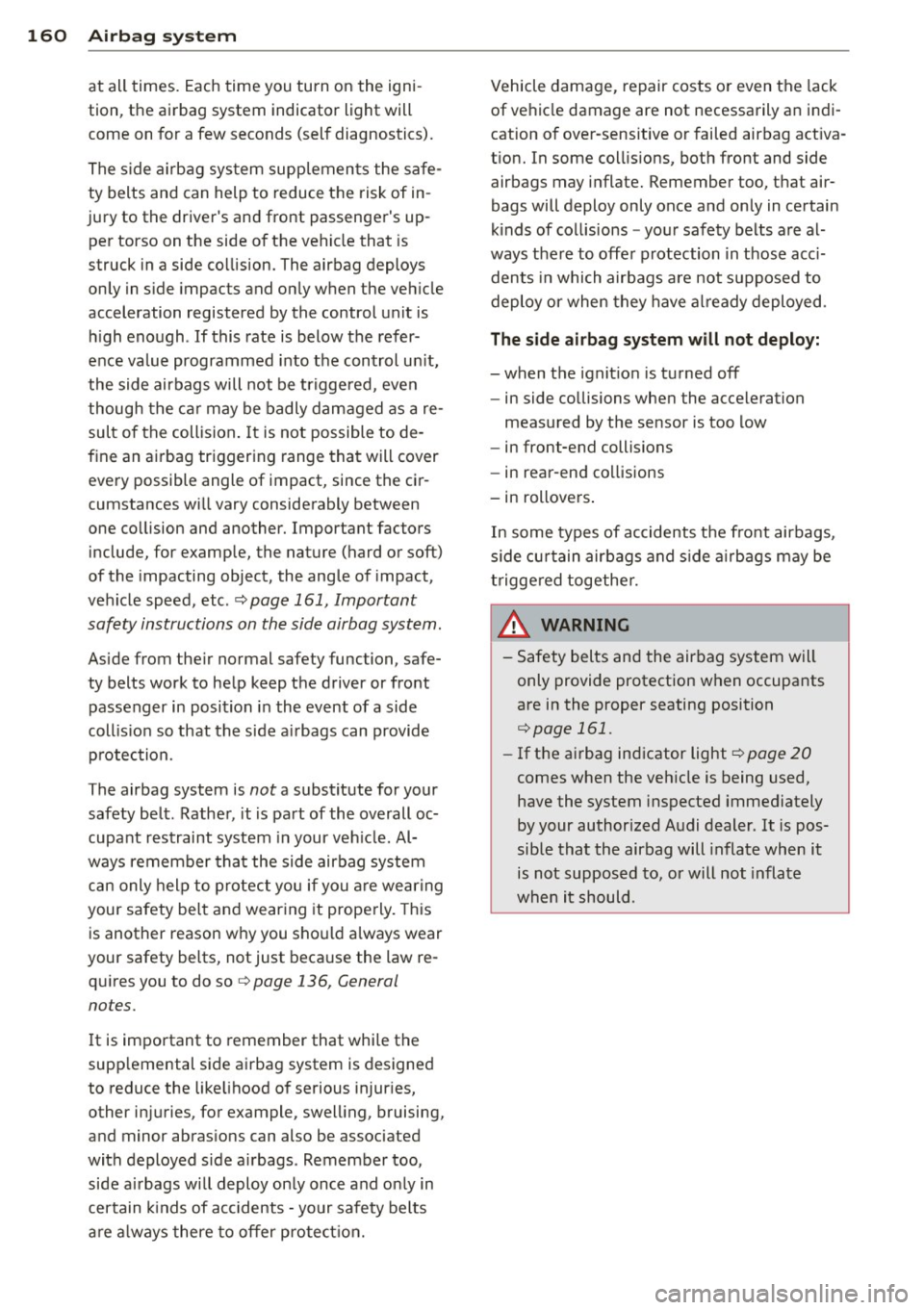

at all times . Each time you turn on the igni­
tion, the airbag system indicato r light will
c o me on for a few seconds (self diagnostics).
T he s ide airbag sys tem supp lemen ts the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's and front passenger's up­ per torso on the side of the vehicle that is
struck in a side col lision. The airbag deploys
only in s ide impacts and only when the veh icle
acceleration registered by the control un it is
h igh enough .
If this rate is below the refer­
ence va lue programmed i nto the control u nit,
the side airbags will not be t riggered, even
though the car may be badly damaged as a re ­
sult of the collision . It is not possible to de­
fine an a irbag tr iggering range that will cover
every possible angle of impact, since the cir­
cumstances wi ll vary considerably between
one co llision and another. Important factors
include, for examp le, the nature (hard or soft)
of the impacting object, the ang le of impact,
ve hicle speed, etc. ¢
page 161, Important
safety instructions on the side airbag system.
Aside from the ir normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a side
coll is io n so that the side a irbags can provide
p rotection.
The airbag system is
not a substitute for your
safety bel t. Rathe r, it is pa rt of the overall oc­
cupa nt restraint system in your ve hicle. Al­
ways remember tha t the side airbag system
can only help to protect yo u if you are wear ing
your safety be lt and wear ing it prope rly. This
is another reason w hy you sho uld always wear
your safety be lts, not just beca use the law re­
q ui res you to do so¢
page 136, General
notes.
It is important to remember that whi le the
supp lemental side airbag system is designed
to reduce the like lihood of serious injur ies,
other inj uries, for example, swell ing, bruising,
and minor abras ions can also be associated
with deployed s ide a irbags . Remember too,
side a irbags w ill deploy on ly once and on ly in
certain kinds of accidents -your safety belts
a re a lways there to offer pro tec tion. Vehicle damage,
repair costs o r even the lack
of ve hicle damage are not necessarily a n in di­
cation o f ove r-sensitive or failed airbag act iva ­
t ion. In some coll is ions, both front and side
airbags may inflate. Remember too, that air­
bags will deploy only once a nd only in ce rtain
k inds of col lisions -you r sa fety belts are al­
ways there to offe r protection in those acc i­
den ts in which a irbags a re not supposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
- when the ignit io n is t urned off
- in side co llisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end co llisions
- in rollove rs .
In some types of accidents t he fro nt airbags,
s ide cu rtain air bags and s ide a irb ags may be
t rigge red togethe r.
A WARNING ~
- Safety belts an d the air bag system will
only provide protection when occupants
are in the proper seating position
¢page 161.
-If the ai rbag ind icator light ¢ page 20
comes when the veh icle is being used,
have the system inspected immediately
by your authorized A udi dealer. It is pos­
sible that the airbag will inflate when it
is not suppos ed to, or will not infla te
when it should.
