Working on the battery
Be especially careful when working on or near the
battery.
The battery is located in the luggage compartment under the
floor. Before you check anything in the lu~gage compart­
ment, read and heed all WARNINGS=>
&-
Always heed the safety warnings, when working on the vehicle
battery or the vehicle electrical system to prevent injury.
The following WARNINGS are very important when
working on the battery:
Always heed the following WARNING SYMBOLS and safety pre­ cautions when working on the battery.
@
®
Always wear eye protection.
Battery acid contains sulfuric acid. Always wear
gloves and eye protection.
No
- sparks
- flames
- smoking .
When a battery is charged, it produces hydrogen
gas which is explosive and could cause personal
injury.
Always keep the battery well out of reach of chil­
dren .
& WARNING
Whenever working on the battery or on the electrical system,
there is the risk of injury, accident and even fire. Read and heed
the following WARNINGS:
& WARNING (continued)
• Always wear eye protection. Do not let battery acid or any lead
particles get on your skin or clothing. Shield your eyes. Explosive
gases can cause blindness or other injury.
• Battery acid contains sulfuric acid. Sulfuric acid can cause
blindness and severe burns.
-Always wear gloves and eye protection. Do not tilt the
battery because acid could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or on your skin, immedi­
ately rinse with cold water for several minutes and get medical
attention.
- If you should ingest any battery acid, seek medical attention
immediately.
• Do not expose the battery to an open flame, electric sparks or
an open light.
• Do not smoke.
• Do not interchange the positive and negative cables.
• When working on the battery, be sure not to short-circuit the
terminals with tools or other metal objects. This would cause the
battery to heat up very quickly, which could lead to damage or
explosion and personal injury.
• When a battery is charged, it produces hydrogen gas which is
explosive and could cause personal injury.
• Always keep the battery well out of the reach of children.
• Before work is done on the electrical system, disconnect the
negative ground cable.
• Before performing any work on the electrical system, switch
off the engine and ignition as well as any electrical equipment.
The negative cable on the battery must be disconnected. If you are
just going to replace a light bulb, then it is enough to switch off the lights. ..,_

_____________________________________________ C_h _ e_ c_ k_in --= g'-- a_n _d_ f_i _ll _i_n -=g ::;__ ____.lftll
If it is not poss ible to use a ba ttery of this type, the new battery must
h ave the same capacity, voltage (12 volts), amperage, const ruct ion
and plug sealing .
When installing the battery, make sure the ignition and all electrical
consumers are turned off .
0 Note
Make sure the vent ilation hose on the side of the battery is
connected, otherwise fumes or battery acid can leak out.
c£' For the sake of the environment
Because of the problem of proper disposal of a battery, we recom­
mend you r author ized Audi dealer change the battery fo r you .
Batteries contain sulfuric acid and lead and must always be disposed
of properly in compliance with all env ironmenta l regu lations.
Disposing of vehicle batteries improperly is very dangerous to the
environment. •
Windshield/headlight washer
container
Fig. 226 Engin e
c o mpa rt m ent : W in d­
s hiel d an d hea dlight*
wa sh er fl uid containe r
Vehicle OP-eration
The washer fluid container is marked with the symbol¢, on
i t s cap.
- Before you check anything in the engine compartment,
always read and heed all WARNINGS ~ & in "Working
in the engi ne compar tment" on
page 280 .
-Lift the filler cap tongue to add washer fluid. You can fill
the container to the top.
- Press the cap back onto the filler neck after filling the
co ntainer.
You can find the reservoir capacit y in the table in=> page 342.
To prevent lime res idue from build ing up on the sp ray jets, use
distilled water when refilling . Always add a glass cleaner solution
(with frost protection in the winter) .
0 Note
Do not mix engine coo lant antifreeze or any other additives to fill up
the windsh ield washer reservo ir. •
Vehicle care Do-it-yourselt service iTechnical data

________________________________________________ T_i_r _e _s _ a_n _ d_ w_ h_ e _ e_l_s __ _
gauge a nd keep chec king the press ure until you reach t he press ure
th at i s cor rect fo r t he lo ad ( pass en ge rs and l uggage) and kind of
dr iving you plan to do .
If the press ure i n any t ire is too low, note the difference betwee n th e
pressu re in t he cold tire a nd the pressure you need and add the air
that you need to reach the correct pressure for t he ve hicle load
( pass enge rs and lugg age) f or th e tires on yo ur vehicle as l ist ed on t he
on your vehicle and in this manua l and the kind of driving you p lan to
do.
Never exceed the maximum inflation pressure listed on the tire
sidewall for any reason.
Remember that the ve hicle m anufac tur er, no t the tire manufa cture r,
determines t he correct tire press ure for the t ires on your veh icle.
It is important to check the tire pressure when the t ires a re co ld .
• Read the requ ired t ire pr essure from t he t ire pr essure lab el. T he
tire pressure labe l is located on the dr ive r's side B-p illar.
• Turn t he valve stem cap co unter-clockw is e t o remove it from the
tire valve.
• Place th e air press ure gauge on the valve .
• Th e tire p res su res sho uld on ly be che cked and adju sted whe n the
tires are cold . The slightly raised press ures of warm tires must not be
re duc ed .
• Adjust the tire press ure to the load you are carry ing.
• Re install the valve s tem cap o n the valve.
When should I check the tire pressure?
Th e correct tir e press ure is especially import ant a t hi gh s peeds. The
pressu re s ho ul d t herefore be chec ke d at least once a mont h and
a lways before sta rt ing a jou rney. Do not fo rget to check the tire pres­
sure for the spare w heel.
When should I adjust the tire pressures?
Adjust t he tire pressure to the loa d you are ca rry ing . After ch ang ing a
w hee l
or replac ing wheels yo u have to adjus t th e t ire press ures on all
Safety first
wheels . In add itio n, you m ust t hen store the new tire pressu res in the
tir e press ure m oni torin g sy stem* =>
page 316.
& WARNING
Incorrect tire pressures and/or underinflation can lead sudden tire
failure, loss of control, collision , serious personal injury or even
death.
• When the warning symbol appears in the instrument
cluster, stop and inspect the tires .
• Incorrect tire pressure and/or underinflation can cause
increa sed tire wear and can affect the handling of the vehicle and
stopping ability.
• Incorrect tire pressures and /or underinflation can also lead to
sudden tire failure, including a blowout and sudden deflation ,
causing loss of vehicle control.
• The driver is responsible for the correct tire pressures for all
tires on the vehicle. The applicable pressure values are located on
a sticker on the driver's side B·pillar.
• Only when all tires on the vehicle are filled to the correct pres­
sure , the ti re pressure monitoring system* can work correctly.
• The use of incorrect tire pressure values can lead to accidents or
other damage. Therefore it is essential that the driver observe the
specified tire pressure values for the tires and the correct pres­
sures for the function of the tire pressure monitoring system*.
• Always inflate tires to the recommended and correct tire pres­
sure before driving off.
• Driving with underinflated tires bend more, letting them get
too hot resulting in tread separation, sudden tire failure and loss
of control.
• Excessive speed and/overloading can cause heat build-up,
sudden tire failure and loss of control.
• If the tire pressure is too low or too high, the tires will wear
prematurely and the vehicle will not handle well.
Vehicle care Technical data

IIIIL-_T.:..:..: ir:....:e~ s=---= a~ n:..:..: d:......: w..:....:.. h:....:e~ e= ls=--------------------------------------------------
The tire pressure monitor ing must be reset via rad io or MMI* each
t ime t he press ures are adjusted (e.g. w hen sw itching be tween p artial
and full load pressure) o r after changing or replac ing a tire on yo ur
vehicle => page
316. You ca n find t he recommen ded tire pressures
for your veh icle on the labe l on driver's s ide B-pilla r => page
300.
Tire tread circ umference and vibrat ion characteristics can change and
c a u se a tir e pressure war ning if:
• the t ire pressure in one or more tires is too low,
• t he tire ha s structur al dam age,
• the tire press ure was changed, wheels rotated or rep laced but the
TPM S was no t reset=> page
316.
Warning symbols
1..1' Loss of press ure in at least one tire=> &. Check the tire or tires
and replace or repair if necessary. The indicator light (• in the instru­
me nt cluste r a lso illuminates=> page
12. Check/correct the p res­
sures o f all four tires and reset TPMS via rad io or MMI *.
rr :; (T ire Pressu re M on itor ing System) Tire pres sure! System
malfunction.
If T ,.;> appears after switching the ignition on or w hile
dr iv ing => page
315, fig. 23 3 and the indica to r lig ht 'in th e instr u­
me nt clus ter b links for approx ima tely one m inute and the n stays on,
there is a system ma lf u nct io n. See your authorized Audi dealer as
soon as poss ible.
& WARNING
• If the tir e pres sure indicator appears in the instrument cluster
display, one or more of your tires i s significantly under-inflated.
Reduce your speed immediately and avoid any hard steering or
braking maneuvers. Stop as soon a s possible and check the tires
and their pressures . Inflate the tire pressure to the proper pres­
sure as indicated on the vehicle 's tire pressure label=>
page 300.
Driving on a significantly under -inflated tire causes the tire to
overheat and can lead to tire failure. Under -inflation also is likely
to impair the vehicle's handling and stopping ability.
& WARNING (co ntinued )
• The driver is re sponsible for maintaining the correct tire pres­
sures . You must check the tire pres sures regularly .
• Under certain conditions (such as a sporty driving style , winter
conditions or unpaved roads) , the pressure monitor indicator may
be delayed.
• Ask your authorized Audi dealer if run-flat tires may be used on
your vehicle . Your vehicle registration becomes invalid if you u se
the se tires when not permitted. Damage to your vehicle or acci­
dents could also result.
[ i ] Tips
• T he tire pressure monito ring system stops working when there is
an ES P/ABS malf u nctio n.
• Using snow cha ins may res ult in a system ma lf u n ct ion .
• The tire pressure mon itor ing system on your Au di was calibrated
using t ires with the "AO" or "RO " id ent ificat ion . We re comme nd
using these tires. •
Applies to vehicles: with tire p ressure monito ring sys tem
Reset tire pressure monitoring system
I f the tire pressure is adjus ted, wheels are rotated or
changed, th e TPfvf S must b e re set via radio or fv1fv1 I*.
- Turn on the ign it ion .
- Sele ct: Fu nct ion bu tton
[C AR]> Tire pressure monitoring
> Store now.
[ i ] Tips
Before resett ing the TPMS, the current pressures of all four t ires
mus t co rrespo nd to the specifie d val ues. A djust the tire pre ssure and
~

ffll.,___W_ h_ a_t _ d_ o_ I_d_ o_ n_o _w_ ? ___________________________________________ _
What do I do now?

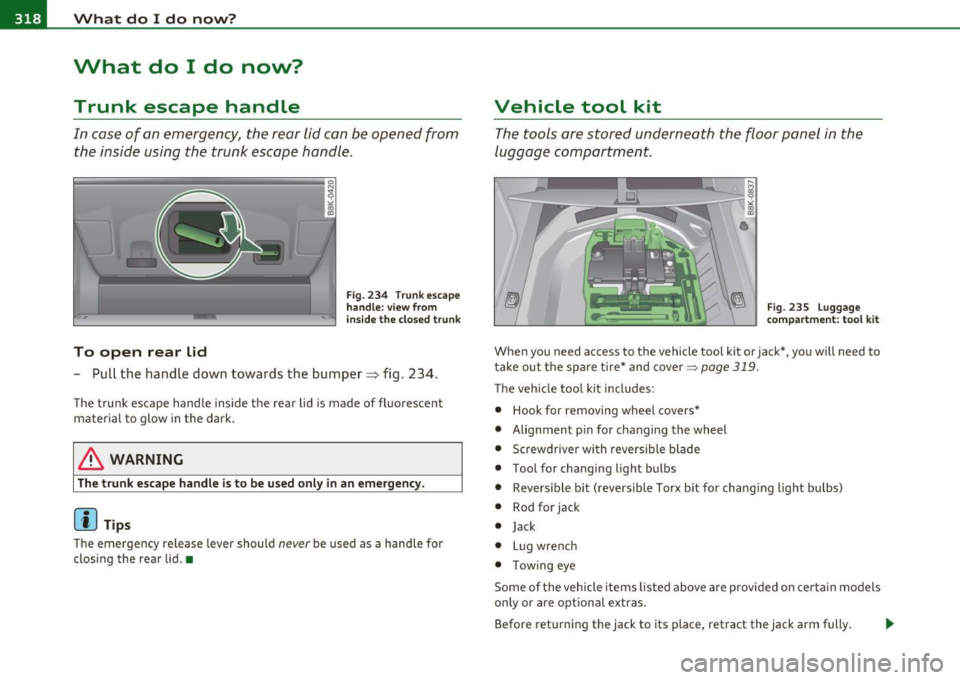

Trunk escape handle
In case of an emergency, the rear lid can be opened from
the inside using the trunk escape handle.
To open rear Lid
F ig . 234 Trunk esca pe
ha ndle : vie w from
i n side th e clo se d trun k
- Pull the hand le down towards the bumper~ fig. 234.
The trunk escape handle inside the rear lid is made of fl uorescent
m aterial to glow in the dark.
& WARNING
The trunk e scape handle is to be u sed only in an emergency.
(I) Tips
T he emerge ncy re lease lever should never be used as a handle for
closing the rear lid. •
Vehicle tool kit
The tools are sto red undern eath the floor panel in the
luggage compartment.
Fi g. 2 35 Luggag e
c omp art me nt: to ol kit
When you need access to the vehicle tool kit or jack* , yo u will need to
t ake out the spare ti re * and cover =>
page 319.
The ve hicle too l kit includes:
• Hook for removing whee l covers*
• Alignment p in for changing the wheel
• Screwdrive r with reversib le blade
• Tool for changing light bulbs
• Revers ible b it (reversible Torx b it for chang ing lig ht bulbs)
• Rod for jack
• Jack
• Lu g wre nc h
• T owing eye
Some of the veh icle items listed above are prov ided on ce rtain models
only or a re optional extras .
Before ret urning the jack to its place, ret ract the jack arm fully . .,

What do I do now? Ill ____________ ______;_ __ _
& WARNING (continued)
the ground, placing the Automatic Transmission in "P" (Park) will
not prevent the vehicle from moving.
• Before you change a wheel, be sure the ground is level and
firm. If necessary, use a sturdy board under the jack.
• After installing the inflatable spare tire, make sure that you
replace the flat tire/wheel in its storage area properly and tighten
the knurled retaining screw securely.
0 Note
If you are changing the wheel on a steep incline, use a rock or simi lar
object to block the opposite wheel to prevent the vehicle from
moving.
[I] Tips
Obey all laws. •
Changing a wheel
When you change a wheel, follow the sequence described
below step-by-step and in exactly that order.
1. Remove the decorative wheel cover*. For more details see
also =>
page 322, "Decorative wheel covers" .
2. Loosen the
wheel bolts=> page 323.
3. Locate the proper mounting point for the jack and align
the jack below that point=>
page 323.
4. Lift the car with the jack=> page 323.
5. Remove the wheel with the flat tire and then install the
spare tire=> page 325.
Safety first
6. Tighten all wheel bolts lightly.
7. Lower the vehicle with the jack .
8. Use the wheel bolt wrench and firmly tighten all wheel
bolts in a crisscross pattern=>
page 323.
9. Replace the decorative wheel cover*.
& WARNING
Always read and follow all WARNINGS and information~ & in
" Raising the vehicle" on
page 323 and ~ page 326. •
After changing a wheel
A wheel change is not complete without the doing the
following.
- Store and secure the wheel you replaced in the spare
wheel well.
- Replace the tools and the jack in their proper location.
- Check the
tire pressure of the spare tire as soon as
possible.
- As soon as possible, have the
tightening torques on all
wheel bolts checked with a torque wrench. The correct
tightening torque is 90 ft lb (120 Nm).
- Have the flat tire
replaced as soon as possible.
[ i] Tips
• If you notice that the wheel bolts are corroded and difficu lt to turn
while changing a tire, they should be replaced before you check the
tightening torque. .,_
Vehicle care Do-it-yourself service Technical data

Fuses and bulbs -________________ Ef"I
No. Consumer
6 Rear Seat Entertainment supply
7 Parking system
8 Not used Electromechanical park ing brake switch
1 0 Aud i side assist
11 Rear sea t heating
12 Terminal 15 control modules
Fuse panel E (black)
1 Not used
2 Not used
3 DSP amplifier, radio
4 M MI
5 Radio/navigation/cell phone prep
6 Rearview c
amer a
7 No t used
8 Not used
9 Not use d
10 Not used
11 N
ot used
1 2 N ot used
Safety first
Amps
5
7,5
5
5
5
5
20/ 30
7,5
7,5
5
•
Bulbs
Replacing bulbs
F or your safety, we recommend that you have your autho­
ri zed Audi dealer replace any bulbs for you.
It is becoming increasingly more and more diff icult to rep lace vehicle
ligh t bulbs since in many cases, other parts o f the car must fi rst be
removed before yo u are able to get to the bulb . This applies especially
to the light bu lbs in the front of your car which you can on ly reach
throug h the engi ne compartment .
Sheet meta l and bu lb holders can have sharp edges that can ca use
ser ious cuts, parts must be co rrectly t aken ap art and the n properly
put back together to he lp prevent breakage of parts and long term
d am age fro m water t hat c an enter housings that have no t been p rop­
erly resea led.
For your safety, we recommend that you have you r authorized Audi
dealer replace any bulbs fo r you, since yo ur dealer has t he p roper
too ls, the correct bu lbs and the expertise.
Gas discharge lamp s (Xenon light s)* :
Due to the high electr ica l voltage , have the bulbs replaced by a qual­
ified technicia n. Hea dlights w ith Xenon light are ident ified by the
high voltage sticker .
& WARNING
Changing Xenon lamps w ithout the necessary equipment can
cause serious personal injury.
• Bulbs are pressur ized and can explode when being changed.
Potential risk of injury !
• On vehicles equipped with gas discharge bulbs (Xenon light )*
lif e-threatening injurie s can re sult from improper handling of the
high- voltage port ions of such lamps ! .,_
Vehicle care Do-it-yourself service Technical data

-Fuses and bulbs Pf":I..._ ______________ _
& WARNING (continued)
• Only your authorized Audi dealer or a qual ified workshop
should change the bulbs in gas discharge lamps. There are parts
with sharp edges on the openings and on the bulb holders th at can
cause serious cuts . If you are uncertain about what to do, have the
work performed by an authorized Audi dealer or other qualified
workshop . Serious personal injury may re sult from improperly
perfo rmed work.
[ i ] Tips
• If you still prefer to rep lace the light bu lbs yourself, be aware that
t he engine comp artme nt is a haza rdous area to work in =>
page 272,
"Eng ine compartment"=> &.
• It is best to ask yo ur autho riz e d Au di d ealer w henever you w ant to
change a bulb. •

Emergency situations --------------=----Efffll
Emergency situations
General
This chapter is intended for trained emergency crew s and working
personnel who ha ve the necessar y tools and equipment to perform
the se operations . •
Starting by pushing or towing
(D Note
Vehicles with an automatic transmis sion cannot be started by
pushing or towing .•
Starting with jumper cables
If necess ary, the engine can be started by connecting it to
the battery of an other vehicle .
If the engine shou ld fai l to start because of a discharged or weak
battery, t he battery can be co nnecte d to the battery of
another
vehicle, using a pair of jumper cable s to start the engine .
Jumper cables
Use only jumper cables of suffic ient ly large cross section to carry the
sta rter cur ren t safely . Refe r to the manufacture r's specifications.
Use on ly j umper cab les with
insulated te rm ina l clamps w hich are
distinct ly marked :
plus(+) cable in most cases colo red red
minus (-) cable i n most cases colored black.
Safety first
& WARNING
Batterie s contain electricity, acid, and gas . Any of these can cause
very serious or fatal injury . Follow the inst ructions below for safe
handling of your vehicle 's battery .
• Always shield your eyes and avoid leaning over the battery
whenever possible.
• A discharged battery can freeze at temperatures just below
32 °F (0 °C). Before connecting a jumper cable, you must thaw the
frozen battery completely , otherwise it could explode.
• Do not allow battery acid to contact eyes or skin . Flush any
contacted area with water immediately .
• Improper use of a booster battery to start a vehicle may cause
an e xplosion.
• Vehicle batteries generate e xplos ive gases. Keep spa rks, flame
and lighted cigarettes away from batteries.
• Do not try to jump start any vehicle with a low acid level in the
battery.
• The voltage of the booster battery must also h ave a 12 -Volt
rating. The capacity (Ah) of the booster battery should not be
lower than that of the discharged battery. Use of batter ies of
different voltage or sub stantially different "Ah " rating may cau se
an explosion and personal injury.
• Never charge a frozen battery . Ga s trapped in the ice may cause
an e xplosion.
• Never charge or use a battery that has been frozen. The battery
case may have be weakened.
• Use of batteries of different voltage or substantially different
capacity (Ah ) rating may cause an explosion and injury . The
capacity (Ah ) of the booster battery should not be lower than that
of the discharged battery. _..
Vehicle care Do-it-yourself service Technical data

,..,___E_ m_ e_r -=g :.. e_ n_c -=y '-- s_i_t _u _a _ t_ i_ o _ n_ s ____________________________________________ _
& WARN ING (con tin ue d)
• Before you che ck anything in the engine compartment, always
read and heed all WARNINGS~
page 272, "Engine compart­
ment ".
0 Note
• App lying a higher vo ltage booster battery will cause expens ive
damage t o sens it ive e lec tron ic compone nts, such as contro l units,
re lays, rad io, etc.
• The re must be no elect rical contact between the veh icles as othe r­
w ise current could already start to flow as soon as the pos it ive( +)
t erminals a re connected.
[ i ] Tips
Th e d ischarged ba ttery mus t be p roper ly connec ted to t he veh icle's
electrical system. When jump starting or charging the battery , never
conne ct the negative grou nd ca ble to the ba ttery negative post
because the battery manager system must be ab le to detect the
ba ttery's state of charge. A lways connec t the negat ive g round cable
to the negative ground post of t he battery manager cont rol un it .•
Use of jumper cables
fvf ake sure t o con nect the j umpe r ca ble clam ps i n ex a ctly
the order describ ed belo w!
Fig. 248 Engine
comp artment : Co nnec­
t o rs f or jump er cabl es
a nd c harger
Fig . 249 Jump
sta rtin g with the
b at tery of another
ve hicle :@ disc harge d
v ehicle battery ,©
bo oste r battery
The procedure descri bed below for con nec ting ju mper cables
is i nten ded to prov ide a jump start for your veh icle .
Vehicle with discharged battery:
-Turn off lights and accesso ries, move l ever of au to m atic
tra nsmi ssio n to
N (Ne utr al) or P (Park) an d se t parking
bra ke .
~
