______________________________________________ D_ ri_v _ i_n _,,g ,c.._ S_a_ f_ e_ l..:: y __ _
& WARNING (continued)
to help reduce the risk of personal injury if the driver's airbag
inflates.
• Never hold the steering wheel at the 12 o'clock position or with
your hands at other positions inside the steering wheel rim or on
the steering wheel hub. Holding the steering wheel the wrong way can cause serious injuries to the hands, arms and head if the
driver's airbag deploys.
• Pointing the steering wheel toward your face decreases the
ability of the supplemental driver's airbag to protect you in a colli·
sion.
• Always sit in an upright position and never lean against or
place any part of your body too close to the area where the airbags
are located.
• Before driving, always adjust the front seats and head
restraints properly and make sure that all passengers are properly
restrained.
• Never adjust the seats while the vehicle is moving. Your seat
may move unexpectedly and you could lose control of the vehicle.
• Never drive with the backrest reclined or tilted far back! The
farther the backrests are tilted back, the greater the risk of injury due to incorrect positioning of the safety belt and improper
seating position.
• Children must always ride in child safety seats~
page 222.
Special precautions apply when installing a child safety seat on
the front passenger seat
~ page 200. •
Controls and equip­
ment Safety first Vehicle operation
Proper seating position for the front
passenger
The
proper front passenger seating position is important
for safe, relaxed driving.
For your own safety and to reduce the risk of injury in the
event of an accident, we recommend that you adjust the seat
for the front passenger to the following position:
- Move the front passenger seat back as far as possible.
There must be a minimum of 10 inches (25 cm) between
the breastbone and the instrument panel=>& .
- Adjust the angle of the seatback so that it is in an upright
position and your back comes in full contact with it when ­
ever the vehicle is moving .
- Adjust the head restraint so that the upper edge is as even
with the top of your head as possible but not lower than
eye level and so that it is as close to the back of your head
as possible.
- Keep both feet flat on the floor in front of the front
passenger seat.
- Fasten and wear safety belts correctly =:>
page 194.
For detailed information on how to adjust the front passenger's seat,
see ~
page 77.
& WARNING
Front seat passengers who are unbelted, out of position or too
close to the airbag can be seriously injured or killed by the airbag
as it unfolds. To help reduce the risk of serious personal injury: .,
Vehicle care Do-it-yourself service Technical data

• ....__D_ r_iv _i_ n_, g=-- S_ a _ f_e _,Ly _ ______________________________________________ _

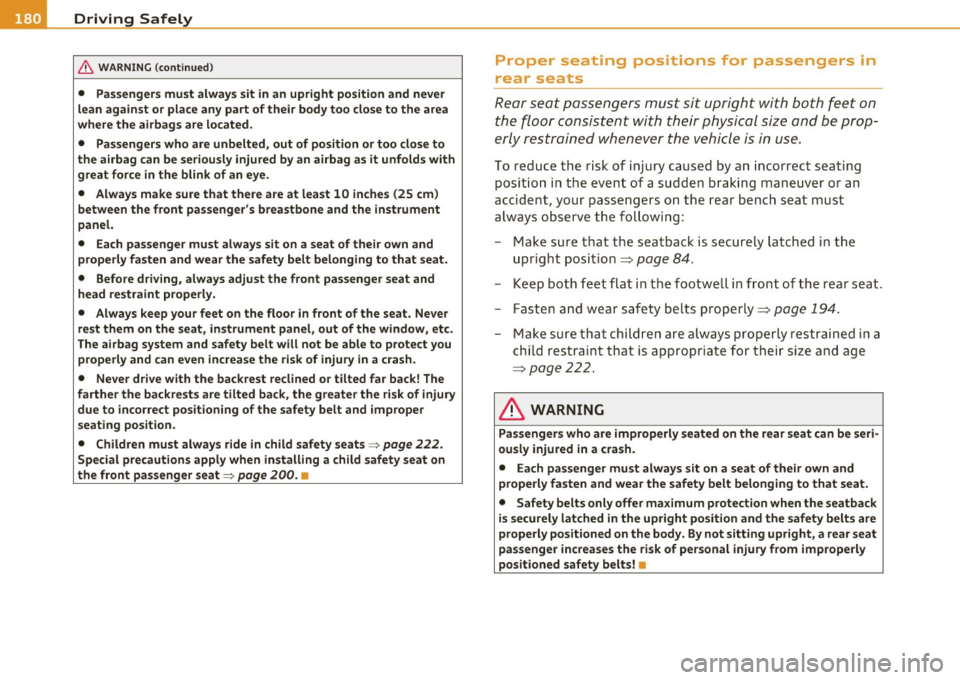

& WARNING (continued)
• Passengers must always sit in an upright position and never
lean against or place any part of their body too close to the area
where the airbags are located.
• Passengers who are unbelted, out of position or too close to
the airbag can be seriously injured by an airbag as it unfolds with
great force in the blink of an eye.
• Always make sure that there are at least 10 inches (25 cm)
between the front passenger's breastbone and the instrument
panel.
• Each passenger must always sit on a seat of their own and
properly fasten and wear the safety belt belonging to that seat.
• Before driving, always adjust the front passenger seat and
head restraint properly. • Always keep your feet on the floor in front of the seat. Never
rest them on the seat, instrument panel, out of the window, etc.
The airbag system and safety belt will not be able to protect you properly and can even increase the risk of injury in a crash.
• Never drive with the backrest reclined or tilted far back! The
farther the backrests are tilted back, the greater the risk of injury due to incorrect positioning of the safety belt and improper
seating position.
• Children must always ride in child safety seats~
page 222.
Special precautions apply when installing a child safety seat on
the front passenger seat
~ page 200. •
Proper seating positions for passengers in
rear seats
Rear seat passengers must sit upright with both feet on
the floor consistent with their physical size and be prop­
erly restrained whenever the vehicle is in use.
To reduce the risk of injury caused by an incorrect seating
position in the event of a sudden braking maneuver or an
accident, your passengers on the rear bench seat must
always observe the following:
- Make sure that the seatback is securely latched in the
upright position ~
page 84.
- Keep both feet flat in the footwell in front of the rear seat.
- Fasten and wear safety belts properly ~
page 194.
- Make sure that children are always properly restrained in a
child restraint that is appropriate for their size and age
~ page 222.
& WARNING
Passengers who are improperly seated on the rear seat can be seri­
ously injured in a crash.
• Each passenger must always sit on a seat of their own and
properly fasten and wear the safety belt belonging to that seat.
• Safety belts only offer maximum protection when the seatback
is securely latched in the upright position and the safety belts are
properly positioned on the body. By not sitting upright, a rear seat
passenger increases the risk of personal injury from improperly
positioned safety belts! •

Driving Safely 11111
----------------------------------------=--- =---
App lies to vehicles : w ith adjusta ble head restrai nts
Proper adjustment of head restraints
Correctly adjusted head restraints are an important part
of your vehicle's occupant restraint system and can help
to reduce the risk of injuries in accident situations.
Fig. 180 Correctly
adjusted head
restraint viewed from
the side
The head restraints must be correctly adjusted to achieve the
best protection.
- Adjust the head restraint so that the upper edge of the
restraint is level with the top of your head, but no lower
than eye level and so it is as close to the back of your head
as possible~
page 181, fig. 180.
Adjusting head restraints=> page 82.
& WARNING
Driving without head restraints or with head restraints that are
not properly adjusted increases the risk of serious or fatal neck
injuriy dramatically. To help reduce the risk of injury:
• Always drive with the head restraints in place and properly
adjusted.
• Every person in the vehicle must have a properly adjusted head
restraint.
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(continued)
• Always make sure each person in the vehicle properly adjusts
their head restraint. Each head restraint must be adjusted according to occupants' size so that the upper edge is as even with
the top of the person's head, but no lower than eye level and so it is as close to the back of to the head as possible.
• Never attempt to adjust head restraint while driving. If you
have driven off and must adjust the driver headrest for any reason,
first stop the vehicle safely before attempting to adjust the head
restraint.
• Children must always be properly restrained in a child restraint
that is appropriate for their age and size=>
page 222. •
Examples of improper seating positions
The occupant restraint system can only reduce the risk of
injury if vehicle occupants are properly seated.
Improper seating positions can cause serious injury or death.
Safety belts can only work when they are properly positioned
on the body . Improper seating positions reduce the effective­
ness of safety belts and will even increase the risk of injury
and death by moving the safety belt to critical areas of the
body. Improper seating positions also increase the risk of
serious injury and death when an airbag deploys and strikes
an occupant who is not in the proper seating position. A
driver is responsible for the safety of all vehicle occupants
and especially for children. Therefore:
- Never allow anyone to assume an incorrect seating posi­
tion when the vehicle is being used~ &.
The following bulletins list only some sample positions that will
increase the risk of serious injury and death. Our hope is that these .,_
Vehicle care Do-it-yourself service Technical data

• ....__D_ r_iv _i_ n_, g=-- S_ a _ f_e _,Ly _ ______________________________________________ _

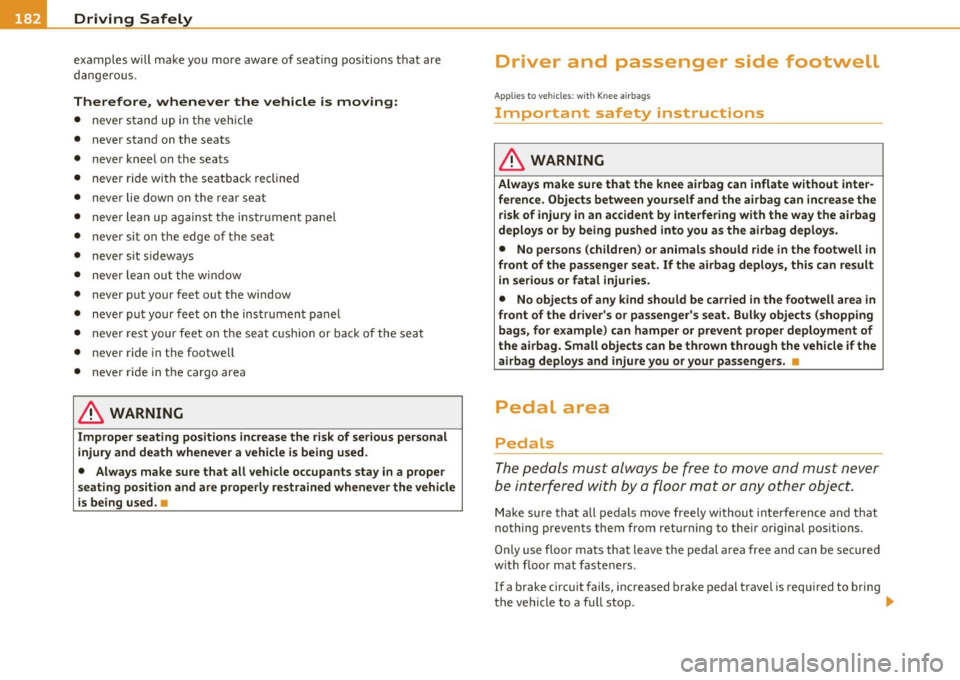

examples will make you more aware o f seat ing pos itions that are
d ang erou s.
Therefore, whenever the vehicle is moving:
• never s tand u p in the ve hicle
• never stand on the seats
• nev er knee l on the seats
• never ride with t he se atb ack reclined
• never lie dow n on the rear seat
• neve r lean up agains t th e i nstr ument pane l
• never sit on the edge of the seat
• never sit s ideways
• never le an out the w indow
• never p ut your feet o ut the window
• never p ut your fe e t on th e ins trumen t panel
• never rest your feet on t he se at cushio n or back of the se at
• never ride in t he footwell
• neve r ride in t he cargo area
& WARNING
Improper seating positions increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all veh icle occupants stay
in a proper
seating position and are properly re strained whenever the vehicle
is being used. •
Driver and passenger side footwell
Applies to veh icles: w it h Knee a irbags
Important safety instructions
& WARNING
Always make sure that the knee airbag can inflate without inter­
ference . Objects between yourself and the airbag can increase the
risk of injury in an accident by interfering with the way the airbag
deploys or by being pushed into you as the airbag deploys.
• No persons (children) or animals should ride in the footwell in
front of the passenger seat. If the airbag deploys, this can result in serious or fatal injuries.
• No objects of any kind should be carried in the footwell area in
front of the driver 's or passenger's seat. Bulky objects (shopping
bags, for example ) can hamper or prevent proper deployment of
the airbag. Small objects can be thrown through the vehicle if the airbag deploys and injure you or your passengers. •
Pedal area
Pedals
The pedal s must a lways be free to mov e and must never
b e in terfered wi th by a floor mat or any o ther objec t.
Make s ure tha t all pedals move freely wi thou t inte rference and t hat
nothing prevents them from returning to their or iginal pos it ions.
O nly use floor mats that leave the pedal area free and can be secure d
w it h floor mat fas tene rs.
lfa b rake circuit fails, inc reased brake pedal trave l is req uired to bring
th e ve hicl e to a full stop. .,

------------------------------------------------=D __ r __ i..: v ....:..i.:...n :.::g ~ S:...:a=- f=-- e= ly~ _-
& WARNING
Pedals that cannot move freely can cause loss of vehicle control
and in crease the risk of serious injury .
• Never place any objects
in the driver 's footwell. An object could
get into the pedal area and interfer e with peda l function . In ca se
of sudden braking or an accident, you would not be able to brake
or accelerate!
• Always make su re that noth ing can fall o r move into the
driver' s footwe ll. •
Floor mats on the driver side
Always use floor mats that can b e securely attach ed to
the floor mat fasteners and do not interfere with the fre e
movement of the pe dals.
- Make sure that the floor mats are properly secur ed and
ca nnot move and i nte rfere with t he peda ls=> &.
Use on ly floor ma ts t hat leave the pe dal area uno bstr ucted and that
are firm ly sec ured so that they cannot slip out of position . You can
obtain s uita ble f loor mats from yo ur authori zed Audi dea ler .
Floo r mat fas teners are installed in your Audi.
Floor mats used in your vehicle must be attached to these fasteners.
P roperly secur ing t he f loor mats wi ll prevent them from s lid ing into
positions that cou ld interfere with the peda ls or impa ir safe opera­
ti on of your veh icle in other ways.
& WARNING
Pedals that cannot move freely can re sult in a loss of vehicle
control and inc rease the risk of serious personal injury.
• Alway s make sure that floor mats are properly se cured .
Controls and equip­
ment Safety first Vehicle operation
& WARNING
(co ntinued )
• Never place or in stall floo r m ats or other floor coverings in the
vehicle that cannot be properly secured in place to prevent them from slipping and interfering with the pedals or the ability to
c ontrol the v ehicle.
• Never place or install floor mat s or other floor coverings on top
of alr eady in stalled floor mats. Additional floor mat s and other
cove rings will reduce the size of the pedal area and interfere w ith
the pedals .
• Always properly rein stall and secure floor mats that have been
taken out for cleaning.
• Always make sure that objects cannot fall into the driver foot­
well while the vehicle is moving . Obje cts can become trapped
under the brake pedal and accele rator pedal causing a loss of
vehicle control. •
Stowing luggage
Loading the luggage compartment
All luggage and oth er objects must be properly stowed
and secured in the lu ggage comp artment.
Vehicle care
Fig . 181 Safe load
po sitio ning : place
heavy obje cts a s low
a nd as far f orw ard as
possible. .,_
Do-it-yourself service Technical data

• ....__D_ r_iv _i_ n_, g=-- S_ a _ f_e _,Ly _ ______________________________________________ _

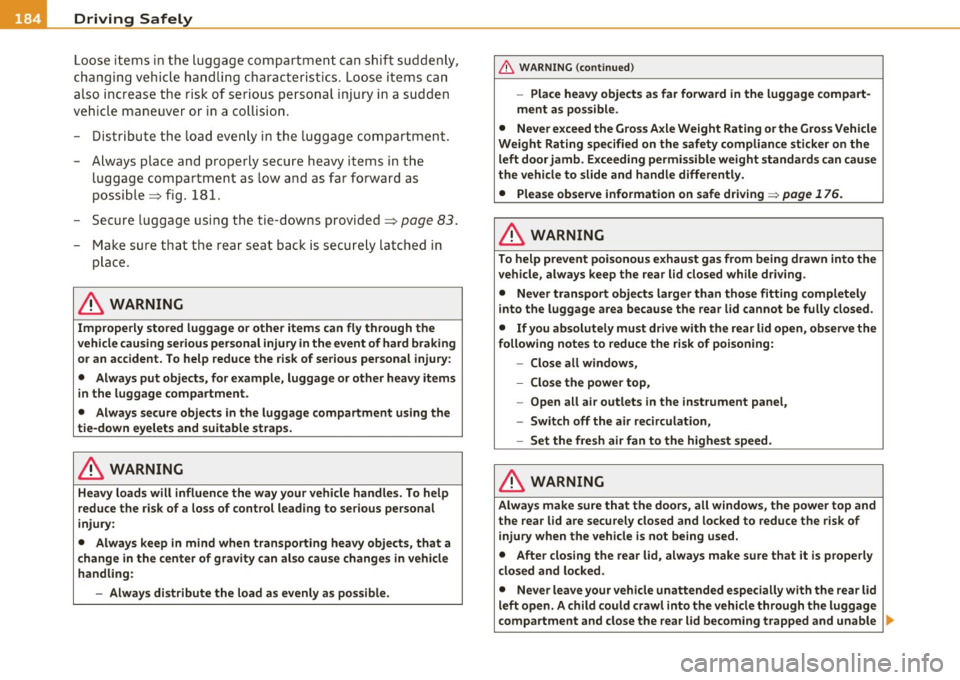

Loose items in the luggage compartment can shift suddenly,
changing vehicle handling characteristics. Loose items can
also increase the risk of serious personal injury in a sudden
vehicle maneuver or in a collision.
- Distribute the load evenly in the luggage compartment.
- Always place and properly secure heavy items in the luggage compartment as low and as far forward as
possible => fig . 181.
- Secure luggage using the tie-downs provided=>
page 83.
- Make sure that the rear seat back is securely latched in
place.
& WARNING
Improperly stored luggage or other items can fly through the
vehicle causing serious personal injury in the event of hard braking or an accident. To help reduce the risk of serious personal injury:
• Always put objects, for example, luggage or other heavy items
in the luggage compartment.
• Always secure objects in the luggage compartment using the
tie-down eyelets and suitable straps.
& WARNING
Heavy loads will influence the way your vehicle handles. To help
reduce the risk of a loss of control leading to serious personal
injury:
• Always keep in mind when transporting heavy objects, that a
change in the center of gravity can also cause changes in vehicle
handling:
- Always distribute the load as evenly as possible.
& WARNING (continued)
-Place heavy objects as far forward in the luggage compart­
ment as possible.
• Never exceed the Gross Axle Weight Rating or the Gross Vehicle
Weight Rating specified on the safety compliance sticker on the
left door jamb. Exceeding permissible weight standards can cause
the vehicle to slide and handle differently.
• Please observe information on safe driving~
page 176.
& WARNING
To help prevent poisonous exhaust gas from being drawn into the
vehicle, always keep the rear lid closed while driving .
• Never transport objects larger than those fitting completely
into the luggage area because the rear lid cannot be fully closed.
• If you absolutely must drive with the rear lid open, observe the
following notes to reduce the risk of poisoning:
-Close all windows,
- Close the power top,
- Open all air outlets in the instrument panel,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed.
& WARNING
Always make sure that the doors, all windows, the power top and
the rear lid are securely closed and locked to reduce the risk of
injury when the vehicle is not being used.
• After closing the rear lid, always make sure that it is properly
closed and locked.
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the vehicle through the luggage
compartment and close the rear lid becoming trapped and unable .,_

________________________________________________ D_ r_ i_ v _i_n _,,,g "-- S_a_ f_ e_ l _,,y'-- __
& WA RNING (continued)
to get out . Being trapped in a vehicle can lead to serious personal
injury .
• Never let children play in or around the vehicle.
• Never l et passengers ride in the luggage compartment. Vehicl e
occupants must alwa ys be p roperl y res trained in one of the
vehicle 's seat ing posi tions.
(I) Tips
• Air circula tion helps to reduce window fogging. Sta le air escapes
to the outside thro ugh vents in the tr im panel. Be sure to keep these
slots free and ope n.
• Th e tire p ressure m ust co rrespon d to the load . The tire pressure is
show n on the tire p ressu re label. O n USA v ehicles, the tire p ress ure
label is located on the driver's side 8-p illar. On Canada veh icles, the
ti re pressu re lab el is locat ed either on the driver' s sid e B-pillar or
inside the fuel fi lle r flap . The t ire pressure labe l lists the recom ­
mended co ld tire in flati on press ures f or th e ve hicle at its max imum
capacity weight and the tires that were on yo ur vehicle at the time it
w as m anuf acture d. F or re co m mended ti re p res sur es for normal loa d
conditions, p lease see chapter=>
page 300 . •
Tie-downs
T he l uggage c omp artm ent is equipped with fo ur tie­
d ow ns to sec ure l ug gag e a nd oth er ite ms.
Use the t ie-downs to secu re yo ur cargo properly => page 183,
"Lo ading the lugg age comp artmen t" .
I n a co llision, t he laws of physics mean that ev en sma ller items that
are loose i n the vehicle will become heavy missiles t hat can cause
serious injury. Items in the vehicle possess e nergy wh ich vary w ith
vehicle speed and the we ight of the item. Vehicle spee d is t he most
signifi cant factor.
Controls and equip­
ment Safety first Vehicle operation
For example,
in a frontal collis io n at a speed of 30 mph (48 km/ h),
t he forces a ctin g o n a 1 0-lb (4 .5 kg) objec t are ab out 20 times the
normal weight of the item . T his means that the weight of the item
wou ld s udden ly be abo ut 200 lbs . (90 kg). You can imagine the inju­
ries that a 200 lbs . (90 kg) item fly ing freely through the passenger
compartment could cause in a collision like this .
& WARNING
Weak, damaged or improper straps used to secure item s to tie­
downs can fail during hard braking or in a collision and cause
serious personal injury.
• Always use suitable mounting straps and properly secure items
to the tie -downs in the luggage compartment to help prevent
items from shifting or flying forward as dangerous missiles.
• When the rear seat backrest is folded down, always us e suit­
able mounting straps and properly secure items to the tie-downs
in the luggage compartment to help prevent items from flying
forward as dangerous missiles into the passenger compartment .
• Never attach a child safety seat tether strap to a tie-down .•
Reporting Safety Defects
Applicable to U.S.A.
If you believe that your vehi cle has a defect
whi ch could cause a crash or could cau se injury
or death, you should immediately inform the
National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Audi of
Ameri ca, Inc. -.
Vehicle care Do-it-yourself service Technical data

Ill Driv ing Sa fely
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defects exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or Audi of America, Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at :
Tel.: 1-888-327-4236 ( TTY: 1-800-424-9153)
or write to:
Administrator NHTSA
1200 New Jersey Avenue, SE
Washington, D.C . 20590
You can also obtain other information about motor vehicle safety from :
http:/ /www .safercar.gov
Applicable to Canada
Canadian customers who wish to report a
safety -related defect to Transport Canada,
De fect Investigations and Recalls, may tele­
phone the toll free hotline:
Tel.: 1-800-333-0371 or Te
l.: 1-613-998-8616 if you are in the O ttawa
area
TTY for hearing impaired : 1-888-675-6863
email comments/questions to: roadsafetyweb­ ma il@tc .gc .ca
or contact Transport Canada by mail at:
Road Safety and Motor Vehicle Regulation
Directorate
Transport Canada
Tower C , Place de Ville,
330 Sparks Street
Ottawa, Ontario KlA 0N5
For additional road safety information, please
visit the Road Safety website at:
http ://www. tc.gc.ca/roadsafety/index .htm •

Active rollover protection system
Function
The rollover protection system helps protect vehicle occu­
pants in the event of a rollover.
. .
! :'
Fi g. 182 Rear sea ts:
R oll bar d eploym ent
r an ge
Fig . 183 Rear seat s:
r o llba r deplo yed
Th e active rollover protect ion sys tem cons ists of :
• two rollbars
• t he safe ty be lts wi th belt ten sione rs
• the windshield frame
• the rollover se nsors
Safety first Vehicle OP-eration
Driving Safely
The active rollover protect io n system provides add itional safety .
Within m illiseconds, sensors dep loy two rollbars loc ated behi nd the
headrests in the rear seats=>
page 187, fig. 183.
T he ro llbars, reinforced windshie ld frame and belt tensioners he lp
protect front and rear passengers in the event of a rollove r.
T he rollover protection system functions when the power top is both
open and closed.
& WARNING
Do not u se the area behind the rear seat headr ests ::::> page 187 ,
fig. 182 as a storage area . Thi s is the area whe re the rollbars
depl oy . If the rollover protect ion sy stem i s triggered , object s
pla ce there can be propelled through the vehicle and make it more
difficult for the rollbar s to deploy. Thi s increases the risk for
serious or life-threatening injuries. •
When is rollover protection deployed?
Roll ove r pr otectio n depl oys in a collis ion or rollover .
Depending on the co llision, sensors thro ughout the vehicle and the
cont rol mo dule trigger the rollove r system to deploy .
For safety reasons, rollover protect ion a lso deploys during front, side
and rear collisions above a certain level of sever ity. •
Vehicle care Do-it-yourselt service iTechnical data

___ D_ r_ i_v _i_n -=g "-- S_ a_ f_ e--= Ly,__ _____________________________________________ _

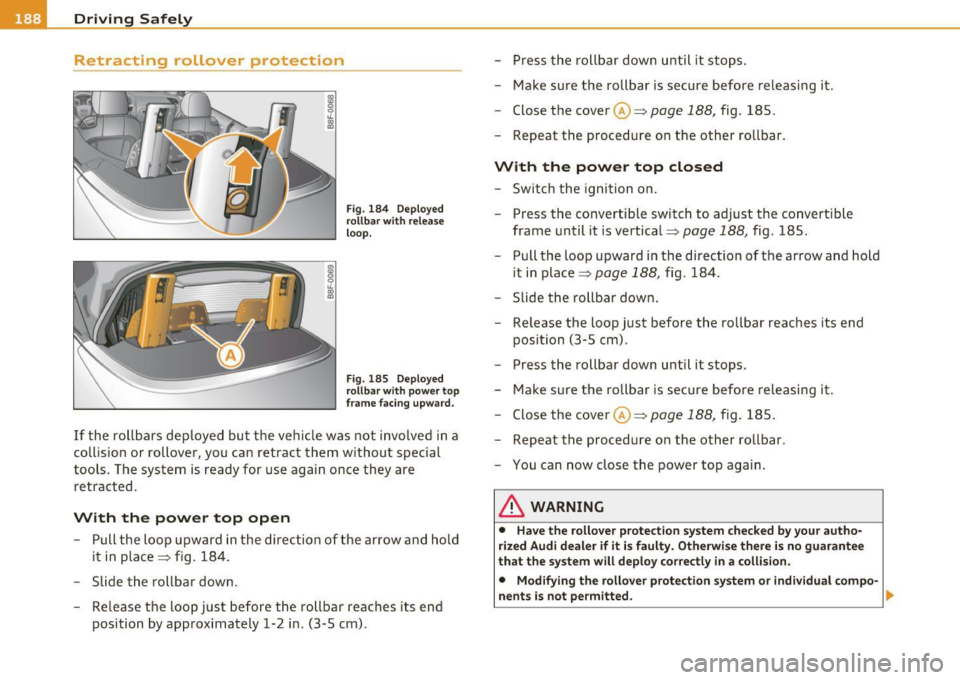

Retracting rollover protection
Fig. 184 Deployed
roll bar w it h r ele ase
loop.
F ig . 18 5 Deployed
rollbar w ith po wer top
frame facing upwar d.
If the rollbars deployed but the vehicle was not involved in a
collision or rollover, you can retract them without special
tools . The system is ready for use again once they are
retracted.
W ith th e power top open
- Pull the loop upward in the direction of the arrow and hold
it in place => fig. 184 .
- Slide the rollbar down .
- Release the loop just before the rollbar reaches its end position by approximately 1-2 in . (3 -5 cm). -
Press the rollbar down until it stops .
- Make sure the rollbar is secure before releasing it.
Close the cover@=>
page 188, fig. 185 .
- Repeat the procedure on the other rollbar.
With the power top closed
- Switch the ignition on .
- Press the convertible switch to adjust the convert ible
frame until it is vertical=>
page 188, fig. 185 .
- Pull the loop upward in the direction of the arrow and hold
it in place=>
page 188, fig. 184.
- Slide the rollbar down.
- Release the loop just before the rollbar reaches its end
position (3-5 cm).
- Press the rollbar down until it stops.
- Make sure the rollbar is secure before releasing it .
- Close the cover@=>
page 188, fig. 185 .
- Repeat the procedure on the other rollbar .
- You can now close the power top again .
& WARNING
• Have the roll over prot ectio n syst em ch ec ked b y your aut ho­
rize d Audi d ealer if it i s fault y. Oth erwise th ere is no gua rante e
th at the s yste m wi ll dep loy correctl y in a c ollision.
• Mod ifying th e ro llo ver prote cti on sys te m or indi vid u al compo -
ne nts is no t permit ted.
~
