clock AUDI A5 CABRIOLET 2010 Owners Manual

Instruments and warning/indicator lights
Switching on time , date, temperature display , and
odometer
Th e display appears for approx imately 30 seconds w hen you press the
ISE Tj button => page 9, fig. 3 with t he ign it ion off.
Starting the Auto-Check sequence
T he Auto -Check system => page 26 constant ly monitors certain indi ­
vidua l func tions a nd components of the ve hicle whe n the ign ition is
t u rne d on and w hen the vehicle is mov ing.
Wi th the ignit ion turned o n, you can star t the "A uto -Check sequence"
by pressing the
! SET ] button . You can perfo rm an Auto-Check
sequence when the veh icle is station ary an d the ig niti on i s turned o n
or w hen the veh icle is mov ing slower t han 3 mp h (5 km/h).
Calling up the dr iver information
A ye llow or red symbol appears in the instr ument cluster display,
u su ally wi th a drive r message. T he drive r mes sage disp lay disappea rs
after about 5 seconds. The driver message can be d isp layed aga in by
br ie fl y pr essing the
!S ET ] button.
Setting the speed warning
By press in g t he I SE T] bu tton br iefly, yo u ca n set thres ho ld 1 of the
speed warn ing wh ile yo u are driving =>
page 25. By maintaining pres­
su re on t he
!SE TI but ton , you dele te the w arning thres ho ld. •
Digital clock with date display
Digital clock
Fig. 4 Instrume nt
clu ster: t ime an d date
T he date, t ime of day, time and date format can be set in the rad io o r
in the MMI* . You can learn more about this in the MMI manual or in
the radio user's man ual.
[ i ] Tips
• Th e digita l clock turns on for about 30 secon ds w hen the dr iver's
door is opened.
• When the ignition is turned off, the odometer rea ding and the
dig ital clock with date display can be sw itched on for about
30 seconds by press ing the
[ SET I butto n=> page 9, fig. 3. •
Fuel gauge
The f uel gauge wo rks on ly when the ignition is on.
W hen the nee dle rea che s the red a rea, the war ning ligh t in t he ins tru ­
ment cl uster will illuminate =>
page 34 L.,. Th is means you have
a p pr oxi mate ly 2.1 gallons (8 liters) of f uel left in t he ta nk .
Time to
r efuel!
T he total tank capac ity of yo ur vehicle is liste d in => page 342. .,,

-Turn the release key counterclockwise until it stops to
open the latch.
- Remove the emergency key. •
Step 5: Closing the power top
The power top must be positioned by hand.
Fig. 58 Power top
partially open
Fig . 59 Windshield:
Power top
- Raise the power top out of the tray=> & in "Step 2:
Lifting the power top compartment cover out" on
page 57.
- Pull the power top out completely .
- Press the power top onto the windshield frame~ fig. 59.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Power top
Have a second person assist when positioning the power top. That
person should stand on the opposite side of the vehicle and perform
the same steps.
& WARNING
• When positioning the power top, avoid contact with the
supports or other moving parts. Otherwise you could pinch your
hands.
• When pressing the power top down onto the windshield frame,
make sure that you do not pinch yourself or anyone else. •
Step 6: Retracting the power top
compartment cover
The power top compartment cover must be retracted by
hand.
Fig. 60 Power top
raised
- Raise the rear of the power top and hold it in place
=> fig. 60 (D => & in "Step 2: Lifting the power top
compartment cover out" on
page 57.
- Slide the power top compartment forward until it reaches
the end position => fig. 60
@. Release the power top. ..,
Vehicle care Do-it-yourselt service iTechnical data

Power top
& WARNING
Do not pinch yourself or others when closing the power top
compartment. •
Step 7: Locking the power top
The locking system for the power top latches are located
on the inside of the power top.
Fig. 61 Ins ide of the
power top: hex key for
emergency operation
- Insert the emergency key in the opening and turn it clock­
wise until it stops to lock the power top.
- Remove the emergency key.
- Cover the opening with the cap.
[I] Tips
Make sure the locking mechanisms are locked securely. •
Step 8 : Loosening the headliner
Fig. 62 Power top :
area around the right
side of the rear window
Fig. 63 Area around
the right side of the
rear w indow: headliner
part ially loosened
Perform the following steps in the rear window area of the
power top on each side.
- Pull the loops (marked in yellow) with the emergency key
to loosen the headliner.
- Pull at the yellow marking again to loosen the headliner
around the rear window (approximately 30 cm).

___________________________________________________ O;,__ n_ t ;,__ h:...:e:.....:.. r..:o :...:a::.:... d.:.;___,J-
On the road
Steering
App lies to veh icles : w ith manu ally adjusta ble steering whe el
Manually adjustable steering wheel
Th e height and rea ch of th e st eer ing wh eel can b e
a dju sted.
Fir st, adj ust the drive r's s eat co rrec tly.
Fig . 107 Lever under
the steering colum n
-Pull th e lever=> fig. 107 -Arrow-=> &.
- Move the steeri ng w hee l to the des ired pos it ion.
- Pus h the lever aga inst the s tee ring column until it loc ks .
Th ere m ust be at leas t 10 inches (2 5 cm) be twee n you r chest a nd the
center of the steering whee l. If you cannot si t more than 10 inches
( 2 5 cm) from the s teer ing wheel, see if adaptive eq uipment is av ail­
able to help you reach the p edals and inc rease t he distance from the
s teeri ng wheel.
F or det aile d info rmation on how to adju st the dr iver's sea t, see
=> page 78.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration The
steeri ng wh eel ca n be adju sted ev en wh en the ign ition is turn ed
off. For ve hicles with seat memory, the individual positions for the
stee ring wheel c an be st ored al ong wi th t he sea t positi on .
& WARNING
Improper use of steering wheel adjustment and improper seating
position can cause serious personal injury .
• Adjust the steer ing wheel column only when the vehicle is not
moving to prevent loss of vehicle control.
• Adjust the dri ver's seat or steering wheel so that there is a
minimum of 10 inches (25 cm) between your chest and the
steering wheel=>
page 178, fig. 178 . If you cannot maintain this
minimum distance , the airbag system cannot protect you prop­
erly .
• If physical limitations prevent you from sitting 10 inches (25
cm) or more from the steering wheel, check with your authorized
Audi dealer to see if adaptive equipment is available.
• If the steering wheel is al igned with your face, the supple­
mental driver 's airbag cannot provide as much protection in an
accident . Always make sure that the steering wheel is aligned with
your chest.
• Always hold the steering wheel with your hands at the 9 o 'clock
and 3 o'clock positions to reduce the risk of personal injury if the
driver's airbag deploys .
• Never hold the steering wheel at the 12 o'clock po sition or with
your hands inside the steering wheel
rim or on the steer ing wheel
hub. Holding the stee ring wheel the wrong way can cause serious
injur ies to the hands, arms and head if the driver's airbag
deploys. •
Vehicle care Do-it-yourselt service iTechnical data

___ D_ r_ i_ v _i_n _.g"-- S_ a_ f_ e__. LY.__ _____________________________________________ _
Proper occupant seating positions
Proper seating position for the driver
The proper driver seating position is important for safe,
relaxed driving.

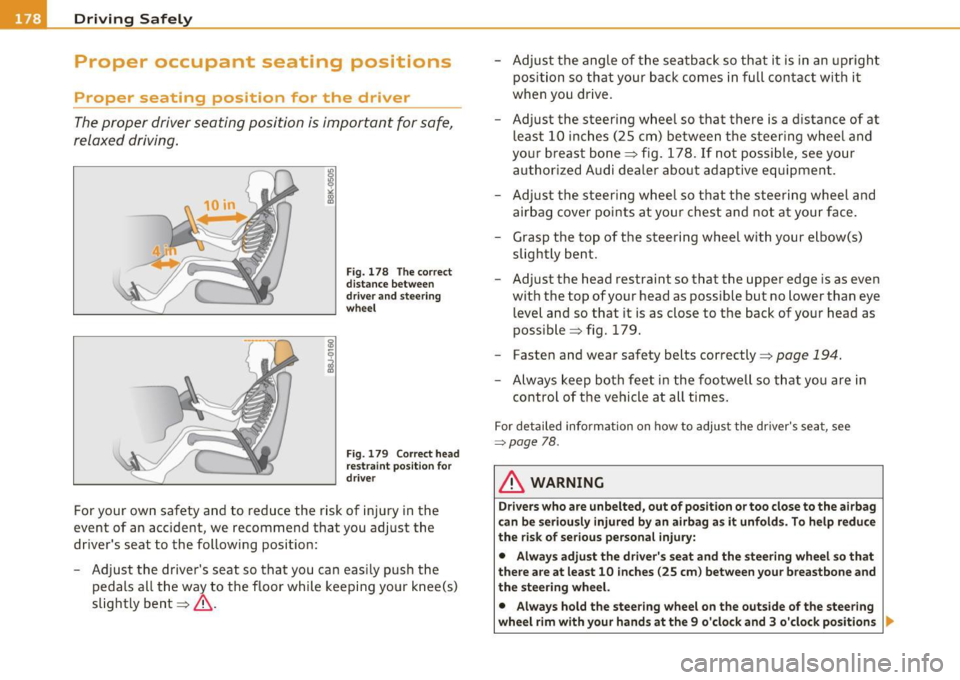

Fig. 178 The correct
distance between
driver and steering
wheel
Fig . 179 Correct head
restraint position for
driver
For your own safety and to reduce the risk of injury in the
event of an accident, we recommend that you adjust the
driver's seat to the following position:
- Adjust the driver's seat so that you can easily push the
pedals all the way to the floor while keeping your knee(s)
slightly bent==>& . -
Adjust the angle of the seatback so that it is in an upright
position so that your back comes in full contact with it
when you drive.
- Adjust the steering wheel so that there is a distance of at least 10 inches (25 cm) between the steering wheel and
your breast bone==> fig. 178. If not possible, see your
authorized Audi dealer about adaptive equipment .
- Adjust the steering wheel so that the steering wheel and airbag cover points at your chest and not at your face.
- Grasp the top of the steering wheel with your elbow(s) slightly bent.
- Adjust the head restraint so that the upper edge is as even
with the top of your head as possible but no lower than eye
level and so that it is as close to the back of your head as
possible ==> fig. 179.
- Fasten and wear safety belts correctly=>
page 194.
-Always keep both feet in the footwell so that you are in
control of the vehicle at all times.
For detailed information on how to adjust the driver's seat, see
~page 78 .
& WARNING
Drivers who are unbelted, out of position or too close to the airbag
can be seriously injured by an airbag as it unfolds. To help reduce
the risk of serious personal injury:
• Always adjust the driver's seat and the steering wheel so that
there are at least 10 inches (25 cm) between your breastbone and
the steering wheel.
• Always hold the steering wheel on the outside of the steering
wheel rim with your hands at the 9 o'clock and 3 o'clock positions
II,-

______________________________________________ D_ ri_v _ i_n _,,g ,c.._ S_a_ f_ e_ l..:: y __ _
& WARNING (continued)
to help reduce the risk of personal injury if the driver's airbag
inflates.
• Never hold the steering wheel at the 12 o'clock position or with
your hands at other positions inside the steering wheel rim or on
the steering wheel hub. Holding the steering wheel the wrong way can cause serious injuries to the hands, arms and head if the
driver's airbag deploys.
• Pointing the steering wheel toward your face decreases the
ability of the supplemental driver's airbag to protect you in a colli·
sion.
• Always sit in an upright position and never lean against or
place any part of your body too close to the area where the airbags
are located.
• Before driving, always adjust the front seats and head
restraints properly and make sure that all passengers are properly
restrained.
• Never adjust the seats while the vehicle is moving. Your seat
may move unexpectedly and you could lose control of the vehicle.
• Never drive with the backrest reclined or tilted far back! The
farther the backrests are tilted back, the greater the risk of injury due to incorrect positioning of the safety belt and improper
seating position.
• Children must always ride in child safety seats~
page 222.
Special precautions apply when installing a child safety seat on
the front passenger seat
~ page 200. •
Controls and equip­
ment Safety first Vehicle operation
Proper seating position for the front
passenger
The
proper front passenger seating position is important
for safe, relaxed driving.
For your own safety and to reduce the risk of injury in the
event of an accident, we recommend that you adjust the seat
for the front passenger to the following position:
- Move the front passenger seat back as far as possible.
There must be a minimum of 10 inches (25 cm) between
the breastbone and the instrument panel=>& .
- Adjust the angle of the seatback so that it is in an upright
position and your back comes in full contact with it when ­
ever the vehicle is moving .
- Adjust the head restraint so that the upper edge is as even
with the top of your head as possible but not lower than
eye level and so that it is as close to the back of your head
as possible.
- Keep both feet flat on the floor in front of the front
passenger seat.
- Fasten and wear safety belts correctly =:>
page 194.
For detailed information on how to adjust the front passenger's seat,
see ~
page 77.
& WARNING
Front seat passengers who are unbelted, out of position or too
close to the airbag can be seriously injured or killed by the airbag
as it unfolds. To help reduce the risk of serious personal injury: .,
Vehicle care Do-it-yourself service Technical data

Fuel supply and filling your fuel tank
In order to fill the tank properly while protecting the environment,
please follow this refueling procedure carefully.
& WARNING
Under normal operating conditions, never carry additional fuel
containers in your car. Gas canisters and other containers used to
transport fuel can be dangerous. Such containers, full or empty,
may leak and could cause a fire in a collision. If you must transport
fuel to use for your lawn mower, snow blower, etc., be very careful
and always observe local and state laws regarding the use, trans­
portation and storage of such fuel containers. Make certain the
container meets industry standards (ANSI/ASTM F852 -86).
0 Note
Never drive your vehicle until the fuel tank is completely empty . The
irregular supply of fuel can cause misfiring. Gasoline could enter the
exhaust system and damage the catalytic converter. •
Refuelling
-
Fig. 215 Right rear
veh icle side: Opening
the fuel filler flap Fig
. 216 Fuel filler
flap with attached fuel cap
When activating the central locking, the fuel filler flap is
automatically unlocked or locked. Refuel the vehicle with the
ignition turned
off.
Taking the fuel cap off
- Turn off the ignition.
- Press the left side of the fuel filler flap to open it
~ fig. 215 -arrow-.
- Unscr ew fuel cap counter-clockwise and hang it on the fuel
filler flap~ fig. 216.
Refuelling procedure
- Ins ert the fuel nozzle from the gasoline pump into the
fuel filler neck as far as it will go.
- Select a medium refuelling rate so that the nozzle switches off automatically when the tank is full.
Putting the fuel cap back on
- After filling your tank, twist the fuel cap clockwise as far
as it will go.
- Close the fuel filler flap. .,

___________________________________________ C_ h _ e_c _k _ i_n -=g ~ a_n _ d_ f_i _ll _i _ n -=g =---......J"'
• -31°F(-35°C)USA
• -40°F ( - 40°() Canada .
You can mix the Gl2+ + coolant additive with other additives (G12+ or
G12). Always check with your authorized Aud i dealer.
& WARNING
Before you check anything in the engine compartment, always
read and heed all WARNINGS =>
& in "Work ing in the engine
compartment" on
page 280.
0 Note
• Before winter sets in, have the coolant checked to see if th e
coolant additive in your vehicle is sufficient to meet the climate
conditions . This is especially important if you live in a region where
the winter is extremely cold .
If necessary, increase the proportion of
coola nt additive to 60% .
• When adding coolant additive to your cooling system, remember:
- We recommend using only coolant additive Gl2++ (check the
label) for your vehicle . This coolant additive is available at autho­
r iz ed Audi dealers. Other types of antifreeze can significantly
reduce corrosion protection . The resulting corrosion can cause
a
loss of coolant and serious engine damage.
• Do not add any type of radiator leak sealant to your vehicle's
eng ine coolant . Adding radiator repair fluid may adversely affect the
function and performance of your cooling system and could result in
damage not covered by yo ur New Vehicle Limited Warranty .•
Vehicle OP-eration
Checking the engine coolant level
The engine coolant level can be checked with a quick
glance.
Fig. 223 Engine
compartment: Coolant
expansion tank
Before you check anything in the engine compartment,
always read and heed all WARNINGS ~ & in "Working in
the engine compartment" on
page 280 .
-Turn off the ignition.
- Let the engine cool down .
- Place a thick rag over the coolant expansion tank
~ fi~ . 223 a nd carefully twist the cap counter-clockwise
~& -
- Read the engine coolant level in the open coolant expan­
sion tank~ fig. 223 . With a cold engine, the coolant level
should be between the "min" and "max" markings. When
the engine is warm, the level may be slightly above the
"max" marking .
The location of the coolant expansion tank can be seen in the engine
compartment illustration=>
page 281.
To obtain an accurate reading, the engine must be switched off. ~
Vehicle care Do-it-yourselt service iTechnical data

-~_C_ h_e _c_ k_ i_ n ....: g:::e._ a_ n _ d_ f_il _l _in _ g =- --------------------------------------------
The expansion tank in your vehicle is equipped with an electric coolant
level sensor.
When the coolant level is too low, the warn ing light in the Auto-Check
System ~
page 29 will blink until you add coolant and the level has
been restored to normal. Even though there is an electric coolant
level sensor, we still recommend you check the coolant level from
time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling system. In the event of
coo lant loss, the cooling system should be inspected immed iate ly by
your authorized Audi dealer .
It is not enough merely to add coolant.
In a
sealed system, losses can occur only if the boiling point of the
coolant is exceeded as a result of overheating.
& WARNING
The cooling system is under pressure and can get very hot. Reduce
the risk of scalding from hot coolant by following these steps.
• Turn off the engine and allow it to cool down.
• Protect your face, hands and arms from escaping fluid and
steam by covering the cap with a large, thick rag.
• Turn the cap slowly and very carefully in a counter-clockwise
direction while applying light, downward pressure on the top of
the cap.
• To avoid being burned, do not spill antifreeze or coolant on the
exhaust system or hot engine parts. Under certain conditions, the
ethylene glycol in engine coolant can catch fire.
0 Note
Do not add any type of radiator leak sealant to your vehicle's engine
coo lant. Adding radiator repair fluid may adverse ly affect the func­
tion and performance of your cooling system and could result in
damage not covered by your New Vehicle Limited Warranty.•
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine compartment,
always read and heed all WARNINGS::::::> & in "Working in
the engine compartment" on
page 280.
-Turn off the engine .
- Let the engine cool down.
- Place a thick rag over the coolant expansion tank
=> page 287, fig. 223 and carefully turn the cap counter­
clockwise ::::,
&.
- Add coolant .
- Twist the cap on again
tightly.
Replacement engine coolant must conform to exact specifications
~ page 286, "Coolant". Even in an emergency, if coolant additive
G12 ++, G12+ or G12 is not available, do not use a different additive.
Use plain water instead until you can get the correct additive and can
restore the correct ratio. This should be done as soon as possible .
If you have lost a considerable amount of coolant, then you should
add cold antifreeze and cold water only when the engine is cold.
Always use
new engine coolant when refilling.
Do not fill coolant above the ''MAX" mark. Excess coolant will be
forced out through the press ure re lief va lve in the cap when the
eng ine becomes hot .
& WARNING
• The cooling system is under pressure and can get very hot.
Reduce the risk of scalding from hot coolant by following these
steps.
-Turn off the engine and allow it to cool down. _.,

___________________________________________ C_ h_e _c _k_ i_n ~g_ a_n_ d_ f_ i_ll _i_n _g __ _
& WARNING (co ntinued )
-Protect your face , hand s and arms from e scaping fluid and
steam by covering the cap with a large, thick rag.
- Tu rn the cap slowl y and very carefully in a counter-clockwi se
direction wh ile applying light, downward pre ssure on the top
of the cap .
- To avoid be ing burned , do not spill antifreeze or coolant on
the exhau st sy stem or hot engine parts . Under certain condi­
tions, the ethylene glycol in eng ine coolant can catch fire .
• Antifreeze i s poi sonou s. Alway s store antifreeze in it s original
container and well out of the reach of children.
• If you drain the coolant, it must be caught and saf ely stored in
a proper container clearly marked "poison ".
0 Note
• Coolant pollutes t he environment and could cause an engine fire.
E xcess coo lan t w ill be forced o ut through the pressure rel ie f va lve in
t he cap when the engine becomes hot .
• If, in an eme rgency, o nly w ate r can be ad ded , the co rrec t rat io
between water and antifreeze::::;,
page 286 must be restored as soon
as possi ble.
~ For the sake of the environment
Dr ained coolant sho uld no t be reused. A lways dispose of used coo lan t
wh ile observ ing all environmental regula tions. •
Radiator fan
The radiator fan switches on autom atically by itself.
Th e radiator fa n is d rive n by the engine via t he V-bel t. The v iscous
cl utch reg ulates t he spee d of the fan accord ing to the tem perature of
t he coolan t.
Safety first
An auxiliary e lectric rad iator fa n* switches o n and off depending on
co olan t tempe rature and ot her vehicle ope rating condi tions.
After you sw itch the engine off, the aux iliary fan can continue running
for up to 10 m inutes -even with the ignition
off. It can even switch on
again la ter by itself ::::;, & , if
• the temperature of the eng ine coolant rises due to the heat build­
up from the eng ine in the engi ne comp artment, o r
• the engine compartment heats up because the veh icle is parked in
in tense s unlight.
LJ}. WARNING
• To reduc e the risk of personal injury never touch the radiator
fan .
• The auxiliary electric fan is temperature controlled and can
switch on suddenly even when the engine is not running .
• The auxiliary radiator fan sw itches on automat ically when the
engine coolant rea ches a certain temperature and will continue to
run until the coolant temperature drops .•
Vehicle care Technical data
