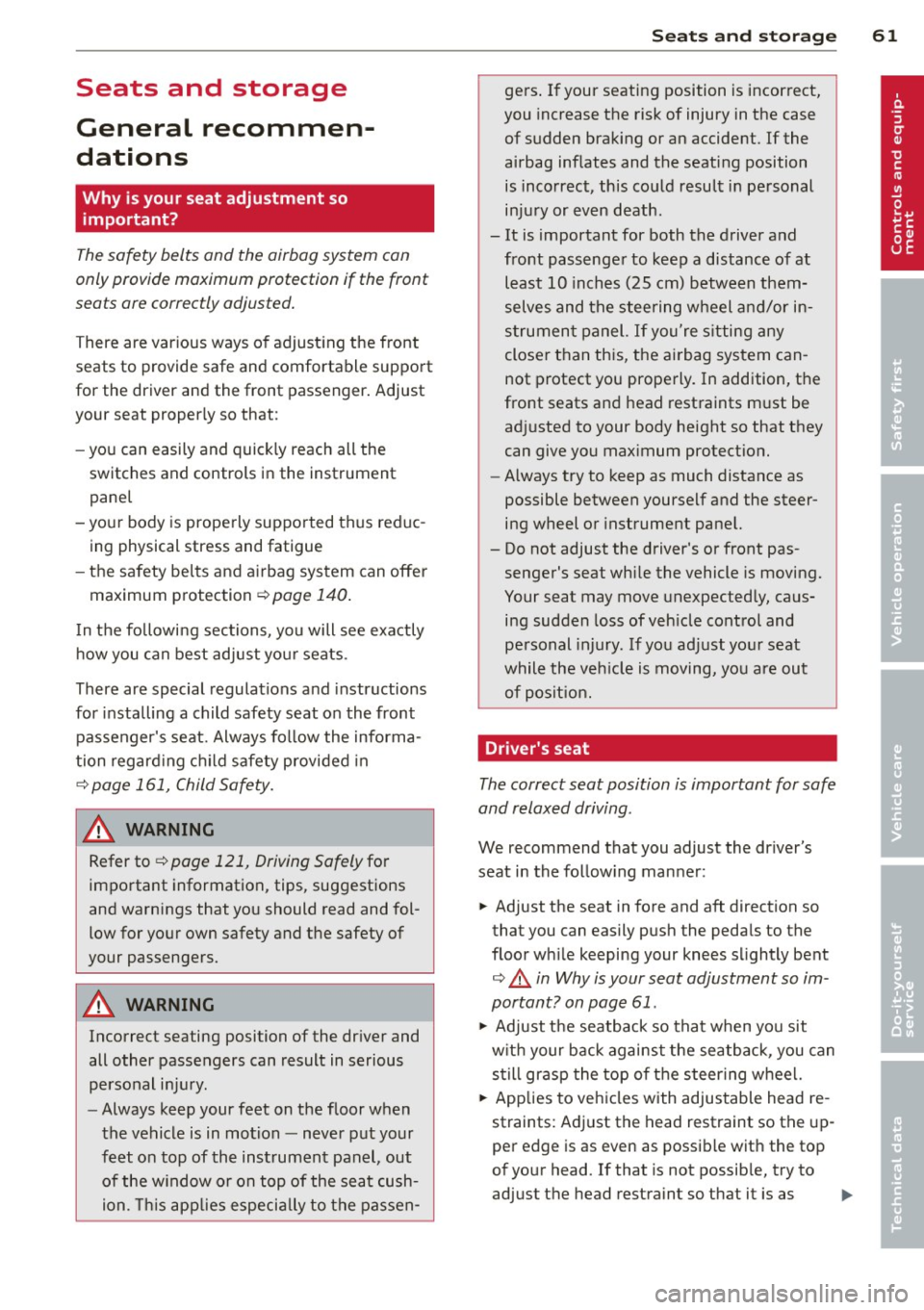

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­ ing physical stress and fatigue
- the safety belts and airbag system can offe r
maximum protection
¢ page 140.
I n the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front passenger's seat. Always follow the informa­
tion regard ing child safety provided in
¢ page 161, Child Safety.
.&_ WARNING
-
Refer to ¢ page 121, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
.&_ WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the floor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This app lies especially to the passen-
S eat s an d sto rage 61
gers . If your seating position is incorrect,
you increase the risk of injury in the case
of sudden braking or an accident . If the
airbag inflates and the seating position
is incorrect, this cou ld result in pe rsonal
in jury or even death.
- It is important for both the driver and front passenger to keep a distance of at least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
s trumen t panel. If you're s itting any
closer than th is, the airbag system can ­
not protect you properly. In addition, the
front seats and head restraints m ust be
adj usted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­ senger's seat whi le the vehicle is moving.
Your seat may move unexpectedly, caus­
ing sudden loss of veh icle control and
pe rsonal injury. If you adjust you r seat
while the veh icle is moving, you are ou t
of po sit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the dr iver's
seat in the follow ing manner:
.., Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
¢ .&, in Why is your seat adjustment so im ­
portant? on page 61 .
"" Adjust the seatback so that when you sit
w ith your back against the seatback , you can
s ti ll grasp the top of t he steering wheel.
... App lies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible wit h the top
of your head. If that is not possib le, try to
adjust the head restraint so that it is as .,.

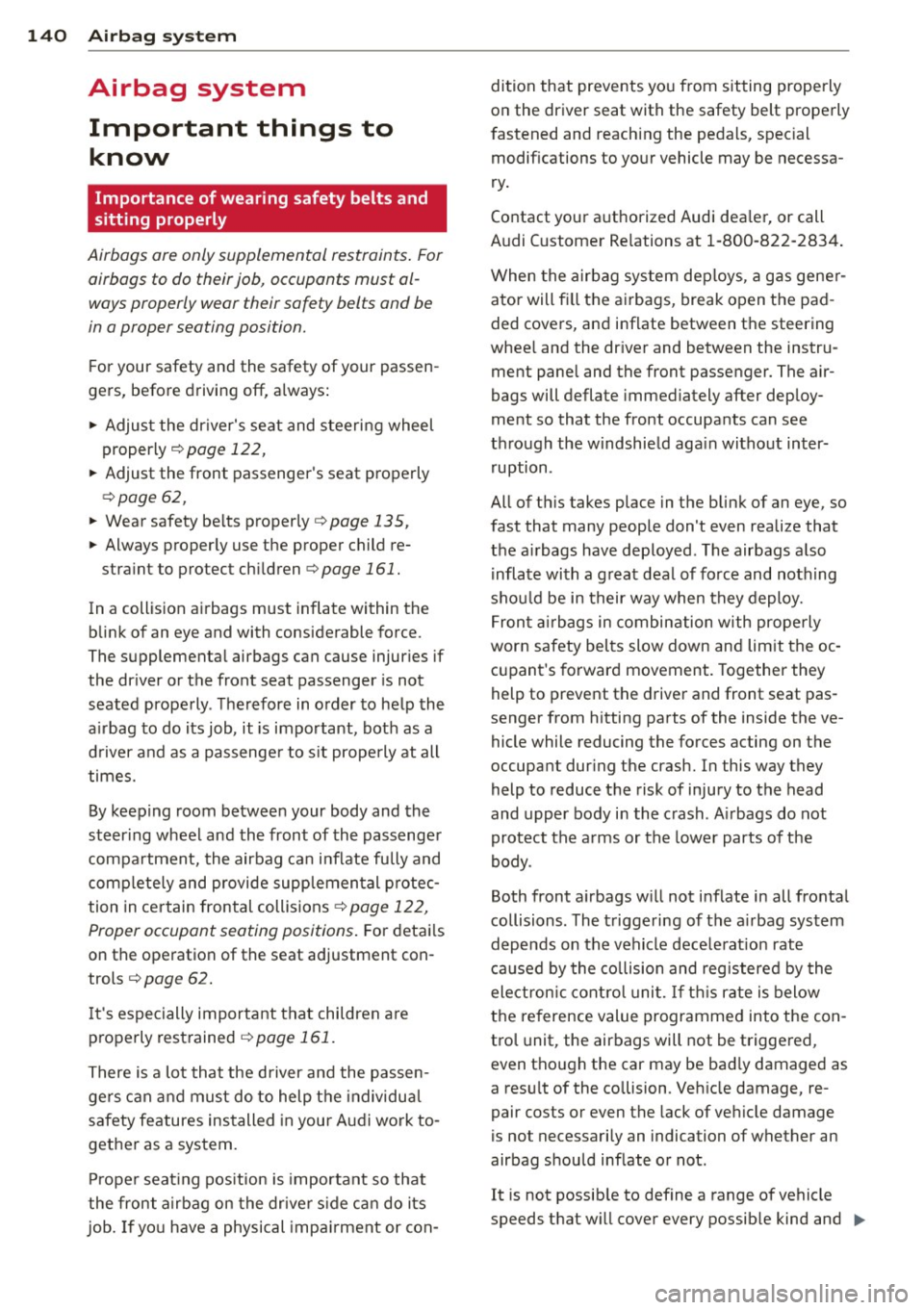

140 Airbag sys tem
Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
F or your safety and the safety of your passen­
gers, before driving off, a lways:
• Adjust the dr iver's seat and steering wheel
properly ¢
page 122,
• Adjust the front passenger's seat properly
¢page 62,
• Wear safety be lts properly ¢ page 135,
• Always properly use the proper child re-
stra int to protect children ¢
page 161.
In a collision airbags must inflate within the
blink of an eye and with considerable force .
The supplementa l airbags can cause injuries if
the dr iver or the front seat passenger is not
seated properly . Therefore in order to he lp the
a irbag to do its job, it is important, both as a
d river and as a passenge r to sit properly at all
times.
By keeping room between your body and the
steering wheel and the front of the passenger
compartment, the airbag ca n inflate fully and
comp letely and provide supp lemental p rotec­
tion in ce rtain frontal collisions
¢ page 122,
Proper occupant seating positions .
For detai ls
on the operat ion of the seat adjustment con­
trols ¢
page 62.
It's especially important that children a re
properly restrained ¢
page 161.
There is a lot that the driver and the passen­
gers can and must do to help the individua l
safety features ins talled in your A udi work to­
gether as a system.
Prope r seat ing pos ition is important so that
the front airbag on the driver s ide can do i ts
job. If yo u have a physical impa irment or con- dition that prevents you from sitting properly
on the driver seat with the safety belt properly
fastened and reaching the peda ls , spec ial
modifications to your vehicle may be necessa­
ry.
Contact your a uthorized Audi dea ler, or call
Audi C ustomer Re lations at 1-800-822-2834 .
When the airbag system dep loys, a gas gener­
ator will f ill the ai rbags, break open the pad­
ded covers, and inf late between the steering
whee l and the dr iver and between the instru ­
ment pane l and the front passenger. The air­
bags will deflate immediately after dep loy­
ment so that the front occupants can see
th rough the w indshield aga in without inter­
ruption .
All of th is take s place in the blink of an eye, so
fast that many people don't even realize that
the a irbags have dep loyed . The airbags also
inflate with a g reat dea l of force and nothing
shou ld be in their way when they deploy.
F ront a irbags in combination with properly
worn safety bel ts slow down and lim it the oc ­
c u pant's forward movement. Together they
help to prevent the drive r and front seat pas­
senger from hitting parts of the inside the ve­
hicle while reducing the forces acting on the
occupant dur ing the crash. In this way they
help to reduce the risk of injury to the head
and uppe r body i n the c rash . A irbags do not
protect the a rms or the lower parts of the
body.
Both front a irbags w ill not i nflate in all fronta l
collisions . The t rigge ring of the a irbag system
depends on the vehicle dece lerat ion rate
c aused by the co llision and reg istered by the
elect ron ic cont ro l u nit. If t his rate is below
the re ference value programmed into the con­
trol unit, the airbags will not be trigge red ,
even though the car may be bad ly damaged as
a res ult of the collision . Veh icle damage, re­
pair costs or even the lack of veh icle damage
is no t necessarily an indication of whether an
airbag should inflate or not .
It is not possib le to define a range of vehicle
speeds that w ill cover every possib le kind and .,.

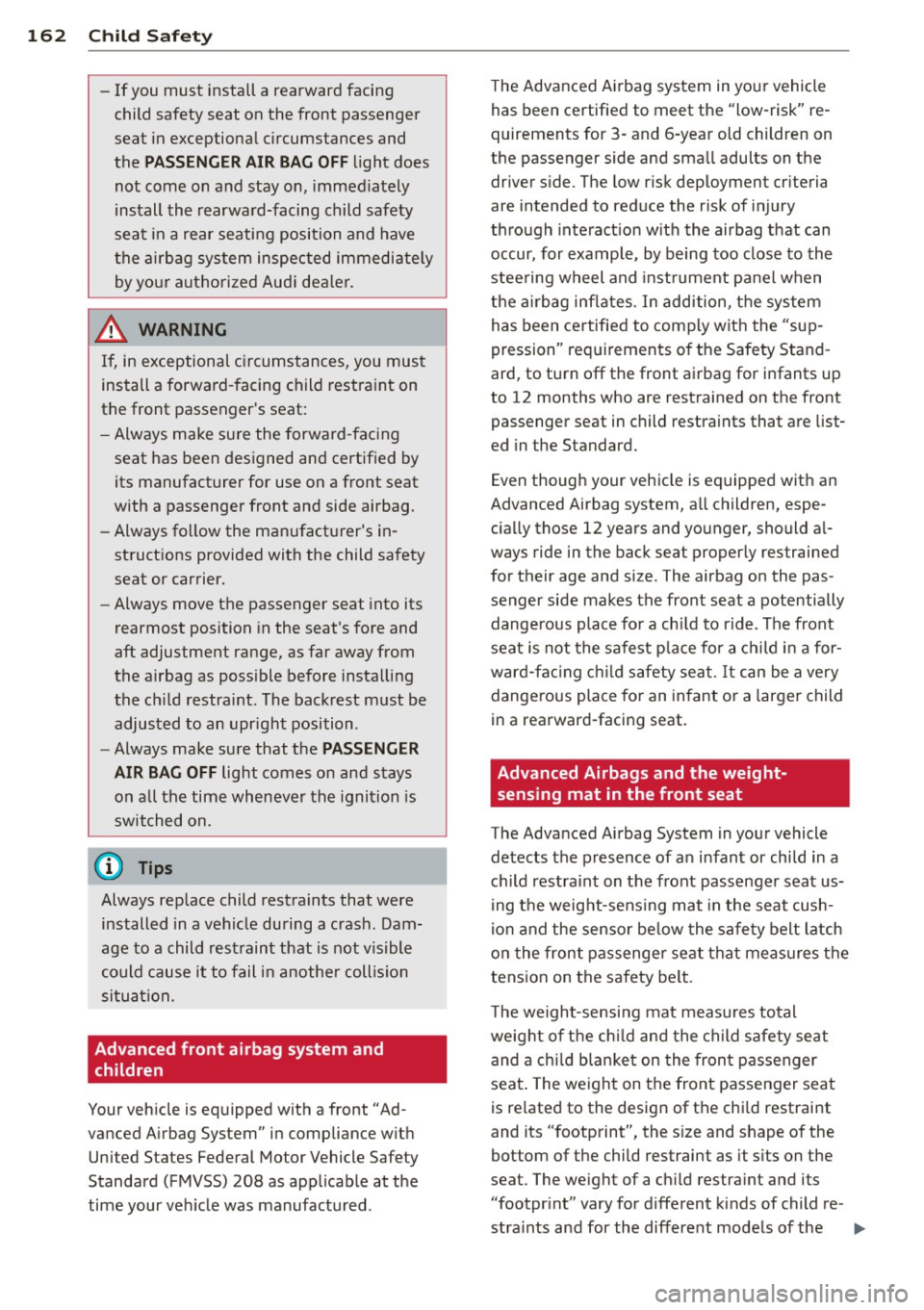

162 Child Safety
-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately
by your authorized Audi dealer.
.&, WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured . The
Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat.
It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the .,.

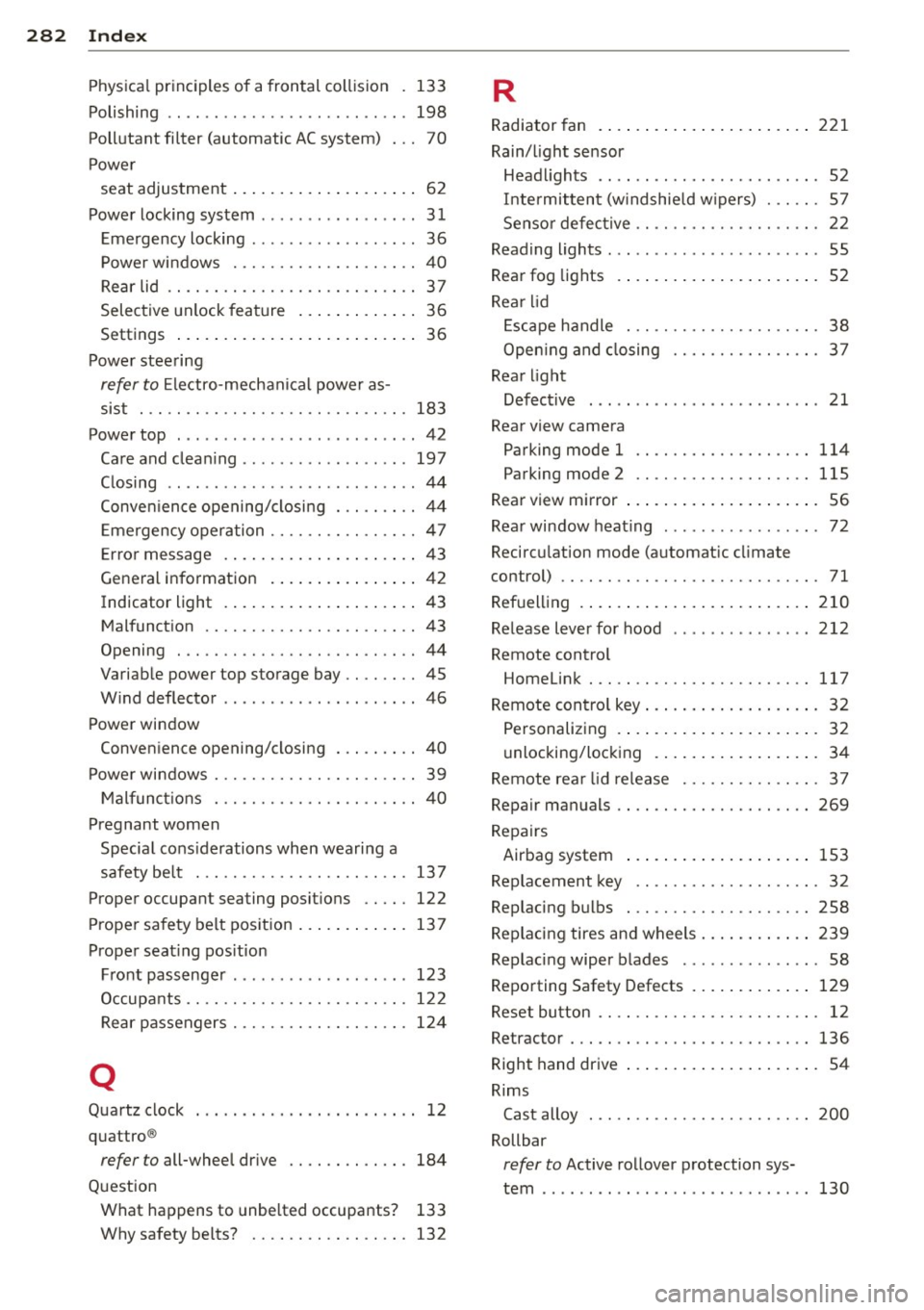

28 2 Index .:..:..:..::....::.....:..._ ___________________________ _
Physica
l principles of a frontal collision 133
Polishing .. .. ................ ... ... 198
Pollutant filter (automatic AC system) ... 70
Power seat adjustment . . . . . . . . . . . . . . . . . . . . 62
Power locking system . . . . . . . . . . . . . . . . . 31
E mergency locking ............. ..... 36
Power windows .......... .. .. .... .. 40
Rear lid .. ... ............ .. .. .. .. .. 37
Selective unlock feature ... .. .. .... . . 36
Settings ... ... .. ..... ... .. .. .... .. 36
Power steering
refer to Electro-mechanical power as-
sist . .. .. .. .. . .......... .. .. .... . 183
Power top . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Care and clean ing ... ........ .. .. .. . 197
C losing .. .. ................ ... .... 44
Conven ience opening/closi ng . .. .... .. 44
E mergency operation ................ 47
E rror message . . . . . . . . . . . . . . . . . . . . . 43
General information . ... .. .. ... ... .. 42
Indicator light ... ..... ... .. .. .... .. 43
Malfunction ............. .. .. .. .. .. 43
Opening . .. .. . .......... .. .. .... ..
44
Variab le power top storage bay .. .. .... 45
W ind deflector ................ ..... 46
Power window Convenience opening/closing . .. .... .. 40
Power windows . . . . . . . . . . . . . . . . . . . . . . 39
M alfunct ions . ........... .... .... .. 40
Pregnant women Specia l cons iderations when wearing a
safety be lt .............. .. .. .... . 137
Proper occupant seating positions ..... 122
Proper safety be lt pos ition ... .. .. .. .. . 13 7
Proper seat ing pos ition
Front passenger . . . . . . . . . . . . . . . . . . . 123
Occupants ... ............ .. .. .. .. . 122
Rear passengers .......... .. .. .. .. . 124
Q
Quartz clock . . . . . . . . . . . . . . . . . . . . . . . . 12
quattro ®
refer to all-wheel drive ............. 184
Question What happens to unbe lted occupants? 133
Why safety belts? ................. 132
R
Radiator fan .... .. ... .. ..... .... . .. 221
Rain/light se nsor
Headlights .. .. .. .. ........ ...... .. 52
I n te rmittent (w indshield w ipers) . .. .. . 57
Senso r defective . . . . . . . . . . . . . . . . . . . . 22
Reading lights . . . . . . . . . . . . . . . . . . . . . . . 55
Rear fog lights .... .. .... .... ... .. .. . 52
Rea r lid
E scape handle . .. .. ........... .. .. . 38
Open ing and closing ........... .... . 37
Rear l ight
Defective . . . . . . . . . . . . . . . . . . . . . . . . . 21
Rear view camera Parking mode 1 .. ............. .... 114
Parkingmode2 ................... 115
Rear view m irror ... ... .. ..... ... .. .. . 56
Rear window heat ing ............... .. 72
Recirc ulation mode (automat ic cl imate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Ref uell ing . ..... .. ... .. ..... .... . .. 210
Re lease lever for hood ... ....... ... .. 212
Remote control
HomeLink . .... .. ... .......... .... 117
Remote contro l key . . . . . . . . . . . . . . . . . . . 32
Pe rsonalizing .... .. ... ..... ... .. .. . 32
unlocking/locking .. .... .... ... .. .. . 34
Remote rea r lid re lease . . . . . . . . . . . . . . . 3 7
Repair manuals ..................... 269
Repairs Airbag system ... ... .. ..... .... . .. 153
Replacement key .. ............. .. .. . 32
Replacing bulbs . .. ... .......... .. .. 258
Replacing tires and wheels ... ... .. .. .. 239
Replac ing wiper blades ............... 58
Reporting Safety Defects . . . . . . . . . . . . . 129
Reset button . . . . . . . . . . . . . . . . . . . . . . . . 12
Retractor ... .... .. ............. .... 136
Right hand drive . . . . . . . . . . . . . . . . . . . . . 54
Rims Cast alloy
Rollbar
refer to Active rollover protection sys-200
tem ......... ... .. ............... 130
