sensor AUDI A5 CABRIOLET 2014 User Guide

Audi adaptive cruise control and braking guard 95
Audi adaptive cruise
control
Description
A pp lies to vehicles: with Audi adaptive cruise control
Fig. 106 Detect ion range
What can Audi adaptive cruise control do?
The adaptive cruise control works in conjunc­
tion with a radar sensor installed in the front
of the vehicle ¢
page 93, fig . 103, which is
subject to designated sys tem limits
¢
page 95. Stationary objects are disregard­
ed .
On open roads w ith no traffic, adaptive cruise
control wo rks like a regular cruise control sys­
tem. The stored speed is maintained. When
approaching a moving vehicle detected up
ahead, the adaptive cruise control system au ­
tomatically slows down to match that vehi­
cle's speed and then maintains the distance
that the driver previously stored. As soon as
the system does not detect a vehicle up
ahead, adaptive cruise control accelerates back up to the stored speed.
Which functions can be controlled?
When you switch adaptive cruise control on,
you can set the current speed as the "control speed" ¢
page 95, Switching on and off.
When driving, you can stop cruise control
¢
page 97 or change the speed¢ page 96
at any time .
You can a lso set the distance to the object
ahead and set the adaptive cruise control driv­ ing program
¢ page 97.
Switching on and off
Applies to vehicles: with Aud i adap tive crui se contro l
Fig. 107 Selecto r lever : switch ing on/off
Fig . 108 Instru men t cluster: Audi adaptive c ru ise con ­
trol
You can set any speed between 20 mph and
95 mph (30 and 150 km/h).
Ind icator lamps and messages in the instru­
ment cluster disp lay inform you about the cur­
rent system status and settings.
Switching Audi adaptive cruise control on
.. Pull the lever toward you into position (D
¢ fig. 107. ACC standby appears in the in­
strument cluster display.
Setting the speed and activating regulation
.. To set the current speed, press the ISETI but-
ton ¢
page 11, fig. 4. The set speed is ll-

Audi adaptive cruise control and braking guard 99
Audi braking guard
Description
Applies to vehicles: with Audi adaptive cruise control
Fig. 113 Instrument cluste r: approac h warn ing
Braking guard uses a radar sensor. It also
functions within the limits of the system
when adaptive cruise control is switched off.
What can Audi braking guard do?
When detected in time, the system can assess
situations when a vehicle ahead brakes sud­
denly or if your own vehicle is traveling at a high speed and approaching a vehicle up
ahead that is moving more slowly . Braking
gua rd does not react if it cannot detect the
situation .
The system advises you of various situations:
- The distance warning is given if you are too
close to the vehicle ahead for a long time. If
the vehicle ahead brakes sharply, you wi ll
not be able to avoid a collis ion. The indicator
light. in the display comes on .
- The approach warning is given when a de­
tected vehicle up ahead in your lane is mov­
ing much more slowly than you are or if it
brakes sharply . When th is warning is given,
it may only be possible to avoid a collision
by swerving or braking sharply. Th e indicator
light. and indicator in the display will
warn you about the danger
c::> fig. 113. You
will a lso hear an acoustic signa l.
If you do not react fast enough or do not react
at all to the situation, Braking guard will in-
ll This is not ava ilable in som e coun tri es.
tervene by braking and the message braking
guard intervention will appear.
- If a coll ision is imminent , the system will
first provide an acute warning by briefly and
sharply applying the brakes.
- If you do not react to the acute warning,
braking guard can brake within the lim its of
the system. This reduces the vehicle speed
in the event of a collision.
- At speeds unde r 20 mph (30 km/h), the sys­
tem can initiate a comp lete deceleration
shortly before a collision
ll.
- If the braking guard senses that you are not
braking hard enough when a collision is im­
minent, it can increase the braking force .
Which functions can be controlled?
You can switch braking guard and the dis­
tance/approach warning on or off in the radio
or M MI
c::> page 100, Settings in the radio/
MMI.
A WARNING
-Lack of attention can cause collisions, oth-
er accidents and serious personal injuries.
The braking guard is an assist system and
cannot prevent a collision by itself. The
driver must always intervene. The dr iver is
always respons ible for braking at the cor­
r ect time .
- Always pay close attention to traffic,
even when the braking guard is switched
on . Be ready to intervene and be ready to
take comp lete control whenever necessa­
ry. Always keep the safe and legal dis­
tance between your vehicle and vehicles up ahead.
- Braking guard works within limits and
will not respond outside the system lim­
its, for examp le when approaching a
stopped vehicle or stationary obstacle (end of a traffic jam or vehicle that has
broken down in traffic).

100 Audi adaptive cruise control and bra king guard
- Always remember t hat t he radar sens or
fo r the braking guard wo rks only within
defined detection and range limits that
may preve nt the proper detection of oth­
er v eh icles.
- The radar senso r's fu nction and range
can be reduced by rain, s now a nd heavy
spray. Mo ving v ehicl es u p ahead may not
b e promptly det ecte d or may not be de­
te cte d at al l.
- Reflective surfaces in cl udi ng c ras h barri­
ers or tu nnel ent ran ces may impair the
f unc tion of the r ad ar sen sor.
(D Tips
- You can cance l th e braking tha t is initiat­
ed by the system by braking yours elf, by
a cce lerati ng noticeab ly o r by swerving.
- Brak ing guard er ror m essages
¢pag e 100.
- Keep in mi nd that braking gua rd can
brake u nexpect edly . Always secure any
ca rgo or objects that you are tr ansport­
i ng to reduce the risk of d amage or in ­
ju ry.
Settings in the radio/MM!
Appl ies to vehicles: with Audi adaptive cruise control
• Se lect : ICAR !f u nct ion button> Car sy stem s*
control button > Driver assist > Audi brak·
ing guard .
Or
• Se lect : I CAR ! funct io n button >
Audi braking
guard .
System -
Switch Aud i bra king guard On and
Off . When you switc h the ignition on, the
message
Aud i braking guard off appea rs if
the system is sw itched off.
Early warning -The d istance and approach
warn ings in the display can be switched
On /
Off .
(D Tips
-Your settings are automatica lly sto red
and ass igned to the remote control key
being used at the t imes t he settings are
made.
- If you res tric t or sw itch o ff the E SC, the
bra kin g gua rd also switches itse lf off
r=) page 181.
-Switch braking guar d off when you a re
loading the vehicle onto a ve hicle car rier,
train, ship o r other type of t ransporta­
tion. This can prevent undesired warn­ ings from the braking gua rd system .
Messages
Applies to vehicles: wit h Aud i adapt ive c ruise contro l
Braking guard : Off
T his dr iver message a ppears if t he system is
tu rned off via the radio/M M!* . Otherw ise, if
the system is turned off, the in formation ap­
pears every t ime sho rtly after the start of the
trip .
T he driver message a lso appea rs if the system
is not avai lable d ue to a malfunct ion or if the
ESC is not switched on¢
page 181. If this is
t h e case , the system w ill not prov ide warnings
about a poss ible collision.
Braking guard : Activated
T his dr iver mess age a ppears if shar p brake
p ressure was applie d due to a n acute warning.
•••
Three white dots appea r if a sett ing cannot be
selected w ith the operating lev er. For exam­
ple, this happens if you want to raise/lower
t h e speed even thoug h there was no prev ious ­
l y saved speed.
ACC: Sensor blocked
Th is message appears if the senso r view is ob­
structed, for examp le by leaves, snow, heavy
spray or d irt. Clean the sensor¢
page 93,
fig. 103.
ACC: not available
The driver message appears if there is a mal ­
funct ion . The adaptive cru ise cont ro l turns off .
A chime sounds as a reminder . Have the sys ­
tem chec ked by an authori zed Aud i dea le r or
authorized Aud i Service Fac ility.
ACC: unavailable ll-

102 Audi side assist
Audi side assist
Lane change assistant
Description
App lies to vehicles: with Audi side assist
Fig. 114 Sensor detectio n range
Fig. 115 Disp lay on the exterior mirror
Side assist he lps you monitor your blind spot
and traffic behind your veh icle. Within the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling with you within sensor range
(D
c:> fig . 114: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
¢fig.115 turnson.
The display in the left exterior mirror provides
assistance when mak ing a lane change to the
le ft, while the display in the right exter ior mir·
ror provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critical. The display
in the respective mirror turns on, but is d im. T
he display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning stage
If you activate the turn signal, s ide ass ist
warns you about vehicles that are detected
and class ified as critical. The display in the re­
spective mirror blinks brightly. If this hap­
pens, check traffic by glancing in the rearview
mirror and over your shoulder c:>
.&. in General
information on page 103.
(D Tips
- You can adjust the brightness of the dis­
play @c:>
page 104.
-Please refer to the instructions for tow·
ing a trailer located in
¢page 103.

General information
Applies to vehicles: with Audi side assist
®
©
Fig . 116 Dr iving situations
Fig. 117 Rear of t he ve hicle: positio n of t he se nsors
., ... N 0 IL
l:l
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The fas ter a vehicle ap­
p roaches, the sooner the display in the exteri­
or m irror will t urn on.
@ Vehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
Audi side assist 103
@ Veh icle s left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph
(15 km/h)), the display in the exterior mirror
turns on as soon as the vehicle enters your blind spot.
T he disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the veh icle and your
vehicle is greater than 9 mph (15 km/h)).
Functional limitations
The radar senso rs are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the disp lay in the exterior mirror may
turn on even though there is no vehicle locat­
ed in the area that is cr itical for a la ne change.
For example:
- if the lanes are narrow or if your are dr iving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane .
- if you a re driving through a curve. Side assist
may react to a vehicle that is one lane ove r
from the adjacent lane.
- if side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are l imited .
Do not cover the radar sensors <=>
fig. 117 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer. For
i nformation on cleaning, refer to<=>
page 195.
_&. WARNING
- Always pay attention to traffic and to t he
area a round your ve hicl e. S ide assist can­
not repla ce a driver's attention. T he driv­
er a lone is always responsible for lane
changes and similar driving mane uvers.

104 Audi side assist
-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if vehicles are approaching or being left
behind very quickly . The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system.
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
@ Tips
- If the window glass in the driver's door
or front passenger's door has been tint­
ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 267.
Activating and deactivating
A pp lies to vehic les : wi th Audi s ide ass ist
Fig. 118 Driver's door: Side ass ist butto n
.. Press the button c> A in General informa­
tion on page 103
to switch the system on/
off. The LED in the button turns on when
side assist is switched on .
Adjusting the display brightness
Applies to vehicles: wit h Audi side ass ist
The signal brightness con be set in the radio
or MM!*.
.. Select: I CAR I function button > Audi side as­
sist.
.. Select: !CARI function button> Car systems*
control button > Driver assist> Audi side
assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage . In
very dark or very bright surroundings, the dis­ play is already set to the minimum or maxi­
mum level by the automatic adjustment. In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the information stage will not disrupt
your view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness level in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor ­
mation stage and is adjusted along with the
information stage adjustment.

@ Tips
-Side assist is not active whi le you are
making the adjustment.
- Your settings are automatica lly stored
and assigned to the remote control key
being used.
Driver messages
Applies to vehicles: with Audi side assist
If s ide ass ist switches off by itself, the LED in
the button turns off and a message will ap­
pear in the instrument cluster display:
Audi side assist unavailable: Sensors blocked
The radar sensors' vision is affected. Do not
cover the area in front of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
¢ page 103, fig. 117.
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily
because there is a malfunc tion (for example,
the battery charge leve l may be too low) .
Audi side assist: System fault!
The system cannot guara ntee that it will de­
tect veh icles correctly and it is switched off .
The sensors have been displaced or are faulty.
H ave the system checked by an authorized
Aud i dealer or authorized Aud i Service Facility
soon.
Audi side assist: Unavailable when towing
Side assist sw itches off automatically when a
factory- insta lled trailer h itch is connected to
the electrical connector on the trailer. There is
no guarantee the system will switch off when
usi ng a retrofitted t ra iler hitch. Do not use
side assist when towing a trailer .
Audi side assist 105

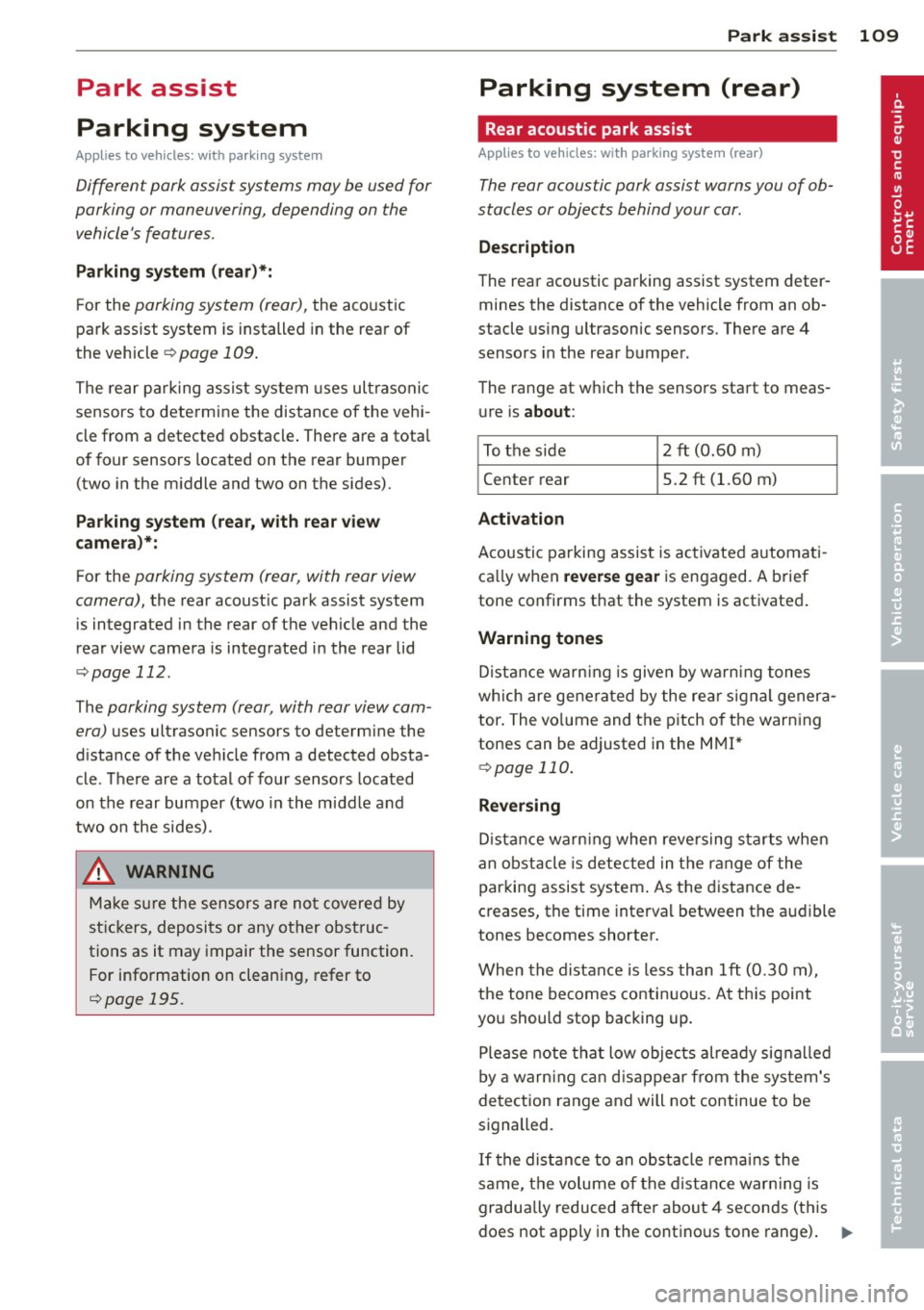

Park assist
Parking system
Applies to vehicles: wit h pa rk in g system
Different park assist systems may be used for
parking or maneuvering, depending on the
vehicle's features.
Parking system (rear)*:
For the parking system (rear), the acoustic
park assist system is installed in the rear of
the vehicle
¢ page 109.
The rear parking assist system uses ultrasonic
sensors to determine the distance of the vehi­
cle from a detected obstacle. There are a total
of four sensors located on the rear bumper
(two in the middle and two on the sides) .
Parking system (rear, with rear view
camera)*:
For the parking system (rear, with rear view
camera),
the rear acoustic park assist system
is integrated in the rear of the vehicle and the
rear view camera is integrated in the rear lid
¢page 112.
The parking system (rear , with rear view cam­
era)
uses ultrasonic sensors to determine the
distance of the vehicle from a detected obsta­
cle . There are a total of four sensors located
on the rear bumper (two in the m iddle and
two on the sides).
_& WARNING
Make sure the sensors are not covered by
stickers, deposits or any other obstruc­
tions as it may impair the sensor function.
For information on cleaning, refer to
qpage 195.
Park assist 109
Parking system (rear)
Rear acoustic park assist
Applies to veh icles: w it h pa rk ing system (rear)
The rear acoustic park assist warns you of ob­
stacles or objects behind your car .
Description
The rear acoustic parking assist system deter­
mines the distance of the vehicle from an ob­
stacle using ultrasonic sensors. There are 4
sensors in the rear bumper.
The range at which the sensors start to meas­ ure is
about:
To the side 2 ft (0.60 m)
Center rear 5.2 ft (1.60 m)
Activation
Acoustic parking assist is activated automati­
ca lly when
reverse gear is engaged. A brief
tone confirms that the system is activated.
Warning tones
Distance warning is given by warning tones
which are generated by the rear signal genera­
tor. The volume and the pitch of the warning
tones can be adjusted in the MMI*
¢page 110.
Reversing
Distance warning when reversing starts when
an obstacle is detected in the range of the
parking assist system . As the distance de­
creases, the time interval between the audible
tones becomes shorter.
When the distance is less than 1 ft (0.30 m),
the tone becomes continuous. At this point
you should stop backing up .
Please note that low objects already signalled
by a warn ing can disappear from the system's
detection range and will not continue to be
signalled .
If the distance to an obstacle remains the
same, the volume of the distance warning is
gradually reduced after about 4 seconds (this
does not apply in the continous tone range).
ll-

110 Park assis t
Approaching another obstacle will result in
the distance warning sounding at the normal
volume aga in.
M alfunction s in the syst em
If a warning tone is audible for about five sec­
onds when you turn on the ignit ion, there is a
mal function in the system. Have the problem
corrected by your authorized Audi dealer.
Keep the sensors in the rear bumper clean and
free from ice so that the acoustic park assist
system can function properly.
A WARNING
- Senso rs have dead spaces in which ob­
jects cannot be detected. Be espec ially
alert for small children and animals,
since they are not a lways detected by the
sensors.
- The acoust ic park ing system is not a sub­
st itute for the driver's own caut ion and
alertness . Ultimate responsib ility always
remains with the driver during park ing
and simi la r maneuve rs. Always watch
w here you are driving.
- You should always adjust the vo lum e and
frequency of the warning tones so that
yo u can easily hear the a co ustic distance
warning even if the radio is p laying, the
air-conditioner blower is on High or there is a high leve l of outside noise.
- Check the settings w henever anyone
e lse has driven the vehicle before you .
{[) Note
-Remember that low obstacles for wh ic h
-
a war ning has a lready been issued may
"d ive" below the system's sensing zone if
t h e veh icle is being backed up closer . In
th is case, the warn ing sound shutt ing off
does
not i ndicate that yo u have cleared
the obs tacle. Instead, impact is immi ­
nent.
- Objec ts such as trai ler hitches, c hains,
nar row posts or fen ces covered by a t hin
l aye r of paint may not a lways be detect -ed by the system
. They can still damage
your vehicle without warning.
(D Tips
Keep the senso rs in the rear b umpe r clean
and free o f snow and ice so that the acous­
tic parking assist system can function proper ly .
Adjusting the warning tones
Applies to vehicles: wit h parking syste m (rear)
The warning tones con be adjusted in the
MMI* .
.. Select: I CAR I function button > Parking sy s­
tem .
Or
.. Select:
!CAR I function button > Car sy stems *
contro l button > Dri ver a ssist > Parking aid.
- Rear volum e -
rear sensor vo lume
- Rear frequency -rear senso r frequency
- Mu sic volume whi le parking -when the
pa rk ing system is sw itched on, the volume
of the active audio sour ce is lowered.
The newly adjusted value is briefly hea rd from
t h e signal generato r. Th e sett ings ar e auto­
matically stored and assigned to the master
k ey w ith remote con tro l.

Parking system (rear,
with rear view camera)
Introduction
Applies to vehicles: with parking system (rear, with rear
view camera)
Fig. 121 Parking mode 1: reverse parking
Fig. 122 Parking mode 2: parallel pa rk in g
Vehicles with the parking system are equipped
with a
rear view camera in addition to the
acoustic parking system.
You can choose between two modes to assist
you with parking. For example, you can use "parking mode
l" when parking in a parking
space or garage
q fig. 121. When you want to
park parallel to the edge of the street, select
"parking mode 2"
qfig. 122.
The rear acoustic park assist system is inte­
grated in the rear of the vehicle and the rear
view camera is integrated in the rear lid
qpage 112.
A WARNING
-The rear view camera has blind spots, in
wh ich objects cannot be detected. Be es­
pecially careful to check for small chil­
dren and animals before backing up.
Small chi ldren and anima ls will not al­
ways be detected by the sensors .
Park assist 111
General Information
Applies to vehicles: with parking system (rear, with rear
view camera)
Fig. 123 Covered area (!) and u ncove red area @of the
r ear v iew came ra
Fig. 124 Tru nk l id : Locat ion of the rear view came ra
Sen so rs in the bumper
Sensors are located in the rear bumpers. If
these detect an obstacle, audible signals warn
you. The range at which the sensors begin to
measure is approximately:
To the side
2 ft (0.60 m)
Center rear 5 .2 ft (l.60 m)
Distance warning when reversing starts when
an obstacle is detected in the range of the
parking assist system . As the distance de ­
creases, the time interval between the audible
tones becomes shorter .
When the distance is less than 1ft (0.30 m),
the tone becomes continuous. At th is point
you should stop backing up .
If the distance to an obstacle stays the same,
the volume of the distance signa l chime is
gradually reduced after about 4 seconds (does ..,..
