AUDI A5 CABRIOLET 2014 Owners Manual

Loading the vehicle onto a flat bed truck
Fig. 207 Veh icle on flat bed truck
Front hook up
.. Align the vehicle with the centerline of the
car carr ier ramp.
.. Attach the winch hook to the front towline
eye previously installed .
Rear hook up
.. Align the vehicle with the centerline of the
car carrier ramp.
.. Attach the winch hook to the rear towline
eye previously installed.
(D} Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat­
bed truck ramp.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated .
Fig. 208 Front lifting po int
Emergency situations 259
Fig . 209 Rea r lift ing po int
.,. Read and heed WARNING c::> .&,.
.,. Locate lifting points c::> fig. 208 and
¢ fig. 209 .
.,. Adju st lifting arms of workshop hoist or
floor jack to match vehicle lifting points.
.. Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose .
Front lifting point
T he lifti ng point is loca ted on the floo r pan re­
info rcemen t about at the same level as the
jack mounting point
c::>fig. 208. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located o n the vert ica l rein­
forcement of the lower sill for the on board
jack
c::> fig. 209 .
Lifting with vehicle jack
Refer to c:;, page 247.
A WARNING
-To reduce the risk of ser ious injury and
vehicle damage.
- Always lift the vehicle only at the spe­
cia l workshop hoist and floor jack lift
points illustrated
c:;, fig. 208 and
¢fig. 209.
- Fail ure to lift the veh icle at these
-
points could cause the vehicle to tilt or ..,.

260 Emergency situations
fall from a lift if there is a change in ve­
hicle weight distribution and balance.
This might happen, for example, when
heavy components such as the engine
block or transmission are removed .
- When removing heavy components like
these, anchor vehicle to hoist or add cor­
responding weights to maintain the cen­
ter of gravity. Otherwise, the vehicle
might tilt or slip off the hoist, causing
serious personal injury.
(D Note
- Be aware of the following points before
lifting the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine
oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
inserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.

Technical Data
Vehicle identification
F ig. 210 Veh ide Identificat ion Number (VlN) plate: lo ·
c ation on d river 's s ide das h pane l
XXXXX XX · X -XXXX XXX
~ fAllftlli. -llllll · NR. ~ W!ru -IIOO -NO.
xx
XXXX XXXX XX X XXXXXXXX
XXX XXX
IYP /TYPE
XX XXXXXXX XX X X XX
XXX KW XXX
®i ~W.::·f :l~~ XXXX XXX XXX
©+ ::rw= xxxx I xxxx XXX I xx
M. · AUSSt I IJ'IIDIIS
~--
EOA 7D 5 4UB 6XM SSG SRW
2E H JDZ 1LB lA S 1BA
3FC SMU 7X l
FD A 9G3 OG7 OYH OJF
TL6 3 KA 8EH UlA X98 027
lXW 803 908 824
D2D
7T6 CV7 7KO 4X3 2K2
3L4 4KC 3YO 413
50 2
1S A 7GB QlA 4GO
XX. X XX X XX X XXXX
Fig. 211
The vehicle identification label: ins ide the lu g·
ga ge compar tmen t
Vehicle Identification Number (VlN)
The Veh icle Iden tifica tion Number is located
in different p laces :
- under the windshield on the driver's side
9fig.
210.
- in the radio or in the MM!*: Select: ICARI
function button > Vehicle ID number (VIN)
or select: I CAR I function button> Car sys­
tems*
control button > Servicing & checks >
VIN number .
-on the vehicle identification label. Technical Data 261
Vehicle identification label
The
vehicle identification label is located in
the luggage compartment near the battery.
T he label 9fig.
211 shows the follow ing vehi­
cle data :
(D Vehicle Identificat ion Number (VIN)
@ Vehicle type, engine output, transm ission
@ Engine and transmission code
© Paint number and interior
® Optional equipment numbers
T he information of the vehicle identification
label can also be found in your Warranty
&
Maintenance booklet.
Safety compliance sticker
The safety compliance sticker is your assur­
ance that your new vehicle complies with all
applicable Federal Motor Vehicle Safety
Standards which were in effect at the time the
vehicle was manufactured . You can find this
sticker on the door jamb on the driver's side.
It shows the month and year of production
and the vehicle identification number of your
vehicle (perforation) as well as the Gross Vehi­
cle Weight Rating (GVWR) and the Gross Ax le
Weight Rating (GAWR) .
High voltage warning label
The high voltage warning label is located in
the engine compartment next to the engine hood release. The spark ign ition system com­
plies with the Canadian standard ICES-002 .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are listed on a sticker on the
door jamb on the driver's s ide .
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank,
oil and coo lan t, plus maximum load , which in­
cludes passenger we ight (150 lbs/68 kg per
designated seating position) and luggage
weight
9 ,&. .

26 2 Techni cal Dat a
Gross Ax le Weight R atin g
The Gross Axle Weight Rating is the maximum
l oad that can be applied at each axle of the
vehicle
c::> &. .
Vehicle capacity weight
The vehicle capac ity we ight (max. load) is list­
ed on the driver 's side 8-p illar.
_& WARNING
-
- T he actual Gross Axle Weight Rat ing at
the front and rear axles shou ld not ex­
ceed the permissible weights, and their
combination must not exceed the Gross
Vehicle Weight Rat ing.
Dimensions
Length in (mm)
Width in (mm)
Width (across mir rors) in (mm)
He ight (unloaded)a) in (mm)
T urning circle diameter
ft (m) -
Exceeding permissible weight ratings can
result in veh icle damage, acc idents and
personal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transport ing a heavy load in the luggage
compartment, carry the load as near to
the rear axle as poss ible so that the vehi­
cle's handling is not impaired.
- Do not exceed the maximum permissible axle loads or the maximum gross vehicle
we ight. Always remember that the vehi­
cle's handling w il l be affected by the ex­
tra load. Therefo re, adj ust your speed ac­
cordingly.
- Always observe local regulat ions.
AS Cabriolet S5 Cabriolet
182.1 (4626) 182.7 (4640)
73.0 (1854) 73 .0 (1854)
79.5 (2020) 79.5 (2020)
54 .4 (1383) 54 .3 (1380)
37.4 (1 1.4) 37.4 ( 11.4)
a) The he ight of the vehicle depends on the tires and the suspension.
When driving up steep ramps, on rough roads,
over curbs, etc . it is important to remember
that some parts of your ve hicle, such as spoil-
Capacities
Fuel tank: total capacity
Windsh ield and headlight* washer fluid container ers
or exhaust system components, may be
close to the ground. Be carefu l not to damage
them.
gal ( liters) 16.1 (61.0)
quarts (liters) 4.8 (4.5)

Technical Dat a 263
Gasoline engines
•
AS Cabriolet 2.0, 4 cylinder •
Maximum output SAE net hp@rpm 220 @ 4450-6000
Maximum torque SAE net lb-ft@ rpm 259@ 1500-4300
Displacement CID (cm
3
) 121 (1984)
Engine oil with f ilter change q
uarts (liters) 4.9 (4 .6)
Fuel
Prem ium unleaded (91 AKI) <=> page 201, Gasoline
or Bio-ethanol (E85) <=> page 202, Ethanol fuel (Bio-etha-
no/).
S5 Cabriolet 3 .0, 6 cylinder
Max imum output SA E net hp@rpm 333 @ 5500-6500
Maximum torque SAE net lb-ft@
rpm 325@ 2900-5300
Displacement CID (cm
3
) 182 .8 (2995)
Engine oil with filter change quarts (liters) 7.2 (6.8)
Fuel
Premium unleaded (91 AKI) <=> page 201, Caso-
line

264 Consumer Information
Consumer Information
Warranty coverages
You r Audi i s covered by the following war­
ranties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warran­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regu lations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A . and Canada differ from vehicles sold in
other countries .
If you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lowe r octane
rating. Improper fuel may cause engine
damage ;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment ;
- replacement pa rts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessar ily work
in Europe, and may not work in other coun­
tries outside of North America.
(D Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availability.
Audi Service Repair Manuals and Literature
Audi Official Factory Service Manuals and Lit ­
erature are published as soon as possible after
model introduction. Service manuals and lit­
erature are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
s afety, economy and rel iability. For detailed
vehicle maintenance consult your Warranty &
Maintenance booklet.
Under difficult operating conditions, for ex­
ample at extremely low outside temperatures,
i n very dusty regions , when towing a trailer
very frequently, etc., some service work
should be performed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter .
(® For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards
are maintained, thus minimizing adverse
effects on the environment.
Important considerations for you and
your vehicle
The increasing use of electronics, sophisticat­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technical
liJJ,

complexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, safe ty and e nvir onm en tal con­
cerns place very strict limits on the nature of
repairs and adjustments to engine and trans­
miss io n pa rts which an owner can perform .
Maintenance, adjustments and repairs usua lly
require special tools, testing devices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure prope r
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliability
of your vehicle and even void your vehicle war­ ranty. The refo re, p roof of servic ing in accord­
ance w ith the maintenance sched ule may be a
condition for upholding a poss ible war ranty
claim made within the warranty period.
Above all, operational safety can be adversely
affected, crea ting unnecessary risks for you
and your passengers.
If in doubt about any servicing, have it done
by your authorized Audi dealer or any properly
equ ipped and qua lified workshop. We st rong­
l y urge you to g ive your authorized Audi dea ler
the opportunity to perform all scheduled
maintenance and necessary repairs . Your dea l­
er has the facilities, original parts and trained
specialists to keep your veh icle running prop­
erly.
Performing limit ed m aintenance you rself
The following pages describe a limited num­
ber of procedures which can be performed on
your vehicle with ordinary too ls, should the
need arise and trained personnel be unavaila­
ble. Before performing any of these proce­
dures, always thoroughly read all of the appli ­
cable text and carefully follow the instruc­
tions given. Always rigorously obse rve the
WARNINGS provided.
B efore you check anything in th e engine
compartment, a lways re ad and heed all
Con sumer In formation 265
WARNINGS ¢ & and ¢ & in Working in the
engine comportment on page 206 .
A WARNING
-Ser ious personal injury may occur as a re­
sult of improperly performed mainte­
nance, adjustments or repa irs.
-Always be extremely careful when work­
ing on the vehicle. Always follow com­
mon ly accepted safety practices and gen­
eral common sense. Never r isk personal
lnJUry.
- Do not attempt any of the ma intenance,
checks or repairs descr ibed on the fol­
lowing pages if you are not fully fam iliar
wit h these or othe r pro cedures with re­
spect to t he veh icle, or are uncerta in how
to p roceed .
- Do not do any work without the proper
too ls and equipment. Have the necessary
work done by your authorized A udi deal ­
er or any properly equipped and qualified
wo rkshop.
- The engine compartment o f any motor
veh icle is a potentially hazardous area.
Never reach into the area around or
touch the radiator fan. It is temperature
contro lled and can switch on suddenly -
even when the engine is off and the igni­
tion key has been removed. The rad iator
fan switches on automat ica lly when the
coo lant reaches a certai n temperatu re
and will cont inue to run until the coo lan t
tempera ture drops .
- Always remove the ign itio n key befo re
anyone gets under the vehicle.
- Always support your veh icle with safety
s tands i f it is necessary to work under­
neath the vehicle. The jack s upplied with
the vehicle is not adequate for this pur­
pose and cou ld collapse causing serio us
personal injury.
- If you must work underneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are a lways securely
blocked a nd that the engine cannot be
started.
•
•

26 6 Con sum er Inf ormation
-Always make sure the transmission se­
lector lever (automatic transmiss ion) is
in "P" (Park position) and the park brake
is f irmly app lied .
@) For the sake of the environment
-Changing the engine settings wi ll ad­
versely affect em iss ion levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when dispos ing of old engine oil,
used brake fluid, dirty engine coolant,
spent batteries or worn out tires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo ­
rate Material -spec ial handling may ap­
ply, see www.dtsc.ca .gov/hazardous­
waste/perch lorate . When the veh icle or
parts of the restraint system including
airbag modules safety belts wit h preten ­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
authori zed Aud i dea ler is familiar with
these requirements and we recommend
that you have your dealer perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sig n featu res ensu ring a high standard of ac­
tive and passive safety .
This safety could be compromised by non-ap­ proved changes to the veh icle. For this reason ,
if pa rts have to be replaced , please observe
the following points when install ing addition­
a l accessories: Approved Audi accessories and genuine Aud
i
parts are available from authorized A udi deal­
er.
T hese dea le rs a lso have the necessary facili­
ties, tools and trained specialists to install the parts and acc essories proper ly .
A WARNING
-Using the wrong spare parts or using non-
approved accessories can cause damage to
the veh icle and ser ious persona l injury.
- Use on ly accessories express ly approved
by Audi and gen uine Audi spare parts
- These parts and accessories have been
specia lly designed to be used on yo ur ve­
h icle .
- Never install accessor ies such as tele­
phone crad les or beverage ho lders on a ir­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed a ll
WARNI NGS
9 page 206 .
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to specified meth­
ods, this c an resu lt in seve re damage to
your vehicle's eng ine and body (such as
corrosion) and adversely affect yo ur vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized A udi dealer as soon as
possible .
- The manufacturer cannot be held liable
for damage wh ich occ urs due to failure
to comply with these stipu lations.

Technical Modifications
Our guidelines must be complied with when technical modifications are made .
Always consult an authorized Aud i dealer be ­
fore starting work on any modifications.
This will he lp ensure that vehicle function,
performance and safety are not impaired
¢ .&. .
Attempting to work on electronic components
and the software used with them can cause
malfunctions. Beca use of the way electronic
components are interconnected with each
other, such malfunctions can also have an ad­
verse affect on other systems that are not di ­
rectly involved . Th is means that you r isk both
a substantial reduction in the operational
safety of you r vehicle and an inc reased wea r of
vehi cle parts¢ _&..
Author ized Audi dealers w ill perform th is
wo rk in a professiona l and competent ma nner
or, in spec ial cases, refer you to a p rofessional
company that specializes in such mod ifi ca­
tions .
_& WARNING t= -
Improper repairs and modifications can
change the way vehicle systems wo rk and
cause se rious personal injury.
0 Note
If emergency repairs must be perfo rmed
elsewhere, have the ve hicle examined by
an authorized A udi dealer as soon as possi­
ble.
Con sumer In formation 267
Declaration of
Compliance, Telecom­
munications and
Electronic Systems
Radio Frequency Devices and Radiocommuni­
cation Equipment User Manual Notice.
The manufact urer is not responsib le for any
radio or TV interference caused by unauthor­
ized modifications to this equipment.
Device s
The following devices each comply wi th FCC
Part 15 .19, FCC Part 15.2 1 and RSS -Gen Iss ue
1:
- Adaptive cr uise con trol*
- Conven ience key*
- Side assist*
- Cell phone package*
- Electron ic immobilizer
- Homelink universa l remote control *
- Remote control key
FCC Part 15.19
Th is device complies with part 15 of the FCC
Ru les . Operation is subject to the fo llow ing
t wo conditions:
(1) This device may not cause harmful i nter ­
ference, and
(2) this device must accept any interference
received, including interference that may
cause undes ired operation .
FCC Part 15 .21
CAUTION:
Changes or mod ificat ions no t expressly ap ­
proved by the pa rty responsible fo r compli­
ance could void the user's aut hority to operate
the eq uipment .
RSS-Gen Issue 1
Operation is sub ject to the fo llow ing two con­
di tions :
(1) this device may not ca use inte rference,
and
•
•

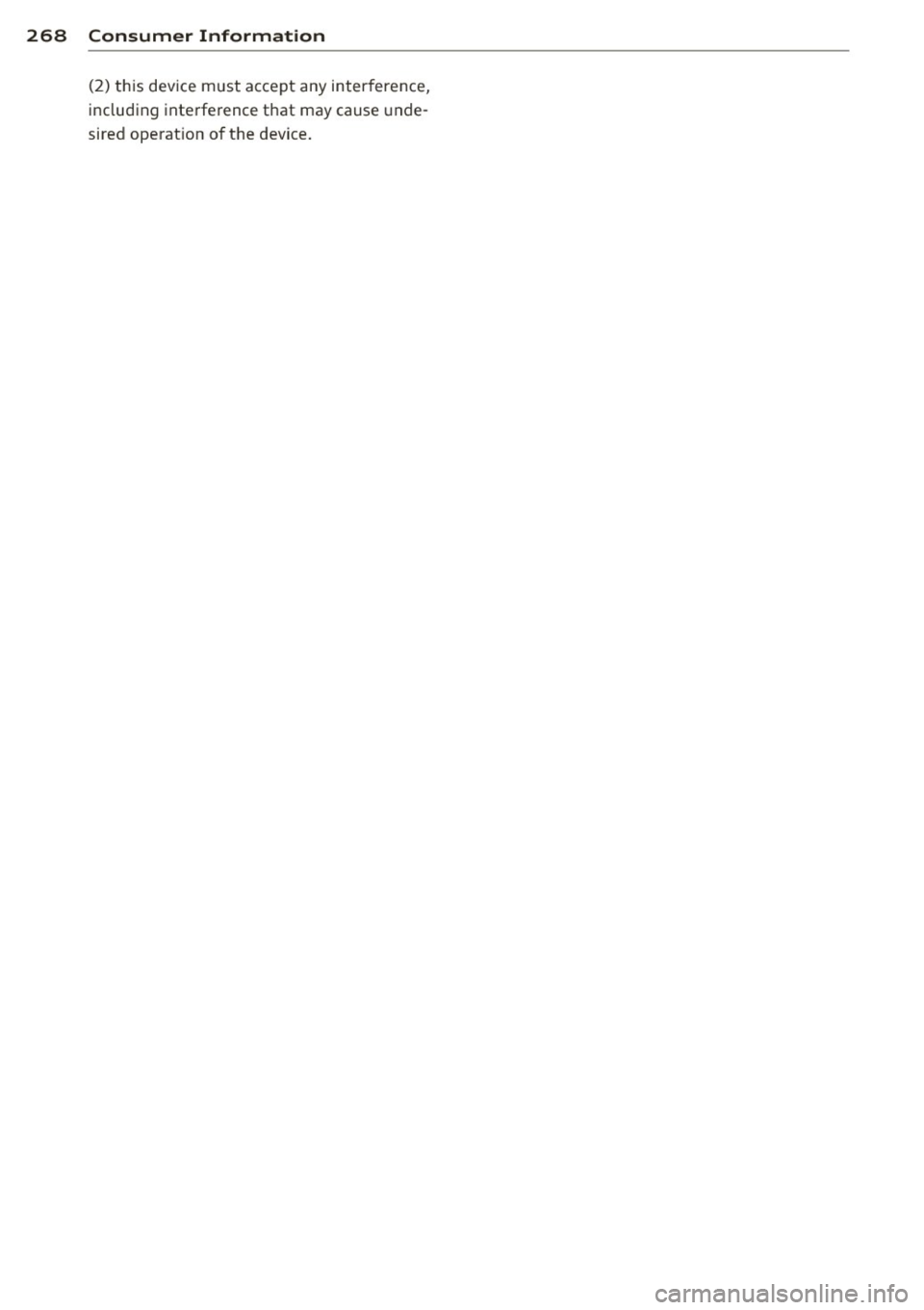

268 Consumer Information
(2) this device must accept any interference,
including interference that may cause unde­
sired operat ion of the device.
