220 Check ing and filling
- To r educe the danger of explosion, never
co nnect or disconn ect cha rger cables
wh ile the c harger is operating.
- Fast char ging a battery is dangerous and
shou ld on ly be attempted by a compe­
tent technician w ith the proper equip­
ment .
- Battery acid that may spill d uring charg­
ing should be washed
off with a solution
of warm water and baking soda to neu ­
tralize the acid.
(Q) Note
Never use a fast charger as a booster to
start the engine . This will seriously dam­
age sensitive electronic components, such
as control units, relays, rad io, etc., as we ll
as the battery charger.
Battery replacement
The new battery must have the same specif/·
cations and dimensions as the original equip­
ment battery.
In tell igent energy management in your veh i­
cle is respons ible for d istributing the e lectr i­
cal energy throughout you r vehicle
~ page 185. The intell igen t energy m anage­
men t system w ill keep the engine ba tte ry
charged better then vehicles w ithout this sys­
tem . To make sure the additional e lectrica l en­
ergy is available once again after you have
changed the battery, we recommend that you install batteries o f the same type and ma nu­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the battery hous ing. You r
author ized Audi dealer must code the battery
in the ene rgy managemen t system to enable
you to use the ene rgy management functions
correctly after replac ing the battery.
I f it is not poss ible to use a battery of this
type, the new bat tery m ust h ave the s ame ca­
pac ity, voltage ( 12-volts), amperage, con ­
struction and plug sea ling. When installing the battery, make su
re the ig ­
nition and a ll electrical consumers are turned
off.
(D Note
Make sure the ventilat ion hose on the side
of the battery is connected, otherwise
fumes or battery acid can leak out .
@ For the sake of the environment
Because o f the p rob lem of p roper disposal
of a battery, we recommend your author ­
i zed Audi dealer change the battery fo r
you. Batteries contain sulfur ic acid and
l ead and must always be disposed of prop­
erly in comp liance with all environmental
regula tions. Dispos ing of veh icle batter ies
i mprope rly is very dange rous to the envi­
r o nment .
Windshield/headlight*
washer container
Fig. 181 En gin e compa rt m en t: Cove r on the w ind·
s h iel d a nd h eadligh t• was he r fl uid conta in er
.., N
-~ (X) a,
The washer fluid conta iner is marked w ith the
symbol
O on its cap~ fig. 181, ~ page 208,
fig . 175.
.. Before yo u check any thing in the engine
compa rtment,
always read and heed all
WARNINGS q A in Working in the engine
compartment on page 206 .
.. Lift the fi ller cap tongue to add washer flu­
id. You can f ill the container to the top.
.. Press the cap back onto the filler neck after
fi lling the conta iner .
You can find the reservo ir
capacity in the table
in
q page 262. .,.

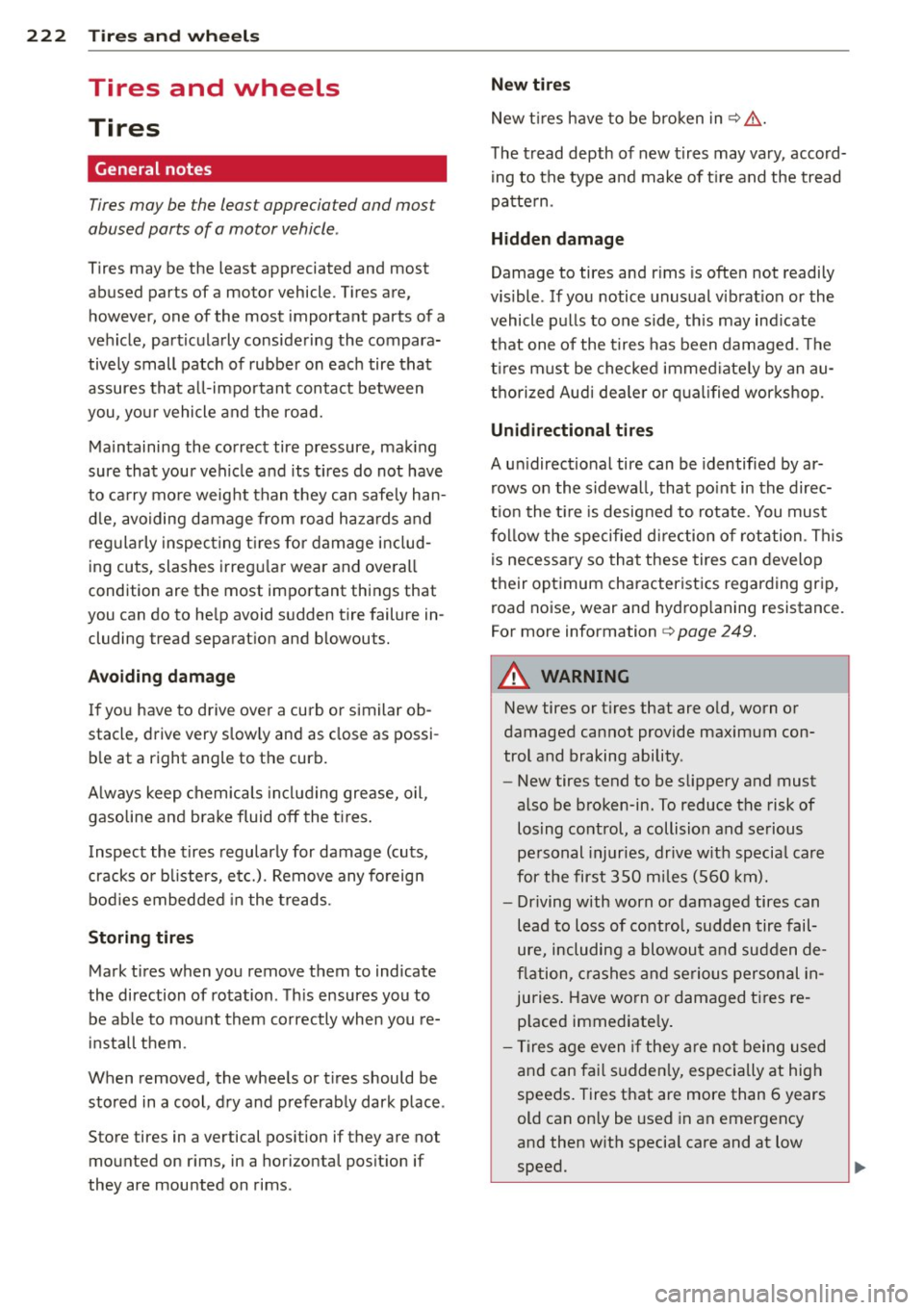

222 Tire s and wheel s
Tires and wheels
Tires
General notes
Tires may be the least appreciated and most
abused parts of a motor vehicle .
Tires may be the least appreciated and most
abused parts of a motor vehicle . Tires are,
however, one of the most important parts of a
vehicle, particularly considering the compara­
tive ly small patch of rubber on each tire that
assures that a ll-impo rtant contact between
you, your vehicle and the road.
Maintaining the correct tire pressure, mak ing
sure that your vehicle and its tires do not have
to carry mo re weight than they can safe ly han­
d le, avoiding damage from road hazards and
reg ularly inspecting t ires for damage includ­
ing cuts, slashes irregu la r wear and ove rall
condition are the most important things that
you can do to he lp avoid sudden tire failure in­
cluding tread separat ion and blowouts.
Avoiding damage I f you have to drive over a curb or similar ob­
stacle, drive very s low ly and as close as possi ­
b le at a right angle to the curb.
A lways keep chem ica ls includ ing gre ase, o il,
gasoline and b rake fluid off the ti res .
Inspect the t ires regularly for damage (cuts,
cracks or b listers, etc.). Remove any fo reign
bod ies embedded in the treads.
Storing tires Mark tires when you remove them to indicate
the direction of rotation . Th is ensures you to
be ab le to mount them correctly when you re­
install t hem.
When removed, the whee ls or t ires should be
stored in a cool, d ry and preferably dark place .
Store tires in a vertical pos ition if they are not
mounted on r ims, in a horizontal pos it ion if
they are mounted on rims. New tire
s
New t ires have to be broken in¢&,. .
T he tread depth of new t ires may vary, accord­
ing to the type a nd make of t ire and the tread
pa tte rn .
Hidden damage
Damage to tires and r ims is ofte n not readily
vis ible . If you notice unusual v ibrat ion or the
vehicle p ulls to one s ide, th is may ind icate
t h at one of the t ires has been damaged . Th e
t ir es m ust be checked immed iate ly by an au ­
tho rized Aud i dea le r or q uali fied wor ks hop.
Unidirectional t ires
A un idirectional tire can be identified by ar­
rows on the s id ewa ll, that po int in the direc­
t ion the t ire is desig ned to rotate. You mus t
f ol low the specified d irection of rotation . This
is necessary so that these tires can develop
their optimum characterist ics regarding grip,
road no ise, wear and hyd rop laning resistance.
For more information
¢ page 249.
A WARNING
-New tires or tires that are o ld, worn or
damaged cannot provide maximum con­
trol and braking ability .
-
-New tires tend to be slippery and must
also be broken-in. To reduce t he risk of
losing control, a collision and se rious
pe rsonal injuries, drive w it h specia l care
for the first 350 miles (560 km).
- Driving with worn or damaged tires can
le ad to loss of control, sudden tire fail­
ure, including a blowou t and sudden de­
fl ation, c rashes and seriou s personal in­
juries . Have wo rn or damaged t ires re­
p laced immediate ly .
- T ires age even if they are not being used
an d can fai l sudden ly, especially at high
speeds. Tires that are more than 6 years
old can only be used in an emergency
and then w ith specia l care and at low
speed.

-Never mount used tires on yo ur vehicle if
yo u are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
- If you notice unusual vibration or if the
vehicle pulls to one side when d riving, al­
ways stop as soon as it is safe to do so
and check the wheels and tires for dam­
age .
(D Note
-Please note that summer and winter
tires are designed for the cond itions that
are typ ic al in those seasons. Aud i recom­
mends using w inter t ires du ring the win-
Glossary of tire and loading terminology
Accessory weight
means the comb ined weight (in excess of
those standard items which may be replaced)
of automatic tra nsmission, power steering,
power brakes, power windows, power seats,
radio, and heater, to the extent that these
items are availab le as factory-installed equip­
ment (whether installed or not) .
Aspect ratio
means the ratio of the height to the width of
the tire in percent . Numbers of 55 or lower in­
d icate a low sidewall for improved steering re­
sponse and better overall handling on dry
pavement .
Bead
means the pa rt of the ti re that is made of
steel wires, wrapped or reinforced by ply cords
and that is shaped to fit the rim.
Bead s eparation
means a b reakdown of the bond between
components in the bead.
Cord
means the strands forming the plies in the
tire.
Tire s an d wheel s 223
ter months . Low temperatu res signifi­
cantly decrease the elastic ity of summer
t ires, which affects traction and braking
ability. If summer tires are used in very
co ld temperatures, cracks can form on
the tread bars, res ulting in permanent
ti re damage that can cause loud drivi ng
noise and unbalanced tires. Aud i is not
responsib le for this type of damage.
- Burn ished, polished or chromed rims
must not be used in winter weather. Th e
surfa ce of the rims does not have suffi­
c ien t cor rosion pro te cti on for this and
c o ul d be pe rmanen tly damaged by road
salt or similar substances. This damage
is not covered by warranty.

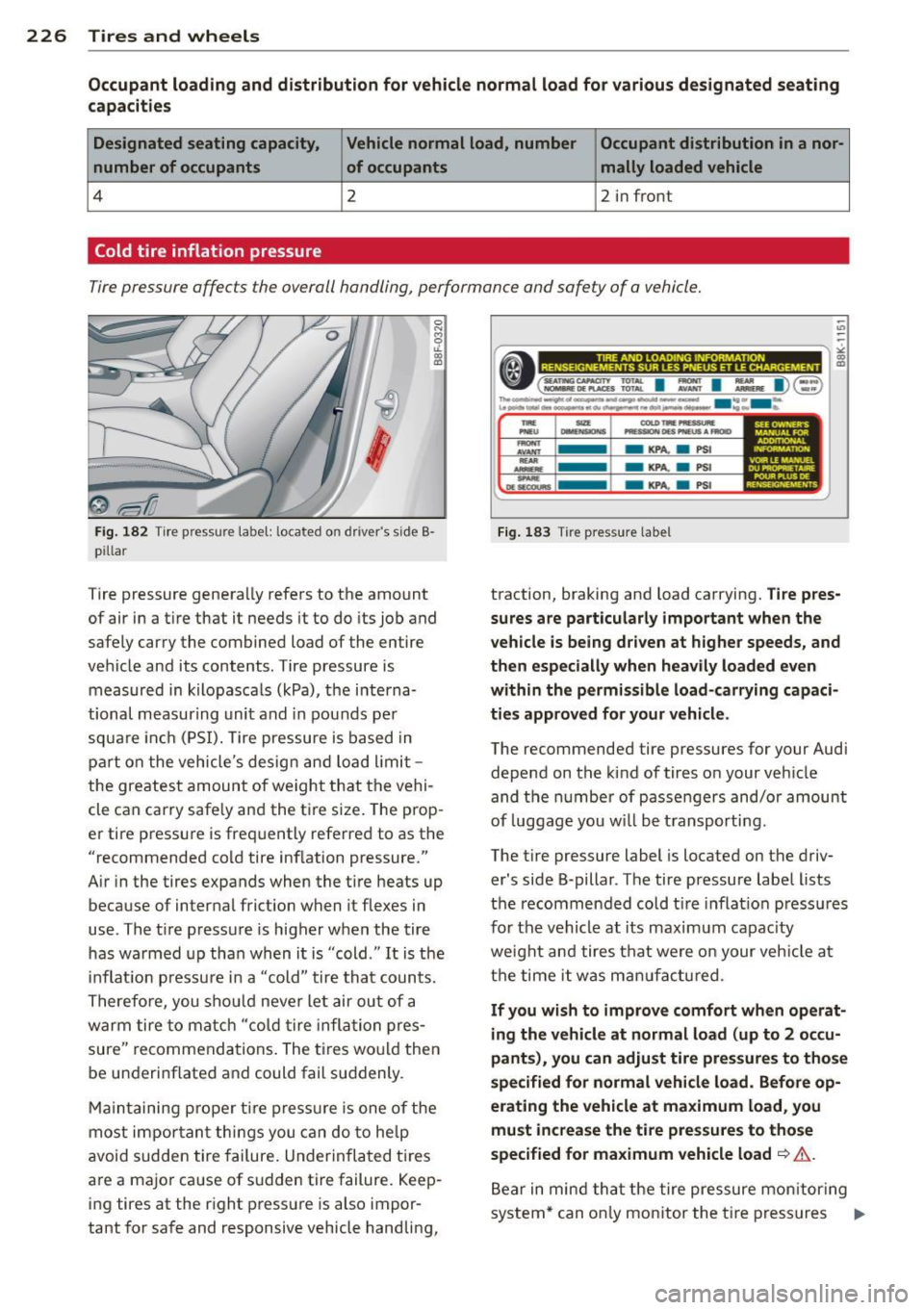

Cold tir e inflation pressure
me ans the t ire press ure re commended by the
vehicle manufacturer fo r a tire o f a des igna ted
size that has not bee n driven for more than a
couple of miles (k ilomete rs) at low speeds in
the three hour pe riod before the tire p ress ure
is measured or adjusted.
Curb weight
means the weight o f a motor vehicle with
standard equipment including the maximum
capacity of fuel, o il, and coolant, air cond i­
tion ing and additional weight of optiona l
equipment.
E xtra load tire
means a tire design to operate at higher loads
and at higher inflation pressures than the cor­
responding standard tire. Extra load tires may
be identified as "XL", "xl", "EXTRA LOAD", or
"RF" on the sidewall.
Gross Axle Weight Rating ("GAWR")
means the load-carrying capacity of a single
axle system, measured at the tire-ground in-
ter~ces .
~
•
•

224 Tires and wheels
Gross Vehicle Weight Rating ("GVWR" )
means the maximum total loaded weight o f
the vehicle.
Groove
means the space between two adjacent tread
ribs.
Load rating (code)
means the maximum load that a tire is rated
to carry for a given inflat ion pressure. You
may not find this informat ion on all tires be­
cause it is not requ ired by law .
Ma ximum load rating
means the load rating for a t ire at the maxi­
mum permissible inflation pressure for that
tire .
Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity we ight, and
(d) Production opt ions weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressure
to which a tire may be inflated . Also called
"maximum inflation pressure."
Normal occupant weight
means 150 lbs. (68 kilog rams) times the
number of occupants seated in the vehicle up
to the tota l seating capacity of your vehicle.
Occupant distribution
means dist ribution of occupants in a veh icle.
Outer diameter
means the overall diameter of an inflated new
tire.
Overall width
means the linear distance between the exteri ­
ors of the sidewalls of an inflated tire, includ­
ing elevations due to labeling, decorations, or
protective bands or ribs .
Ply
means a layer of rubbe r-coated parallel cords.
Production options weight
means the combined weight of those installed
regular production opt ions we ighing over 5
lbs. ( 2.3 kg) in excess of those standa rd items
wh ich they replace, not previously cons idered
in curb weight or accessory weight, including
heavy duty brakes, ride levelers, heavy duty
battery, and specia l trim .
Radial ply tire
means a pneumat ic tire in which the ply cords
that extend to the beads are laid at substa n­
tially 90 degrees to the centerline of the
tread.
Recommended inflation pressure
see <=;> page 223, Cold tire inflation pressure .
Reinforced tire
means a tire design to operate at higher loads
and at h igher inflation pressures than the cor­
responding standard tire. Reinforced tires
may be identified as "XL", "xl", "EXTRA LOAD",
or "RF" on the sidewal l.
Rim
means a metal support for a tire or a t ire and
tube assembly upon which the tire beads are
seated .
Rim diameter
means nominal diameter of the bead seat. If
you change your wheel s ize, you will have to
purchase new tires to match the new rim di­
ameter .
Rim size designation
means rim diameter and width.
Rim width
means nom inal d istance between rim flanges.
Sidewall
means that portion of a tire between the
tread and bead .

226 Tires and wheels
Occupant loading and distribution for vehicle normal load for various designated seating
capacities
Designated seating capacity, Vehicle normal load, number Occupant distribution in a nor -
number of occupants of occupants mally loaded vehicle
4 2 2 i
n front
Cold tire inflation pressure
Tire pressure affects the overall handling, performance and safety of a vehicle.
Fig. 18 2 T ire press ure label : located on driver's side B·
pillar
Tire pressure genera lly refers to the amount
of air in a t ire that it needs it to do its job and
safely carry the combined load of the entire
vehicle and its contents . Tire pressure is
measured in kilopasca ls (kPa), the i nterna·
tional measur ing unit and in pou nds pe r
squa re inc h (PSI). Tire pressure is based in
par t on the vehicle's desig n and load limit -
the greatest amoun t of weight that the vehi·
cle can carry safe ly and the t ire size . The prop·
er tire pressure is freq uently referred to as the
" recommended cold tire inf lation pressure."
A ir in the tires expands when the tire heats up
because of internal frict ion when it flexes in
use . The t ire p ressu re is higher when the tire
h as wa rmed up tha n when it is "cold ." It is the
in flat ion pressu re i n a "cold" tire that counts.
T herefore, you shou ld neve r let air ou t of a
warm tire to match " co ld tire inflat ion pres­
sure" recommendations . The t ires wo uld then
be underinflated and could fail su ddenly .
M ain taining p roper t ire pr essu re is one of the
most im po rt an t th ings you ca n d o to he lp
avoid sudden tire failure. Underin fla ted t ires
a re a ma jo r cause of s udden tire failure. Keep·
i n g tires at the right pressu re is also impor­
tant for safe and responsive vehicle handling,
-U'>
-
---------------------- ,;
•(=~= I: I::... 1)§ :l!: n-...,....,....,~ ...... ~-...,..., ..... _ ... U ........ ~-·~N.-..-.we..... .... lllt-
-AV ANT ...,.
-...... .. _
- KPA. a PSI
- KPA.
a PSI
- KPA.
a PSI
Fig. 183 Ti re pr essure la bel
SEE OWNEJICS MANUA1 FOA A,DOITl<>N.IU. INfORMATlON
VOIR L£ MANUll DUPR0ftlET""" P"OUR i-t.US DE RENSEIGMEMENfS
traction, braking and load carrying. Tire pres­
sures are particularly important when the
vehicle is being driven at higher speeds, and
then especially when heavily loaded even
within the permissible load-carrying capaci­
ties approved for your vehicle .
The recommended tire pressures f or y our Audi
depe nd on the kind of tires o n your ve hicle
and the numbe r of passe ngers and/o r amount
of luggage you w ill be t ransporti ng .
The tire pressure label is located on the driv­
er's side B-pillar . The tire pressure labe l lists
the recommended cold t ire inflat io n press ures
for the vehicle at its maximum capac ity
weig ht an d tires t hat were o n your veh icle at
t h e time it was m anufactur ed.
If you wish to improve comfort wh en operat­
ing the vehicle at normal load (up to 2 occu­
pant s), you can ad just tire pre ssure s to tho se
specified for normal vehicle load . Before op­
erating the vehicle at maximum load, you
mu st increase the ti re pressures to those
specified for maximum vehicle load
~ ,&. .

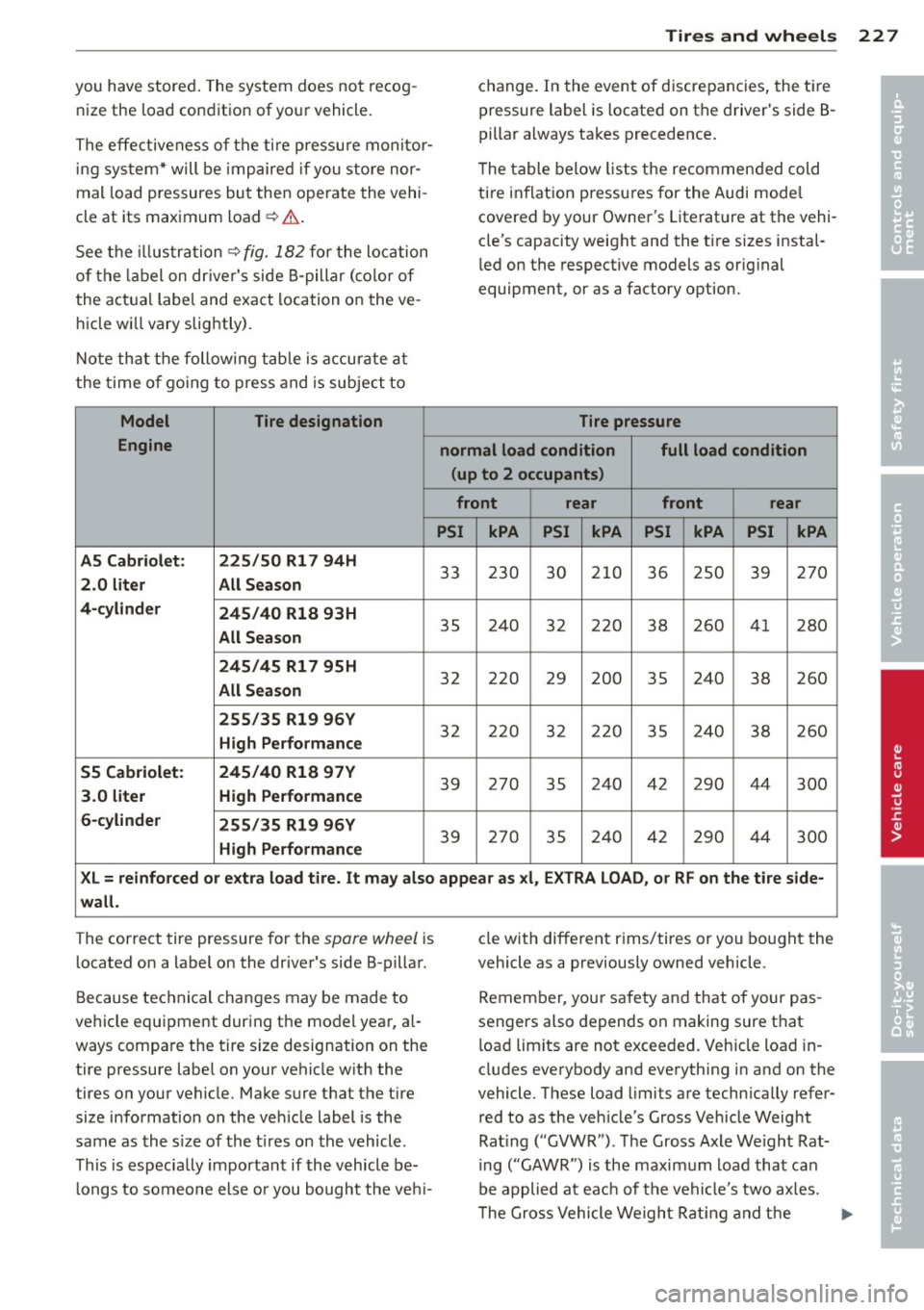

Bear in min d that t he tire pressure mon itor ing
system * can o nly mo nitor the tir e press ures .,.

you have stored. The system does not recog ­
nize the load condition of your vehicle.
The effectiveness of the ti re pressu re monitor­
ing sys tem* will be impaired if you store nor ­
mal load pressures but then operate the vehi ­
cle at its maximum load¢,& .
See the illustration ¢
fig. 182 for the location
of the label on dr iver's side B-pillar (co lor of
the actual labe l and exact location on the ve­
hicle wi ll vary slig htly) .
Note that the fo llowing tab le is accurate a t
the t ime o f go ing to press and is subject to
Model Tire designation
Engine
AS Cabriol et: 225/50 Rl 7 94H
2.0 lit er All S eason
4 -cy linder
24 5/40 R18 93H
All Sea son
245 /45 R17 95H
All Sea son
255 /35 R19 96 V
High Performanc e
S5 Cabriol et: 245/40 R18 9 7V
3.0 liter High Performance
6- cyl inder
255/35 R1 9 96V
High Performanc e
Tires an d wheel s 22 7
ch ange. In the event of discrepancies, the ti re
pressure label is located on the driver's side B­
pillar always takes precedence .
T he table below lists the recommended cold
ti re inflat ion pressures for the Audi mode l
covered by your Owner's Literat ure at the vehi­
cle's capacity weight and the t ire sizes instal­
l ed on the respective models as orig inal
equipment, or as a factory option.
Tire pressure
normal load condition full load condition (up to 2 occupants)
front rear front rear
PSI kPA PSI kPA PSI kPA PSI kPA
33 230 30 210 36 250 39 270
35 240 32 220 38 260 41 280
32 220 29 200 35 240
38 260
32 220 32 220 3S 240 38 260
39 270
35 240
42 290 44
300
39 270 35 240 42 290 44
300
•
•
XL= reinfo rced or extra lo ad tire. It may al so appear a s xl, EX TRA LOAD , or R F on the tire side-
w all.
The correct tire pressure for the spare wheel is
l ocated on a label on the driver's side B-pillar.
Because technical changes may be made to
vehicle equipment during the model year, a l­
ways compare the tire size designation on the
tire pressure label on your vehicle with the
tires on your vehicle. Make sure that the tire
size information on the vehicle label is the
same as the size of the t ires on the vehicle.
This is especially important if the vehicle be­
l ongs to someone else or you bought the ve hi- cle w
ith different rims/tires or you bought the
vehicle as a previously owned vehicle .
Remember, your safety and that of your pas ­
sengers also depends on making sure that
l oad lim its are not exceeded. Vehicle load in ­
cludes everybody and everything in and on the
vehicle. These load limits are technically refer­
red to as the veh icle's Gross Vehicle Weight
Rat ing ("GVWR"). The Gross Axle We ight Rat­
ing ("GAWR") is the maximum load that can
be applied at each of the vehicle's two ax les .
T he Gross Vehicle Weight Rat ing and the .,,.

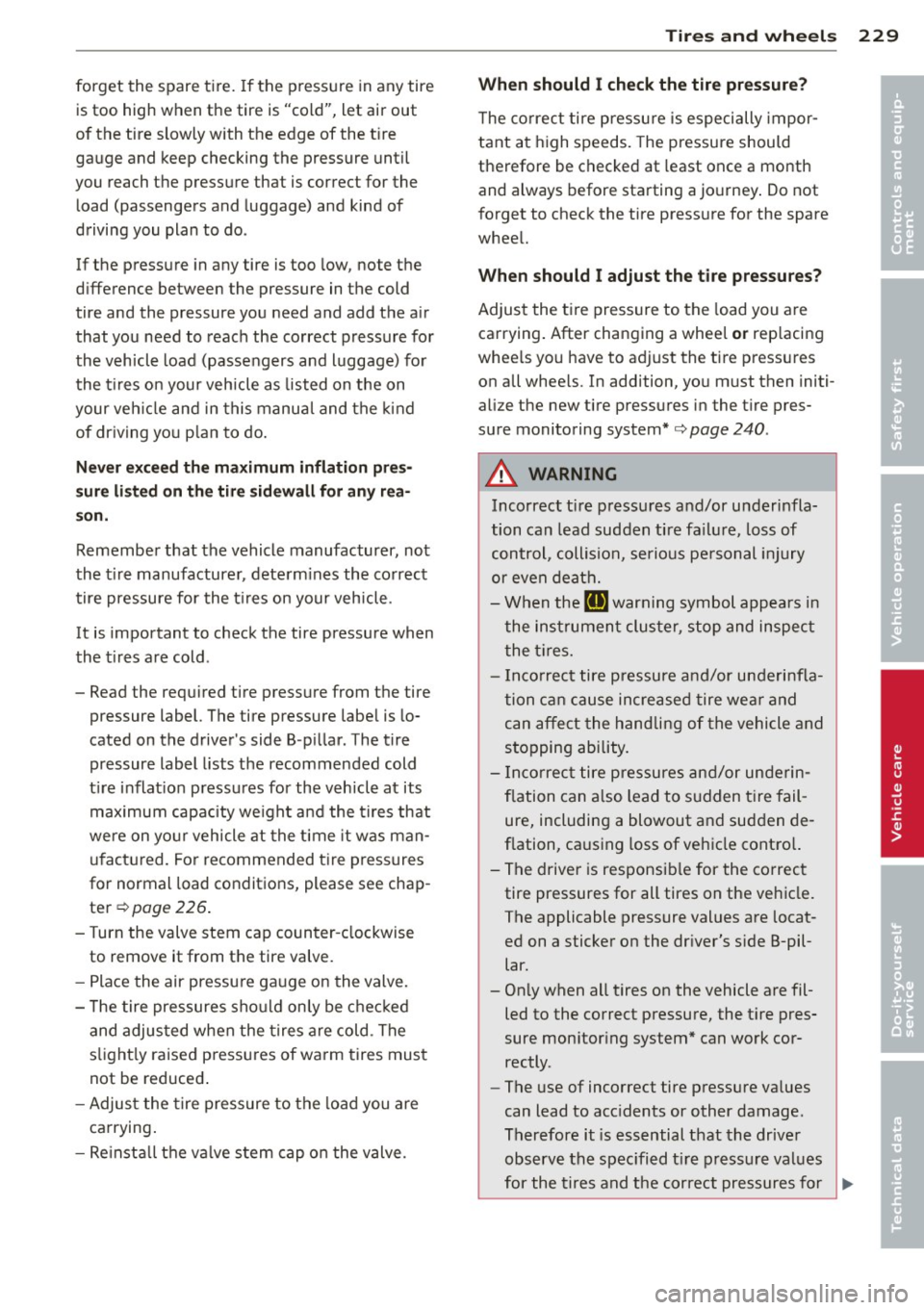

forget the spare tire. If the p ress ure in any tire
is too high when the tire is "cold", let air out
of the tire slowly with the edge of the t ire
gauge and keep checking the pressure until
you reach the pressure that is correct for the
load (passengers and luggage) and kind of
driving you plan to do .
If the pressure in any tire is too low, note the
d ifference between the pressure in the cold
tire and the pressure you need and add the a ir
that you need to reach the correct pressure for
the veh icle load (passengers and luggage) for
the tires on your veh icle as listed on the on
your ve hicle and in this manua l and the kind
of dr iving you p lan to do .
Never exce ed the ma ximum inflation pres ­
s ur e listed on t he tire s idewall for any re a­
s on.
Remember that the vehicle manufacturer , not
the t ire manufacturer , determ ines the co rrect
tire pressure for the tires on your veh icle .
It is important to check the tire pressure when
the t ires a re cold .
- Read the req uired tire press ure from the tire
pressure label. The tire pressure labe l is lo­
cated on the driver's side 8 -p ill ar . The tire
pressure label lists the recommended cold
t ir e inflat io n pressu res for the veh icle at its
maximum capacity we ight a nd the tir es that
we re on yo ur vehicle at the t ime it was man­
uf act ured. Fo r recommended tire press ures
for normal load conditions, please see chap ­
ter
c:> page 226 .
- Turn the valve stem cap counter -clockwise
to remove it from the tire valve.
- Place the air pressure ga uge on the valve.
- The tire pressures should on ly be che cked
and adjus ted when the tires a re cold . The
s li ght ly raised pressures of wa rm tires mus t
not be reduced .
- Adjus t the tire pressure to the load you are
carrying .
- Re inst all the va lve s tem cap o n the valve .
Tires an d wheel s 229
When should I check the tire pressure?
T he co rrect tire pressu re is especially impor­
tant at h igh speeds. The pressure should
therefore be checked at least once a month
and always before sta rting a jo urney . Do not
forget to check the tire pressure for the spare
whee l.
When should I adjust the tire pres sures?
Adjust the t ire pressure to the load you a re
carrying . After changing a whee l
or replacing
whee ls yo u have to adjust the tire pressu res
on all whee ls. In addition, yo u m ust then initi­
alize the new tire pressures i n the t ire pres­
sure monitoring system*
c:> page 240 .
A WARNING
Incorrect ti re p ressu res and/or u nderinfla­
tion can lead sudden ti re fa ilu re, loss of
control, collision, se rio us pe rsonal inju ry
or even death.
- When the
RI] warning symbol appears i n
the ins trumen t cluster, stop and inspec t
the t ires.
- In co rrec t tire p ressure a nd/or underi nfla­
tion can ca use increased tire we ar and
can affect the hand ling of the vehicle and
stopping ability.
- In correc t tire pressures and/or underin­
flation can a lso lead to s udden t ire fail ­
ure, including a blowout and sudden de­
flation, ca using loss of vehicle contro l.
- The drive r is responsib le for the co rrect
tire pressures for all tires on the vehicle.
The applicable pressure values are locat ­
ed on a sticke r on the dr iver's s ide 8-pil­
lar.
- On ly when all tires on the vehicle are fil­
led to the correct pressure, the t ire pres­
sure mon itor ing system* can work cor­
rectly .
- The use of incorrect tire pressure va lues
can lead to acc idents or other damage.
Therefore it is essential that the drive r
observe the spec ified t ire p ress ure val ues
for the tires and t he correct pressures fo r .,. •
•

Incorrect wheel alignment
Incorrect wheel alignment can cause exces­
sive tire wear, impairing the safety of the vehi­
cle. If tires show excessive wear, have the
wheel alignment checked by an authorized
Audi dealer or qualified workshop .
All wheel drive
Vehicles with quattro must always have tires
of the same size, construction and tread type.
For details see~
page 184 .
.8_ WARNING
Sudden tire failure can lead to loss of con­
trol, a crash and serious personal injury!
- Never drive a vehicle when the tread on
any tire is worn down to the wear indica­
tors.
- Worn tires are a safety hazard, they do
not grip well on wet roads and increase
your risk of "hydroplaning" and toss of
control.
- Always keep chemicals that can cause
tire damage, such as grease, oil, gasoline
and brake fluid away from tires.
- Tires age even if they are not being used
and can fail suddenly, especially at high
speeds. Tires that are more than 6 years
old can only be used in an emergency
and then with special care and at lower
speeds .
- Never mount used tires on your vehicle if
you are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
Tires and wheels 233
New tires and replacing tires and wheels
New tires and wheels have to be broken in .
Fig. 186 Tir e specificat ion codes on t he s idewall o f a
tire
No. Description
@ Passenger car tire (where applicable)
@ Nominal width of tire in millimeters
@ Ratio of height to width (aspect ratio)
© Radial
® Rim diameter code
® Load index and speed rating
0 U.S. DOT tire identification number
® Audi Original tire
® Sever snow conditions
@ Tire ply composition and materials
used
@ Maximum load rating
@ Treadwear, traction and temperature
grades
@ Maximum permissible inflation pres-
sure
The tires and rims are essential parts of the
vehicle's design . The tires and rims approved
by Audi are specialty matched to the charac­
teristics of the vehicle and can make a major .,.

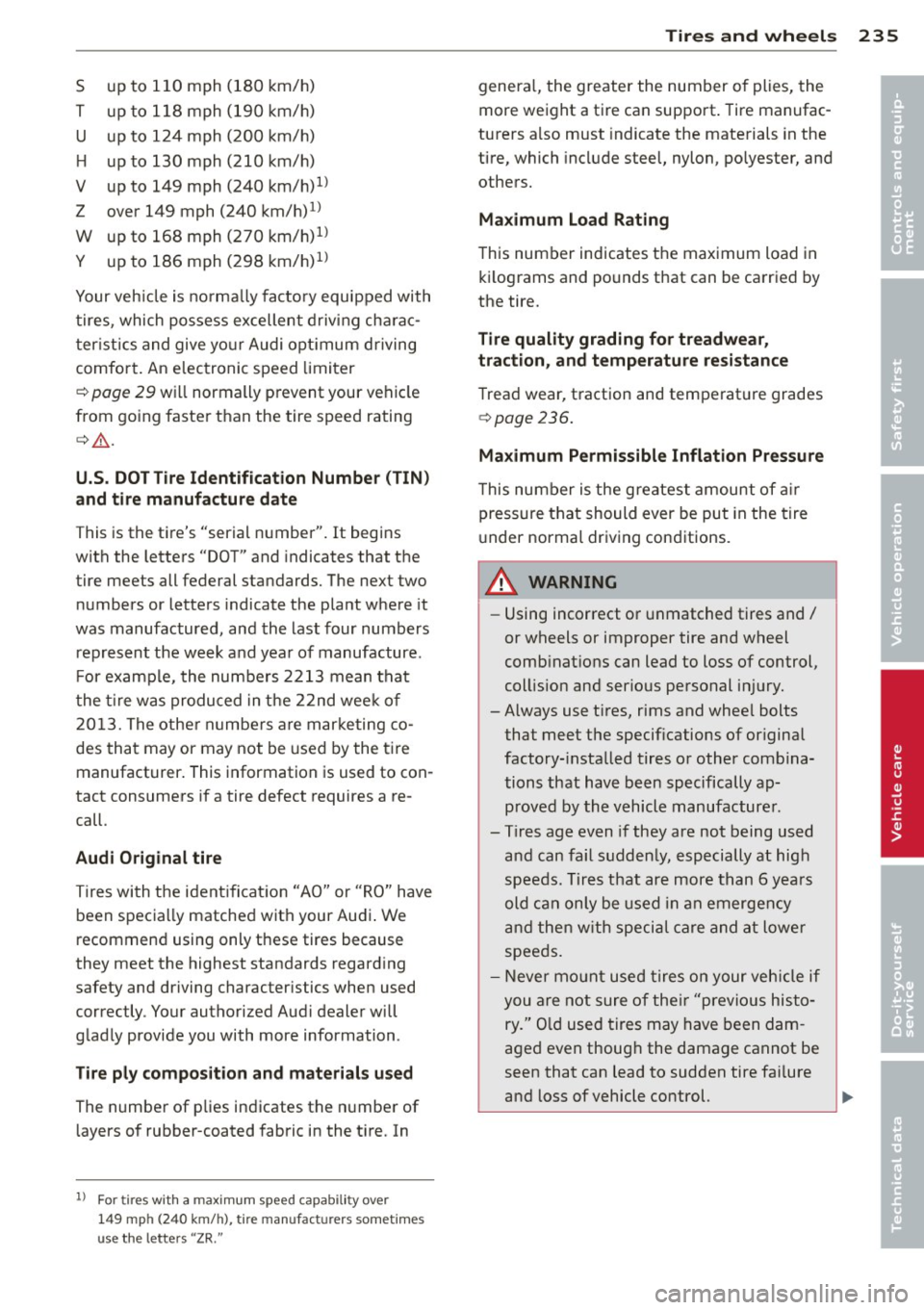

S up to 110 mph (180 km/h)
T up to 118 mph (190 km/ h)
U up to 124 mph (200 km/ h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)
1
)
Z over 149 mph (240 km/h)1
)
W up to 168 mph (270 km/h)1
)
Y up to 186 mph (298 km/h)1>
Your vehicle is no rma lly facto ry equipped with
tires , which possess excellent driving cha rac­
ter istics and give yo ur Audi opt imum driving
comfort . An e lectronic speed limiter
¢ page 29 wi ll normally prevent your vehicle
from going faster than the tire speed rating
¢ A .
U.S. DOT Tir e Identification Numbe r (TIN )
a nd tir e m anufactur e date
T his is the t ire's "serial number". It begins
with the letters "DOT" and indicates that the
t ire meets all federal s tandards. The next two
numbers or letters indicate the plant where it
was manufactured, and the last four numbers
represent the week and year of manufacture .
F or example, the numbers 2213 mean that
the t ire was produced in the 22nd wee k of
20 13. The othe r numbe rs a re mar ke ting co­
des that may or may not be used by the tire
manufacturer . This informat ion is used to con­
tact consumers if a tire defect requi res a re ­
call.
Audi Original tir e
Tires with the identi fication "AO" or "RO" have
been specia lly matched w ith your Audi . We
recommend using only t hese tires because
they meet the highest standards rega rd ing
safety and driving character istics when used
correctly . You r authorized Audi dealer will
g lad ly provide you with more information .
Tire ply composition and materi als used
The number of plies indicates the n umber of
l ayers of rubber-coated fabric in the t ire. In
ll Fo r tires wit h a m ax im um s pee d ca pabil ity over
1 4 9 mp h (24 0 k m/h) , tire man ufactur ers somet ime s
use th e let ters "Z R."
Tire s an d wheel s 235
genera l, the greater the number of plies, the
more weight a tire can support . Tire manufac­
turers also must indicate the materials in the
tire, which include steel, nylon, po lye ster, and
others.
Maximum Load Rating
This number indicates the maximum load in
ki lograms and pounds that can be carr ied by
the tire.
Tir e quality grading for treadwear ,
tract ion, and temp eratu re resis tance
T read wear, t raction and temperat ure grades
¢ page 236.
Maximum Permissible Inflation Pressure
This number is the g reatest amount of a ir
pressure that should ever be put in the tire
u nder normal driving conditions.
A WARNING ~
- Using incorrect or unmatched tires and/
or wheels or improper tire and wheel
comb inat ions can lead to loss of control,
col lis ion and serious personal injury.
-Always use t ires, rims and whee l bolts
that meet the specif ications of original
factory- installed tires or other combina­
tions that have been specifically ap­
proved by the vehicle manufacture r.
- T ires age even if they are not being used
and can fai l sudden ly, especially at high
speeds . Tir es that are more than 6 yea rs
old can only be used in an emergency
an d then w ith speci al care and at lower
speeds.
- Never mo unt used tires on your veh icle if
you are not sure of the ir "previous histo­
ry." O ld used tires may have been dam ­
aged even thoug h the damage cannot be
seen that can lead to sudden tire fai lure
and loss of vehicle control.
•
•

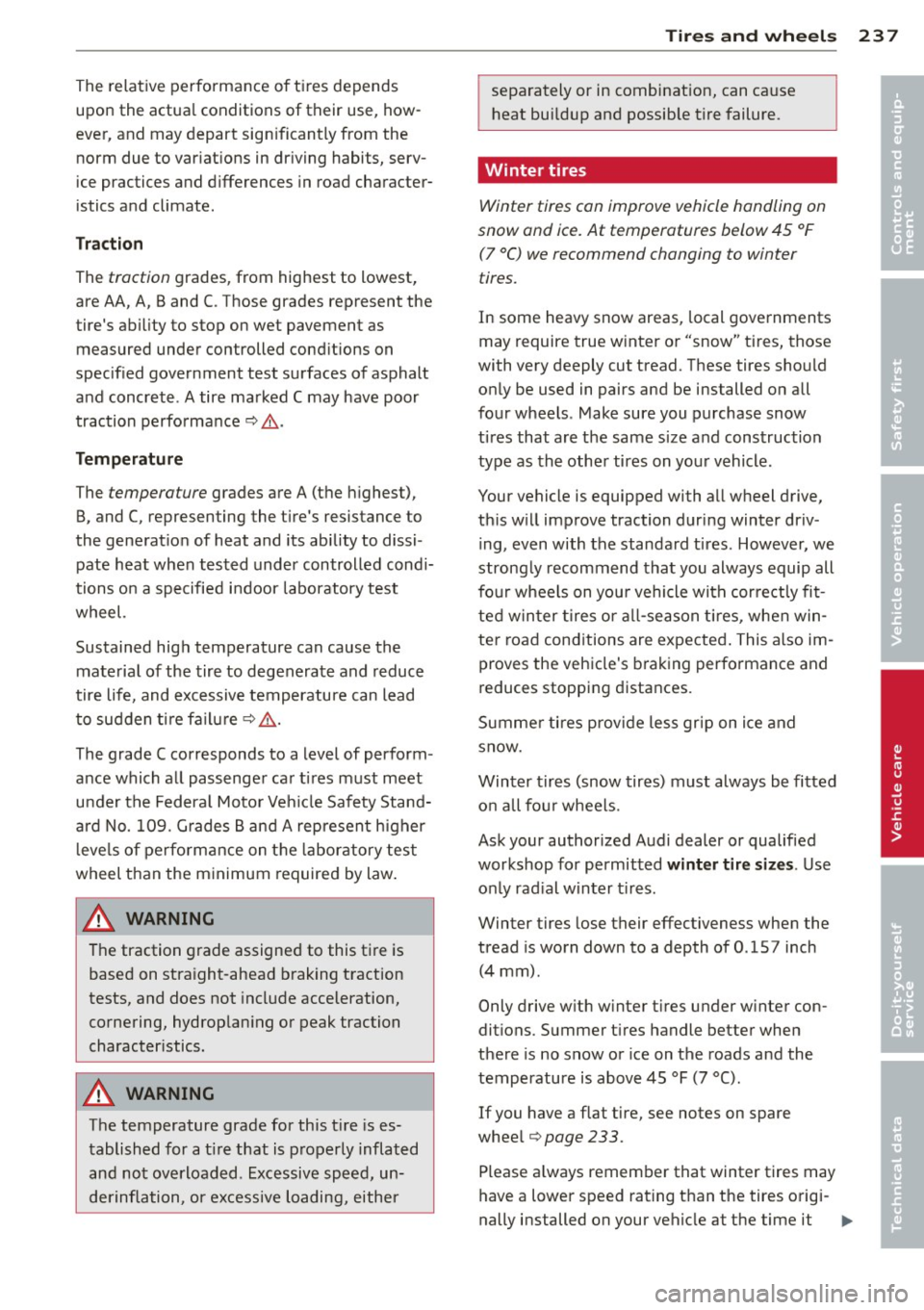

The relative perform a nee of ti res depends
upon the actua l conditions of their use, how ­
ever, and may depart sign ificantly from the
norm due to var iat ions in dr iving habits, serv­
ice practices and differences in road character­
istics and climate .
Trac tion
The traction grades, from highest to lowest,
are AA, A, Band
C. Those grades represent the
tire's ability to stop on wet pavement as measured under controlled cond itions on
specified government test surfaces of asphalt
and concrete . A tire marked C may have poor
traction performance ¢,&. .
Temp erature
The temperature grades are A (the h ighest),
B, and
C, representing the t ire's resistance to
the generat ion of heat and its ability to dissi ­
pate heat when tested under controlled condi­
tions on a specified i ndoor laboratory test
wheel.
Sustained high temperature can cause the
materia l of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden ti re fa ilu re ¢ ,&. .
The grade
C corresponds to a level of perform ­
ance which all passenger car tires must meet
u nder the Federa l Moto r Veh icle Safety Stand­
a rd No.
1 09. G rades Band A represent h igher
l eve ls of perfo rmance on the laboratory tes t
wheel than the m inimum required by law .
A WARNING
The traction grade assigned to this ti re is
based on stra ight-ahead b raking t raction
tests, and does not include acceleration,
cornering, hydrop lan ing or peak traction
character istics.
A WARNING
The temperature grade for this t ire is es­
tablished for a t ire that is p roperly inflated
and not overloaded. Excessive speed, un­
derinflation, or excessive loading, either
-
Tire s an d wheel s 237
separately or in combinat ion, can ca use
heat bui ldup and possible tire failure.
Winter tires
Winter tires can improve vehicle handling on
snow and ice. At temperatures below 45 °F (7 °C) we recommend changing to winter
tires.
In some heavy snow areas, local governments
may require true winter o r "snow" tires, those
with very deeply cut tread. These tires should
o nly be used in pairs and be installed o n all
four wheels . Make sure you purchase snow
t ires that are the same size and construction
type as the other tires on you r vehicle.
Your vehicle is equipped with all wheel drive,
th is w ill improve traction during winter driv­
i ng, even with the standa rd tires . However, we
strong ly recommend that you always equip all
fo ur wheels on you r vehicle wit h corre ct ly fit­
ted winter tires or all-season t ires, when win­
te r road cond itions are expected . This also im ­
proves the veh icle's braking per formance and
reduces stopping dista nces.
Summe r tires provide less grip on i ce and
snow.
Winter tires (snow tires) must always be fitted
o n all fo ur wheels .
Ask your authorized Audi dealer or qualified
workshop for permitted
winter tire size s. Use
o nly rad ial w inter t ires.
Winter tires lose their effectiveness when the
tread is worn down to a depth of
0 .157 inch
(4 mm) .
Only drive w ith w inter t ires under w inter con­
dit ions. Summer t ires handle better when
there is no snow or ice on the roads and the
temperature is above 45 °F (7 °() .
If you have a flat tire, see notes on spare
whee l
¢page 233.
Please a lways remember that winter tires may
have a lowe r speed rating than the tires o rigi -
nally installed on your vehicle at the time it .,.
•
•
