The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been t urned
off
by the electron ic control unit. Each time you turn
on the ignition, the
P A SSEN GER AIR BAG OFF
light will flash for a few seconds and:
- wi ll stay on if the front passenger seat is not
occupied,
- will stay on if there is a small child or child re­
straint on the front passenger seat,
- wi ll go out if the front passenger seat is occ u­
pied by an adult as registered by the weight ­
sensing mat .
The
PASSENGER AIR BAG OFF light mu st co me
on and st a y on
if the ignition is on and
- a ca r bed has been insta lled on the front seat ,
o r
- a rearward-fac ing c hild restraint has been in­
stalled on the front passenger seat, or
- a fo rward-facing child restraint has been insta l­
led on the front passenger seat, or
- the weight registered on the front passenger
seat is equal to o r less than the comb ined
weight of a typica l 1 yea r-old restrained in one
of the rear -facing or forwa rd-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your vehicle was certified .
I f the front passenger seat is not occupied, the
fro nt airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-facing chi ld restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
¢ page 133, Child re ­
straints on the front seat -some important
things to know
and ¢ page 152, Child safety.
If the PA SSENGER AI R BAG OFF light comes on
when one of the condit ions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on cont inuous ly whenever the ignition is
on.
If the PA SSENGER AIR BAG OFF light does
not appea r and not stay on a ll the time , stop as
soon as it is safe to do so and
Airbag syste m
- reactivate the system by t urning the ignition off
and then turning it on again;
- remove and reins tall the child restra int . Make
sure that the child restraint is properly installed
and that the safety belt for the front passenger
seat has been correct ly routed around the chi ld
restraint as described in the c hild restraint
manufacturer's instruct ions;
- make sure that the convertible locking retractor on the safety belt for the front passenger seat has been activated and that the safety belt has
been pulled tight . T he belt must not be loose or
have loops of s lack so that the sensor below the
safety belt lat ch on the seat can do its job
~ page 161.
-make sure that things that may increase the
weight of the ch ild and c hild safety seat a re not
be ing transpo rted on the fro nt passenge r seat;
- make sure t hat the safety belt tension sensor is
not b locked. Shake the safety belt lat ch on the
front passenge r seat back and forth;
- I f a strap or tet he r is be ing used to tie the child
safety sea t to the front passenge r seat, make
sure that it is not so t ight that it causes the
weight -sensing mat to measure more weight
than is actually on the seat .
If the PASSENGER AIR BAG OFF light still d oes
not come on
and does not stay on continuously
(when the ignition is switched on),
- t ake the child rest raint
off the front passenge r
seat and instal l it properly at one of the rea r
seat pos itions. Have the a irbag system inspec t­
ed by your authorized Audi dealer immediately .
- move the child to a rear seat posi tion and make
sure that the child is properly rest ra ined in a
child restraint that is appropr iate for its size
and age .
T he
PASSENGER AIR BAG OFF light sho uld NO T
come on when the ignit ion is on and an adult is
s itting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
li ght comes on and stays on or flashes for about
5 seconds while dr iv ing, under these circumstan­
ces, make sure that :
- the adult on t he front passenger seat is proper-
ly seated on the center of the seat cushion w ith ..,_
143

Airb ag syst em
@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers m ight be classified as Perchlorate Mater ia l
-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including a irbag modules safe­
ty belts with pretensioners are scrapped, all
app licab le laws and regu lations must be ob­
served. Your authori zed A udi dealer is fami lia r
w ith these requirements and we recommend
that you have yo ur dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle 's suspension system can
change the way that the Advanced A irbag System
pe rforms in a crash. For example, using t ire-rim
comb inat ions not approved by Audi, lowering the
ve hicl e, chang ing the stiffness of the suspension,
including the spr ings, suspension s truts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
electronic control un it. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in c rashes in which it wo uld not deploy if
the changes had not been made. Other ki nds of
changes may reduce the force levels measured by
the sensors and preve nt the airbag from deploy­
i n g when i t should .
A WARNING
Changing the vehicle's s uspension including
use of unapproved ti re -rim comb inations can
change Advanced A irbag pe rformance and in ­
crease t he risk of serious persona l injury in a
crash.
- Never install suspension components that do not have the same performance charac­
teristics as the components or iginally insta l­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
146
A WARNING
Items stored between t he safety be lt b uckle
and the center console can cause the sensors i n the buckle to send the wrong informat ion
to the electronic control module a nd prevent
the Adva nced Airbag System from wor king
properly.
- Always ma ke sure that nothing can interfere
w it h the safe ty belt bu ckles an d that they
are no t obstr ucted.
Knee airbags
Description of knee airbags
Applies to vehicles: with knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
F ig. 151 Driver"s kn ee airbag
The driver knee airbag is i n the instrument panel
u nderneath the steer ing whee l~
fig. 151, the
k nee a irbag for the passenger is at abou t the
same height in the instrument pane l unde rneath
the g love compartment.
The knee air bag offers addi tional protec tion to
t h e d river 's and passenge r's knees and uppe r and
l ower thigh areas and supplements the protec ­
tion provided by the safety belts.
If t he front airbags dep loy, the knee a irbags also
deploy in fro ntal c ollisions when the dep loyment
th reshold stored in the control un it is me t
~ page 140, More important things to know
about front airbags.
In add it ion to their normal sa fe ty f unct io n, safe-
ty be lts he lp keep the driver or front passenger in ..,.

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,

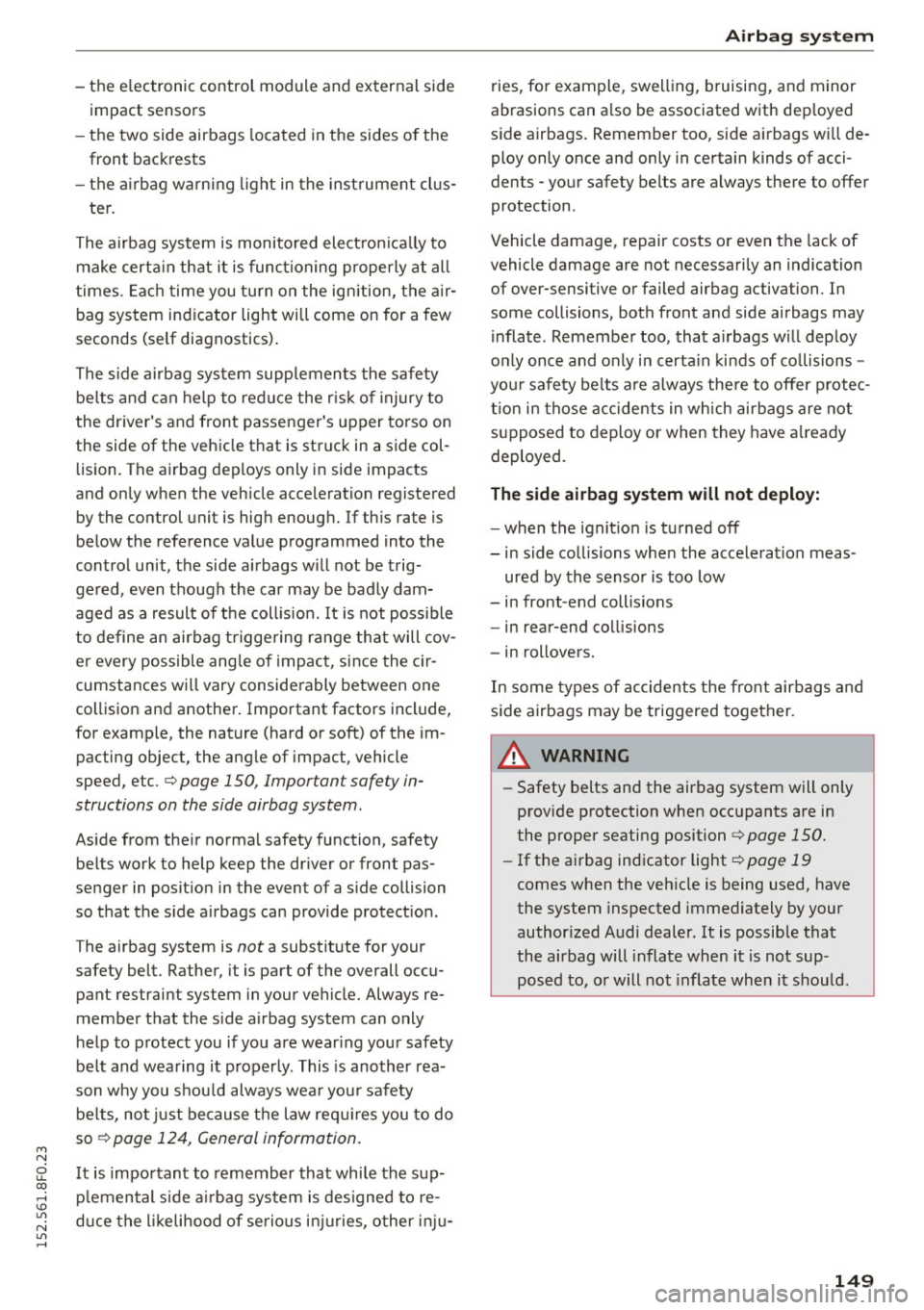

-the e lectronic control module and external side
impact sensors
- the two side airbags located in the sides o f the
front backrests
- the a irb ag warning light in the inst rument cl us-
ter.
The airbag system is monitored elect ron ica lly to
make certa in th at it is func tioning properly at all
times. Each time you t urn on the ign ition, the a ir ­
bag system ind icator light will come on for a few
seconds (self diagnostics) .
The s ide a irbag system supp lements the safety
be lts and c an he lp to reduce the r is k of i njury to
the dr iver's and front passenger's upper torso on
the side of the vehicle that is struck in a s ide col ­
lision. The airbag dep loys only in side impacts
and only when the veh icle acce leration registered
by the control unit is high enoug h. If th is rate is
below the refe rence value programmed into the
control un it, the side a irbags will not be t rig­
gered, even though the car may be bad ly dam­
aged as a result of t he coll is ion. It is not poss ible
to define an airbag trigge ring range that will cov­
e r every possib le ang le o f impact , since the c ir­
cumstances wi ll vary considerably between one
collision and another . Important factors include,
for example, the nature (hard or soft) of the im ­
pacting object, the ang le of impact, vehicle
speed, etc.¢
page 150, Important safety in­
structions on the side airbag system .
Aside from their norma l safety function, safety
be lts work to help keep the dr iver or front pas­
senger in posit ion in the event of a side collision
so that the s ide a irbags can provide protect ion.
T he airbag system is
not a substitute for your
safety belt. Rather, it is part of the overall occu­ pant restraint system in your veh icle. Always re­
membe r th at the s ide a irbag system can only
h elp to p rotect you if yo u are wear ing your safety
be lt and wea ring it p roperly . T his is ano th er rea­
son why you s hou ld always wea r yo ur safety
b e lts, no t just because the law req uires you to do
so ¢
page 1 24, General information.
It is important to remember that whi le the sup­
p lemental s ide a irbag sys tem is designed to re­
d uce the likelihood of serious i njuries, other inju-
Airbag syste m
ries, for example, swell ing, bruising, and minor
abrasions can a lso be associated with dep loyed
s ide airbags. Remember too, s ide a irbags w ill de­
ploy only once and only in certain kinds of acci­
dents -your safety belts are always there to offer
protection .
Vehicle damage, repair costs o r even the lack of
vehicle damage are not necessari ly an indication
of over-sensitive or failed airbag activation . In
some collisions , both front and side airbags may
infla te. Remembe r too, that a irbags w ill dep loy
o n ly onc e and on ly in certa in ki nds of co llisions -
yo ur safety belts a re a lways the re to offer p rotec­
t io n in those accidents in wh ich airbags are not
s u pposed to deploy or when they have a lready
deployed.
The side airbag system will not deploy:
- when the ignit ion is tu rned off
- in side co llisions whe n the acceleration meas -
ured by the senso r is too low
- in front -end collisions
- in rear-end collisions
- in rollove rs.
In some types of ac cidents the front airbags and
s ide airbags may be tr iggered together.
A WARNING ~
- Safety belts and the airbag system will only
provide p rotection when occupants are in
the proper seating position¢
page 150 .
-If the ai rbag ind icator light ¢ page 19
comes when the ve hicle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate when it is not sup ­
posed to, or will not infla te when i t should.
149

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,

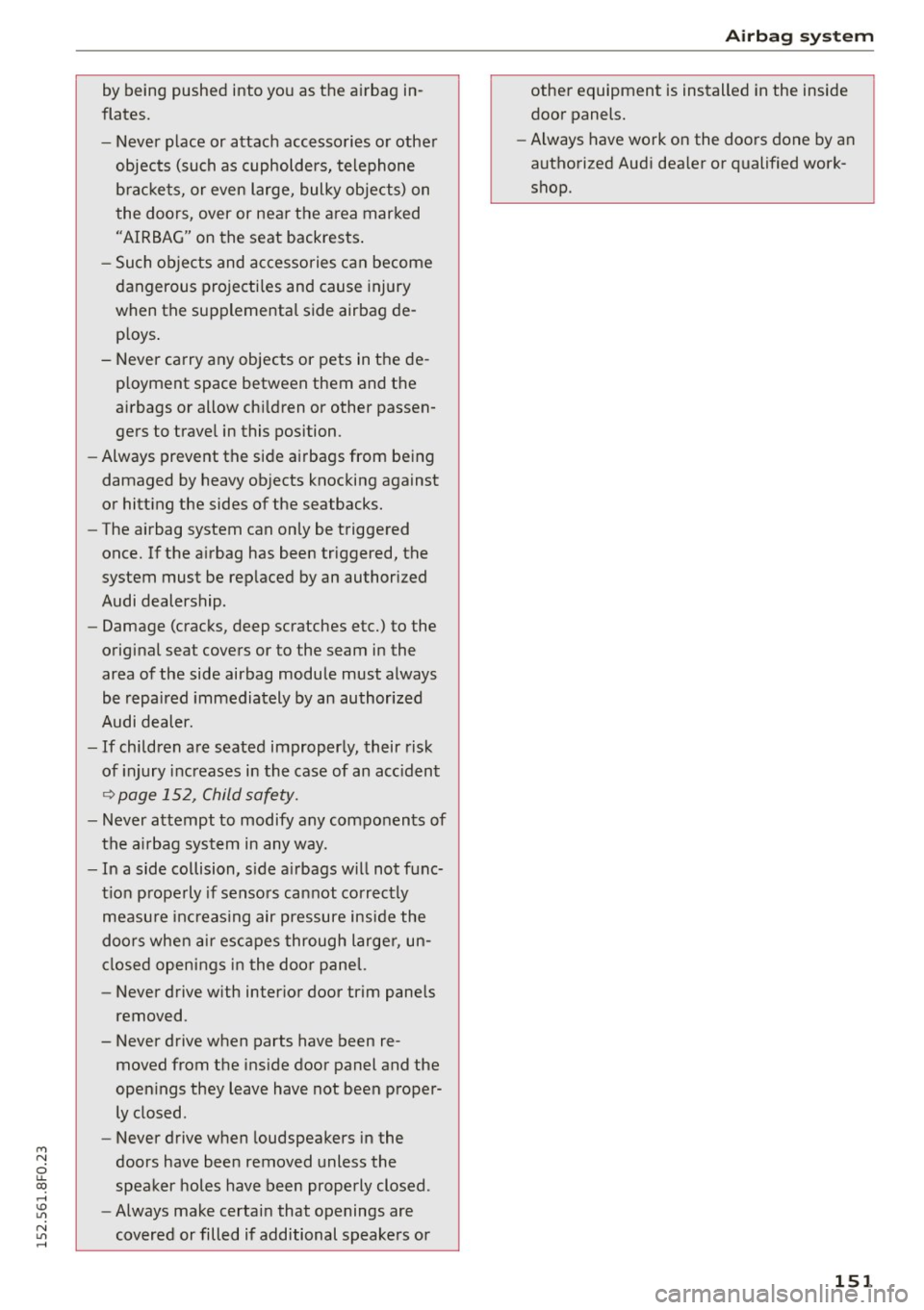

by being pushed into you as the airbag in­
flates.
- Never place or attach accessories or other
objects (such as cupholders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­
ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position .
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag module must always
be repaired immediately by an authorized
Audi dealer.
- If children are seated improperly, their risk
of injury increases in the case of an accident
~ page 152, Child safety.
-Never attempt to modify any components of
the airbag system in any way.
- In a side collision, side airbags will not func­
tion properly if sensors cannot correctly
measure increasing air pressure inside the
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with interior door trim panels
removed.
- Never drive when parts have been re­ moved from the inside door panel and the
openings they leave have not been proper­
ly closed .
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed .
- Always make certain that openings are
covered or filled if additional speakers or
Airbag system
other equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Audi dealer or qualified work­
shop.
151

M N
ci u.. co ,...., \!) er,
N er, ,....,
exceptional circumstances and the PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
ward-facing child safety seat in a rear seat­
ing position and have the airbag system in­
spected immediately by your authorized
Audi dealer.
A WARNING
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat or carrier.
- Always
move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the child
restraint. The backrest must be adjusted to
an upright position.
- Always make sure that the
PASSENGER AIR
BAG OFF
light comes on and stays on all the
time whenever the ignition is switched on.
Always replace child restraints that were in­
stalled in a vehicle during a crash. Damage to
a child restraint that is not visible could cause
it to fail in another collision situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Advanced
Airbag System" in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208 as applicable at the time your vehicle was
manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3- and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment criteria are intended to
Child safety
reduce the risk of injury through interaction with
the airbag that can occur, for example, by being
too close to the steering wheel and instrument
panel when the ai rbag inflates. In addition, the
system has been certified to comply with the "suppression" requirements of the Safety Stand ­
ard, to turn off the front airbag for infants up to
12 months who are restrained on the front pas­
senger seat in child restraints that are listed in
the Standard.
Even though your vehicle is equipped with an Ad­
vanced Airbag system, all children, especially
those 12 years and younger, should always ride in
the back seat properly restrained for their age
and size. The airbag on the passenger side makes
the front seat a potentially dangerous place for a
child to ride. The front seat is not the safest place
for a child in a forward-facing child safety seat. It
can be a
very dangerous place for an infant or a
larger child in a rearward-facing seat.
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle de­
tects the presence of an infant or child in a child
restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the sensor below the safety belt latch on the front
passenger seat that measures the tension on the
safety belt .
The weight-sensing mat measures total weight of
the child and the child safety seat and a child blanket on the front passenger seat. The weight
on the front passenger seat is related to the de­
sign of the child restraint and its "footprint", the
size and shape of the bottom of the child re ­
straint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for different
kinds of child restraints and for the different
models of the same kind of child restraint offered
by child restraint manufacturers.
The weight ranges for the individual types, makes
and models of child restraints that the NHTSA
has specified in the Safety Standard together
with the weight ranges of typical infants and typ-
ical 1 year-old child have been stored in the ...,
153

Child safety
control unit of the Advanced Airbag System .
When a chi ld restraint is being used on the front
passenger seat with a typical 1 year-o ld chi ld, the
Advanced Airbag System compares the weight measured by the weight sensing mat with the in­
formation stored in the electron ic control unit .
The electronic control unit a lso registers the ten ­
sion on the front passenger safety be lt. The ten ­
sion on the safety belt for the front passenger
seat will be d ifferent for an adult w ho is properly
using the safety belt as compared to the tens ion
on the belt when it is used to attach a child re­
s traint to the seat. The senso r below the latch fo r
t he sa fety belt for the fron t se at passenge r
meas ures the tension on the be lt . T he inp ut from
this sensor is then used with the weight to "de­
cide", whether there is a c hild restraint with a
typical 1 year -old chi ld on the front passenger
seat and whether or not the airbag must be
t urned off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been ce rtified to meet Un it­
ed States Fede ral Motor Vehicle Safety Standards
and h as been ce rtified by its manufac turer for
use w ith an airbag . A lways be sure tha t the child
restraint is p roperly ins talled at one of the rear
seating positions . If i n exceptiona l circumstances
you must use it on the front passenger seat, care­ fully read all of the informat ion on child safety
and Advanced Airbags and heed all of the appli­
cable WARNINGS . Make certain that the ch ild re ­
straint is correctly recognized by the weight-sens­
ing mat inside the front passenger seat, that the
front passenge r airbag is t urned
off and t hat the
air bag s tatus is a lways cor re ctly s ignaled by the
PASSENGER AIR BAG OFF li ght .
M any types and models of child restra ints have
been ava ilable ove r the yea rs, new models a re in­
t roduced regu larly incorporat ing new and im ­
p rove d des igns and o lder models are taken out o f
prod uction. Child restraints are not standardized .
Ch ild restrai nts of the same type typically have
d ifferent weights and s izes and different 'foot ­
prints,' the si ze and shape of the bottom of the
chi ld restraint that sits on the seat, w hen they
154 are
insta lled on a vehicle seat. These differences
make it virtua lly impossib le to certify compliance
with the requirements for advanced airbags with
each and every chi ld restraint that has ever been
sold in the past or will be sold over the course of
the usefu l life of your vehicle.
Fo r th is reason, the United States National High ­
way Traffic Safety Adm inistrat ion has published a
li st of specific type, makes and models of child
restraints that must be used to cert ify compli ­
ance of the Advanced Airbag System in your veh i­
cle w ith the s uppression requirem ents of Federal
Motor Veh icle Safety S tanda rd 208. These child
rest rain ts are:
Subpart A -Car bed child restra ints
Model Manufactured on or
after
Angel Guar d Angel Septe mber 2S, 200 7
Ride AA 2403FO F
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century Smart Fit 4 S4 3 December 1, 1999
Cosco Arriva September 2S, 2007
22-013PAW and bas e
22-999WHO
E venflo Discove ry Ad -December 1, 1999
just R ight 212
E ven flo Firs t Choi ce De cembe r 1, 1999
2 04
Graco Infant 84S7 December 1, 1999
Graco Sn ug ride Se
ptember 2S, 2 007
Peg Perego Pr imo Viag- September 2S, 2007
gio SIP I MUNOOUS
Subpart C -Forward-facing and convertible
child restraints
Model Manufactured on or
after
B ritax Round about September 2S, 200 7
E 9 L0 2xx
Cosco Tou riva 02Sl9 December 1, 1999

M N
ci u.. co ,...., \!) ..,.,
N ..,., ,....,
The all-wheel drive concept is designed for high
engine power . Your vehicle is exceptionally pow­
erful and has excellent driving character istics
both under normal driving conditions and on
snow and ice. Always read and follow safety pre­
cautions <=>
,&.
Winter tire s
When driving in the winter, your vehicle with all­
wheel drive has an advantage, even with regular
tires. In winter road conditions it may be advisa­
ble to mount w inter tires (or all-season tires) for
improved driveability and braking: these tires
must be mounted on
all four wheels. See also
<=> page 224, Winter tires.
Tire chains
Where tire chains are mandatory on certain
roads, this normally also applies to vehicles with
all-wheel drive <=>
page 224, Snow chains.
Replacing wheels/tires
Vehicles with all-wheel drive must a lways have
tires of the same size. Also avoid tires with differ­
ent tread depths. For details see page
<=>
page 216, New tires or wheels.
Off-Road driving?
Your Audi does not have enough ground clear­
ance to be used as an off-road vehicle. It is there­
fore best to avoid rough tracks and uneven ter­
rain as much as possible. Also refer to
<=>page 177.
A WARNING
Always adjust your driving to road and traffic
conditions. Do not let the extra safety afford­
ed by all-wheel drive tempt you into taking
extra risks.
- Although the all-wheel dr ive is very effec­
t ive, always remember that braking capacity
is limited by tire traction. You should there­
fore not drive at excessive speeds on icy or
slippery road surfaces.
- On wet road surfaces, be careful not to dr ive
too fast because the front wheels could be ­
gin to slide on top of the water (aquap lan­
ing). If this shou ld occur, you will have no
Smart Technology
warning from a sudden increase in engine
speed as with a front-wheel drive vehicle.
Always drive at speeds which are suited to the road conditions -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution of
electrical energy and thus optimizes the availa­
bility of electrical energy for starting the engine.
If a vehicle with a conventional energy system is
not driven for a long pe riod of time, the battery
is discharged by idling current consumers (e.g.
i mmobil izer). In certain circumstances it can re­
su lt in there being insufficient energy available to
start the engine.
Intelligent energy management in your vehicle
hand les the distribution of electrical energy.
Starting ability is markedly improved and the life
of the battery is extended.
Basically, energy management consists of
bat­
tery diagnosis , idling current management
and
dynamic energy management.
Battery diagnosis
Battery diagnosis continuously determines the
state of the battery . Sensors determine battery
vo lta ge, battery current and battery tempera­
tu re. This determines the current state of charge
and the power of the battery.
Idling current management
Idling current management reduces energy con­
sumption whi le the vehicle is standing. With the
ignition switched off, it contro ls the energy sup­
ply to the various electrical components. Data
from battery diagnosis is considered.
Depending on the battery's state of charge, indi­
vidual consumers are gradually turned off to pre­
vent excessive discharge of the battery and thus
maintain starting capability .
Dynamic energy management
While the vehicle is being driven, dynamic energy
management distr ibutes the energy generated ..,.
175

Care and cleaning
Care and cleaning
General information
Regular, proper care he lps to maintain your vehi ­
cle's value.
It can also be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from your authorized Audi dealer . Read and fol­
low the instructions for use on the packaging.
A WARNING
-Using cleaning and care products incorrectly
can be dangerous to your health.
- Always store cleaning and care products out of reach of children to reduce the risk of poi­
soning .
@ For the sake of the environment
-Preferably use environmentally-friendly
products when buying cleaning agents.
- Do not dispose of leftover cleaning and care
products with household trash .
Car washes
The longer that deposits remain on the vehicle,
the more the surface may be damaged. High
temperatures such as those caused by sunlight
increase the damaging effect.
Before washing, rinse
off heavy deposits with
p lenty of water.
Stubborn deposits such as bird dropp ings or tree
sap are best removed with plenty of water and a
microfiber cloth .
A ls o, wash the underside of your veh icle once
road salt stops be ing used for the season .
Pressure washers
When washing your veh icles with a pressure
washer, always follow the operating instructions provided with the pressure washer. This is espe­
cially important in regard to the p ressure and
spray ing distance. Do not direct the stream of
water directly onto sea ls for the side windows,
doors, luggage compartment lid or hood or onto
184
the tires , rubber hoses, insulat ing material, the
power top, sensors* or camera lenses *. Keep a
distance of at least 16 inches (40 cm) .
Do not remove snow and ice with a pressure
washer.
Never use rotary nozzles or high pressure noz­
zles.
The water temperature must not be above 140 °F
(60 °().
Automatic car washes
Spray off the vehicle before washing.
Make sure that the windows and power top are
closed and the windshield wipers are off. Follow
instructions from the car wash operator, especial­
ly if there are accessories attached to your vehi­
cle.
If possible, use car washes that do not have
brushes .
Washing by hand
Clean the veh icle starting from the top and work­
ing down using a soft sponge or cleaning brush.
Use solvent -free cleaning products.
Washing vehicles with matte finish paint by
hand
To avoid damaging the paint when washing, first
remove dust and large particles from your vehi ­
c le. Insects, grease spots and fingerprints are
best removed with a specia l cleaner for matte
finish paint.
Apply the product using a microfiber cloth . To
avoid damaging the paint surface, do not use too much pressure.
Rinse the vehicle thoroughly with water. Then
clean using a neutral shampoo and a soft micro­
fiber cloth .
Rinse the vehicle thoroughly again and le t it air
dry. Remove any water residue using a sham my.
A WARNING
- Only wash the vehicle when the ignition is
off and follow the instructions from the car
-

M N
ci u.. co ,...., \!) 1.1"1
N 1.1"1 ,....,
wash operator to reduce the risk of
acc idents.
- To reduce the risk of cuts, protect yourself
from sharp metal components when wash­
ing the underbody or the inside of the wheel
housings.
- After washing the vehicle, the braking effect
may be delayed due to moisture on the
brake rotors or ice in the w inter. The brakes
must be dried first w ith a few careful brake
applications.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior m irrors in
to reduce the risk of damage to the mirrors.
Power folding exterior mirrors* must only
be fo lded in and out us ing the power folding
funct ion.
- To prevent pa int damage, do not wash the
vehicle i n direct sunlight.
- To reduce the risk of damage, do not wash
the power top with a pressure washer.
Care and cleaning
-To reduce the risk of damage to the sur face,
do not use insect removing sponges, kitchen
sponges or s imilar items.
- Matte finish painted veh icle components:
- To reduce the risk of damage to the sur-
face, do not use polishing agents or hard
wax.
- Never use protect ive wax. It can destroy
the matte finish effect.
- Do not place any stickers or magnetic
signs on vehicle parts painted w ith matte
f inish paint. The pa int could be damaged
when the stickers or magnets are re­
moved .
@ For the sake of the environment
Only wash the vehicle in facilities spec ially de­
s igned for that purpose. This w ill reduce the
r isk of di rty water contaminated w ith oil from
entering the sewe r system.
Cleaning and care information
When clean ing and caring for individual vehicle
components, refer to the following tables. The
info rmation conta ined there is simply recommen- dations
. For questions or for components that
are not listed, refer to a n author ized Audi dealer.
Also follow the information found in
£:=? Lt::,..
Ext erior clea ning
Component Situation
Solution
Wind shi eld wip er
Deposits q page 56, Cleaning windshield wiper blades
blad es
H ea dlight s/ Tail
Deposits Soft sponge with a mild soap solutional
light s
S ensor s/came ra
Deposits Sensors: soft cloth with solvent-free cleaning solution
len se s Camera lenses: soft cloth with a lcohol-free cleaning solu-
tion
Snow/ ice Hand br ush/solvent-free de -icing sp ray
Wheels Road salt Water
Brake d ust Acid-free spec ial cleaning solut ion
E x haus t tail p ip es Road salt Water, cleaning solution suitable for stainless steel, if nee-
essary
185
...

M N
ci u.. co ,...., \!) 1.1"1
N 1.1"1 ,....,
Care and cleaning
Component Situation Solution
Te xtile s
Deposits adhering to Vacuum cleaner
artificial leather, the surface
Alcantara Water-based depos its Absorbent
cloth and mild soap solutiona)
such as coffee, tea,
b lood, etc.
Oil-based deposits Apply a m ild soap solution a), blot away the d issolved oil or
such as oil, make-up, dye, treat afterward with water, if necessary
etc.
Special deposits such Specia l sta in remover, blot with absorbent material, treat
as ink, na il polish, la- afterward with mild soap solution, if necessary a)
tex paint, shoe pol-
ish, etc.
Natural leather Fresh stains Woo
l cloth with a mild soap solutiona>
Water-based deposits fresh stains : absorbent cloth
such as coffee, tea, dried stains: stain remover suitable for leather
blood, etc.
Oil-based deposits Fresh stains: absorbent cloth and stain remover sui tab le
such as oil, make-up, for leathe r
etc. dried stains: Oil cleaning spray
Special deposits such Spot remover suitable for leather
as ink, nai l polish, la-
t ex paint, shoe po l-
ish, etc.
Ca re Regularly apply conditioning cream that protects from
light and penetrates into the mate rial. Use specially-col-
ored conditioning cream, if necessary.
Carbon parts Deposits clean the same way as plastic parts
a) Mild soap sol ution : maximu m two tablespoons of neutral soap in 1 quart (1 liter) of water
.8, WARNING
The windshield may not be treated with wa­
ter-repelling windshield coating agents . Un­
favorab le conditions such as wetness, dark­
ness, or low sun can resu lt in increased glare.
Wiper blade chatter is also possible.
@ Note
- Headlights/tail lights
- Never clean headlights or tail lights with a
dry cloth or sponge.
- Do not use any cleaning product that con­
tains alcohol, because they could cause
cracks to form.
- Wheels
-
- Never use any paint polish or other abra­
sive materials.
- Damage to the protective layer on the
rims such as stone chips or scratches must
be repaired immediately.
- Sensors/camera lenses
-Never use warm or hot water to remove
snow or ice from the camera lens. This
could ca use the lens to crack.
- Never use abrasive cleaning materials or
alcohol to clean the camera lens. This
could cause scratches and cracks.
- Power top
-Remove bird droppings immediately.
187
