Power top
Variable power top storage bay
Fig . 37 Luggage compartment: the variable powe r top
storage bay is lowe red
F ig. 38 Luggage compartment : emergency release lever
for t he va riable power top sto rage bay
The variab le power top storage bay lowers auto­
mat ically when the power top opens. To reduce
the risk of damage, make sure the re are no frag­
ile objects w ithin the sto rage bay's range of mo­
tion .
Raising the power top storage bay
• Press the trim in the direct ion of the arrow to
raise the variable power top storage bay
¢ fig . 37.
lowe ring the power top storage bay
manually (emergency operation )
• Open the left side trim and press the release
lever dow n to lowe r th e variable power top
storage bay ¢
fig. 38.
The variable power top storage bay can be raised
when the
pow er top is closed . This provides
mo re ca rgo space in the luggage compa rtment .
The
opened power top i s stored in the storage
bay and protected. The power top bay cannot be
raised when the power top is open. The cargo
area in the luggage compartment is smaller
42
whe n the powe r top is open tha n when it is
closed.
Messages
Convertible top Please close trunk
This message ap pears in the instrume nt cl uster
display if the luggage compa rtment lid is not
closed w hen ope rating the power top. C lose the
lu ggage compartment lid.
Convertible top storage box not lowered . Please
remo ve obstacle
This message appears w hen the power top s to r­
age bay is not lowe re d when opening the power
top.
If the power top storage bay is b locked by
ob jects in t he luggage compartment, remove the
objects that are in the way . If t he power top sto r­
age bay is still not lowered automatically, you
can lower it manually
c:;,poge42.
Convertible top Cannot be used
This message appears if the power top c annot
open or clo se a utomat ically because of safety
reasons o r if the re is a ma lf u nct ion . The follow­
i ng ca uses are possib le:
- Vehicle speed too high : The automatic p ower
t op is deac tiva ted for safe ty reason s if t he ve hi­
cle speed is too high . Red uce the vehicle speed
and try closing/open ing t he power top again.
- Battery voltage too low: The automa tic powe r
top is deactivated i f the battery cha rge level is
too low. You can o pen/close the power top
aga in after start ing the engine .
-Rollover p rotection acti ve: If the power top
runs continuously for a long period of time, the
overload protection will activate for approxi ­
mate ly 15 to 30 minutes. You can open/close
the power top again after that
c:> .&. .
-Malfunction: Failure of system components is
one poss ible cause for ma lfunction. The power
top can be operated manually¢
page 44.
Convertible top not secure
This message ap pears and a warning tone soun ds
if the power top is not completely closed/ open
and t he vehicle speed is above 50 km/h. Reduce .,.

a:,
a:,
...... N
" N ...... 0
0
LL co
the windshield in this area in order to
prevent malfunctions or failures .
- Some exterior lighting functions can be ad­
justed
c:, page 49.
- When you remove your key from the igni­
tion while the vehicle's lights are turned on,
a buzzer sounds as long as the driver's door
is open.
- In cool or damp weather, the inside of the
headlights, turn signals and tail lights can
fog over due to the temperature difference
between the inside and outside. They will
clear shortly after switching them on. This does not affect the serv ice life of the light­
ing .
- In the event of a light sensor malfunction,
the driver is notified in the instrument clus­
ter display
c:, page 19.
Turn signals and high beam lever
The lever operates the turn signals, the high
beams and the headlight flasher.
Fig . 54 Turn signal and high beam lever
Turn signals¢¢
g N
0
~ CD
The turn signals activate when you move the lev­
er into a turn signal position when the ignition is
switched on.
@ -right turn signal
@-left turn signal
The turn signal blinks three times if you just tap
the lever.
High beams and headlight flasher ~D
Move the lever to the corresponding position:
@ -high beams on
Lights and Vision
@-high beams off or headlight flasher
The indicator light
II in the instrument cluster
turns on.
Notes on these features
-The turn signals only work with the ignition
turned on. The indicator lights . or
II in the
instrument cluster also blink.
- After you have turned a corner, the turn signal
switches off automatically.
- The
high beam works only when the headlights
are on. The indicator light
II in the instrument
cluster illuminates when the high beams are
on.
- The
headlight flasher works only as long as you
hold the lever -even if there are no lights
switched on . The indicator light
II in the in­
strument cluster illuminates when you use the
headlight flasher.
WARNING
Do not use the high beam or headlight flasher
if you know that these could blind oncoming
traffic.
Adjusting exterior lighting
The functions are selected in the radio or MMI* .
.,. Select: !CAR I function button> Exterior light­
ing .
Or
.,. Select: 1-C~A ~ R-.l function button > Car systems*
control button > Vehicle settings > Exterior
lighting .
Coming home (light when leaving car)*,
Leaving home (light when unlocking car)*
The coming home function illuminates the area
around the vehicle when the ignition is switched
off and the driver's door is opened. Depending on
vehicle equipment, the function can be switched on and off or the length of time the lights remain
on* can be adjusted .
The
leaving home function illuminates the area
around the vehicle when unlocking it. This func-
tion can be switched on and off.
ll>
49

a:,
a:,
...... N
" N ...... 0
0
LL co

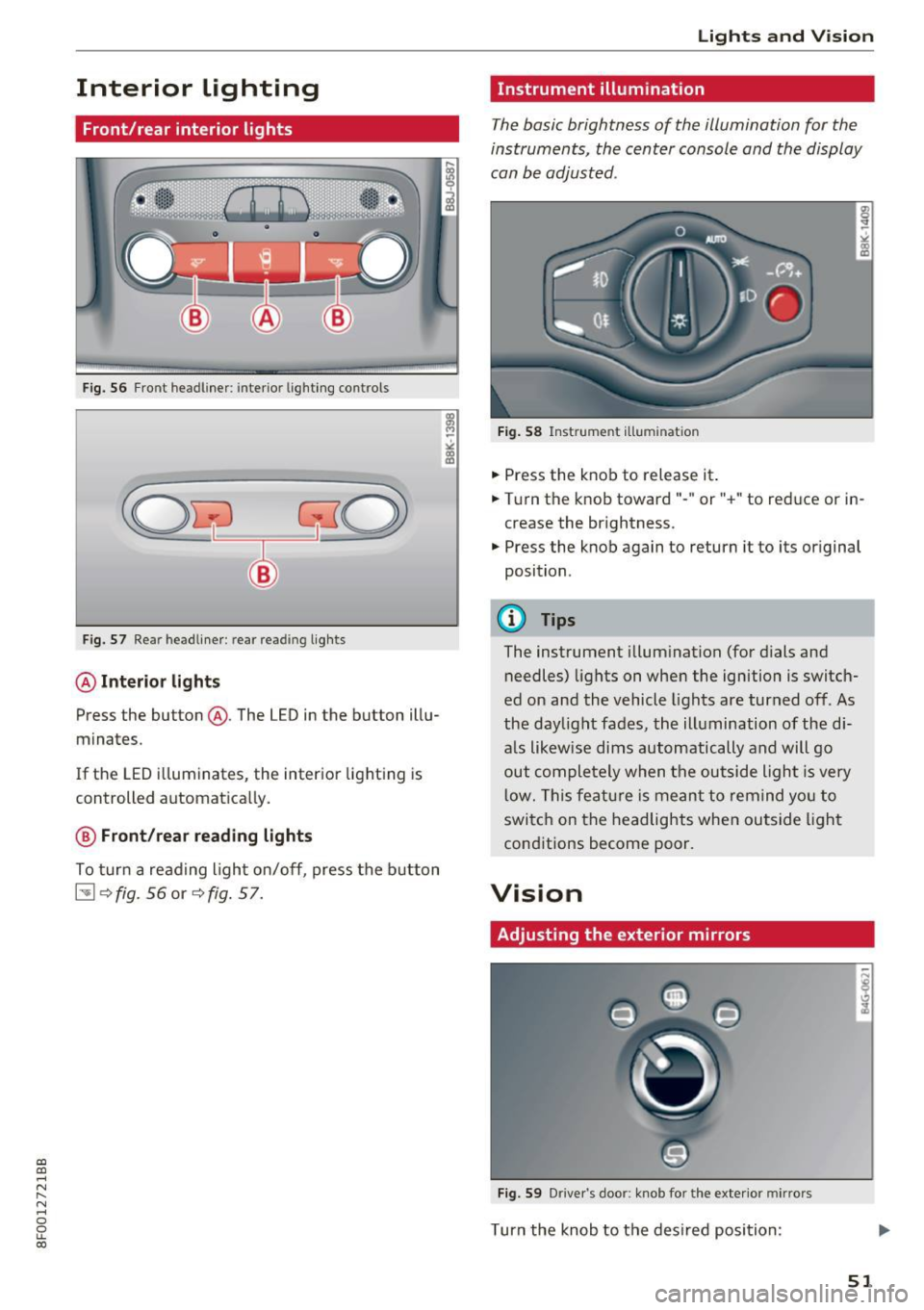

Interior Lighting
Front/rear interior lights
Fig. 56 Fro nt headliner: interio r lighting controls
Fig. 57 Re ar headliner: rear reading lights
@Interio r ligh ts
Press the button @. The LED in the button illu­
minates.
If the LED i lluminates, the interior lighting is
controlled automatically.
@ Front /rear read ing light s
To turn a reading light on/off, press the b utton
~ <=>fig. 56 or <=>fig. 57.
Lights and V ision
Instrument illumination
Th e basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted .
Fig. 58 Instrument ill umina tion
• Press the knob to release it.
• Turn the knob toward"- " or"+" to reduce or in­
crease the brightness.
• Press the knob again to return it to its original
position .
@ Tips
The instrument illumination (for dials and
needles) lights on when the ignition
is switch­
ed on and the vehicle lights are turned off. As
the daylight fades, the illumination of the di­
a ls likewise dims automatically and will go
out completely when the outside light is very
low. This featu re is meant to remind yo u to
switch on the headlights when outside light
conditions become poor.
Vision
Adjusting the exterior mirrors
Fig. 59 Driver's door: knob for the exterior mirro rs
Turn the knob to the desired position :
51

Lights and Vision
Adjusting the magnetic zone
Applies to: ve hicles w ith d ig ital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
~
LIU ®
Fig. 65 No rt h Amer ica : ma gnetic def lect ion zone bounda­
ri es
"' Press and hold the button@~ fig. 65 unt il the
number of the magne tic zone appears in t he
rearview mirro r.
"' Press the b utton @ repeatedly to select the
correct magnetic zone . The selection mode
turns off after a few seconds.
Calibrating the compass
A pp lies to: ve hicles w ith d ig ital compass
You must recalibrate the compass if it does not
display the correct direction.
"' Press and hold the button @until a C appears
in the rearview mirror .
"' Drive in a circle at about 6 mph (10 km/h) unti l
a d irection is displayed in the rearview mirror .
A WARNING
-To avo id endangering yourse lf and other
dr ivers, calibrate the compass in an area
whe re t here is no traffic.
56
- The digital compass is to be used as a direc­
tional a id on ly. Even though you may want
to look at it while you are driving, you must
still pay attent ion to traffic, road and
weather conditions as well
as other possible
hazards .

a:,
a:,
...... N
" N ...... 0
0
LL co
Warm and cold
Operation
We recommend pressing the !AUTO ! button and setting the temperature to 72 °F (22 °C).
Fig. 82 Automatic climate control system: control
Fig. 83 3-zone deluxe automatic climate contro l*: controls
Press the buttons to turn the functions on or off.
Use the dials to adj ust the temperature, the
b lower speed and the air distrib ution. The LED in
a button will light up when the function is
switched on. The settings are displayed for a few
seconds in the radio or MM!* display.
In vehicles with a 3-zone deluxe automatic cli­
mate control systems*, the driver and front pas­
senger side can be adjusted separately. The set­
tings are also displayed in the climate control system display. I OFFI Switching the climate control system
on/off
T he iOFF i button switches the climate control
system on or off.
It also switches on when you
press the knob. Airflow from outside is blocked
when the climate control system is switched off.
IA/C l Switching cooling mode on/off
The air is not coo led and humidity is not removed
when cooling mode is switched off . This can
cause fog on the windows. The cooling mode is
switched off automat ically at low outside tem-
peratures.
IJl,,
67

Driving
had made a fu ll brake application. The laws of
physics cannot be suspended even with ESC
and its associated components ( ABS, ASR,
EDS) . In corners and when road or weather
conditions are bad, a ful l brake application
can cause the vehicle to sk id or the rea r end to
break away- r isk ing an accide nt.
Speed warning system
Overview
The speed warning system helps you to keep your
driving speed below a set speed limit.
The speed warning system warns if the driver ex ­
ceeds a prev ious ly stored max imum speed. A
warn ing tone wi ll sound as soon as the vehicle
speed exceeds the set speed by about
3 mph
(3 km/h) . At the same time, a warning symbo l
appears in the display. The symbol 's appearance
might be d ifferent in some models.
The speed warning system has two warn ing
thresho lds that funct ion independent ly of each
other and that have somew hat different purpos­
es:
Speed warn ing 1
You can use speed warn ing 1 to set the maximum
speed wh ile you are dr iving . This setting wi ll re ­
main in effect unti l yo u turn
off the ignition, as­
sum ing that you have not changed or reset the
sett ing .
The . (USA models)/ . (Canada mode ls)
speed warning symbol in the wa rning
1 display
appears when you exceed the maximum speed . It
goes out when the speed falls below the stored
maximum speed .
The speed warning symbo l will also go out if the
speed
exceeds the stored maximum speed by
more than about 25 mph (40 km/h) for at least
10 seconds . The stored maximum speed is de let­
ed.
Speed warn ing 2
Stor ing warning 2 is recommended if yo u always
want to be reminded of a certain speed, for ex­
ample when you are traveling in a country that
78
has a general maximum speed limit, or if you do
not want to exceed a specified speed for winter
tires.
The . (USA models)
I. (Canada models)
speed warning 2 symbol appears in the display
when you exceed the stored speed limit. Unlike
warning
1, it will not go out unt il the vehicle
speed drops below the stored speed limit.
Setting speed warning
2 c;, page 79.
(D Tips
Eve n t hough yo ur vehicle is e quipped w ith a
speed w arning system, you should still wa tch
the speedome ter to ma ke sure you are no t
d rivin g faste r than the speed lim it.
Speed warning 1: setting a speed limit
Warning threshold 1 is s et by the !SE TI button.
Fig. 92 SET butt on in t he in strum en t cl uste r
Storing the maximum speed
.. Drive at the desired maximum speed .
.. Press the
!SET I button in the instrument pane l
disp lay
c;, fig. 92 for 1 second .
Resetting the maximum speed
.. Drive the vehicle at a speed of at least 3 mp h
(5 km/h)
.. Press the
~ 1s=E T= I button for more than 2 seconds.
The . (USA models)
I. (Canada mo dels)
speed warning symbo l w ill appear brief ly in the
display when you release the
!SE TI button to indi­
cate that the maximum speed has been stored
successfully.

a:,
a:,
...... N
l'­
N
...... 0
0
LL co
The maximum speed rema ins stored until it is
chang ed by press ing the
!SE Ti button again brief­
l y or unt il it is deleted by a lengthy push on the
button .
Speed warning 2: setting a speed limit
The radio or MM!* control unit is used to set,
change or delete w arning threshold
2 .
• Se lect : I CAR I function button> Instrument
cluster
> Speed warning . Or
• Se lect: I CAR i funct ion button > C ar sy stem s*
contro l button > Dri ver a ssist > Speed wa rning .
Warning threshold 2 can be set in the speed
range start ing from 20 mph to 150 mph (30 km/
h to 240 km/h) . Settings can each be ad justed in
intervals of 5 mph (10 km/h).
Cruise control system
Switching on
The cruise control system makes it possible to
drive at a constant speed starting at
20 mph (30
km/h).
0
f
~
0
F ig . 93 Co ntrol leve r wit h pus h-butto n
Fig. 9 4 Disp lay : Se lecte d speed
D rivi ng
• Pull the lever to position (D c::> fig . 93 to sw itch
the system on .
• Dr ive at the speed to be contro lled .
• Press button @to set that speed .
T he sto red speed and the green symbol
@;\1)~14 (US mode l)/ El (Canadian model) are
shown in the display
c::> fig. 94. The d isp lay may
vary, depending on the type of display in you r ve­
hicle .
The speed is kept constant by modifying engine power or through an act ive brake intervention .
_& WARNING
-Always pay attention to the traffic a round
you when the cruise contro l is in operation.
You are always respons ible fo r your speed
a nd the distance betwee n your ve hicle and
other veh icles.
- For reasons of safety, c ruise control sho uld
not be used in the c ity, in stop-an d-go t raf­
fic, on tw ist ing roads and whe n roa d condi­
tions a re poo r (s uch as ice, f og, gravel,
heavy rain and hydroplaning) -ris k of a cci­
dent .
- Tu rn off the cr uise con trol te mpor arily whe n
e ntering t urn lanes, highway exit lanes or in
construct ion zones .
- P lease no te th at inadve rten tly "resting"
your foot on the acce lerator pedal causes
the cruise control not to brake. This is be­
cause the cr uise control is overridden by the
driver's acce leration.
- If a b rake system malfunction such as ove r­
heating occurs when the cruise control sys­
tem is switched on, the brak ing funct io n in
the system may be switched of f. The other
cru ise control functions remain act ive as
long as the ind icator
light @;\1)~14 (US mod­
e ls)
,ii (Ca nadian mo dels) is on .
@ Tips
The brake lights illuminate as soon as the
brakes apply automa tically.
79

Driving
Changing speed
~ T o inc rease/decrease the speed in increments,
t a p the lever in the
0 10 d irec tion ¢ page 79 ,
fig . 93.
~ To increase/decrease the speed quickly, ho ld
the leve r in the
0 10 direction until the de­
s ired speed is displayed.
You can a lso press the accelerator pedal down to
increase yo ur speed, e .g. if you want to pass
someone . T he speed yo u saved earlier wi ll re­
sume as soon as yo u let off of the acce lerato r
pedal.
If, however, you exceed your saved speed by
6 mph ( 10 km/h) for longer than S m inutes, the
cru ise control will be turned off temporarily. The
green symbol in the d isp lay turns white. The
saved speed rema ins the same .
Presetting your speed
You can preset your desired speed while the vehi­
cle is not moving.
~ Switc h on the ignition.
~ P ull lever into position @¢ page 79, fig . 93.
~ P ress the lever in the 0 or 0 direction to in-
crease or decrease your speed.
~ Release t he lever to save that speed .
This f unction makes it possib le, for examp le, to
save the speed yo u want before dr iving on the
h ighway . Once on t he h ighway, ac tivate the
cru ise con trol by pu lling the lever toward
(D .
Switching off
Temporary deactivation
~ P ress the b rake pedal, o r
~ Press t he leve r into posit io n @ (not clic ked i nto
place) ¢
page 79, fig. 93, or
~ D rive for longer t han S minu tes at mo re th an
6 mph (10 km/ h) above the stored speed.
Switching off completely
~ P ress lever into position @(clicked into place),
o r
~ Swi tch the ign ition of f.
80
The speed you saved will be retained if the cr uise
contro l has been switched off temporarily . To re­
sume t he saved speed, let up on the bra ke an d
pull the lever to position
(D .
Switc hing the ignit ion off erases the saved speed .
_& WARNING
You should only return to the save d spee d if it
is not too fast for the current traff ic condi ­
tions -ris k of an accident!

Automatic transmission multitronic, S tronic,
tiptronic
Introduction
Applies to: vehicle s with multitronic/S tronic/tiptronic
The automatic transmission is cont rolled e lec­
tronica lly. The transmission upshifts or down­
shifts automatically depending on which drive program is selected.
When a
moderate drivi ng style is used, the
transmission selects the most economical driving
mode. It will then change up early and delay the
downshifts to give better fuel economy.
The transm ission switches to a sporty mode afte r
a kick -down or when the driver uses a
s po rt y
d riv ing sty le
characterized by quick accelerator
pedal movements, heavy acce leration, frequent
changes in speed and traveling at the maximum
speed.
If desired, the driver can also select the gears
manually { tip tron ic mode) 9 page 81.
Various automatic transmissions may be instal­
led, depending on the model :
multitronic transmission
The multitronic transmission is a cont inuous ly
va riable t ransmiss ion. Power is transferred using
a mu ltidisk clutch. In contrast to conventiona l
automatic transmissions using shifting opera­
tions, the transmission ratio in the continuous ly
variable transmiss ion is changed continuously.
This optimizes the comfort level and conserves
fuel.
S tr onic transmi ssion
The S tronic is a dua l-clutch transmiss ion . Power
is transferred using two clutches that work inde­
pendently from one another. They replace the
torque converter used in conventional automatic
transmissions and allow the vehicle to accelerate
without a noticeable interruption in tract ion.
a:,
a:,
...... tip tron ic tran smis sion N r--.
~ In the tiptron ic transmission, power is transfer-
fi:' red by a torque converter. 00
Autom atic tran sm iss ion
Selector lever positions
Applies to: vehicles wit h mult itron ic/S tro nic/t iptronic
F ig. 95 Display in the instrument cl uste r: se lector lever in
posit ion P
T he selector leve r pos ition engaged appea rs next
to the se lector lever as well as in the instrument
cluster disp lay .
P -Park
In this se lector lever position the transmission is
mechan ica lly locked. Engage P only when the ve­
hicle is
completely stopped~.&. in Driving the
automatic transmission on page 84.
T o s hift i n or out of pos it ion P, you must first
press and hold the brake pedal and then press
t h e release button in the se lec tor lever ha ndle
whi le mov ing the selector lever to o r from P. Yo u
can shift out of this position on ly with the igni­
tion on.
R -Reverse
Se lect R on ly when the vehicle is at a full stop
and the engine is runn ing at idle speed C? .&. in
Driving the automatic transmission on
page 84 .
Before yo u move the selector leve r to R, p ress
both the release b utton in the handle of these­
l ector lever
and the brake pedal at the same
time.
When the ignition is on, t he backup lights illumi­
na te when the selector lever is moved into R.
N -Neutral
The transmiss ion is in neutral in this position .
S hi ft to this posit io n for standing with the brakes
applied
~ .&. in Driving the automatic transmis-
sion on page 84. ..,
81

Automatic transmission
When the vehicle is stationary or at speeds below 1 mph (2 km/h), you must always app ly the foot­
brake before and while moving the lever out of N.
D /S -Normal position for driving forward
In the D/S posi tion, the transmission can be op­
erated e ither in the no rma l mode Do r in the
sport mode S. To select the sport mode S, pull
the selector lever back briefly. P ulling the lever
back again w ill select the normal mode D. The in­
strument cluster display shows the selected dr iv­
ing mode.
In the
normal mode D, the transmission auto ­
mat ica lly selects the suitab le gear ratio. It de ­
pends on eng ine load, vehicle speed and driving
style.
Select the
s port mode S for sporty driving. The
veh icle makes fu ll use of the engine 's power.
Shifting may become noticeab le when acce lerat­
ing.
When the vehicle is stationary or at sp eeds below
1 mph (2 km/h), you must always app ly the foot
brake before and while moving the lever to D/S
out of N.
A WARNING
Read and follow all WARNINGS cc> .& in Driv ­
ing the automatic transmission on
pag e 84.
(D Note
Coasting down hill with the transm iss ion in N
and the engi ne not run ning will result in dam­
age to the automatic transmission and poss i­
bly the catalytic converte r.
@ Tips
- On vehicles wit h drive select*, you can ad­
ju st the sporty shift characteristics in the
Dynamic dr iv in g mod e.Swi ll appea r in th e
in st ru ment cl uster display instead of D.
-If you accide nta lly select N while driv ing,
take yo ur foot off the a cceler ator ped al im ­
med iately an d wait for the e ngine to slow
d own to idle bef ore se lec ting D/S.
82
- If there is a powe r failure, t he se lector lever
wi ll not move out of the P position. The
eme rgency re lease can be used if th is hap ­
pens
q page 8 7 .
Automatic Shift Lock (ASL)
App lies to : vehicles wi th mult itro nic/S t ro ni c/ tip tronic
The Automatic Shift Lock safeguards you against
accidentally shifting into a forward or the re­
verse gear and causing the vehicle to move unin­
tentionally.
Fig. 96 Sh ift gate : se lec to r lever lock pos it io ns and re lease
but ton high lig hted
The selector lever lock is re leased as follows:
.,. Tur n the ignition on.
.,. Step on the bra ke pedal.
At the same time
press and hold the release button on the side of
the gear selector knob
cc> fig. 96 with your
thumb until you have moved the selector lever
to the desired position .
Automatic selector leve r lock
The selector lever is locked in the P and N posi­
tions when the ign itio n is turned on . You must
press the brake peda l and the release button to
select another posit ion. As a rem inder to the
driver, the following warn ing appears i n the in ­
str ume nt cluster d isp lay when the se lector is in P
and N:
When stat ionary apply brake pedal while select­
ing gear
The Automatic Shift Lock only functions whe n the
vehicle is stat ionary or at speeds be low 1 mph
(2 km/h) .
