ABS /(@) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
The warning/indicator light fIE) (USA models)/
ti] (Canada models) will come on for a few sec­
onds when the ign it ion is switched on. The light
will go out after an automatic check sequence is
comp leted.
There is a malfunction in the ABS when:
-The warning/indicator light does not illuminate
when you switch the ign it ion on .
- The warning/indicator light does not go out af­
ter a few seconds.
- The warning/indicator light illuminates while driving .
The ESC indicator light a lso illuminates if there is
a ma lfunction in the ABS. The message
Stabiliza­
tion control (ESC): Fault! See owner's manual
also appears in the instrument cluster display
and a warning tone sounds.
The brake system will still respond even with­
out the assistance of the ABS system. See your
authorized Audi dealer as soon as possible to re ­
store full braking performance.
For more infor­
mat ion regarding the ABS
r=;,page 167.
Malfunction in the brake system
If the brake warning light r:::;, page 13 and the ABS
warn ing illuminate
together there may be a mal­
function in the ABS, and there may also be a ma l­
function in the brake system itself
q .&. . The ABS
will not work and you will notice a change in
braking respon se and performance.
In the event of a malfunction in the brake sys ­
tem
the warning/indicator light 1111 (USA mod­
els)/ . (Canada models) in the instrument clus­
ter f lashes
r:::;, page 13 .
Malfunction in the electronic differential
lock (EDL)
The ED L works together with the ABS . The ABS
warn ing light will come on if there is a ma lfunc­
tion in the EDL system
~ page 167 . See your au­
thorized Audi dealer as soon as possible.
Instruments and indicator lights
A WARNING
- If the fIE) (USA models)/ tl] (Canada mod­
els) warning light does not go out, or if it
comes on while dr iv ing, the ABS system is
not working proper ly . The vehicle can then
be stopped only with the standard brakes
(without ABS). You will not have the protec­
tion ABS provides. Contact your authorized
Audi dealer as soon as possible.
- USA models: If the 1111 warning light and
the
9 warning light come on together, the
rear wheels could lock up first under hard
braking. Rear wheel lock-up can cause loss
of vehicle control and an acc ident. Have your
veh icle repaired immediately by your au­
thorized Audi dealer or qualified workshop .
Drive slowly and avoid sudden, hard brake
applications .
-Canada models: If the brake warn ing light
• and the ABS warning light
tlJ come on
together, the rear whee ls could lock up first
under hard b raking. Rear whee l lock-up can
cause loss of vehicle control and an acci­
dent . Have your vehicle repaired immediate­
ly by your authorized Audi dea ler or quali­
fied workshop. Drive slowly and avoid sud­
den, hard brake applications.
t!i I !i: Safety systems
The fl (USA models)/ EI (Canada mode ls) indi­
cator light monitors the safety systems (e.g. a ir­
bags, pretensioners) and illum inates for a few
seconds each time you switch the ignition on.
If the
II (USA models) tEI (Canada models) in­
dicator light does not go out, or if it illuminates
wh ile you are driving, or if it starts to blink, then
there is a malfunct ion somewhere in the system .
If the light does not illuminate when you switch
the ignition on, this also means there is a mal­
function.
A WARNING ~
If yo u have a ma lf u nction in the safety sys-
tems, contact your authorized Aud i dealer im­
mediately. Otherwise the safety systems may
not work properly in an accident.
17

Instruments and indicator lights
you can continue to turn the lights on and off us ­
ing the light switch . You can still control a ll func­
tions that are independent of the rain sensor
through the w indshield wiper lever.
Contact your author ized Audi dealer as soon as
possible to have the problem corrected.
; Adaptive dampers
Applies to: veh icles with Audi drive select and adaptive damp·
ers
B Su spen sion : S yst em fault!
If the B symbol in the display comes on, there is
a ma lf u nction in the adaptive dampers . P lease go
to an author ized Audi dealer or qu alified work­
shop to have the ma lfunction repaired .
J--: Sport differential
Applies to: vehicles with Audi drive select and sport differen ·
tial
Sport differ ential: Syst em fault!
There is a malfunction with the sport differential.
Drive to your authorized Aud i dea ler immediately
to have the malfunct ion corrected.
Sport differ ential: Overhe ating
The transmiss ion tempe rature has increased s ig­
n ificant ly due to the sporty driv ing manne r. D rive
i n a less sporty manner until the temperature re­
turns to the normal range and the indicator light
switches of.
A WARNING
Contact your authorized A udi dealer or quali­
fied workshop if the sport differential is fau lty
or ma lfunctioning. The repa ir must be per­
formed by trained personnel us ing the correct
oil in order to ensure safety .
~ Ignition lock
l3 Ignition lock defective
There is a malfunction in the electronic ignition
lock . Please go to an authorized Audi dea ler or
other qualified workshop to have the malfu nction
repaired .
20
¢ Q Turn signals
Wheneve r yo u use the left B or the right Ill
turn s ignal , the ind ic a tor light blinks. When you
u se the emergency flashe rs, both indicator ligh ts
f lash.
If one of the tu rn signa l ligh t bulbs bu rn out, the
turn s ignal will b link t wice as fast as no rmal.
Caref ully drive to yo ur a uth o rized Aud i dea ler im­
mediate ly to have the malfunction corrected.

Audi drive select Drive settings
Introduction
Applies to: vehicles with Audi drive select
Drive select provides the possibility to experience
d iff erent types of vehicle settings in one veh icle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortab le driving mode with the
press of a button.
Addit ionally, in vehicles with MM I*, the vehicle
setup for
Individual* mode can be customized by
you. This makes it possible to combine settings
such as a sporty engine tuning with comfortable
steering.
A WARNING
-
Improper use of the Audi drive select can
cause collisions, other accidents and serious
personal injury .
Description
Applie s to: vehicles with Audi drive select
The vehicle setup in each mode depends on the
veh icle's features . However, the engine, auto­
matic transmission and steering are always in­
volved.
Engine and automatic transmission
Depending on the mode, the engine and the au ­
tomatic transm ission respond quicker or in a
more balanced manner to accelerator pedal
movements . In the sporty dynam ic mode, the au­
tomatic transmission shifts at higher RPMs .
Steering
The steering adapts in terms of steering effort
and steering ratios. Indirect steer ing that moves
eas ily, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
dynamic mode provides sporty, direct steering.
gi The follow ing applies to vehicles with dynam ic
;:::: steering*: the steering rat io changes based on
r--.
~ vehicle speed in order to ma inta in optim um 0
fi:' steering effort for the driver at all times. This 00
Audi drive select
sets the steering to be less sensitive at higher
speeds in order to provide improved vehicle con­
tro l. At reduced speeds, however, steering is
more direct in order to keep the steering effort as
minimal as possible when the driver is maneuver­
ing the vehicle. At low and average speeds, dy ­
nam ic steering additionally prov ides more re­
sponsive steering performance .
Adaptive dampers*
The adaptive dampers* use sensors to record in­
formation regarding steering movements, brak­
ing and acceleration operations by the driver,
road surface, driving speed, and load . This makes
it possible to adapt damping to the driving situa­
t ion virtua lly in real time. Drive select also makes
it possible to sat isfy the desire for sporty suspen­
sion (Dynamic) and comfortable suspension
(Comfort) without giving up balanced tuning (Au­
to).
Sport differential*
As a component of the all whee l dr ive system
(quattro)
c::> page 172, the sport different ial* dis­
tributes the driving power to the rear axle de­
pending on the situation. The distribution of
power varies depending on the mode selected.
The goal is a high level of ag ility and ability to ac­
celerate on curves. The vehicle is very responsive
to steering.
Audi adaptive cruise control*
The behavior when accelerating can be adjusted
from comfortable to sporty, depending on the
drive select mode. Adaptive cruise control also
responds to the driving behavior of the vehicle
ahead in a more conservative or sporty manner .
Engine sound*
The sound of the engine is adapted to the select­
ed mode and ranges from subtle to sporty.
(D Tips
- In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- For vehicles with an automatic transmis-
sion, se lecting the
Dynamic mode resu lts in ...,
101

a:,
a:,
...... N r--. N ...... 0
0
LL 00

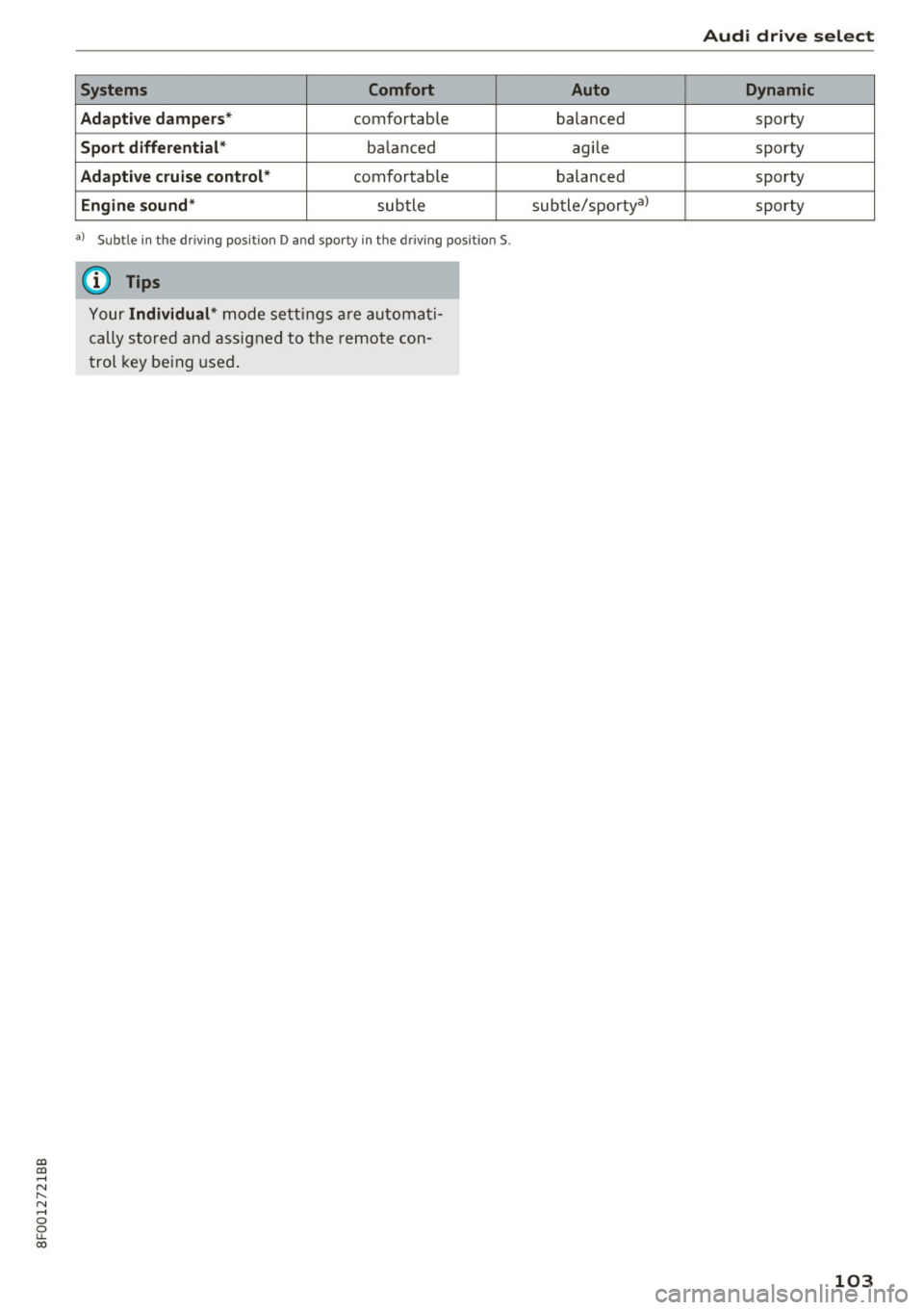

Systems Comfort
Adapti ve dampers *
comfortable
Sport differential * bala nced
Adapti ve cruise control * comfortab le
Engine sound * subtle
a) Subtle in t he dr iv in g pos itio n D and sp or ty in t he dr iv in g pos it ion S.
(D Tips
Y our Individual* m ode setti ngs are a uto mat i­
cally store d an d assigned to the remo te con­
trol key be ing used .
Audi drive select
Auto Dynamic
balanced sporty
agi le sporty
balanced sporty
sub tle/sportyal
sporty
103

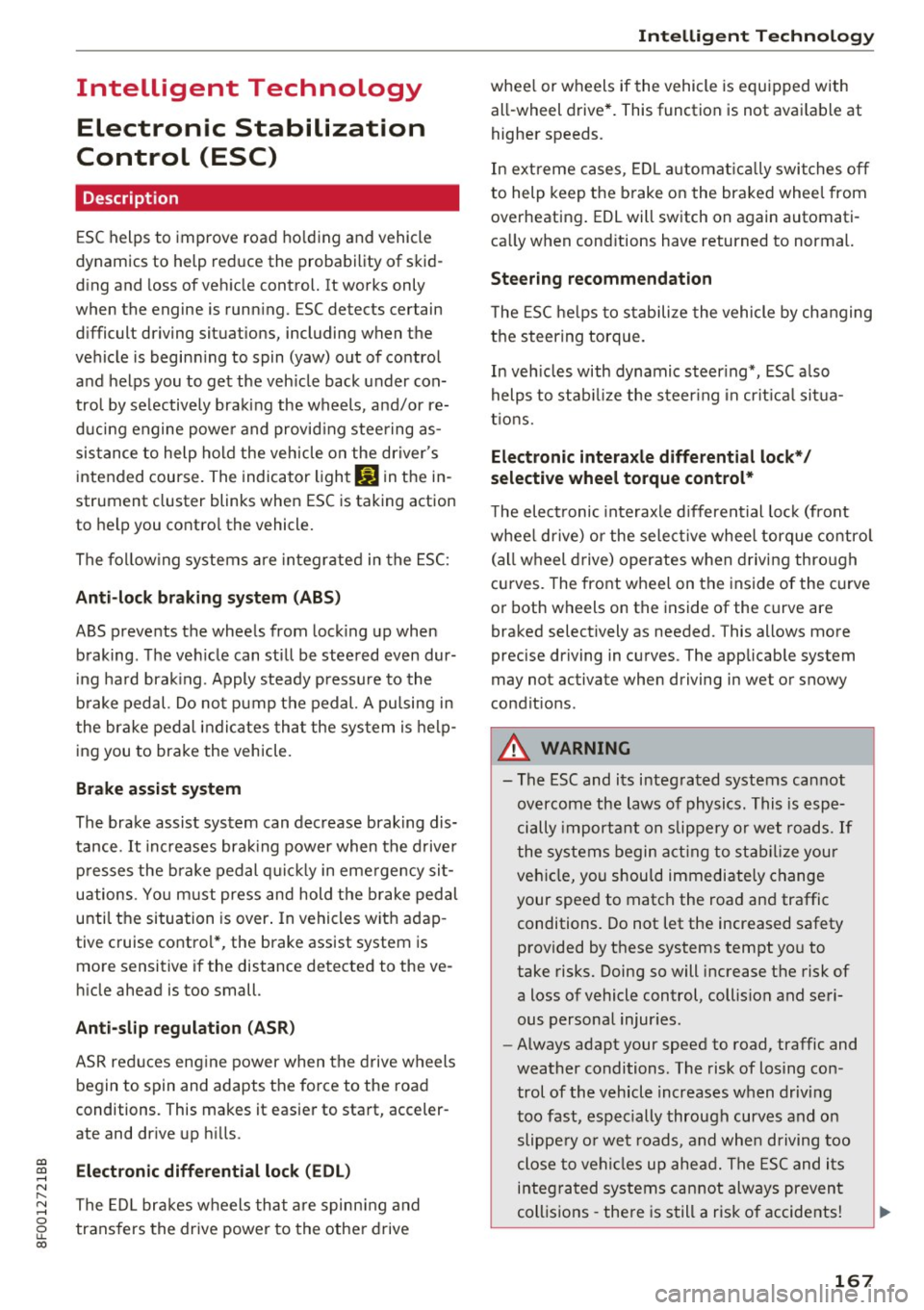

Intelligent Technology Electronic Stabilization
Control (ESC)
Description
ESC helps to improve road ho lding and vehicle
dynamics to help reduce the probability of skid­
ding and loss of vehicle control. It works only
when the engine is runn ing . ESC detects certain
d ifficult driving situat ions, including when the
vehicle is beginn ing to spin (yaw) out of control
and helps you to get the veh icle back under con­
tro l by selectively braking the wheels , and/or re­
ducing engine powe r and provid ing steering as­
sistance to help ho ld the veh icle on the driver 's
intended course. The indicator light
bJ in the in­
strument cluster blinks when ESC is taking action
to help you contro l th e vehicl e.
The follow ing systems a re integr ated in the ESC:
Anti -lock braking system (ABS )
ABS preve nts the wheels from lock ing up when
b raking . The ve hicle can still be stee red even dur­
in g ha rd brak ing . Apply steady pressure to the
b rake pedal. Do not p ump the pedal. A pu lsing in
the brake pedal indicates tha t the system is help ­
ing you to brake the vehicle .
Brake assist system
The brake assist sys tem can dec rease braking dis­
tance .
It increases brak ing power when the d rive r
pr esses the brake pedal q uickly in eme rge ncy sit ­
uations . You m ust press and hold the b rake pedal
unti l the situation is over . In vehicles with adap ­
tive cruise control* , the brake assist system is
mo re sensitive if the distance det ected to the ve­
h icle ahead is too small.
Anti -slip regulation (ASR)
ASR red uces eng ine power when the drive wheels
begin to spin and adapts the force to the road
conditions. This makes it easier to start, acceler­
ate and dr ive up h ills.
gi Electronic differential lock (EDL ) ...... N
~ The ED L br ak es w heels that a re spi nnin g and
8 trans fers the drive power to the othe r drive LL 00
Intellig ent Technology
whee l or wheels if the vehicle is equ ipped with
all-wheel drive*. This function is not avai lable at
highe r speeds.
In extreme cases , EDL automat ic all y swi tches off
to help keep t he b rake on the braked wheel from
overheating . EDL will switch on again automati­
ca lly when cond itions have returned to normal.
Steering recommendation
T he ES C helps to s tabilize the vehicle by changing
the s teering torque.
In veh icles with dynamic steer ing*, ESC a lso
helps to stab ilize the steer ing in crit ica l sit ua­
tions.
Electronic interaxle differenti al lock */
selective wheel torque control*
T he elect ronic inte raxle d iffere ntial lo ck (front
whee l dr ive) o r the sele ct ive whee l torque co ntro l
(a ll w heel d rive) operates when driving thro ugh
cu rves. The front wheel on the inside of the curve
o r both wheels on the inside of the curve are
braked selectively as needed. This allows more
precise driving in curves . The applicab le system
may not activate when driving in wet or snowy
condit ions .
A WARNING
--The ESC and i ts integrated systems ca nnot
overcome the laws of physics. This is espe­
cially importa nt on slippery or wet roads. If
the systems begin act ing to sta biliz e your
veh icle, you shou ld immedi ate ly change
your speed to match the road and traffic conditions. Do not let the increased safety
provided by these systems tempt yo u to
take risks. Doing so will increase the risk of
a loss of vehicle control, collision and seri­
ous personal injur ies .
- Always adapt your speed to road, traffic and
weather conditions . The risk of losing con ­
trol of the vehicle increases when driv ing
too fast, especially through curves and o n
slippe ry o r wet roads , and whe n driving too
close to ve hicl es up ahea d. The ESC and its
integ ra t ed systems cannot always preven t
collis ions -the re is s till a risk o f accidents!
167

Index
A
A/C (automatic climate control) . . . . . . . . . . 67
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Active lane assist
Cleaning the camera a rea . . . . . . . . . . . . . 183
Active rollover protection system . . . . . . . . 119
Retracting rollover protection . . . . . . . . . . 120
Adaptive cruise control . . . . . . . . . . . . . . . . . . 88
Cleaning the sensor . . . . . . . . . . . . . . . . . . 183
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Request for driver intervention . . . . . . . . . . 93
Setting the driving program . . . . . . . . . . . . 93
Adaptive dampers . . . . . . . . . . . . . . . . . . . . . 101
Adaptive light . . . . . . . . . . . . . . . . . . . . . . . . . 48
Adapt ive Light (defective) . . . . . . . . . . . . . . . 19
Adding Engine coolant .. .......... ........ . .
Engine oil .. .. .. ................ ... .
W indshield washer fluid ..... .. .... .. .
Addition al acces sories
Additives Engine oil .... .. .. .............. ... .
Adjustable steer ing column . ..... .. .. .. . .
Adjusting 200
197
206
248
197
71
Air distribu tion (automatic clima te control) .68
Instrument illumination . . . . . . . . . . . . . . . 51
Steering column ... . .. .... .... .. .. .. .. 71
Temperature (automatic climate control) . 68
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Warning/indicator lights . . . . . . . . . . . . . . . 17
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 148
Advanced Airbag-System . . . . . . . . . . . . . . 134
Advanced Airbag System components . . . 1 36
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Child restraints . . . . . . . . . . . . . . . . . . . . . 152
Components (front airbags) . . . . . . . . . . . 136
Danger of fitting a child safety seat on the
front passenger seat . . . . . . . . . . . . . . . . . 131
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Fr ont airbags . . . . . . . . . . . . . . . . . . . 134, 135
How do the front airbags work? . . . . . . . . 138
How many airbags do es my vehicle have? 136
How the Advanced Airbag System compo -
nents wo rk together . . . . . . . . . . . . . . . . . 138
Impo rtant in formation . . . . . . . . . . . . . . . 130
250
Important safety instructions on the knee
airbag system . . . . . . . . . . . . . . . . . . . . . . . 146
Knee a irbags. . . . . . . . . . . . . . . . . . . . . . . . 144
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 140
PASSENGER AIR BAG O FF light . . . . . . . . . 140
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 43
Safety instructions . . . . . . . . . . . . . . . . . . . 142
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 146
Warn ing/Ind icator lights . . . . . . . . . . . . . 140
Weight-sensing mat . . . . . . . . . . . . . . . . . 151
When must the system be inspected? . . . 140
all-wheel drive . . . . . . . . . . . . . . . . . . . . . . . 172
All s eason tir es . . . . . . . . . . . . . . . . . . . . . . . 222
Alternator
refer to Generator . . . . . . . . . . . . . . . . . . . . 14
Anti -freeze
refer to Engine coolant system . . . . . . . . . 199
Anti-lock braking system Warning/indicator lights . . . . . . . . . . . . 16, 17
Anti-Lock Braking System . . . . . . . . . . . . . . 167
Anti-slip regulation Warning/indicator lights . . . . . . . . . . . . . . . 16
Anti-Slip Regulation . . . . . . . . . . . . . . . . . . . 16 7
Ant i-theft alarm system . . . . . . . . . . . . . . . . . 27
Anti -theft systems
E lectronic immobilizer . . . . . . . . . . . . . . . . . 33
Armrest.. .. .. .. .. .. .. .. .... ....... .. . 60
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Audi braking gu ard
refer to braking guard . . . . . . . . . . . . . . . . . 88
Audi drive select . . . . . . . . . . . . . . . . . . . . . . 101
Adaptive dampers . . . . . . . . . . . . . . . . . . . 101
Description . . . . . . . . . . . . . . . . . . . . . . . . . 101
Dynami c steering . . . . . . . . . . . . . . . . . . . . 101
Setting the driving mode . . . . . . . . . . . . . . 102
Sport differential . . . . . . . . . . . . . . . . . . . . 101
Audi Service Repai r M anuals and Literature 246
AUTO Automatic climate control . . . . . . . . . . . . . . 68
Automatic headlights . . . . . . . . . . . . . . . . . 48
Automatic belt retractor . . . . . . . . . . . . . . . 126
Automatic climate control Air ven ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Automatic power top . . . . . . . . . . . . . . . . . . . 40
Automat ic Shift Lock (ASL) . . . . . . . . . . . . . . 82

a:,
a:,
...... N r--. N ...... 0
0
LL 00
Determin ing correct load limit . . . . . . . . . . 22 1
Dig ita l clock . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Dig ita l compass . . . . . . . . . . . . . . . . . . . . . . . 55
Di mensions . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Dimming the rearview mirror . . . . . . . . . . . . 52
Doors emergency lock ing . . . . . . . . . . . . . . . . . . . . 32
D river information system . . . . . . . . . . . . . . . 2 1
Open doo r o r fron t lid wa rn ing . . . . . . . . . . 2 1
Outside temperature d isp lay. ... .. .... .. 21
Sound system display . . . . . . . . . . . . . . . . . 21
Dri ver seat
refer to Seat ing pos ition . . . . . . . . . . . . . . 112
Driving economically . . . . . . . . . . . . . . . . . . 177
Driving safe ly . . . . . . . . . . . . . . . . . . . . . . . . 111
D riving through wate r . . . . . . . . . . . . . . . . . 175
Driving t ime . . . . . . . . . . . . . . . . . . . . . . . . . . 22
D us t filte r
refer to Pollutant filte r (au toma tic A/C sys -
tem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Dynamic stee ring ............. 101, 167 , 17 1
E
E85 (Fue l) . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Easy entry function . . . . . . . . . . . . . . . . . . . . . 59
E ff iciency p rogr am . . . . . . . . . . . . . . . . . . . . . 24
Fu el economy messages . . . . . . . . . . . . . . . 24
M emory levels . . . . . . . . . . . . . . . . . . . . . . . 22
Other equipment . . . . . . . . . . . . . . . . . . . . . 24
E lect ro-mechan ica l powe r ass ist . . . . . . . . . 17 1
Electromechanica l parking brake
Emergency braking . . . . . . . . . . . . . . . . . . . 77
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 76
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Re leas ing and closing . . . . . . . . . . . . . . . . . 76
St arting assis t . . . . . . . . . . . . . . . . . . . . . . . 77
S tarting from res t . . . . . . . . . . . . . . . . . . . . 77
Starting off w ith a t railer . . . . . . . . . . . . . . . 77
Warning/indicator lights . . . . . . . . . . . . . . . 14
E lect ronic d ifferen tial lock
Wa rn in g/i nd ic ator lights . . . . . . . . . . . . . . . 16
Electronic Differential Lock . . . . . . . . . . . . . 167
E lect ronic diffe ren tial lock ( EDL)
Wa rning/indicator lights.. ... .. .. .... .. 1 7
E lect ronic immob ilizer . . . . . . . . . . . . . . . 10, 33
Index
El ectron ic powe r contro l
(EPC) warning/indicator light . . . . . . . . . . . 18
El ectron ic spee d lim ite r . . . . . . . . . . . . . . . . . 26
E lectron ic stabilization control
Spo rt mode . . . . . . . . . . . . . . . . . . . . . . . . 168
E lectron ic Stab ilization Contro l . . . . . . . . . . 167
El ectron ic Stab ilization Contro l (E SC)
War ning/ indica to r li ghts . . . . . . . . . . . . . . . 16
Emergency actuation
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Ign it io n key . . . . . . . . . . . . . . . . . . . . . . . . . 30
Emergency braking . . . . . . . . . . . . . . . . . . . . . 77
E mergency f lasher . . . . . . . . . . . . . . . . . . . . . 50
War ning/ in d ica to r li ghts . . . . . . . . . . . . . . . 20
Emergency key . . . . . . . . . . . . . . . . . . . . . . . . 28
Start ing engine . . . . . . . . . . . . . . . . . . . . . . 72
Emergency operation
Emergency braking function (parking brake) .7.7
Luggage compartment lid . . . . . . . . . . . . . . 34
Power top . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Emergency starting . . . . . . . . . . . . . . . . . . . 238
En ergy manage men t . . . . . . . . . . . . . . . . . . 173
B attery power . . . . . . . . . . . . . . . . . . . . . . . . 14
D rive r notific ation . . . . . . . . . . . . . . . . . . . . 14
E ngine
Compartment .. .. .. ................. 195
Coo lant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 99
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Start ing . . . . . . . . . . . . . . . . . . . . . . . . . 71, 73
Starting wi th ju mpe r cab les . . . . . . . . . . . 238
Stopping . ... .. . ... .... . ..... ... .. 7 3, 74
E ngine compartment . . . . . . . . . . . . . . . . . . 1 95
S afe ty in str uctions . . . . . . . . . . . . . . . . . . . 193
Working the engi ne compa rtment . . . . . . 193
Engine coolant Indicator light . . . . . . . . . . . . . . . . . . . . . . . 15
Engine coolant system . . . . . . . . . . . . . . . . . 199
Adding coolant . . . . . . . . . . . . . . . . . . . . . . 200
Checking coolant level . . . . . . . . . . . . . . . . 199
Checking the engine coo lant level . . . . . . . 199
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 201
Engine coolant temperature
Temperature gauge . . . . . . . . . . . . . . . . . . . . 8
E ngine hoo d
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
How to release the hood . . . . . . . . . . . . . . 193
253
