-Neve r run the tank down a ll the way to empty .
- Never put too much motor oil in your engine=>
page 275,
"Adding engine oil 'l:::r.".
-Never try to push- or tow-start your vehic le .
The catalytic converter is an efficient "clean -up" device built into the
exhaust system of the vehicle. The cata lytic converter burns many
of the po llutants in the exhaust gas before they are released into the
atmosphere.
The exclusive use of un leaded fuel is critica lly important for the life
of the catalytic converter and proper functioning of the engine .
& WARNING
• Do not par k or operat e the vehicle in areas w here the ho t
ex haust sys te m m ay come in conta ct w ith d ry grass, bru sh , fu el
s pill or other mater ial which can cause a fire.
• Do not ap ply ad diti ona l u nd erc o ati ng or ru stpro ofing on o r
n ea r th e ex haust m an ifold, exhau st pipe s, ca talytic convert er or
h eat s hield s. Dur ing drivin g, the sub sta nce use d for und ercoa ting
c ould o verh eat and cause a fir e.
0 Note
• Be aware that just one tank filling with le aded fue l wil l a lready
seriously degrade the performance of the catalytic converter.
• Do not exceed the correct engine oil level
~ page 275.
• Do not drive until the fuel tank becomes completely empty. The
engine could misf ire. Unburned fuel could also get into the exhaust
system and this could cause the catalytic converter to overheat.
• Do not turn off the ignit ion whi le the vehicle is moving.
• Do not continue to operate your vehicle under these conditions,
as otherwise fuel can reach the cata lytic converter. This could result
in overheating of the converter, requiring its rep lacement .
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
• To assure efficient operation of the Emission Control System:
- Have your vehic le maintained properly and i n accordance w ith
the service recommendations in your Warranty
& Maintenance
booklet .
- Lack of proper maintenance as wel l as improper use of the
vehic le wi ll impair the function of the em ission control system
and could lead to damage .
Even when the Emission Control System is operating properly, the
exhaust gas can have a sulfur-like exhaust gas smell under some
operating states . This depends on the su lfur content of the fuel
bei ng used. Using a different brand of fue l may help, or fil ling the
tank with lead-free super grade gasoline .
Operate your vehicle economically
and minimize pollution
General
Your personal style of driving will determine the economy
of your vehicle, as well as exhaust and noise levels .
Fuel economy, environmental impact, and wear on your engine,
brakes and tires largely depend on three factors:
• your persona l driving style
• operating conditions
• technica l limitations
If you anticipate what you need to do next and drive economica lly,
you can easily cut your fuel consumpt ion by 10-15 percent . This
section wil l give you some tips on how you can help the environ-
ment and your pocketbook . ...
Vehicle care Do-it-yourself service Technical data

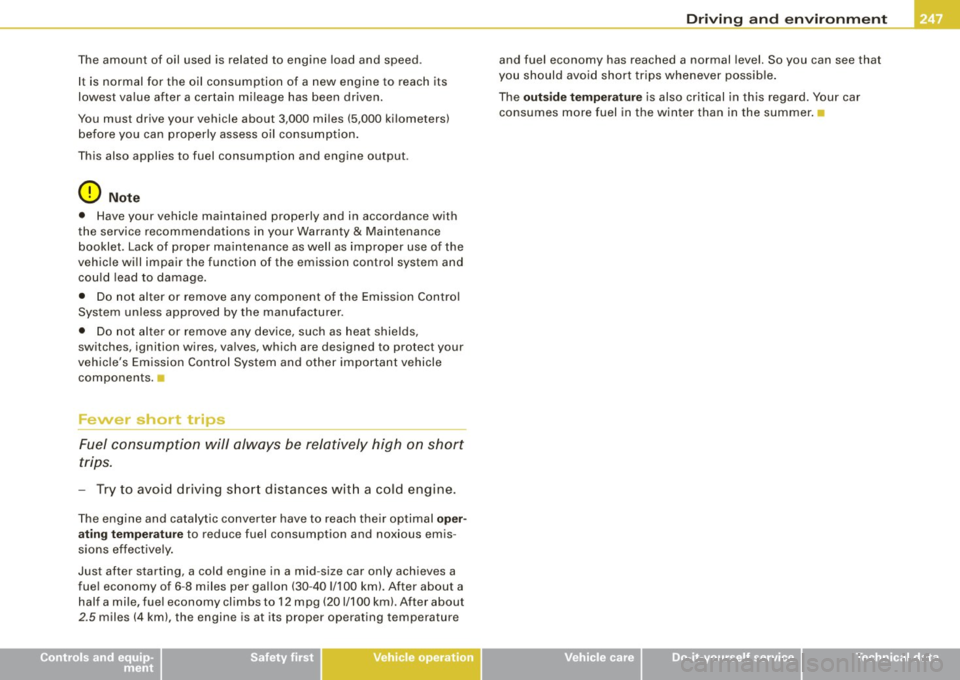

The amount of oil used is related to engine load and speed .
It is normal for the oil consumption of a new engine to reach its
lowest va lue after a certain mileage has been driven.
You must drive your vehicle about 3,000 mi les (5,000 kilometers)
before you can properly assess oil consumption.
This also applies to fuel consumption and engine output.
0 Note
• Have your vehicle maintained properly and in accordance with
the service recommendations in your Warranty
& Maintenance
booklet. Lack of proper maintenance as well as improper use of the
vehic le wi ll impair the function of the emission control system and
cou ld lead to damage.
• Do not alter or remove any component of the Emiss ion Contro l
System unless approved by the manufacturer.
• Do not alter or remove any device, such as hea t shields,
switches, ignition wires, valves, which are designed to protect your
vehicle's Emission Control System and other important vehicle
components. •
Fewer short trips
~-----------------
Fu e I consumptio n will always be relat ively high on short
tri ps.
- Try to avo id driving s hor t distan ces wit h a cold engine.
The engine and catalytic converter have to reach their optimal oper­
ating t emper ature
to reduce fuel consumption and noxious emis­
sions effective ly .
Just after starting, a cold engine in a mid-size car only achieves a
fue l economy of 6 -8 miles per gallon (30 -40 1/100 km). After about a
half a mile, fuel economy climbs to 12 mpg (201/100 kml. After about
2.5 miles (4 km), the engine is at its proper operating temperature
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
and fuel economy has reached a normal level. So you can see that
you sh ould avoid short trips whenever possib le .
The
o ut side t emper atu re is also critical in this regard. Your car
consumes more fuel in the winter than in the summer .•
Vehicle care Do-it-yourself service Technical data

Trailer load d is trib ut ion
Be sure the load in the trailer is held securely in place to prevent it
from shifting forward, backward or sideways.
Ne ver allo w a passen ger to rid e i n a tr ailer => & in "Driving instruc ­
tions" on
page 249.
En gin e c ool ing syst em
Towing a trailer makes the engine work harder. It is important that
the cooling system 's performance is up to the additiona l load. Make
sure that the cooling system has enough flu id.
Ti re press ure
When towing a trailer, inflate the tires of your vehicle to the cold tire
pressure listed under "Full load" on the labe l located either on the
driver's side B-pillar (visible when the door is open} or inside the fuel
filler flap . Inflate trailer tires to trai ler and tire manufacturers' spec ­
ifications.
Ligh ts
The headlight settings should be checked with the trailer attached
before driving off . Check to make sure both vehicle and trailer lights
are working properly .
Safe ty c hain s
Be sure trailer safety chains are properly connected from the trailer
to the hitch on the vehicle. Leave enough slack in the chains to
permit turning corners. When you install safety chains, make sure
they will not drag on the road when you are driving.
The chains should cross under the trailer tongue to prevent it from dropping in case of separation from the hitch.
Controls and equip­
ment Safety first Vehicle operation
Tr
aile r t owing
Driving instructions
Driving with a trailer always requires extra care and
consideration.
To obtain the best possible handling of veh icle and trailer,
please note t he following :
Do not tow a loaded trailer when your car itself is not
loaded .
- Be especia lly careful when passing other vehicles .
Observe speed l imits .
Do not drive at the maximum permissible speed.
Always apply brakes early.
Monitor the temperature gauge.
W eight distrib utio n
Towing a loaded trailer with an empty car results in a h ighly
unstable distribution of weight . If this cannot be avoided, drive at
very low speeds only to avoid the risk of losing steering control.
A "balanced" rig is easier to operate and control. This means that
t he tow vehicle should be loaded to the extent possible and permis ­
sible, while keeping the trailer as light as possib le under the circum ­
stances . Whenever possible, transfer some cargo to the luggage
compartment of the tow vehicle whi le observing tongue load
requirements and vehicle loading considerations.
S pee d
The higher the speed, the more difficu lt it becomes for the d river to
control the rig. Do not drive at the maximum permissible speed.
Reduce your speed even more if load, weather or wind conditions
are unfavorable -particularly when going downhill .
Reduce vehicle speed
i mmed iatel y if the trailer shows the slightest
sign of swaying .
Do not try to st op the swa ying b y accelerating.
Vehicle care Do-it-yourself service Technical data

-Place an automatic transmission* in P, respectively a
manual transmission in first or reverse gear.
When restarting after parking :
- Apply the foot brake .
- Start the engine.
- Move t he selector lever to
D, respectively a manual trans-
mission in first gear.
- Release the parking brake and slowly pull out and away
from the wheel chocks.
- Stop and have someone retrieve the wheel chocks .
[ i ] Tips
If you move the selector lever of the automatic transmission * to P
before applying the parking b rake and before blocking the wheels,
you may have to use more force later to move the lever out of the P
position .•
Controls and equip­
ment Safety first Vehicle operation
Trailer towing
Vehicle care Do-it-yourself service
Technical data

Fuel supply and filling your fuel tank
Blend of gasoline and ethanol (grain alcohol or ethyl alcohol}
• Anti -knock index must be 87 AKI or higher.
• Blend must not contain more than 10% ethanol.
Blend of gasoline and MTBE
• Anti-knock index must be 87 AKI or higher.
• Blend must contain not more than 15% MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform especially well for
winter or summer driving. During seasonal change -over, we suggest
that you fill up at busy gas stations where the seasonal adjustment
is more likely to be made in time.
0 Note
• Methanol fuels which do not meet these requirements may
cause corrosion and damage to plastic and rubber components in
the fuel system.
• Do not use fuels that fail to meet the specified criteria in this
chapter.
• If you are unable to determine whether or not a particular fuel
blend meets the specifications, ask your service station or its fuel
supplier.
• Do not use fuel for which the contents cannot be identified.
• Fuel system damage and performance problems resulting from
the use of fuels different from those specified are not the responsi ­
bility of Audi and are not covered under the New Vehicle or the
Emission Control System Warranties.
• If you experience a loss of fuel economy or driveability and
performance problems due to the use of one of these fuel blends,
we recommend that you switch to unblended fuel. •
Gasoline additives
A major concern among many auto manufacturers is carbon
deposit build-up caused by the type of gasoline you use.
Although gasoline grades differ from one manufacturer to another,
they have certain things in common . All gasoline grades contain
substances that can cause deposits to collect on vital engine parts,
such as fuel injectors and intake valves. Although most gasoline
brands include additives to keep engine and fuel systems clean,
they are not equally effective.
Audi recommends using TOP TIER Detergent Gasoline. For more
information on TOP TIER Detergent Gasoline, please go to the offi­
cial website (www.toptiergas.com).
After an extended period of using inadequate fuels, built-up carbon
deposits can rob your engine of peak performance.
(D Note
Damage or malfunction due to poor fuel quality is not covered by
the Audi New Vehicle Limited Warranty. •
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear side panel behind the
fuel filler flap.
If the power locking system should fail, you can still open the flap
manually - for detailed instructions see=
page 269.
You can find the fuel tank capacity of your vehicle in Technical Data
=p~enz ~

4. The resulting figure equals th e available
amount of cargo and luggage load capacity. For example, if the
" XXX"
amount equals 1400 lbs. and there will
be five 150 lbs. passeng ers in your
v ehicle , the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5
X 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capa city calculated in Step 4.
6. If your vehicle will be towing a trailer ,
load from your trailer will be transferred
to your vehicle. Consult this manual to determine how this reduces the avail­
able cargo and luggage load capacity of
your vehicle.
- Check the tire sidewall (~
page 299 ,
fig. 233) to determine the designat ed
load rating for a specific tire. •
Tires and wheels -
Tire service life
T he ser vic e life of ti res depends on a lo t o f different things
inclu ding p roper i nstallation and bal ancing, correc t tire
pressu re a nd drivi ng style .
(-----~
_____ __,,:)
Tread Wear Ind icator (TWll
N
"' 0 9
"" ~
Fig . 2 3 1 Tire tread:
tre ad we ar indi cato rs
(TWll
Fig . 232 Rotating tire s
for mo re even wear
The or iginal tires on your vehicle have 1 /16 inch ( 1.6 mm) high " wea r
indicators"=> fig. 231 running across the tread. Depending on the
make, the re w ill be six to eight of them even ly p la ced a rou nd the
t ire . Marks on the tire sidewall (for example "TWI" or other symbols)
indicate the positions of the tread wear indicators. Worn tires must
be r eplaced. Di fferen t fi gures may apply in other countries ::::>,& . .,_
Vehic le care I I Technical data

What do I do now? -
------------------
& WARNING
• Never use the screw driver hex head to tighten wheel bolts ,
si nce the bolts cannot attain the necessary tightening torque if
you u se the hex head , potentially causing an accident.
• The factory -supplied ja ck is intended only for your vehicle
model. Under no circumstances should it be used to lift heavy
vehicles or other loads ; you risk injuring yourself .
• Never start the engine when the vehicle is raised , which could
cau se an accident.
• Support the vehicle securely with appropriate stands if work is
to be performed underneath the vehi cle ; otherwise , there is a
potential ris k for injury . •
Ap plies to vehicles : w it h sp ac e-sa ving spare t ire
Space-saving spare tire (compact
spare tire)*
The spare tire/ wheel is located in the luggage compar t­
ment u nder the cargo fl oo r cover. It is intended for s hort­
te rm use onl y.
Fig . 2 39 Sp are tire
Removing the spare tire
Lift t he ca rgo floor by the p las tic ha ndle => fig. 239 .
Hook the han dle int o the lugg age compartment w eat he r
str ip.
Tu rn t he l arge screw => fig . 23 9 counte r-cloc kwis e.
Take out t he spa re tir e.
Unh ook the ca rgo floor befo re c losing the rear lid.
Securing the replaced tire
P lac e th e w heel with tir e in th e spare wheel well an d
sec ure t he whee l wi th the la rg e scr ew .
Unh ook the c argo floor bef or e c losing the re ar lid.
Using the spare tire (compact spare tire )
The compact spare tire is only intended fo r em ergencies until you
ca n r each a repa ir shop . Rep la ce it as quick ly as possible with a stan ­
dard whee l and tire.
T here are some restric tions on the use of the compact spa re tire .
The compact spare tire has been designed specifically for your type of vehic le. It must not be swapped with a compact spare tire from
another type of vehicle .
Snow chains
For technical reasons , the use of snow chains on th e compact spare
t ir e is
not permitted.
If you do have to drive with snow cha ins and a front t ire fails, mou nt
the spar e wheel with tir e instead of a rear tire. Install the snow
chains o n th e rear tire a nd use it to replace the defec tive fro nt tire . ._
Vehicle care Do-it-yourself service irechnical data

Fuses and bulbs -
------------------
No. Consumer
10 Climate control
11 Terminal 30 diagnostic connector
12 Steering column switch module Ampere
10
10
5
Fuse Location , Luggage Compartment right
Fig . 250 Fuse panel
layout
Read numbers of the fuses in the luggage compartment starting
from inside.
No. Consumer
Fuse panel B !black)
1 Luggage compartment lid control module
(Avant)
2 Trailer control module
3 Trailer control module
4 Trailer control module
5 Electromechanical parking brake
6 Electronic damping control Electromechanical parking brake Ampere
30
15
20
20
5
15
30
•
No. Consumer
8 Vehicle electrical system control module 2
9 quattro Sport
10 Vehicle electrical system control module 2
11 Vehicle electrical system control module
12 Terminal 30
Fuse panel C (brown)
1
2
3
4
5
6
7
8
9
Luggage compartment lid control module
Right front seat heating
DCDC converter path 1
DCDC converter path 2
Socket Not used
Electromechanical parking brake
Rear seat heating
Passenger side door control module
10 Not used
11 Passenger side door control module
12 Not used
Fuse panel D !red)
1 Rear center console outlet
2 Front center console outlet
3 Luggage compartment outlet
4 Cigarette lighter
6 Rear Seat Entertainment supply
Vehicle care Do-it-yourself service
Ampere
30
35
30
20 5
30 15
40
40
30
30
30
30
15
15
15 15
15
5
5
Technical data

ffl,__ __ G_e_ n_e_ ra_ l_i_n _f _o _ r_ m_ a_ t_io _ n __________________________________________________ _
General information
Explanation of technical data
Some of the technical data listed in this manual requires
further explanation.
The technical data for your vehicle is listed in the charts starting on
~ page 337. This section provides general information, notes and
restrictions which apply to this data. •
Vehicle identification
The key data is given on the vehicle identification number
(VIN) plate and the vehicle data sticker.
Fig. 259 Vehicle Identi­
fication Number (VIN)
plate: location on
driver's side dash
panel Fig
. 260 The vehicle
identification label -
inside the luggage
compartment
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visible from the outside
through the windshield~ fig. 259.
The vehicle identification label
is located in the luggage compartment near the battery .
The label ~ fig. 260 shows the following vehicle data:
© Production control No.
0 Vehicle identification No.
© Type code number
© Type designation/engine output in Kilowatts
© Engine and transmission code letter
© Paint No./lnterior
0 Optional equipment No.'s
Vehicle data 2 to 7 are also found in your Warranty
& Maintenance
booklet .
The safety compliance sticker
is your assurance that your new vehicle complies with all applicable
Federal Motor Vehicle Safety Standards which were in effect at the
time the vehicle was manufactured. You can find this sticker on the ._

______________________________________________ A_ l_,_ p _h_ a_ b_e _t_ic _ a _ l _in _ d_e _ x __ _
Status messages . . . . . . . . . . . . . . . . . 134
Switching on and off .. .... ...... .. 133
Audi drive se lect .. ...... .... ........ 144
Adaptive dampers .. ...... .... .... 144
Description ... ... .... .... ...... .. 144
Dynamic st eering .. ....... ...... .. 144
Se tting th e driving mode . ...... ... 145
Audi Service Repair Manuals and Literature
339
Auto Lock .......... ................. 42
Auto Safety Hotline ... ... ... .... .... . 177
Auto-Ch eck Contro l .... ... .. .... .... .. 27
Automatic belt retractor .......... .... 183
Automatic car wash
See Washing .. .... .... ... .... .... 253
Automatic climate control A/C mod e ..... .. .... .... ...... ... 95
Au tomatic climate control plus ....... .. 96
A/C mode . . . . . . . . . . . . . . . . . . . . . . . 102
See also Deluxe automatic climate control
plus ...... .. ..... ... ..... .. ..... 96
Automatic c limate control system ...... 90
See also Deluxe automatic climate
control ... .. .... .... ..... ...... . 90
Automatic driving light control ..... .. .. 53
Automatic Shift Lock (ASU .. ..... .... 150
Automatic transmission ...... ...... .. 147
6-speed automatic transmission . ... 147
Automatic Shift Lock (ASU ... . ..... 150
Driving .. .. .. ...... .......... ... 148
Dynamic shift program . ...... ... .. 151
Emergency release . . . . . . . . . . . . . . . 154
Fail -safe mode . ...... .... .. . ..... 153
Controls and equip­
ment Safety first
Kick-down
.... ..... .. ..... .. . .... 151
Manual shif t program . ...... ...... 152
Selector lever ...... ........ .... .. 149
Shift buttons . ...... .... ... .. ... . 153
Steering wheel with tiptronic ....... 153
Automatic wip e/wash system ...... ... . 61
Average speed ........... .... .... .... 23
Avoid damaging the vehicle ........... 244
B
Battery . .... .... ...... ....... .... .. 281
Battery location inside the luggage
compartment .. . .. .. .... .... .... 282
Charging ............. .... ... .... 284
Important warnings when working on the
battery ..... .. .. .... .... .... ... 282
Jump starting ............. ... .... 326
Low ... .. .... .. . .. ... ....... .... 241
Replacing the battery ......... .... 285
State of charge . .............. .... 241
W inter operat ion . .... .... .... .... 281
Working on th e battery ...... .... .. 282
Battery voltage ..... ....... .... .... .. 35
Before driving ... ..... .. ... ... .. .... 169
Blended gasoline ... . .. ... ....... .... 265
Body cavity sealing ...... ...... ... .. . 258
Boost er seats .... .... .... ...... ... .. 221
Brake assist ..... .... .... .... .... ... 239
Brake booster .... .. .. ... ..... .. . .... 238
Brake fluid Changing the brake fluid .. .... .... 281
Checking the brake fluid level .. .... 280 Reservoir
.. .... .. .. ... .... .... ... 280
What is the correct brake fluid level? 280
What should I do if the brake fluid warning
light comes on? ..... .... .... .. . . 280
Brake system .... ... .... .... .... .... 280
Anti-lock brake system ............. 15
Brake fluid . ........... .... ....... 280
Brake fluid specifications for refill and
replacement . .... .... .... ...... . 281
Brake light defec tive ... ...... ... .. . 35
Brake pads ..... .. ...... ....... .. 244
Electromechanical parking brake .... 112
General information ...... .... ... . 237
How does moisture or road salt affect the
brak es? . ...... .. ...... .... .... . 237
Malfunc tion ... .. .. .. .... .... ..... 29
Warning/indicator lights .... ...... .. 16
Worn brake pads symbol .. ... .... .. 34
Braking guard
See Audi braking guard .... .... ... . 132
Break -in period ...... .... .. .. .... ... 243
Brake pads ... .... .... ........... 244
Tires ... ..................... .. .. 243
Bulbs .... .... ... ... ... .. ...... .... . 324
C
California Proposition 65 Warning ... .. 272
Battery specific ... .... .... .... ... . 283
Capaciti es .. ... .... .... .... .... ..... 337
Car care ... . .... .. .. .... .... .... .. . . 252
Inter ior .... ... .... .... ...... ..... 259
P lastic and vinyl ....... ......... .. 256
Weatherstrips ... .. .... .. . .... ... . 257
Vehicle operation Vehicle care Do-it-yourself service Technical data
