AUDI A5 COUPE 2011 Owners Manual

_______________________________________________ W_ a _r_m _ a_ n_d _ c_o _l_ d _ __.ffl'I
The following functions can be selected :
• Auto recirculat.
~ page 109
• Synchronization~
page 109 •
Applies to vehicles: with D eluxe automatic climate con trol plus
Automatic recirculation
An air quality sensor detects increased concentrations of
pollutants in the outside air and automatically switches to recirculation mode.
We recommend that you always keep automatic recirculation ON to
prevent polluted outside air from entering the vehicle interior .
If the
air quality sensor located in the climate control system detects
polluted outside air, the sensor decides whether the air pollution can
be reduced by the factory-installed pollutant filter or whether it is
necessary to switch to recirculation. With heavy concentrations of
pollutants, the climate control system is switched automatically to
recirculation mode and the supply of outside air is blocked . As soon
as the concentration of pollutants in the outside air drops, fresh air is
supplied to the vehicle interior again.
I n the event that the windows fog up during automatic recirculation ,
press the
l<:wl button immediately.
Under certain operating conditions, automatic recirculation is
switched off automatically. When outside temperatures are below
about
50 °F ( +10 °C), automatic recirculation is limited to
30 seconds. When outside temperatures are below about 30 °F (-
1 °C),
automatic recirculation is limited to 15 seconds.•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Applies to vehicles: with Deluxe automatic climate control plus
Synchronization
One climate control setting for all seats .
After Synchronization is set to On, all of the subsequent climate
control settings (except for seat heating*) for the driver are trans­
ferred to the front passenger .
Synchronization is canceled when settings are adjusted on the front
passenger's side .•
Seat heating
App lies to v ehicl es: w ith front se at heati ng
Front seat heating~
The seat cushion and the seatback of the front seats can
be heated electrically.
- Press the (g button.
Fig. 105 Seat heating
button and regulator
-Rotate the regulator to the desired setting.
In position 0, seat heating is turned off. The control range is from 1
to 6 . .,,
Vehicle care Do-it-yourselt service iTechnical data

lffl!l.___w __ a _r_ m __ a_n_ d_ c_ o _ l_d _______________________________________________ _
Seat heating only functions when the seats are loaded with body
we igh t. If a pe rson is no t sit ting on the fron t seats, seat heat ing
should be sw itched off to prevent un intentiona l heating of the seat
surfaces .
(D Note
To avoid damage to the heating e lements in the seats, do not kneel
on the seats or place heavy loads on a small area of t he seat.
(I) Tips
Please note that objects placed o n the seats may be detected. If these
objects are heavy enough, their we ight w ill cause the seat heat ing to
switch on. •

________________________________________________ ..::O ::_ n :...:_ t:::: h:...:.:: e:....'....: ro~ a'.!d :=.._ _J-
On the road
Steering
Manually adjustable steering wheel
The h eight and reac h of th e steering wh eel c an be
a djusted.
First, adjust t he dr iver's se at correct ly.
Fi g. 10 6 Leve r und er
the ste ering column
- Pull the lever:::::, fig. 106 -A rrow-:::::, &.
- M ove t he steeri ng wheel to the d esir ed po sition.
- Push the lever against the steeri ng column un til it loc ks.
T here must be at least 10 inches (25 cm) between your chest and the
cen ter o f the stee ring whee l. If you canno t sit more than 10 inches
(25 cm) from the steer ing wheel , see if adaptive equ ipment is avail­
able to help you reach the pedals and increase t he distance from the
steering wheel.
For detai led information on how to adjust the dr iver's seat , see
::>page 76.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration T
he steering wheel can be adjusted even whe n the ign ition is turned
off. For veh icles with seat memory, the individual positions for the
stee ring wheel ca n be st ored along wi th t he sea t pos it ion.
& WARNING
Improper use of steering wheel adjustment and improper seating
position can cause serious personal injury .
• Adjust the steer ing wheel column only when the vehicle is not
moving to prevent loss of vehicle control.
• Adjust the dri ver's seat or steering wheel so that there is a
minimum of 10 inches (25 cm) between your che st and the
steering wheel=>
page 172, fig. 164. If you cannot maintain th is
minimum distance , the airbag system cannot protect you prop­
erly .
• If phy sical limitations prevent you from sitting 10 in ches (25
cm) or more from the steering wheel, check with your authorized
Audi dealer to see if adaptive equipment is available.
• If the steering wheel is al igned w ith your face , the supp le­
mental driver 's airbag cannot provide as much protection in an
accident . Always make sure that the steering wheel is aligned with
your chest.
• Always hold the steering wheel with your hands at the 9 o 'clock
and 3 o'clo ck position s to reduce the risk of personal injury if the
driver 's airbag deploys .
• Never hold the steering wheel at the 12 o'clock po sition or with
your hands inside the steering wheel
rim or on the steer ing wheel
hub. Holding the stee ring wheel the wrong way can cause serious
injur ies to the hands, arms and head if the driver's airbag
deploys. •
Vehicle care Do-it-yourselt service iTechnical data

-On the road .,.,..___ ______________ _
Ignition Lock and ignition switch
Starting engine with the key
The ignition is switched on and the engine started with
the ignition key.
Fig. 107 Ignition key
-Insert the key into the ignition lock.
-fvtanual transmission: Fully depress the clutch pedal and
move the shift lever to the neutral position.
-Automatic transmission*: Step on the brake pedal and
move the selector lever to the
P or N position.
- Press the key=> fig. 107 -the engine will start .
By pressing the key without stepping on the clutch or the brake, the
ign ition is switched on and off. With the ignition on, the steering
wheel is unlocked.
You can only remove the key with the ignition switched off . To do this,
you have to press on the key again. With an automatic transmiss ion,
the selector lever must be in the
P position.
When starting the engine, major electrical loads are switched off
temporarily . After
starting a cold engine, there may be a brief period of increased
noise because the oil pressure must first build up in the hydraulic
valve adjusters . This is normal and not a cause for concern .
If the engine should not start immediately, the starting process is
automatically stopped after a short time. Repeat starting procedure.
Driver message in the instrument cluster display
Press brake pedal to start engine
This message appears if you do not step on the brake pedal to start
the engine on a vehicle w ith an automatic transmission .
Press clutch pedal to start engine
This message appears if you do not step on the clutch pedal to start
th e engine on a vehicle with a manual transmission.
Engage N or P to start engine
This message appears when attempting to start the engine if the
selector lever for the automatic transmission is not in the
P or N posi­
tion . The engine can only be started with the selector in these posi­
tions.
Shift to P, otherwise vehicle can roll away. Doors do not lock if lever
is not in P.
Thi s message appears for safety reasons along with a warning signal.
It appears if the selector lever for the automatic transmission is not
in the
P position after the ignition is switched off . Move the selector
lever to the
P position, otherw ise the vehicle is not secured against
rolling away. You also cannot lock the vehicle using the locking
button on the door handle or using the remote key.
& WARNING
• Always take the key with you whenever you leave your vehicle.
Otherwise, the engine could be started or electrical equipment
such as the power windows could be operated. This can lead to
serious injury.

On the road -
----------------
& WARNING (co ntinued )
• Never leave children or per sons requiring a ssistan ce unat­
tended in the vehicle. The doors can be locked using the remote transmitter, p reventing people from escaping from the vehicle on
their own in the event of an emergency. Depending on the time of
year , people inside the vehicle can be e xposed to very high or very
low t emperatures .
• Never remove the ignition key from the ignition look while the
vehicle is moving. Otherw ise, the steering lock could suddenly
engage and you would not be able to steer the vehicle.
0 Note
• In the event of a malfunct ion in the electronic ignit ion lock a
symbo l in th e i nstr umen t cluster flashes wi th the message
Ignition
lock defective .
• Avoid high eng ine spee ds, fast a cce le ra ti on or heavy eng ine load s
whi le the engine is still cold. This cou ld damage t he eng ine .
To avoid unnecessary engine wear and to reduce exhaust emiss ions,
do no t let your vehicle s tand and w arm up. Be re ady to dr ive off i mme ­
diately after starting your ve hicle . Maintain moderate speed unt il the
engine is complete ly warm . R emember, the engine per forms best at
operati ng temperature .
[I) Tips
• If the key ca nnot be removed from the ignition loc k, yo u have to
pull the mec hanical key o ut of t he maste r key in orde r to be able to
loc k the ve hicle The ve hicle can b e loc ked wi th the mec hani ca l key
=> page 44.
• If you open the driver's doo r wi th the ig nit io n switched on, a
buzzer soun ds an d the message
Ignition is on appea rs in the instru ­
m ent cl uster d isplay. Swit ch the ig nitio n off. •
Controls and equip ­
ment Safety first
Stopping the engine
-
Bring th e v ehicle t o a f ull s to p.
- Automatic transmission*: Move th e selector lever to t he P
or N position .
-Press on the igni tion key. The e ngi ne is tu rned off .
Emergency off
If it i s n ecess ary in unusu al circum stances, the eng ine can be
switched of f while the vehicle is mov ing. The engine will be switched
o ff if you pres s on t he key fo r an e xtende d peri od.
& WARNING
• Never turn off the engine until the vehicle has come to a
complete stop.
• The brake booster and servotronic only work when the engine
is running. With the ignition turned off , you have to apply more
force when steering or braking. Since you cannot steer and stop
normally , this can lead to accidents and serious injuries .
• The radiator fan can continue to run for up to 10 minutes even
after you have turned off the engine and removed the ignition key.
The radiator fan can also turn on again if the engine coolant heat s
up because of intense sunlight or heat build-up in the engine
c ompartment.
0 Note
Do no t stop the engine im medi ately a fter hard or ex tended dr iv ing.
Keep the eng ine running for approx imately two m in utes to prevent
exces sive he at build- up. •
Vehicle care Technical data

llffl..__O_ n_ t_h _e_ r_o _ a_ d _________________________________________________ _
Starting and stopping the engine
with convenience key
A pplies to veh ic le s: with conven ience ke y
Starting the engine with the
[START ENGINE S TOP] button
This button switches on the ignition and starts the
engine.
Fig. 108 Convenience
key: START ENGINE
STOP button
-Manual transmission: Fully depress the clutch pedal and
move the shift lever to the neutral position.
- Automatic transmission*: Step on the brake pedal and
move the selector lever to
P or N ==> & .
- Press on the [START ENGINE STOP) button==> fig. 108 -
the engine will start.
By pressing the [START ENGINE STOP I button without depressing
the clutch or the brake peal, the ignition is switched on and switched off by pressing it again.
If the engine does not start immediately, stop trying after 10 seconds
and then try to restart the engine about 30 seconds later. After a cold engine is started, there may be a brief period of
increased
noise because oil pressure must first build up in the hydraulic valve
adjusters. This is normal and not a cause for concern.
Driver message in the instrument cluster display
No key identified
This message appears when the !START ENGINE STOP! button is
pressed if there is no master key inside the vehicle or if the system
does not recognize it. For example, the master key cannot be recog­
nized if it is covered by an object (e .g. aluminum brief case) which
screens the radio signal. Electronic devices such as cell phones can
also interfere with the radio signal.
Press brake pedal to start engine
This message appears ifyou pressthe!START ENGINE STOP!
button to start the engine and do not depress the brake pedal. The
engine can only be started if the brake pedal is depressed.
Press clutch pedal to start engine
Th is message appears with a manual transmission when you press
the [START
ENGINE STOP ! button to start the engine and do not
depress the clutch pedal. The engine can only be started when the
clutch pedal is depressed.
Engage N or P to start engine
This message appears when attempting to start the engine if the
selector lever for the autom atic transmission is not in the
P or N posi­
tion. The engine can only be started with the selector in these posi­
tions.
Key not in vehicle
This message appears along with the symbol if the master key is
removed from the vehicle with the engine running. It is intended to
remind you (e.g. when changing drivers) not to continue the journey
without the master key.
If the master key is no longer in the vehicle, you cannot switch on the
ig nition after stopping the engine and you also cannot start the .,_

On the road Ill
----------------
engine again . Moreove r, yo u ca nn ot loc k the ve hicle from the outside
w ith th e key.
Shift to P , otherwise vehicle can roll away. Doors do not lock if lever
is not in P.
T hi s message appears for safety reasons along with a wa rn ing signal.
I t app ear s if the sele ct or l eve r for the a utomatic t ran smi ssion is not
in the
P pos itio n w hen sw itch ing off t he ig ni tio n wit h the
!START E NGINE STO P! bu tton . Move t he se lec to r lever to the P
posi tion, otherwise the vehicle is not sec ure d aga inst rolling away .
You also cannot l ock the ve hicl e usin g th e lockin g button on the door
han dle or us ing the remo te key .
Convenience key defe ctive ! Use ignition lock
T his me ssag e ap pea rs if t he v ehi cle has to be star ted not w it h t he
!START ENGINE S TOPJ button bu t with the ig nitio n key.
& WARNING
• Never allow the engine to run in confined spaces· danger of
asphyxiation.
• Never turn off the engine until the vehicle has come to a
complete stop.
• The brake booster and servotronic only work when the engine
is running. With the ignition turned off, you have to apply mo re
force when steering or braking . Since you cannot steer and stop
normally, this can lead to accidents and serious injuries .
0 Note
• Avoid high engine rpm, full throttle and heavy engine loads until
t he e ngine h as re ache d op era ting te m pera tu re - oth erwise you risk
eng ine damage.
• Th e engi ne can not b e start ed by p ushin g or t owing th e vehi cle.
• If the eng ine has bee n unde r heavy load for a n extended per iod,
heat builds up i n the engine compa rt me nt after the en gine is
Controls and equip ­
ment Safety first
switched off- t
here is a risk o f damag ing the engine. Allow the engine
to run at id le f or ab out 2 minu tes before sw itc hing it off .
W Tips
If you open the driver's doo r with t he ignition switc hed o n, a buzzer
so unds a nd the message
Ignition is on ap pears in t he instr ument
cl uster disp lay . Switc h the ign ition off .•
A pp lies to vehicles : w it h c onvenie nce key
Sw itching engine off with the
[ STAR T ENGINE S TOP] button
- Bring y our ve hic le to a c om ple te s top.
- Auto mat ic t ra nsm iss ion*: Mo ve t he sele ct o r le ver to th e
P
o r N po sition .
- Press the [START ENGINE STOP ] button ~ page 114,
fi g. 108 .
Emergency OFF function
If necessa ry, th e eng ine c an b e swi tched off w ith the se lec to r lever in
t he
R , D or S* positio ns. To do so, step on t he b rake pedal a nd pr ess
and ho ld the
!START ENGINE STO P! button (veh icle spee d must be
less than 6 mph/ 10 km/h.
& WARNING
• Never turn off the engine until the vehicle has come to a
c omplete stop.
• The brake booster and servotronic only work when the engine
is running . With the ignition turned off, you have to apply more
force when steering or braking. Since you cannot steer and stop
normally , this can lead to accident s and serious injuries.
~

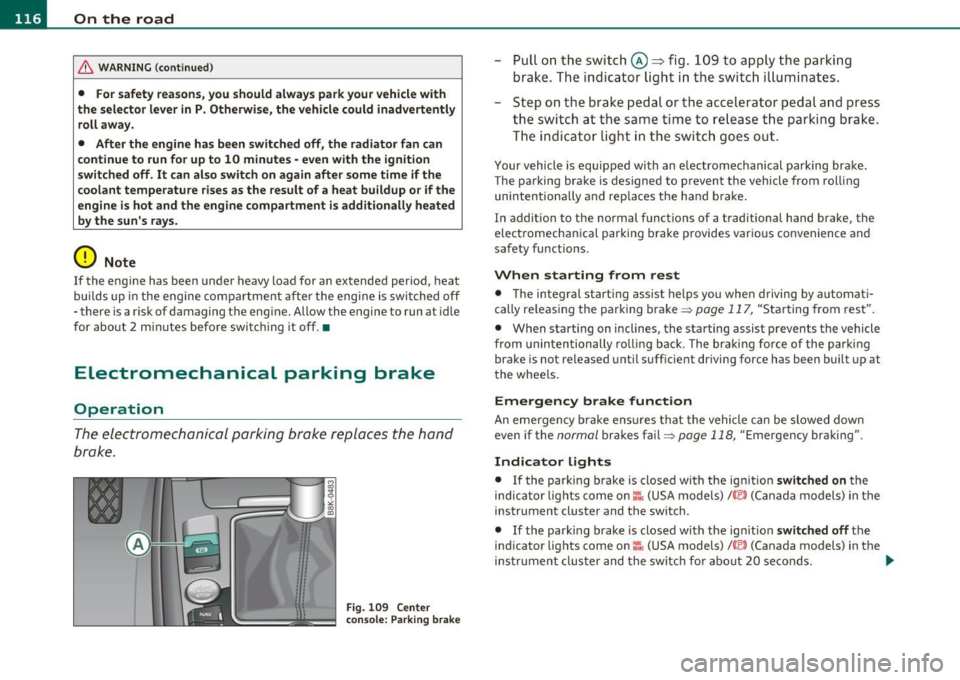

Vehicle care Technical data

lffll..__O_ n_ t_h _e_ r_o _ a_ d _________________________________________________ _
& WARN ING (con tinu ed)
• For safety rea sons , y o u should alwa ys park your vehicle with
the selector lever in P . Otherw ise, the vehicle could inadvertently
roll
away.
• After the engine has been switched off, the radiator fan can
continue to run for up to 10 minutes -even with the ign ition
switched off.
It can al so switch on again after some time if the
c oolant tempe rature rises as the result of a heat buildup o r if the
engine i s hot and the engine compartment is additionally heated
by the sun 's rays.
0 Note
If the eng ine has been under heavy load for an extended per iod, heat
build s up i n the engine comp artment afte r the engine is swi tched off
- there is a risk of damaging t he engine. Allow the engine to run at id le
for about 2 m inutes befo re swi tc h ing it off. •
Electromechanical parking brake
Operation
The ele ctromechanical parking bra ke re places the hand
brake.
Fig. 1 09 Center
c o ns ole: P arki ng bra ke
- Pull o n the switc h@ ~ fig . 109 to app ly the parking
brake . The ind icator ligh t in the switc h illu minates.
- Step o n the brake pedal or the accelerator pedal a nd press
t he swit ch at the same ti me to release t he parking brake.
T he indicator lig ht in th e swi tc h go es o ut.
Your vehicle is equ ip ped with an e lectromechanical pa rking bra ke.
The parking brake is designed to prevent the vehicle from rol ling
unintentio nally and rep laces t he ha nd b rake.
In addit ion to the normal functions of a traditional hand brake, the
elect romecha nica l par kin g brake provides various convenience and
safety functions .
When starting from rest
• The integral start ing assist helps you when driving by automat i­
cally re leas ing the parking bra ke =>
page 11 7, "Starting from res t".
• When starting on inclines, the sta rting assist prevents the vehicle
from uninten tionally ro llin g back. The br aking f orce of the par king
brake is not released unti l suff icient dr iving force has been built up at
t he whee ls.
Emergency brake function
An e mergency b rake ens ures t hat the vehicle can be sl owed down
even if the
normal brakes fail=> page 118, "Emergency bra kin g" .
Indicator lights
• If the park ing brake is closed w ith the ign it io n switched on the
indic ator lig hts come on
::'fa (USA models)/ © (Can ada models) in the
instrument cluster and the switch.
• If the park ing b rak e is closed with the ign it io n switched off the
indicator lights come on ::':. (USA models)/ © (Canada models) in the
in st rum ent cl ust er and the swit ch for abou t 20 se conds. ._

_________________________________________________ O_ n_t_ h ___: e:....:.. ro.::...:. a:..:d:....:.._ffl'II
& WARNING
If a gear or a drive range (automatic transmission) is engaged
with the vehicle stationar y and the engine running , you mu st
in no
instance ac celerate or release the clutch carelessly . Otherwise the
vehicle will start to move immediately -risk of an accident.
0 Note
If the symbo l (CD) in the display or t he indicator lig ht BRAKE (USA
mode ls)/ {(l)) (Canada mode ls) in t he inst rume nt cl uster flashes , th ere
is a malfunct io n in the brake system. By pressing the
I SET ] button,
yo u ca n br ing up a dr ive r message w hich explains the ma lf u nct io n in
more detail. If the driver message
Parking brake! appears, there is an
operat ing malfunc tion in the par king b rake which yo u should have
repaired immediately by an authorized Audi dea ler or other qualified
wo rksh op ~
page 33.
[ i ] Tips
• You can app ly the pa rking brake at any time -even wi th t he ig ni ­
t ion turned off . T he ign ition must be turned on i n order to release the
park ing b rake .
• Occas ional noises when the parking brake is applied and released
are normal and a re not a ca use fo r concern.
• When the ve hicle is parked, the parking brake goes through a self­
t e st cy cl e a t regu lar inte rvals . Any a ssoci ate d noises are normal. •
Parking
Various rules apply to prevent t he parked v ehicle from
rolling away accidentally.
Parking
- Sto p the v ehicle wi th t he foot brak e.
Controls and equip ­
ment Safety first
-
Pull t he sw itc h to ap ply t he parking brake .
- Automat ic trans mission* : M ove the selector lever to
P .
- T urn t he eng ine off ~& .
- Manual t ransmissi on: Sh ift in to 1 st gear .
In addition on inclines and grades
- Turn t he steeri ng w heel so t hat your vehicle w ill roll
agai nst t he cu rb in case it shou ld sta rt to m ove.
& WARNING
• When you leave your vehicle -even if only briefly -always
remove the ignition key . Thi s applies particularly when children
remain in the vehicle. Otherwise the children could start the
engine , release the parking brake or operate electrical equipment
( e .g. power window s) . There is the risk of an accident.
• When the vehicle is lo cked, no one -particularly not children
should remain in the vehicle . Locked doors make it more difficult
for emergency workers to get into the vehicle -putting lives at
risk. •
Starting from rest
The st artin g assis t func tion ensures th at the p arking
br ake is rele ased a utomatically upo n sta rting .
Stopping and applying parking brake
- Pu ll th e sw itc h t o ap ply t he pa rking brake.
Starting and automatically releasing the
parking brake
- Wh en you start to d rive as usual , the park ing brake is auto-
matically released and your ve hicle begins to move . .,..
Vehicle care Technical data

_____ o_ n_ t_h _e_ r_o _a _ d ________________________________________________ _
When stopping at a traffic signal or stopping in city traffic on vehicles
with an automatic transmission, the parking brake can be applied.
The vehicle does not have to be held with the footbrake . The parking
brake eliminates the tendency to creep with a drive range engaged.
As soon as you drive
off as usual, the parking brake is released auto ­
matically and the vehicle starts to move.
Starting on slopes
When starting on inclines, the starting assist prevents the vehicle
from unintentionally rolling back. The braking force of the parking
brake is not released until sufficient driving force has been built up at
the wheels .
[I) Tips
For safety reasons, the parking brake is released automatically only
when the driver 's safety belt is engaged in the buckle. •
Starting off with a trailer
To prevent rolling back unintentionally on an incline, do
the following:
- Keep the switch pulled and depress the accelerator. The
parking brake stays applied and prevents the vehicle from
rolling backward.
- You can release the switch once you are sure that you are
developing enough driving force at the wheels by
depressing the accelerator.
Depending on the weight of the rig (vehicle and trailer) and the
severity of the incline, you may roll backwards as you start. You can
prevent rolling backwards by holding the parking brake switch pulled
out and accelerating -just as you would when starting on a hill with a
conventional hand brake. •
Emergency braking
In the event that the conventional brake system fails or
locks.
- In an emergency, pull the switch and continue to pull it to
slow your vehicle down with the parking brake .
- As soon as you release the switch or accelerate, the
braking process stops.
If you pull the switch and hold it above a speed of about 5 mph (8
km/h), the emergency braking function is initiated. The vehicle is
braked at all four wheels by activating the hydraulic brake system.
The brake performance is similar to making an emergency stop:::>& .
In order not to activate the emergency braking by mistake, an audible
warning tone (buzzer) sounds when the switch is pulled. As soon as
the switch is released, or the accelerator pedal is depressed, emer­
gency braking stops.
& WARNING
Emergency braking should only be used in an emergency, when
the normal foot brake has failed or the brake pedal is obstructed.
Using the parking brake to perform emergency braking will slow
your vehicle down as if you had made a full brake application. The laws of physics cannot be suspended even with ESP and its associ­
ated components (ABS, ASR, EDS). In corners and when road or
weather conditions are bad, a full brake application can cause the
vehicle to skid or the rear end to break away· risking an accident. •
Driver messages in the instrument cluster
Warning Vehicle incline is excessive
This message appears when the parking brake is applied on an incline
that exceeds about 30%. ._
