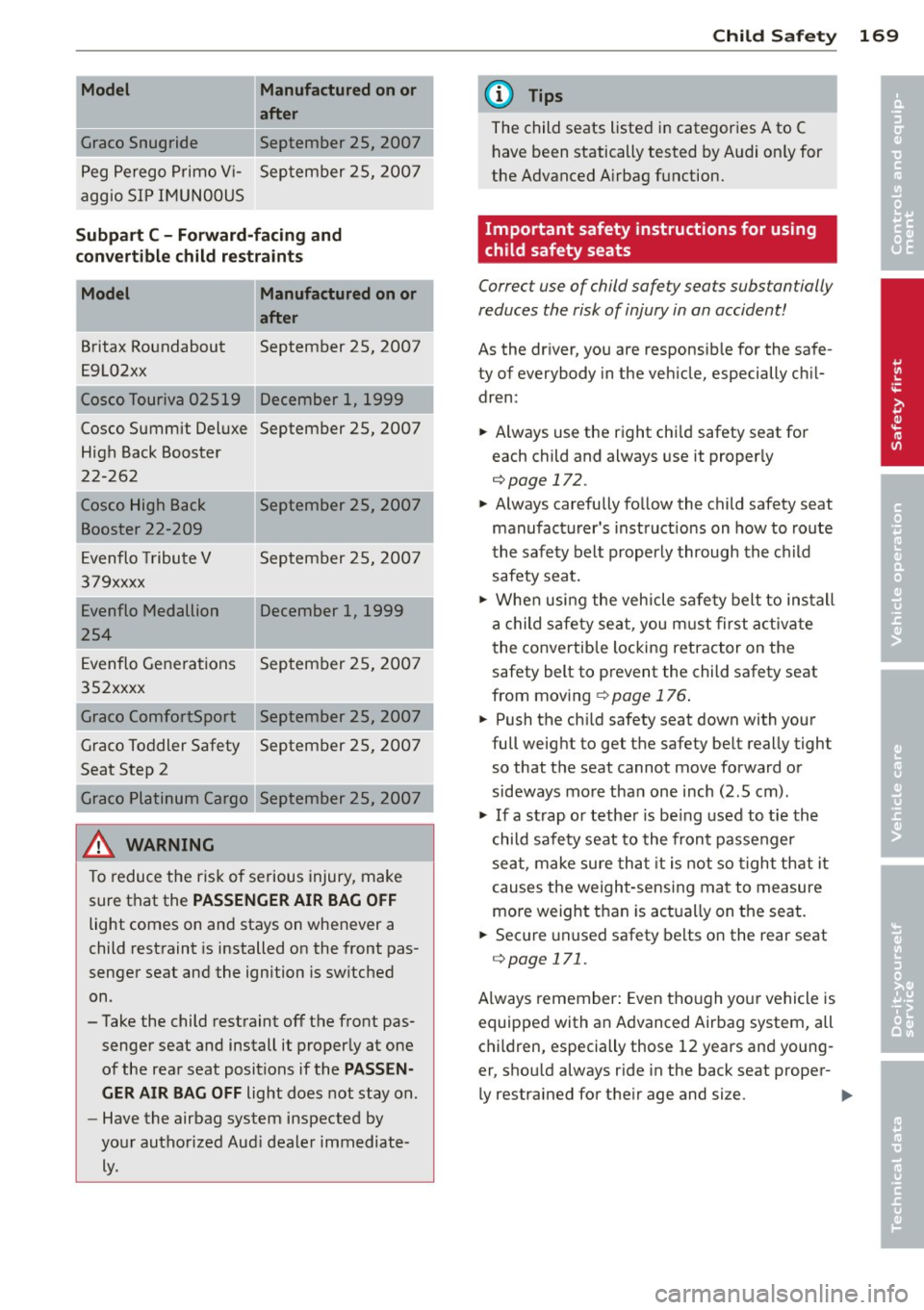

AUDI A5 COUPE 2013 Owners Manual

-Model Manufactured on or
after
Graco Snugride September 25, 2007
Peg Perego Primo V i- September 25, 200 7
aggio SIP I MUN00US
Subpart C -Forward-facing and
con vertible child r estra ints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back September 25, 2007
Booster 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
T o reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG O FF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the fro nt pas­
senger seat and install it properly at one of the rea r seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Child Sa fet y 169
'
(D Tips
The child seats listed in categories A to C
have been statically tested by A udi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsib le for the safe­
ty of everybody in the vehicle, especially ch il­
dren:
... Always use the right chi ld safety seat for
each child and always use it properly
¢page 172 .
... Always carefully fo llow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the child
safety seat.
... When usi ng the veh icle safety belt to ins tall
a child safety se at, you m ust first activate
the convertib le locking retractor on the
safety belt to prevent the child safety seat
from moving
¢ page 176.
... Push the ch ild safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2 .5 cm) .
... If a strap o r tethe r is be ing used to tie the
child safety seat to the fron t passenger
s eat , make sure tha t it is not so tight that it
causes the weight-sensing mat to measure
more weight than is act ually on the seat.
... Sec ure unused safety belts on the rear seat
¢ page 171.
Always remember : Even tho ugh yo ur vehicle is
equipped with an Advanced Airbag system, all c h il dren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper -
ly restra ined for the ir age and size. .,_ •
•

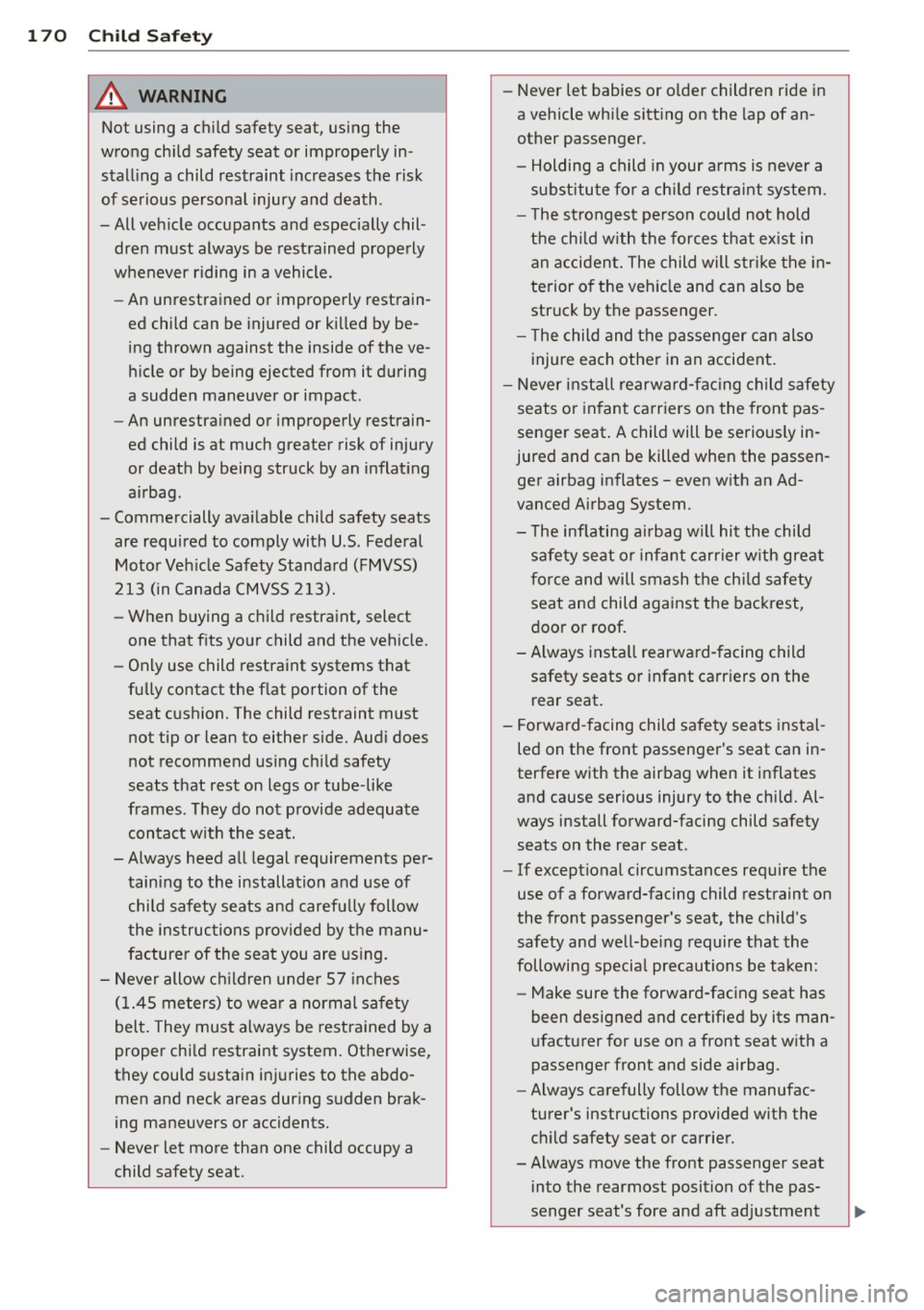

1 70 Child Safety
&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil ­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact .
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube -like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat . -
Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system.
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident.
- Never install rearward-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety
seat and child against the backrest,
door or roof.
= Always install rearward-facing child
safety seats or infant carriers on the
rear seat.
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates and cause serious injury to the child. Al­
ways install forward-facing child safety seats on the rear seat .
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require that the
following special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas-
senger seat's fore and aft adjustment
~

range, and as far away from the a irbag
as poss ible before instal ling the child
restraint.
- Always make sure that nothing pre­
vents the front passenger's seat from be ing moved to the rearmost position
i n its fore and aft adjustment range.
- Always make sure that the backrest is
in the upr ight position.
- Always buckle the child safety seat firmly
in place even if a child is not sitting in it.
A loose ch ild safety seat can fly around
dur ing a sudden stop or in a coll is ion .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c:::;,page 134, Safety
belts,
c:::;, page 142, Airbag system and
¢ page 166, Child Safety.
.8, WARNING
To reduce the risk of serious injury, make
sure tha t the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child rest raint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­
senger seat and install it proper ly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Secure unused safety belts on the rear
seat
F ig. 150 Schematic overview: kee p un used safety be lts
away from chil dren in child safe ty seats. @-oute r rear
safety be lt
.
Child S afety 1 71
If a child safety seat is used on the rea r bench,
especially with LATCH universal lower ancho­
rages, the unused safety belts
must be se­
cured so that the child in the child restraint
cannot reach them
c:::;, &,.
- Guide the safety belt webbing behind the
head restra int of the seat where the child re­
straint is installed ¢
fig. 150. When doing
so, do not engage the switchable locking re­
tractor ! You should not hear a "clicking"
sound when wind ing up the safety belt.
- Let the belt retractor wind up the safety belt
webbing.
.8, WARNING
A child in a chi ld safety seat installed with
the LA TCH lower anc horages or with the
standa rd safety be lt or a child in a booster
se at o n the rea r seat co uld play with un­
used rear seat safety belts and become en ­
tang led . This cou ld cause t he chi ld ser ious
personal injury and even death.
-A lways secure unused rear seat sa fe ty
be lts out of reach of children in child
seats such as by proper ly rout ing them
around the head restraint of the seat
where the ch ild restraint is installed.
- Never activate the switchable locking re­
tracto r when routing the safety belts
around the head restraints.

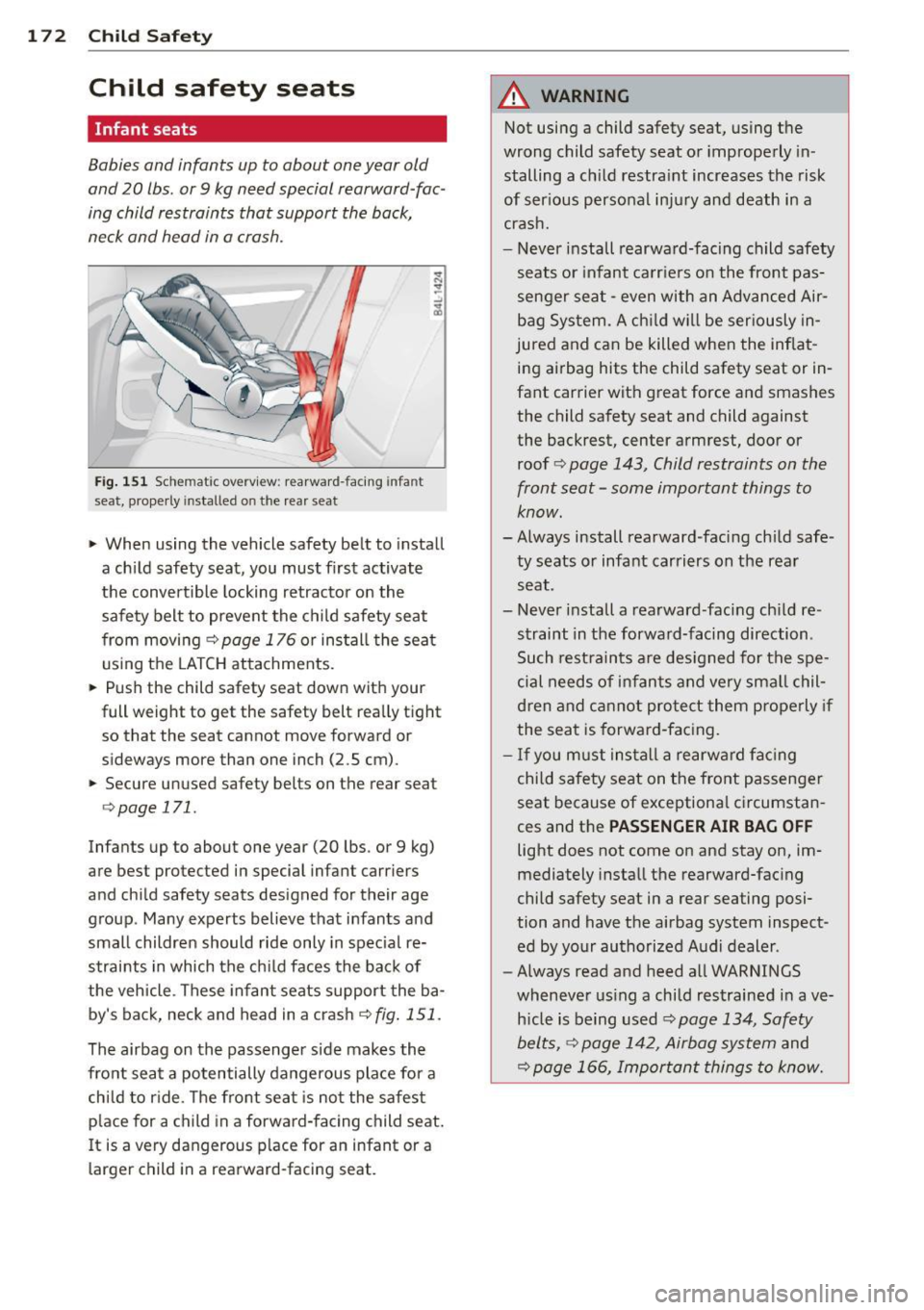

17 2 Child Safety
Child safety seats
Infant seats
Babies and infants up to about one year old
and 20 lbs. or 9 kg need special rearward-fac­
ing child restraints that support the back,
neck and head in a crash.
-- /
Fig . 151 Schematic overv iew: rearwa rd -fac ing infant
seat, properly installed on the rear seat
> When using the vehicle safety belt to install
a ch ild safety seat, you must first activate
the convertible locking retractor on the
safety belt to prevent the child safety seat
from moving ¢
page 176 or install the seat
using the LATCH attachments .
> Push the child safety seat down with your
full weight to get the safety belt really tight
so that the seat cannot move forward or
s idew ays more than one inch (2.5 cm).
> Secure unused safety belts on the rear seat
¢page 171.
Infants up to about one year (20 lbs. or 9 kg)
are best protected in special infant carriers
and child safety seats designed for their age
group . Many experts believe that infants and
small children should ride only in spec ial re­
straints in which the chi ld faces the back of
the vehicle . These infant seats support the ba­
by's back, neck and head in a crash¢
fig. 151 .
The airbag on the passenger side makes the
front seat a potentially dangerous place for a
child to ride . The front seat is not the safest
p lace for a child in a forwa rd-facing child seat.
I t is a very dangerous p lace for an infant or a
larger child in a rearward-facing seat.
A WARNING
-Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a ch ild restra int increases the risk
of ser ious personal injury and death in a
crash.
- Never install rearward-facing child safety
seats or infant ca rr ie rs on the front pas­
senger seat -even with an Advanced Air­
bag System. A child will be ser iously in­
jured and can be killed whe n the inflat ­
ing airbag hits the child safety seat or in­
fant carrier with great force and smashes the child safety seat and child against
the backrest, center armrest, door or roof¢
page 143, Child restraints on the
front seat -some important things to
know.
- Always install rearward-facing ch ild safe­
ty seats or infant carriers on the rear seat.
- Never install a rearward-facing ch ild re­
straint in the forward-facing direction .
Such rest ra ints are designed for the spe­
cial needs of infants and very smal l chil­
dren and cannot protect them properly if
the seat is forward-facing.
-If you must install a rearward facing
chi ld safety seat on the front passenger
seat because of exceptiona l circumstan ­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rearward-fac ing
child safety seat in a rear seating posi­
tion and have the airbag system inspect­
ed by your authorized Aud i dealer .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
h icle is being used
¢page 134, Safety
belts,
¢ page 142, Airbag system and
¢ page 166, Important things to know.

Convertible child safety seats
Properly used convertible child safety seats
can help protect toddlers and children over
age one who weigh between 20 and 40 lbs. (9
and 18 kg) in a crash.
Fig. 152 Schematic overview: installat ion of the at­
tachments applicable to a LATCH seat
F ig. 153 Schematic overview: installation of the seat
using the vehicle's safety belt system
.. When using the vehicle safety be lt to insta ll
a chi ld safety seat, you must f irst activate
the convertible locking feature on the safety
belt to prevent the child safety seat from
moving
c::>page 176 or install the seat using
the LATCH attachments.
.,. Push the child safety seat down w ith your
full weight to get the safety belt really t ight
so that the seat cannot move forward or
s ideways more than one inch (2.5 cm)
c:;, page 176.
.,. If the child safety seat is equ ipped with a
tether strap, attach it to the tether anchors
c:;, page 182 .
.. Secure unused safety belts on the rear seat
c:;, page 171.
A toddler or child is usually too large for an in­
fant restraint if it is more than one year o ld
and weighs more than 20 lbs. (9 kg). Child Safety 173
Toddlers and children who are older than one
year up to about 4 years old and weigh more
than 20 lbs. (9 kg) up to 40 lbs. (18 kg) must
always be properly restrained in a child safety
seat cert ified for their size and weight
c::>fig . 152 and c::>fig. 153.
The airbag on the passenger side makes the
front seat a potentially dangerous place for a
child to ride. The front seat is not the safest place for a child in a forward-facing child safe­
ty seat.
It is a very dangerous place for a n in­
fant or a large r ch ild in a rearward-facing seat .
.&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or imprope rly in­
stalling a chi ld restraint increases the risk
of serious personal injury and death in a
collision or other emergency situation .
- Ch ildren on the front seat of any car,
even with Advanced Airbags, can be seri­
ously injured or even killed when an air­ bag inflates. A child in a rearward-facing
child safety seat installed on the front passenger seat will be serious ly injured
and can be killed if the front airbag in­
flates -even with an Advanced Airbag
System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rearward-f acing child safe­
ty seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and t he
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rearward-fac ing
child safety seat in a rear seating posi­
tion and have the airbag system inspect­
ed by your authorized Audi dealer.
- The rear side of the child safety seat
should be positioned as close as possible
~

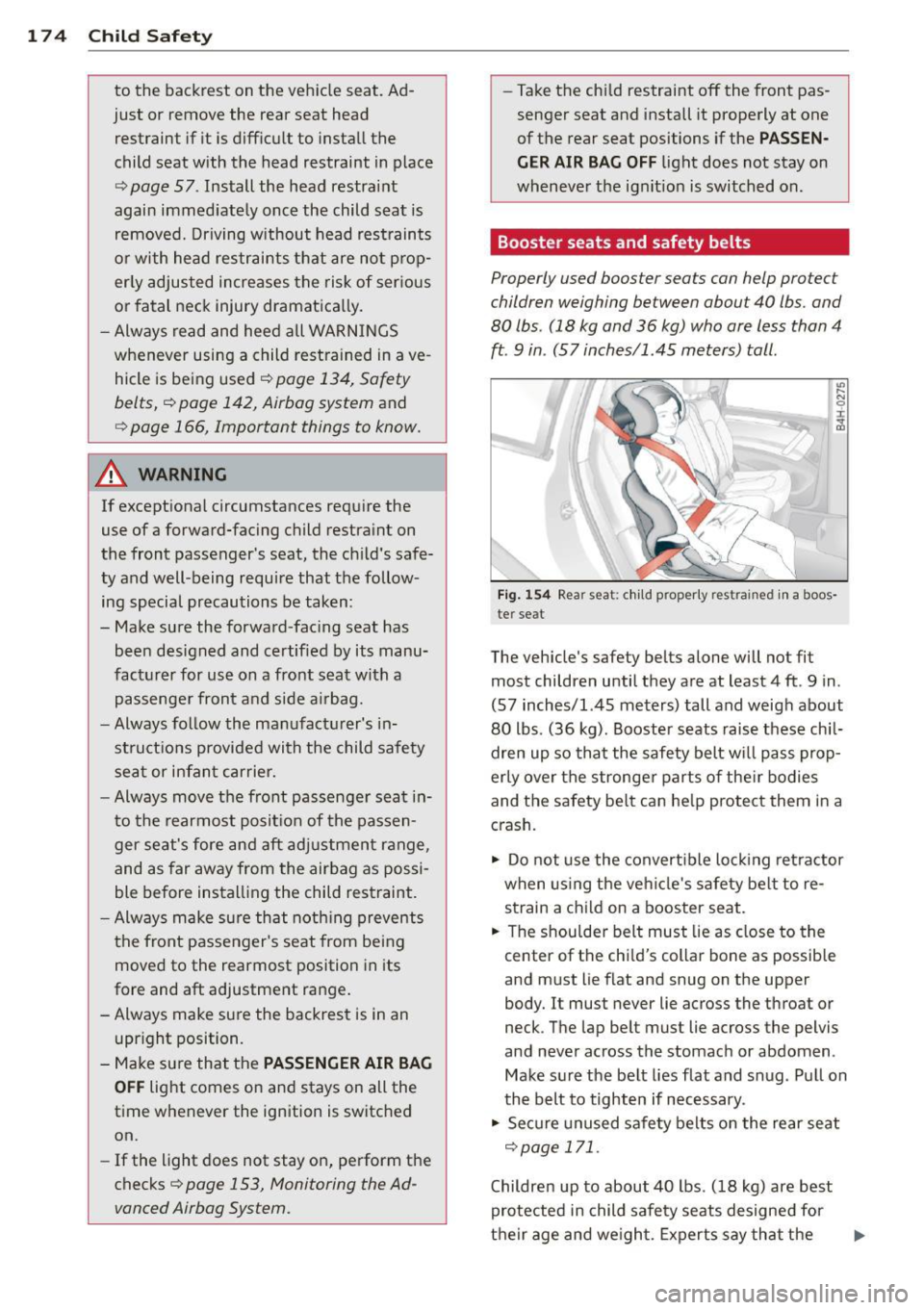

174 Child Safety
to the backrest on the vehicle seat. Ad­
just or remove the rear seat head restraint if it is difficult to install the
child seat with the head restraint in place
<=>page 57. Install the head restraint
again immediately once the child seat is
removed. Driving without head restraints
or with head restraints that are not prop­
erly adjusted increases the risk of serious
or fatal neck injury dramatically.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
<=> page 134, Safety
belts,<=> page 142, Airbag system
and
t::> page 166, Important things to know.
A WARNING
If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's safe­
ty and well-being require that the follow­
ing special precautions be taken:
- Make sure the forward-facing seat has been designed and certified by its manu­
facturer for use on a front seat with a passenger front and side airbag.
-Always follow the manufacturer's in­
structions provided with the child safety
seat or infant carrier.
- Always move the front passenger seat in­
to the rearmost position of the passen­
ger seat's fore and aft adjustment range,
and as far away from the airbag as possi­
ble before installing the child restraint.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its
fore and aft adjustment range.
- Always make sure the backrest is in an
upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
- If the light does not stay on, perform the
checks
<=> page 153, Monitoring the Ad­
vanced Airbag System.
-
- Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs. and
80 lbs. (18 kg and 36 kg) who are less than 4
ft. 9 in . (57 inches/1 .45 meters) tall.
"' .....
"' 0 ±
o5
Fig. 154 Rear seat: child properly restrained in a boos­
ter seat
The vehicle 's safety belts alone will not fit
most children until they are at least 4 ft . 9 in .
(57 inches/1.45 meters) tall and weigh about
80 lbs.
(36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass prop­
erly over the stronger parts of their bodies
and the safety belt can help protect them in a
crash.
.,. Do not use the convertible locking retractor
when using the vehicle's safety belt to re­
strain a child on a booster seat.
.. The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body. It must never lie across the throat or
neck . The lap belt must lie across the pelvis
and never across the stomach or abdomen .
Make sure the belt lies flat and snug. Pull on
the belt to tighten if necessary .
.,. Secure unused safety belts on the rear seat
<=>page 171.

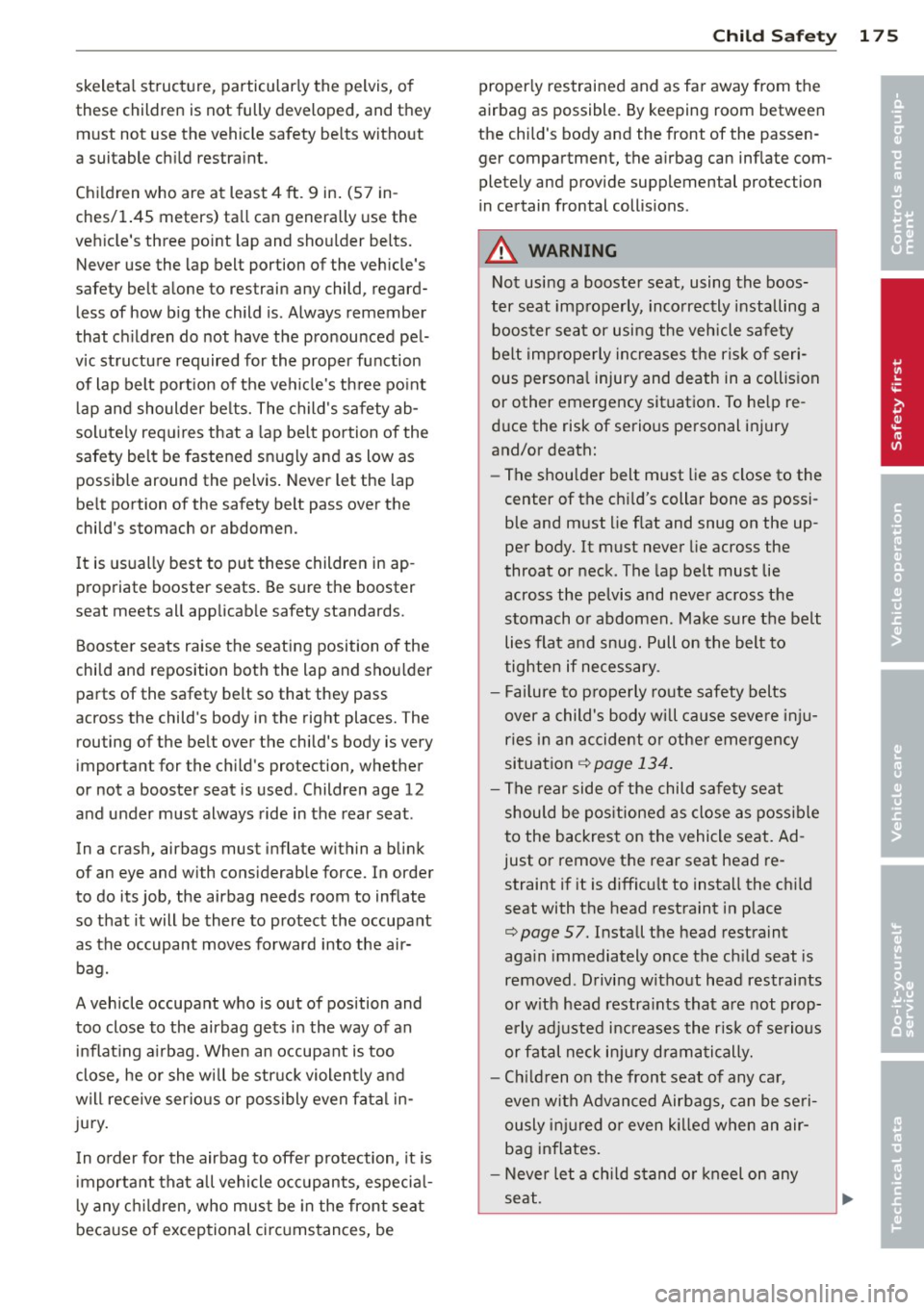

Children up to about 40 lbs. (18 kg) are best
protected in child safety seats designed for
their age and weight. Experts say that the

skeletal structure, particularly the pelvis, of
these children is not fully developed, and they
must not use the vehicle safety belts without
a suitable child restraint.
Children who are at least 4
ft. 9 in. (57 in­
ches/1.45 meters) tall can generally use the
vehicle's three point lap and shoulder belts.
Never use the lap belt portion of the vehicle 's
safety belt alone to res train any child, regard­
less of how big the child is . Always remember
that children do not have the pronounced pel­
vic structure required for the proper function of lap belt portion of the vehicle's three point
lap and shoulder belts. The child's safety ab­
solutely requires that a lap belt portion of the
safety belt be fastened snugly and as low as
possible around the pelvis. Never let the lap
belt portion of the safety belt pass over the
child 's stomach or abdomen.
It is usually best to put these children in ap­
propriate booster seats. Be sure the booster
seat meets all applicable safety standa rds .
Booster seats raise the seating position of the
child and reposition both the lap and shoulder parts of the safety belt so that they pass
across the child 's body in the right places. The
routing of the belt over the child's body is very
important for the child's protection, whether
or not a booster seat is used . Children age 12
and under must always ride in the rear seat.
In a crash, airbags must inflate within a blink
of an eye and with considerable force. In order
to do its job, the airbag needs room to inflate
so that it will be there to protect the occupant
as the occupant moves forward into the air­ bag.
A vehicle occupant who is out of position and
too close to the airbag gets in the way of an
inflating airbag. When an occupant is too
close, he or she will be struck violently and
will receive serious or possibly even fatal in­
jury.
In order for the airbag to offer protection, it is
important that all vehicle occupants, especial­
ly any children, who must be in the front seat
because of exceptional circumstances, be
Child Safety 175
properly restrained and as far away from the
airbag as possible. By keeping room between
the child 's body and the front of the passen­
ger compartment, the airbag can inflate com­
pletely and provide supplemental protection
in certain frontal collisions .
A WARNING
Not using a booster seat, using the boos­
ter seat improperly, incorrectly installing a
booster seat or using the vehicle safety
belt improperly increases the risk of seri­
ous personal injury and death in a collision
or other emergency situation. To help re­
duce the risk of serious personal injury
and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possi­
ble and must lie flat and snug on the up­
per body. It must never lie across the
throat or neck . The lap belt must lie
across the pelvis and never across the
stomach or abdomen . Make sure the belt
lies flat and snug. Pull on the belt to
tighten if necessary .
- Failure to properly route safety belts
over a child's body will cause severe inju­
ries in an accident or other emergency
situation
¢ page 134.
- The rear side of the child safety seat
should be positioned as close as possible
to the backrest on the vehicle seat. Ad­
just or remove the rear seat head re­
straint if it is difficult to install the child
seat with the head restraint in place
¢ page 57. Install the head restraint
again immediately once the child seat is
removed . Driving without head restraints
or with head restraints that are not prop­
erly adjusted increases the risk of serious
or fatal neck injury dramatically.
- Children on the front seat of any car,
even with Advanced Airbags, can be seri­
ously injured or even killed when an air­
bag inflates.
- Never let a child stand or kneel on any
seat .
-
•
•

176 Child Saf ety

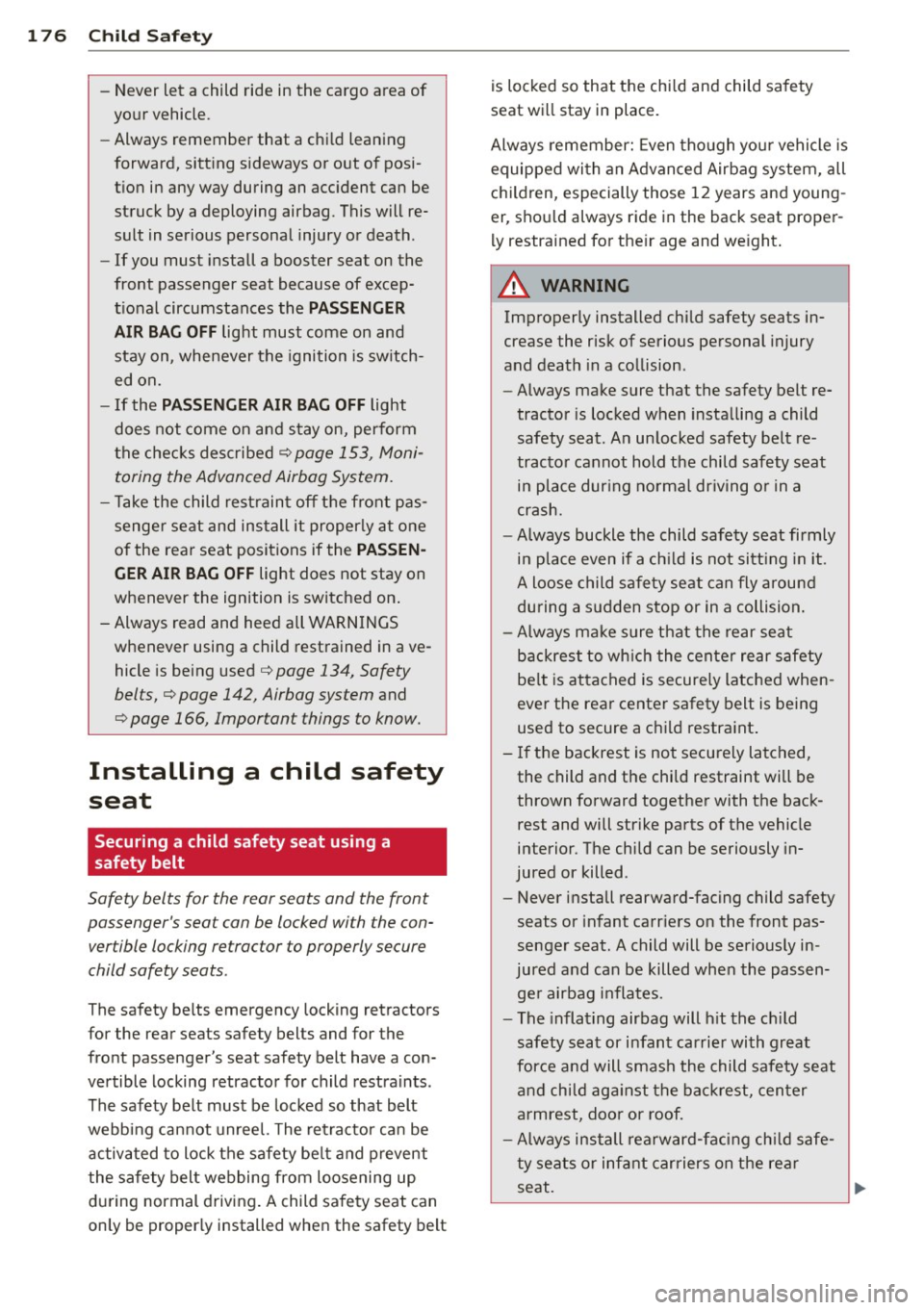

- Never let a child ride in the cargo area of
your vehicle .
- Always remember that a chi ld leaning
forward, sitt ing s ideways or out of posi­
t ion in any way during an acc ident can be
struck by a deploying airbag . This will re­
sult in serious personal injury or death .
- If you must install a booster seat on the
front passenger seat because of excep­
t ional circumstances the
PASSENGER
AIR BAG OFF
light must come on and
stay on, whenever the ignition is sw itch­
ed on.
- If the PASSENGER AIR BAG OFF light
does not come on and s tay on, perform
the chec ks described ¢
page 153, Moni­
toring the Advanced Airbag System.
- T ake the child rest raint off the front p as­
senger seat and install it properly at one
of the rea r seat positions if the
PASS EN·
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on .
- Always read and heed all WARNINGS whenever using a child rest rained in ave­
hicle is being used
¢ page 134, Safety
belts,¢ page 142 , Airbag system
and
¢ page 166, Important things to know.
Installing a child safety
seat
Securing a child safety seat using a
safety belt
Safety belts for the rear seats and the front
passenger's seat can be locked with the con­
vertible locking retrac tor to properly secure
child safety seats.
The safety belts emergency locking retractors
for the rear seats safety belts and for the
fro nt passenger's seat safety belt have a con­
vertible locking retracto r for child restra ints .
The safety belt must be locke d so that belt
webbing can not unreel. The ret ractor ca n be
activ ated to lock the safety be lt and p revent
the safety belt webbing from loosening up
d ur ing normal driv ing . A child sa fe ty seat can
on ly be proper ly installed whe n the safety belt is locked so that the chi
ld and child safety
seat wi ll stay in place.
Alw ays remember: Even tho ugh yo ur vehicle is
equipped wi th an A dvan ced Airbag system, all
ch ildren, especially those 1 2 years and young ­
er, sho uld always ride in the back seat prope r­
l y restra ined fo r the ir age and we ight .
A WARNING
Improperly installed chi ld safety seats in­
crease the risk of serious personal injury
and death in a co llision.
- Always make sure that the safety belt re­
tractor is locked when insta lling a child
safety seat. A n un locked safety belt re­
trac to r cannot hold the child safety seat
in place dur ing norma l driving o r in a
crash.
- Always buckle the child safe ty seat firmly
in place even if a ch ild is not si tt ing in it.
A lo ose child safe ty se at can fly aro un d
during a s udden stop or in a collision .
- Always make sure that the rear seat
backrest to wh ich the center rear safety
belt is atta ched is securely latched when ­
eve r the rea r center safety belt is being
used to secure a ch il d restra int .
- If the backrest is not securely la tc h ed,
the child and the child restraint will be
thrown forward together with the back­
rest and will strike parts of the vehicle
interior. The child can be seriously in­
jured or killed.
- Never install rearwa rd-facing child safety
seats or infant ca rr ie rs o n the front pas­
senger seat . A child will be serious ly in­
jured and can be killed when the passen­
ge r airbag inflates.
- The infla ting airbag will h it the ch ild
safety seat or infan t carrie r with gr eat
for ce a nd will smas h the child safe ty seat
a nd child ag ai nst the backr est, cen ter
armrest, doo r or roof.
- Always inst all rearward-fa cing ch ild safe­
ty seats or inf ant carriers on the rea r
se at.
~

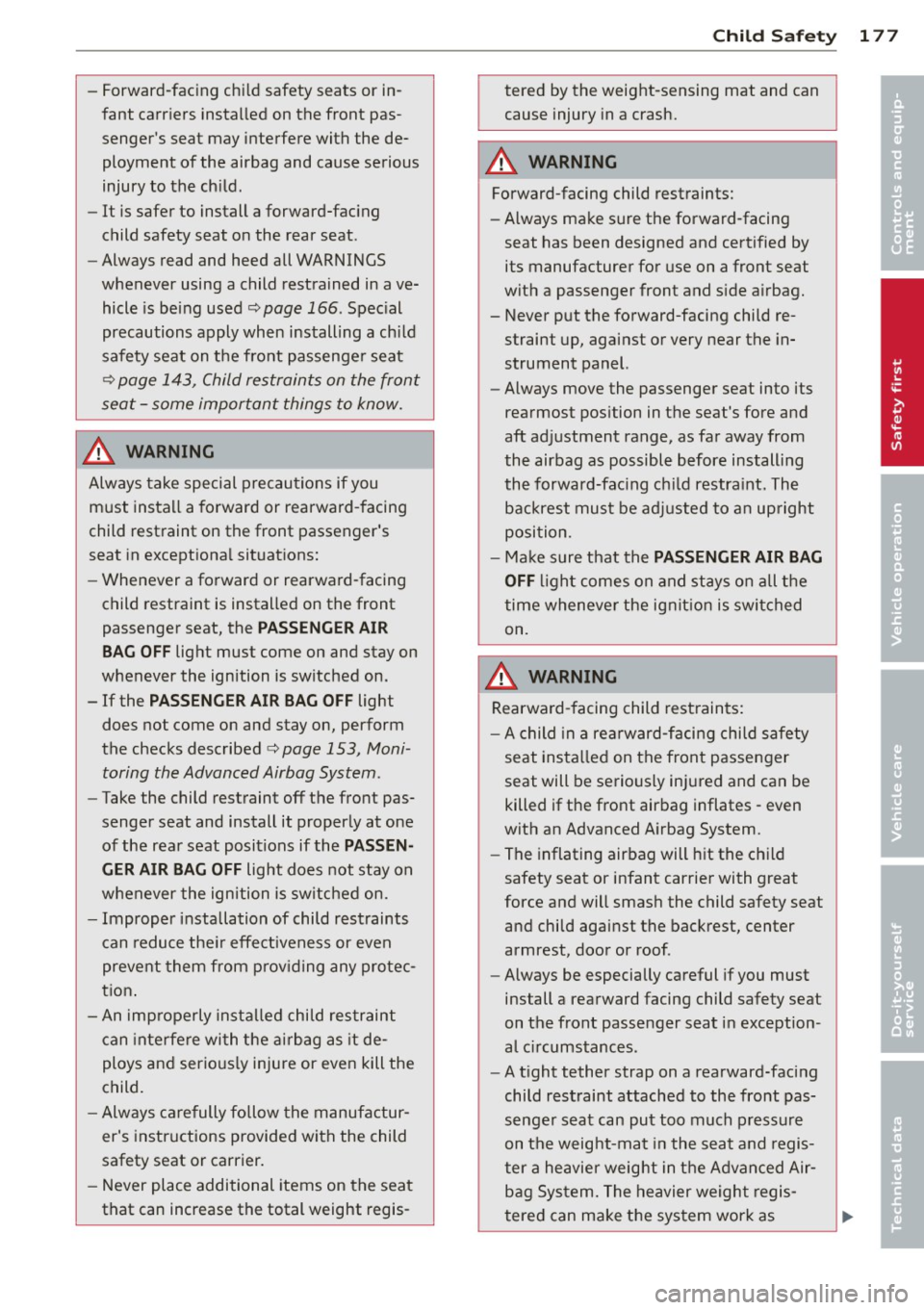

-Forward-facing child safety seats or in­
fant carriers installed on the front pas­
senger's seat may interfere with the de­ ployment of the airbag and cause serious
injury to the child.
- It is safer to install a forward-facing
child safety seat on the rear seat .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c:::;, page 166 . Special
precautions apply when installing a child
safety seat on the front passenger seat
c:::;, page 143, Child restraints on the front
seat -some important things to know.
A WARNING
-
Always take special precautions if you
must install a forward or rearward-facing
child restraint on the front passenger's
seat in exceptional situations:
- Whenever a forward or rearward-facing
child restraint is installed on the front
passenger seat, the
PASSENGER AIR
BAG OFF light must come on and stay on
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, perform
the checks described
c> page 153, Moni ­
toring the Advanced Airbag System .
-Take the child restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on
whenever the ignition is switched on.
- Improper installation of child restraints
can reduce their effectiveness or even
prevent them from providing any protec­
tion.
- An improperly installed child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child.
- Always carefully follow the manufactur­
er's instructions provided with the child
safety seat or carrier.
- Never place additional items on the seat
that can increase the total weight regis-
Child Safety 177
tered by the weight-sensing mat and can
cause injury in a crash.
A WARNING
Forward-facing child restraints:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Never put the forward-facing child re­
straint up, against or
very near the in­
strument panel.
- Always
move the passenger seat into its
rearmost position in the seat 's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the forward-facing child restraint . The
backrest must be adjusted to an upright
position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
A WARNING ...==-
Rearward-facing child restraints:
-A child in a rearward-facing child safety
seat installed on the front passenger
seat will be seriously injured and can be
killed if the front airbag inflates -
even
with an Advanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof .
- Always be especially careful if you must
install a rearward facing child safety seat
on the front passenger seat in exception­
al circumstances .
- A tight tether strap on a rearward-facing
child restraint attached to the front pas­
senger seat can put too much pressure
on the weight-mat in the seat and regis­
ter a heavier weight in the Advanced Air­
bag System. The heavier weight regis­
tered can make the system work as •
•

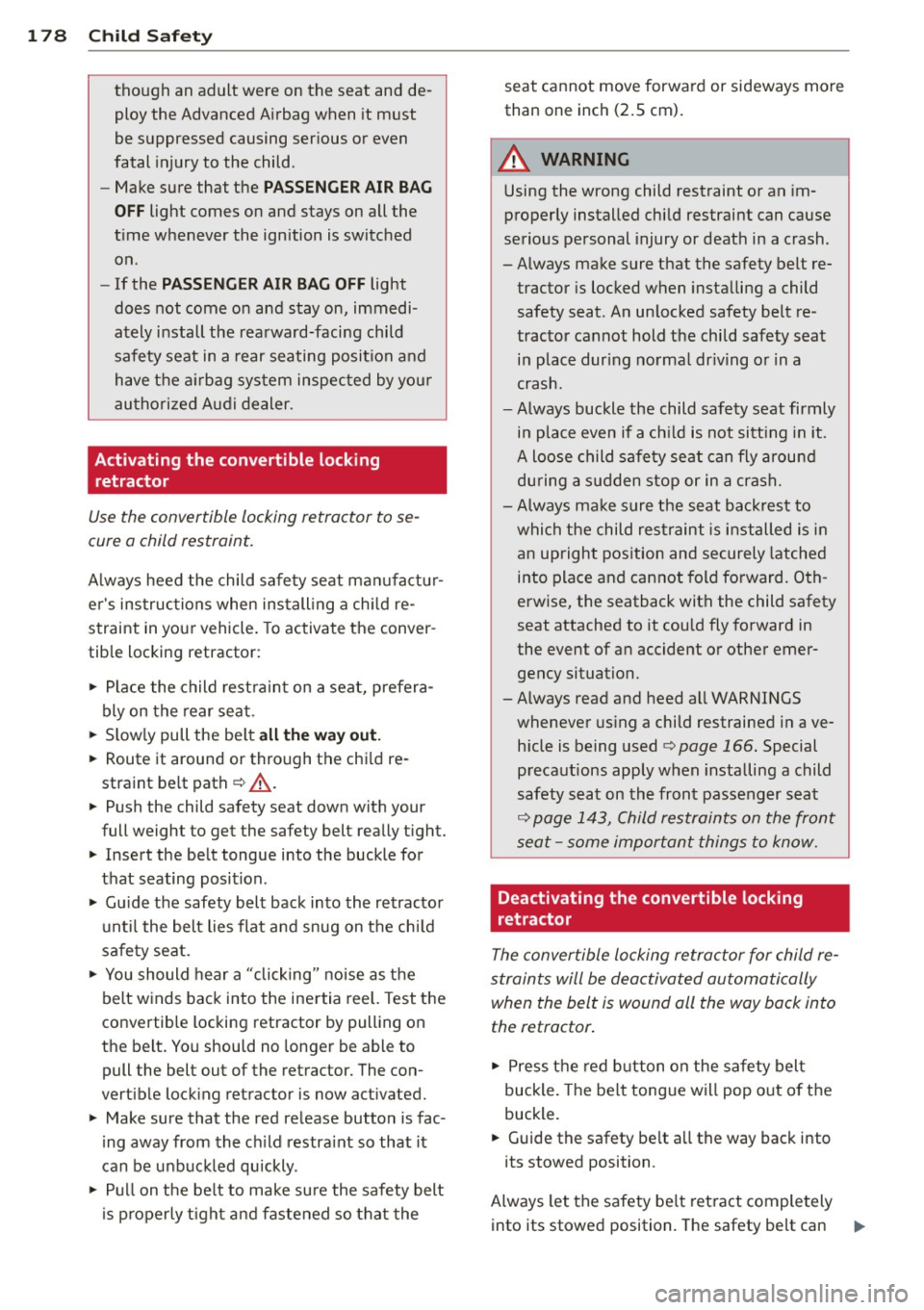

178 Child Safety
though an adult were on the seat and de­ploy the Advanced Airbag when it must
be suppressed causing serious or even
fatal injury to the child .
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rearward-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
authorized Audi dealer.
Activating the convertible locking retractor
Use the convertible locking retractor to se­
cure a child restraint.
Always heed the child safety seat manufactur­
er's instructions when installing a child re­
straint in your vehicle. To activate the conver­
tible locking retractor:
"" Place the child restraint on a seat, prefera­
bly on the rear seat.
"" Slowly pull the belt
all the way out.
"" Route it around or through the child re­
straint belt path¢&_ .
"" Push the child safety seat down with your
full weight to get the safety belt really tight.
"" Insert the belt tongue into the buckle for
that seating position.
"" Guide the safety belt back into the retractor
until the belt lies flat and snug on the child
safety seat.
"" You should hear a "clicking" noise as the
belt winds back into the inertia reel. Test the
convertible locking retractor by pulling on
the belt. You should no longer be able to
pull the belt out of the retractor. The con­
vertible locking retractor is now activated.
"" Make sure that the red release button is fac ­
ing away from the child restraint so that it
can be unbuckled quickly .
"" Pull on the belt to make sure the safety belt
is properly tight and fastened so that the seat cannot move forward or sideways more
than one inch (2.5 cm).
A WARNING ....__ -
Using the wrong child restraint or an im­
properly installed child restraint can cause
serious personal injury or death in a crash.
- Always make sure that the safety belt re- tractor is locked when installing a child
safety seat. An unlocked safety belt re­
tractor cannot hold the child safety seat
in place during normal driving or in a
crash.
- Always buckle the child safety seat firmly
in place even if a child is not sitting in it.
A loose child safety seat can fly around
during a sudden stop or in a crash.
- Always make sure the seat backrest to
which the child restraint is installed is in
an upright position and securely latched
into place and cannot fold forward. Oth­
erwise, the seatback with the child safety
seat attached to it could fly forward in
the event of an accident or other emer­
gency situation.
- Always read and heed all WARNINGS whenever using a child restrained in ave­
hicle is being used ¢
page 166. Special
precautions apply when installing a child
safety seat on the front passenger seat
¢ page 143, Child restraints on the front
seat -some important things to know.
Deactivating the convertible locking
retractor
The convertible locking retractor for child re­
straints will be deactivated automatically when the belt is wound all the way back into
the retractor.
"" Press the red button on the safety belt
buckle. The belt tongue will pop out of the
buckle.
"" Guide the safety belt all the way back into
its stowed position .
Always let the safety belt retract completely
into its stowed position. The safety belt can
1J1-
