vehicle, particularly the engine, and main­
taining its value. Even if the mileage driven
is low, the maximum period of one year
from one service to the next must not be ex­
ceeded.
@ Tips
The informat ion in the Service Rem inder re­
mains stored even when the vehicle battery is
disconnected.
On Board Diagnostic
System (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢..ift in the
instrument cluster is part of the On-Board Diag­
nostic (OBD II) system .
The warning/indicator light illuminates when the
ignition is switched on and goes out after the en­
gine starts and the idle has stabilized. This indi­
cates that the MIL is working properly .
If the light does not go out after the engine is
started, or illuminates while you are driving, a malfunction may exist in the engine system.
If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained high speeds and/or rapid accelera­
tions) and have the condition corrected. Contact
your authorized Audi dealer.
If the light illuminates, the electronic speed lim­iter may also be malfunctioning. For more infor­
mation
¢ page 29, Electronic speed limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate ¢
page 188.
Driver in forma tion system
On-Board Diagnostics
Fig. 17 Loca tion of Data Link Connector (DLC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
s igned a code. In case of a malfunction, the com­
ponent will be identified and the fault stored as a
code in the control module memory.
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel f iller cap is prop­
erly closed
¢ page 188.
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (gener ic scan tool for OBD).
In order to connect the special d iagnost ic equip­
ment, push the p lug into the Data L ink Connector
(DLC). The DLC is located to the right of the hood
release
¢ fig. 17.
Your authorized Audi dealer or qualified work­
shop can interpret the code and perform the nec­
essary repair.
.&, WARNING
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a co lli­
sion!
Electronic speed limiter
Your vehicle may be factory equipped with tires
that are rated for a maximum speed of 130 mph (210 km/h). This is may be less than the maxi­
mum speed of your vehicle . To reduce the risk of .,.
29

Driver information s ystem

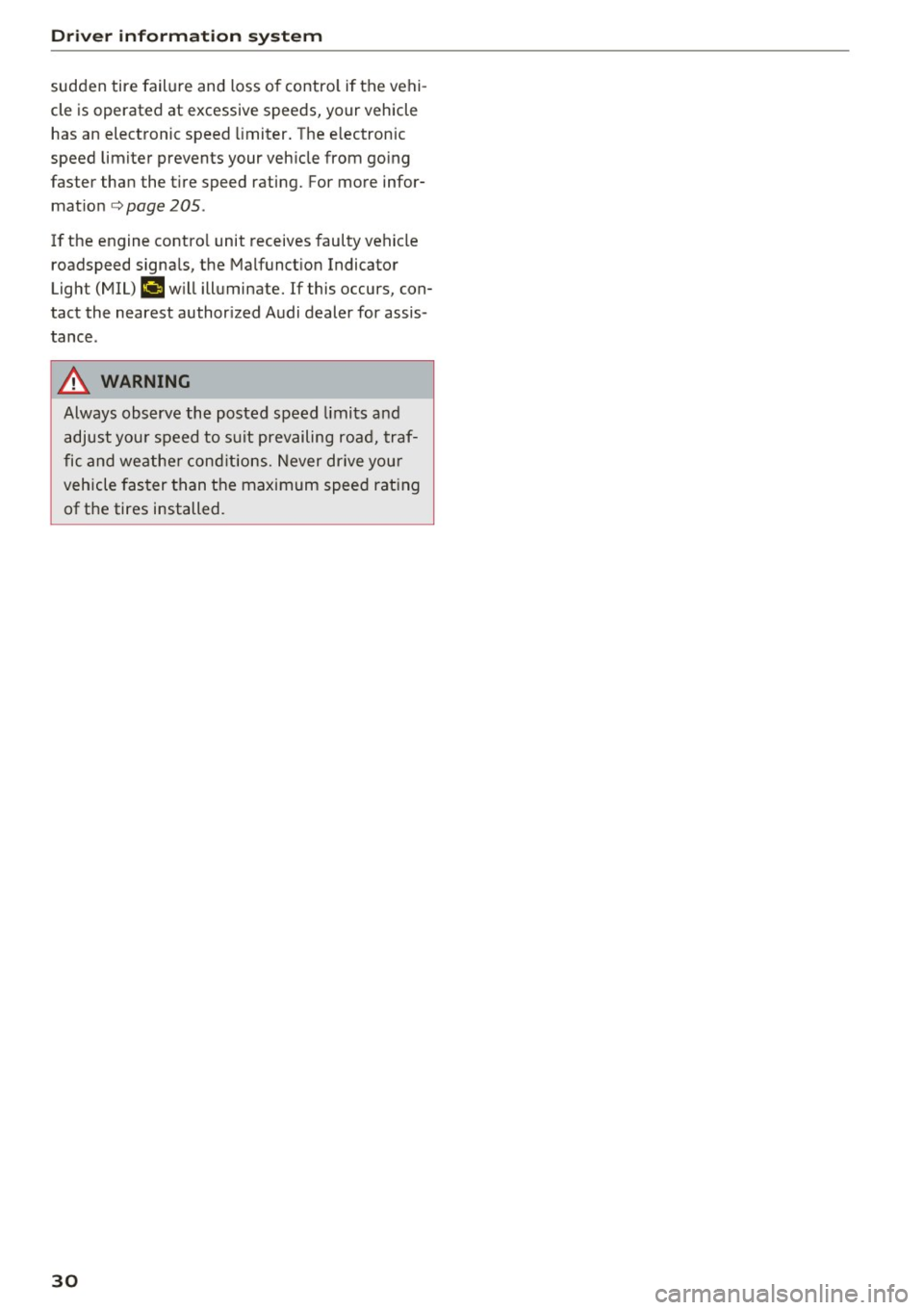

sudden tire failure and loss of contro l if the vehi­
cle is operated at excessive speeds, your vehicle has an electronic speed limiter . The e lectronic
speed limiter prevents your veh icle from go ing
faster than the t ire speed rating. For more infor­
mat io n
¢ page 205 .
If the engine contro l unit receives faulty vehicle
roadspeed signa ls, the Malfunct ion Indicator
Light (MIU
¢'4wil l illuminate. If this occurs, con­
tact the nearest author ized Audi dealer for assis ­
tance .
A WARNING
Always observe the posted speed limits and
adjust you r speed to s uit prevailing road, traf­
fic and we athe r con ditions. Never drive you r
vehicle fas ter than the maximum speed rat ing
of the tires installed.
30
-

.... N
0 I-­co .... .... Opening and closing

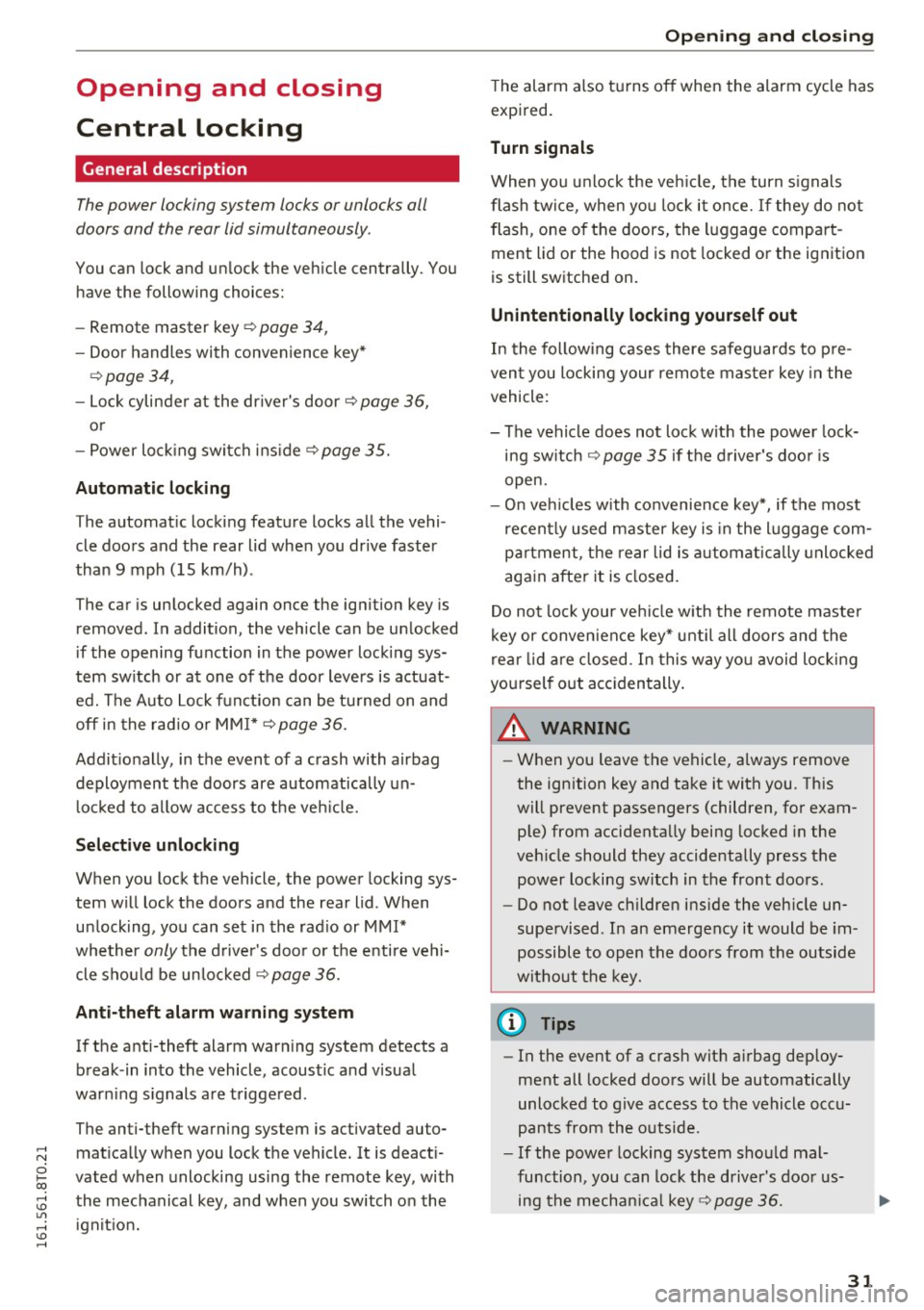

Central locking
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and unlock the vehicle centrally. You have the following choices:
- Remote master key ¢
page 34,
-Door handles with convenience key*
O?page 34,
-Lock cylinder at the dr iver's door ¢ page 36,
or
- Power lock ing switch ins ide¢
page 35.
Automatic lo cking
The automat ic locking feature locks all the vehi­
cle doors and the rear lid when you drive faster
than 9 mph ( 15 km/h) .
The car is unlocked again once the ignition key is
removed . In addition, the vehicle can be unlocked
if the opening function in the power locki ng sys ­
tem sw itch or at one of the door levers is actuat­
ed. The A uto Lock funct io n can be tu rned on and
off in the rad io or MM I* ¢
page 36.
Addit ionally, in the event of a crash with airbag
deployment the doors are automatically un­
l ocked to allow access to the veh icle.
Selective unlocking
When you lock the vehicle, the power locking sys­
tem will lock the doors and the rear lid . When
unlocking, yo u can set in the rad io or MMI*
whether
only the d river 's doo r o r the entire vehi­
cle shou ld be un loc ked
¢ page 36.
Anti-theft alarm w arning system
If the anti-theft alarm warning system detects a
break-in into the vehicle, acoust ic and visual
warn ing s ignals a re triggered.
The anti-theft warning system is activated auto­
mat ically when you lock the vehicle. It is deact i­
vated when unlocking using the remote key, with the mechanical key, and w hen you switch o n the
i gnit ion .
Op ening and cl osing
The alarm also t urns off when the alarm cycle has
expi red.
Turn signals
When you unlock the veh icle, the turn s ignals
flash twice, when yo u lock it once. If they do not
flash, one of the doors, the l uggage compa rt­
ment lid or the hood is not locked or the ignition
is still switched on.
Unintentionally locking yourself out
In the following cases there safeguards to p re­
ven t you locking your remo te mas te r key in the
vehicle:
- The vehicle does not loc k w ith the power lock­
ing sw itch ¢
page 35 if the d river 's doo r is
open.
- On veh icles with co nvenience key*, if the most
re cent ly used master key is in the l uggage com­
pa rtment, the rear lid is a utomatically unlocked
aga in after it is closed.
Do not lock your veh icle w ith the remote master
key or conven ience key* until all doors and the
rea r lid are closed . In this way yo u avoid loc king
yoursel f out acc identally .
A WARNING
=
-When you leave the vehicle, always remove
the ignition key and take it with you. This
will prevent passengers (children, fo r exam­
ple) from accidentally being locked in the
veh icle should they accidentally press the
power locking sw itch in the front doors.
- Do not leave children ins ide the veh icle un­
supervised . In an emergency it would be im­
possible to open the doors from the outside
without the key.
(D Tips
- In the event of a crash wit h airbag dep loy­
ment all locked doors will be automatically
unlocked to give access to the vehicle occ u­
pants from the o utside.
- If the power locking system sho uld mal­
function, you can lock the driver's door us­ ing the mechan ica l key ¢
page 36.
31

Opening and clo sin g
- If the power locking system should fail, you
can still open the fuel tank flap in an emer­
gency ¢
page 190.
-You are well advised not to keep val uables
inside an unatte nded vehicle, v is ible or not.
Even a properly locked vehicle cannot pro­
v ide the security of a safe.
- If the LED in the upper edge of the driver's
door panel comes on for about 30 seconds
after t he vehicle is locked, there is a mal­
funct ion in the power lock ing or the anti­
theft warning system . Have the malf unct io n
cor rected by an authorized Audi dealership
or q ualified repair facility.

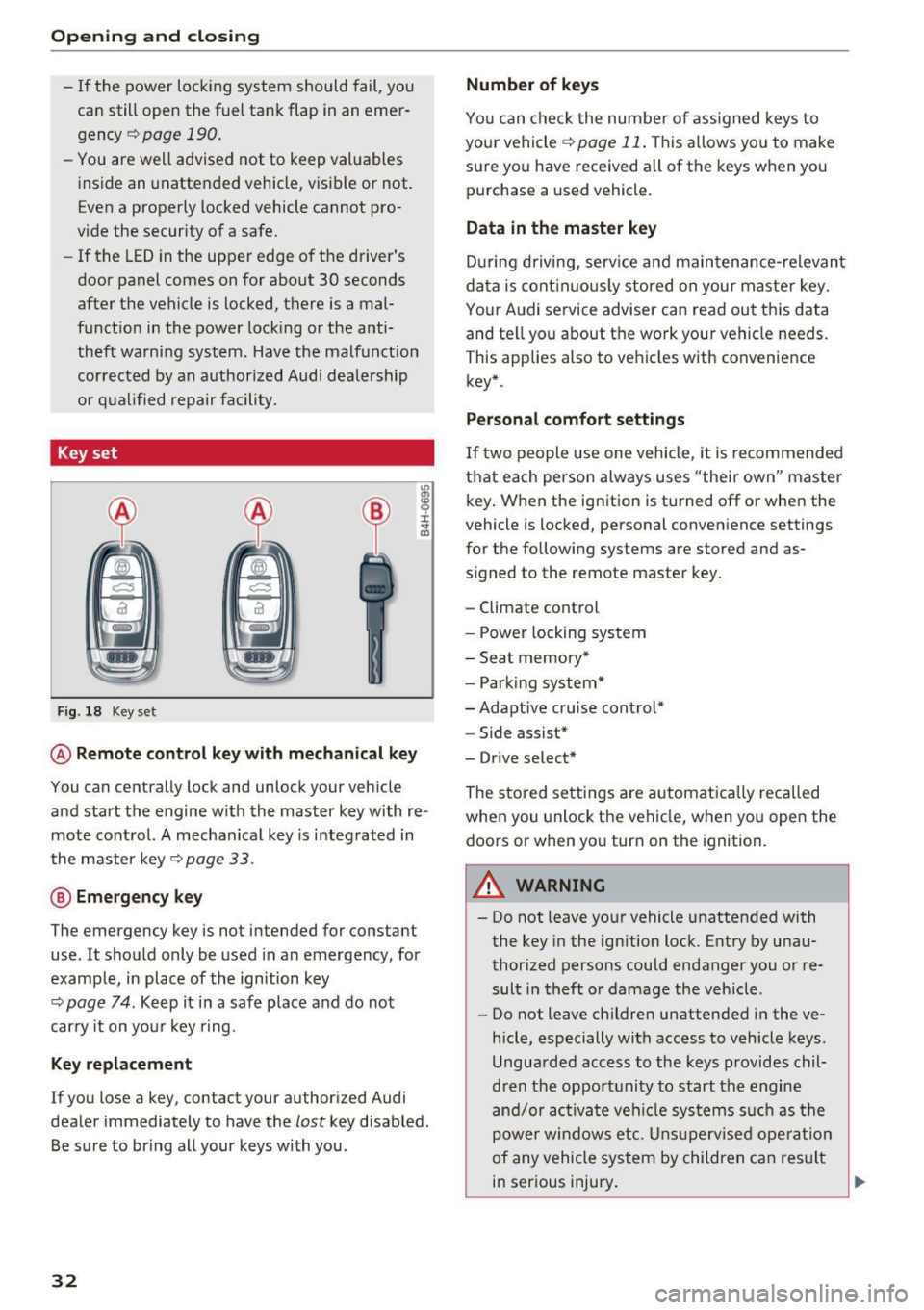

Key set
F ig . 18 Key set
m 0 ±
~
@ Remote control key with mechanical key
You can centrally lock and unlock your veh icle
and start the engine w it h the master key with re­
mote cont rol. A mecha nical key is i nteg rated in
the master key ¢
page 33.
@ Eme rgency key
The emergency key is not intended for constant
use . It shou ld only be used in an emergency, for
example, in place of the ign ition key
¢
page 74 . Ke ep it in a safe place and do not
car ry it on yo ur key r ing.
Key replacement
If you lose a key, contact your author ized Audi
dealer immediately to have the
lost key disab led .
Be s ure to bring all your keys with you .
32
Number of keys
You can chec k the number of assigned keys to
your vehicle
r=;, page 11 . This a llows yo u to make
sure yo u have received all of the keys when you
purchase a used vehicle .
Data in the master key
During driving, serv ice and maintenance-re levan t
da ta is cont inuo usly stored on your master key.
You r A udi service adviser can read out this data
and te ll yo u about the work you r vehicle needs.
This applies also to veh icles with convenience
key* .
Personal comfort settings
If two people use one vehicle, it is recommended
that each person always uses "their own" maste r
k ey . W hen the ignit ion is turned off or when the
vehicle is loc ked, personal conven ience settings
for the following systems are stored and as­
signed to the remote master key.
- Climate control
- Power locking system
- Sea t memory *
- Park ing system*
-Adaptive cr uise control*
- Side assist*
- Drive select*
The stored settings are a utomat ica lly rec alled
when you unlock t he vehicle, when yo u ope n the
doo rs or when yo u turn on the ignition.
A WARNING
- Do not leave you r vehicle unattended with
the key in the ignition lock. Entry by una u­
thor ized persons could endanger you or re­
sult i n theft o r damage the vehicle .
- Do not leave childre n unattended i n the ve­
hicle, especially with access to vehicle keys .
Ungua rded access to the keys provides chil­
dren t he oppor tunity to start the engine
an d/or activa te ve hicl e sys tems s uch as the
powe r windows etc. Unsupervised ope ration
of any vehicle system by children c an res ult
in ser ious injury.
.

-Do not remove the key from the ignition
lock until the vehicle has come to a com­
plete stop . Otherwise the steer ing column
lock could suddenly engage -causing the
risk of an accident .
(D Tips
-The operation of the remote control key can
be temporarily d isrupted by interference
from transmitters in the vicinity of the vehi­
cle work ing in the same frequency range
(e .g. a cell phone, radio equipment).
- For security reasons, replacement keys are
only available from authorized Aud i dea ler .
- For Declaration of Compliance to Un ited
States FCC and Industry Canada regulations
<::>page 247.

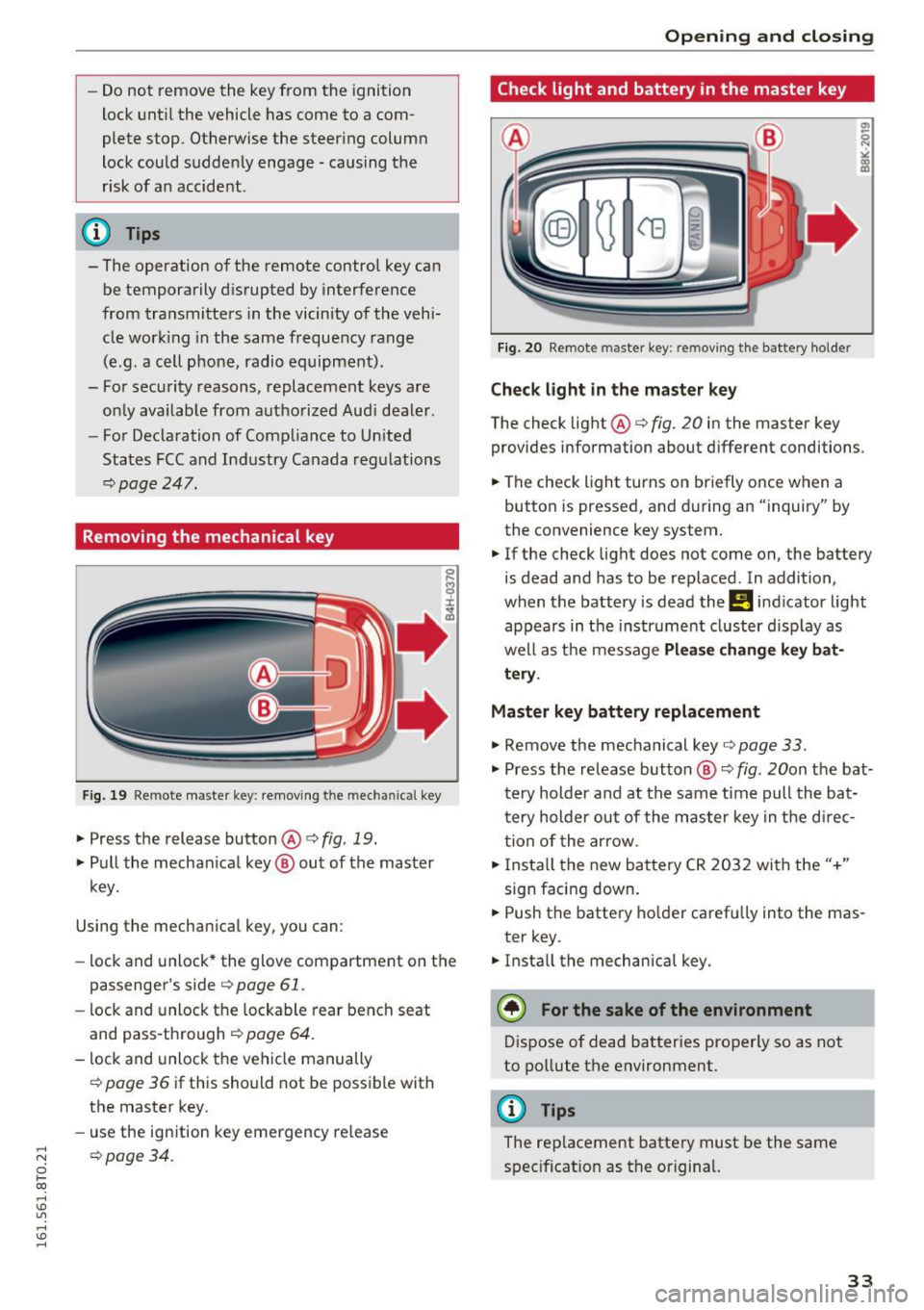

Removing the mechanical key
F ig. 19 Remote master key: removing t he m ec hani ca l key
.,. Press the release button @r=> fig. 19.
.,. Pull the mechan ical key ® out of the master
key.
Using the mechan ical key, you can :
- lock and unlock* the glove compartment on the
passenger's side
c> page 61 .
-lock and unlock the lockable rear bench seat
and pass-through
c> page 64.
- lock and unlock the vehicle manually
c> page 36 if this should not be possible with
the master key.
- use the ign ition key emergency release
;::; opage 34.
0 1-CX)
rl I.Cl U"I
rl I.Cl rl
Open ing and closing
Check light and battery in the master key
Fig. 20 Remote master key: re moving the bat tery holder
Check light in the master key
The check light @r=> fig. 20 in the master key
provides information about d ifferent conditions .
.,. The check light turns on briefly once when a
button is pressed, and during an "inquiry" by
the convenience key system.
.,. If the check light does not come on, the battery
is dead and has to be replaced . In addition,
when the battery is dead the
Ill indicator light
appears in the instr ument cluster display as
well as the message
Please change key bat­
tery .
Master key battery replacement
.,. Remove the mechanical key o page 33 .
.,. Press the re lease button ® o fig. 20on the bat­
t ery holder and at the same time pull the ba t­
tery holder out of the master key in the d irec ­
tion of the arrow .
.,. Insta ll the new battery CR 2032 with the"+"
sign facing down .
.,. Push the battery holder carefully into the mas­
ter key .
.,. Install the mechanical key.
@) For the sake of the environment
Dispose of dead batteries properly so as not
to pollute the environment.
@ Tips
The replacement battery must be the same
specificat ion as the original.
33

Opening and clo sin g

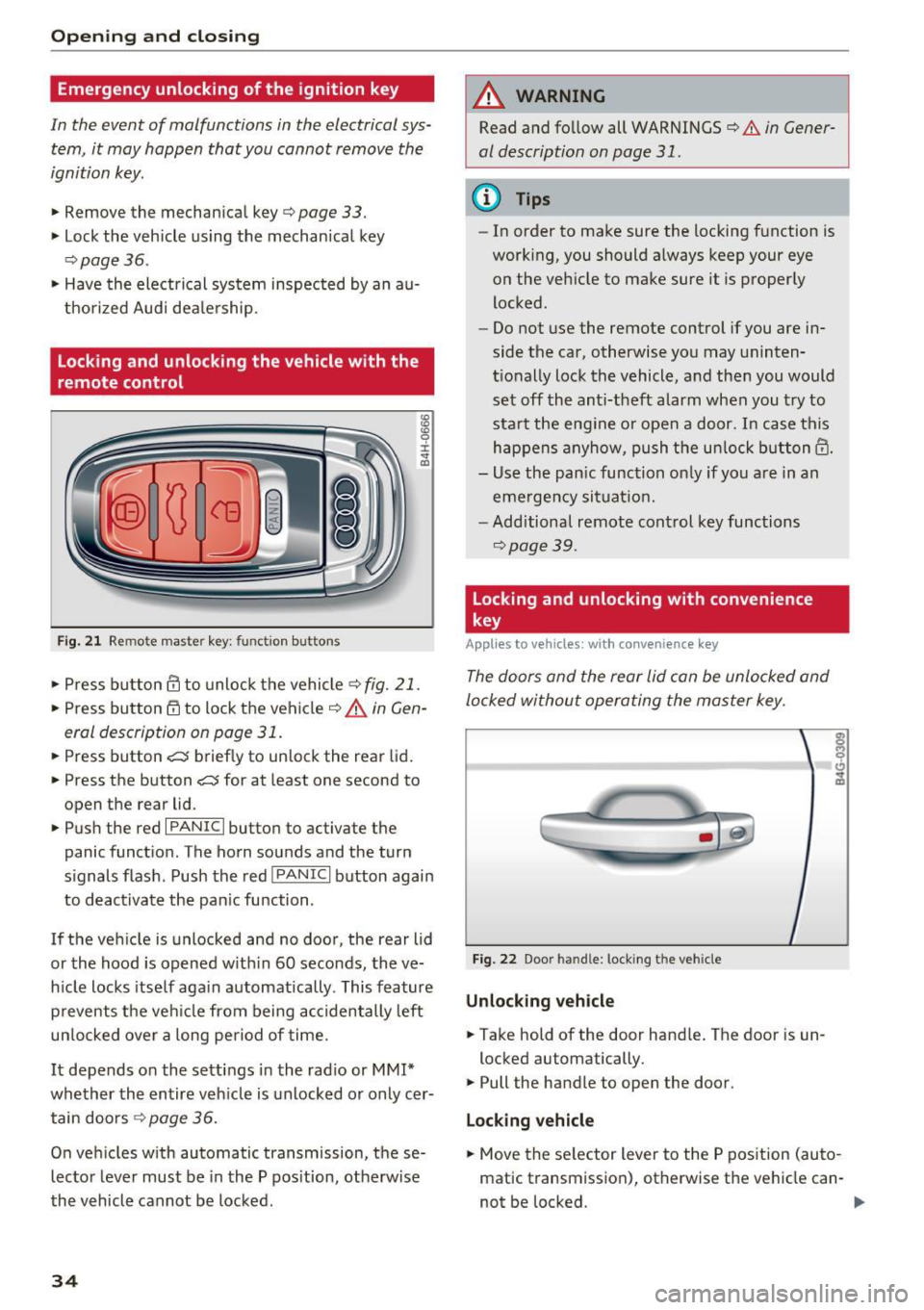

Emergency unlocking of the ignition key
In the event of malfunctions in the electrical sys­
tem, it may happen that you cannot remove the
ignition key.
.,. Remove the mechanical key¢ page 33.
.,. Lock the vehicle using the mechanical key
¢page 36.
.,. Have the electrical system inspected by an au­
thorized Aud i dea le rship.
Locking and unlocking the vehicle with the
remote control
F ig . 21 Remote mas ter key: function buttons
:8
"' 0 ±
"' OJ
.,. Press bu tton III to unlo ck the vehicle ¢ fig. 21.
.,. Press button 6:'.i to lock the vehicle¢.&. in Gen­
eral description on page 31 .
.,. Press button~ briefly to unlock the rear lid .
.,. Press the button
~ for at least one second to
open the rear lid .
.,. Push the red
I PANIC I button to activate the
panic function. The horn sounds and the turn
s ignals flash . Push the red
I PANIC I button again
to deactivate the pan ic fu nction .
If the vehicle is unlocked and no door, the rear lid
or the hood is opened w ith in 60 seconds, the ve­
h icle locks itse lf aga in automatica lly . This feature
prevents the vehicle from being accidentally left
un locked ove r a long period of time.
It depends o n the settings in the radio or MM!*
whether the entire veh icle is unlocked or only cer­
tain doo rs ¢
page 36 .
On vehicles with automatic transmission, these­
lector lever must be in the P pos ition, otherwise
the vehicle cannot be locked.
34
A WARNING
Read and fo llow all WARNINGS¢ & in Gener­
al description on page 31.
(D Tips
- In order to make sure the locking function is
work ing, you should always keep your eye
on the vehicle to make sure it is properly
locked .
- Do not use the remote control if you are in­
side the car, otherwise you may uninten­
t ionally lock the vehicle, and then you would
set off the anti-theft a larm when you t ry to
sta rt the eng ine or open a door. I n case this
happens anyhow, push the un lock button@.
- Use the pan ic function on ly if you a re in an
emerge ncy sit uat io n.
- Additional remote control key functions
¢page 39.
Locking and unlocking with convenience
key
Applies to veh icles: with conven ience key
The doors and the rear lid con be unlocked and
locked without operating the master key .
Fig. 22 Door handle: locking the vehicle
Unlocking v ehicle
.,. Take hold of the door hand le . The door is un -
locked automatically.
.,. Pull the handle to open the door.
Locking vehicl e
.,. Move the se lector lever to the P position (auto ­
matic transmission), otherwise the vehicle can-
not be locked. ..,.

,-1 N
0 1-CX)
rl I.Cl U"I
,-1 I.Cl ......
"'To lock the vehicle, close the door and touch
the sensor in the door hand le
on ce ~ fig. 22
~ A in General description on page 31 . Do not
reach inside the door handle .
The vehicle can be locked and un locked at any
door . The remote control key cannot be more
than 1.5 m away from the door handle. It makes
no difference whether the master key is in your
jacket pocket or in your brief case .
If you grip the door handle while locking, this can
adversely affect the locking function.
It is not possible to re-open the doo r for a b rief
period directly after closing it. This allows you to
ensure that the doors are properly locked .
It depends on the settings i n the rad io or MMI*
whether the entire vehicle is unlocked or one of
the doors
~ page 36.
A WARNING
Read and follow all WARNINGS~&. in Gener­
al description on page 31.
@ Tips
If your vehicle has been standing for an ex ­
tended period, please note the following:
- The proximity sensors are deactivated after
a few days to save power . You then have to
pull on the door handle once to unlock the
vehicle and a second time to open the vehi­
cle.
- To p revent the battery from being d is ­
charged and to preserve your vehicle's abili­
ty to start for as long as possible, the ener­
gy management system gradua lly switches
off unnecessary convenience functions. It is
possible that you w ill not be ab le to unlock
your vehicle using these convenience func­ tions .
- Fo r Decla ration of Comp liance to Un ited
States FCC and Industry Canada regu lations
~ page 247.
Op enin g an d clos ing
Locking and unlocking the vehicle from
inside
Fig. 23 Drive r's door; power lock ing sw itch
"' Press the button@ to lock the vehicle ~ &,.
"' Press the button 63 to un lock the veh icle
~ fig. 23.
If you lock the veh icle using the power lock ing
switch , please note the following:
- If a door is open, the veh icle cannot be locked
using the power locking system switch .
- You cannot open the doors or the rear lid from
the
outside (increased security, for example
when you are stopped at a red light) .
- The diodes in the power locking switch illumi­
nate when a ll the doors are closed and locked .
- You can unlock and open the doors from the in­
side by pulling on the door handle .
- If you have a crash and the airbag is act ivated,
the doors automatically unlock .
A WARNING
-- The power locking switch works with the ig-
n ition off and automatically locks the ent ire
veh icle when it is actuated.
- On a vehicle locked from the outs ide the
power locking system switch is inoperative .
- Locked doors make it more difficult for emergency workers to get into the vehicle,
which puts lives at r isk. Do not leave anyo ne
behind in the vehi cle, especially children.
@ Tips
Your vehicle is locked automatically at a
speed of 9 mph (15 km/h) (Auto Lock)
~ page 31. You can un lock the vehicle again
3 5

Opening and closing
using the opening function in the power lock ­
ing system switch
Iii .

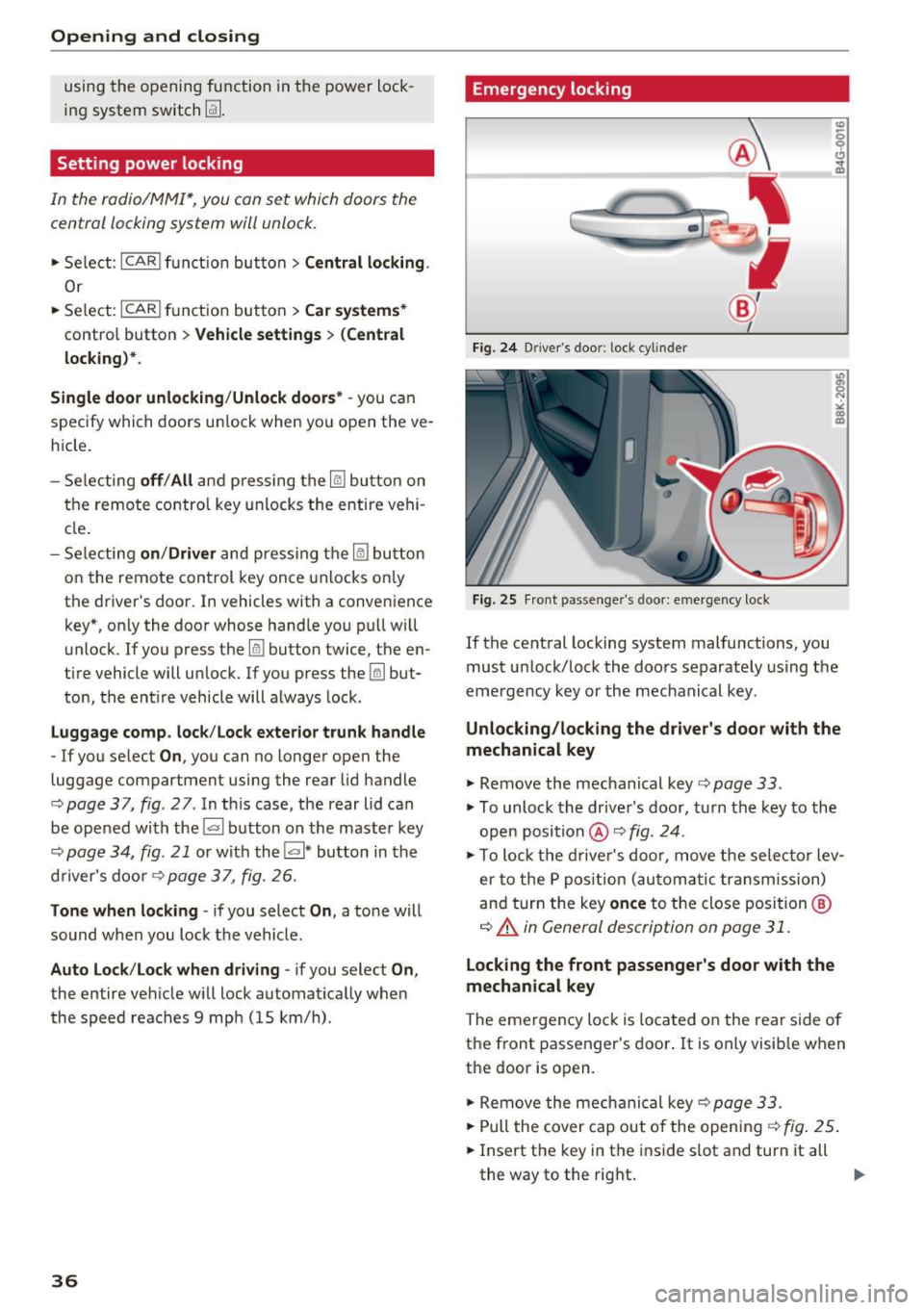

Setting power locking
In the radio/MM!*, you can set which doors the
central locking system will unlock .
.,. Select : I C A RI funct ion button > Central locking .
Or
.,. Se lect : ICAR I functio n button> Car systems*
contro l button > Vehicle settings > (Central
locking)* .
Single door unlocking /Unlock doors* -
you can
specify which doors unlock when yo u open the ve­
hicle.
- Selecting
off / All and pressing the~ button on
the remote control key unlocks the entire vehi ­
cle.
- Se lecting
on /Driver and press ing the ~ button
on the remote control key once unlocks only
the driver 's door. In vehicles w ith a convenienc e
key *, only the door whose hand le you pull will
unlock . If you press the @! button twice, the en ­
tire veh icle will unlock. If you press the
lm:I but­
ton, the ent ire vehicle will a lways lock.
Luggage comp. lock/Lock exterior trunk handle
-If you se lect On , you can no longer open the
luggage compartment using the rear lid handle
r:=;, page 3 7, fig . 2 7. In this case , the rear lid can
be opened with the
1£1 button on the master key
¢
page 34, fig . 21 or with the 1£1 * button in the
driver'sdoor ¢page37,
fig. 26.
Tone when locking -if you select On, a to ne will
sound when you lock the vehicle .
Auto Lock/Lock when driving -if you select On ,
the entire vehicle will lock automatically when
the speed reaches 9 mph (15 km/h) .
36
Emergency locking
Fig. 24 Driver 's doo r: lock cylin der
Fig. 25 Fron t passenger's door: emergency lock
If the central locking system malfunctions, you
must unlock/lock the doors separately using the
emergency key or the mechanical key .
Unlocking/locking the driver's door with the
mechanical key
.,. Remove the mechanical key¢ page 33 .
.,. To unlock the driver's door, turn the key to the
open position @¢
fig. 24 .
.,. To lock the driver's door, move the selecto r lev­
er to the P position (automatic transmission)
and turn the key
once to the close position @
¢ A in General description on page 31 .
Locking the front passenger's door with the
mechanical key
The emergency lock is loca ted on the rear side of
the front passenger's door. It is only visible when
the door is op en .
.,. Remove the mechanical key¢
page 33.
""Pull the cover cap out of the opening¢ fig. 25 .
.,. Insert the key in the inside slot and turn it all
th e way to the right.
IJJ,-

,-1 N
0 1-CX)
rl I.Cl U"I
,-1 I.Cl ......
Once the front passenger's door has been closed,
you cannot open it again from the outside. The door can be opened from the inside by pulling
the door hand le.
A WARNING
Read and follow all WARNINGS¢&. in Gener­
al description on page 31 .
@ Tips
After the ignition is switched on, the power
locking system switch and the unlocking but­
ton for the rear lid
c;:; in the door are ena­
bled .
Electronic immobilizer
The immobilizer prevents your vehicle from being
started by unauthorized persons .
Inside the key there is a computer chip. This chip
automatically activates/deactivates the electron­ ic immobilizer.
Applies to vehicles with ignition lock:
The electronic immobilizer deactivates automati ­
cally when you insert the remote control key into
the ignition lock . It activates again automatically
when you remove the remote control key from
the ignition lock .
Applies to vehicles with convenience key:
If the remote control key is located inside the ve­
hicle and you press the
I START ENGINE STOPI
button, the electronic immobilizer deactivates
automatically. If you switch the ignition off and remove the remote control key from the vehicle,
the electronic immob ilizer act ivates aga in auto ­
mat ically.
A WARNING
Always take the key with you when you leave
the vehicle. The key can disarm the electron ic
eng ine immobiliz er and permit an unauthor­
ized pe rson to start the engine and enable op ­
eration of the vehicle systems such as power
w indow or power sunroof leading to serious
personal injury.
Open ing and closing
(D Tips
-The vehicle cannot be started if an unau­
thorized key is used. The vehicle may not
start if another radio device such as a key
for another veh icle or a transponder is lo­
cated on the key ring.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢ page 247.
Luggage compartment
Lid
Opening /closing rear lid
Fig. 26 Driver 's door: remote rear lid release
Fig. 27 Rear lid: handle
Opening the rear lid
.. Press the button c;:; on the remote control
master key for at least one second . The rear lid
unlocks and opens slightly. Or
.. Pull the release button
c;:; in the driver's door
¢fig. 26. Or
.,. Press the hand le on the rear lid ¢
fig. 2 7 .
Closing the rear lid
.. Pull the rear lid down at the grip on the inside
and allow it to drop gently to close it¢,&. . ..,.
37

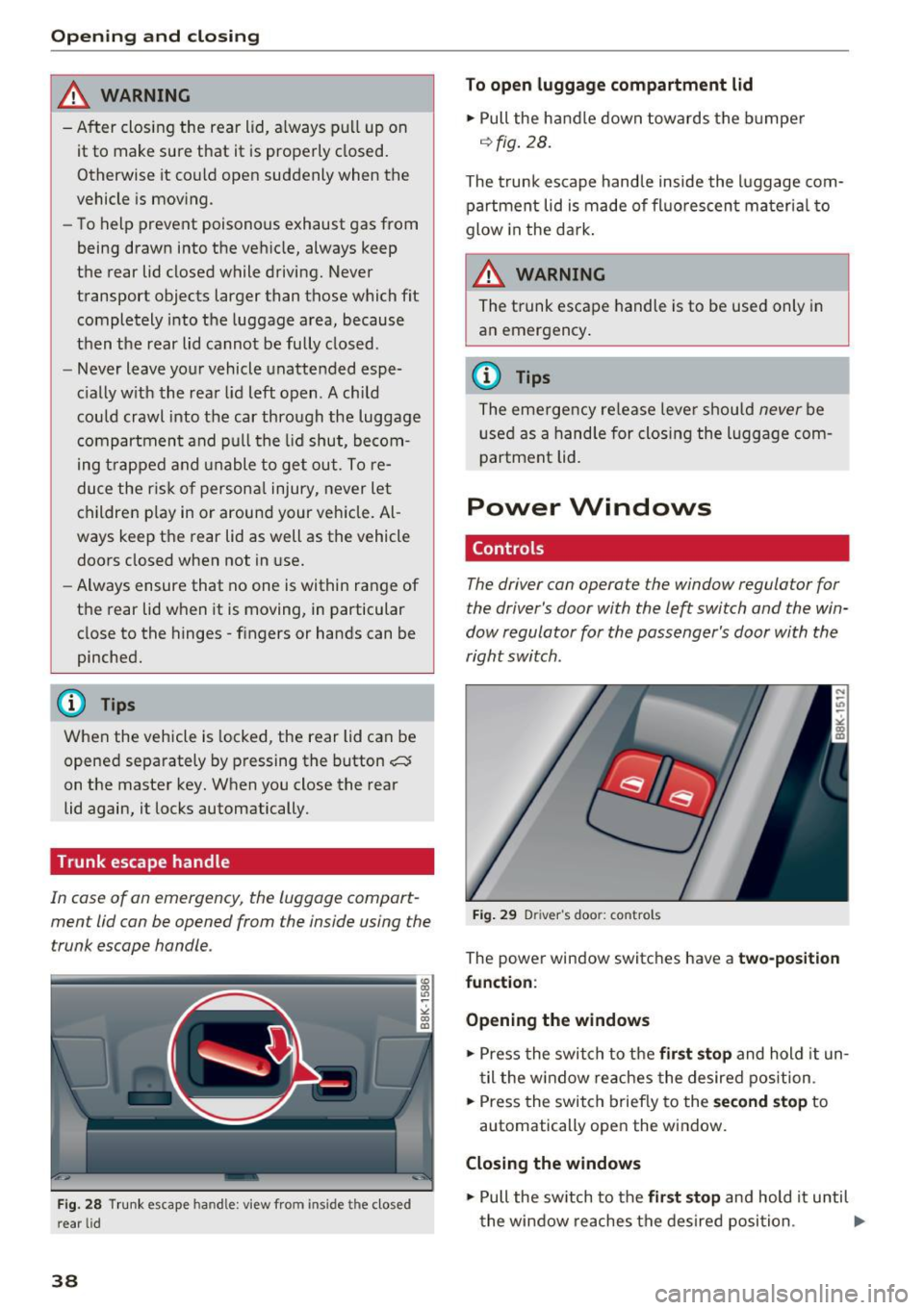

Opening and clo sin g
_& WARNING
- After closing the rear lid, a lways pu ll up on
it to make sure that it is properly closed.
Otherwise it co uld open suddenly when the
vehicle is mov ing.
- To help prevent poisonous exhaust gas from
being drawn into the veh icle, always keep
the rear lid closed while driving. Never
transport objects larger than those which fit
completely into the luggage area, because
then the rear lid cannot be fully closed .
- Never leave yo ur vehicle unattended espe­
c ially w ith the rear lid left open . A child
could crawl into the car through the luggage
compartment and p ull the lid shut, becom­
ing t rapped and unable to get ou t. To re­
duce the r is k of persona l injury, never let
childre n play in or around your vehicle. Al ­
w ays keep the rear lid as well as the vehicle
doors closed when not in use.
- Always ensure that no one is within range of
th e rear lid when it is moving, in particular
close to the hinges -fingers or hands can be
pinched.
(D Tips
When the vehicle is locked, the rear lid can be
o pened separately by p ressing the button
c:;;
on the master key. When you close the rear
lid again, it locks automatically.
Trunk escape handle
In cas e of an emerg ency, th e luggage compart ­
men t lid can be opened from the inside using the
t runk escape handle .
Fig . 2 8 Trunk escape han dle: view from in sid e th e closed
r e a r lid
38
To open luggage compartment lid
.,. Pull the handle down towards t he b umper
o::> fig. 28 .
The trunk escape hand le inside the luggage com­
partment lid is made of fl uo rescen t ma teria l to
glow in the dark .
_& WARNING
The trunk escape handle is to be used only in
an emergency .
{!) Tips
The eme rge ncy re lease leve r should never be
use d as a h and le for clos ing the lugg age com­
partment lid.
Power Windows
Controls
The driver can operate the window regulator for
the driver's door with the left switch and the win­
dow regulator for the passenger's door with the
right switch .
Fig . 29 D river 's doo r: controls
The power w indow switches have a two-position
fun ction :
Opening the windows
.,. Press the swi tch to the fir st stop and hold it un ­
t il the w indow re aches the desired position .
.,. Press the switch briefly to the
s econd sto p to
automatically open the window .
Closing the windows
.,. Pull the sw itch to the fir st st o p and hold it until
the window reaches the desired posi tion .
Ill-
