14 Instruments and w . . arn1ng/indicator lights
I
•
• •
•
rl1
Electronic Stab ilization Control
(ESC) ,/
c:> page 19
Electronic Stab ilization Control
(ESC) ./
c:> page 19
USA models:
Anti-lock braking system (ABS)
defective ,/
c:>page 20
Canada models:
Anti-lock braking system (ABS)
defective ,/
c:> page 20
Worn brake pads c:>page 21
Electromechanical parking brake
c:> page 77
~re pressure monitoring system
c:> page258
Tire pressure monitoring system
c:>page 258
Electronic power control./ (al­
ternative to
ml >
c:>page 21
Glow plug system
(a lternative to~ )
c:> page 21
Malfunction indicator La
(MIL),/ mp
c:>page 21
Diesel particulate filter* clogged
c:>page 22
Engine speed limitation
c:>page 22
Engine oil leve l
c:> page 18
Engine oil sensor
c:> poge 22
Battery
c:> page 17
•
m
•
•
g
Tank system
c:> page22
W indshield washer fluid level
c:>page22
Windshield wipers
c:> page22
Remote control key
c:> page 74
Remote control key
c:> page 76
Battery in remote contro l key
c:>page 33
Defective light bulb warnin
c:> page 23
g
Rear fog light(s)
c:> page23
Headlight range control
c:> page23
adaptive light*
c:>page 23
Light -/ra in sensor faulty
c:> page23
Audi active lane ass ist*
c:> page94
Transmiss ion
c:> page 112
Transm iss ion
c:> page 112
Transmission
- S tronic c:>page
112
Electronic steering column lock
c:> page 18
Engine start system
c:> poge 18
Centra l ind icator light
c:> poge 19

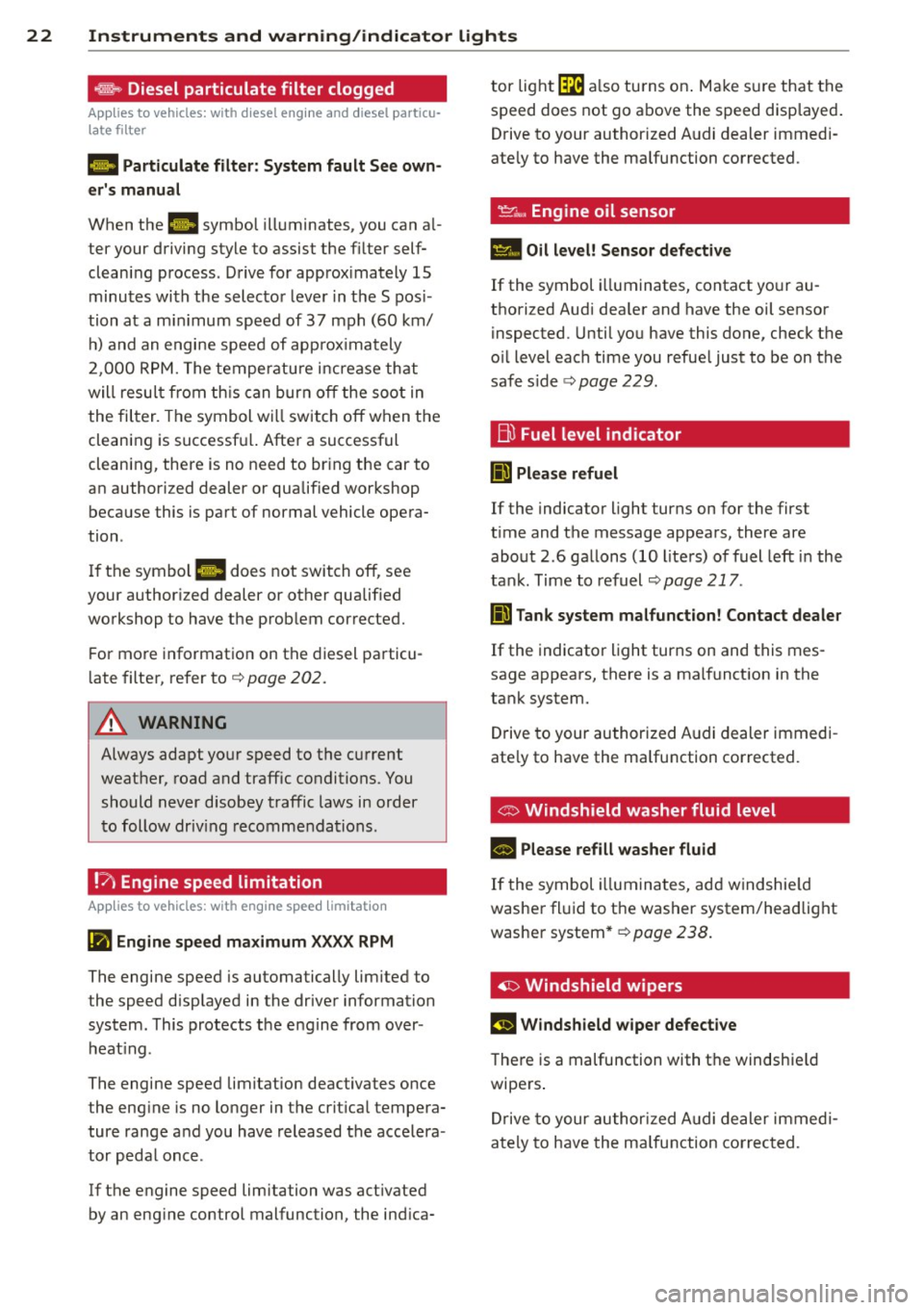

22 Instruments and warning/indicator lights
®'-Diesel particulate filter clogged
Applies to vehicles: with diesel engine and diesel particu­
late filter
II Particulate filter: System fault See own­
er's manua l
When the. symbol ill uminates, you can a l­
ter your driving style to assist the fi lter self­
clean ing p rocess . D rive for approx imately 15
minu tes wi th the sel ector leve r in the S pos i­
tion at a m inimum speed of 37 mph (60 km/
h ) a nd an engine speed of app rox imately
2, 000 R PM. The tempe ratu re i ncrease th at
will resu lt fro m t his can bur n off t he soo t in
the fil ter. The symbol wi ll switch off when the
clean ing is successf ul. Afte r a successful
cleaning, there is no need to br ing the car to
an author ized dealer or qualif ied worksh op
beca use this is part of normal vehicle opera­
ti on .
I f the symbo l
Ill does not switch off, see
your author ized dealer or other qualified
workshop to have the prob lem cor rected.
For more in format io n on the diesel pa rticu ­
l ate filte r, refer to
¢ page 202.
A WARNING
Always adapt yo ur s peed to the cu rrent
weat her, road and traffic conditions. Y ou
sh ould never disobey t raffic laws in order
t o follow driv ing recomm endations .
!'7i Engine speed limitation
Applies to vehicles: with engine speed limitat ion
Ill Engine speed maximum XXXX RPM
-
The engine speed is automatically lim ited to
the speed disp layed in the dr ive r information
system. This protects t he e ng ine from over ­
h eat ing.
The engine speed limitation deactivates once
the eng ine is no longer in the crit ica l tempera­
ture range and you have released the acce lera ­
tor peda l once.
If t he engine speed limitation was act ivated
by an eng ine control malfunction, the ind ica- tor
light ~ also tu rns on . Ma ke s ure that the
s p eed does not go a bove the s peed disp layed .
Drive to y our authorized A udi dealer immedi ­
ate ly to have the ma lfunction corrected.
~"" Engine oil sensor
l!I Oil level! Sensor defective
If the symbol illuminates, contact yo ur au­
t h orized Audi dea ler and have the oil sensor
i nspected . U ntil yo u have this done, check t he
o il level each time you refue l just to be on the
saf e side
c> page 229.
EltJ Fuel level indicator
Ii] Please refuel
If the indicato r light turns on f or the first
t ime and the message appea rs, there are
abo ut 2.6 ga llons (10 lite rs) o f fuel left in the
tan k. Time to refu el
<=> page 217 .
llD Tank system malfunction! Contact dealer
If the indicator light turns on and this mes­
sage a ppears, there is a malf unct ion in the
tank system.
D rive to your au thori zed A udi dealer immedi ­
ate ly to have the ma lfu nction corrected.
Co Windshield washer fluid level
• Please refill washer fluid
If the symbol illum ina tes, ad d windshie ld
washe r fl ui d to t he washer system/headlight
washe r system *
¢ page 238 .
4J:> Windshield wipers
£~$ Windshield wiper defective
T he re is a malfunction with t he windshie ld
wipe rs .
Dr ive to your au th o riz ed A udi de aler i mme di­
ately to have the m alfunction correc ted.

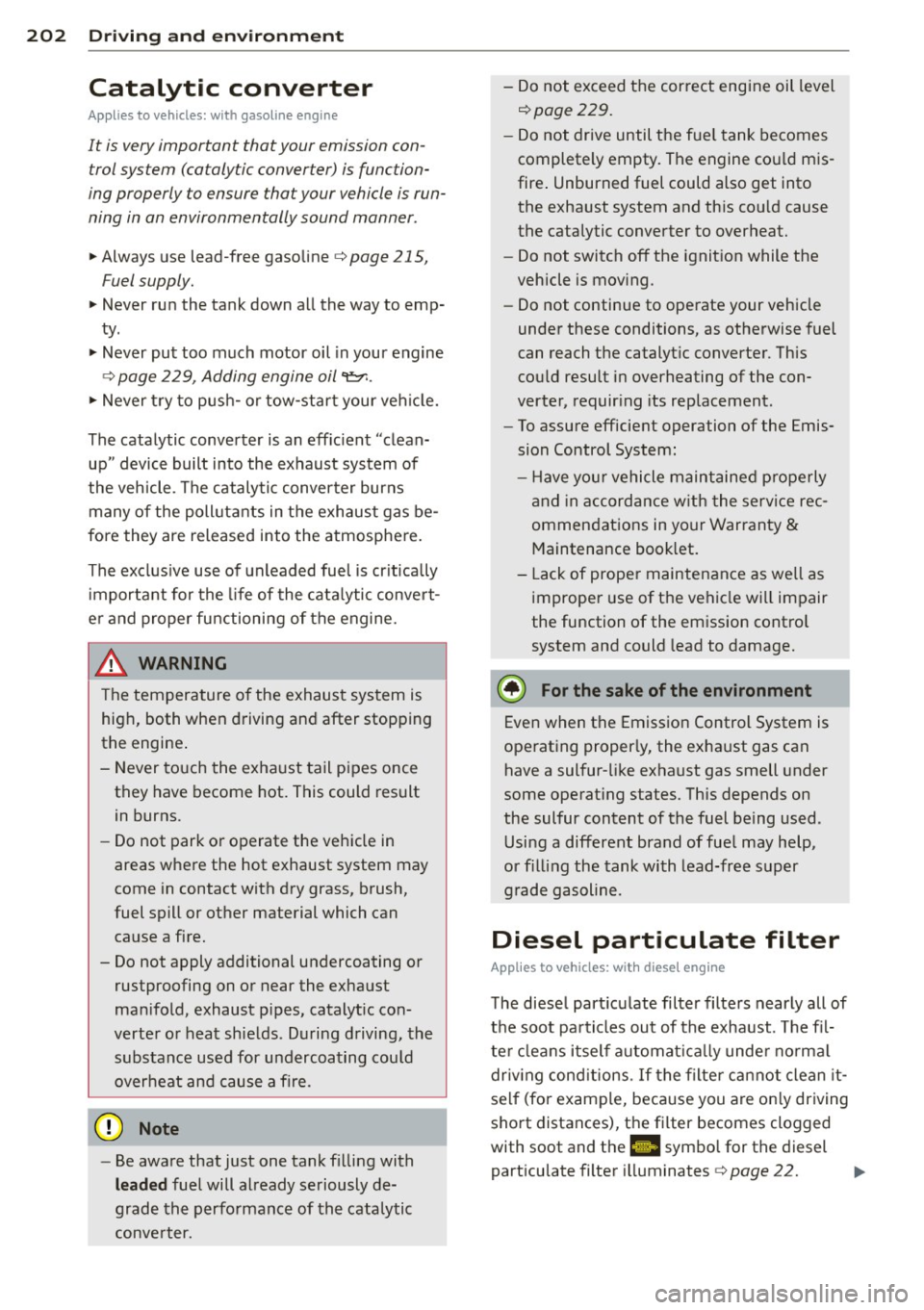

202 Driving and en vir onm ent
Catalytic converter
Appl ies to vehicles: with gasoline e ngin e
It is very important that your emission con­
trol system (catalytic converter) is function­
ing properly to ensure that your vehicle is run­
ning in an environmentally sound manner .
.. Always use lead-free gasoline¢ page 215,
Fuel supply .
.. Never run the tank down all the way to emp-
ty .
.. Never put too much motor oil in your engine
¢ page 229, Adding engine oil .. Never try to push- or tow-start your veh icle.
The catalytic converter is an eff ic ient "clean­
up" device built into the exhaust system of
the vehicle. The catalyti c converter burns
many of the pollutants in the exhaust gas be­
fore they are released into the atmosphere.
The exclus ive use of unleaded fuel is cr itically
important for the l ife of the cata lytic convert­
e r and proper functioning of the engine.
A WARNING
T he temperature of the exhaust system is
high, both when driving and after stopping
the engine .
- Never touch the exhaust tail pipes once
they have become hot. This could result
in burns.
- Do not park or operate the vehicle in
areas where the hot exhaust system may
come in contact with dry grass, brush,
fuel spill or other material which can
cause a fire.
- Do not apply additional undercoating or
rustproofing on or near the exhaust
man ifold, exhaust p ipes, catalytic con­
verter or heat shields . During driving, the
substance used for undercoating cou ld
overheat and cause a fire.
@) Note
- Be aware that just one tank f illing with
leaded fuel will al ready seriously de­
grade the perfo rmance of the cata lytic
conve rter. -
Do not exceed the correct engine oil level
¢page 229.
-Do not drive until the fue l tank becomes
completely empty . The engine co uld m is­
fire . Unburned fuel could also get into
the exhaust system and this cou ld cause
the catalytic converter to overheat.
- Do not switch off the ignition while the
vehicle is mov ing .
- Do not continue to ope rate your vehicle
under these conditions, as otherwise fuel
can reach the catalyt ic converter. Th is
cou ld result in overheating of the con­
verter, requir ing its replacement .
- To assure efficient operation of the Emis­
sion Control System:
- Have you r vehicle maintained p roperly
and in accordance w ith the service rec­
ommendations in your Warranty & Maintenance book let.
- Lack of prope r maintenance as we ll as
improper use of the vehicle wi ll impair
the function of the em ission contro l
system and could lead to damage.
@) For the sa ke of the en vironment
Even when the Emission Control System is
ope rat ing properly, the exhaust gas can
have a sulfur-like exhaust gas smell under
some operat ing states. This depends on
the sulfur content of the fuel being used .
Usi ng a different brand of fuel may help,
or f illing the tank with lead-free super
grade gasoline.
Diesel particulate filter
Applies to vehicles: with diese l eng ine
The diesel part icu late filter filters nearly all of
the soot pa rticles out of the exhaust . T he fil­
te r cleans itself automat ica lly unde r no rma l
dr iv ing cond itions . If the filte r cannot clean it­
self (for example, because you are on ly driving
short distances), the filter becomes clogged
with soot and the
II symbol for the diesel
particulate filter ill uminates ¢
page 22. ..,.

Winter operation
At temperatures below 20° F (-7° C), Diesel
fuel No.
2 loses its fluidity due to wax separa­
tion, which may clog the fuel filter or tank fil­
ter and keep the engine from running .
To help the filter from being clogged by wax,
the fuel filter in your vehicle is automatically
preheated. Preheating the fuel filter makes
operation of your vehicle possible with Diesel
fuel No . 2 down to -10° F (-24° C).
If you expect temperatures below
5° F
(-15° C)
ask your fuel dealer whether their
Diese l fuel No.
2 is sufficiently winterized for
the prevailing and expected temperatures.
If not winterized or insufficiently winterized
Diesel fuel has already thickened to the extent
that the engine will not start, warm the vehi­
cle up by leaving it in a heated garage.
It is normal that the engine noise leve l (die­
seling) is louder during the warm-up period in
winter.
It is also norma l when whitish-blue
smoke comes out of the tailpipe after start ing
and during warm-up . The amount of smoke
depends on the outs ide temperature.
Do not let your Diese l engine id le unnecessari­
ly after a cold start. Driving off slowly will
shorten the warm-up period .
A WARNING
-Never use "starting assist fluids." They
may be potent ially explosive or cause a
"run-away" engine condition. This could
result in serious engine damage and per­
sonal injury.
- Never use fuel line anti-freeze offered for
gasoline engines .
0 Note
- Your Diesel engine has been specifically
designed to operate only on Ultra Low
Sulfur Diesel fuel. Therefore, never use
home heating oil or regular gasol ine. Th e
properties of these fuels may cause seri­
ous damage to the fuel injection system
and to the engine. Using these fuels can
-
Fuel supply and filling your fuel tank 217
cause expensive engine repai rs and will
also adversely affect your New Vehicle
Limited Warranty.
- If Diesel fuel should get on any rubber
hose, it must be wiped off immediately.
Then wash the contaminated hose por­
tion with soap and warm water. Do not
allow Diesel fuel to remain on connect­
ing hoses . They may develop leaks and
cause serious damage.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap.
If the power locking system should fail, you
can still open the flap manually -for detailed
instructions see
¢ page 220.
You can find the fuel tank capacity of your ve­
hicle in
¢ page 281.
T he labe l on the inside of the fuel fi ller flap
tells you the correct fuel for your vehicle. For
more information about fuel specifications,
see
¢ page 215.
Your vehicle fuel tank has an on board refuel­
ling vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and polluting the environment while you refue l your vehicle. In order to fi ll the tank
properly while protecting the environment,
please follow this refueling procedure careful­
ly.
A WARNING
Under normal operating conditions, never
carry addit ional fuel conta iners in your car .
Gas canisters and other containers used to
transport fuel can be dangerous. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must
transport fuel to use for your lawn mower,
snow b lower, etc., be very careful and al­
ways observe loca l and state laws regard­
ing the use, transportation and storage of
such fuel containers. Make certain the
~
•
•

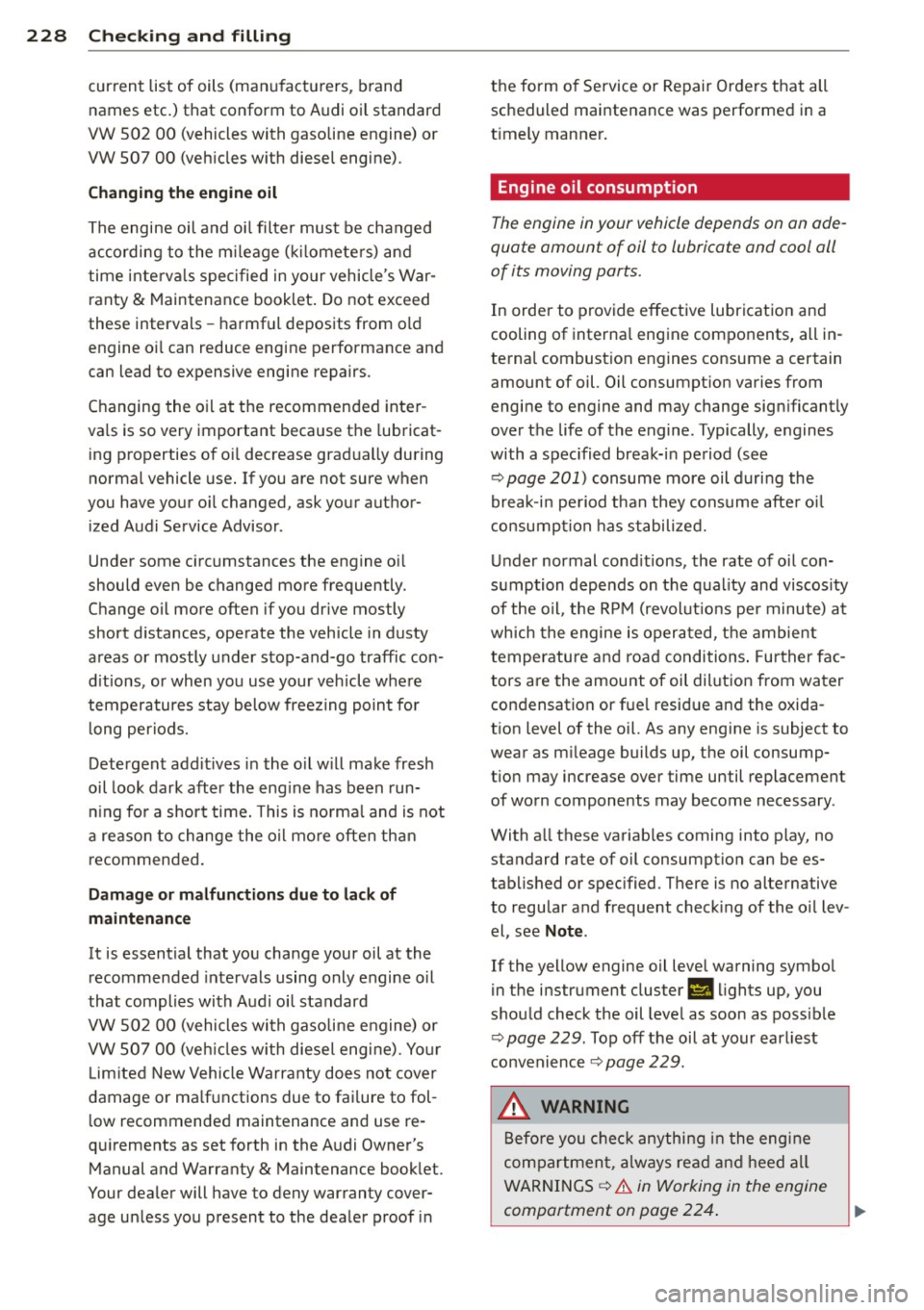

228 Check ing and filling
current list of oils (manufacturers , brand
names etc.) that conform to Aud i oi l standard
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (vehicles with diesel engine).
C hang in g th e en gin e oil
The engine oil and o il filter must be changed
according to the m ileage (ki lomete rs) and
time inte rva ls spec ified in your vehicle's War­
ranty
& Maintenance booklet . Do not exceed
these intervals - harmful deposits from old
engine o il can reduce engine performance and
can lead to expensive engine repairs .
Changing the oil at the recommended inte r­
va ls is so very important because the lubricat­
ing properties of oi l decrease grad ually during
norma l vehicle use. If you are not sure when
you have your oil changed, ask your author­
ized Audi Service Advisor .
Under some circumstances the engine o il
should even be changed more frequently .
Change oil more often if you drive mostly
short d istances, operate the vehicle in dusty
areas or mostly under stop-and-go traffic con­
d itions, or when you use your vehicle where
temperatures stay below freezing point fo r
l ong periods.
Detergent add it ives in the o il w ill make fresh
oil look dark after the eng ine has been run­
n ing fo r a short time. This is no rma l and is not
a reason to change the o il more often than
recommended.
Dama ge or ma lfun cti ons du e to la ck of
maint enan ce
It is essential that you change your oil at the
recommended intervals using only engine oil
that complies with Audi oil standard
VW 502 00 (vehicles wi th gaso lin e engine) or
VW 507 00 (veh icles with diese l engine) . Yo ur
Limited New Vehicle Warranty does not cover
damage or ma lf u nctions due to failure to fol­
low recommended maintenance and use re­
qu irements as set forth in the A udi Owner's
Manual and War ranty
& Maintenance book let.
Your dea ler will have to deny warranty cover­
age unless you present to the dealer proof in the form o
f Service or Repair Orders that all
scheduled maintenance was performed in a
t imely manner.
Engine oil consumption
The engine in your vehicle depends on on ade­
quate amount of oil to lubricate and cool oil
of its moving ports.
In order to provide effective lubrication and
cooling of interna l engine components, all in­
ternal combust ion engines consume a certain
amount of oil. Oil consumpt ion varies from
engine to engine and may change sign ificantly
over the life of the engine. Typically , engines
with a spec ified break- in period (see
¢ page 201) consume more oil during the
break -in pe riod t han they consume afte r o il
consumption has stabilized.
Under normal cond it ions, the rate of oil con­
sumption depends on the q ua lity and viscos ity
of the oil , the RPM (revol utio ns per minute) at
which the engine is opera ted, the ambient
temperature and road conditions . Furt her fac­
tors are the amount of oil dilution from water
condensation or fue l residue and the oxida ­
tion level of the oil. As any engine is subject to
wear as m ileage builds up, the oil consump­
t ion may increase over time until replacement
of worn components may become necessary .
With a ll these variab les coming into p lay, no
standard rate of oil consumpt ion can be es­
tablished or spec ified . There is no alternative
to regular and frequent checking of the o il lev­
el, see
Not e.
If the yellow engine oil level warning symbol
in the instrument clus ter
II lights up, you
shou ld check the oil leve l as soon as possib le
¢
page 229 . Top off the oil at your earl iest
convenience
9 poge 229.
,&. WARNING
Before you che ck anything in the engine
compartmen t, a lways rea d and heed al l
WAR NIN GS ¢.&
in Working in the engine
comportment on page 224 .
-

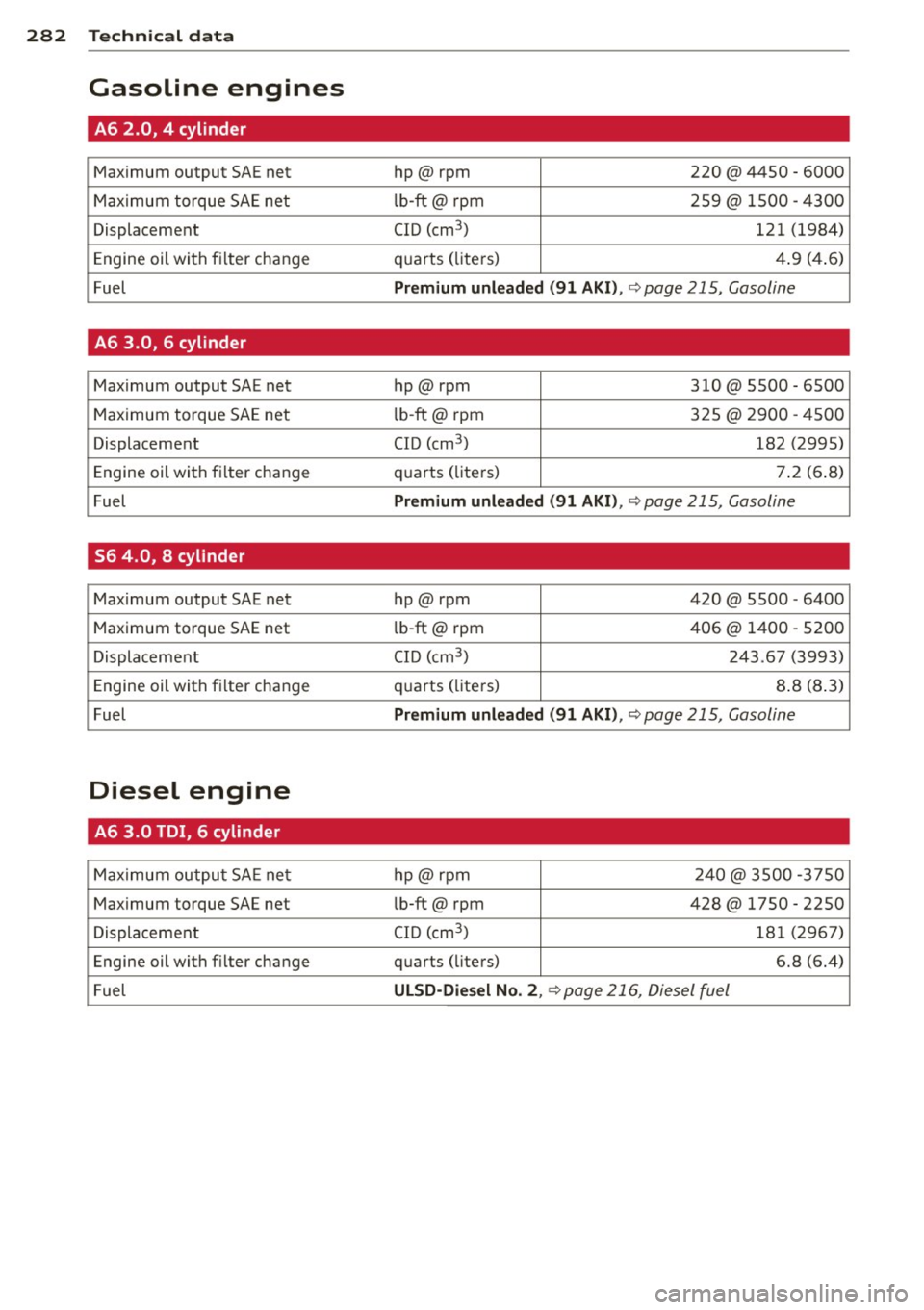

282 Technical data
Gasoline engines
A6 2.0, 4 cylinder
Maximum output SAE net hp@rpm 220 @ 4450 - 6000
Max imum torque SAE net lb-ft@ rpm 259@ 1500
-4300
Displacement CID (cm
3
) 121 (1984)
Engine oil with filter change quarts (liters)
4.9 (4.6)
Fuel
Premium unleaded (91 AKI), ¢page 215, Gasoline
A6 3.0, 6 cylinder
Maximum output SAE net hp@rpm 310@ 5500 - 6500
Maximum torque SAE net lb -ft@ rpm 325 @ 2900 -4500
Displacement CID (cm
3
) 182 (2995)
Engine oil with filter change quarts
(liters) 7.2 (6.8)
Fuel
Premium unleaded (91 AKI), ¢page 215, Gasoline
56 4.0, 8 cylinder
Maximum output SAE net hp@rpm 420@ 5500 -6400
Maximum torque SAE net lb -ft@ rpm 406@ 1400 -5200
Displacement CID (cm3
)
243.67 (3993)
Engine oil with filter change q
uarts (liters) 8.8 (8 .3)
Fuel
Premium unleaded (91 AKI), ¢page 215, Gasoline
Diesel engine
A6 3.0 TOI, 6 cylinder
Maximum output SAE net hp@rpm 240@ 3500 -3750
Maximum torque SAE net lb-ft@ rpm 428@ 1750 - 2250
Displacement CID
(cm
3
) 181 (2967)
Engine oil with filter change quarts (liters) 6.8 (6.4)
Fuel
ULSD-Diesel No. 2 , ¢ page 216, Diesel fuel

Consumer Information
Warranty coverages
Your Audi is covered by the following war­
ranties :
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding yo ur warran ­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A. and Canada differ from vehicles sold in
other countries .
I f you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lower octane
rating . Improper fuel may cause engine
damage;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment;
- replacement parts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessari ly work
in Europe, and may not work in other coun­
tries outside North America .
Consumer Information 283
@ Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, serv ice or parts availab ility.
Audi Service Repair
Manuals and Literature
Audi Offic ial Factory Service Manuals and Lit ­
erature are published as soon as possible after
model introduct ion. Service manuals and lit­
erat ure are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
' General
Your vehicle has been designed to help keep
maintenance requirements to a m inimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
safety, economy and reliability . For detailed
vehicle maintenance consult your Warranty
&
Maintenance booklet.
Under difficult operating conditions , for ex­
ample at extremely low outside temperatures,
in very dusty regions, when towing a trailer
very frequently, etc., some serv ice work
shou ld be pe rformed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter.
® For the sake of the environment
By regularly maintaining your veh icle, you
help make sure that emission standards
are maintained, thus min imiz ing adverse
effects on the environment .
Important considerations for you and
your vehicle
The increasing use of electronics, sophistica t­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technica l ..,_
•
•

Night vision assistant .... ... .. .. .. .. . 103
C leaning camera lenses . ... .. .. .. .. . 211
Nitrogen oxide (NOx) cata lytic conve rter
refer to Ad Blue ........... .. .. .. ... 220
Number of seats .. .. .... .... . .. .. .. . 138
0
Occupant seating positions
129
Octane rating ............. .... .. .. . 215
Odometer ..... ................ .... . 27
O FF (automatic climate contro l) . . . . . . . . 70
O FF ( clima te control) ....... .. .. .. .. .. 68
O il
refer to Engine oil ......... ... ... .. 226
On-board compute r ..... ... .. .. .. .. .. 25
On-Board Diagnostic System (OBD) Data L ink Connector (DLC) .. .. .. .. .. .. 30
E lectron ic speed lim ite r . . . . . . . . . . . . . . 3 1
M alfunct ion Indica tor Lamp (M IL) ... .. 30
Open door/hood/rear lid warning . . . . . . . 24
Opening Hood .... .. ................. .. ... 224
Powe r windows .......... .... .. .. .. 40
Sliding/tilting sunroof ........ .... ... 41
Operate you r vehicle economica lly and
minim ize po llution ......... .. .. .. .. . 203
Othe r equipmen t (eff ic iency p rog ram) . .. 26
Outlet .. .. .. .... ... .. ... ... .. .. .. .. 58
p
Paint damage
212
P aint No . .. .. .... ......... .... .. .. . 280
Park ing . .. ... ......... ...... .... ... 78
Automatic t ransmission ... .. .. .. .. . 109
Valet park ing ............ .. .. .. .. .. 41
Park ing brake ............. .... .. .. .. 77
also refer to Electromechanical park ing
brake .. .. ... ............. ... ... ... 77
Park ing system
Ad justing the disp lay/warning tone .. . 124
C leaning sensors/camera lenses . .. .. . 211
C leaning the rear view camera .. .. .. . 116
Malfunct io n .. ........... .. .. .. .. . 125
Par king system plus .......... .... .. 115
P eriphe ra l came ras .... ... .. .. .. .. . 119
Rear view camera ......... .. .. .. .. . 116
Inde x 295
Trai le r hitch ..... ... .. .. ..... ... .. 125
o/sorefertoPa rkingsystems . .. 115,116
Pa rking systems . .. ................. 11 4
Particle f ilter
refer to Diese l part icu late filter .. .. .. . 22
Pa rts replacement ... . .. .. ..... ... .. 285
Pass-through w ith sk i sack . . . . . . . . . . . . . 65
PASSENGER AIR BAG OFF light ...... .. 160
P a ssenger protect ion ............ .... 192
Passive safety system ... .. ...... .... . 128
Pedals ... .. .. .. .... . ... ...... ... .. 133
Physical p rinciples of a frontal collision 139
Plastic parts Cleaning ........ .. ............... 212
Polishing ... .. .... .. . .. .. ..... ... .. 212
Pollen filter
refer to P oll utant fil ter ........... .. . 67
Pollutant f ilter .. .. .... ......... .. .. . 67
Power locking system .. .. .. ..... ... .. . 34
Locking/unlocking the vehicle from in-
s ide .......... .. .. ................ 37
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Se lective unlock feature ........ .. .. . 35
Settings ........ .. ................ 35
U nlocking and locking vehicle ....... .. 35
Power seat adjustment Front seats . . . . . . . . . . . . . . . . . . . . . . . . 53
Power steer ing
refer to Ele ct ro -mechanical power as -
sist . ... .. .. .... ... . ... ..... ... .. 198
Power w indows .. .. ............. .. .. . 40
m alfu nction . .. .... ... .......... .. . 41
P regnant women
Spec ia l considerations when wear ing a
safety belt . . . . . . . . . . . . . . . . . . . . . . . 143
pre sense ... .... .. .. . .............. 192
P reventative passenge r protection . .. .. 192
Programming the Homeli nk unive rsal re -
mote control .. .. .. .. . .. .... .... .. .. 126
Proper occupant seating positions ... .. 129
P roper s afety belt posi tion . . . . . . . . . . . . 142
Proper seating position Front passenger .................. . 130
Occupan ts . .. .. .... .. ........ ..... 129
Rea r passengers .. ............. .... 131
Protecting .. .. .. .. ................. 212
•
•
