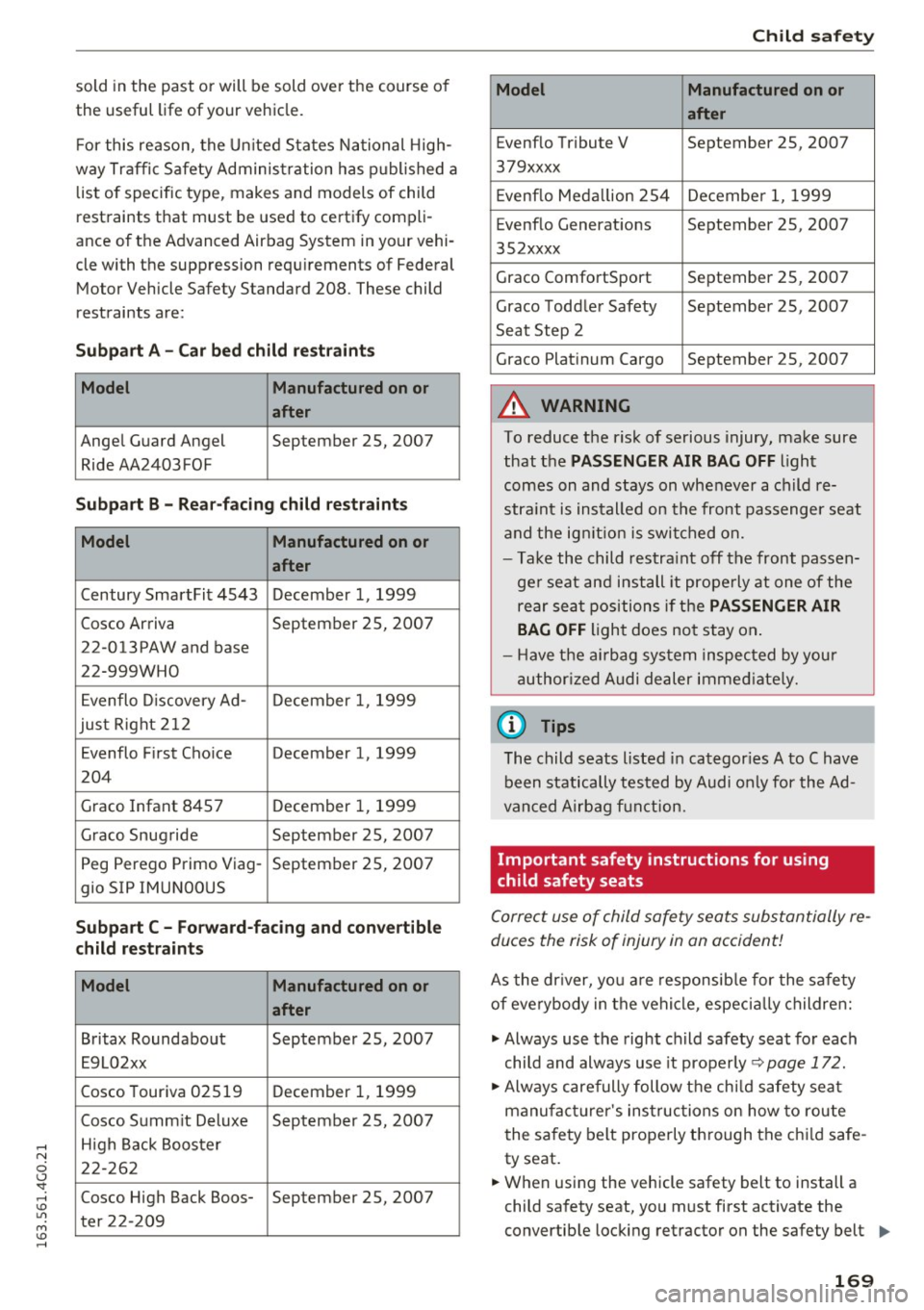

sold in the past or will be sold over the course of
the useful life of your vehicle.
F or this reason, the U nited States National High­
way Traffic Safety Administration has p ublished a
list of specific type, makes and models of child
restraints that must be used to certify compli­
ance of the Advanced Airbag System in your vehi­
cle with the suppression requirements of Federal
Motor Vehicle Safety Standard 208. These child
restraints are:
Subpart A - Car bed ch ild re str aint s
Model Manufactured on or
after
Ange l Guard Angel September 2S, 2007
Ride AA2403FOF
Subp art B - Re ar-f acin g child re str aint s
Model Manufactured on or
after
Century SmartFit 4543 December 1, 1999
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenflo D iscovery Ad- December 1, 1999
just Right 212
Evenflo F irst Choice December 1, 1999
204
Graco Infant 8457 December 1, 1999
Graco 5nugride September 25, 2007
Peg Perego Primo Viag- September 25, 2007
gio SIP IMUNOOUS
Subpart C -Fo rward -facing and con vertibl e
child r est raint s
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summ it Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back Boos- September 25, 2007
ter 22-209
Ch ild safety
Model Manufactured on or
after
Evenflo Tribute V September 25, 2007
379xxxx
E venflo Meda llion 254 Decembe r 1, 1999
Evenflo Generat ions September 25, 2007
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
stra int is ins talled on the front passenger seat
and the ign it ion is swi tched on.
- Take the child restra int off the front passen­
ge r seat and install it prope rly at one of the
rear seat positions if the
PA SSENGER AIR
BAG OFF
light does not stay on .
- Have the ai rbag system inspec ted by your
author ized Audi dealer immed iate ly.
(D Tips
The child seats listed in categor ies A to C have
been statically tested by Audi only for the Ad­
vanced Airbag f unction.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially re­
duces the risk of injury in an accident!
As the dr iver, yo u are responsib le for the safety
of eve rybody in the vehicle, especia lly children:
.,. Always use the right child safety seat for each
child and always use it properly ~
page 172.
.,. Always carefully follow the chi ld safety seat
manufacturer 's instructions on how to route
the safety belt properly th rough the chi ld safe ­
ty seat.
.,. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertib le locking retractor on the safety belt
Iii>-
169

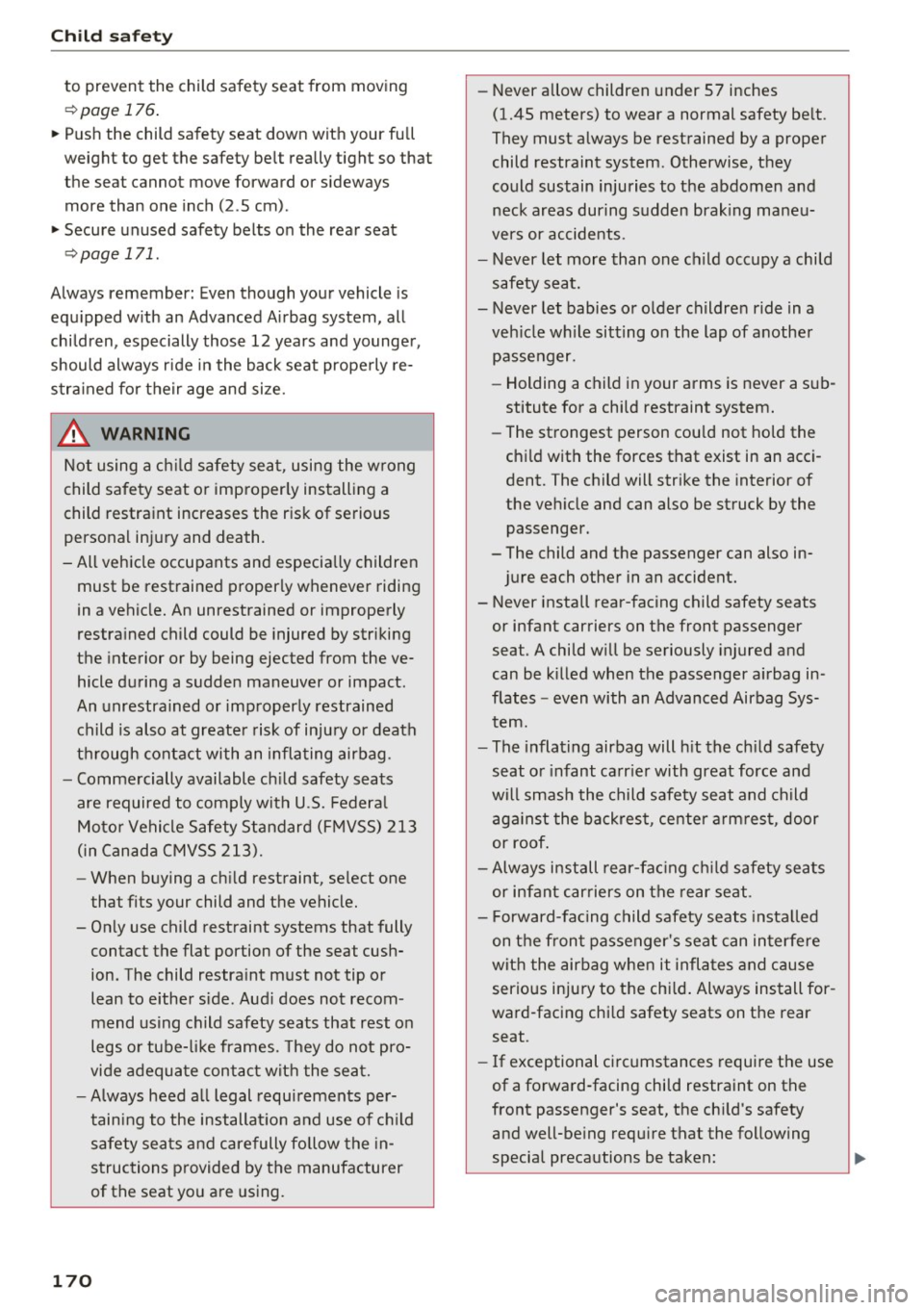

Child safety
to prevent the child safety seat from moving
¢page 176.
~ Push the child safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways
more than one inch (2.5 cm) .
~ Secure unused safety belts on the rear seat
¢page 171 .
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, all
children, especially those 12 years and younger,
should always ride in the back seat properly re­
strained for their age and size.
_& WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal injury and death.
-All vehicle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restrained child could be injured by striking
the interior or by being ejected from the ve­
hicle during a sudden maneuver or impact.
An unrestrained or improperly restrained
child is also at greater risk of injury or death
through contact with an inflating airbag .
- Commercially available child safety seats
are required to comply with U .S. Federal
Motor Vehicle Safety Standard (FMVSS) 213
(in Canada CMVSS 213).
- When buying a child restraint, select one
that fits your child and the vehicle.
- Only use child restraint systems that fully
contact the flat portion of the seat cush­
ion. The child restraint must not tip or
lean to either side. Audi does not recom ­
mend using child safety seats that rest on
legs or tube-like frames. They do not pro­
vide adequate contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of child
safety seats and carefully follow the in­
structions provided by the manufacturer
of the seat you are using.
170
-Never allow children under 57 inches
(1.45 meters) to wear a normal safety belt.
They must always be restrained by a proper child restraint system . Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or accidents .
- Never let more than one child occupy a child
safety seat.
- Never let babies or older children ride in a
vehicle while sitting on the lap of another passenger.
- Holding a child in your arms is never a sub­
stitute for a child restraint system.
- The strongest person could not hold the
child with the forces that exist in an acci­
dent. The child will strike the interior of
the vehicle and can also be struck by the
passenger.
- The child and the passenger can also in­ jure each other in an accident.
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat. A child will be seriously injured and
can be killed when the passenger airbag in ­
flates -even with an Advanced Airbag Sys­
tem.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest door
,
or roof.
- Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Forward-facing child safety seats installed
on the front passenger's seat can interfere
with the airbag when it inflates and cause
serious injury to the child. Always install for­
ward-facing child safety seats on the rear
seat .
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require that the following
special precautions be taken: .._
.__ ______________ _j ...

.... N
0 CJ ' M I.Cl ......
-Make sure the forward-facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier .
- Always move the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and
as far away from the airbag as possible be­
fore installing the child restraint.
- Always make sure that nothing prevents the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Always make sure that the backrest is in the upright position.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat­
er for child seats) on the front passenger
seat if the device is connected to the 12-
volt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liquids on the front passenger seat
cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de­
vice, power inverter or seat heater for
child seats). These may influence the elec­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly around in an accident and cause
serious personal injury.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision .
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 134, Safety belts,
Child safety
¢ page 142, Airbag system and
¢ page 166, Child safety.
A WARNING
-
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on .
- Take the child restraint off the front passen­ ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.

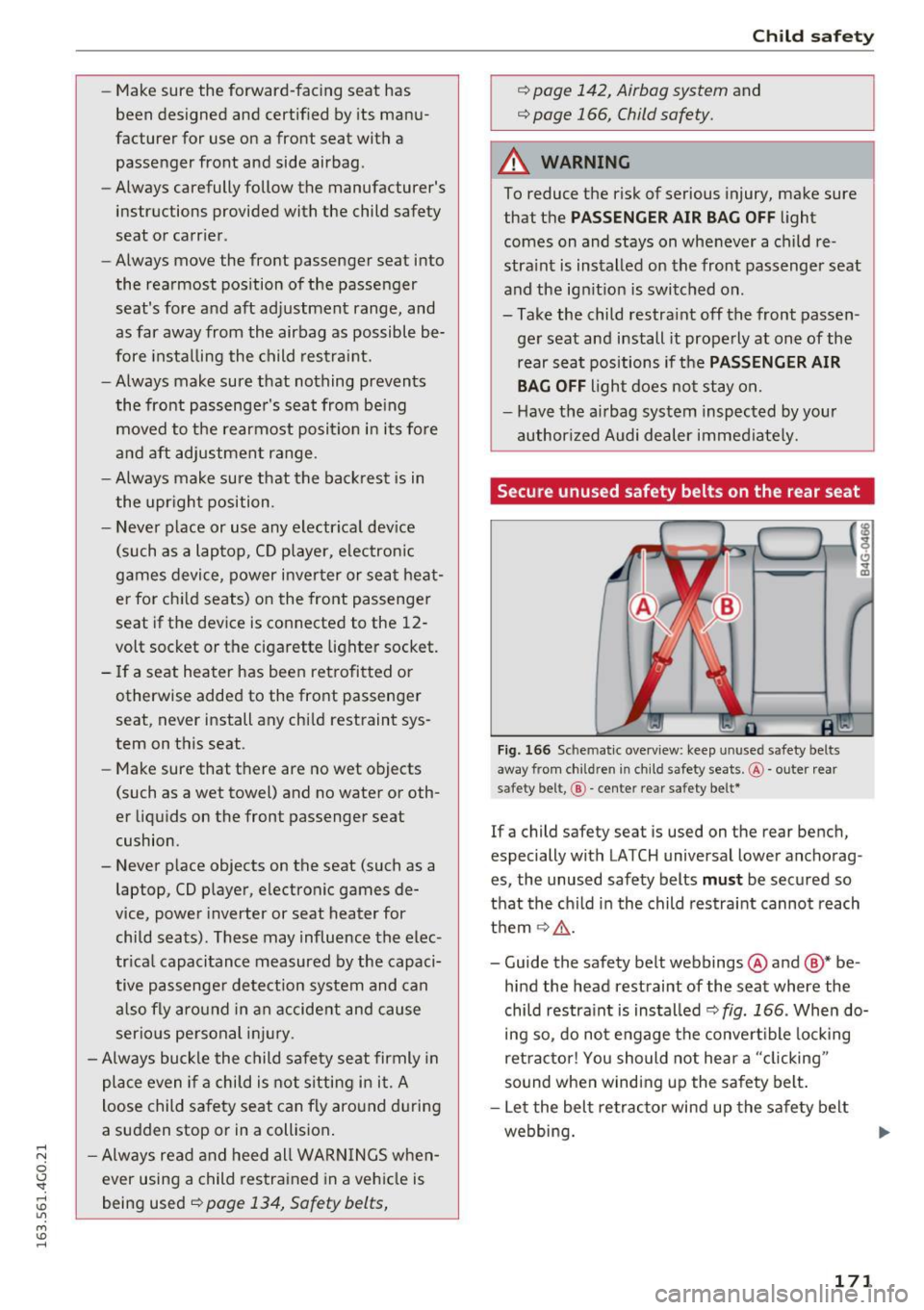

Secure unused safety belts on the rear seat
:8
. ,. -,. i
--- CJ
Fig. 166 Sc hematic overview: keep unused safety be lts
away from ch ild ren in c hild safety seats.@· outer rear
safety belt,®· center rear safety belt*
~
If a child safety seat is used on the rear bench,
especially with LATCH universal lower anchorag­
es, the unused safety belts
must be secured so
that the child in the child restraint cannot reach
them ¢_& .
- Guide the safety belt webbings @and
@* be­
hind the head restraint of the seat where the
child restraint is installed
¢ fig. 166 . When do­
ing so, do not engage the convertible locking
retractor! You should not hear a "clicking"
sound when winding up the safety belt.
- Let the belt retractor wind up the safety belt
webbing.
171

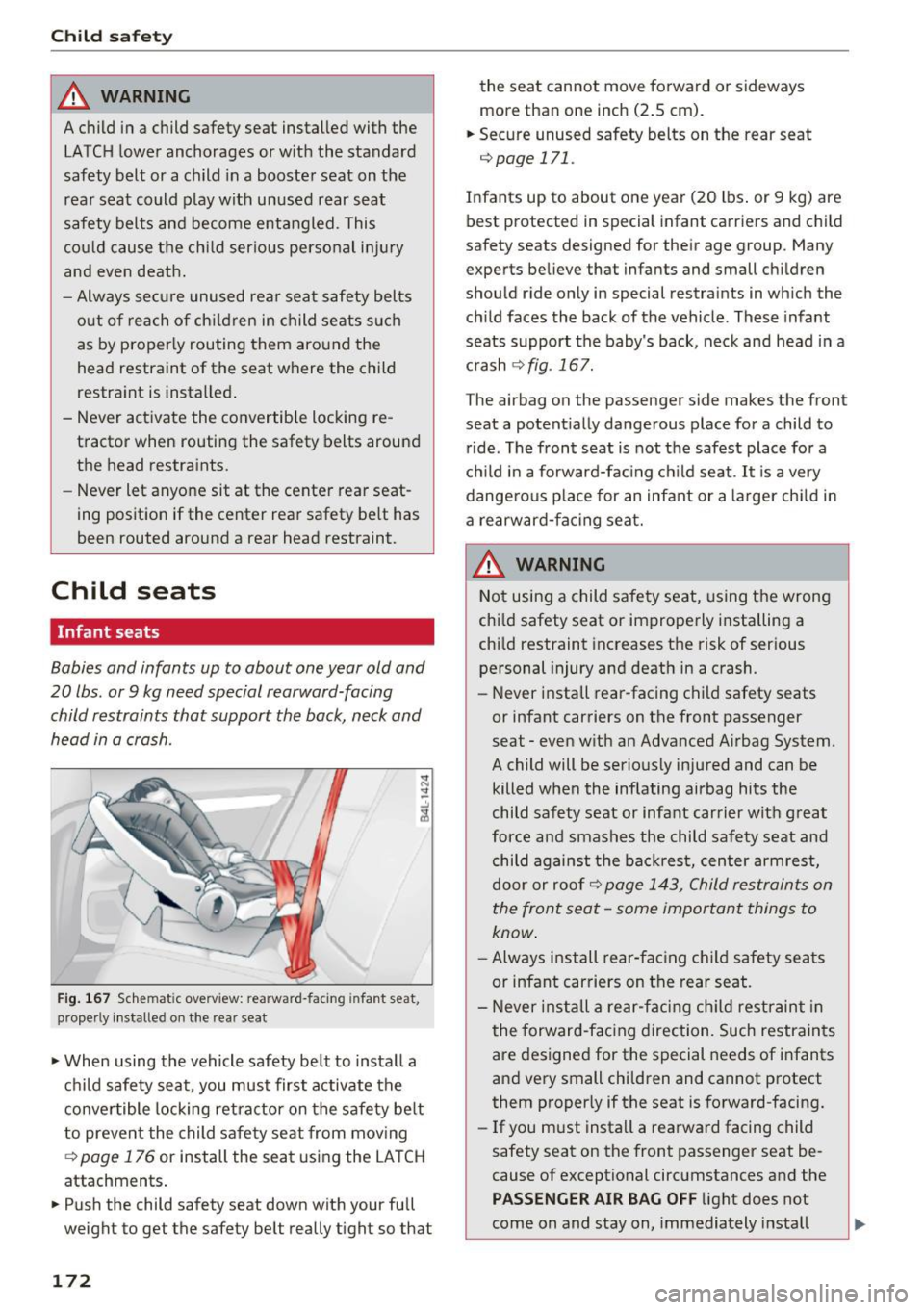

Child safety
_& WARNING
A child in a child safety seat installed with the LA TCH lower anchorages or w ith the standard
safety belt or a child in a booster seat on the
rear seat could play with unused rear seat
safety belts and become entangled. This
could cause the child serious personal injury
and even death.
- Always sec ure unused rear seat safety belts
out of reach of ch ildren in child seats such
as by properly routing them around the
head restraint of the seat where the child
restraint is insta lled .
- Never activate the convertible locking re­
tractor when routing the safety belts around
the head restraints.
- Never let anyone sit at the cente r rear seat­
ing position if the center rear safety belt has
been routed around a rear head restraint.
Child seats
Infant seats
Babies and infants up to about one year old and
20 lbs . or 9 kg need special rearward-facing
child restraints that support the back, neck and
head in a crash.
Fig . 167 Schemat ic overv iew: r earwa rd -fa cing in fant seat,
p roperly installe d on the rea r seat
.. When using the vehicle safety be lt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety be lt
to prevent the child safety seat from mov ing
q page 176 or install the seat using the LATCH
attachments .
.. Push the child safety seat down with your full
weight to get the safety belt really tight so that
172
the seat cannot move forward or sideways
more than one inch (2 .5 cm) .
.. Secure unused safety belts on the rear seat
q page 171.
Infants up to about one year (20 lbs. or 9 kg) are
b est protected in special infant carriers and child
safety seats designed for their age group. Many
experts believe that infants and small children
should ride only in special restraints in wh ich the
child faces the back of the vehicle . These infant
seats support the baby's back, neck and head in a
crash
q fig . 167.
T he airbag on the passenger side makes the front
seat a potent ially dangerous place for a child to
ride . The front seat is not the safest place for a
child in a forward-facing ch ild seat .
It is a very
dangerous p lace for an infant or a larger child in
a rearward-facing seat.
_& WARNING
Not using a child safety seat, using the wrong
chi ld safety seat or improperly installing a
chi ld restraint increases the risk of serious
personal injury and death in a crash .
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat - even w ith an Advanced A irbag System .
A child will be serious ly injured and can be
killed when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and
child against the backrest, center armrest,
door or roof
q page 143, Child restraints on
the front seat -some important things to
know .
-Always install rear-facing child safety seats
or infant carriers
on the rear seat .
- Never install a rear-facing child restraint in
the forward-facing direction. Such restraints
are designed for the special needs of infants
and very small children and cannot protect
them proper ly if the seat is forward-facing.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install

.... N
0 CJ ' M I.Cl ......
the rear-facing ch ild safety seat in a rear
seating posit ion and have the airbag system
inspected by your Audi dealer.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the dev ice is connected to the 12-volt
socket or the cigarette lighter socket .
- If a seat heater has been retrofitted or oth­
erwise added to the front passenge r seat,
never i nstall any ch ild rest raint system on
this se at.
- Make sure that there are no wet objects
(s uch as a wet towel) and no water or o ther
liquids on the front passenger seat cushion .
- Never place objects on the seat (such as a
laptop, CD player, elec tronic games dev ice,
power inverter or seat hea ter for child
seats) . These may influence the e lectr ica l
capacitance measured by the capacitive pas­
senger detection system and can also fly
around in an accident and cause serious per­
sonal injury .
- Always read and heed all WARNINGS when­
ever using a child restra ined in a veh icle is
being used
c:::> page 134, Safety belts,
¢ page 142, Airbag system and
c:> page 166, Important information .

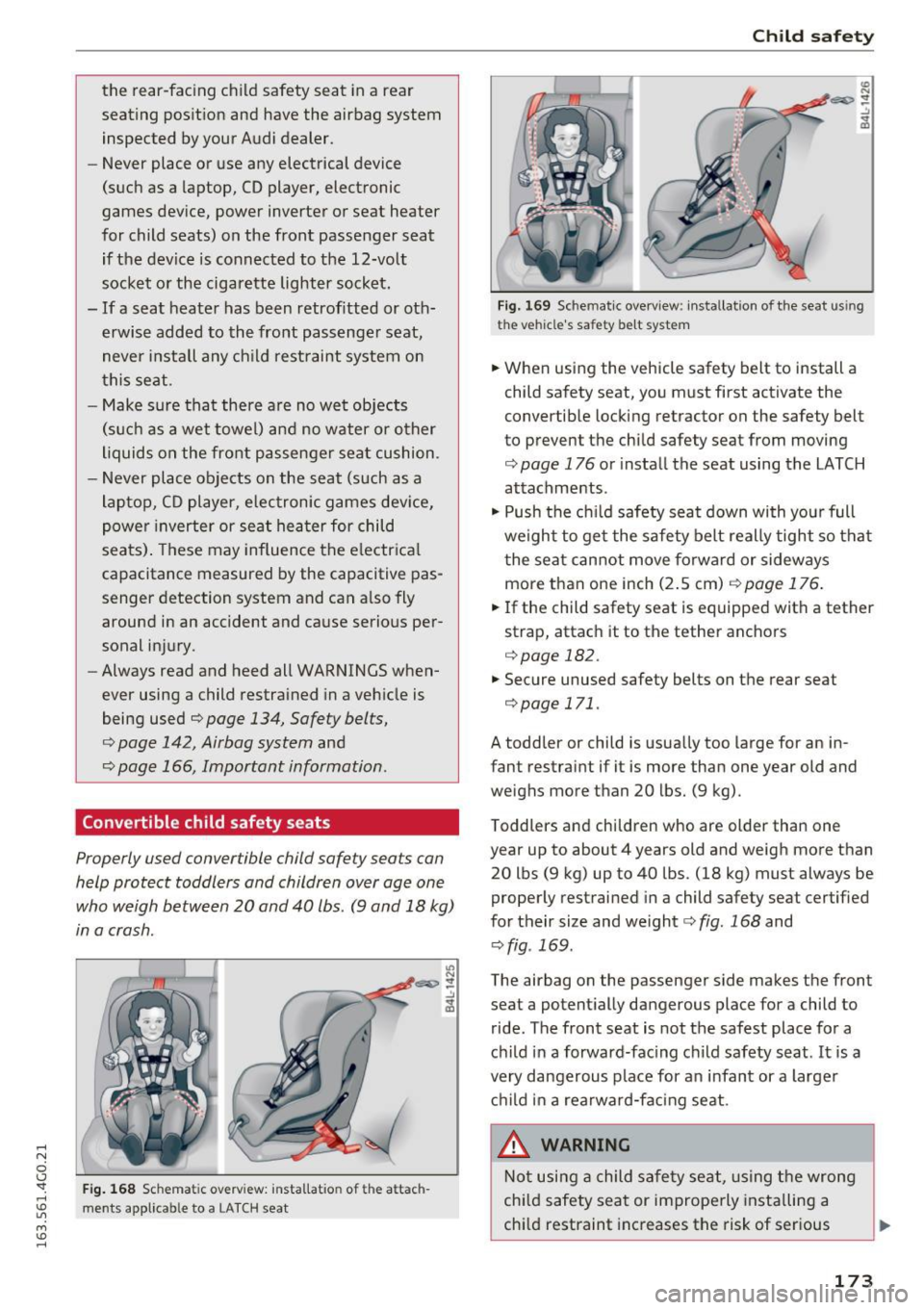

Convertible child safety seats
Properly used convertible child safe ty sea ts can
help protect toddlers and children over age one
who weigh between 20 and 40 lbs. (9 and 18 kg)
in a crash.
F ig. 16 8 Schematic overv iew: i nsta llat io n of t he a ttac h­
m ents app lica ble to a LA TCH sea t
Child sa fety
Fig. 169 Sc hemat ic overv iew : in sta llat ion of t he seat usin g
t he ve hicl e's sa fety be lt syst em
"' When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety belt
to prevent the child safety seat from moving
c:> page 176 or install the seat using the LATCH
attachments .
"' Push the ch ild safety sea t down with yo ur full
weight to ge t the safety belt really tight so that
t he seat can not move forward or sideways
more than one inch (2 .5 cm) ¢
page 176 .
"'If the child safety seat is equipped with a tether
strap, attach it to the tether ancho rs
c:> page 182.
"'Secure unused safety belts on the rear seat
c:> page 171.
A toddler o r child is usua lly too large for an in­
fan t restraint if it is more th an one year old and
weighs more than 20 lbs. (9 kg).
Todd lers and children who are older than one
year up to about 4 yea rs old and weigh more than
20 lbs (9 kg) up to 40 lbs. (18 kg) must always be
properly restrained in a child safety seat certified
for their size and we ight
c:::> fig . 168 and
c:> fig . 169.
The airbag on the passenger side m akes the front
seat a potent ially dangerous place for a child to
ride . T he front seat is not the safest place for a
child in a forward-fac ing ch ild safety seat. It is a
very dangerous place for an infant or a larger c hi ld in a rearward-facing seat.
_&. WARNING
No t using a child sa fe ty seat, using t he wrong
child safety sea t or improperly insta lling a
child restraint increases the risk of ser ious
~
173

Child safety

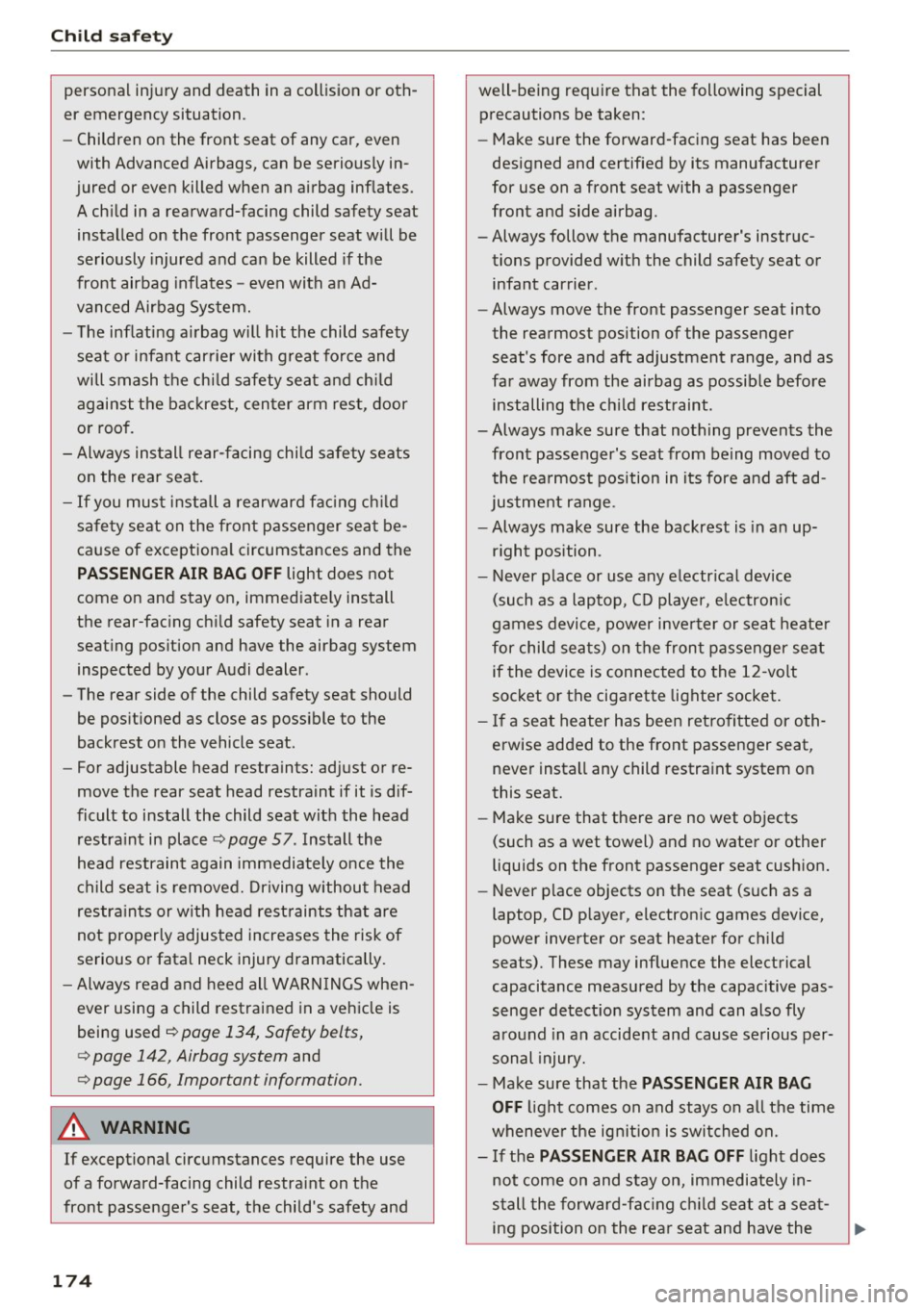

personal injury and death in a collision or oth­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates .
A child in a rearward-facing child safety seat installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center arm rest , door
or roof.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your Audi dealer .
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat.
- For adjustable head restraints: adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head
restraint in place¢
page 57. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 134, Safety belts,
¢ page 142, Airbag system and
¢ page 166, Important information.
A WARNING
If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and
174
well-being require that the following special precautions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag.
- Always follow the manufacturer's instruc­ tions provided with the child safety seat or
infant carrier .
- Always move the front passenger seat into
the rearmost position of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before
installing the child restraint .
- Always make sure that nothing prevents the front passenger's seat from being moved to
the rearmost position in its fore and aft ad­
justment range .
-Always make sure the backrest is in an up­
right position .
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device , power inverter or seat heater
for child seats) on the front passenger seat
if the device is connected to the 12-volt
socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat, never install any child restraint system on
this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or other
liquids on the front passenger seat cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games device,
power inverter or seat heater for child
seats). These may influence the electrical
capacitance measured by the capacitive pas­
senger detection system and can also fly
around in an accident and cause serious per­
sonal injury.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall the forward-facing child seat at a seat-
ing position on the rear seat and have the
~

.... N
0 CJ ' M I.Cl ......
airbag system inspected by your authorized
Audi dealer.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
P AS SEN GER AIR
BA G O FF
light does not stay on whenever
the ignition is switched on .
Booster seats and safety belts
Properly used booster seats can help protect
children weighing be tween about 40 lbs. and 80
lbs . (18 kg and 36 kg) who are less than 4
ft. 9
in . (57 inches/1 .45 meters) tall .
Fig. 170 Rea r seat: chi ld p roperly restrained in a booster
seat
T he vehicle's safety belts alone will not fit most
children until they are at least 4
ft . 9 in . (57 in­
ches/1.45 meters) tall and weigh about 80 lbs .
(36 kg) . Booster seats raise these child ren up so
that the safety belt will pass properly over t he
stronger parts of the ir bodies and the safety belt
can help protect them in a crash .
.,. Do not use the convertible locking retractor
when usi ng the vehicle's safety belt to restrain
a ch ild on a booster seat.
.. The shoulder be lt must lie as close to the cen ­
ter of the child's co llar bone as possible and
must lie flat and snug on the upper body. It
must never lie across the throat or neck. The
lap belt must lie across the pelvis and never
across the stomach or abdomen . Make sure the
belt lies flat and snug . Pull on the belt to tight­
en if necessary .
.,. If you must transpo rt an older chi ld in a boos­
te r seat on the fron t passenger seat , you can
use the safety belt he ight ad justment to help
adjust the shoulder portion properly .
Child sa fety
.. Secure unused safety belts on the rear seat
i=> page 171 .
Children up to at least 8 years o ld (over 40 lbs or
18 kg) a re best protected in child safety seats de­
signed for their age and weight . Experts say that
the skeletal structure, particularly the pe lvis, of
these children is not fully developed, and they
must not use the vehicle safety belts without a
su itable child restraint.
It is usually best to put these children in appro­
priate booster seats. Be sure the booster seat
meets all applicab le safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shou lder
parts of the safety belt so that they pass across
the child's body in the right places . The routing of
the belt over the ch ild's body is very important
for the ch ild's protection, whether or not a boos ­
te r seat is used . Children age 12 and under must
always ride i n the rea r seat.
Children who are at least 4
ft . 9 in . (57 inches/
1.45 meters) tall can generally use the vehicle's
three point lap and shoulder belts . Never use the
lap belt portion of the veh icle's safety belt a lone
to restra in any ch ild, regard less of how big the
child is. Always remember tha t ch ildren do not
have the pronounced pelvic str ucture required for
the p roper function of lap be lt po rtion of the ve ­
hicle's three point lap and shoulder belts. The
child 's safety abso lutely requ ires that a lap belt
portion of the safety belt be fastened snugly and
as low as possible around the pelvis . Never let
the lap belt portion of the safety belt pass over
the ch ild's stomach or abdomen .
In a crash, airbags must inflate w ith in a blink of
an eye and with considerable force . In order to do
its job, the airbag needs room to inflate so that it
will be the re to protect the occupant as t he occu­
pant moves fo rwa rd in to the airbag.
A vehicle occupant who is out of posit ion and too
close to the a irbag gets in the way of an inflating
airbag . When an occupa nt is too close , he or she
will be struck violent ly and w il l rece ive serio us or
poss ibly eve n fata l injury. .,,.
175

Child safety

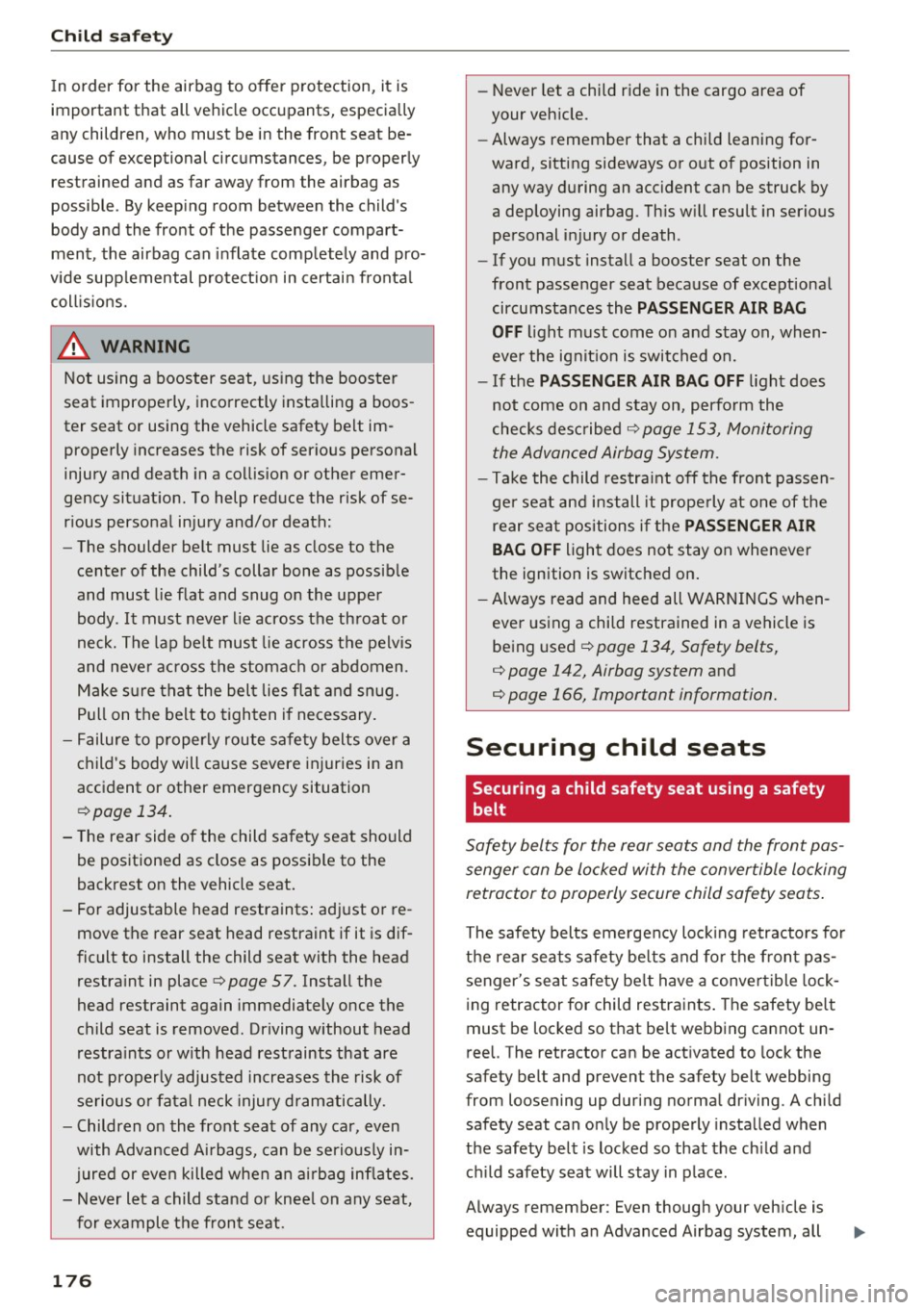

In order for the airbag to offer protection, it is
important that all vehicle occupants, especially
any children , who must be in the front seat be­
cause of exceptional circumstances, be properly restrained and as far away from the airbag as
possible . By keeping room between the child's
body and the front of the passenger compart­
ment , the airbag can inflate completely and pro­
vide supplemental protection in certain frontal
collisions.
A WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos­
ter seat or using the vehicle safety belt im­
properly increases the risk of serious personal
injury and death in a collision or other emer­
gency situation. To help reduce the risk of se­
rious personal injury and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body .
It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen .
Make sure that the belt lies flat and snug.
Pull on the belt to tighten if necessary.
- Failure to properly route safety belts over a
child's body will cause severe injuries in an
accident or other emergency situation
¢ page 134.
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat.
- For adjustable head restraints: adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head restraint in place
¢ page 57. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates.
- Never let a child stand or kneel on any seat,
for example the front seat.
176
-
-Never let a child ride in the cargo area of
your vehicle.
- Always remember that a child leaning for­
ward, sitting sideways or out of position in any way during an accident can be struck by
a deploying airbag. This will result in serious
personal injury or death .
- If you must install a booster seat on the
front passenger seat because of exceptional
circumstances the
PASSENGER AIR BAG
OFF
light must come on and stay on, when­
ever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described ¢
page 153, Monitoring
the Advanced Airbag System.
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on.
-Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is being used ¢
page 134, Safety belts,
¢page 142, Airbag system
and
¢ page 166, Important information.
Securing child seats
Securing a child safety seat using a safety
belt
Safety belts for the rear seats and the front pas­
senger con be locked with the convertible locking
retractor to properly secure child safety seats.
The safety belts emergency locking retractors for
the rear seats safety belts and for the front pas­
senger's seat safety belt have a convertible lock­
ing retractor for child restraints. The safety belt
must be locked so that belt webbing cannot un­
reel. The retractor can be activated to lock the
safety belt and prevent the safety belt webbing
from loosening up during normal driving . A child
safety seat can only be properly installed when
the safety belt is locked so that the child and
child safety seat will stay in place.

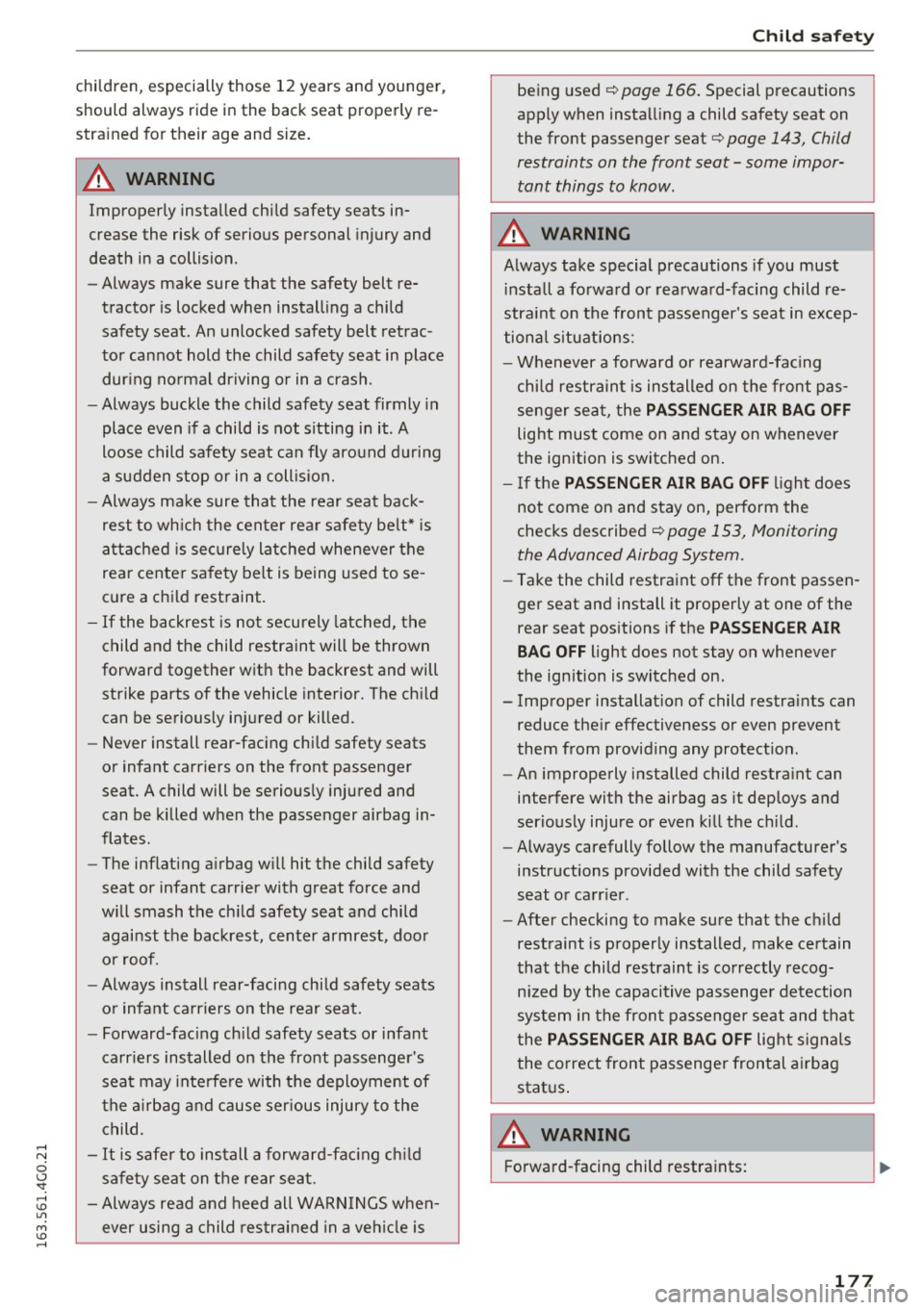

Always remember : Even though your vehicle is
equipped with an Advanced Airbag system, all

children, especially those 12 years and younger,
should always ride in the back seat properly re­
stra ined for their age and size.
A WARNING
-
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision.
- Always make sure that the safety belt re­
tractor is locked when install ing a child
safety seat . An unlocked safety belt retrac­
tor cannot hold the child safety seat in place dur ing normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it . A
loose child safety seat can fly around during
a sudden stop or in a collision.
- Always make sure that the rear seat back­
rest to wh ich the center rear safety be lt* is
attached is secure ly latched whenever the
rear center safety belt is being used to se ­
cure a child restraint.
- If the backrest is not securely latched, the
child and the child restraint will be thrown
forward together with the backrest and will strike parts of the vehicle interior. The chi ld
can be seriously injured or killed.
- Never install rear-facing chi ld safety seats
or infant carriers on the front passenger
seat. A child will be seriously injured and can be killed when the passenger airbag in­
flates.
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats
o r infant carriers on the rear seat.
- Forward-fac ing ch ild safety seats or infant
carriers installed on the front passenger's
seat may inte rfe re with the deployment of
the a irbag and cause serious injury to the
child.
- It is safer to install a forward-fac ing ch ild
safety seat on the rear seat.
- Always read and heed all WARN INGS when­
ever using a child restrained in a veh icle is
Ch ild safety
being used ¢page 166. Special precautions
apply when instal ling a child safety seat on
the front passenger seat
¢ page 143, Child
restraints on the front seat -some impor­
tant things to know .
A WARNING
-Always take special precautions if you must
i nstall a forward or rearward-facing child re­
stra int on the front passenger 's seat in excep ­
tional s ituations:
- Whenever a forward or rearward-fac ing
child restraint is installed on the front pas­
senger seat, the
PAS SENGER AIR BAG OFF
light must come on and stay on whenever
the ignition is switched on .
- I f the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described
¢ page 153, Monitoring
the Advanced Airbag System.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PA SS ENGER AIR
BAG OFF light does not stay on whenever
the ignition is switched on.
- Improper installat ion of child restraints can
reduce the ir effectiveness or even prevent
them from providing any protect ion.
- An improperly installed child restra int can
interfere with the airbag as it deploys and
serious ly injure or even kill the child .
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carr ier .
- After checking to make sure that the child
restraint is properly installed, make certain
that the child restraint is co rrectly recog­
n ized by the capacitive passenge r detection
system in the fron t passenger seat and that
the
PASSENGER AIR BAG OFF light signals
the correct front passenger frontal a irbag
stat us.
A WARNING
Forward-facing child restra ints :
-
177

Child safety

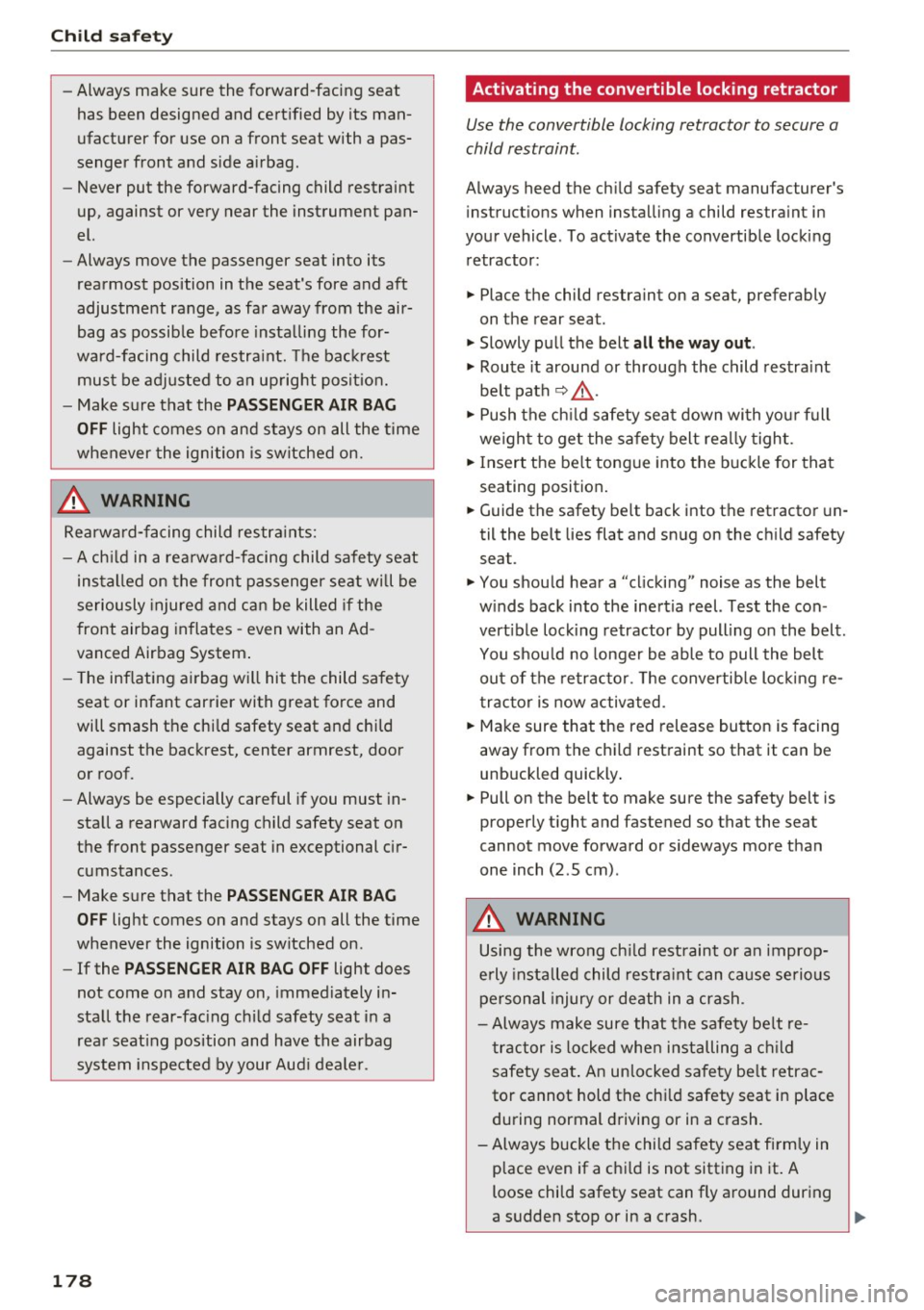

-Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the forward-facing child restraint
up, against or very near the instrument pan­
el.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-facing child restraint. The backrest
must be adjusted to an upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
_&. WARNING
Rearward-facing child restraints:
- A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
- Always be especially careful if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptional cir­
cumstances.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on .
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall the rear-facing child safety seat in a rear seating position and have the airbag
system inspected by your Audi dealer .
178
· Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.
Always heed the child safety seat manufacturer 's
instructions when installing a child restrain t in
your vehicle . To activate the convertible locking
retractor:
.. Place the child restraint on a seat, preferably
on the rear seat.
.. Slowly pull the belt
all the way out .
.. Route it around or through the child restraint
belt path
~ ,&. .
.. Push the child safety seat down with your full
weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for that
seating position.
.. Guide the safety belt back into the retractor un­
til the belt lies flat and snug on the child safety
seat.
.. You should hear a "clicking" noise as the belt
winds back into the inertia reel. Test the con ­
vertible locking retractor by pulling on the belt.
You should no longer be able to pull the belt
out of the retractor. The convertible locking re­
tractor is now activated.
.. Make sure that the red release button is facing
away from the child restraint so that it can be
unbuckled quickly.
.. Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or sideways more than
one inch (2 .5 cm) .
_&. WARNING
Using the wrong child restraint or an improp­
erly installed child restraint can cause serious
personal injury or death in a crash.
- Always make sure that the safety belt re­
tractor is locked when installing a child
safety seat. An unlocked safety belt retrac­
tor cannot hold the child safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a crash.
