AUDI A6 2016 Owners Manual

.... N
0 CJ ' M I.Cl ......

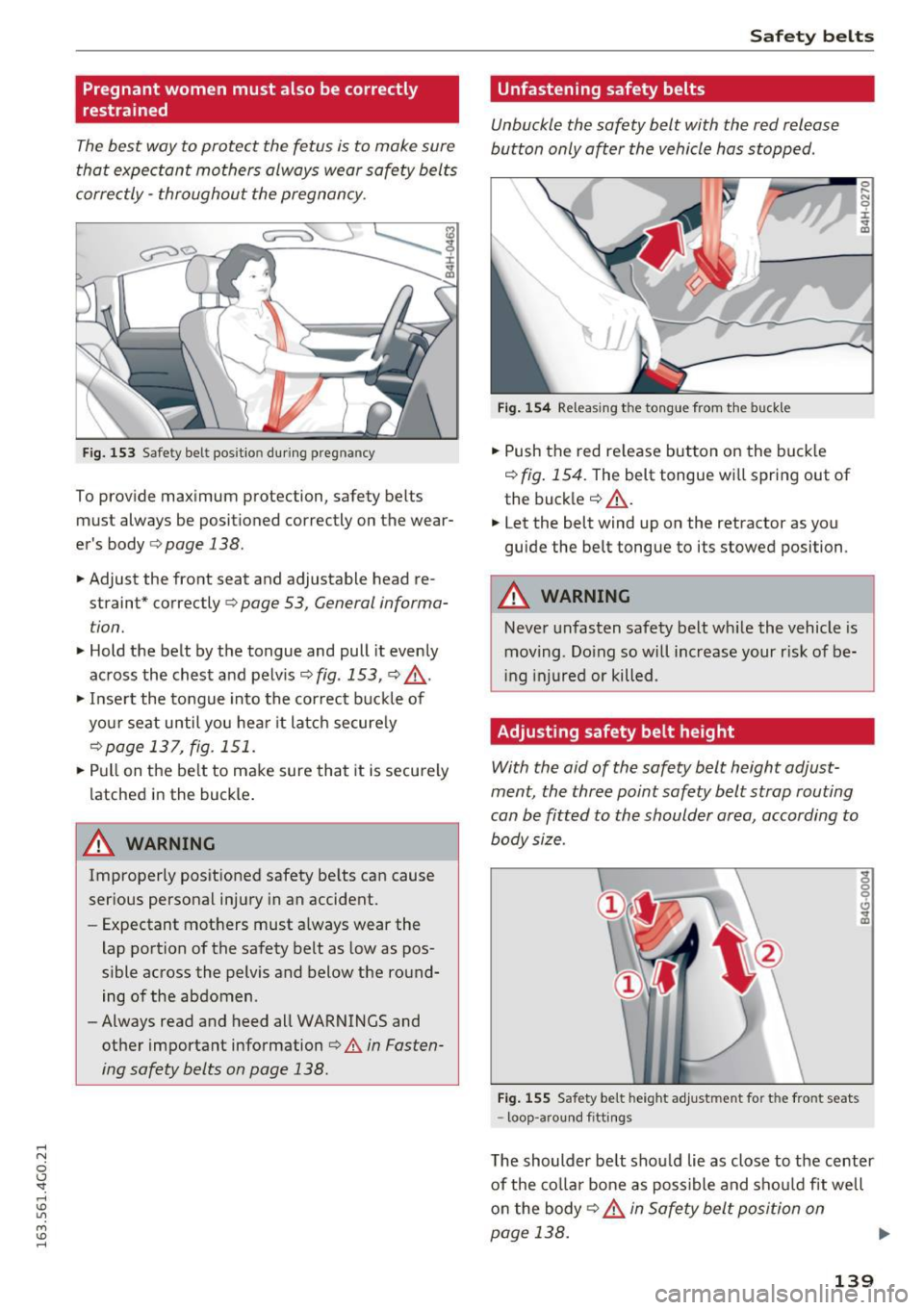

Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make sure
that expectant mothers always wear safety belts
corre ctly -throughout the pregnan cy.
F ig. 153 Safety belt pos itio n dur ing pregnancy
To provide max imum protection, safety belts
must always be posit ioned correctly on the wear­
er 's body
¢ page 138.
.. Adjust the front seat and adjustable head re­
straint* correctly
r:::;, page 53, General informa­
tion .
.. Hold the belt by the tongue and pull it evenly
across the chest and pelv is
r:::;, fig . 153, r:::;, &_ .
.,. Inse rt the tongue into the cor rect b uckle of
yo ur seat until you hea r it latch secure ly
r:=:>poge 137, fig . 151.
.,. Pull on the be lt to make sure that it is secu rely
latched in the buckle .
_& WARNING
Improperly positioned safety be lts can cause
ser ious personal injury in an accident.
- Expectant mot hers must a lways wear the
lap portion of the safety belt as low as pos­
sible across the pelvis and below the round­ ing of the abdomen .
- Always read and heed all WARNINGS and
other important information
¢ A in Fasten­
ing safety belts on page 138.
Safet y bel ts
Unfastening safety belts
Unbuckle the safety belt with the red release
button only o~er the vehicle hos stopped .
J-L
Fig . 1 54 Releasing t he tongue from the buckle
.. Push the red re lease button on the buck le
r:::;, fig . 154. The belt tongue w ill spring out of
the buck ler:::;, &_.
.,. Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position .
_& WARNING
-Never unfasten safety belt wh ile the vehicle is
moving . Do ing so will increase your r isk of be­
i ng injured or killed .
Adjusting safety belt height
With the aid of the safety belt height adjust­
ment, the three point safety belt strop routing
con be fitted to the shoulder area, according to
body size.
F ig . 1 55 Safety belt height adj ust m ent fo r th e fro nt seats
- loop -arou nd f itt ings
0 ..... N
0
:i:
"' CD
The shoulder be lt shou ld lie as close to the center
of the co ll ar bone as possible and shou ld fit well
o n the body
¢ &. in Safe ty belt position on
page 138. .,,.
139

Safety belt s

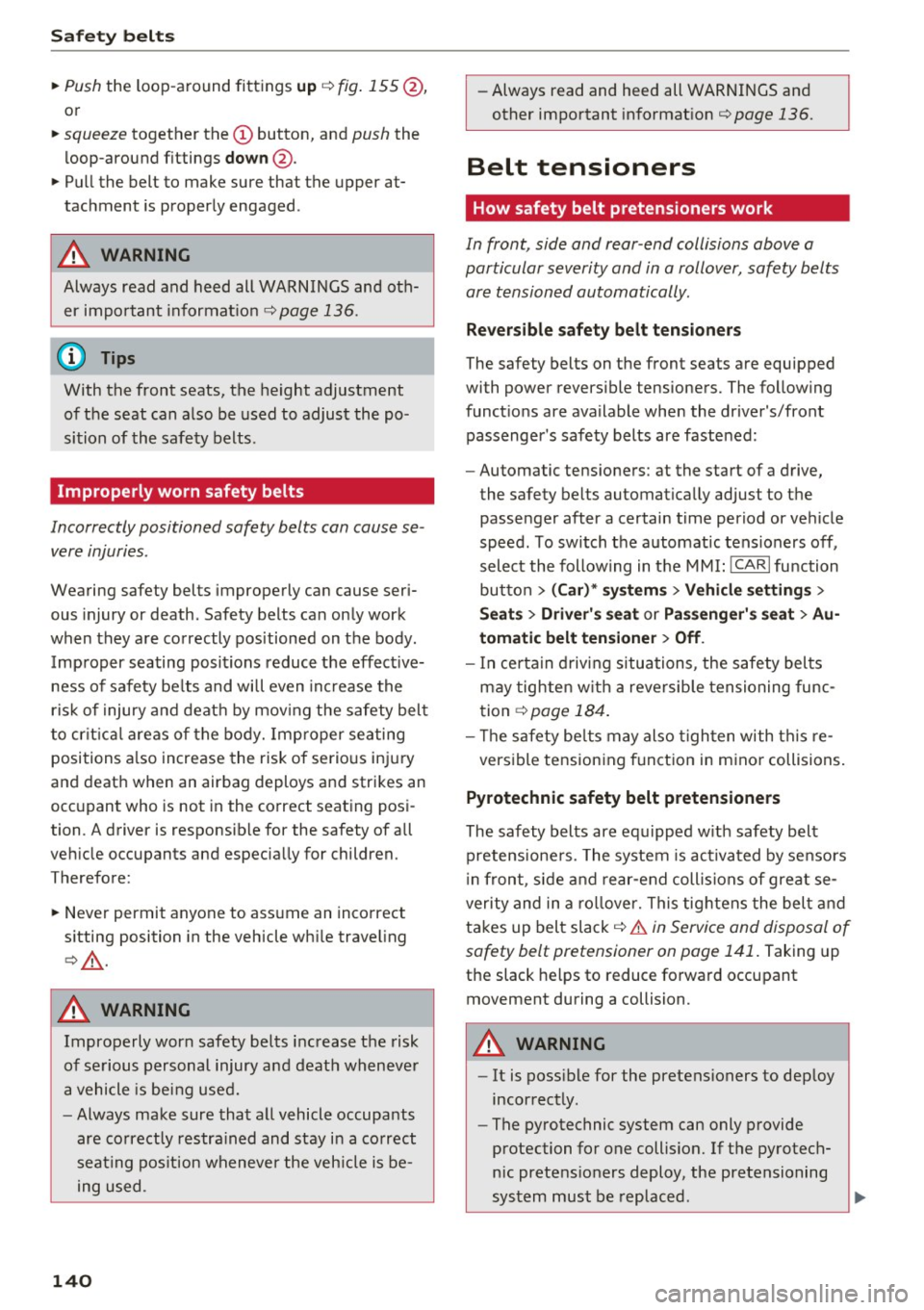

"'Push the loop -around fittings up c> fig . 155 @,
or
"'squeeze together the (D button, and push the
loop-around fittings
down @.
"'Pull the belt to make sure that the upper at­
tachment is properly engaged.
A WARNING
Always read and heed all WARNINGS and oth­
er impo rtant informat ion
c> page 136.
(D Tips
With the front seats , the height adjustment
of the seat can also be used to adjust the po­
sition of the safe ty belts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause se­
vere injuries.
Wearing safety belts imprope rly can cause seri­
ous injury or death. Safety belts can only work
when they a re correctly pos itioned on the body.
Imp roper seating positions reduce the effect ive­
ness of safety be lts and will even inc rease the
ris k of injury a nd deat h by mov ing the safety bel t
to cr it ica l areas of the bo dy. Imp roper seating
positions a lso increase the risk of serio us inj ury
and deat h when an airbag deploys and strikes an
occ upant who is not in the co rrect seat ing pos i­
tion. A driver is responsible for the safety of all
ve hicle occupants and especia lly for children.
Therefore:
"' Never permit anyone to assume an inco rrect
s itting position in the vehicle wh ile trave ling
c> ,&. .
A WARNING
Impro perly wor n safety belts increase t he risk
of se rious personal injury a nd death wheneve r
a vehicle is bei ng use d.
- Always make sure tha t all veh icle occupa nts
are co rrectly restra ined and stay in a co rrect
seat ing pos ition w heneve r the veh icle is be­
ing used.
140
- Always read and heed all WAR NINGS and
o ther impo rtant in format ion
c> page 136.
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity and in a rollover, safety belts are tensioned automatically.
Reversible safety belt tensioner s
The safety belts on the front seats are equipped
with power revers ible tensioners. The following
funct io ns are available when the dr iver's/front
passenger 's safety belts are faste ned:
- Automatic tensione rs: at the start of a drive,
the safety belts automat ica lly adjust to the
passenger after a certain time period or ve hicle
spee d. To switch the a utomat ic tens ioners off,
select the following in t he M MI :
!CARI function
button
> ( Car )* systems > Vehicle settings >
Seat s > Driver's seat or Pas senger's seat > Au ·
tomatic belt tensioner > Off .
-In certain drivi ng s ituations, the s afe ty bel ts
m ay tighten w ith a reversib le tensioning func ­
tion
c> page 184.
- The s afety be lts may also tigh ten with this re-
vers ible tension ing f unct io n in m ino r collisions .
Pyrotechnic safety belt pretensioners
The safety belts are eq uipped w it h safety bel t
pretensione rs. The system is activa ted by se nsors
i n front, s ide a nd r ear-end collisions of grea t se ­
verity and in a ro llover. This tig htens the bel t and
takes up belt slack
c> &. in Service and disposal of
safety belt pretensioner on page 141.
Taking up
the slack helps to reduce forward occupant
movement during a collision.
A WARNING
-It is poss ible for the pretensioners to dep loy
incorrectly .
- The pyrotechnic system can only p rovide
protection for one collision. If the py rotech­
nic pretens ioners deploy, the pretensioning
sys tem must be rep laced.

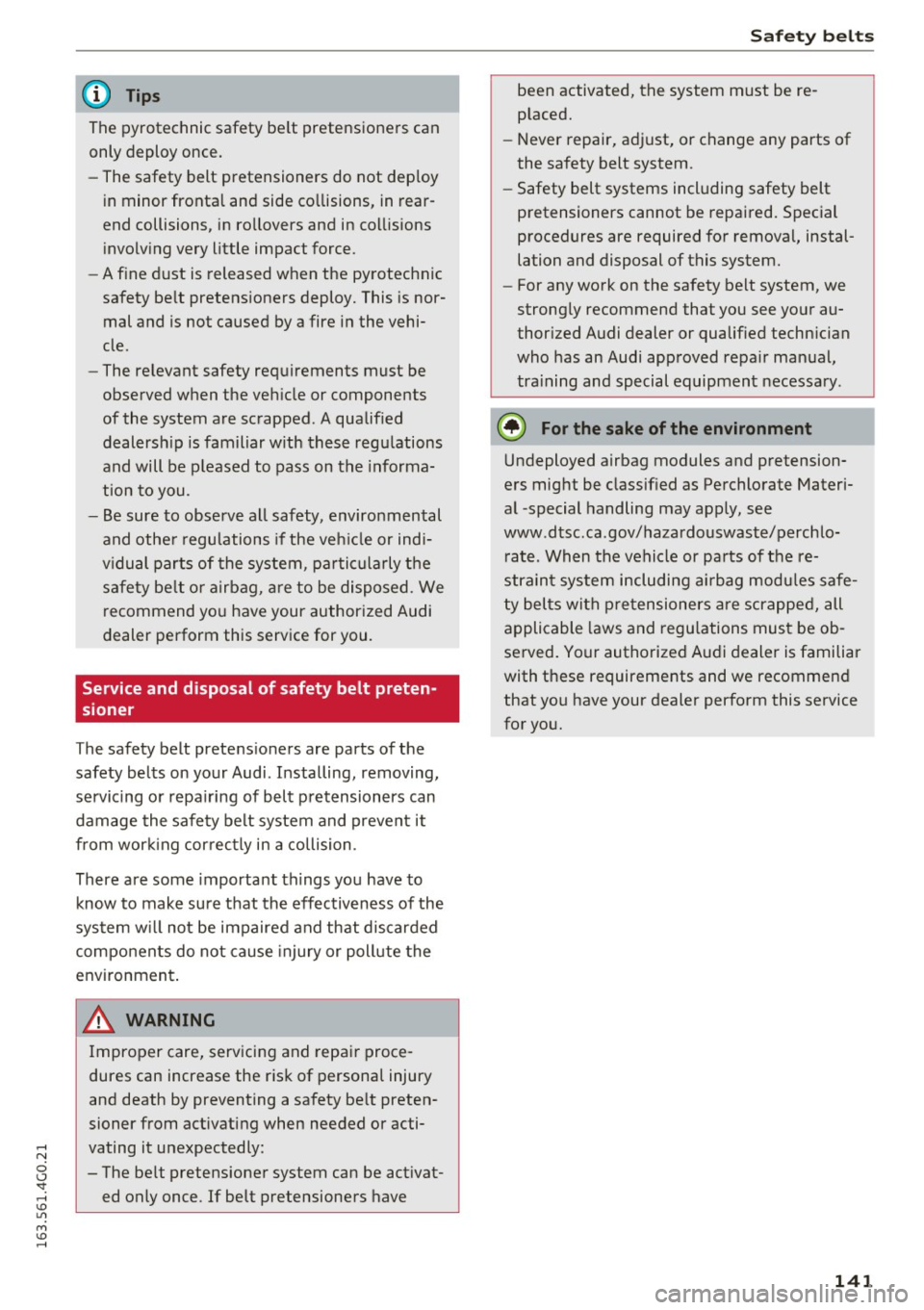

@ Tips
The pyrotechnic safety belt pretensioners can
only deploy once.
- The safety belt pretensioners do not dep loy
in minor fronta l and side co llisions, in rear­
end collisions, in rollovers and in collisions involv ing very little impact force.
- A fine dust is released when the pyrotechnic
safety be lt pretens ioners deploy. This is nor­
mal and is not caused by a fire in the vehi­
cle.
- The re levant safety requirements must be
observed when the veh icle or components
of the system are scrapped . A qualified
dealersh ip is familiar w ith these regulations
and will be p leased to pass on the informa­
tion to you.
- Be sure to observe all safety, environmental
and othe r regulations if the veh icle or indi­
v idual parts of the system, particularly the
safety be lt or airbag, are to be disposed. We
recommend yo u have your author ized Audi
dealer perform this serv ice for you.
Service and disposal of safety belt preten­
sioner
T he safety belt pretens ioners are parts of the
safety belts on your Audi . Installing, removing ,
servic ing o r repa iring of belt p retensioners can
damage the safety belt system and prevent it
from wor king cor rec tly in a collision .
There are some importa nt th ings you have to
know to make sure that the effectiveness of the
system w ill not be impaired and that discarded
components do not cause injury or poll ute the
environment .
_& WARNING
= -
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing a safety be lt preten­
sioner from activating when needed or acti­
vating it unexpectedly :
- The be lt pretensione r system can be act ivat­
ed only once . If belt pretensioners have
S afet y be lts
been activated, the system must be re­
placed.
- Never repair, adjust, or change any parts of
the safety belt system .
- Safety belt systems including safety belt
pretensioners cannot be repai red. Special
procedures are required for removal, instal­
lation and disposal of this system.
- For any work on the safety belt system, we
strong ly recommend that you see your au­
thor ized Audi dealer or qualified techn ician
who has an Audi approved repa ir manual,
tra ining and special equipment necessary .
® For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classif ied as Perchlorate Materi­
al -special handling may apply, see
www .dtsc.ca.gov/hazardouswaste/perchlo­
r ate . When the vehicle or pa rts of the re­
straint sys tem including ai rbag modu les safe­
t y belts with p re t ensioners are scrapped, all
applicable laws and regu lations mus t be ob­
se rved . Your authorized Audi dealer is familiar
with these requirements and we recommend
that you have your dealer perform this service
for you.
141

Airbag syste m
Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop ­
er seating position.
For your safety and the safety of your passen­
ge rs , before driving off, always :
"' Adjust the driver's seat and steering wheel
properly ¢
page 126,
"'Adjust the front passenge r's seat properly
¢ page 54,
"'Wear safety belts p roperly ¢ page 136 ,
"'Always properly use the proper child restraint
to protect children ¢
page 166.
In a coll is io n, airbags mus t inflate within the
blink of an eye and wi th considerab le force. The
supp lemental airbags can cause injuries if the
driv er or th e front s eat passeng er is not s eated
properly. Therefore in order to he lp the airbag to
do its job, it is important, both as a dr iver and as
a passenger to sit properly at all t imes.
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the a irbag can inflate fully and
completely and provide supplemental protect ion
in certain frontal collisions¢
page 126, Correct
passenger seating positions .
For details on the
operation of the seat adjustment con trols
¢ page 54.
It's especially important that children are proper ­
ly restra ined ¢
page 166 .
There is a lot that the driver and the passengers
can and must do to help the ind iv idual safety fea­
tures installed in your Audi work together as a
system .
Proper seating posit ion is important so that the
front airbag on the drive r side can do its job. If
you have a physical impairment or cond ition that
prevents you from s itting properly on the driver
seat with the safety be lt properly fastened and
142
reaching the peda ls, or if yo u have concerns w ith
regard to the function or operation of the Ad­
vanced Airbag System, please contact your a u­
thori zed Audi dea ler or qua lified workshop, or
ca ll Audi Customer Relations at 1-800-822-2834
for poss ib le modifications to your vehicle .
When the airbag system dep loys, a gas generator
will fill the airbags, break open the padded cov­ ers, and infla te between the steering wheel and
the driver and between the instrument panel and
t h e front passenger . T he a irbags w il l deflate im­
med iate ly after deployment so that the front oc­
cupants can see t hrou gh the windsh ie ld again
without i nterruption.
All of th is takes p lace in the b link of an eye, so
fast that many people don't even rea lize that the
a irbags have deployed. The airbags a lso infla te
with a g re at deal of force and nothing should be
i n the ir way when they deploy. Front airbags in
combination with properly worn safety belts slow
down and limit the occupant 's forward move­
ment . Together they he lp to prevent the driver
and front seat passenger from hitting pa rts of
the ins ide of the vehicle while reduc ing the fo rces
acting on the occupant dur ing the cras h. In th is
way they help to reduce the risk of injury to the
head and uppe r body i n the crash . Airbags do not
protect the arms or the lower pa rts of the body.
Both front airbags will not inflate in all frontal
collisions . The t riggering of the a irbag system de­
pends on the veh icle decelerat ion rate caused by
t h e coll is io n and regis tered by the ele ctroni c con­
tro l unit . If this ra te is be low the refe rence value
programmed in to the contro l unit, the airbags
will not be trigge red, even tho ugh the car may be
badly damaged as a resu lt of the collision. Vehi­
cle damage, rep air costs or even the lack of vehi­
cle damage is not necessarily an indication of
whether an a irbag should inflate or not .
Since the circumstances will vary cons iderab ly
between one co llision and another, it is not possi ­
ble to define a range of veh icle speeds that will
cover every poss ible kind and angle of impact
that w ill always t rigger t he a irbags . Important
factors i nclude, for examp le, the nat ure (hard or
soft) of the object which the ca r hits, the angle of
i mp act , vehicle speed , etc. The front airbags will .,.

also not inflate in side or rear collisions, or in
ro ll-overs.

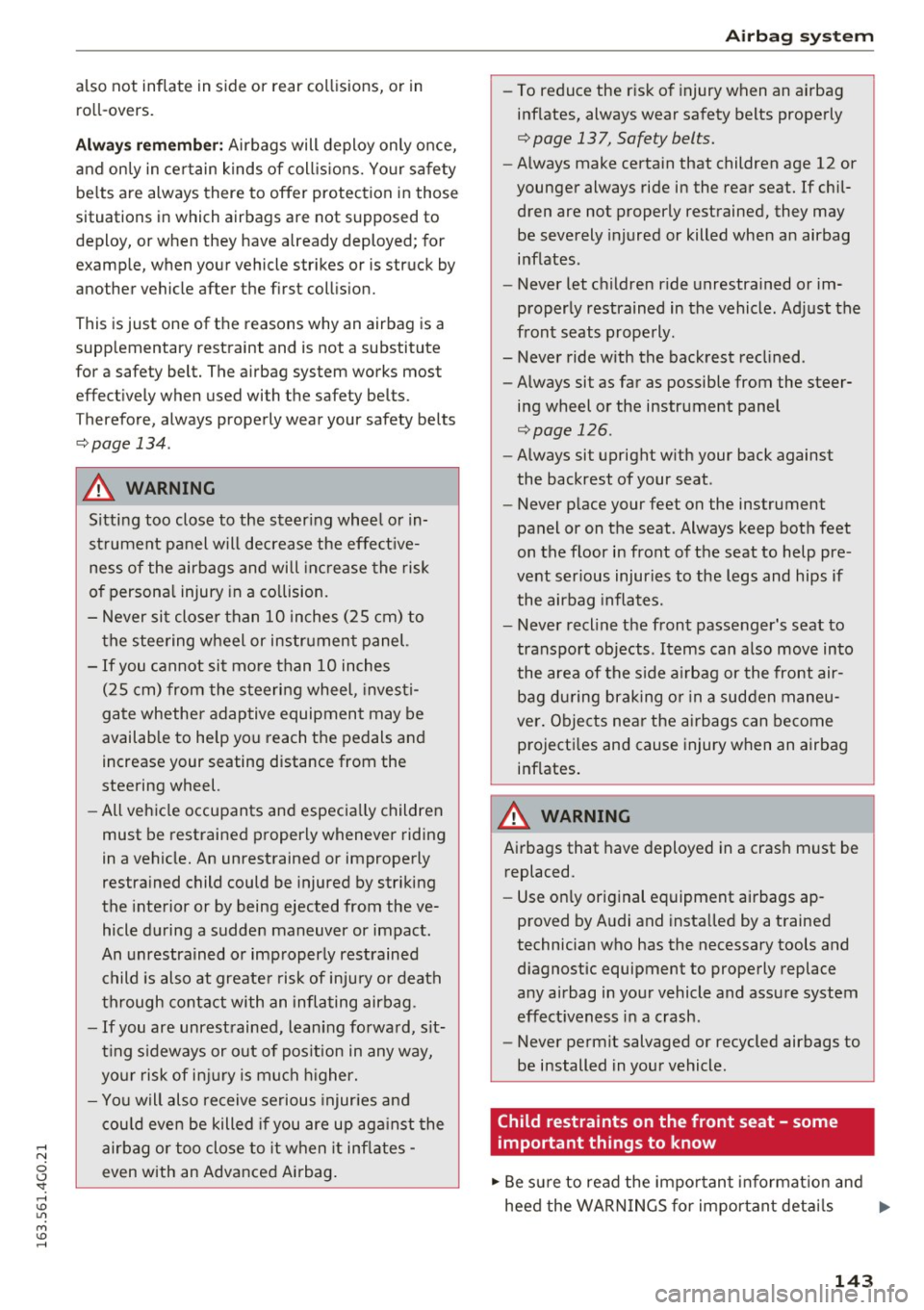

A lwa ys rememb er: Airbags will deploy only o nce,
and on ly in certain kinds of coll is ions. Your safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have a lready deployed; for
examp le, when your vehicle str ikes or is struck by
another vehicle after the first collis ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
r:::;,page 134.
A WARNING
Sitting too close to the steer ing whee l or in­
st rument panel will decrease the effect ive­
ness of the airbags and will inc rease the risk
o f persona l injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit mo re than 10 inches
( 2 5 cm) from the steering wheel, inves ti­
gate whethe r adaptive equipment may be
available to help you reach the pedals and
increase your seating distance from the
steering wheel.
- All veh icle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restra ined child could be injured by stri king
the inte rior or by being ejected from the ve­
hicle d uring a sudden maneuver or impact.
An unrestrained or imp roperly restrained
child is also at greate r risk of inju ry or death
through contact with an inflating airbag .
-If you are unrest rained, leaning fo rwa rd, s it­
t ing s ideways or o ut of pos ition in any way,
yo ur risk of in jury is mu ch h igher.
- Yo u will also receive serious injur ies and
c ou ld even be killed if you are up ag ainst the
airbag or too close to it w hen it inf lates -
even with an Advanced Ai rbag.
-
Airb ag sys tem
-To reduce the r is k of injury when an airbag
inflates, always wear sa fety belts prope rly
r:::;, page 137, Safety belts.
-Always make certain that children age 12 or
younger always ride in the rear seat. If chil­
dren are not properly restrained, they may be severely injured or killed when an airbag
inflates.
- Never let children r ide unrestrained or im­
p roperly restrained in the vehicle. Ad just the
front seats properly.
- Never ride with the back rest recl ined .
- Always sit as far as possible from the steer-
ing wheel or the instrument panel
r:::;, page 126.
-Always sit upright with your back against
the backrest of your seat .
- Never p lace your feet on the instrument
panel or on t he seat. Always keep both feet
on the floor in front of the seat to help pre­
vent ser ious injuries to the legs and hips if
the airbag inflates.
- Never recl ine the front passenger's seat to
transpo rt objects , Items can also mo ve in to
the area of the s ide a irbag or the front air­
b ag d uring braking o r in a sudden maneu­
ver. Obje cts ne ar the airbags can be come
p roject iles and cause injury when an airbag
inflates .
A WARNING ,.___ -
Airbags that have deployed in a crash m ust be
replaced.
- Use on ly original equipment airbags ap­
proved by A udi and installed by a t rained
technician who has the necessary tools and
d iagnostic equipment to properly replace
any airbag in yo ur vehicle and assure system
effect iveness in a crash .
- Never permit salvaged or recycled airbags to
be installed in your vehicle.
Child restraints on the front seat - some
important things to know
.,. Be s ure to read the impo rtan t in format ion and
heed the WARN INGS for important deta ils
143

Airbag syste m

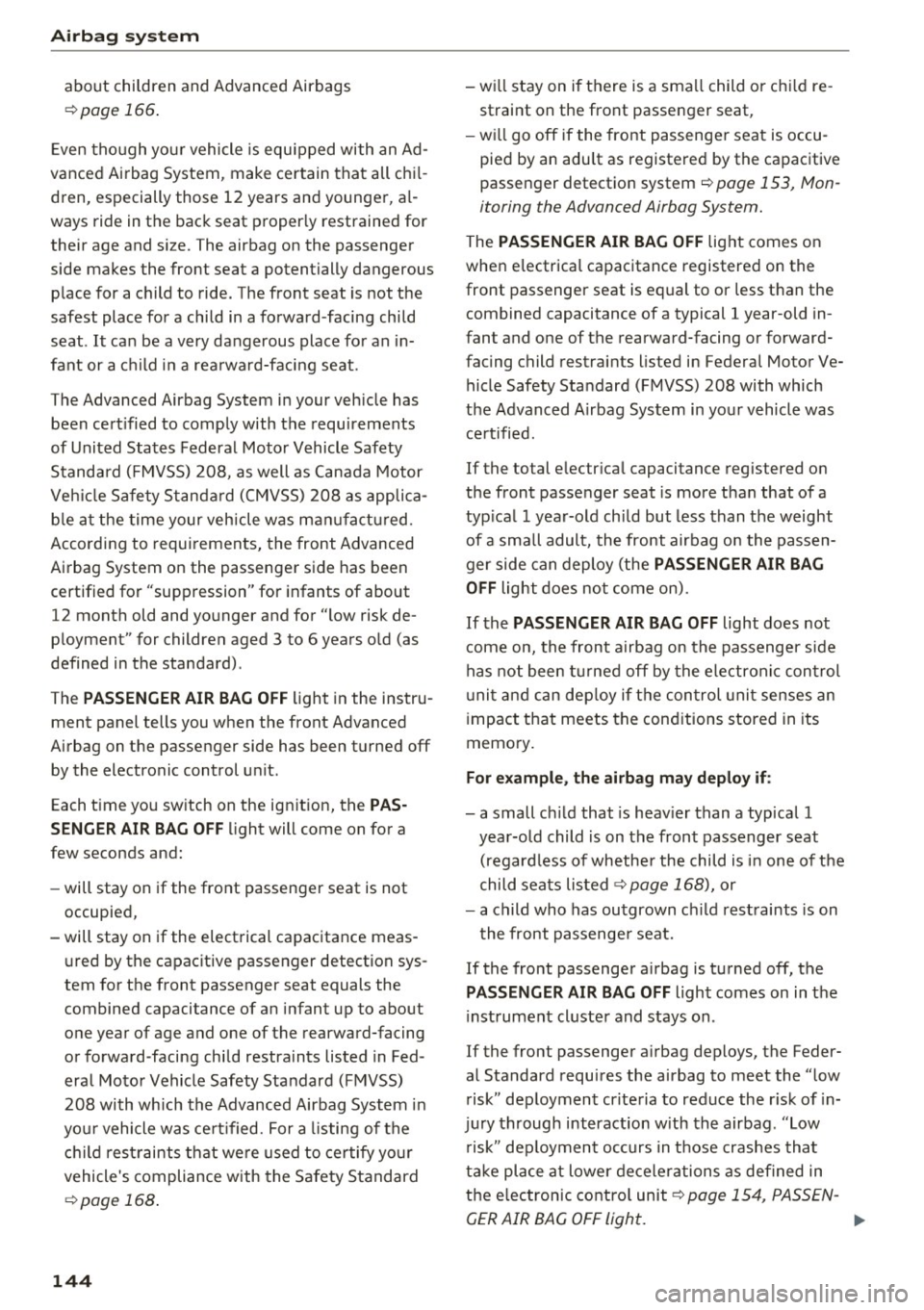

about children and Advanced Airbags
¢page 166 .
Even tho ugh your vehicle is equipped with an Ad­
vanced Airbag System, make certain that all chi l­
dren, especially those 12 years and younger, al­
ways ride in the back seat proper ly restrained for
their age and size. The airbag on the passenger
side makes the front seat a potentially dangerous place for a child to ride. The front seat is not the
safest place for a child in a forward-facing child
seat . It ca n be a very dangerous place for an in­
fant or a c hild in a rearward-fac ing seat.
The Advanced Airbag System in your veh icle has
been cert ified to comply with the requirements
of United States Federal Motor Vehicle Safety
Standard ( FMVSS) 208, as well as Canada Motor
Veh icle Safety Standa rd (CMVSS) 208 as applica­
b le at the time your vehicle was man ufa ct ur ed.
According to requi rements, the front Advanced
Airbag System on the passenger side has been
certified for "suppression" for infants of about 12 month old and younger and for "low risk de­
ployment" for children aged 3 to 6 years o ld (as
defined in the standard) .
The
PAS SENGER AIR BAG O FF light in the instru­
ment panel tells you when the front Advanced
Airbag on the passenger side has been turned off by the electronic control unit.
Each time you switch on the ignition, the
PAS ­
S ENGER AIR BAG OFF
light will come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if the electrical capacitance meas ­
ured by the capacitive passenger detection sys ­
tem for the front passenger seat equals the
combined capacitance of an infant up to about one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed­
eral Motor Vehicle Safety Standard (FMVSS)
208 with which the Advanced Airbag System in
you r vehicle was ce rt ified. For a listing of the
ch ild rest raints that we re used to certify yo ur
vehicle's compliance with the Safety Standard
¢ page 168 .
144 - wi
ll stay on if there is a sma ll child o r chi ld re­
straint on the front passenger seat,
- wi ll go off if the front passenger seat is occu­
pied by an adult as registered by the capacitive
passenger detectio n system ~
page 153, Mon­
itoring the Advanced Airbag System.
The PAS SENGER AIR BAG OFF lig ht comes on
when electrical capacitance registered on the
front passenger seat is equal to or less than the
combined capacitance of a typical 1 year-old in­
fant and one of the rearward-facing or forward­
facing child restraints listed in Federal Motor Ve­ hicle Safety Standard (FMVSS) 208 with which
the Advanced Airbag System in your vehicle was
ce rt ified.
If the total electr ical capacitance registered o n
the front passenger seat is more than that of a
typ ical 1 year-old chi ld but less than the weight
of a sma ll adult, the front airbag on the passen­
ger side can deploy (the
PAS SENGER AIR BAG
OFF
light does not come on).
If the
PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger side
has not been turned off by the electron ic con trol
u nit and can dep loy if the con trol uni t senses an
impact t hat meets the conditions stored in its
memo ry.
For exampl e, the airbag ma y depl oy if:
- a small ch ild that is heav ier than a typ ical 1
year-old child is on the front passenger seat (regard less of whethe r the child is in one of the
child seats listed ¢
page 168), or
- a child who has outgrown ch ild restraints is on
the front passenge r seat.
If the front passenger a irbag is turned off, the
PA SSENGER AIR BAG OFF light comes on in the
i nst rument cluster and stays on .
If the front passenger airbag deploys, the Feder­
al Standard requires the airbag to meet the "low
risk" dep loyment criteria to reduce the r isk of in­
ju ry through interaction w ith the airbag . "Low
r isk" dep loyment occurs in those crashes that
take place at lower decelerations as defined in
the e lectronic contro l unit ¢
page 154, PASSEN-
GER AIR BAG OFF light.
ll-

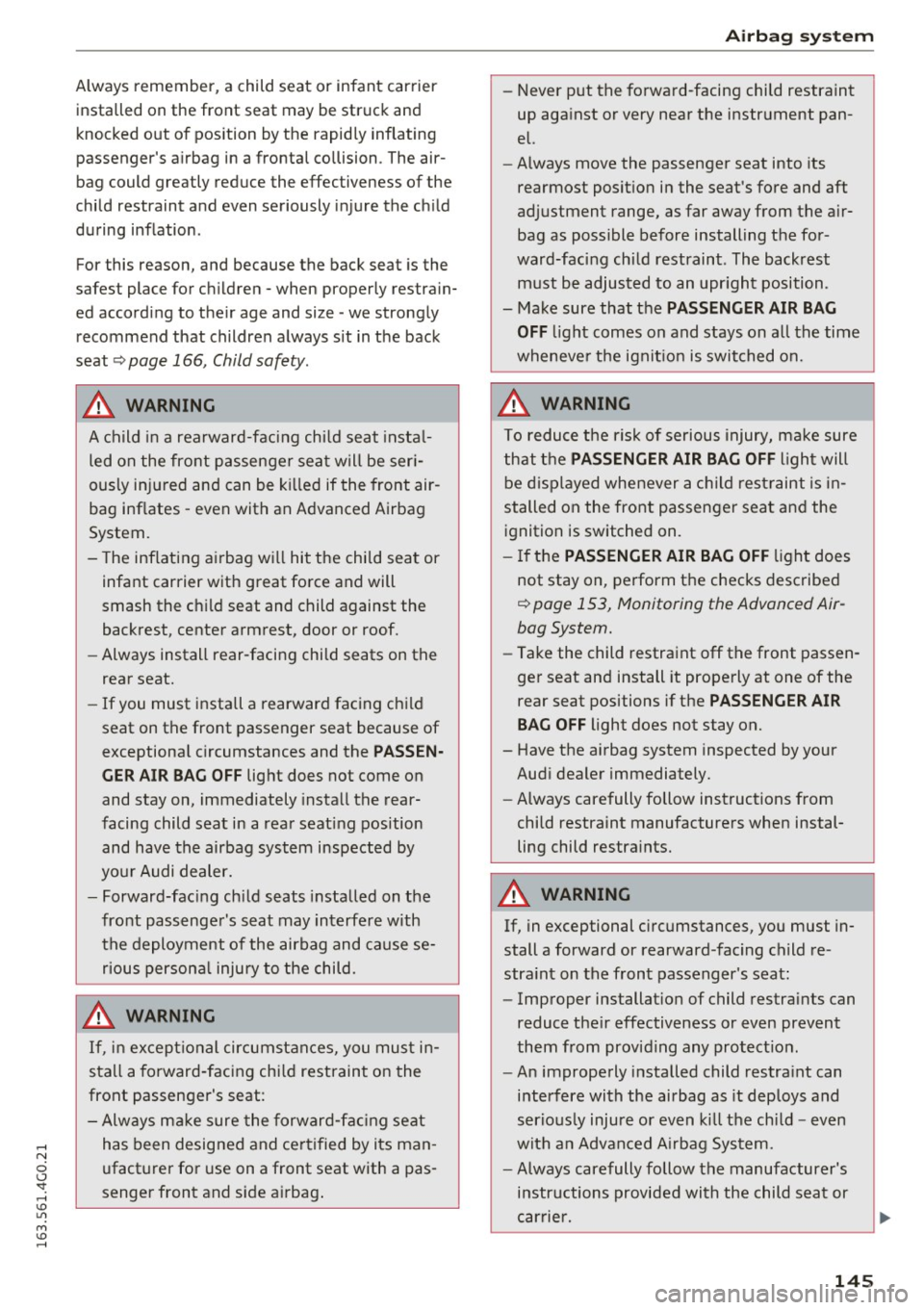

Always remember, a child seat or infant carrier
installed on the front seat may be struck and
knocked out of position by t he rapidly inflating
passenger's airbag in a frontal co llision . The air­
bag could greatly reduce the effectiveness of the
chi ld restraint a nd even seriously i njure the ch ild
during inflation .
For this reason, and because the back seat is the
safest place for ch ildren -when properly restra in­
ed according to the ir age and size -we strongly
recommend that children always sit in the back
seat
Q page 166, Child safety.
.8, WARNING
A child in a rearward-facing chi ld seat insta l­
led on the front passenger seat will be ser i­
ously injured and can be k illed if the front air­
bag inf lates -even with an Advanced Airbag
System.
- The inflating a irbag w ill hit the child seat or
infant carrier with great fo rce and will
smash the c hild seat and child against the
backrest, center arm rest, door or roof.
- Always ins tall rear-facing child seats on the
rear seat.
-If you must install a rearward fac ing child
seat on the front passenger seat because of
exceptiona l circumstances and the
PASSEN·
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear­
facing child seat in a rea r seat ing position
and have the airbag system inspected by
yo ur Audi dealer.
- Forward-fac ing ch ild seats insta lled on the
front passenge r's seat may interfe re with
the deployment of the airbag and ca use se­
rious person al injury to the child.
.8, WARNING
If, in except io nal circumst ances, you mus t in­
stall a forward-f acing chi ld restraint on the
front passenger's seat:
- Always ma ke sure the forwar d-fa cing se at
has been designed and ce rtified by its man ­
ufact urer for use on a front seat with a pas­
senger front and s ide a irbag .
.
Airb ag sys tem
-Never put the fo rward-facing child restraint
up aga inst or very near the instrument pan­
el.
- Always move the passenger seat into its
rearmost posit ion in the seat's fore and aft
adjustment range, as far away from the a ir­
bag as possible before installing the for­
ward-facing chi ld restraint. The backrest
must be adjusted to an upr ight position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on a ll the time
wheneve r th e ignit ion is switched on.
.8, WARNING
To reduce t he ris k of serious injury, ma ke sure
that the
PASSENGER AIR BAG OFF li gh t will
be d isplayed whenever a child res traint is in­
stalled on the front passenger seat and the ignition is switched on.
- If th e
PASSENGER AIR BAG OFF li ght does
not stay on, perform the checks described
¢ page 153, Monitoring the Advanced Air ­
bag System.
- Take the child restra int off t he front passen ­
ger seat and install it prope rly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the ai rbag system inspected by your
Aud i deale r immediately.
- Always care fully follow instructions from
child restraint manufacture rs when instal­
ling child restra ints.
.8, WARNING
--
If, in exceptional c ircumstances, you must in­
stall a forward or rearward-facing child re­
stra int on the fron t passenger's seat :
- Improper installat io n of child restraints can
reduce the ir effectiveness or even prevent
them from providing any pro tect ion.
- An improperly installed child restra int can
interfere wi th the airbag as it deploys and
serio usly injure or even kill th e chi ld -even
with a n Advan ced A irbag System.
- Always carefully follow the manufacturer's
i n str uctions provided with the child seat or
car rie r.
145

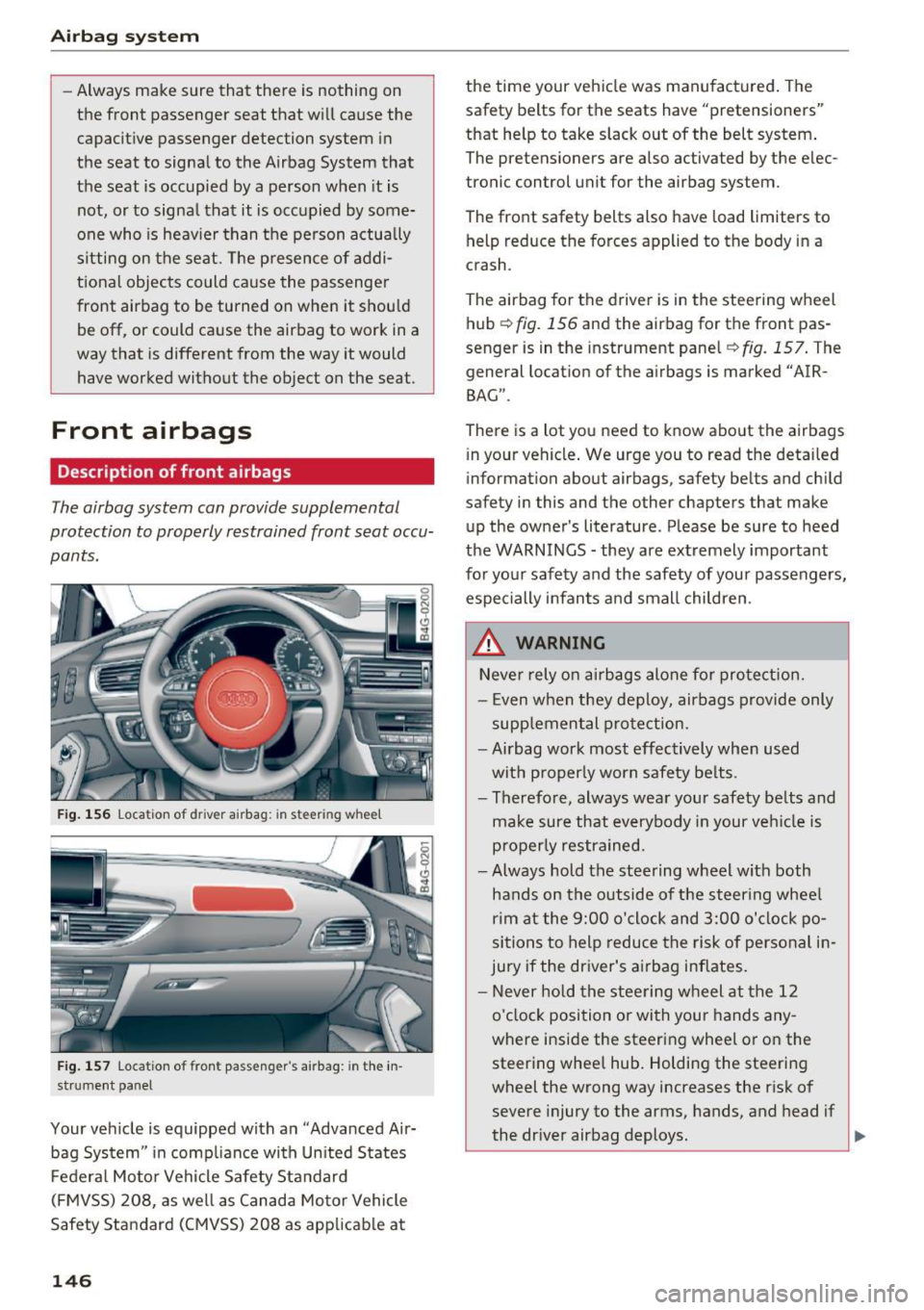

Airbag syste m
-Always make sure that there is nothing on
the front passenger seat that w ill cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is
not, or to signa l that it is occupied by some­
one who is heav ier than the person actually
sitting on the seat. The p resence of addi­
tional objects could cause the passenger
front airbag to be turned on when it shou ld
be off, or could cause the airbag to work in a
way that is different from the way it would
have worked without the ob ject on the seat.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
F ig . 1 56 location of driver airbag: in steering w hee l
Fig . 1 57 Location of fro nt passenger's airbag: in the in­
st rument panel
Your veh icle is equipped with an "Advanced Air­
bag System" in comp liance with Un ited States
Federa l Moto r Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Vehicle
Safety Sta ndard (CMVSS) 208 as app licab le at
146
the time your vehicle was manufactured . T he
safety belts for the seats have "pretensioners"
that he lp to take s lack out of the belt system .
The pretensioners are also activated by the elec­
tronic control unit for the airbag system.
The front safety belts also have load limiters to help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the stee ring wheel
hub ~
fig. 156 and the airbag for the front pas­
senger is in the instrument pane l
~fig. 157 . The
general locat ion of the airbags is marked "AIR­
BAG" .
There is a lot you need to know abo ut the airbags
i n your vehicle . We urge you to read the detai led
information about airbags , safety belts and ch ild
safety in this and the other chapters that make
up the ow ner's literature . Please be sure to heed
the WARNINGS -they are extremely important
fo r your safety and the safety of your passengers,
especially i nfants and small children .
.&, WARNING
-
Never rely on a irbags alone for prote ct io n.
- Even when they deploy, airbags p rovide only
supp lemental protection.
- Airbag work most effec tively when used
wit h properly worn safety be lts .
- Therefo re, always wear your safety be lts and
make sure that everybody in your veh icle is
properly restrained.
- Always hold the steering wheel w ith both
hands on the outside o f the steer ing whee l
rim at the 9:00 o'clock and 3:00 o'clock po­
si tions to help reduce the risk of personal i n­
jury if the driver's a irbag inflates.
- Never hold the stee ring wheel at the 12
o 'clock posi tion or with your hands any ­
where inside the steering wheel o r on the
steer ing whee l hub. Holding the steeri ng
wheel the wrong way increases the r isk of
severe injury to the arms, hands, and head if
the driver airbag deploys. ..,_

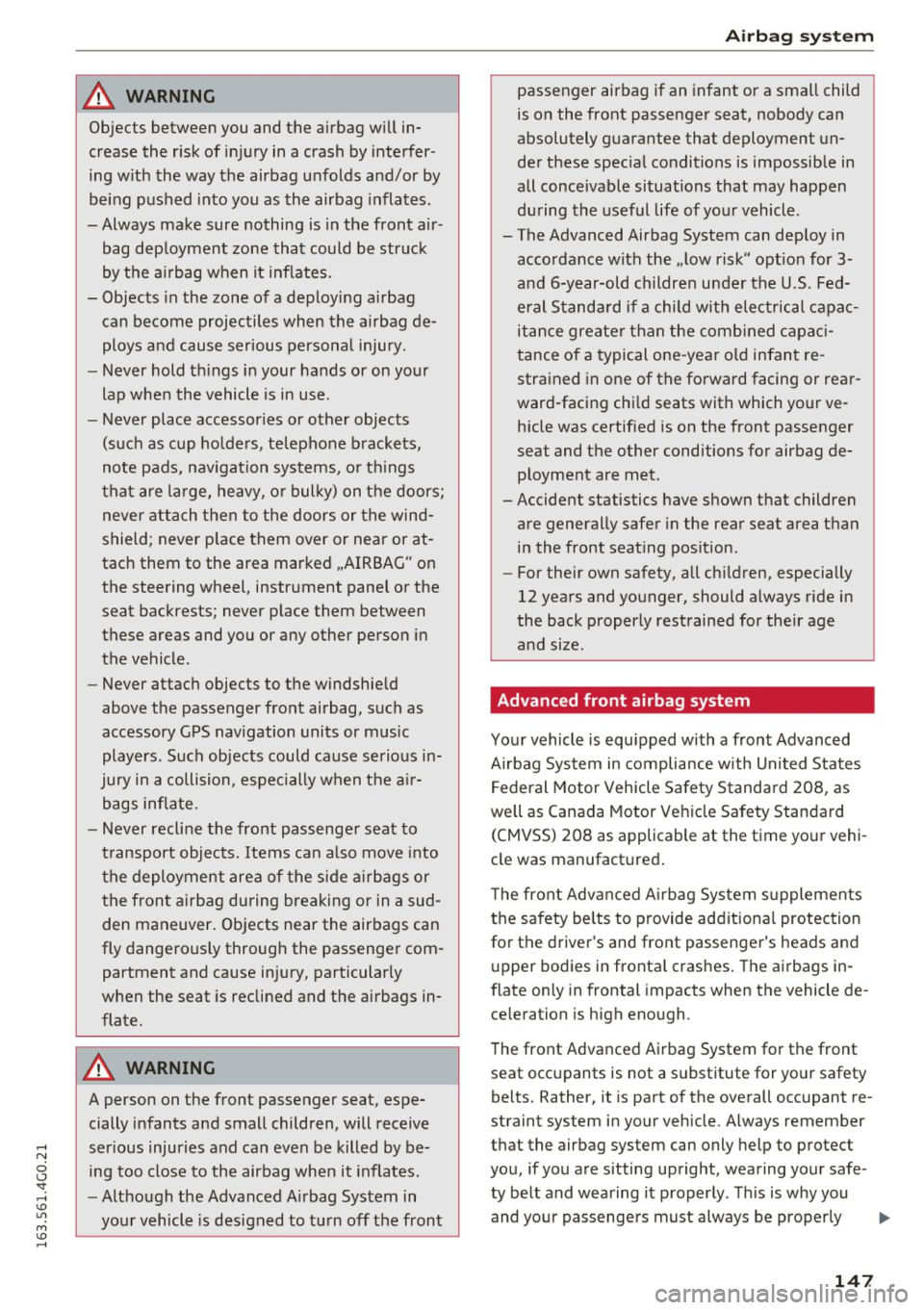

A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
-Always make sure nothing is in the front air -
bag deployment zone that could be struck
by the airbag when it inflates .
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your
lap when the vehicle is in use .
-
-Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,,AIRBAG" on
the steering wheel, instrument panel or the
seat backrests; never place them between these areas and you or any other person in
the vehicle .
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
- Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­ den maneuver. Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury , particularly
when the seat is reclined and the airbags in­
flate.
A WARNING
A person on the front passenger seat, espe­ cially infants and small children, will receive
serious injuries and can even be killed by be­
ing too close to the airbag when it inflates.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
Airbag system
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle .
- The Advanced Airbag System can deploy in accordance with the .,low risk" option for 3-
and 6-year-old children under the U.S. Fed­
eral Standard if a child with electrical capac­
itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met .
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age
and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208 , as
well as Canada Motor Vehicle Safety Standard (CMVSS) 208 as applicable at the time your vehi­
cle was manufactured.
The front Advanced Airbag System supplements
the safety belts to provide additional protection
for the driver's and front passenger 's heads and
upper bodies in frontal crashes. The airbags in­
flate only in frontal impacts when the vehicle de­
celeration is high enough.
The front Advanced Airbag System for the front seat occupants is not a substitute for your safety
belts. Rather, it is part of the overall occupant re­
straint system in your vehicle. Always remember
that the airbag system can only help to protect
you, if you are sitting upright, wearing your safe­
ty belt and wearing it properly . This is why you
and your passengers must always be properly ..,.
147

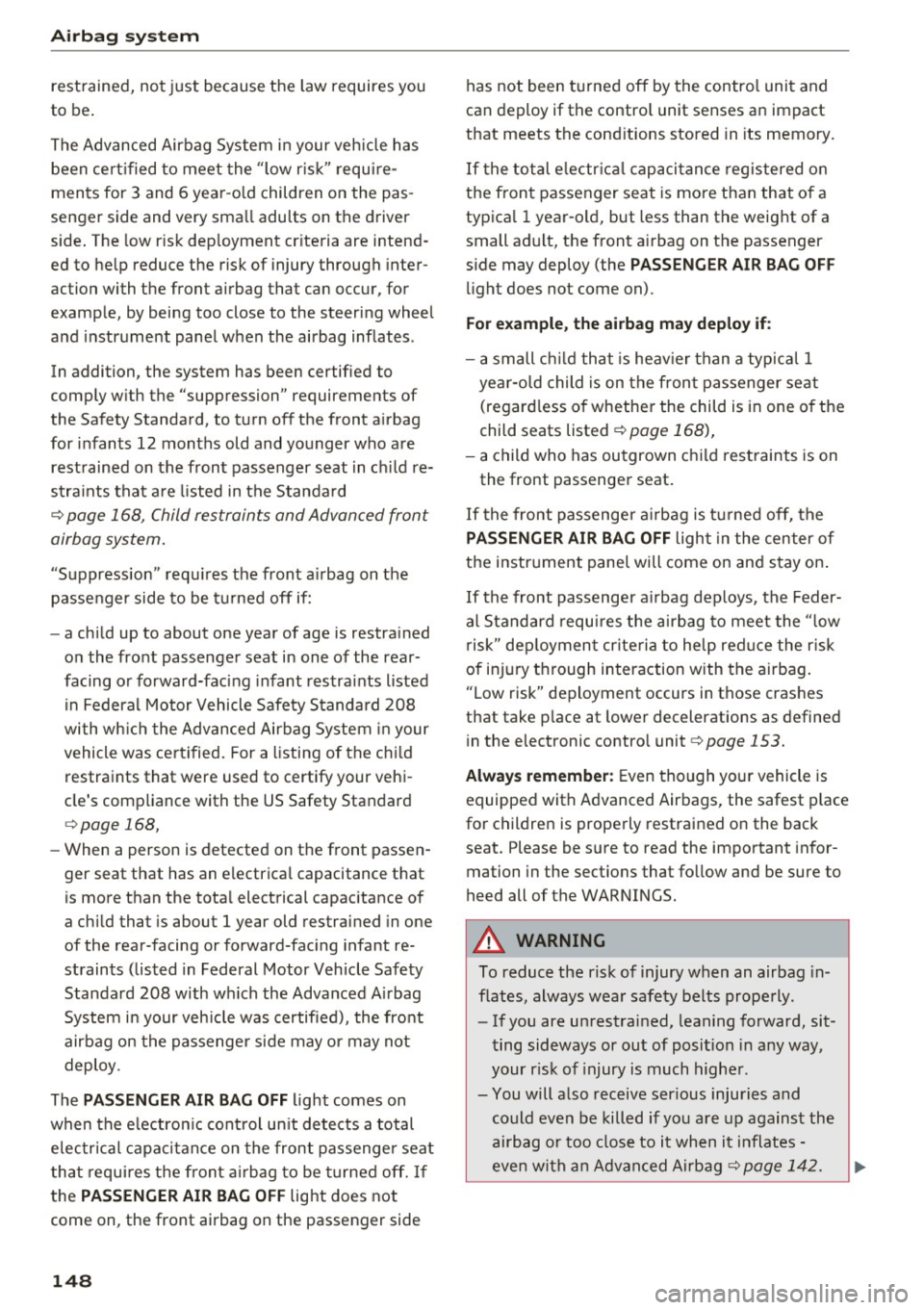

Airbag syste m
restrained, not just because the law requires you
to be.
The Advanced Airbag System in your veh icle has
been cert ified to meet the "low r isk" require­
ments for 3 and 6 year-o ld children on the pas­
senger side and very sma ll adults on the driver
side . The low risk dep loyment cr iteria are intend­
ed to he lp reduce the risk of injury through inter­
action with the front airbag that can occur, for
example, by being too close to the steering wheel
a nd instrument panel when the airbag inflates .
In addition, the system has been certified to
comply w ith the "suppression" requirements of
the Safety Standard, to turn off the front a irbag
for i nfants 12 months old and younger who a re
restrained on the front passenger seat in ch ild re­
stra ints that are listed in the Standa rd
¢ page 168, Child restraints and Advanced front
airbag system.
" Suppression" requ ires the front a irbag on the
passenger side to be tu rned off if:
- a child up to about one year of age is restra ined
o n the fro nt passenger seat in one of the rear­
facing or forward-facing infant restraints listed
in Federal Motor Vehicle Safety Standard 208
with wh ich the Advanced Airbag System in your
vehicle was certified. For a listing of the ch ild
restraints that were used to certify your vehi ­
cle's compliance with the US Safety Standard
¢ page 168,
-When a person is detected on the front passen­
ger seat that has an electrica l capacitance t hat
is more than the tota l electrical capacitance of
a chi ld that is about 1 year old restrained in one
of the rear-facing or forward-fac ing infant re­
straints (listed in Federal Motor Vehicle Safety
Standard 208 w ith w hich the Advanced A irbag
System in your veh icle was certified), the front
airbag on the passenge r side may or may not
deploy.
The
P ASS ENGER AIR BAG OFF light comes on
when the e lectron ic cont rol un it detects a total
e lectr ica l capacitance on the front passenger seat
that requires the front a irbag to be turned off. If
the
PAS SENGER AIR BAG OFF light does not
come on, the front airbag on the passenger side
148
has not been turned off by the contro l uni t and
can deploy if the contro l unit senses an impact
that meets the cond itions stored in its memory.
If the total e lectr ica l capacitance registered o n
the front passenger seat is more than that of a
typica l 1 year-old, but less than the weight of a
small adu lt, t he front a irbag on the passenger
s ide may deploy (the
PA SS ENGER AIR BAG OFF
light does not come on).
For e xample , the ai rbag ma y deplo y if:
- a small ch ild that is heav ier than a typica l 1
year-old child is on the front passenger seat
(regard less o f whether the child is in one o f the
child seats listed ¢
page 168),
-a child who has outgrown child restraints is on
the front passenger seat.
If the front passenger a irbag is t urned off, the
PA SSENGER AIR BAG O FF light in the center of
the instr ument pane l will come on and stay on .
If the front passenger a irbag deploys, the Feder­
al Standard requ ires the airbag to meet the "low
r isk" dep loyment criteria to he lp reduce the r isk
of inju ry through interaction with the airbag .
"Low risk" deployment occurs in those crashes
that take p lace at lower decelerations as defined
in the electronic contro l unit ¢
page 153.
Alwa ys remembe r: Even though your vehicle is
equipped with Advanced Airbags, the safest place
for children is properly restrained on the back
seat. Please be sure to read the important infor­
mation in the sections that fo llow and be sure to
heed all of the WARNINGS.
A WARNING
To reduce the risk of injury when an airbag in­
flates, always wea r safety belts prope rly.
- If you are unrestrained, leaning forward, sit­
ting sideways or out of position in any way,
your r isk of injury is much highe r.
- You will also receive ser ious injuries and
could even be killed if you are up against the
airbag or too close to it when i t inflates -
even with an Advanced Airbag
¢page 142.
