Wheels
th e av ail able cargo and lug
g age load capa cit y of your vehi
cl e.
.,.Ch eck th e tire s idewall
(¢
pa ge 231, fig. 193) to deter
mine the d esignated load r atin g
for a sp ecifi c tire .
Wheel bolts and rims
Wheel bolts
W heel bo lt s must be clean and loosen/t ighten
easi ly.
Rims
R ims with a bol ted rim ring * or w it h bolted wheel
covers * consist of m ultip le pieces . These compo
nents we re bolted together using specia l bolts
a nd a speci al procedu re. You must not repair o r
d is a ssemble them¢
A.
A WARNING
Whee l bolts that a re tightened or repaired in
co rrectly can become loose and result in loss
o f vehicle control, which increases the risk of
an acc ident. For the correct t ightening specifi
cat io n, refer to¢
page 254 , After changing a
wheel.
- Always keep t he wheel bolts and the
t h reads in the whee l hub clean and free of
grease.
- Only use wheel bolts that fit the rim.
-Always have damaged rims repaired by an authorized Aud i dealer or authorized repair
facility . Never repair or d isassemble rims
yo urself, because th is increases the r isk of
an accident .
Winter tires
Winte r ti re s s ignificantly improve the veh icle's
h a ndling when d riving in w inte r condi tions. Be
c a use of the ir cons tru ction (width, compound,
tread pattern), summe r tires provide less trac
tion o n ice and snow.
246
.,. Use win ter tires on a ll four wheels .
.. On ly use winter tires that are approved for yo ur
veh icle.
.,. Please note that the maximum permitted
speed may be lower with winter tires¢&_ .
Your authorized Audi dealer or authorized re
pa ir fac ility can inform you about the maxim um
permitted speed for your t ires .
.,. Check t he tire p ressure afte r insta lling wheels
~ page 241.
The effectiveness of wi nter tires is reduced g reat
l y when the tread is wo rn down to a depth of
0.157 inch ( 4 mm). The chara cte ris tic s of winter
ti res a lso decrease g rea tly as the t ire ages, re
gard less o f the remaining t read.
_&. WARNING
- Never drive faster than the maximum pe r
m itted speed for your tires . This could cause
the t ires to heat up too much. This increases
the risk of an accident because it can cause
the t ire to burst .
- Always adapt your driving to the road and
traffic conditions . Drive carefully and reduce
your speed on icy or slippery roads . Even
winter t ires can lose t ract io n on black ice .
@ For the sake of the environment
Reinstall summer tires at the appropr iate
time, because they prov ide better handling
when roads are free of snow and ice. Summer
tires cause less road no ise, tire wear and fuel
consumpt ion.
(i_) Tips
You can also use all season tires instead of
winter tires . Please note that in some coun
tries where wint er tires are required, o nly
winter tires w it h t he
& symbol may be per
mi tted.
Snow chains
Snow chains improve trac tion in the snow.
.,. On ly install snow chai ns on the fron t wheels .
T his applies a lso to vehicles with a ll wheel
dr ive*.
-
Page 259 of 294
.... N
0 CJ '
cover must be flush with the surface of the sill
extension.
(D T ips
Some mode ls may also have a cover for the
rear vehicle lift point .
Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang
ing the wheel.
Fig. 208 C hangin g a whee l: u sin g t he screwdrive r ha ndle
(wi th the b lade removed) to turn t he bo lts
F ig. 20 9 Ch an gin g a wheel: alignmen t pin insid e th e top
ho le
After you have loosened all wheel bol ts and
raised the vehicle off the ground, remove and re
place the whee l as fo llows:
Remo ving the wheel
• Use the he xagon al socket in the sc rewd river
ha ndle
to completely remove the topmost
wheel bolt and set it aside on a
clean surface
Q fig . 208.
• Screw the threaded end of the alignmen t pin
from the tool kit hand-tight into the empty bolt
hole
Q fig. 209 .
• Then remove the other whee l bolts as described
above .
Emergen cy a ssis tanc e
•Takeoff the whee l leaving the alignment pin in
the bolt hol e
Q0.
Putting on th e spare whe el
• Lift the spare whee l and carefu lly slide it over
t he alignment p in to g uide it in place
Q 0.
• Use the hexagonal socket in the screwdr iver
handle to screw in and tighten all wheel bolts
slightly .
.. Remove the alignment pin and insert and tight
en the remaining wheel bol t slight ly like the
rest.
• Turn the jack handle counter -clockw ise to lower
the vehicle unt il the jack is fully released .
• Use the wheel bo lt wrench to t ighten a ll wheel
bolts firmly
9 page 255. Tighten them cross
wise,
from one bo lt to the ( approx imately) op
posite one, to keep the wheel centered.
(D Note
When removing o r installing the wheel, the
rim co uld h it the brake rotor and damage t he
rotor . Work carefully and have a second per
son help you .
@ Tips
Never use the he xagonal socke t in the hand le
of the sc rewdriver to loosen or t ighten the
whee l bolts.
- Pull the reversible blade from the screwdr iv
er before you use the hexagona l socket in
the handle to t urn the whee l bolts .
- When mount ing tires with
unidirectional
tread design
make sure the tread pattern is
pointed the right way
Q page 258.
- T he wheel bolts shou ld be clean and easy to
turn. Check for dirt and corrosion on the mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be
fore remounting the wheel.
257
Page 260 of 294

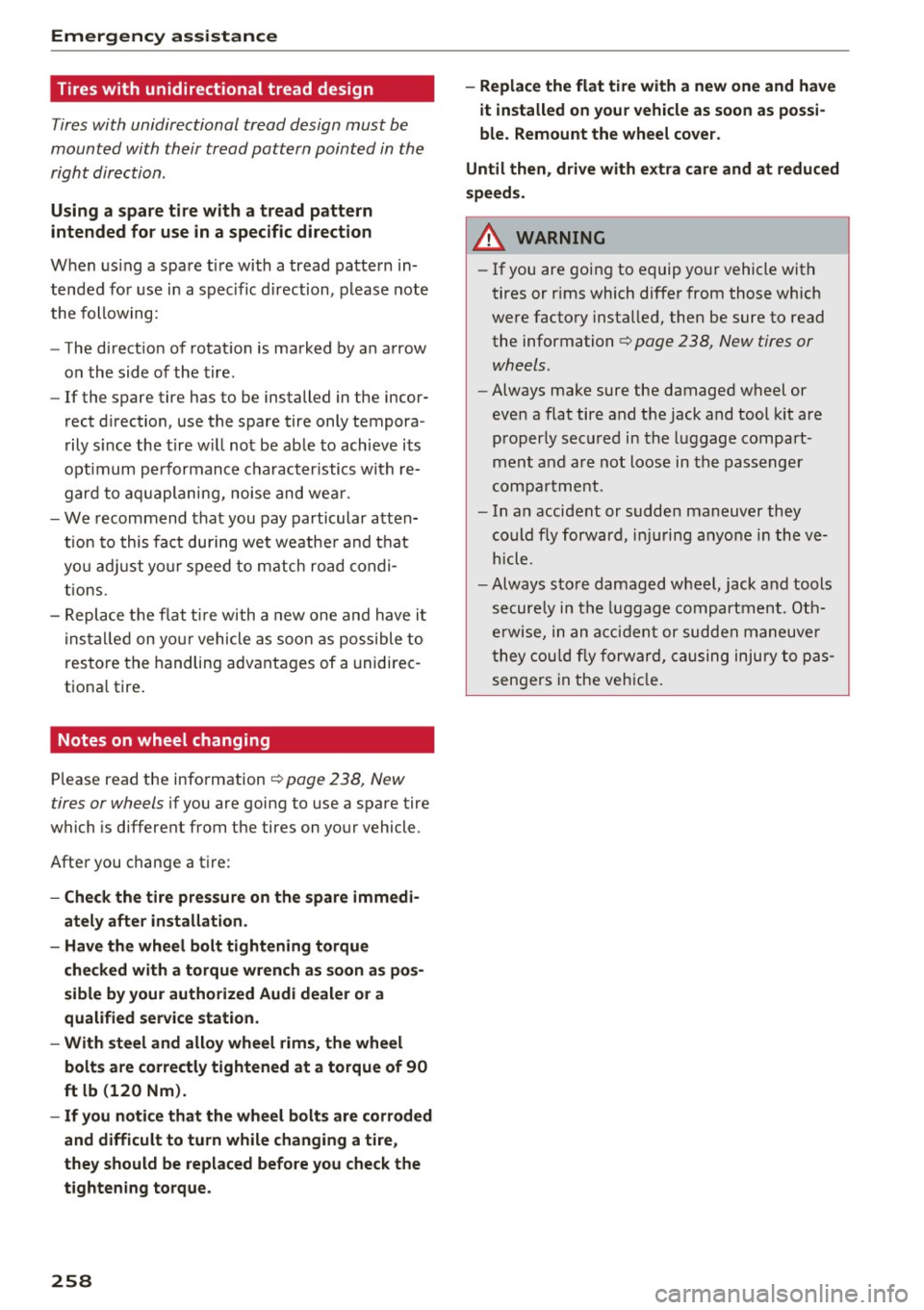

Emergency assistance
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction .
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare ti re with a tread pa tte rn in
tended fo r use in a spec ific d irection, p lease note
the following:
- The direct io n of rotat io n is marked by an arrow
o n the side of the tire.
- If the spare tire has to be installed in the incor
rect d irection, use the spare tire only tempora
rily s ince the tire w ill not be ab le to achieve its
opt imum pe rformance cha racter istics with re
gard to aq uaplaning, noise and we ar.
- We recommend that you pay particular atten
t ion to this fac t during wet weathe r and t hat
yo u ad just yo ur speed to m atch road condi
t ions.
- R eplace t he flat t ire wi th a new one a nd have it
i nsta lled on yo ur vehicle as soon as pos sible to
res to re t he handling advantages of a unidirec
tiona l tire .
Notes on wheel changing
Please read the information q page 238, New
tires or wheels
if you are going to use a spare tire
which is different from the tires on your vehicle.
After you change a tire:
- Check the tire pressure on the spare immedi
ately after installation .
- Have the wheel bolt tightening torque
che cked with a torque wrench as s oon as pos
sible by your authorized Audi dealer or a
qualified service station.
- With steel and alloy wheel rims , the wheel
bolts are correctly tightened at a torque of 90
ft lb
(120 Nm) .
- If you notice that the wheel bolt s are corroded
and difficult to turn while changing a tire ,
they should be replaced before you check the
tightening torque.
258
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi
ble. Remount the wheel cover.
Until then , drive with extra care and at reduced
speeds.
_& WARNING
- If you are going to equip yo ur vehicle with
tires or r ims which differ from those which
were facto ry installed, then be sure to read
the information
q page 238, New tires or
wheels.
- Always make sure the damaged wheel or
eve n a flat tire and the jack and tool kit are
properly secured in the l uggage compart
men t and a re not loose in the passenger
compa rtme nt.
- In an accident or sudde n maneuver they
could fly forward, i njuring anyone i n the ve
hicle .
- Always s to re damaged wheel, jack and tools
secure ly in the luggage comp artment . Oth
e rwi se, in an a cci den t or sudden m aneuve r
t hey could
fly forwar d, causing injury to pas
sen gers in the veh icle.
-
