~ page 129, fig. 140. If you cannot main­
tain this minimum distance, the airbag sys­
tem cannot protect you properly.
- If physical limitations prevent you from sit­
ting 10 in (25 cm) or more from the steer­ ing wheel, check with your authorized Audi
dealer to see if adaptive equipment is avail­
able.
- If the steering wheel is aligned with your
face, the supplemental driver's airbag can­
not provide as much protection in an acci­
dent. Always make sure that the steering
wheel is aligned with your chest.
-Always hold the steering wheel with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury if
the driver's airbag deploys.
- Never hold the steer ing wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub . Holding the steering wheel the
wrong way can cause serious injuries to the
hands, arms and head if the driver's airbag
deploys.
Power steering wheel position adjustment
App lies to: ve hicles with power steering whee l adjustment
The steering wheel position can be adjusted elec­
trically up and down and forward and back.
Fig. 77 Switch for adjust ing the steer ing whee l pos ition
~ To adjust the height, press the switch up/down.
The steering column will cont inue moving as
long as you are pressing the switch .
~ To move the steering wheel forward or back,
press the switch forward/back. The steering
column will continue moving as long as you are
pressing the switch.
Driving
The steering wheel can a lso be adjusted when the
ignition is switched off .
In vehicles with memory function*, the steering
column settings are sto red together with the
seat position.
A WARNING
Improper use of steering wheel adjustment
and improper seating position can cause seri­
ous personal injury.
- Adjust the steering wheel column only when
the vehicle is not moving to prevent loss of
vehicle control.
- Adjust the driver's seat or steering whee l so
that there is a minimum of 10 in (25 cm)
between your chest and the steering wheel
r:=;, page 129, fig . 140 . If you cannot main­
tain this minimum distance, the airbag sys­
tem cannot protect you properly.
- If physical limitations prevent you from sit­ ting 10 in (25 cm) or more from the steer­
ing wheel, check with your authorized Audi
dealer to see if adaptive equipment is avail­
able.
- If the steering wheel is aligned with your
face, the supplemental dr iver's airbag can ­
not provide as much protection in an acci­
dent. Always make sure that the steering
wheel is aligned with your chest.
- Always hold the steering wheel with your
hands at the 9 o'clock and 3 o'clock posi ­
tions to reduce the risk of personal injury if
the driver's airbag deploys.
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub . Holding the steering wheel the
wrong way can cause serious injuries to the
hands, arms and head if the driver's airbag
deploys.
-
69

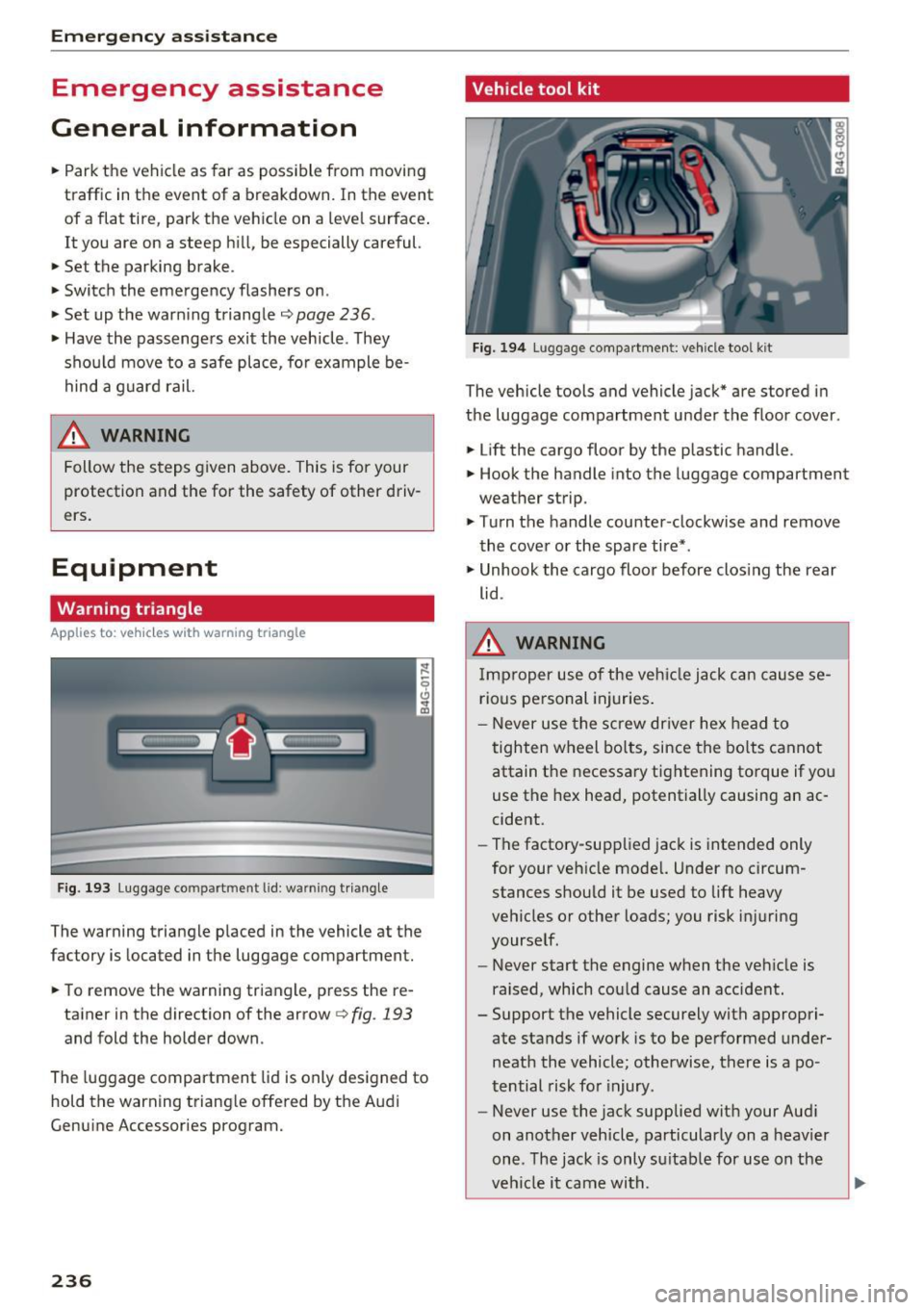

Emergency assistance
Emergency assistance
General information
... Park the vehicle as far as possible from moving
traffic in the event of a breakdown. In the event
of a flat tire, park the vehicle on a level surface .
It you are on a steep hill, be especially careful.
.,. Set the parking brake .
.,. Switch the emergency flashers on .
... Set up the warning triangle
r=;, page 236 .
... Have the passengers exit the vehicle . They
should move to a safe place, for example be­
hind a guard rail.
A WARNING
Follow the steps given above. This is for your
protection and the for the safety of other driv­
ers.
Equipment
Warning triangle
A ppl ies to: ve hicles w ith warning triangle
Fig. 193 Luggage co mpartment lid : wa rnin g triangle
The warning triangle placed in the vehicle at the
factory is located in the luggage compartment.
... To remove the warning triangle, press the re-
tainer in the direction of the arrow
r=;, fig . 193
and fold the holder down.
The luggage compartment lid is only designed to
hold the warning triangle offered by the Audi
Genuine Accessories program.
236
Vehicle tool kit
Fig. 194 Luggage compartment: vehicle tool kit
The vehicle tools and vehicle jack* are stored in
the luggage compartment under the floor cover.
... Lift the cargo floor by the plastic handle.
.,. Hook the handle into the luggage compartment
weather strip.
.,. Turn the handle counter-clockwise and remove
the cover or the spare tire* .
.,. Unhook the cargo floor before closing the rear
lid .
A WARNING
Improper use of the vehicle jack can cause se­
rious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot
attain the necessary tightening torque if yo u
use the hex head, potentially causing an ac­
cident.
- The factory-supplied jack is intended only
for your vehicle model. Under no circum­
stances should it be used to lift heavy
vehicles or other loads; you risk injuring
yourself.
- Never start the engine when the vehicle is
raised, which cou ld cause an accident .
- Support the vehicle securely with appropri­ ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tential risk for injury .
- Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only su itable for use on the
vehicle it came wi th.

co
co
.... N
" N .... 0 0 <.,;) 'SI"

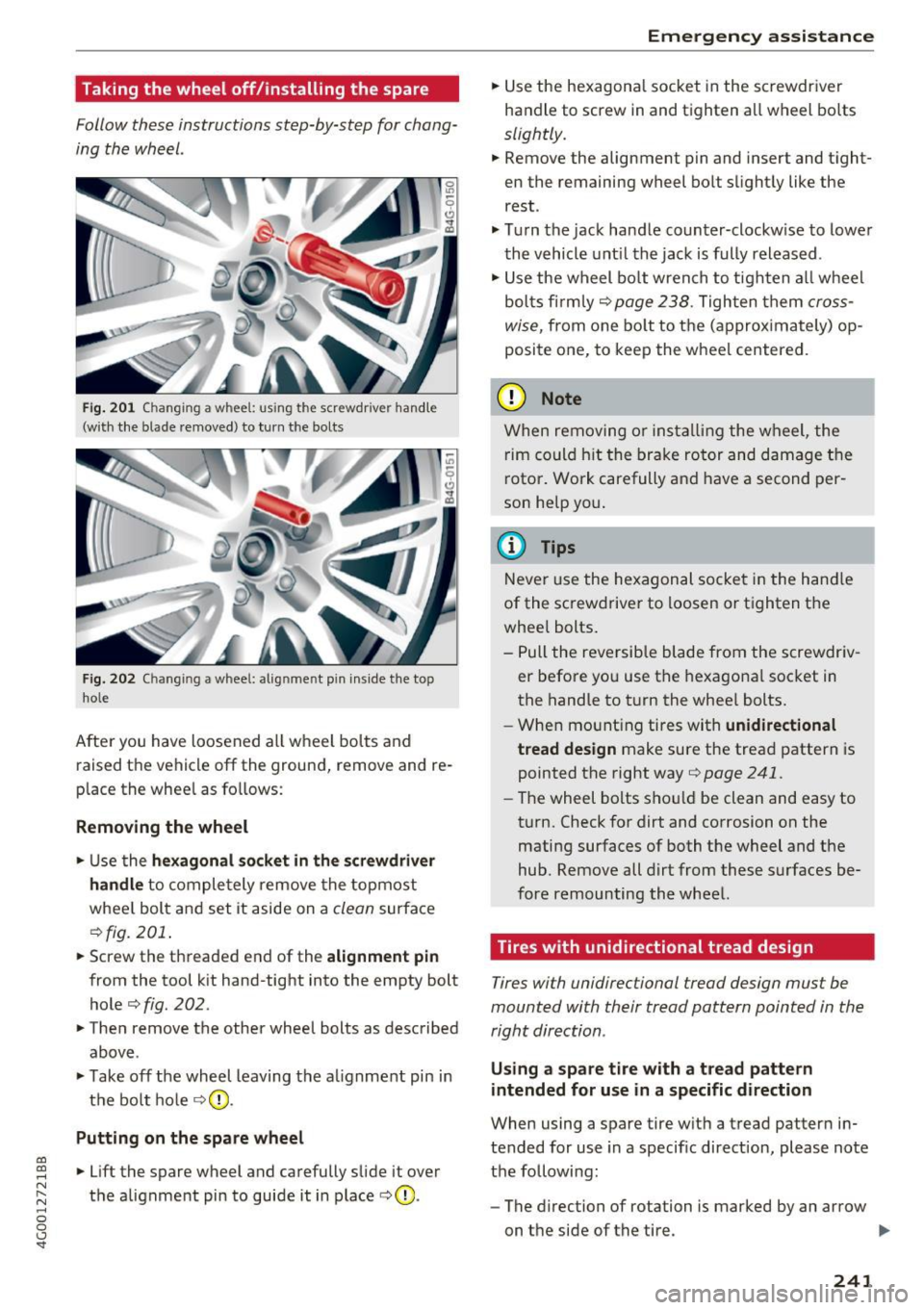

Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang­
ing the wheel.
Fig. 201 Changing a wheel: us ing the screwdriver hahd le
(with the blade removed} to turn the bolts
F ig. 202 C hangin g a whee l: alignment pin ins ide the top
hole
After you have loosened all wheel bo lts and
raised the vehicle
off the ground, remove and re­
p lace the whee l as follows:
Removing th e wheel
.. Use the hexagon al so cket in the screwdri ver
handle
to completely remove the topmost
wheel bolt and set it aside on a
clean surface
¢ fig. 201 .
.. Screw the threaded end of the alignment pi n
from the tool kit hand-tight into the empty bolt
hole ¢
fig. 202 .
.. Then remove the other wheel bolts as described
above .
.. Take
off the wheel leaving the a lignment pin in
the bolt ho le ¢ 0 .
Puttin g on the spa re wh eel
.. Lift the spare wheel and carefully slide it over
the alignment pin to guide it in place ¢0 .
Em ergen cy a ssis tanc e
.. Use the hexagonal socket in the screwdr iver
handle to screw in and tighten all wheel bolts
slightly.
.. Remove the alignment pin and insert and tight­
en the remaining wheel bo lt slight ly like the
rest .
.. Tu rn the jack handle counter-clockw ise to lower
the vehicle unt il the jack is fully released .
.. Use the wheel bo lt wrench to t ighten a ll wheel
bol ts fi rmly¢
page 238. Tighten them cross­
wise,
from one bo lt to the (approx imately) op­
posite one, to keep the wheel centered.
(D Note
When removing o r insta lling the wheel, the
rim could h it the brake rotor and damage t he
rotor . Work carefully and have a second per­
son help you .
@ Tips
Never use the hexagonal socket in the hand le
of the screwdrive r to loosen or t ighten the
whee l bolts.
- Pull the reversible blade from the screwdriv ­
er before you use the hexagonal socket in
the handle to turn the whee l bolts.
- When mount ing tires with
unidirectional
tread de sign
make sure the tread pattern is
pointed the right way¢
page 241 .
-The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction .
Usi ng a sp are t ire w ith a tread patte rn
intended f or u se in a sp ecific direction
When using a spare tire with a tread pattern in­
tended for use in a specific direction, please note
the following:
- The direction of rotation is marked by an arrow
on the side of the tire. "'
