0 0 \,;J ' threshold stored in the control unit is met
¢ page 152, More important things to know
about front airbags.
In addition to their normal safety function, safe­
ty belts help keep the driver or front passenger in position in a frontal collision so that the airbags
can provide supplemental protection.
The airbag system is not a substitute for your safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is why you should
always wear your safety belt, not just because
the law requires you to do
so ¢ page 134, Gener­
al information.
Remember too, airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
example when your vehicle strikes or is struck by
another after the first collision.
This is just one of the reasons why an airbag is
not a substitute for the safety belt. The airbag
system works most effectively when used with
the safety belts. Therefore , always wear your
safety belts correctly.
It is important to remember that while the sup­
plemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising and minor
abrasions and friction burns can also occur when
an airbag inflates.
The knee airbag system basically consists of:
- The electronic control module
- Two inflatable airbags (airbag and gas genera-
tor), one for the driver and one for the front
passenger
- The airbag indicator light in the instrument
panel
The knee airbag system will not deploy:
- when the ignition is switched off
Airbag system
- in frontal collisions when the deceleration
measured by the control unit is too low
- in side collisions
- in rear-end collisions
- in rollovers
- in the event of a system malfunction (warning/
indicator light is on)
¢ page 16 .
.&_ WARNING
-Safety belts and the airbag system can only
provide protection when occupants are in
the proper seating position
¢page 152.
- If the airbag indicator light ¢page 16
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How knee airbags work
App lies to: vehicles wi th knee airbags
The risk of injury to the leg area can be reduced
by fully inflated knee airbags.
Fig. 156 Inflated airbags protecting in a fro ntal coll is ion
The knee airbag system has been designed so
that the airbags for the driver and front passen­
ger deploy in certain but not all frontal collisions .
If the front airbags deploy, the knee airbags also
deploy in frontal collisions when the deployment
threshold stored in the control unit is met .
When the system deploys, the airbags fill with a
propellant gas, and inflate between the lower
part of the instrument panel and the driver and
the lower part of the instrument panel and the
front
passenger ¢ page 152, fig. 153. .,.
159

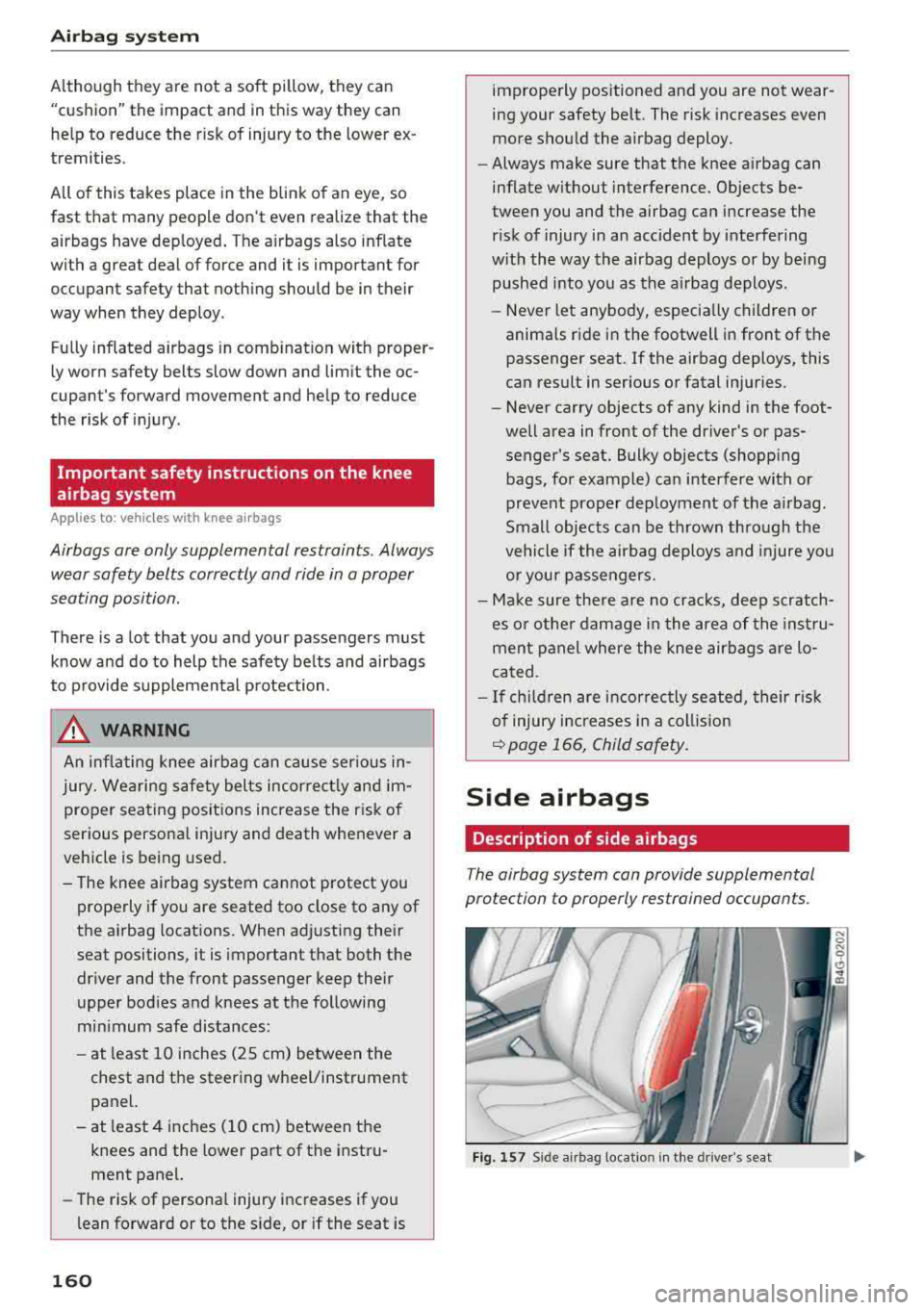

Airbag system
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
he lp to reduce the risk of injury to the lower ex­
tremities .
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the
airbags have deployed. The a irbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the oc­
cupant's forward movement and help to reduce
the risk of injury.
Important safety instructions on the knee
airbag system
App lies to : ve hicles with knee a irbags
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to provide supplemental protection .
,&. WARNING
An inflating knee airbag can cause serious in ­
jury. Wearing safety belts incorrect ly and im­
proper seating positions increase the r isk of
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you
properly if you are seated too close to any of
the airbag locations. When adjusting their
seat positions, it is important that both the
driver and the front passenger keep their
upper bodies and knees at the following
min imum safe distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instrument panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if you
lean forward or to the s ide, or if the seat is
160
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
- Always make sure that the knee airbag can
inflate without interference. Objects be­
tween you and the airbag can increase the
risk of injury in an accident by interfering
w ith the way the airbag deploys or by being
pushed into you as the airbag deploys.
- Never let anybody, especia lly children or
animals ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal injuries .
- Never carry objects of any kind in the foot­
well area in front of the driver's or pas­ senger's seat. Bulky objects (shopp ing
bags, for example) can interfere with or
prevent proper deployment of the a irbag.
Small objects
can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
- Make sure there are no crac ks, deep scratch­
es or other damage in the area of the i nst ru­
ment panel where the knee airbags are lo­
cated .
- If children are incorrec tly seated, their risk
of injury increases in a coll is io n
~ page 166, Child safety.

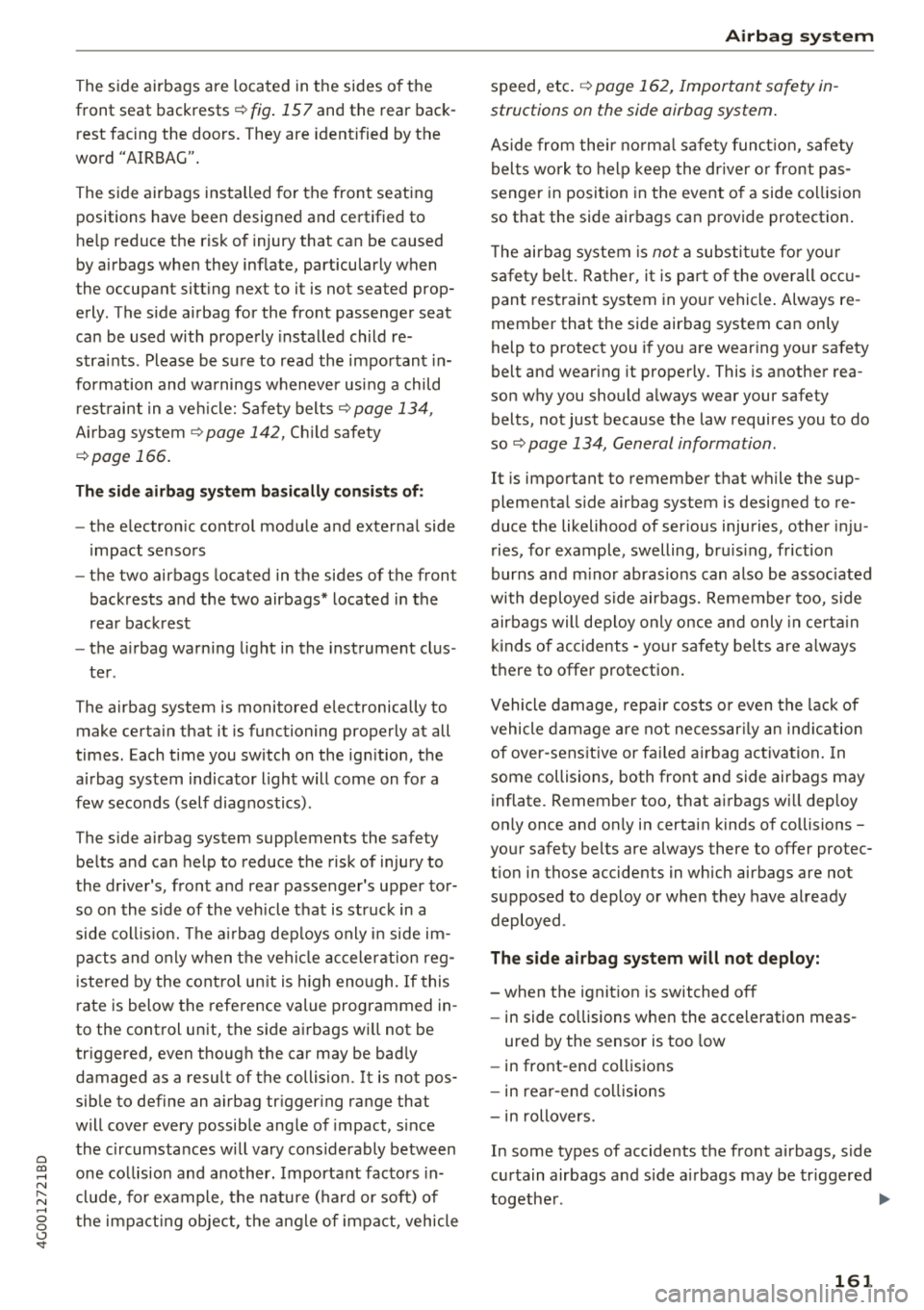

Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
Fig. 157 Side a irbag locatio n in the driver 's seat

a co .... N
" N .... 0 0 \,;J ' The side airbags are located in t he sides of the
front seat backrests
c:!;>fig . 157 and the rear back­
rest facing the doors . They are identified by the
word "AIRBAG".
The side airbags installed for the front seating
positions have been designed and certified to
he lp reduce the risk of injury that can be caused
by airbags when they inflate, particularly when
the occupant sitt ing next to it is not seated prop­
erly. The s ide airbag for the front passenger seat
can be used with properly installed child re­
stra ints. Please be sure to read the important in­
formation and wa rnings whenever us ing a child
rest raint in a ve hicle: Safety belts
¢page 134,
Airbag system <:!;>page 142, Chi ld safety
¢page 166.
Th e s ide airbag system ba sically con sis ts of :
-the electron ic control module and externa l side
i mpact sensors
- the two airbags located in the sides of the front
backrests and the two airbags* located in the
rear back rest
- the a irbag warning light in the instrument cl us-
ter .
The airbag system is monitored electronically to make certain that it is functioning properly at all
times . Each time you switch on the ign ition, the
a irbag system indicator light will come on for a
few seconds (self diagnostics).
The s ide airbag system supp lements the safety
belts and can help to reduce the risk of in jury to
the dr iver's, front and rear passenger's upper tor­
so on the side of the veh icle t hat is struck in a
side coll is io n. T he a irbag dep loys only i n side im­
pacts and o nly when the veh icle accelerat ion reg ­
istered by the contro l un it is high enough. If this
rate is below the reference value programmed in ­
to the control unit, the side airbags wi ll not be
tr iggered, even though the car may be bad ly
damaged as a result of the collision. It is not pos­
sib le to define an airbag tr igger ing range that
will cover every possib le ang le of impact, s ince
the c ircumsta nces will vary cons iderably between
one co llision and another. Important facto rs in­
clude, for example, t he natu re (hard or soft) of
the impact ing object, t he a ngle of impact, vehicle
Airbag syste m
speed, etc. ¢ page 16 2, Important safety in ­
structions on the side airbag system .
Aside from the ir norm al safety funct ion, safety
belts work to help keep the dr iver o r front pas ­
senger in position in the event o f a side co llision
so that the side airbags can provide protection .
T he air bag system is
not a substitute fo r you r
sa fety be lt. Ra ther, i t is pa rt of the overall occ u­
pant restraint system in your vehi cle. Always re ­
member that the side airbag system can only
help to protect you if you are wear ing you r safety
belt and wear ing it properly. This is another rea­
son why you should a lways wear your safety
belts, not just because the law requires you to do
soc:!;> page 134, General information .
It is important to remember that while the sup­
plementa l side airbag system is designed to re­
duce the likelihood of ser ious injuries, other inju ­
ries, for example, swelling, bru is ing, friction
bur ns and m ino r abras ions can also be assoc iated
with deployed s ide airbags. Remember too, s ide
airbags will deploy only once and only in certa in
ki nds of accidents
-your safety belts are a lways
the re to offer protection .
Vehicle damage, repair costs o r even the lack of
vehicle damage a re not necessar ily an ind ic a tion
of over-sens it ive or fa iled air bag ac tiva tion . In
some collisions, both front and side airbags may
inflate. Remember too, that airbags wi ll dep loy
on ly once and only in certain kinds of collisions
-
your safety belts are always there to offer protec­
t ion in those accidents in which airbags are not
supposed to deploy or when they have al ready
deployed .
The side airbag system will not deploy :
- when the ignition is switched off
- in side co llisions whe n the accele ration meas -
ured by the sensor is too low
- in front -end col lisions
- in rea r-end co llisions
- in rollovers.
In some types of accidents the front a irbags, side
curtain airbags and s ide a irbags may be tr iggered
togethe r.
..,
161

Airbag system
~ WARNING
-Safety belts and the a irbag system will only
provide protection when occupants are in
the proper seating position
¢ page 162 .
-If the airbag indicator light¢ page 16
comes when the vehicle is being used, have
the system inspected immediate ly by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.

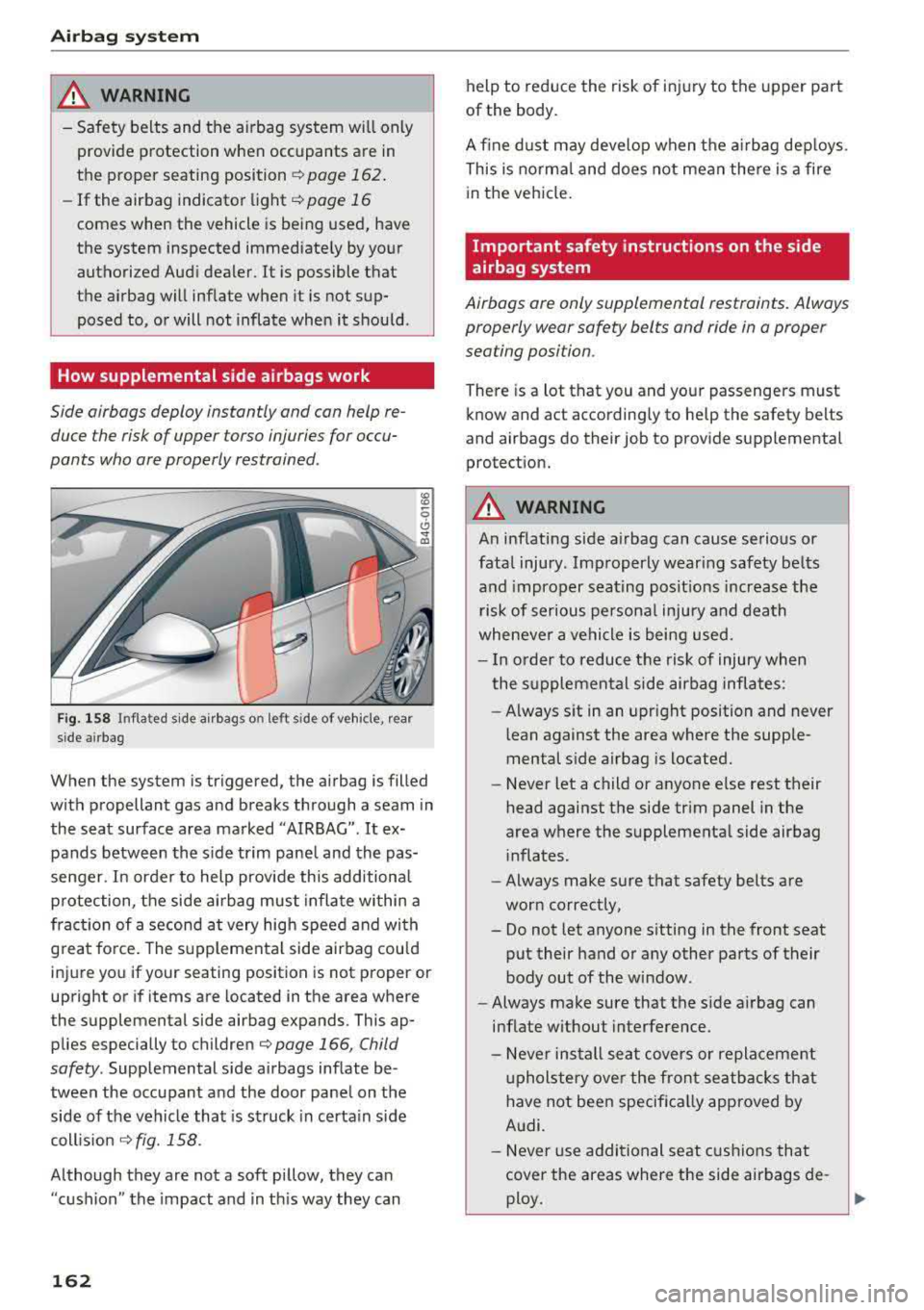

How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained .
Fig. 158 Inflated side airbags on left side of veh icle , rear
side a irbag
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG" . It ex­
pands between the side trim panel and the pas­
senger . In order to help provide this additional
protection, the side airbag must inflate within a
fraction of a second at very high speed and with
great force. The supplemental side airbag could
injure you if your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands. This ap­
plies especially to children
¢ page 166, Child
safety .
Supplemental side airbags inflate be­
tween the occupant and the door pane l on the
side of the vehicle that is struck in certain side
coll is ion ¢ fig. 158.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
162
help to reduce the risk of injury to the upper part
of the body.
A fine d ust may develop when the a irbag deploys.
This is norma l and does not mean the re is a fire
in the vehicle.
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and your passengers must
know and act according ly to help the safety belts
and airbags do their job to provide supplemental protection.
A WARNING
An inflating side airbag can cause serious or
fatal injury . Improperly wearing safety belts
and improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
-In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always s it in an upright position and never
lean against the area where the supple-
mental side airbag is located.
-Never let a child or anyone e lse rest their
head against the side trim panel in the
area where the supplemental side airbag inflates.
- Always make sure that safety belts are
worn correctly,
-Do not let anyone s itting in the front seat
put their hand or any other parts of their
body out of the window .
- Always make sure that the side airbag can
inflate without interference.
-Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifical ly approved by
Audi.
-Never use additional seat cushions that
cover the areas where the side airbags de-
ploy.
~

a co ,...,
N
" N ,...,
0 0 \,;J ' -Damage to the original seat covers or to

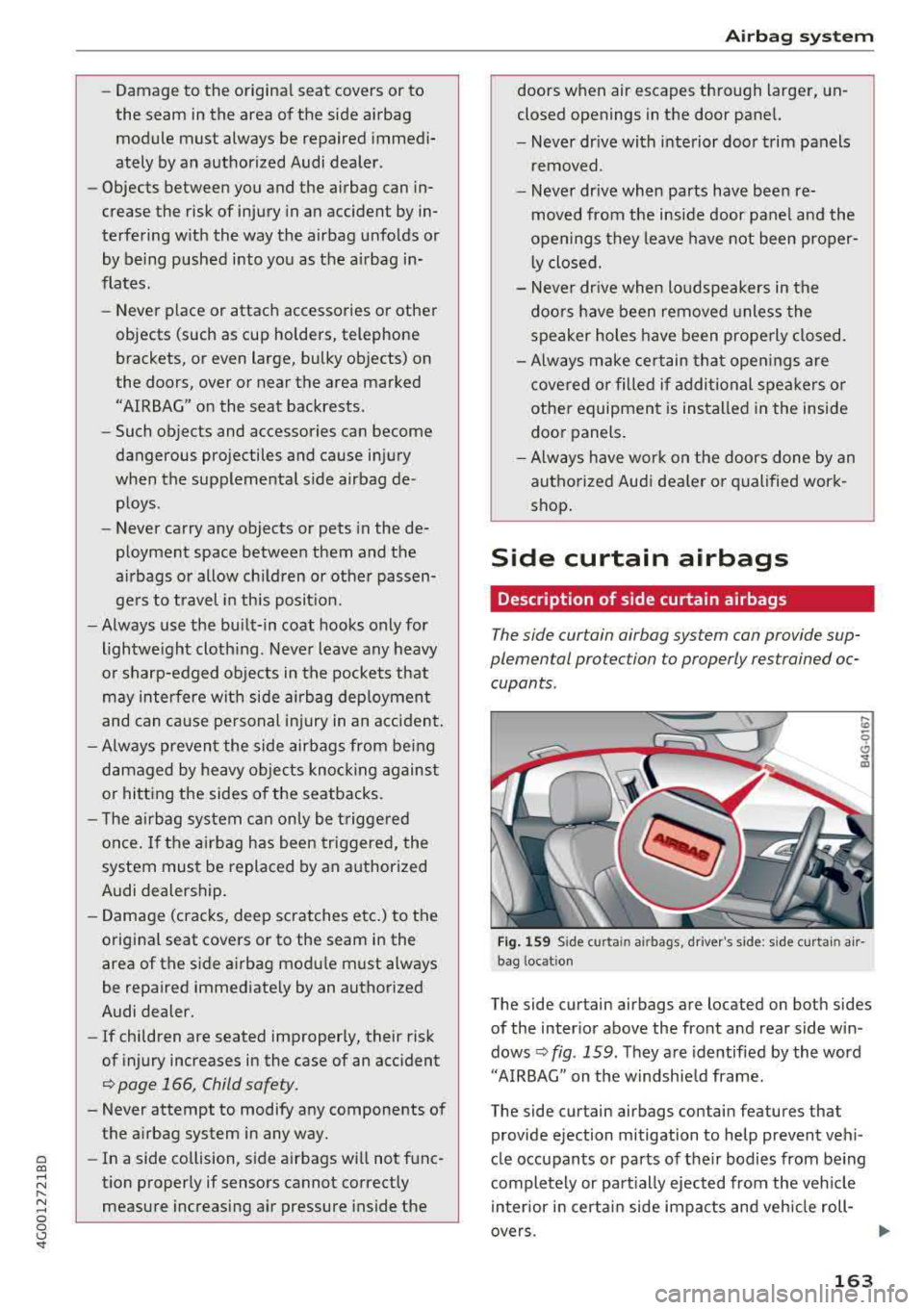

the seam in the area of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
- Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or
by being pushed into you as the airbag in­
flates.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­
ploys .
- Never carry any objects or pets in the de­
ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always use the built-in coat hooks only for
lightweight clothing . Never leave any heavy
or sharp-edged objects in the pockets that
may interfere with side airbag deployment
and can cause personal injury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag module must always
be repaired immediately by an authorized
Audi dealer.
- If children are seated improperly, their risk
of injury increases in the case of an accident
Q page 166, Child safety.
- Never attempt to modify any components of
the airbag system in any way.
- In a side collision, side airbags will not func­
tion properly if sensors cannot correctly measure increasing air pressure inside the
Airbag system
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with interior door trim panels
removed.
- Never drive when parts have been re­
moved from the inside door panel and the
openings they leave have not been proper­
ly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
othe r equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Audi dealer or qualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants .
..... 0
6
"' a,
Fig. 159 Side curta in airbags, driver's side: s ide curtain air­
bag locat ion
The side curtain airbags are located on both sides
of the interior above the front and rear side win­
dows
Q fig . 159. They are identified by the word
"AIRBAG" on the windshield frame.
The side curtain airbags contain features that
provide ejection mitigation to help prevent vehi­
cle occupants or parts of their bodies from being
completely or partially ejected from the vehicle
inter ior in certain side impacts and veh icle roll-
overs.
.,_
163

Airbag system

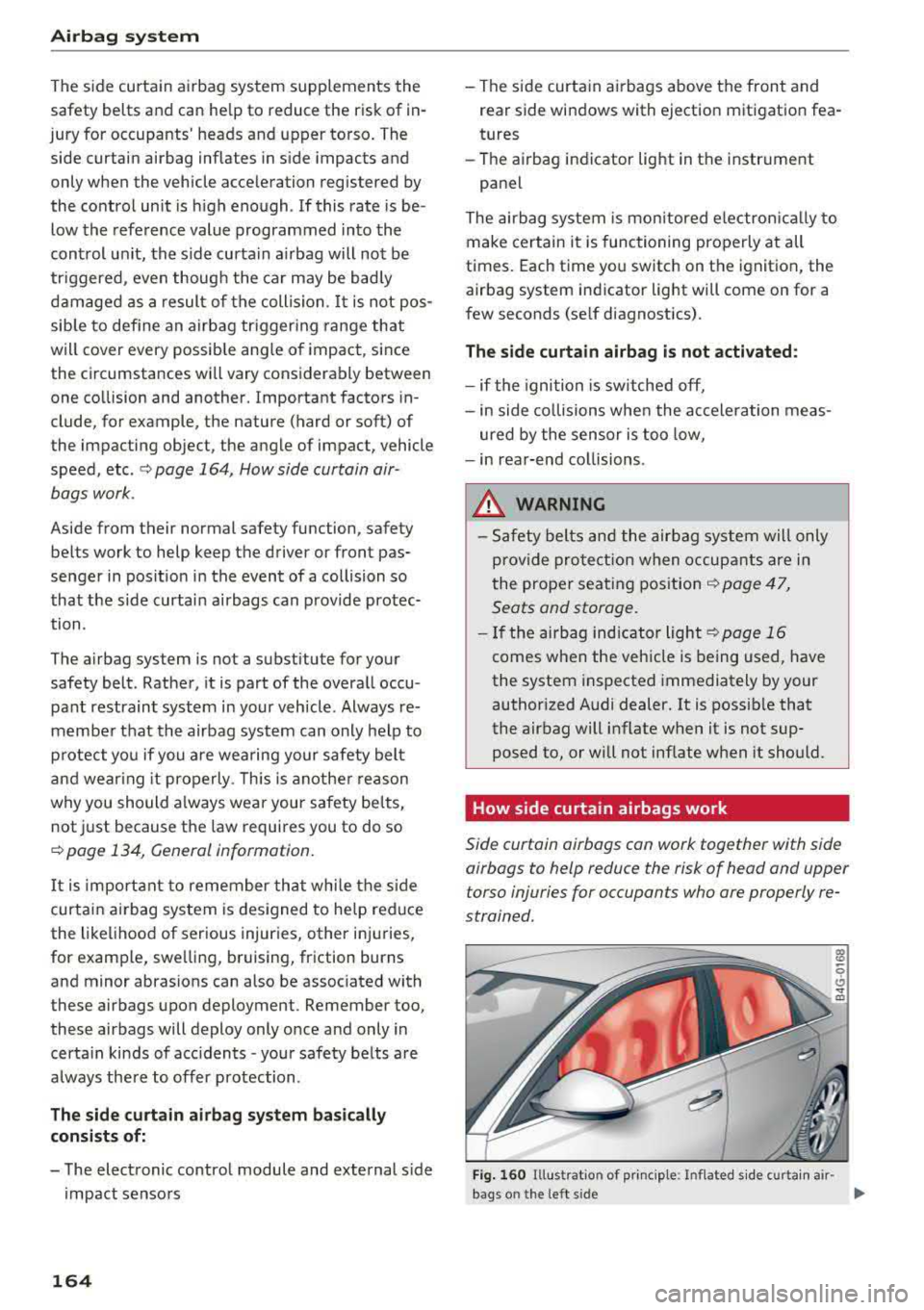

The s ide curtain airbag system supp lements the
safety belts and can he lp to reduce the risk of in­
jury for occupants' heads and upper to rso . The
side curtain airbag inflates in s ide impacts and
only when the veh icle acce leration registered by
the co ntro l unit is h igh eno ugh . If this rate is be ­
low the refe re n ce value programmed in to the
con trol unit, the s ide curta in a irbag will no t be
tr iggered, even though the ca r may be bad ly
d a mage d as a r esult of the collis io n.
It is not pos­
sib le to def ine an a irbag tr iggering range that
will cover every possib le ang le o f impact, since
the circumstances will vary considerably between
one co llision and another. Important factors in­
clude, for example, the nature ( hard or soft) of
the impacting object , the angle of impact, vehicle
speed, etc.
¢ page 164, How side curtain air­
bags work .
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in pos it io n in the event of a collision so
that t he side curtai n airbags can provide protec ­
tion .
The a irbag system is not a substitute for your
safety belt . Rathe r, it is part of the overa ll occu ­
pant restrain t system i n your veh icle . Always re­
membe r th at th e airbag system can only help to
p rotect yo u if you a re we aring your safety bel t
and wearing it pro perly . T hi s is anothe r reason
why you should always we ar your s afety belts,
not just because the law requires you to do so
¢ page 134, General information .
It is import ant to remember th at whi le t he s ide
curt ain ai rbag system is des igned to help reduce
the likelihoo d of serious injur ies, other injuries,
for example, swe lling, b ruising, friction burns
and minor abrasions can also be assoc iated with
these airbags upon deployment . Remember too,
these airbags will deploy only once and only in
certa in kinds of acc idents
-yo ur safety be lts are
a lways there to offer protec tion.
The side curtain a irbag system basically
consists of:
-Th e elect ronic control module and external s ide
im pact senso rs
164
-T he si de curta in ai rbags above t he front and
rear side wi ndows with ejection mitigat ion fea­
tures
- The a irbag indicator lig ht in t he instr ume nt
pa nel
The airbag system is mo nitored e lectron ic all y to
make certain i t is func tioning pro perly at all
times . Each t ime yo u switch on the ignit ion, the
airba g system ind icator light will come on for a
few seconds (se lf diagnostics) .
The side curtain airbag is not activated:
-if the ignitio n is sw itched off,
-i n side co llisions whe n the acce le ra tion meas-
ured by the sensor is too low,
-in r ear-end co llisions .
.&_ WARNING
-Safety bel ts and th e air bag sys tem will only
provide pro te ct ion when occup ants a re in
t he prope r seat ing pos ition ¢
page 47,
Seats and storage.
-If the a irb ag ind ic ator light¢ page 1 6
comes w he n th e veh icle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possib le tha t
the airbag will inflate when it is not sup ­
posed to, or will not inflate w hen it should.
How side curtain airbags work
Side curtain airbags con work together with side
airbags to help reduce the risk of head and upper torso injuries for occupants who are properly re­
strained.
F ig. 1 60 Illustration of p rincip le: In fl ated s ide curta in air·
bags o n the le ft s ide
..,_

a co .... N

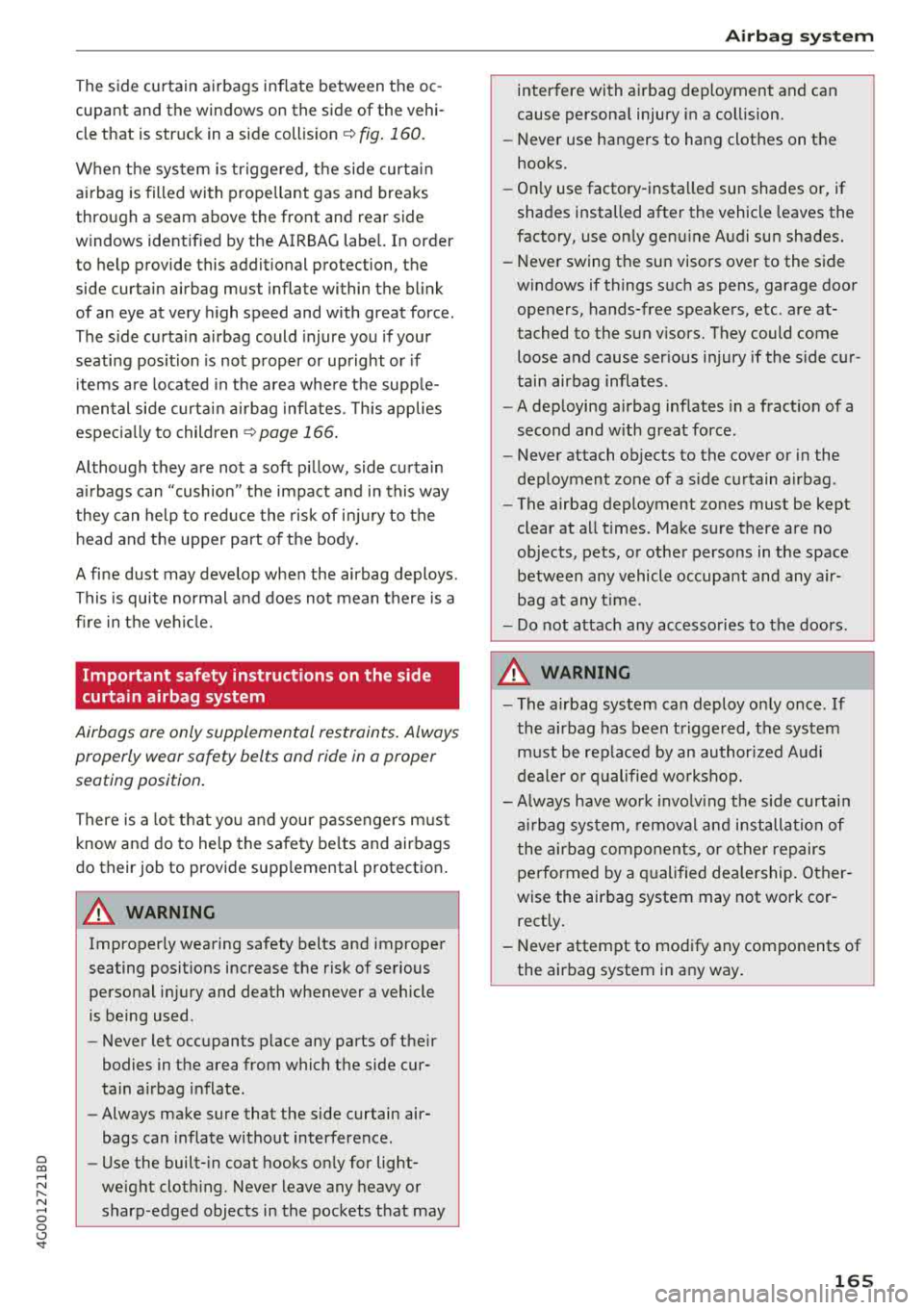

" N .... 0 0 \,;J ' The side curtain airbags inflate between the oc­
cupant and the windows on the side of the vehi ­
cle that is struck in a side collis ion
¢ fig . 160.
When the system is tr iggered, t he side curta in
ai rbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identif ied by the AIRBAG labe l. In order
to help provide this addit ional protection, the
side curtain airbag must inflate within the blink
of an eye at very h igh speed and with great force .
The s ide curta in a irbag could injure you if your
seating position is not proper or upright or if
items are loca ted in the a rea whe re t he supp le­
mental side curta in air bag inflates . T his applies
espec ia lly to children
¢ page 166 .
Although they a re not a soft p illow, side curtain
a ir bags can "cushion " the impact and in this way
they can help to red uce the risk of inj ury to the
h ead and t he upper part of t he body .
A fi ne dust may deve lop when the airbag deploys .
This is quite normal and does not mean there is a
fi re in t he ve hicl e.
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints . Always
properly wear safety belts and ride in a proper
seating position .
There is a lot th at yo u and your passengers m ust
know and do to he lp the safety be lts and airbags
do their job to provide supp lemental protection .
A WARNING
Improperly wearing safety belts and improper
seating posit ions increase the risk of serious
personal injury and death whenever a vehicle
is being used .
- Never let occ upants p lace any parts of the ir
bodies in the area from which the side cur­
ta in a irbag inflate .
- Always make sure that the side curtain air­
bags can inflate witho ut interference .
- Use the built- in coat hooks on ly for light­
we ight cloth ing. Never leave any heavy or
sharp-edged objects in the pockets that may
Airbag syste m
inter fere with a irbag deployment and can
cause persona l injury in a co llision.
- Never use hangers to hang clot hes on t he
hooks.
- On ly use factory-insta lled sun shades or, if
shades installed after the vehicle leaves the
factory, use on ly gen uine A udi su n shades.
- Never swing the su n visors over to the side
windows if things s uch as pens, garage door
openers, hands-free speakers, etc. are at­
tached to the sun v isors. They could come
loose and cause ser ious injury if the s ide c ur­
tain airbag inflates .
- A dep loying airbag inflates in a fract ion of a
second and w ith great force .
- Never attach ob jects to the cover or i n the
deployment zone of a s ide curtain airbag .
- The a irbag deployment zones must be kept
clear at all t imes . Make s ure there are no
objects, pets, o r other persons in the space
between any vehicle occupant and any air­
bag at any t ime .
- Do not attac h any accessories to the doors .
A WARNING
-
-The a irbag sys tem can dep loy o nly once . If
the airbag has been trigge red, the system
mu st be rep laced by an au thor ized A udi
de aler or q ualified wo rks hop .
- Always have wo rk invo lv ing t he side curtai n
air bag sy stem, remova l an d installa tion of
t he airbag componen ts, or o ther repairs
performed by a q ualified dea lership . Other ­
wise the airbag system may not work cor ­
rectly.
- Neve r attempt to modify any components of
the airbag system i n any way .
165

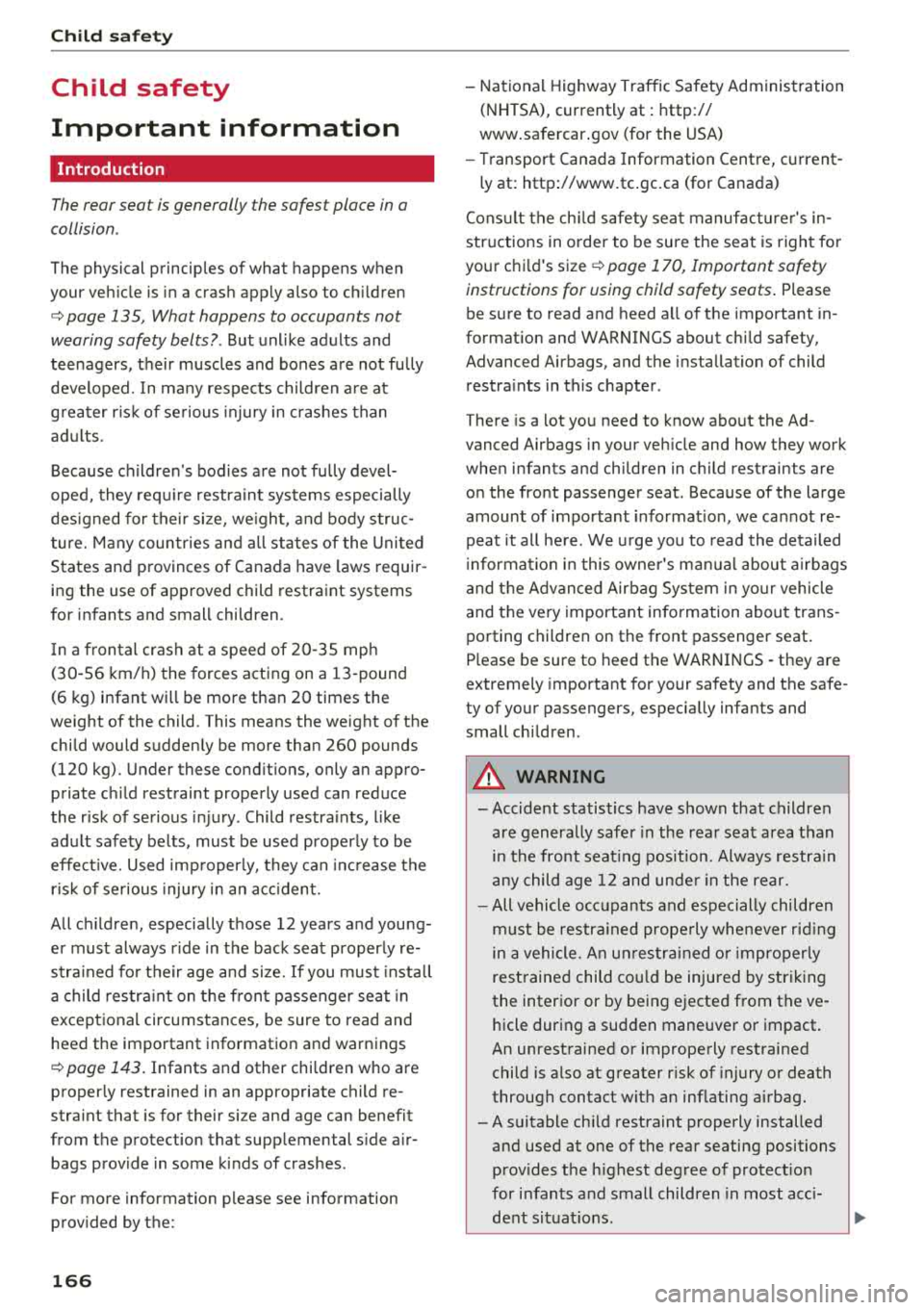

Child safety
Child safety
Important information
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your vehicle is in a crash apply also to children
¢ page 135, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not fully
developed. In many respects children are at
g reater r isk of serious injury in crashes than
adults .
Because children's bodies are not fully devel­
oped, they require restraint systems especially
designed for their size, weight, and body struc­
ture. Many countries and all states of the United
States and provinces of Canada have laws requir­
ing the use of approved child restraint systems
for infants and small children .
I n a frontal crash at a speed of 20-35 mph
(30 -56 km/h) the forces acting on a 13-pound
(6 kg) infant will be more than 20 times the
weight of the child. This means the weight of the
child would suddenly be more than 260 pounds
(120 kg) . Under these conditions, only an appro­
priate child restraint properly used can reduce
the risk of serious injury. Child restraints, like
adu lt safety belts, must be used properly to be
effect ive. Used improperly, they can increase the
risk of serious injury in an accident.
All ch ildren, especially those 12 years and young­
er must always ride in the back seat properly re­
strained for their age and size. If you must insta ll
a child restra int on the front passenger seat in
exceptional circumstances, be sure to read and
heed the important information and warnings
¢ page 143. Infants and other chi ldren who are
properly restrained in an appropriate child re­
straint that is for their si ze and age can benefit
from the protection that supplemental side air­
bags provide in some kinds of crashes .
For more information please see information
provided by the:
166
- National Highway Traffic Safety Administration
(NHTSA), currently at: http://
www.safercar .gov (for the USA)
- Tr ansport Canada Information Centre, current-
ly at: http ://www.tc .gc.ca (for Canada)
Consult the child safety seat manufacturer's in­
structions in o rder to be sure the seat is right fo r
your c hild's
size ¢ page 170, Important safety
instructions for using child safety seats .
Please
be sure to read and heed all of the important in­
format ion and WARNINGS about child safety,
Advanced Airbags, and the installation of child
restraints in this chapter .
T here is a lot you need to know about the Ad­
vanced Airbags in your veh icle and how they work
when infants and children in child res traints are
on the front passenger seat . Because of the large
amount of important informat ion, we cannot re­
peat it all he re . We urge you to read the detailed
info rmat ion in this owner's manual about airbags
and the Advanced Airbag System in your vehicle
and the very important information about trans­
porting children on the front passenger seat.
P lease be sure to heed the WARNINGS -they are
extremely important for your safety and the safe­
ty of your passengers, especially infants and
small children .
A WARNING
-Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position. Always restrain
any child age 12 and under in the rear.
- All vehicle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restrained child could be injured by striking
the interior or by being ejected from the ve ­
hicle during a sudden maneuver or impact.
An unrestrained or improperly restrained
child is a lso at greater r isk of injury or death
through contact w ith an inflating airbag.
- A suitable ch ild restraint properly installed
and used at one of the rear seating positions
provides the highest degree of protection
for infants and small children in most acci­
dent situat ions.

a co .... N

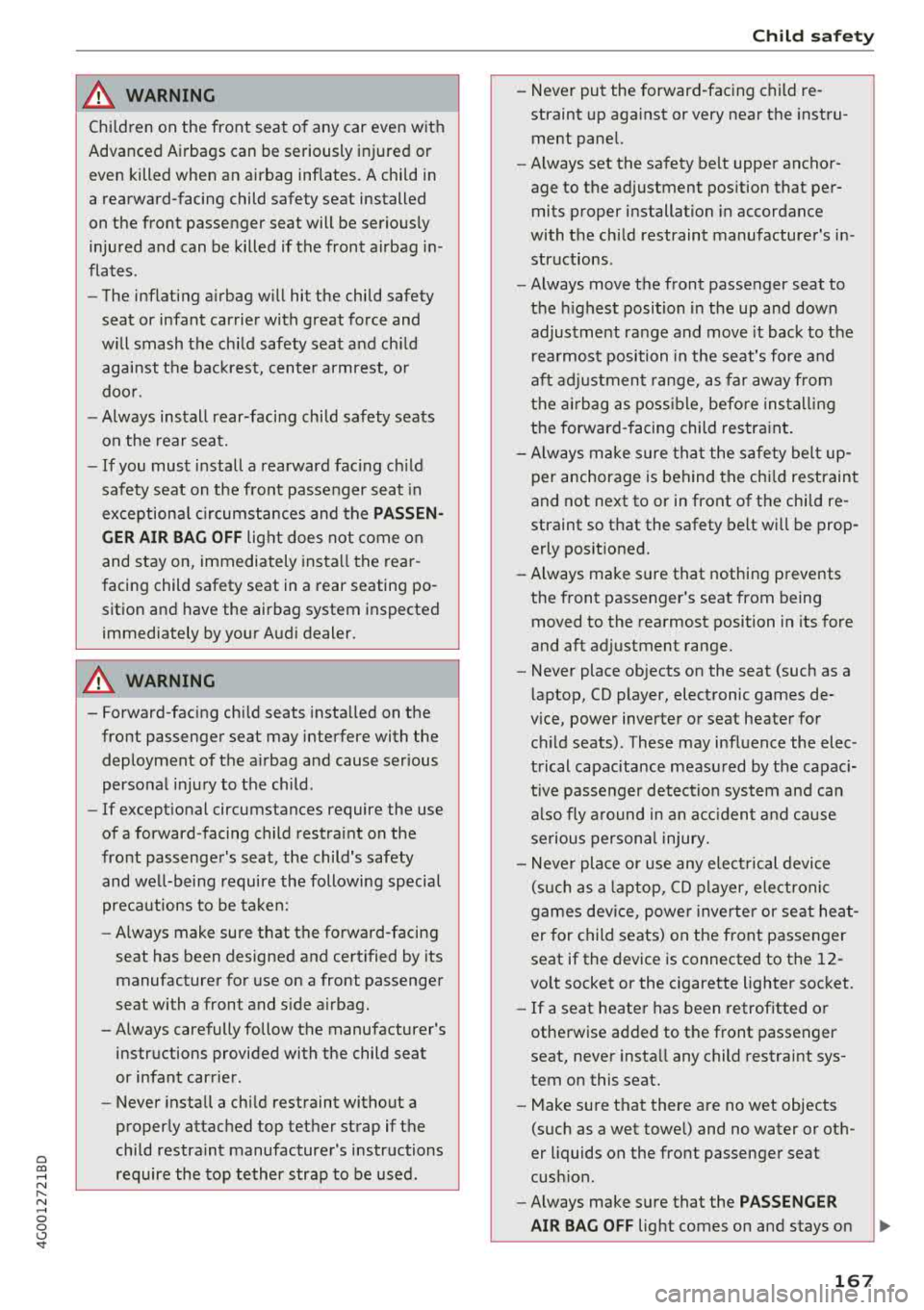

" N .... 0 0 \,;J ' A WARNING
Children on the front seat of any car even with
Advanced Airbags can be seriously injured or
even killed when an airbag inflates. A child in
a rearward-facing child safety seat installed
on the front passenger seat will be serious ly
injured and can be killed if the front airbag i n­
flates.
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and child
against the backrest, center armrest, or
door.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat in
exceptiona l circumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear ­
facing child safety seat in a rear seating po­ sition and have the airbag system inspected
immediately by your Audi dealer.
A WARNING
- Forward-fac ing ch ild seats installed on the
front passenger seat may interfere with the
deployment of the a irbag and cause serious
personal injury to the child.
- If except ional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require the following special
precautions to be taken:
- Always make sure that the forward-facing
seat has been designed and cert ified by its
manufacturer for use on a front passenger
seat with a front and s ide a irbag.
- Always care fully follow the manufacturer's
instructions provided with the child seat
or infant carrier.
- Never install a chi ld restraint without a
proper ly attached top tether strap if the
child restraint manufacturer's instructions
require the top tether strap to be used .
Child saf ety
- Never put the forward-fac ing child re­
straint up against or very near the instru­
ment panel.
- Always set the safety belt upper anchor­
age to the adjustment pos ition that per­
mits proper installation in accordance
with the chi ld restraint manufacturer's in­
structions .
- Always move the front passenger seat to
the h ighest position in the up and down
adjustment range and move it back to the
rearmost position in the seat's fore and
af t adju stmen t range, as far away from
the a irbag as poss ible, befo re installing
the forward -facing child restra int .
- Alw ays make sure tha t the safety belt up­
per anchorage is behind the ch ild restraint
and not next to or in front of the child re­
straint so that the safety belt will be prop­
erly pos it ioned.
- Always make sure that nothing p revents
the front passenger's seat from being moved to the rearmost position in its fore
and aft adjustment range.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de­
vice, power inverter or seat heater for
ch ild seats) . These may influence the elec­
trical capacitance measu red by the capac i­
tive passenger detection system and can also fly around in an acc iden t and c ause
serious personal injury.
- Never place or use any elect rical devi ce
(such as a laptop, CD player, ele ctronic
games device, powe r inverter or se at heat­
er for child seats) on the front passenger
seat if the device is connected to the 12-
vo lt socket or the cigarette lighter socket.
- If a seat heate r has been retrofitted or
othe rw ise ad ded to the front passenger
seat, neve r insta ll any child restraint sys­
tem on this seat.
- Make su re that there a re no wet objects
(such as a wet towe l) and no water or oth­
er liquids on the front passenger seat
cush ion .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays on
167

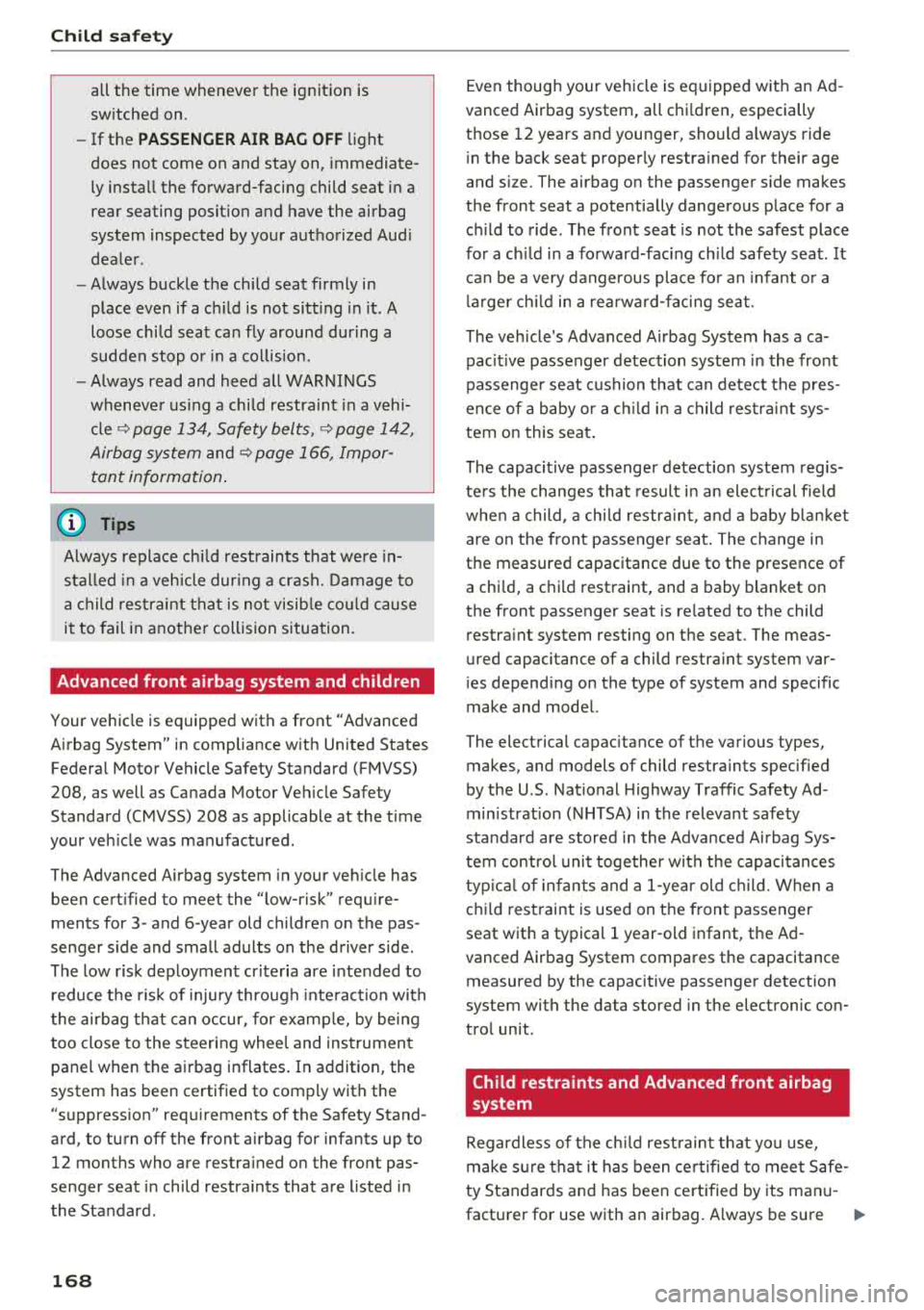

Child sa fety
all the time whenever the ignition is
sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immediate­ ly install the forward-facing child seat in a
rear seating posit ion and have the airbag
system inspected by your authorized Aud i
dealer .
- Always buckle the child seat firmly in
place even if a ch ild is not sitt ing in it . A
loose child seat can fly around during a
sudden stop o r in a collision.
- Always read and heed all WARNINGS
wheneve r us ing a child restraint in a vehi­
cle ~ page 134 , Safety belts, ~ page 142,
Airbag system
and ~page 166, Impor­
tant information .
(D Tips
Always replace chi ld restraints that were in­
stalled in a vehicle dur ing a crash. Damage to
a child res traint that is not visib le cou ld cause
it to fail in anothe r collision situation .
Advanced front airbag system and children
Your ve hicle is equipped with a front "Advanced
Airbag System" in compliance with United States Federal Motor Vehicle Safety Standard (FMVSS)
208, as well as Canada Motor Veh icle Safe ty
Standard (CMVSS) 208 as applicable at the time
your ve hicle was manufactured .
The Advanced Airbag system in you r veh icle has
been cert ified to meet the "low-risk" requ ire­
ments for 3- and 6 -year old children on the pas ­
senger s ide and small adults on the driver side .
The low risk deployment cr ite ria are intended to
reduce t he r isk of injury through inte ract ion with
the airbag t hat can occur, for examp le, by being
too close to the steering whee l and instrument
panel when the airbag inflates . In addition, the
system has been certified to comply with the
"suppress ion" req uirements of the Safety Stand­
ard, to turn off the front airbag for infants up to
12 months who are restra ined on the front pas­
senger seat in child restraints that are listed in
the Standard .
168 Even thoug
h your vehicle is equipped w ith an Ad ­
vanced Airbag system, all chi ldren, especially
t h ose 12 years and younger, shou ld a lways ride
i n the back seat properly restrained for their age
and s ize . The airbag on the passenger s ide makes
the front seat a potentia lly dangerous p lace for a
c hi ld to ride . T he front seat is not the safest place
fo r a ch ild in a fo rward-fac ing ch ild safety seat .
It
can be a very dangerous place fo r an infant o r a
l a rge r ch ild in a re ar war d-facing seat.
The veh icle's Advanced A irbag System has a ca­
pac it ive passenger detection system in the front
passenge r seat cushion that can detect the p res ­
ence of a baby o r a c hild i n a child res train t sys ­
tem on this seat .
The capacitive passenger detection system reg is­
te rs the changes that result i n an elect rical field
whe n a child, a chi ld restra int, and a baby b la nk et
are on the front passenger sea t. The change in
the measured capacitance due to the presence of
a chi ld, a c hild restraint, and a baby blanket on
the front passenger seat is re lated to the child
restra int system resting on the seat . The meas­
ured capacitance of a child restra int system var­
i es depending on the type of system and specific
make and model.
The elect rical capac itance of the various types,
makes, and models of child restraints specif ied
by the U .S . National Highway Traffic Safety Ad­
min istrat ion (NHTSA) in the releva nt safety
standard are stored in the Advanced Airbag Sys­
tem contro l unit together with the capacitances
typ ic al of infants and a 1 -year old ch ild. When a
c hi ld restraint is used on the front passenger
seat wit h a typical 1 year-old infant, t he Ad ­
vanced Airbag System compares the capacitance
measured by the capacitive passenger detection
system with the data stored in the electronic con­
tro l unit .
Child restraints and Advanced front airbag
system
Regardless of the ch ild rest raint that yo u use,
make s ure tha t it has been ce rtified to mee t Safe ­
ty Standards and has been cert ified by its man u-
facturer for use with an airbag . A lways be sure
..,.
