Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection .
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
- Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
Airbag system 159
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 163, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through .,.. •
•

160 Airbag system
larger, unclosed openings in the door
panel.
- Never drive w ith inter ior door trim pan­
e ls removed.
- Never drive when parts have been re­ moved from the ins ide doo r panel and
the openings they leave have not been p roperly closed.
- Never d rive when loudspeakers in the
doors have bee n removed unless the
spea ker holes have been properly
closed.
-Always ma ke certa in that openings are
covered or fi lled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by an authorized Audi dealer or qualified
workshop .
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fi g. 14 9 Side curtain airbags, dri ver 's side: s ide curta in
a ir bag location
The s ide curtain airbags are located on both
sides of the interior above the front and rear
side windows ~
fig. 149. They are ident ified
by the word "AIRBAG" on the windshield
frame and the center roof p illar.
The s ide curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso o n the side of the vehicle tha t is struc k in
a side collision . The side curtain airbag in­
flates in side impacts and only when the vehi­
cle acceleration registered by the control unit
is high enough . If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
t h ough the car may be bad ly damaged as a re­
su lt of the co llision .
It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impact, s ince the cir­
cumstances will vary cons iderably between
one collision and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc.~
page 161 , How side cur­
tain airbags work .
Aside from their normal safety function, safe­
ty be lts work to help keep the driver or front
passenger in position in the event of a colli­
sion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substit ute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the a irbag system can
only help to protect you if you are wear ing
you r saf ety belt and wearing it properly . This
is anothe r reason why yo u should always wear
yo ur safe ty belts, no t just because the law re ­
quires yo u to do so
q page 128, General
notes .
It is important to remember that w hile the
s ide cur tain airbag system is designed to help
reduce the likelihood of ser ious injur ies, other
injuries, for example, swelling, bruising, fric­
tion burns and minor abrasions can also be as­
sociated with these airbags upon dep loyment.
Remember too, these airbags will deploy only
once and only in certain kinds of accidents -
your safety belts are always there to offer pro ­
tection.
The side curtain airbag sy stem basic ally
cons ists of:
- The electronic control module and external
side impact sensors ..,..

-The side curtain airbags above the front and
rear side windows
- The airbag ind icator light in the instrument
pane l
The a irbag system is monitored elect ro nic ally
to make certain it is f unct io ni ng proper ly a t all
times. Eac h time you switch on the ignition,
the airbag system indicator light wi ll come on
for a few seconds (se lf diagnost ics) .
The side curtain airbag is not activated:
-if the ign ition is swit ched off,
- i n s ide coll isions when the accelerat ion
measured by the sensor is too low,
- in rear-end collisions .
_& WARNING
-Sa fety belts and t he a irbag system w ill
only p rov ide p rotection whe n occu pan ts
are in the proper sea ting posit ion
¢ page SO, General recommendations.
- If the airbag indicator light comes on
when the veh icle is being used, have the
system inspected immediately by your
authorized Audi dealer. T he side curtain
airbag may not work properly even when
the vehicle acceleration in a side coll is ion
is h igh enough to act ivate the airbag.
How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained .
Fig . 150 Illust rat ion of pr inc ip le: In flated side cur ta in
airbags on t he left s ide
.
A irba g sy stem 161
The side c urtain airbags infla te between the
occupant and the windows on the side of the
vehicle that is struck in a side coll is ion
¢ fig. 150.
When the system is trigge red, t he side curta in
airbag is filled with propellant gas and breaks
th ro ugh a seam above the front and rear side
windows identified by the AIRBAG labe l. In or­
der to he lp provide this additional protection,
the side curta in a irbag must inflate withi n the
blink of an eye at ve ry hig h speed and with
great fo rce . T he side curta in a irbag could in­
j u re yo u if your sea ting posit io n is not proper
o r u pright or if items are loca ted in t he a rea
where the supplemental side curta in a irbag
in flates . This applies especially to chi ldren
~ page 163 .
Although they are no t a soft p illow, side cur­
ta in a irbags can "cushion" the impact and in
this way they can help to reduce the risk of in­
j u ry to the head and the uppe r part of the
body.
A fine dust may deve lop when the airbag de­
ploys . This is qui te no rma l and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags do t heir job to provide supplemental
protection .
_& WARNING
=
Improperly wea ring safety belts and im­
p roper seating posit ions increase the risk
of ser ious perso nal inj ury and death when­
ever a vehicle is being used.
- Never let occupa nts pla ce any pa rts of
thei r bo dies in t he area fro m whi ch the
side curt ain air bag inf late.
-

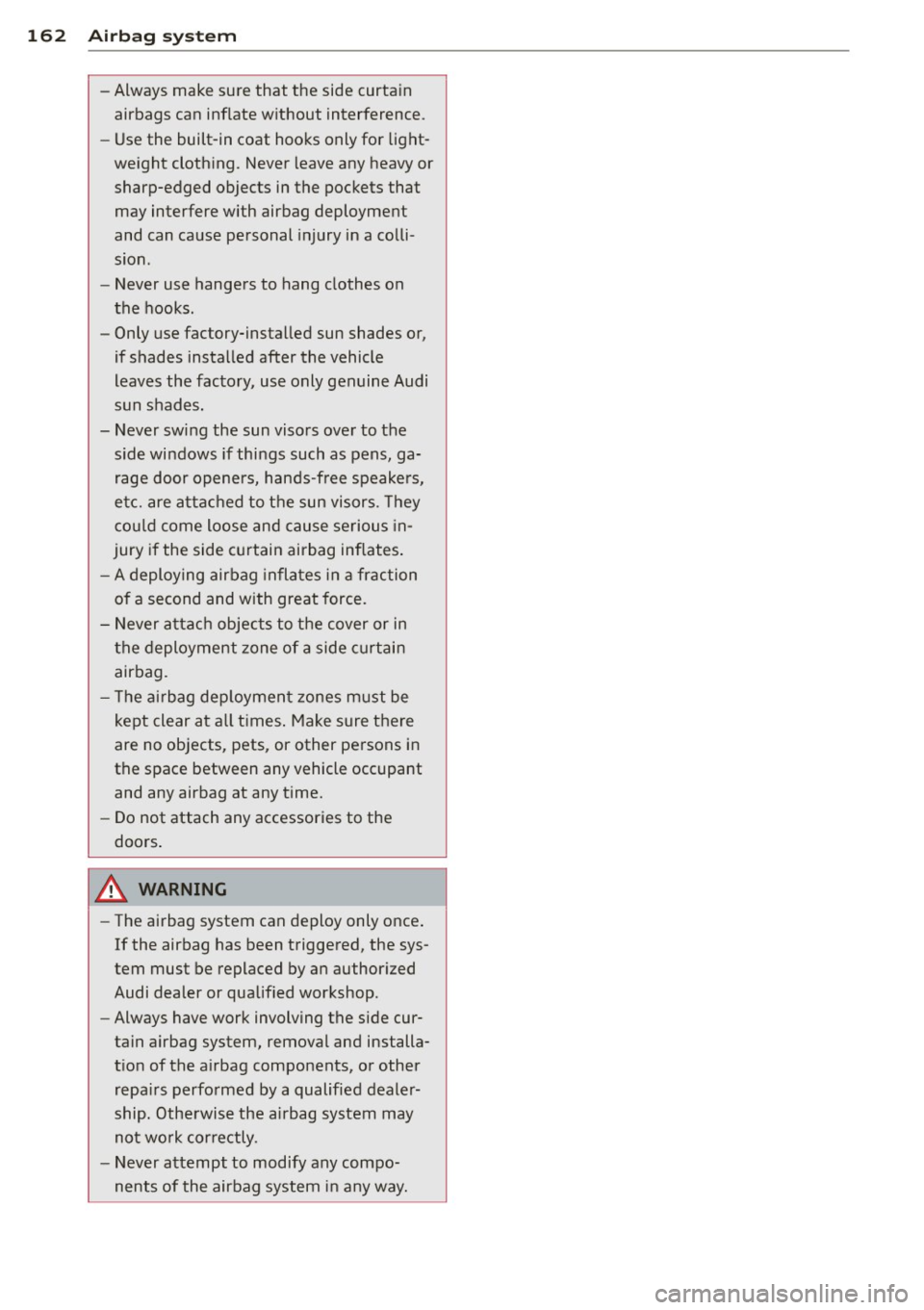

162 Airbag sys tem
-Always make sure that the side curtain
airbags can inflate w ithout interference .
- Use the built-in coat hooks only for light­
weight clothing . Never leave any heavy or
sharp-edged objects in the pockets that
may interfere with airbag deployment
and can cause personal injury in a colli­
sion .
- Never use hangers to hang clothes on
the hooks .
- Only use factory-installed sun shades or,
if shades installed after the vehicle
leaves the factory, use only genuine Audi
sun shades.
- Never swing the sun viso rs ove r to the
side windows if things such as pens, ga­
rage door openers, hands-free speake rs,
etc. are a ttached to the sun visors. They
cou ld come loose and cause se rious in­
jury if the side c urtain airbag inflates .
- A deploying air bag infla tes in a fr action
of a second and with great force.
- Never a tta ch objects to the cover or in
the deploymen t zone of a side curtain
airbag .
- T he ai rbag dep loymen t zones m ust be
kept clear a t all t imes . Make sure t here
are no objects, pets, or other persons in
the space between any vehicle occupant and any airbag at any time.
- Do not attach any accessories to the
doors .
A WARNING
-The airbag system can deploy only once .
If the airbag has been triggered, the sys­
tem must be replaced by an author ized
Audi dealer or qualified workshop.
- Always have work involving the side cur­
tain airbag system, removal and installa­
tion of the a irbag components, o r other
repa irs perfo rme d by a qualified dealer­
ship. Othe rwise the airbag system may
not wo rk cor re ctly .
- Never attempt to modify any compo­
nents of the airbag system i n any way.

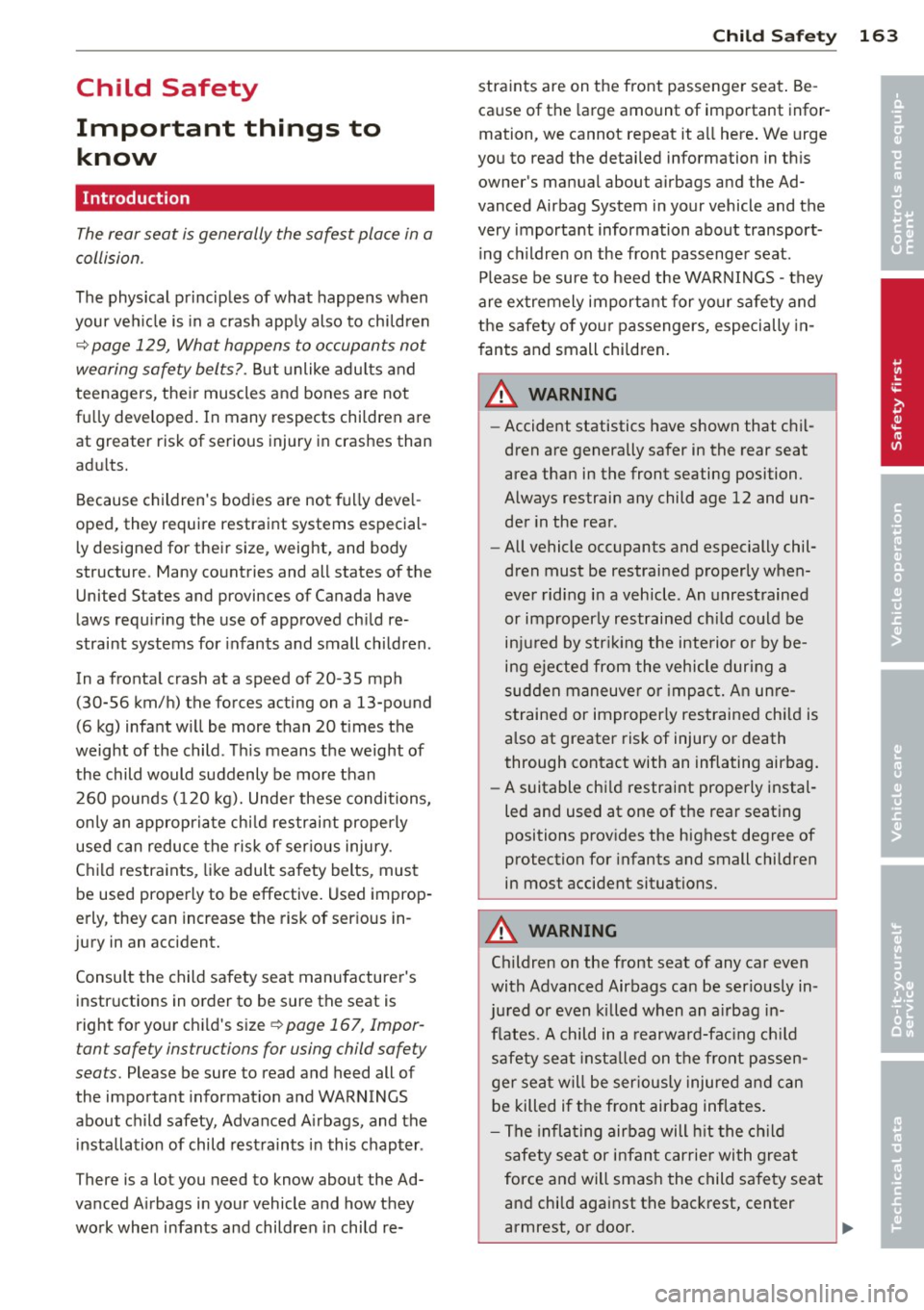

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 129, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adu lts.
Because children's bod ies are not fully deve l­
oped, they require restraint systems especial­ ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
on ly an appropriate chi ld restraint properly
used can reduce the risk of ser ious injury .
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in ­
jury in an accident.
Consult the child safety seat manufacturer's
instructions in order to be sure the seat is
right for your chi ld's size ~
page 167, Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about ch ild safety, Advanced A irbags, and the
installation of child restraints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work when infants and children in child re-
Child Sa fet y 163
straints are on the front passenger seat . Be­
cause of the large amount of important infor­
mation, we cannot repeat it a ll here . We urge
you to read the detailed information in this owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat .
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small chi ldren .
.A, WARNING
-Accident statistics have shown that chil ­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­ der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle . An unrestrained
or improperly restrained chi ld could be
injured by str ikin g the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An un re ­
strained or improper ly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an a irbag in­
flates. A child in a rearward-fac ing ch ild
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates .
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, or door.
•
•

164 Child Safety
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_&, WARNING
- Forward-facing child seats installed on
the front passenger seat may interfere
with the deployment of the airbag and
cause serious personal injury to the
child.
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger 's seat, the child's
safety and well-being require the follow­ ing special precautions to be taken:
- Always make sure that the forward-fac­
ing seat has been designed and certi­
fied by its manufacturer for use on a
front passenger seat with a front and
side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child seat or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if
the child restraint manufacturer's in­
structions require the top tether strap
to be used.
- Never put the forward-facing child re­
straint up against or very near the in­
strument panel.
- Always set the safety belt upper an­
chorage to the adjustment position
that permits proper installation in ac­
cordance with the child restraint manu­
facturer's instructions.
-Always move the passenger seat into
its rearmost position in the seat's fore
and aft adjustment range, as far away
.
from the airbag as possible before in­
stalling the child restraint. The back­
rest must be adjusted to an upright po­
sition .
- Always make sure that nothing pre­
vents the front passenger's seat from
being moved to the rearmost position
in its fore and aft adjustment range.
- Never place objects on the seat (such
as a laptop, CD player, electronic
games device or power inverter). These
may influence the electrical capaci­
tance measured by the capacitive pas­
senger detection system and can also
fly around in an accident and cause se­
rious personal injury.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device or power inverter) on the
front passenger seat if the device is
connected to the 12-volt socket or the
cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passen­
ger seat, never install any child re­
straint system on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or
other liquids on the front passenger
seat cushion .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the forward-facing child
seat in a rear seating position and have
the airbag system inspected by your
authorized Audi dealer.
- Always buckle the child seat firmly in
place even if a child is not sitting in it.
A loose child seat can fly around during
a sudden stop or in a collision.
- Always read and heed all WARNINGS
whenever using a child restraint in ave­
hicle
¢ page 128, Safety belts,
¢ page 137, Airbag system
and ~

~ page 163, Important things to
know.

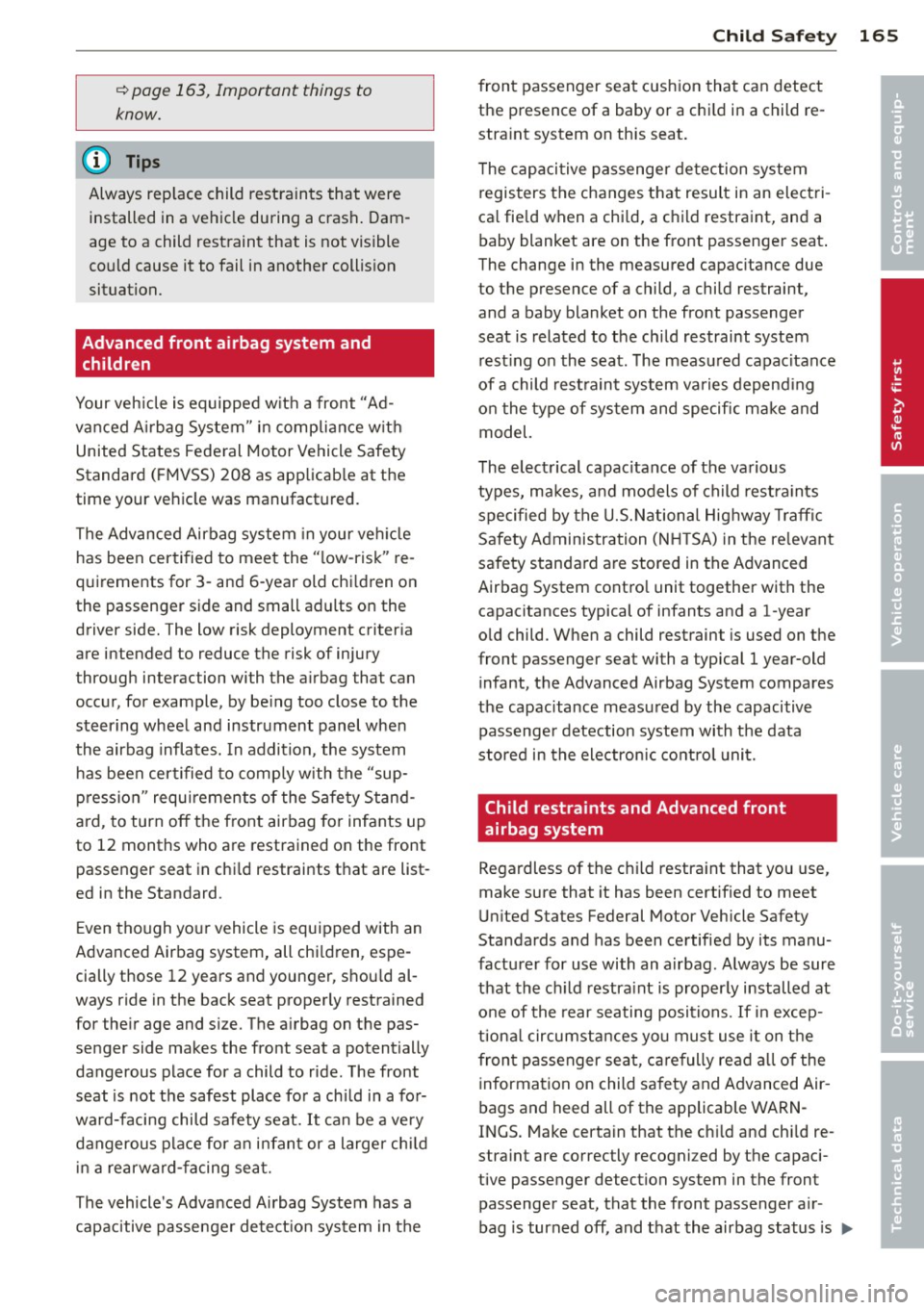

(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the
driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially
dangerous place for a child to ride. The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
The vehicle 's Advanced Airbag System has a
capacitive passenger detection system in the
Child Safety 165
front passenger seat cushion that can detect
the presence of a baby or a child in a child re­
straint system on this seat.
The capacitive passenger detection system
registers the changes that result in an electri­
cal field when a child, a child restraint, and a
baby blanket are on the front passenger seat .
The change in the measured capacitance due
to the presence of a child, a child restraint,
and a baby blanket on the front passenger
seat is related to the child restraint system resting on the seat . The measured capacitance
of a child restraint system varies depending
on the type of system and specific make and
model.
The electrical capacitance of the various
types, makes, and models of child restraints
specified by the U.S.National Highway Traffic
Safety Administration (NH TSA) in the relevant
safety standard are stored in the Advanced
Airbag System control unit together with the
capacitances typical of infants and a 1-year
old child. When a child restraint is used on the
front passenger seat with a typical
1 year-old
infant, the Advanced Airbag System compares
the capacitance measured by the capacitive passenger detection system with the data
stored in the electronic control unit.
Child restraints and Advanced front
airbag system
Regardless of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with an airbag. Always be sure
that the child restraint is properly installed at
one of the rear seating positions. If in excep­
tional circumstances you must use it on the
front passenger seat, ca refully read all of the
information on child safety and Advanced Air­
bags and heed all of the applicable WARN­
INGS. Make certain that the chi ld and child re­
straint are correctly recognized by the capaci­
tive passenger detection system in the front passenger seat, that the front passenger air­
bag is turned off, and that the airbag status is ..,.
•
•

166 Child Saf ety
always correctly signaled by the PA SSENGER
AIR BAG OFF
light .
M any types and models of ch ild restra ints
have been ava ilable over the years, new mod­
e ls are introduced regularly incorporating new
and improved designs and older models are
taken out of production. Child restraints are not standardized. Ch ild restra ints of the same
type typically have different weights and s izes
and d ifferent "footprints", the size and shape
of the bottom of the child restraint that sits
on the seat, when they are installed on a veh i­
cle sea t. These differences ma ke it vi rtually
i mposs ible to ce rtify comp lia nce w it h the re ­
q ui rements for advanced a irbags w ith each
and every child restraint that has ever been
sold in the past or will be sold over the course
of the useful life of your vehicle.
F or this reason, the United States Nat ional
Highway Traffic Safety Administration has
published a list of specific type, makes and
models of child restraints that must be used
to certify compliance of the Advanced Airbag
System in your vehicle with the suppress ion
requirements of Federal Motor Vehicle Safety
Standa rd 208 . These child rest raints are :
Subpart A -Car bed child rest ra int s
Model
Ange l Guard Ange l
Ride AA2403FOF
Manufactured on or
after
September 25, 2007
Subpart B -Rear-facing child restraints
Model Manufactured on or
after
Century SmartFit December 1, 1999
4543
Cosco Arriva September 25, 2007
22-0 13PAW and base
l 22-999WHO
Evenflo Discovery Ad-December 1, 1999
just Right 212
Evenflo First Choice December 1, 1999
1 20 4
Graco Infant 8457 December 1, 1999
-Model
Graco Snug ride
Manufactured on or
after
September 25, 2007
P eg Perego Primo Vi- September 25, 2007
aggio SIP IMU NOOUS
Subpart C -Forward -facing and
convertible child restraints
Model Manufactured on or
after
Br itax Roundabout September 25, 2007
E9L02xx
December 1, 1999
Cosco Summit Deluxe September 2S, 2007 H igh Back Booster
22-262
Cosco High Back September 25, 2007 Booster 22-209
E venf lo Tribute V September 25, 200 7
379xxxx
Evenflo Medallion December
1, 1999
254
E venflo Generations Se ptember 25, 20 07
3S2xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 2S, 2007
Seat Step 2
Graco Platinum Cargo Septembe r 25, 2007
.&_ WARNING ~
To reduce the risk of serious inju ry, ma ke
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
chi ld restraint is insta lled on the front pas ­
senger seat and the ignit ion is switched
on.
- Ta ke the chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN ­
GER AIR BAG OFF
li ght does not s tay on .
- Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly .

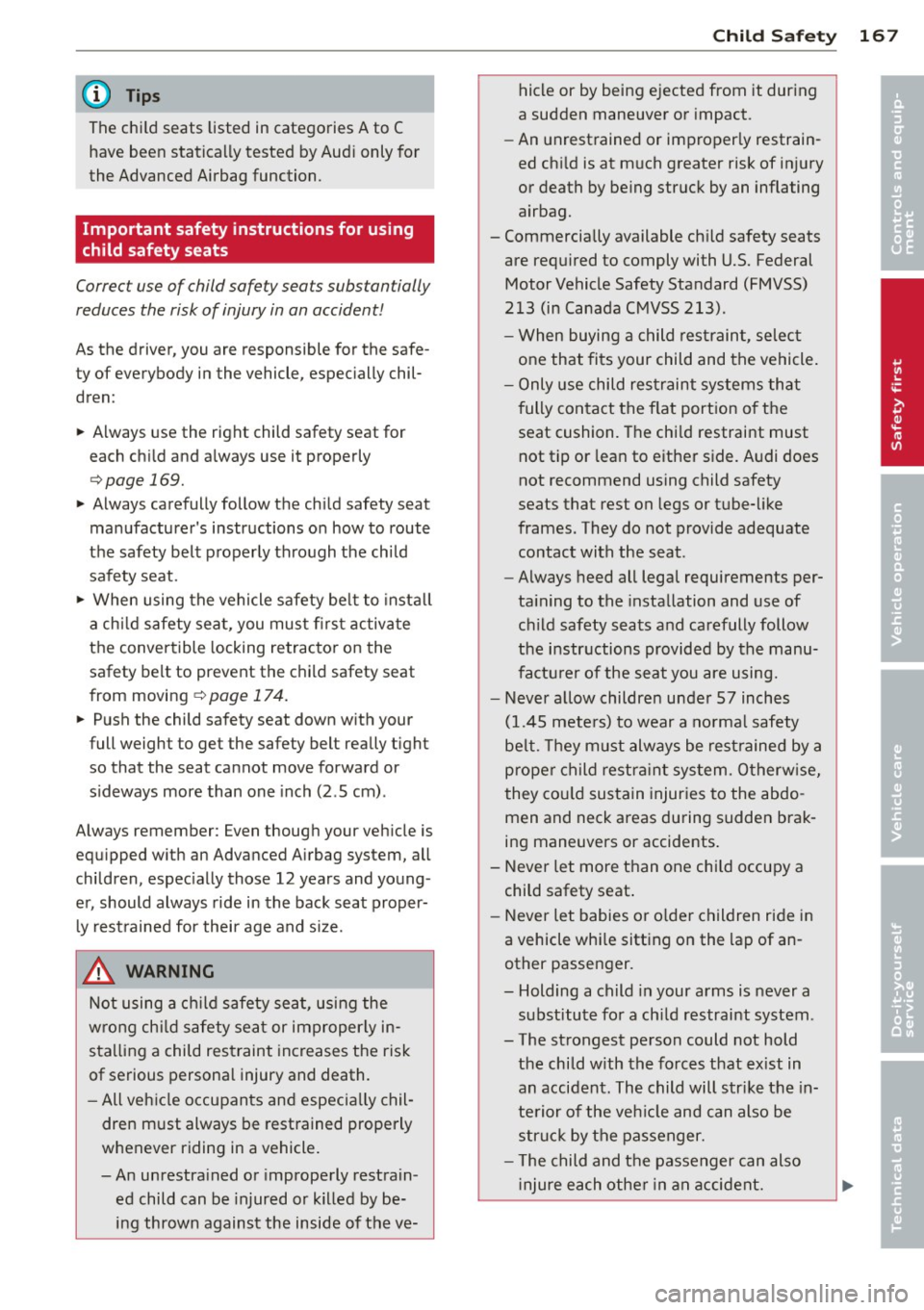

@ Tips
The child seats listed in categories A to C have been statically tested by Audi only for
the Advanced Airbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the driver, you are responsible for the safe­
ty of everybody in the vehicle, especially chil­
dren:
~ Always use the right child safety seat for
each child and always use it properly
9page 169.
~ Always carefully follow the child safety seat
manufacturer's instructions on how to route
the safety belt properly through the child
safety seat.
~ When using the vehicle safety belt to install
a child safety seat, you must first activate
the convertible locking retractor on the
safety belt to prevent the child safety seat
from moving
r::!) page 174.
~ Push the child safety seat down with your
full weight to get the safety belt really tight
so that the seat cannot move forward or
sideways more than one inch (2.5 cm).
Always remember: Even though your vehicle is equipped with an Advanced Airbag system, all
children, especially those 12 years and young­
er, should always ride in the back seat proper­
ly restrained for their age and size.
_& WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death.
- All vehicle occupants and especially chil­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve-
Child Safety 167
hide or by being ejected from it during
a sudden maneuver or impact.
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must
not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube-like
frames. They do not provide adequate
contact with the seat.
- Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided
by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a child safety seat.
- Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger.
- Holding a child in your arms is never a
substitute for a child restraint system .
- The strongest person could not hold the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident. •
•

168 Child Saf ety
- Never install rear-facing chi ld safety
seats or infant carriers on the front pas­
senger seat. A chi ld will be ser iously in­
jured and can be k illed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating a irbag will hit the child
safety seat or infant carrier w ith great
force and w ill smash the ch ild safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats or infant car riers on the rear seat.
- Forward-fac ing ch ild safety seats instal­
led on the front passenger's seat can in­
terfere wi th the ai rbag when it inflates
and cause serious injury to the child. Al­
ways install forwa rd-facing child safety
seats on the rear seat .
- If exceptiona l circumstances require the
use of a forward-facing chi ld restraint on
the front passenger 's seat, the chi ld's
safety and well-being requ ire that the
following special precaut ions be taken:
- Make sure the fo rward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefu lly follow the manufac­
turer 's instructions p rov ided with the
child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position o f the pas ­
senger seat 's fore and aft adjustment
range, and as far away from the airbag
as possible before installing the child restra int.
- Always make sure that nothing pre­ vents the front passenger 's seat from
be ing moved to the rearmost position
in its fore and aft adjustment range.
- Always make sure that the backrest is
in the upr ight position .
- Never p lace or use any electrical dev ice
(such as a laptop, CD player, electronic
games device or power inverter) on the
front passenger seat if the device is connected to the
12-volt socket or the
c igarette lighter socket.
- If a seat heate r has been retrofitted or
otherwise added to the front passen­
ger seat, never install any child re­
stra int system on this seat.
- Make sure that there are no wet objects (such as a wet towel) and no water or
other liquids on the front passenger
seat cushion .
- Never place objects on the seat (such
as a laptop, CD player, e lectronic
games device or powe r inverte r) . These
may influence the electr ica l capaci­
tance measured by the capacitive pas­
senger detection system and can also
fly a round in an accident and cause se­
rious personal injury.
- Always buckle the child safe ty seat firmly
in place even if a ch ild is not sitt ing in it.
A loose child safety seat can fly around
during a s udden stop or in a collision.
- Always read and heed all WARNINGS whenever using a child restrained in ave­
h icle is being used
¢ page 128, Safety
belts,
¢ page 13 7, Airbag system and
¢ page 163, Child Safety .
A WARNING ,-
To reduce the risk of serious injury , make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
chi ld restraint is installed on the front pas­
senger sea t and the ignit ion is switched
on.
- Ta ke t he chi ld restraint off the front pas­
senger seat and install it prope rly at one
of the rear seat positions i f the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your author ized Audi dealer immed iate ­
ly.
A WARNING
A child in a chi ld restraint installed with
the LATCH lower anchorages or with the
