AUDI A7 2012 Owners Manual

-Failure to pay attention to the warning
light that come on, could lead to person­
al injury.
Why safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for
people riding in vehicles .
Fig. 131 Unbelted occupants in a ve hicle heading for a
wall
Fig. 132 The vehicle cras hes into the wall
The physical principles are simple. Both the
vehicle and the passengers possess energy
which varies w ith veh icle speed and body
weight . Engineers call this energy "kinetic en­
ergy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Vehicle speed is the most significant factor . If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 t imes!
Because the passengers of this vehicle are not
using safety belts
c:::;, fig. 131, they will keep
moving at the same speed the vehicle was
mov ing just before the crash, until something
stops them - here, the wall ¢
fig. 132.
Safety belts 129
The same principles apply to people sitting in
a vehicle that is involved in a frontal collision.
Even at c ity speeds of 20 to 30 mph (30 to 50
km/h), the forces acting on the body can
reach one ton (2,000 lbs, or 1,000 kg) or
more . At greater speeds, these forces are even
higher.
People who do not use safety belts are also
not attached to their vehicle . In a frontal colli­
sion they will also keep moving forward at the
speed their vehicle was travelling just before
the crash . Of course, the laws of physics don't
just app ly to frontal collisions, they determine
what happens in all kinds of accidents and col­
lisions.
What happens to occupants not wearing safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
Fig. 133 A driver not wea ring a safety be lt is vio lently
th rown forward
Fig. 134 A rear passenger not wearing a safety belt
w ill fly forward and strike the driver
Unbelted occupants are not able to resist the
tremendous forces of impact by holding tight
or bracing themselves. Without the benefit of
safety restraint systems, the unrestrained .,..

130 Safety belts
occupant will slam violently into the steering
wheel, instrument panel, windshield, or what­
ever else is in the way
c::> fig. 133. This imp act
with the vehicle interior has all the energy
t hey had just before the crash.
Never rely on a irbags alone for protection.
Even when they deploy, airbags provide only
additional protection. Airbags are not sup­
posed to deploy in all kinds of accidents. Al­
though your Audi is equipped with airbags, all
vehicle occupants, including the driver , must
wear safety belts correctly in order to mini­
mize the risk of severe injury or death in a
crash.
Remember too, that airbags will deploy only
once and that your safety belts are always
there to offer protection in those accidents in
which airbags are not supposed to deploy or
when they have already deployed . Unbelted
occupants can also be thrown out of the vehi­
cle where even more severe or fatal injuries
can occur.
It is also important for the rear passengers to
wear safety belts correctly. Unbelted passen­
gers in the rear seats endanger not only them­
selves but also the driver and othe r passen­
gers ~
fig. 134. In a frontal collision they will
be thrown forward violently, where they can
hit and injure the driver and/or front seat pas­
senger .
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision . It's simply
not true !
Fig. 135 Driver is co rr ect ly re strain ed in a sudd en brak­
ing maneuve r
Safety belts used properly can make a big dif­
ference. Safety belts help to keep passengers
in their seats, gradually reduce energy levels
applied to the body in an accident, and help
prevent the uncontrolled movement tha t can
cause serious injuries . In addition, safety belts
reduce the danger of being thrown out of the
vehicle .
Safety belts attach passengers to the car and
give them the benefit of being slowed down
more gently or "softly" through the "give" in
the safety belts, crush zones and other safety
features engineered into today's vehicles. By
"absorbing " the kinetic energy over a longer
period of ti me, the safety belts make the
forces on the body more "tolerable" and less
likely to cause injury.
Although these examples are based on a fron­
tal collision, safety belts can also substantial­
ly reduce the r isk of injury in other kinds of
crashes. So, whether you're on a long trip or
just going to the corner store, always buckle up and make sure others do, too. Accident sta­
tistics show that vehicle occupants properly
wearing safety belts have a lower risk of being
injured and a much better chance of surviving
an accident. Properly using safety belts also
greatly increases the ability of the supplemen­
tal airbags to do their job in a collision . For
this reason, wearing a safety belt is legally re­
quired in most countries including much of
the United States and Canada.
Although your Audi is equipped with airbags,
you still have to wear the safety belts provid­
ed. Front airbags , for example, are activated
only in some frontal collisions. The front air­
bags are not activated in all frontal collisions,
in side and rear collisions, in roll overs or in
cases where there is no t enough decelera tion
through impact to the front of the vehicle .
The same goes for the other airbag systems in
your Audi . So, always wear your safety belt
and make sure everybody in your vehicle is
properly restrained!

Important safety instructions about
safety belts
Safety belts must always be correctly posi­
tioned across the strongest bones of your
body.
~ Always wear safety belts as illustrated and
described in this chapter.
~ Make sure that your safety belts are always
ready for use and are not damaged.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly.
- Always fasten your safety be lts correctly
before driving off and make sure all pas­
sengers are correctly restrained.
- For maximum protection, safety belts must always be positioned properly on
the body .
- Never strap more than one person, in­
cluding small children, into any belt.
- Never place a safety belt over a child sit­ ting on your lap.
- Always keep feet in the footwell in front
of the seat while the vehicle is being d riv­
en .
- Never let any person ride with their feet
on the instrument panel or sticking out
the window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving. Doing so will increase
your risk of be ing injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable
objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these may cause injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of posi ­
tion . Safety belts
131
- Several layers of heavy clothing may in­
terfere with correct positioning of belts and reduce the overall effectiveness of
the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely .
- Never use comfort clips or devices that
create slack in the shoulder belt . Howev­
er, special clips may be requ ired for the
proper use of some child restraint sys­
tems .
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an
accident. Inspect belts regularly.
If web­
bing , bindings, buckles, or retractors are
damaged, have belts replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer. Replace­
ment may be necessary even if damage
cannot be clearly seen . Anchorages that
were loaded must also be inspected.
- Never remove, modify, disassemble, or
try to repair the safety belts yourself.
- Always keep the belts clean. Dirty belts
may not work properly and can impair
the function of the inertia reel
c::> page 209, Safety belts .
Safety belts
Fastening safety belts
Seat first -everybody buckle up!
Fig. 136 Bel t bu ckle and to ngue on the drive r's seat

13 2 Safet y belt s
To provide maximum protection, sa fety belts
must always be positioned correctly on the
wearer 's body .
.,. Adjust the front seat and head restra int
properly ¢
page 50, General recommenda­
t ions .
.,. Make sure the seatback of the rear seat
bench is in an upright pos ition and securely
latched in place before using the belt¢,&.
.,. Hold the be lt by the tongue and pull it
evenly across the chest and pelvis ¢ ,& .
.,. Inse rt the tongue into the correct buckle of
your seat until you hea r it latc h securely
¢ fig. 136.
.,. Pu ll on the be lt to make sure that it is se-
curely latched in the buckle.
Automatic safety belt retractors
Every safety belt is equipped w ith an automat­
i c belt retractor on the shoulder be lt. This fea­
ture locks the be lt whe n the belt is pulled out
fast, during hard braking and i n an accident.
The belt may also lock when you drive up or
down a steep hill or through a sharp curve. During normal driv ing the belt lets you move
freely.

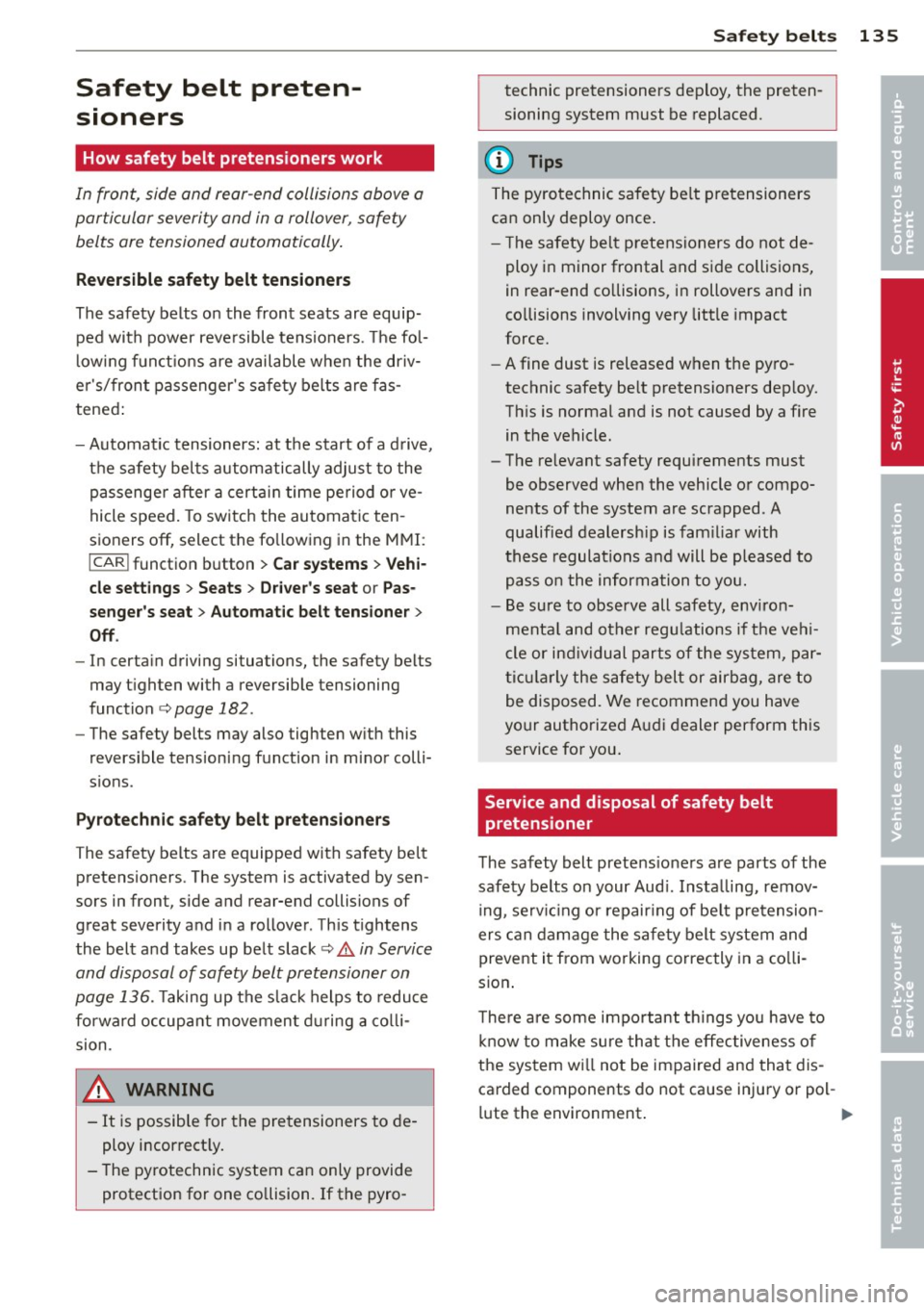

Safety belt preten sione rs
The safety belts are equipped with a be lt pre­
tensioner that helps to tighten the safety belt
and remove s lack when the pretensioner is ac ­
tivated
¢ page 135. The function of the pre­
tensioner is moni tored by a warning light
¢ page 17.
Sw itchabl e locking fe atur e
Every safety belt except the one on the driver
seat is eq uipped w ith a switchable locking fea ­
ture that
m ust be used when the safety belt is
used to attach a child seat. Be sure to read the important information about this feature
¢ page 174 .
.,& WARNING
Improperly positioned safety belts can
cause serious injury in an accident
¢ page 132, Safety belt position.
- Safety belts offer optimum protection
only when the seatback is upright and
belts are properly posit ioned on the
body .
- Always make sure that the rear seat
backrest to which the center rear safety
belt* is attached is securely latched
wheneve r the rea r center safety belt is
being used.
If the backrest is not secu re­
ly latched, the passenger will move for­
ward with the back rest dur ing sudden
brak ing, in a sudden maneuver and espe­
cially in a crash.
- Never at tach the safety bel t to the buck­
le for another seat. Attaching the belt to
the wrong buckle will reduce safety be lt
effectiveness and can cause serious per­
sonal injury .
- A passenger who is not proper ly restrain­
ed can be seriously injured by the safety belt itself when it moves from the stron­
ger parts of the body into cr itical areas
like the abdomen .
- Always lock the convertible locking re­
tractor when you are securing a child seat in the veh icle ¢
page 176.
(D Tips
For information on safety belt pretension­
ers, refer to¢
page 135.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts.
F ig. 137 Head restra int an d safety be lt pos it io n as
see n from the s id e

Use the height adjustment to change the posi­
tion of the shoulder belt of the front saf ety
belts.
.&_ WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent .
- The shoulder belt portion of the safety
belt must be positioned over the middle
of the occupant's shoulder and never
across the neck or throat.
- The safety belt must lie flat and snug on
the occupant's upper body
c:> fig. 137 .
Pull on the belt to tighten if necessary .
-
-The lap belt portion of the safety belt
must be positioned as low as possible
across pelvis and never over the abdo­
men. Make sure the belt lies flat and
snug
c:> fig . 13 7. Pull on the belt to tight­
en if necessary.
- A loose-fitt ing safety belt can cause seri­
ous injuries by shifting its position on
your body from the strong bones to more
vulnerable, soft tissue and cause serious
injury.
- Always read and heed all WARNINGS and
other important information
c:> page 131.
Pregnant women must also be correctly
restrained
The best way to protect the fetu s is to make
sure that expec tan t mothers always wear
safety belts correctly -throughout the preg­
nancy .

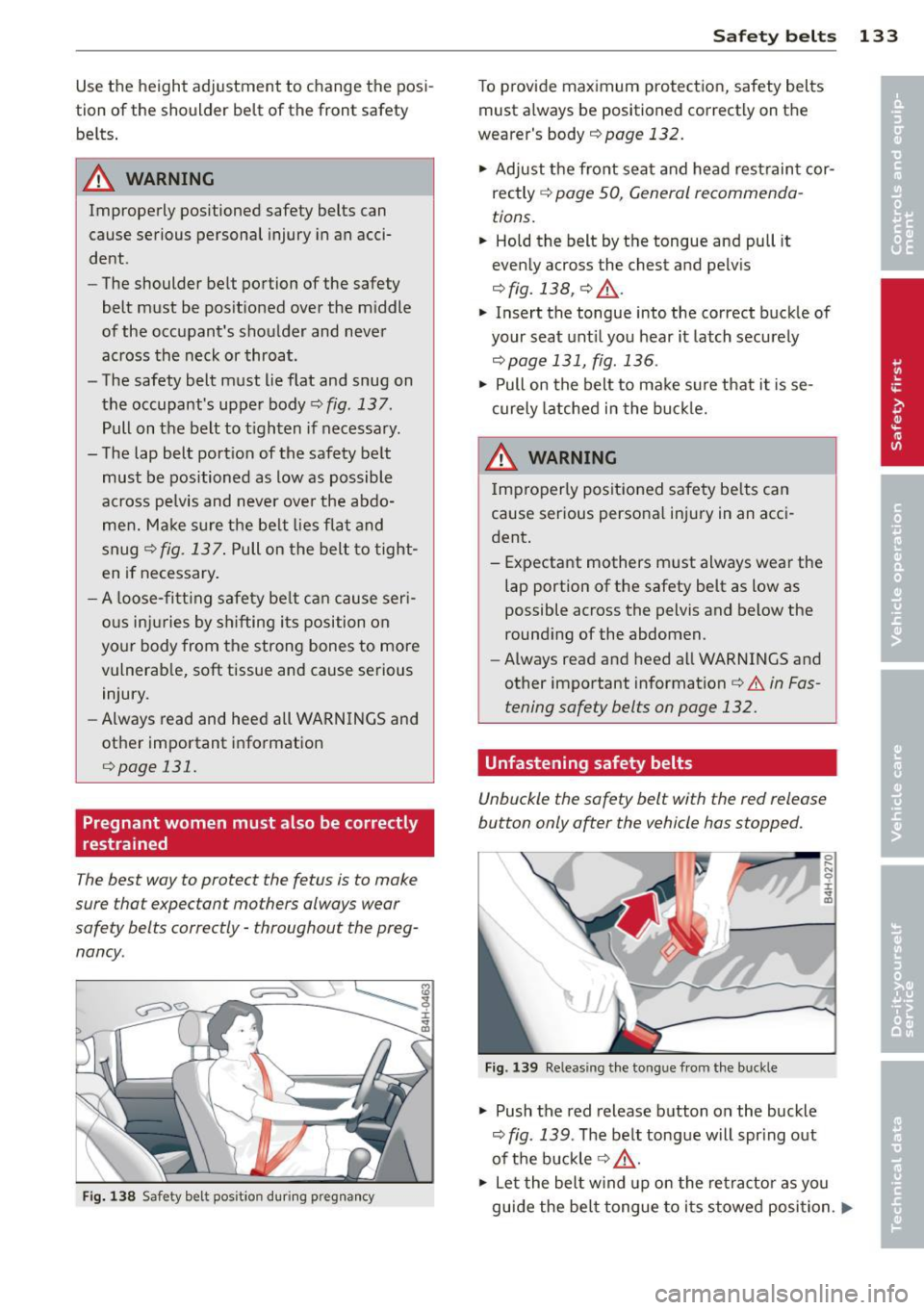

Fig. 138 Safety belt pos it io n during pregnancy
Safety belts 133
To provide maximum protection, safety belts
must always be positioned correctly on th e
wea rer's body
c:> pag e 132.
.. Adjust the front seat and head restraint cor­
rectly
c:> page 50 , General recommenda­
ti ons.
.. Hold the belt by the tongue and pull it
evenly acros s the chest and pelvi s
c:> fig. 138, c:> ,&.
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
c:>page 131, fig . 136 .
.. Pull on the belt to make sure that it is se­
curely latched in the buckle.
.&_ WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent.
- Expectant mothers must always wear the lap portion of the safety belt as low as
possible across the pelvis and below the
rounding of the abdomen.
- Always read and heed all WARNINGS and
other important information
c:> A in Fas­
tening safety belts on page 132 .
Unfastening safety belts
Unbuckle the safety belt with the red r elease
button only after the vehicle has stopped.
Fig . 139 Re le asin g t he tong ue fro m the b uckle
.. Push the red release button on the buckle
c:> fig. 139. The belt tongue will spring out
of the buckle
c:> ,& .
.. Let the belt w ind up on the retractor as you
guide the belt tongue to its stowed position . ..,.

134 Safety belts
A WARNING
Never unfasten safety belt while the vehi­
cle is moving. Doing so will increase your
risk of being injured or killed.
Adjusting safety belt height
-
With the aid of the safety belt height adjust­
ment, the three point safety belt strap rout­
ing can be fitted to the shoulder area, accord­
ing to body size.
Fig. 140 Safety belt height adjustment for the front
seats - loop -around fittings
.. Push the loop-around fittings up ¢ fig. 140
@ , or
.. squeeze together the(!) button, and push
the loop-around fittings down @.
.. Pull the belt to make sure that the upper at­
tachment is properly engaged.
A WARNING
Always read and heed all WARNINGS and
other important information
¢page 131.
(D Tips
-The shoulder belt part should route ap­
proximately over the middle of your
shoulder -
under no circumstances
should it route over your neck and
throat area
¢ .&. in Safety belt position
on page 133.
- With the front seats, the height adjust­
ment of the seat can also be used to ad­
just the position of the safety belts.
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries .
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can only
work when they are correctly positioned on
the body . Improper seating positions reduce
the effectiveness of safety belts and will even
increase the risk of injury and death by mov­
ing the safety belt to critical areas of the
body. Improper seating positions also in­
crease the risk of serious injury and death
when an airbag deploys and strikes an occu­
pant who is not in the correct seating posi­
t ion . A driver is respons ible for the safety of
all vehicle occupants and especially for chil­
dren . Therefore:
.. Never permit anyone to assume an incorrect
sitting position in the vehicle while traveling
¢&_ .
A WARNING
Improperly worn safety belts increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- Always make sure that all vehicle occu­
pants are correctly restrained and stay in
a correct seating position whenever the
vehicle is being used .
- Always read and heed all WARNINGS and
other important information
¢page 131.

Safety belt preten­
sioners
How safety belt pretensioners work
In fron t, side and rear-end collisions above a
parti cular severi ty and in a rollover, safety
belts are tensioned automatically .
Reversible safety belt tensioners
The safety belts on the front seats are equip­
ped wit h power reve rsible tensioners. The fo l­
l ow ing f un ct ions are available w hen the dr iv­
e r' s/fron t passenger 's sa fety bel ts are fas­
tened :
- Automatic tensioners: at the start of a d rive,
the safety be lts automatically adjust to the
passenge r aft er a certai n time period o r ve­
hicle speed. To switch the automa tic ten­
s ioners off, select the fo llow ing in the M MI:
I CAR I funct ion button > Car sy stems > Vehi ­
cle settings
> Seats > Dr ive r's seat or Pas­
senger's seat
> Automatic belt tensione r >
Off.
-In certa in driving situations, the safety belts
may t ighten with a reversib le tensioning
function
¢ page 182.
-The safety belts may also tighten w ith this
r evers ible tension ing funct ion in mino r colli­
s ions .
Pyrotechnic safety belt pretensioners
The safety be lts are equipped with safety be lt
pretensioners. The system is activated by sen­
s o rs in front, side and rear-end collisions of
great severity and in a rollover. Th is tightens
the bel t and takes up be lt slack ¢&.
in Service
and disposal of safety belt pre tensioner on
page 136.
T aking up the s lack helps to redu ce
forward occup ant movemen t during a colli ­
sion.
A WARNING
- It is possib le for the pre tensioners to de­
ploy i ncor rect ly .
- T he pyrotechnic sys tem can only provide
protection for one co llision. If the pyro -
Safety belts 13 5
technic pretensioners deploy, the preten­
sioning system must be replaced.
(D Tips
T he pyro technic safety be lt pretensioners
ca n only deploy once .
- T he safety bel t pretensioners do not de­
ploy in minor frontal and s ide collisions,
in rear-end co llisions, i n rollovers and in
co llisions involving very little impact
f o rce.
- A fine dust is released w hen the py ro­
technic safety be lt pretensioners dep loy.
Th is is normal and is not caused by a fire
in the vehicle.
- The re levant safety requi rements must
be observed when the vehicle or compo­
nents of the system are scrapped . A
qualified dealership is fam iliar with
these regulations and will be please d to
pa ss o n the information to yo u.
- Be sure to observe all safety, env iron­
ment al and ot her regu la tio ns if t he ve hi­
cle or ind ividu al p ar ts of t he system, par­
t ic ular ly the s afe ty belt or airbag, are to
be disposed. We recommend you have
your authorized A udi dealer perform this
service fo r you .
Service and disposal of safety belt
pretensioner
The safety belt pretens ione rs are parts of the
saf ety be lts on your Aud i. Insta lling, remov­
i ng, se rv ici ng o r repair ing of be lt pre tension­
ers can dam age the safe ty belt sy stem and
prevent it from working correctly in a co lli­
sio n.
T he re a re some impo rtan t thi ngs you have to
kn ow to m ake su re th at the effectiveness o f
t h e sys tem w ill not be impaired and tha t dis­
ca rded components do not cause injury o r pol -
lu te the environment . ..,_ •
•

136 Safety belts

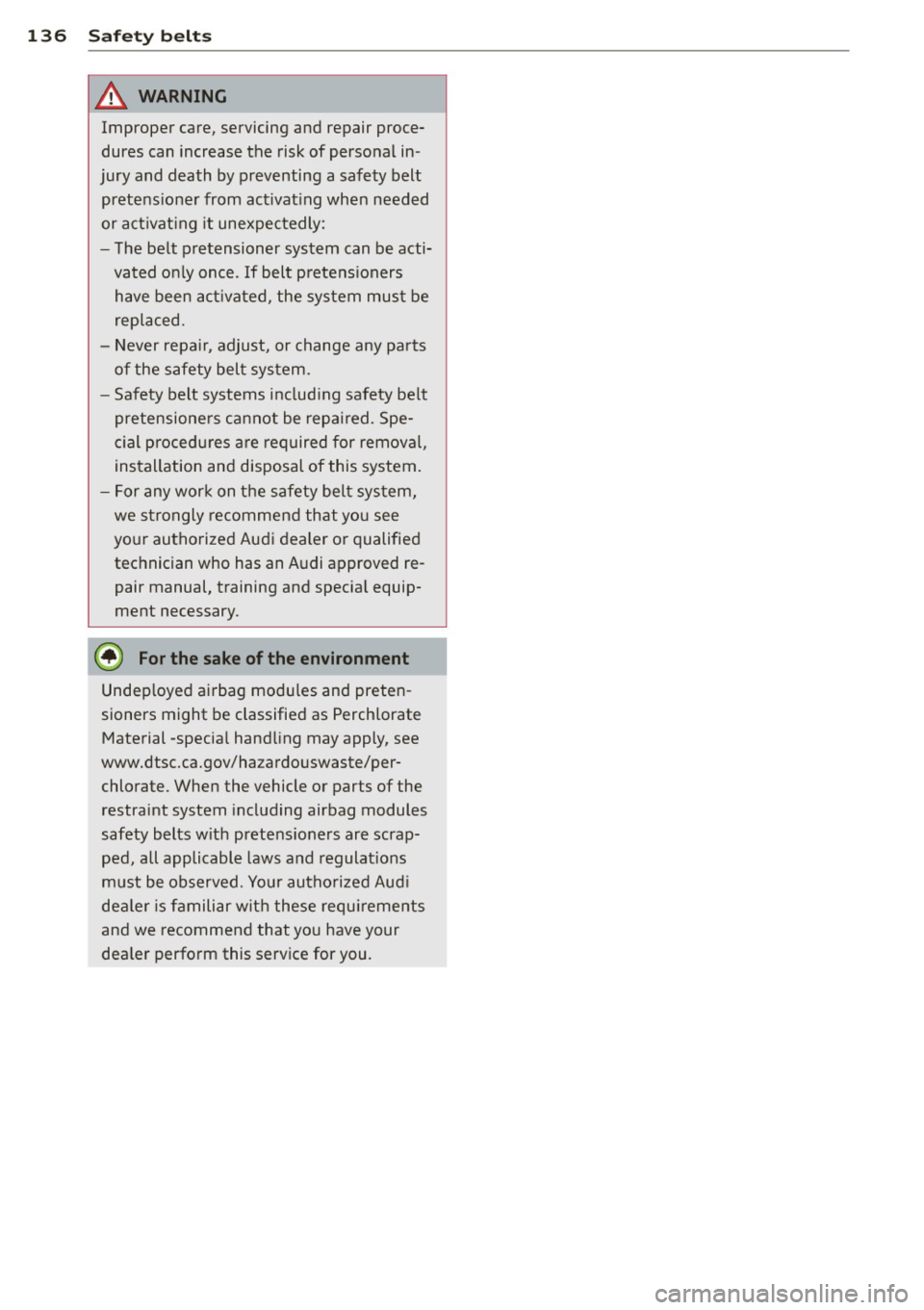

,8. WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing a safety belt
pretens ioner from act ivat ing when needed
or act ivat ing it unexpectedly:
- The belt pretensioner system can be acti­
vated only once. If belt pretens ioners
have been act ivated, the system must be
replaced.
- Never repair, adjust, or change any parts
of the safety belt system.
- Safety belt systems includ ing safety be lt
pretensione rs cannot be repaired. Spe­
ci al procedures are required for removal,
installation and disposal of this system.
- For any work on the safety belt system,
we strongly recommend that you see
your authorized Audi dealer or qualified
technician who has an Audi approved re­
pair manual, training and specia l equip­
ment necessary.
@ For the sake of the environment
Undep loyed airbag modu les and preten ­
sioners might be classified as Perchlorate
Material -specia l hand ling may apply, see
www.dtsc.ca.gov/haza rdou swaste/per­
chlorate. When the vehicle or parts of the
restraint system including airbag modules
safety belts w ith pretens ioners are scrap­
ped, all applicable laws and regulations
must be observed. Your authorized Aud i
deale r is familiar with these requ irements
and we recommend that you have your
dea ler perform this service for you.

Airbag system Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
For your safety and the safety of your passen­
gers, before driving off, always:
"" Adjust the driver's seat and steering wheel
properly ¢
page 119,
"" Adjust the front passenger's seat properly
¢page 51,
"" Wear safety be lts properly ¢ page 131,
"" Always properly use the proper child re-
straint to protect chi ldren ¢
page 163.
In a collision, airbags must inflate within the
blink of an eye and with considerable force.
The supplemental airbags can cause injuries if
the driver or the front seat passenger is not
seated properly . Th erefore in order to help the
a ir bag to do its job, it is important, both as a
driver and as a passenger to s it properly at all
times.
By keeping room between your body and the
steer ing wheel and the front of the passenger
compartment, the airbag can inflate fully and
comp letely and provide supplemental protec­
tion in certain frontal collisions ¢
page 119,
Proper occupant seating positions.
F or details
on the operation of the seat adjustment con­
trols
¢ page 51.
It's especially important that children a re
properly restrained ¢
page 163.
There is a lot that the driver and the passen­
gers can and must do to help the individual
safety features installed in your Aud i work to­
gether as a system.
Proper seating pos ition is important so that
the front airbag on the driver side can do its
job. If yo u have a physical impa irment or con-
Airbag system 137
dition that prevents you from sitting properly
on the driver seat with the safety belt properly
fastened and reach ing the peda ls, or if you
have concerns with regard to the function or
operation of the Advanced Airbag System,
please contact your author ized Audi dealer or
qualified workshop, or call Audi Customer
CARE at 1-800-822-2834 for possible modifi­
cations to your vehicle .
When the airbag system dep loys, a gas gener ­
ator will fill the a irbags, break open the pad­
ded covers, and inflate between the steer ing
whee l and the driver and between the instru­
ment pane l and the front passenger. The air­
bags will deflate immediately after deploy­
ment so that the front occupants can see
through the windshield again without inter­ ruption .
All of th is takes place in the blink of an eye, so
fast that many people don't even realize that
the airbags have deployed. The airbags a lso
inflate with a great dea l of force and nothing
should be in their way when they deploy.
Front airbags in combination with properly
worn safety belts slow down and lim it the oc­
cupant's forward movement . T ogether they
help to prevent the driver and front seat pas­
senger from hitting parts of the inside of the
vehicle while reducing the forces acting on the
occupant during the crash . In this way they
help to reduce the risk of injury to the head
and upper body in the crash. Airbags do not
protect the arms or the lower parts of the
body.
Both front airbags will not inflate in all fronta l
collisions . The triggering of the airbag system
depends on the vehicle dece leration rate
caused by the collision and registered by the
electron ic control unit. If th is rate is below
the reference value programmed into the con ­
trol unit, the airbags will not be trigge red,
even though the car may be bad ly damaged as
a result of the collision . Ve hicl e damage, re­
pair costs or even the lack of veh icle damage
is not necessarily an indication of whether an
airbag should inflate or not . .,. •
•

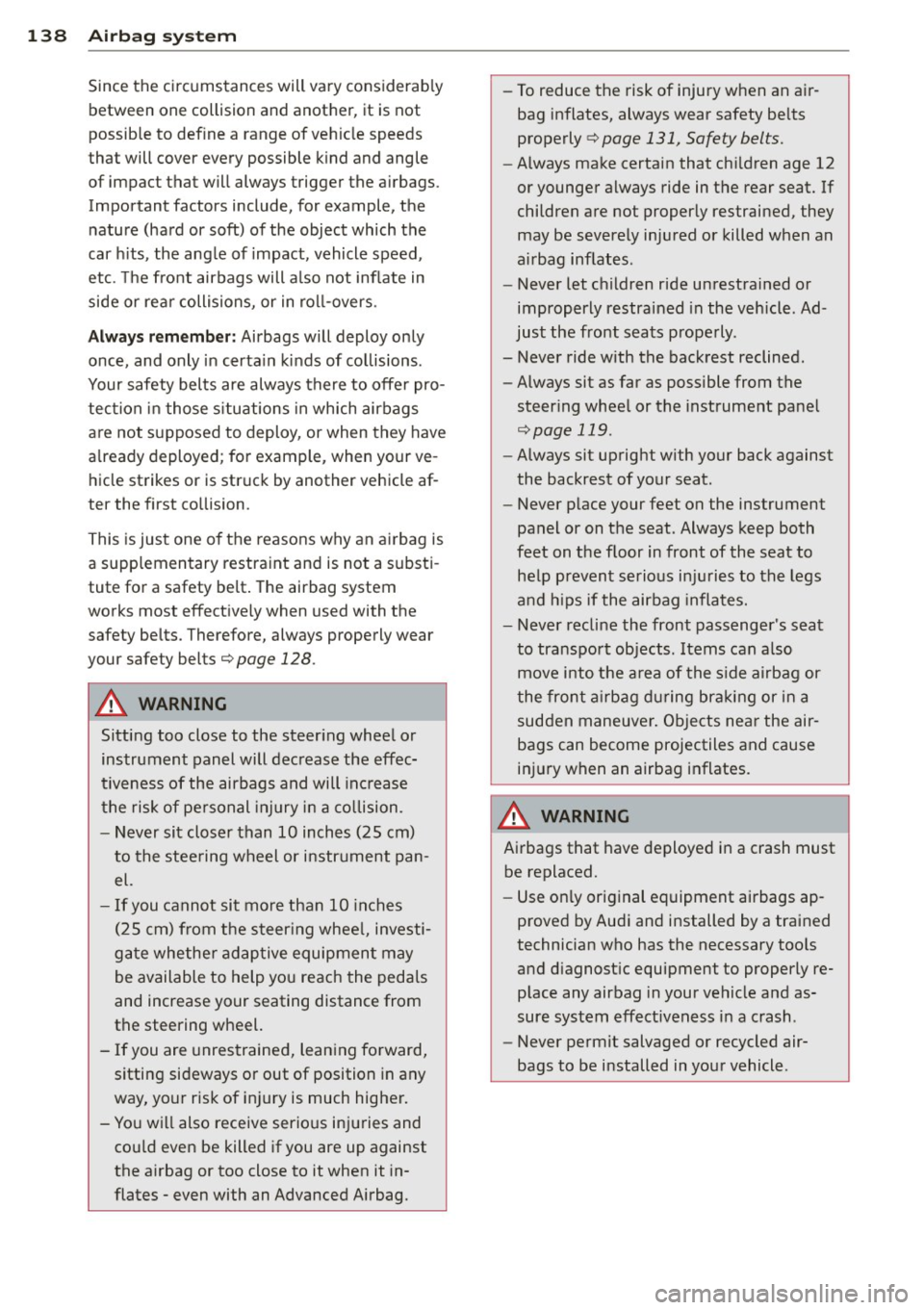

138 Airbag sys te m
Since the cir cumstances will vary considerab ly
between one collision and anot her, it is not
possib le to def ine a range of vehicle speeds
that will cover every possible k ind and angle
of impact t hat will always trigger the airbags.
Important factors include, for example, the
nature (hard or soft) of the object which the
car h its, the ang le of impact, vehicle speed,
etc. The front airbags will also not inflate in
side or rea r collisions, or in ro ll-overs .
Always rememb er: Airbags will deploy only
once, and only in certa in k inds of co llisions.
Your safety belts are always there to offer pro­
tection in those s ituations in which airbags
a re not supposed to deploy, or when they have
a lready deployed; for example, when your ve­
hicle strikes or is struck by another vehicle af­
ter the first co llision.
This is just one of the reasons why an airbag is
a supplementary restraint and is not a substi­
tute for a safety belt . The airbag system
works most effect ively when used with the
safety belts. Therefore, always properly wear
your safety belts¢
page 128.
A WARNING
Sitting too close to the steer ing wheel or
instrument panel will dec rease the effec­
t iveness of the airbags and will increase
the risk of personal injury in a collision .
- Never sit closer than 10 inches (2S cm)
to the stee ring wheel or instrument pan­
el.
- If you cannot sit more than 10 inches
( 2 5 cm) from the s teer ing whee l, investi­
gate whethe r adaptive equipmen t may
be available to help you reach the pedals
and increase your seating distance from
the steering wheel.
- If you are unrestrained, lean ing fo rward,
sitting sideways or out of position in any
way, your risk of in jury is much higher.
- You will also receive serio us injuries and
cou ld even be killed if you are up against
the airbag or too close to it when it in­
flates - even with an Advanced Airbag. -
To reduce the risk of injury when an a ir­
bag inflates, always wear safety be lts
properly ¢
page 131, Safety belts.
-Always make certain that ch ildren age 12
or younger always ride in the rear seat. If
children are not properly restrained, they
may be severely injured or killed when an
airbag inflates.
- Never let children ride unrestrained or
improperly restrained in the vehicle. Ad­
just the front seats prope rly .
- Never ride with the back rest reclined.
- Always sit as far as possible from the
steer ing whee l or the instrument pane l
¢page 119.
-Always sit upright with your back against
the backrest of your seat .
- Never p lace your feet on the instrument
panel or on the seat. Always keep both
feet on the floor in front of the seat to
help prevent serio us in ju ries to the legs
and h ips if the airbag inflates.
- Never recline the front passenger 's seat
to transport objects , Items can a lso
move into the a rea of the s ide airbag or
the front a irbag du ring bra king or in a
sudden maneuve r. Objects nea r the air ­
bags can become projectiles and cause
in jur y when an airbag inflates.
A WARNING ~
Airbags that have deployed in a crash must
be replaced.
- Use on ly orig inal equipment airbags ap­
proved by Aud i and installed by a trained
technician who has the necessary too ls
and d iagnost ic equipment to properly re­
p lace any airbag in your vehicle and as­
sure system effectiveness in a crash .
- Never permit salvaged or recycled air­
bags to be installed in your vehicle.
