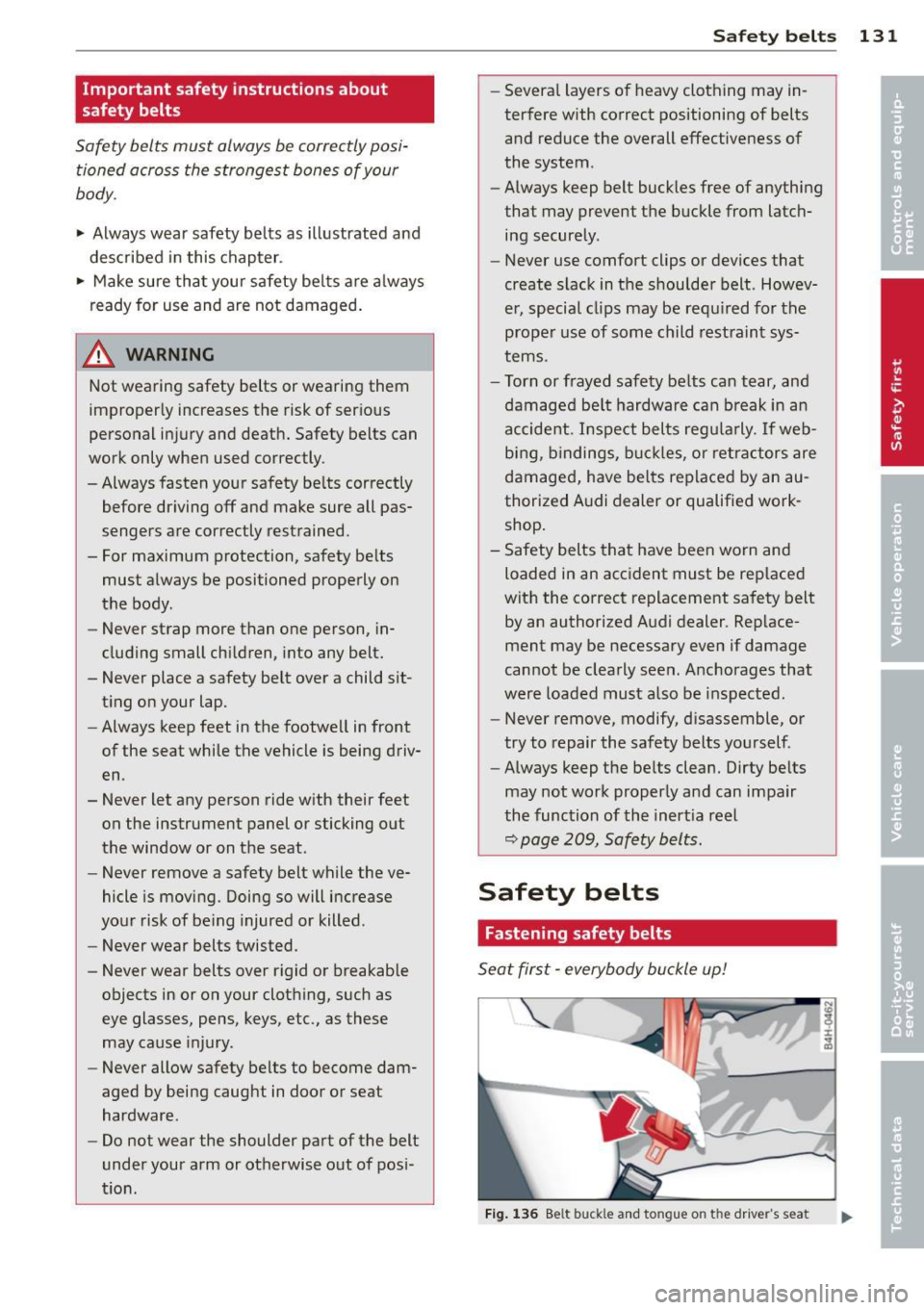

Important safety instructions about
safety belts
Safety belts must always be correctly posi­
tioned across the strongest bones of your
body.
~ Always wear safety belts as illustrated and
described in this chapter.
~ Make sure that your safety belts are always
ready for use and are not damaged.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly.
- Always fasten your safety be lts correctly
before driving off and make sure all pas­
sengers are correctly restrained.
- For maximum protection, safety belts must always be positioned properly on
the body .
- Never strap more than one person, in­
cluding small children, into any belt.
- Never place a safety belt over a child sit­ ting on your lap.
- Always keep feet in the footwell in front
of the seat while the vehicle is being d riv­
en .
- Never let any person ride with their feet
on the instrument panel or sticking out
the window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving. Doing so will increase
your risk of be ing injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable
objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these may cause injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of posi ­
tion . Safety belts
131
- Several layers of heavy clothing may in­
terfere with correct positioning of belts and reduce the overall effectiveness of
the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely .
- Never use comfort clips or devices that
create slack in the shoulder belt . Howev­
er, special clips may be requ ired for the
proper use of some child restraint sys­
tems .
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an
accident. Inspect belts regularly.
If web­
bing , bindings, buckles, or retractors are
damaged, have belts replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer. Replace­
ment may be necessary even if damage
cannot be clearly seen . Anchorages that
were loaded must also be inspected.
- Never remove, modify, disassemble, or
try to repair the safety belts yourself.
- Always keep the belts clean. Dirty belts
may not work properly and can impair
the function of the inertia reel
c::> page 209, Safety belts .
Safety belts
Fastening safety belts
Seat first -everybody buckle up!
Fig. 136 Bel t bu ckle and to ngue on the drive r's seat

13 2 Safet y belt s
To provide maximum protection, sa fety belts
must always be positioned correctly on the
wearer 's body .
.,. Adjust the front seat and head restra int
properly ¢
page 50, General recommenda­
t ions .
.,. Make sure the seatback of the rear seat
bench is in an upright pos ition and securely
latched in place before using the belt¢,&.
.,. Hold the be lt by the tongue and pull it
evenly across the chest and pelvis ¢ ,& .
.,. Inse rt the tongue into the correct buckle of
your seat until you hea r it latc h securely
¢ fig. 136.
.,. Pu ll on the be lt to make sure that it is se-
curely latched in the buckle.
Automatic safety belt retractors
Every safety belt is equipped w ith an automat­
i c belt retractor on the shoulder be lt. This fea­
ture locks the be lt whe n the belt is pulled out
fast, during hard braking and i n an accident.
The belt may also lock when you drive up or
down a steep hill or through a sharp curve. During normal driv ing the belt lets you move
freely.
Safety belt preten sione rs
The safety belts are equipped with a be lt pre­
tensioner that helps to tighten the safety belt
and remove s lack when the pretensioner is ac ­
tivated
¢ page 135. The function of the pre­
tensioner is moni tored by a warning light
¢ page 17.
Sw itchabl e locking fe atur e
Every safety belt except the one on the driver
seat is eq uipped w ith a switchable locking fea ­
ture that
m ust be used when the safety belt is
used to attach a child seat. Be sure to read the important information about this feature
¢ page 174 .
.,& WARNING
Improperly positioned safety belts can
cause serious injury in an accident
¢ page 132, Safety belt position.
- Safety belts offer optimum protection
only when the seatback is upright and
belts are properly posit ioned on the
body .
- Always make sure that the rear seat
backrest to which the center rear safety
belt* is attached is securely latched
wheneve r the rea r center safety belt is
being used.
If the backrest is not secu re­
ly latched, the passenger will move for­
ward with the back rest dur ing sudden
brak ing, in a sudden maneuver and espe­
cially in a crash.
- Never at tach the safety bel t to the buck­
le for another seat. Attaching the belt to
the wrong buckle will reduce safety be lt
effectiveness and can cause serious per­
sonal injury .
- A passenger who is not proper ly restrain­
ed can be seriously injured by the safety belt itself when it moves from the stron­
ger parts of the body into cr itical areas
like the abdomen .
- Always lock the convertible locking re­
tractor when you are securing a child seat in the veh icle ¢
page 176.
(D Tips
For information on safety belt pretension­
ers, refer to¢
page 135.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts.
F ig. 137 Head restra int an d safety be lt pos it io n as
see n from the s id e

262 Fuses and bulb s
Fuse panel @ (black )
No . Equ ipment Amps
=
8
Headlight range adjustment/
5/7,5
adaptive lighting system
10 Left headlight (headlight with
7,5
adaptive light)
Fuse panel
@ ( brown )
No .II Equ ipm ent
II Amp s
1 Climate control 10
2 Climate control system blower 40
3 Diagnostic connector 10
4 Electrical ignition lock 5
5 Power steering column adjust-
ment
5
Steering column switch module 10
7 Power steer
ing column adjust-
ment 25
8 Light switch
Luggage compartment fuse assignment
Fig. 196 Luggage compartment: fuse panel with plas·
tic bracket
Fuse panel @ (bl ack )
No. II Equipment
I[ Amp s
4 E lectromechanical parking brake 30
5 Electromechanical parking brake 30
6 Front door (front passenger's
35
side)
7 Rear exterior lighting Rear sun shade, closing aid, lug­
s gage compartment lock, con ­
venience key, START ENGINE
STOP, fuel filler door 30
20
-Fuse pane
l@ (blac k) I
No. Equipm ent Amps
=· 9 Power seat adjustment 15
10 Parking system
s
30
Fus e pane l
B (red)
No . Equipment Amps
1 Left belt tensioner
25
Right belt tensioner 25
3 Socket 20
20
Electromechanical parking brake
5
adaptive air suspension 15
7 Rear door (front passenger's
35
side)
Rear exterior lighting 30
9
Luggage compartment lid con-
30
t rol module
10 Telephone 5
11 Sound amp lifier 30
12 Rear spoiler 20
Fuse pane l c (b rown )
No. Equipment Amps
1 Rad
io receiver, Sound amplif ier/
30/20
MMI unit/dr ives
2 Tank leak detection system 5
AEM control module/battery 15/
4
module 7,5
6 Battery fan 35
Rad io receiver
7,5
7,5
9
Automatic dimming interior
5/15
rearview mirror/battery module
Parking system 5
Fu se panel o (gre en)
No. Equipment Amps
1 Audi pre sense 5
2 Electromechanical parking brake 5
3 adaptive a
ir suspension
5
Automatic transmission 7,5
...

2 70 General information
General information
Explanation of
technical data
Some of the technical data listed in this man ­
ual requires further explanation .
The technical data for your vehicle is listed in
the charts starting on
r:::>page 27 2. This sec ·
tion provides general information, notes and restrictions which apply to this data .
Vehicle identification
The key data is given on the vehicle identifica·
tion number (VIN) plate and the vehicle data
sticker.
Fig. 206 Veh icle Ide ntific atio n Number (VlN) p late: lo­
cation on driver 's sid e das h panel
Fig. 207 Th e vehicle identi fication label -inside the
luggage co mpa rtmen t
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visi­
b le from the outside through the windshield
r:::> fig . 206. You can also display the Vehicle
Identification Number of your vehicle in the
MMI. Select: Function button
ICAR ! > Car sys­
tems
> VIN number . The
vehicle identification label
is located in the luggage compartment in the
spare wheel wel l.
The label¢
fig. 207 shows the following vehi­
cle data :
(D Production control No .
@ Vehicle identification No.
® Type code number
@ Type designation/engine output in Kilo·
watts
® Engine and transmission code letter
@ Paint No./Interior
(f) Optional equipment No.'s
Vehicle data 2 to 7 are also found in your War·
ranty
& Maintenance booklet.
The safety compliance sticker
is you r assurance that your new vehicle com­
plies with all applicable Federal Motor Vehicle
Safety Standards which were in effect at the
time the vehicle was manufactured . You can
find this sticker on the left door jamb.
It
shows the month and year of production and
the ve hicle ident ification number of your vehi ·
cle (perforation) as well as the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
The high voltage warning label
is located on the lock carr ier .
The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are Listed on a sticker on the
left door jamb.
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank,
oi l and coolant, plus maximum load, wh ich in·
eludes passenger weight (lSO lbs/68 kg per
Ill>

2 76 Consumer Information
Technical Modifications
Our guidelines must be complied with when
technical modifications are made .
Always consult an authorized Audi dealer be­
fore starting work on any modifications.
This will help ensure that vehicle function,
performance and safety are not impaired
¢ &. .
Attempting to work on electronic components
and the software used with them can cause
malfunctions. Because of the way electronic
components are interconnected with each
other, such malfunctions can also have an ad­
verse affect on other systems that are not di­
rectly involved. This means that you risk both
a substantial reduction in the operational
safety of your vehicle and an increased wear of
ve hicle parts ¢
A:,..
Author ized Audi dealers will perform th is
wo rk in a professiona l and competent manner
or, in special cases, refer you to a professional
company that specializes in such modifica­
tions .
A WARNING
Improper repairs and modifications can
change the way vehicle systems work and
cause damage to the vehicle and serious
personal injury.
-
If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as possi­
ble.
Declaration of
Compliance, Telecom­
munication and
Electronic Systems
Radio Frequency Devices and Radiocommuni­
cation Equipment User Manual Notice.
The manufacturer is not responsib le for any
radio or TV interference caused by unauthor­
ized modifications to this equipment.
Devices
T he following devices each comply with FCC
Part 15.19, FCC 15.21 and RSS-Gen Issue 1:
- Adapt ive cru ise control*
- Aud i side assist*
- Cell phone package*
- Convenience key*
- Electron ic immobilizer
- Homelink ® universal remote contro l
- Remo te control key
FCC Part 15.19
This device complies with part 15 of the FCC
Ru les. Operation is subject to the follow ing
two conditions:
(1) This device may not cause harmful inter­
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation .
FCC Part 15.21
CAUTION:
Changes or modificat ions not expressly ap­
proved by the party responsible for compli­
ance could void the user's authority to operate
the equipment .
RSS-Gen Issue 1
Operation is subject to the following two con­
ditions:
(1) this device may not cause interference ,
and

280 Index
Child safety lock Rear doors .... .... ...... .. .. .... ..
37
C hild safety seats .......... .... .... . 169
Booster seats .......... .. .. .. .. .. . 172
Conve rtible child seats .... .. .. .... . 170
Conve rtible locking retractor . ..... .. .
How do I properly install a child safety
. h. l ? seat in my ve 1c e. . ............... .
Infant seats .. ........... .. .. .... .
Installing .. ............... .. .... .
Installing a child restraint using the
LATCH system .. .... ...... .. .. .. .. .
174
167
169
174
179
L ATC H system ............. ... .. ... 179
Lower anchorages ............ .... . 178
Mounting and releasing the anchorage
hook .. .. .. ... .... ......... ..... .
179
Safety instructions ......... ... .... . 167
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 54
Cleaning and protection ..... .. .. .... .
200
Alcantara (synthetic suede) . .. .. .. .. . 209
Eng ine compartment .... .. .. .. .... . 210
Exhaust tail pipes .......... ... .. .. . 206
Fabrics and fabr ic coverings .. .. .. .. . 206
Instrument panel ......... .. .. .... . 207
Inter ior .. .. ............. .. .. .. .. . 206
Lea ther .. .... ........... .... .... . 208
MMI display/controls ............... 206
Plastic and vinyl ................... 203
Plastic parts .. .......... ... .. .. .. . 207
Safety belts ............. .... .... . 209
trim strips 204
Trim str ips .... .. .. ... ... .. .. .. .. . 203
Climate control
Air vents ... .......... ..... .. .... .. 66
C limate controls . . . . . . . . . . . . . . . . . . . . .
64
Climate control (four-zone)
Operation .. ................ ... .. ..
67
Climate control (three-zone)
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 65
C lock ... .. .. ............. .. .. .. .. .. 25
Closing Rear lid .. .. ................ ... ... . 35
Sliding/tilting sunroof ...... ..... .. ..
39
Cold tire inflation pressure ..... .. .... . 235
Com ing home ............. .. .. .... ..
43
Compact spare tire ...... .... ... .. .. . 253
Compartments .. ........ .. .. .. .... .. 55 Compliance
..... .. ... .. ........ .. ..
276
Consumer Information . . . . . . . . . . 126, 273
Consumption (fuel) ... .......... .. .. . 23
Contacting NHTSA
Convenience key ... ................ . . 126
33
Starting the engine ............. ... . 71
Stopping the engine (START ENG INE
STOP button) . . . . . . . . . . . . . . . . . . . . . .
73
Switching the ignition on ....... .. .. . 71
U nlocking and locking vehicle ...... .. . 33
Co nvertible child safety seats ... .. .. .. 170
Convertib le locking retractor
Activating . .... .. .. ........... ....
176
Deact ivat ing ... ... .............. .. 177
Using to secure a child safety seat 1.74, 176
Coolant
refer to Engine coolant ............. 223
Cooling mode (automat ic climate control) 67
Cooling mode (climate control) . . . . . . . . . 65
Cornering light .... ... .......... .. .. .
96
Cruise contro l
Changing speed .. ............. .... .
77
Presetting your speed .......... .. .. . 78
Switching off . . . . . . . . . . . . . . . . . . . . . . 78
Switching on . . . . . . . . . . . . . . . . . . . . . . . 77
Warning/ind icator lights .......... .. . 21
(upholder .... .. .. .. ........... .... . 55
D
Data ........ ... .. .. ... ........... . 272
Data recorder ... .. .. ........... .. .. 184
Date display .. .. .. ............. .... . 25
Daytime running lights ... ..... ... .. .. .
41
Declaration of compliance
Adaptive cruise control ........... ..
276
Audi s ide assist .. ............. .. .. 276
Cell phone package . ........... .. .. 276
Convenience key ... ................ 276
Electronic immob ilizer ....... ...... . 276
Homelink ® un iversal remote control .. 276
Remote control key
DEF What does this mean when it appears in 276
the tr ip odometer display? ....... ... . 25
Defective light bulb warning ...........
20

Defrosting (windows)
automatic climate control ... ... .. .. .. 68
climate control . . . . . . . . . . . . . . . . . . . . . 66
Determining correct load limit ... .. .. . 239
Dimensions .... .. .. .... ... .. .... .. . 271
Dimming the rearview mirror . ... .. .. .. 48
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Door/rear lid warning . . . . . . . . . . . . . . . . . 22
Doors Power child safety lock ....... ... .. .. 37
Driver information system CD/radio display . . . . . . . . . . . . . . . . . . . . 22
Door/rear lid warning . . . . . . . . . . . . . . . 22
Efficiency program . . . . . . . . . . . . . . . . . . 24
Exterior temperature display ... .. .. .. 22
On-board computer . . . . . . . . . . . . . . . . . 23
Driver seating position . . . . . . . . . . . . . . . 119
drive select .. .. ........... .. .. .. .... 96
Adaptive dampers . . . . . . . . . . . . . . . . . . 96
Cornering light .............. ... ... . 96
Safety belt tensioner . . . . . . . . . . . . . . . . 96
Driving safely . . . . . . . . . . . . . . . . . . . . . . 118
Driving through water ........ .. .. .. . 194
Driving time . . . . . . . . . . . . . . . . . . . . . . . . 23
Duplicate key . . . . . . . . . . . . . . . . . . . . . . . 29
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . 64
E
Easy entry feature . . . . . . . . . . . . . . . . . . . . 71
Efficiency program . . . . . . . . . . . . . . . . . . . 24
Fuel economy messages . . . . . . . . . . . . . 24
Other equipment . . . . . . . . . . . . . . . . . . . 24
Electrical accessories (sockets) . . . . . . . . . 55
Electro-mechanical power assist .. . ... . 189
Electromechanical parking brake Emergency braking . . . . . . . . . . . . . . . . . 76
Operation .. ... .. .. ...... .. .. .. .. .. 74
Parking .. ............ ...... .... ... 75
Releasing and closing ........ .... ... 74
Starting assist ........... .... .. .. .. 75
Starting from rest ........ .. .. .. .. .. 75
Starting off with a trai ler ............. 75
Warning/indicator lights ......... .. .. 15
Electronic differential lock (EDL) .. ... .. 184
Warn ing/ indicator lights ..... .. .. .. .. 18
Index 281
Electronic immobilizer . . . . . . . . . . . . 25, 30
Electronic power control (EPC) warning/indicator light ............. . 19
Electronic speed limiter .......... .... . 28
E lectronic stabilization program (ESP) .. 184
Warning/indicator lights ............. 18
Emergency actuation Doors ...... .. .. ................. . 35
Power sunroof . .. .... ........... .. . 40
Rear lid ........................... 37
Emergency brak ing ... . .. .. .. .... .... . 76
Emergency flasher ... .............. .. 42
Warning/indicator lights ........ .. .. . 21
Emergency release Selector lever ...... ............... 107
Emergency starting .. .............. . 264
Emergency towing . ................. 266
Emergency warning triangle ...... .. .. 252
Energy management . ............... 190
Engine Compartment . ..... ............... 218
Coolant ... .. .. .. ............... .. 223
Data ..... .. .. .. ................. 272
starting . .. .. .. .... .. .. ...... ...... 71
Starting with jumper cables ........ . 264
Stopping ........ .. ................ 73
Engine compartment ................ 218 Closing the hood . .. ........... .... 217
Opening the hood .... ...... ..... .. 216
Safety instructions .. .............. . 216
Working in the engine compartment .. 216
Engine coolant .. .. ................. 223
Adding coolant . ...... ............. 224
Checking the engine coolant level . .. .. 223
Expansion tank .... ............... . 223
Malfunction symbol ... .. ...... .... .. 15
Radiator fan . .. .. ................. 225
Temperature gauge ............ .... . 10
Engine oil .. .. .. .. .. . .. .. ..... ... .. 218
Adding ......... .. ............... 221
Additives .. .. .. .. .. . .. .... ........ 221
Changi ng ... .. ...... ........... .. 222
Checking the engine oil level ..... .... 221
Ind ications and conditions requiring ex-
tra checking ..... .. ............... 221
Indicator light ..... .............. .. 17
Oil consumption .. .. .............. . 220
•
•

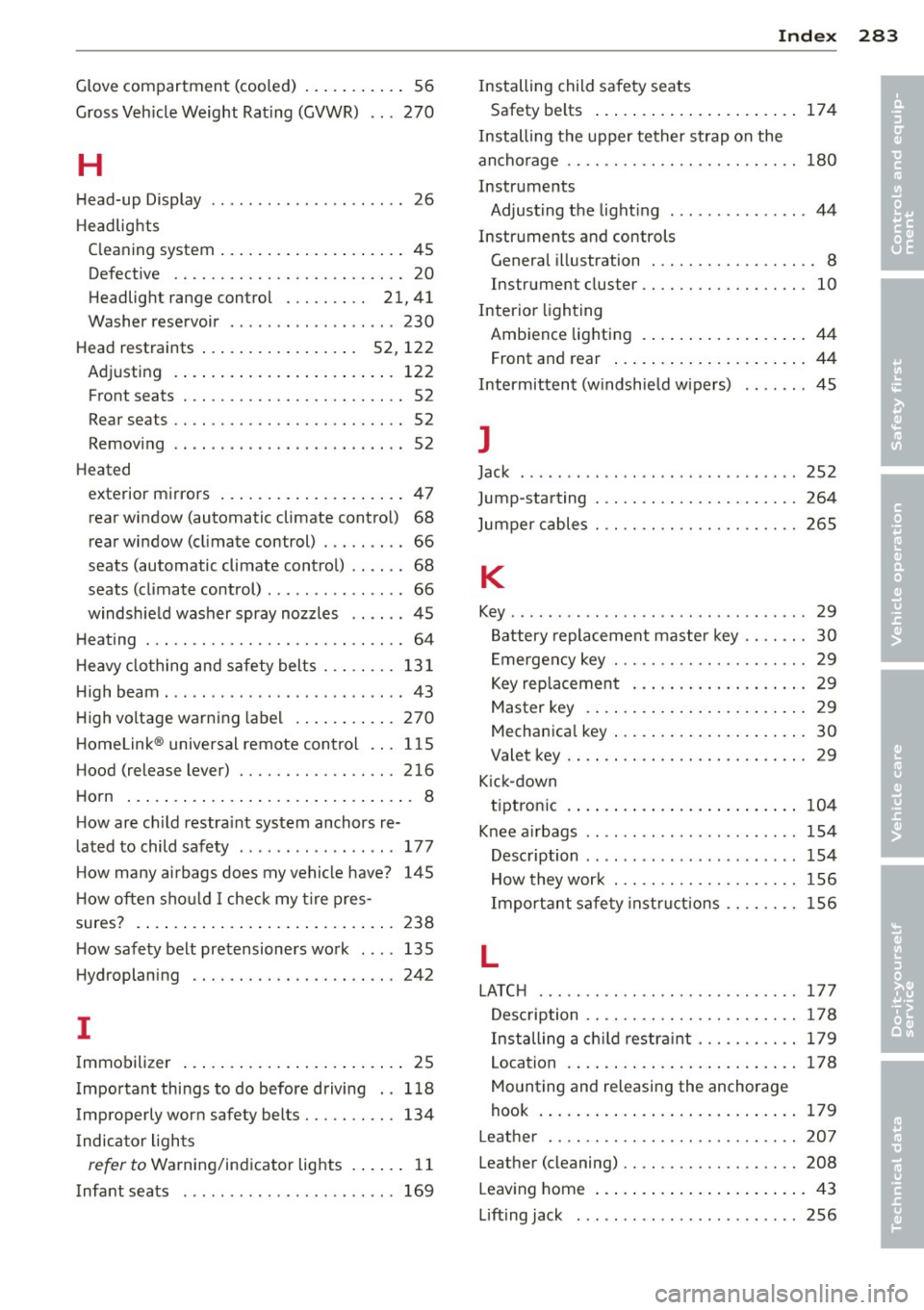

Glove compartm ent (cooled) . . . . . . . . . . . 56
Gross Veh icle Weight Rating (GVWR) ... 270
H
Head-up Di splay . . . . . . . . . . . . . . . . . . . . . 26
H eadlig hts
C leaning system ... .... ... .. .. .. .. ..
45
Defective .. ...... ..... .. .... .. .. .. 20
H eadlig ht range control . . . . . . . . . 21, 41
Washer rese rvoir .......... ... ... .. 230
Head restraints . . . . . . . . . . . . . . . . . 52, 122
Ad justing .. .. .. .. .... ... .. .. .. ... 122
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 52
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . 52
Removi ng .. .. ... .. ... ... .. .. .. .... 52
Heated
exterior mi rrors ....... ... .. .. .. .. ..
47
rear window (automatic climate contro l) 68
rea r window (cl imate control) . .. .. .. .. 66
seats (automatic climate contro l) . . . . . . 68
seats (cl imate control) .......... .... . 66
windshie ld washer spray nozzl es ... ... 45
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
H eavy clo thing and safety belts . .. .. .. . 13 1
High beam . ................ ... ... ... 43
H igh voltage warning labe l .. .. .. .. .. . 270
H ome Link ® universal remote cont ro l .. . 115
Hood (release lever) ........ .. .. .. .. . 216
H orn ... .. .. .. ... .. ..... ... .. .. .... . 8
H ow are c hild restra int system anchors re-
l ated to child safety ............. ....
177
How many airbags does my vehicle have? 145
H ow o ften sho uld I check my t ire p res-
sures? . ... .. .. .... .. .... ... .. .. ...
23 8
How safety belt pre tensione rs wo rk ... . 135
Hydroplaning ............. .... .. .. . 242
I
Immo bilizer . . . . . . . . . . . . . . . . . . . . . . . . 25
Impor tant things to do before driving . . 118
Improperly worn safety belts . .. .. .. .. . 134
Indica to r ligh ts
refer to Wa rning/indicator lights . ... .. 11
Infant seats ... ........... .. .. .. .. . 169
Inde x 283
Installing child safety seats
Safety be lts . . . . . . . . . . . . . . . . . . . . . .
1 7 4
Installing the upper tether s trap on the
an cho rage .. .. .. .. .... ........... ..
180
Instruments
Adjus ting the light ing ......... .... .. 44
Instruments and controls General illustration . . . . . . . . . . . . . . . . . . 8
Instrument cluster .. ........... .... .
10
Interior ligh ting
Ambience lighting . .. .. .. ..... ... .. . 44
Front and rear ..... . .. .. ..... ... .. .
44
Inter mittent (w indshield wipers) .. .. .. . 4 5
l
Jack 252
Jump-starting . .. .. .. ............... 264
Jumper c ables . .. ...... ............. 2 65
K
Key ........... ... .. ................ 29
Battery replacement master key . . . . . . . 30
Emergency key . ...... ........... .. . 29
K ey rep lacemen t . . . . . . . . . . . . . . . . . . .
29
Master key . . . . . . . . . . . . . . . . . . . . . . . . 29
Mechan ica l key ..... . .. .. ..... ... .. . 30
Valet key . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Kick-down
t iptron ic . ....... .. . .. ... .... ... ..
104
Knee a irbags ....... ................ 154
Desc ription .. .. .. .. ... ....... ..... 154
H ow they wor k ... ................. 156
Important sa fety inst ru ctions .... .. .. 156
L
LATC H 177
Des cription .. .. .. ................. 178
Installing a ch ild restr aint ....... .. .. 179
Loca tion . ... .. .... . ... ...... ... .. 178
Mounting and releasing the anchorage
hook ... .. .. .... .. . .. .. ..... ... ..
1 79
Leat he r .. .... .. .... ... .......... .. 2 0 7
Leather (cleaning) .. .... ......... .. .. 208
Leav ing home ..... .. . .. .. ..... ... .. . 4 3
Lifting jack ....... .. ..... .......... 256
•
•

28 4 Index
Lifting vehicle
Light 268
Ambience lighting ........ .... .. .. .. 44
Com ing/ Leaving home ............... 43
Daytime running lights ...... .. .... .. 41
E mergency flashers . . . . . . . . . . . . . . . . . 42
Exterior lighting ....... ... .. .. .... .. 41
Headlight rang e contro l ... .. .. .. .. . . 41
High beam ... ........ ..... .. .. .. .. 43
Low beam .. ...... ......... .. .. .. .. 41
Rear fog lights ................ ..... 41
Side ma rker lights ........ .. .. .. .. .. 41
Turn signa ls .............. ... .. .... 43
Light/ra in sensor
H eadligh ts ..... ..... ...... .. .. .. .. 41
Intermittent (windshield wipers) .. .... 45
Sensor defective . . . . . . . . . . . . . . . . . . . . 21
Loading the roof rack . . . . . . . . . . . . . . . . . 58
L oc king
Power locking sw itch . . . . . . . . . . . . . . . . 34
Remote control .. ..... ... .. .. .... .. 33
Using the key . . . . . . . . . . . . . . . . . . . . . . 34
L ow beams .. .......... ...... ... .. .. 4 1
Lower universa l anchorages (Canada) 177
Lugg age compartmen t
Cargo net .. ..... ..... ... .. .. .... .. 61
carpeting . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cover .. .. .... ........... .. .. .. .. .. 60
Enlarg ing ... ............ .. .. .. .. .. 60
Fastening eyes ..................... 62
Loading ... ................... ... .. 59
Ski sack ... ................... ... .. 62
Stowing luggage ............. .. ... 124
Tie-downs ... ............ .. .. .. .. .. 6 1
Trunk pass-thro ugh ................. 63
M
Maintenance ....................... 273
Malfunction Indicator Lamp (MIL) . . 19, 27
Mechanical key . . . . . . . . . . . . . . . . . . . . . . 30
M irrors
Adjust ing the exte rior m irrors ... .. .. . . 47
d imm ing . .. ... .......... .. .. .. .. .. 48
Vani ty mir rors ..................... 45
Mo nitoring the Advanced Airbag System 149
M ultifunction stee ring wheel ... .. .. ... . 23
N
Natura l lea ther .... ... .. ..... .... . .. 207
New ti res and wheels
NHTSA 242
Contacting .. .. .. ... ... .... ....... 126
N igh t vision assistant .......... .... .. . 98
Cleaning camera lens ... ..... ... .. .. 202
Number of seats . ................... 128
0
Occupant seating positions 119
Octane rating ..... .. .... .... ... .. .. 211
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 25
OFF (au tomatic climate control) . . . . . . . . 67
OFF (climate control) . . . . . . . . . . . . . . . . . 65
Oil
refer to E ng ine oil ................. 218
On-board computer . . . . . . . . . . . . . . . . . . 23
On-Board D iagnost ic System (O BD)
Data Link Connector (D LC) .. ... .. .. .. . 27
E lectronic speed limiter .... ... .. .. .. . 28
Malfunction Indicator Lamp (MIL) . ... . 27
Open door/hood/rear lid warning . . . . . . . 22
Open ing
Hood ........ ................... . 216
Power w indows .................. .. 38
Rea r lid . .. .. .. .. .......... ..... ... 35
S lid ing/ti lting s unroof .......... .. .. . 39
Operate your vehicle economically and
min imize pollution ... ... ....... ... .. 194
Other equipment (efficiency program) . .. 24
Outlet . ...... .. .. ............. .. .. . 54
p
Pa int
T ouc h-up .. .. .. .. .. ... ....... ... .. 204
Pa int No .... .. .. .. ............. .. .. 270
Parking ...... .. .. ............... .. . 75
Automat ic transmiss ion ..... ... .. .. 102
Valet parking .... .. ... ..... ... .. .. . 39
Pa rking brake ... ... .......... ...... . 74
also refer to Electromechani cal pa rking
b rake . .. .. .. .. .. ............... .. . 74

288 Index
General notes .............. .. .... . 231
Glossary of tire and loading termino lo-
gy . ... .. .. ... ............. ..... . 232
Low aspect ratio tires ............... 248
New tires and wheels ............... 242
Replacing .. ................ ... ... 243
Snow chains ... ... .... ..... .. .. .. . 247
Tires and vehicle load lim its ......... 239
Wheel bo lts . . . . . . . . . . . . . . . . . . . . . . 248
W inter t ires .. ........... .. .. .... . 246
Tire serv ice life ................ .. ... 241
Tools ..... .. ................ ..... . 252
Torn or frayed safety belts ... .. .. .. .. . 131
Touch-up paint ................ .... . 204
Towing Tow truck procedures ....... ... .... . 266
TPMS Tire pressure monitoring system .... . 250
Trailer towing . . . . . . . . . . . . . . . . . . . . . . 197
Operating instructions ...... .... .... 197
Technical requirements . . . . . . . . 197,198
Trailer towing tips ............ .. ... 198
Transm ission
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 102
Transmission malfunction (indicator
light) ..... .. ................ ..... . 106
Transport Canada ................... 126
Tread Wear Indicator (TWI) .. .. .. .. .. . 241
Trip odometer . . . . . . . . . . . . . . . . . . . . . . . 25
What does it mean when DEF appea rs in
the trip odometer display? ... .... .. .. 25
Trunk
refer to Luggage compartment .. .. .... 59
Trunk pass-through .................. 63
Turn signa ls . ............... ... .... .. 43
Warning/indicator lights ........ ... .. 21
u
Unde rcoating .............. ... .... . 205
Unfasten ing safety belts .... .. .. .. .. . 133
Unidirectiona l tires .................. 231
Uniform tire quality grading ... .. .. .. . 245
Unlocking Power locking sw itch . . . . . . . . . . . . . . . . 34
Remote control ............... ..... 33
Using the key . . . . . . . . . . . . . . . . . . . . . . 34
V
Valet parking . . . . . . . . . . . . . . . . . . . . . . . . 39
Vanity mirrors ... .. ... ......... ... .. . 45
Vehicle-care products ............ .. .. 200
Vehicle electrical system ......... .... . 16
Vehicle identification label ............ 270
Vehicle Identification Number (VIN) .... 270
Vehicle jack . . . . . . . . . . . . . . . . . . . 252, 256
Vehicle literature .. ... .......... .. .... 5
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . 64
w
Warning/ind icator lights .............. 11
Airbag system . . . . . . . . . . . . . . . . . . . . . 17
Anti- lock braking system (ABS) . . . . . . . . 18
Brake system . . . . . . . . . . . . . . . . . . . . . . 14
Cruise contro l .... .................. 21
E lectromechanical parking brake ..... . 15
Electronic power control ........ .... . 19
Electronic stabilization program (ESP) . . 18
Generator ..... ....... ........... .. 16
Instrument cluster ................ .. 10
Malfunction Ind icator Lamp (MIL) .. .. . 19
Safety belt .. .. .. ............. .... . 16
T urn signals . .. .. ............... ... 21
Warning/Indicator lights
Airbag system . . . . . . . . . . . . . . . 149, 150
PASSENGER AIR BAG OFF ........... 150
Warranty coverages ............... .. 273
Washer reservoir .. ... .......... .. .. 230
Washing .......................... 200
Automatic car wash ...... ...... .. .. 201
by hand . .. .. .. .. ............. .... 201
with a power washer ........... .... 202
Waxing .... .... .. .... ........... .. 203
Wear indicator .... ................. 241
We ights ....... .... .... ........... . 270
What happens if you wear your safety belt
too loose? ...... ............... .... 132
What happens to unbe lted occupants? . . 129
What impairs driving safety? ......... . 119
What should I do after changing a
wheel? . .... .... ............... .... 238
What shou ld I do after replacing whee ls? 238
