Valet parking
The valet parking feature protects the lug­
gage comportment from unauthorized ac­
cess.
Fig. 30 Luggage compartment: valet parking button
With "valet parking" activated, the rear lid
cannot be opened.
~ Remove the mechanical key¢ page 30 .
~ Open the glove compartment and activate
¢
fig. 30 the "valet parking" feature by
pressing the
I VALET I button. The indicator
light in the switch illuminates.
~ Close the glove compartment and lock it
with the mechanical key.
~ Leave the master key with the service per­
sonnel for parking and keep the mechanical
key with you .
When the "valet parking" feature is activated:
- the un locking button for the rear lid
c:s in
the driver's door is inactive
- the button
c:s on the master key is inact ive
- the opening hand le in the rear lid is inactive .
The vehicle can be driven and locked and un­ locked with the master key. Access to the lug­
gage compartment is blocked.
When the valet parking function is switched
on, the message Valet parking activated ap­
pears in the instrument cluster display when
you switch the ignition on .
Opening and closing 39
Sliding/tilting sunroof
Operation
@
Fig. 31 Section of the headliner: Sliding/ti lting sunroof
button
@ Tilting and sliding
~ To tilt the sunroof completely, press the
sw itch br iefly to the second level¢
fig. 31
briefly .
~ To close the sunroof completely, pull the
switch br iefly to the second level¢.&_ .
~ To select an intermediate position, press/
pull the switch to the first level until the de­
sired position is reached.
@ Opening and closing
~ To open the sunroof completely, slide the
button back briefly to the second level.
~ To close the sunroof completely, slide the
button forward briefly to the second level
¢ .&_ .
~ To select a partially open position, slide the
button forward/back to the first level until
the roof reaches the desired position .
A wind deflector integrated into the sliding/
tilting sunroof adapts automatically to the
speed and sunroof pos ition . This reduces wind
noise to a minimum in all sunroof positions.
You can still close or open the sunroof for up
to ten minutes after you have switched the ig­
nition
off . The switch is deactivated once the
driver's or front passenger's door is opened .
Solar protection
The solar protection opens automatically
when the sunroof opens.

40 Openin g and clo sing
The sun shade can be opened and closed by
hand when the sunroof is closed.
A WARNING
Pay careful attention when closing the
sliding/tilting sunroof - otherw ise serious
injury could result! A lways take the key
w ith you when leaving the vehicle .
(D Note
Always close your sliding/tilting sunroof
when leaving your vehicle. Sudden rain can
cause damage to the interior equipment of
your veh icle, part icu larly the electronic
equ ipment .
Emergency closing of the sliding/tilting
sunroof
If the sun roof detects an object in its path
when it is closing, it will open again automati­
cally. In this case, yo u can close the roof w ith
the power emergency closing function.
~ Wi thin five seconds after the sunroof opens
automatica lly, pull the switch until the roof
closes .

Clear vision Lights
Switching the headlights on and off
Fig . 32 Instrument pane l: lig ht sw itc h wit h all -weath­
er lights•
The headlights only wo rk when the ignition is
switched on. Wh ile start ing the eng ine o r
when switching off the ign ition, the head­
lights will go off and on ly the side marker
lights will be on .
If the system is not operating p rope rly, a
war ning symbol in the dr iver information dis­
p lay is d isplayed
c::> page 21 .
Light switch ·'t!- -
Tu rn the switch c::> fig . 32 to the correspond ing
position . When the lights a re switched on, the
:oo: symbo l tu rns on .
0 -The lig hts are off or the dayt ime runn ing
lights are on:
- USA models: The daytime running ligh ts
will come on automatically when the igni­
t ion is on and the light switch
c::> fig . 32 is in
the O posit ion or the AUTO position (only in
daylight cond itions). The Daytime running
light s function can be turned on and off in
the MMI
c::> page42, c::>A .
-Ca nada model s: The daytime running lig hts
will come on automa tically when the igni­
t ion is on and the light switch
c::> fig . 32 is in
the O position, the
:oo: pos ition or the AUTO
position (only in daylight conditions)
c::> A .
AUTO -Automatic headlights swi tch on and
off depend ing o n brightness, for example i n
tw ilight, during rain or in tunnels
c::> &. .
:oo: -Side marke r lights
io -Low beam headlights
~ -All-weather lig hts*
Clear vi sion 41
[Q!l -Rear fog lights* . When th e rear fog lights
a re on, the symbol
0$ on the switch will illu­
mina te.
All-weath er lights*
In vehicles with all-weather lights, the front
li ghts are adj usted automatically so that you
are less like ly to see glare from your own
headligh ts, for example when driving on a wet
road .
Automatic headlight range cont rol*
The head lights do not blind oncoming traffic
if the vehicle load changes . The headlight
range also ad justs automatica lly when brak­
i ng and accelerat ing .
Light function s
T he following light funct ions are avai lab le de­
pending on vehicle equipment and on ly func­
tion when the light switch is i n the AUTO posi­
tion. You c an deactiv ate these functions in the
MMI under Audi adaptive light
c::> page 42 .
Vehicles w ith Static cornering light* : the cor­
ner ing light sw itches on automatica lly when
the stee ring whee l is tu rned at a ce rta in angle
at speeds up to approx imately 44 mph (70
km/ h) and when the turn signa l is ac tiva ted a t
speeds up to approximately 25 mph (40 km/
h) . The area to the s ide of the vehicle is illumi­
nated bette r whe n turn ing .
Vehicles with Dynamic curve light* : the
curve
li ght only functions at speeds betwee n ap ­
proximately 6 mph (10 km/h) and 68 mph
(110 km/ h) and adapts itself to the cu rves in
the ro ad.
_& WARNING
- Autom atic headlig hts are only intended
to assist the driver. They do not relieve
the dr iver of his responsibility to check
the head lights and to turn them on man -
ually accord ing to the current light and
~

42 Clear vision
visibility conditions. For example, fog cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists . Always turn on
the headlights so that you can see ahead and so that others can see your car from
the back.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
@ Tips
-In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display~
page 21.
-You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- Please observe legal regulations when
using the lighting systems described .
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation.
Fig. 33 Center console : emerge ncy flasher switch
• Press the switch~~ fig. 33 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn signal
indicato r lights ¢ Q in the instrument
cluster, as well as the light in the emergency
fl asher switch ~ blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed .
(D Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
· Adjusting the exterior lighting
The settings ore adjusted in the MMI.
• Select: I CAR I function button > Car systems
control button > Vehicle settings> Exterior
lighting.
Automatic headlights
You can adjust the following settings in the
Automatic headlights menu :
Headlights activation time -You can adjust if
the headlights switch on
Early , Med. or Late
according to the sensitivity of the light sensor .
Audi adaptive light* -You can switch adaptive
light
On and Off .
Daytime running lights
USA models:
You can switch the daytime run­
ning lights
on and off.
Canada models:
The function cannot be
turned off.
It is activated automatically each
time the ignition is switched on. This menu
item is shown "greyed out".

Coming home , Leav ing home
The coming home function il luminates the
area outside the vehicle when you switch the
ignition off and open the driver 's door . To turn
the function on, select
Light s when le aving
c a r > On .
The leav ing home function illuminates the
area outside the vehicle when yo u un lock the
veh icle . To turn the function on, select
Li gh ts
when unloc kin g ca r> On.
The coming home and leaving home functions
only operate when it is dark and the light
switch is in the
AUTO pos ition.

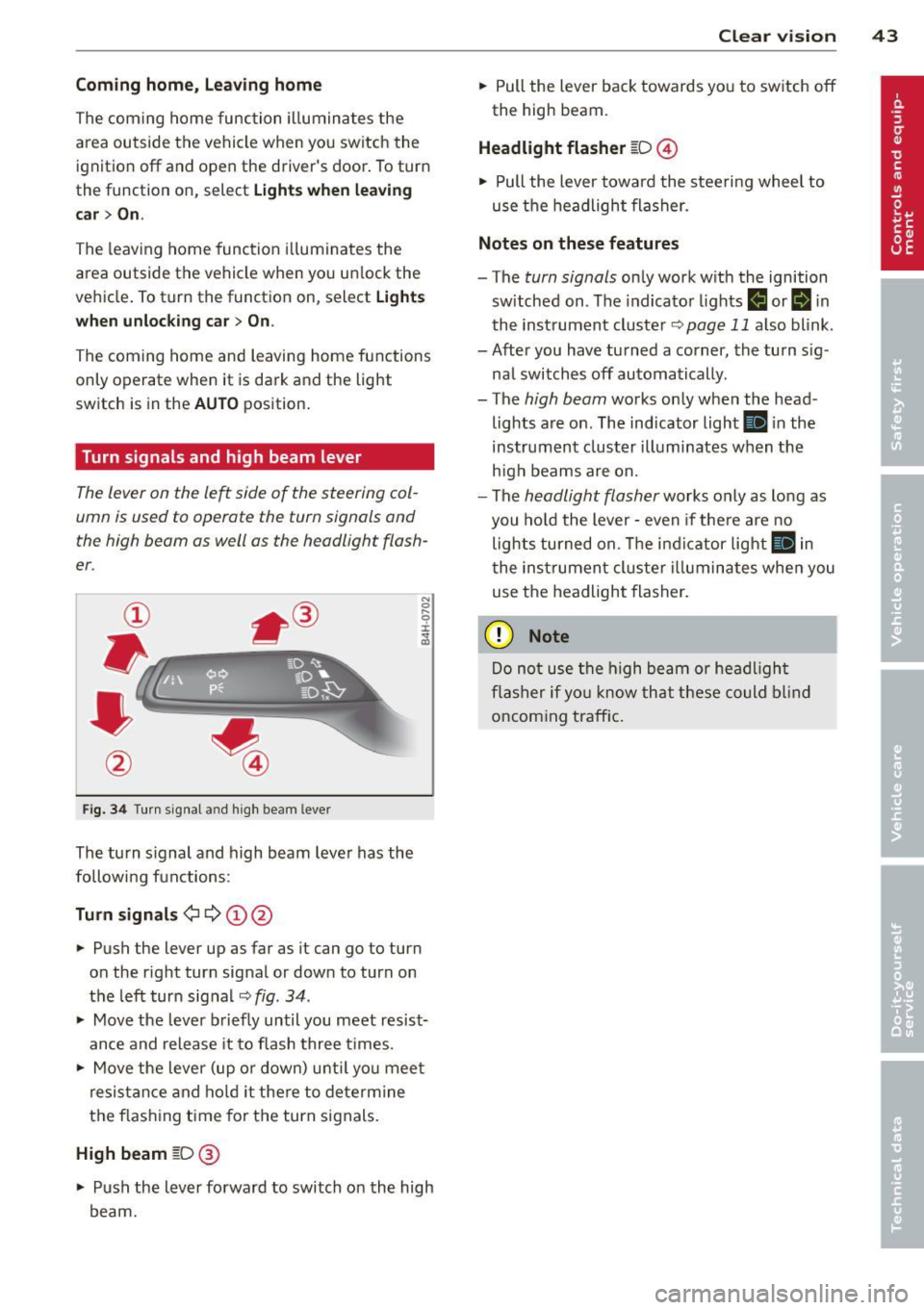

Turn signals and high beam lever
The lever on the le~ side of the steering col­
umn is used to operate the turn signals and
the high beam as well as the headlight flash­
er .
Fig. 3 4 Tu rn signal a nd h igh beam lever
The turn s ignal and high beam lever has the
followi ng functions:
Tu rn sign als ¢ ¢ @@
.. Push the lever up as far as it can go to turn
on the r ight turn signal or down to turn on
the left turn sig nal
c:::;, fig . 34 .
.. Move the lever b riefly until you meet resist­
ance and release it to flash three times .
.. Move the lever (up or down) unti l you mee t
resistance and ho ld it there to dete rmine
the f las hing t ime for the turn signals.
High beam [D @
.. Push the lever forward to switch on the high
beam.
Clear vi sion 43
.. Pull the lever back towards you to switch off
the high beam.
Headlight fla sher [D ©
.. Pull the lever towa rd the stee ring wheel to
use the headlight flasher.
Note s on these features
- The turn signals on ly work with the ignition
sw itched on . The indicator lights
f,j or II in
the inst rument cluste r
~page 11 also blink.
- After you have turned a corner, the turn s ig -
nal switches off automatically .
- The
high beam works only when the head ­
lights are on . The indicator light
Ill in the
instrument cluster illuminates when the
h igh beams are on.
- The
headlight flasher works only as long as
you hold the lever -even if the re a re no
lights turned on. The indicator light
Ill in
the inst rument cluster i lluminates whe n you
use the headlight flasher.
(D Note
Do no t use the high beam or headligh t
flasher if yo u know that these could blind
oncoming traffic.

44 Clear vis ion
Interior lights
Front and rear interior lighting
Fig. 35 Head liner: Fron t int eri or ligh ts
Fig. 36 Rear headlin er: R ead in g light
Press the appropriate b utton ~ fig. 35:
El -Interior lighting on/off
[j) -Door contact switch . The inter io r l ight ing
turns on automatically when you unlock the
vehi cle, open a doo r or switch the ignition off .
The interior lighting turns off several seconds
after you close the doors , when you lock the
vehicle or when you switch the ignition on.
When a door is open, the light t urns off after
a few minutes.
51 -Reading lights o n/off
~ -Sw itch ing the rear readi ng lights on/off
from the co ckpit.
I .,.. REAR !* -Switch ing the rear reading lights
on/off from the cockp it .
Ambience lighting
Appl ies to vehicles: wit h ambience lighting
You can adj ust the brightness for the amb i­
ence lighting. .,.
Select in the MM I: ICARlfunction button>
C ar sys tem s control button > Vehicle set­
ting s
> Interio r light ing > Brightne ss .
.,. To increase or reduce the brightness, turn
the knob and press it .
T he ambience lighting turns on when you turn
the headlights on while the ignition is switch­ ed on.
@ Tips
The setting is automatically stored and as­
signed to the remote control key that is in
use.
Instrument illumination
You can adjust the brightness of the instru ­
ment and display illumination as well as the
Head-up Display *.
F ig. 37 In strume nt ill umin ation
.,. Press the knob to re lease it .
~ 0 "'
.,. Tur n the knob toward "-" or"+" to redu ce or
increase the br ightness.
.,. Press the knob aga in to retu rn it to its origi ­
na l position .
(I} Tips
The instrumen t illum ina tion (for dials and
needles) lights on when the ignition is
switc hed o n and the vehicle lights are
turned off . As the daylight fades, the illu ­
mination of the dia ls likewise d ims auto­
matically and will g o out completely when
the outs ide light is very low. This feature is
meant to rem ind yo u to sw itch on the
headlights when outsid e light conditions
be come poo r.

Vision
Sun visors
( J
Fig. 38 Sun v isor
The sun visors for the driver and passenger
can be released from their brackets and
turned toward the doors
c::> fig. 38 @.
The mirror light switches on when the cover
over the vanity mirror @opens.
Sun shad e
Applies to vehicles: with s un shade
The sun shade is located on the luggage com­
partment shelf.
F ig. 3 9 Sun sh ade i n lowe red pos iti on
When the sun shade is in the lowered posi ­
tion, it is secured in the retainer @.
.. To raise @ the sun shade, remove it from
the retainer .
A WARNING
Do not use the sun shade to secure ca rgo .
The luggage compartment cover is not a
surface fo r stor ing objects. Objects placed
on the cover co uld end anger all vehicle oc­
c upants d uri ng sudden braking ma neuvers
or in a cras h. Clear vi
sion 45
Wiper and washer
system
Switching the windshield wipers on
Fi g. 40 W ind shield wiper leve r
Move the w indshie ld w iper lever to the co rre­
sponding position:
@ -Windshield wipers off
©-Rain sensor mode. The windsh ield wipers
switch on once the vehicle speed exceeds ap­
proximately 2 mph (4 km/h) and it is ra ining .
The hig her the rain sensor sensitivity is set
(sw itch @to th e right), the earlier the wind ­
shield wipe rs react to moisture on the w ind­
shield . Yo u can deactivate rain senso r mode in
the MMI, whi ch will then ac tivate inte rm ittent
mode. Se lect:
I CAR I fu nct io n but ton> Car sy s­
tems
contro l button > Driver a ssist > Rain
sensor > Off.
In inte rmittent mode, yo u can
adjust the interval time using the switch @.
@ -Slow w iping
@ -Fast wip ing
© -Single wipe . If you hold the lever in this
position longer, the wipers switch from slow
wip ing to fast w iping.
® -Clean the w indshie ld. The wipers wipe
one time after severa l seconds of driving to
remove water droplets. You can switch this
funct io n off by moving t he lever to pos itio n®
within 10 seconds after the afte rwipe . The af­
terwipe function is reactivated the next time
yo u s witch the igni tion on.
Cleaning the headlig hts . The head light wash ­
er system* only funct ions when the lights are
switched on. The headligh ts and the night
II>

46 Clear vis ion
vision system camera* are cleaned a utomati­
cally the first time the lever is press in posi ­
tion ® and every 8 times it is pressed after
that . They are also cleaned every time you
hold the lever in pos ition ® for longer than 8
seconds .
A WARNING
- The ra in sensor is only des igned to assist
and support the drive r. It remains entire­
ly the dr iver's respons ibility to monito r
o ut side weather conditions and to man­
ually activa te the wipers as soon as rain
or drizzle reduces visibility through the
windshield.
- The windshie ld m ust not be treated with
water -repe llent materials. They can in ­
c rease glare under poor visibi lity condi­
tions such as wetness, darkness, or when
the sun is low on the horizon. In addi­
t ion, they can cause the windshield wip­
ers to chatter .
- Proper ly functioning w indshie ld w iper
blades are required for a clear view and
safe dr iv ing
Q page 46, Replacing
windshield wiper blades .
([) Note
- In the case of frost, check whether the
winds hield wiper b lades are frozen to
the windshie ld. Switching on the wind­
shield wipers can damage the wiper
blades!
- Prior to using a car wash, the wi ndsh ield
wipe r system must be switched off (lever
i n position 0). This helps to preve nt unin­
tention al swi tching on and damage to
the windshie ld w iper system.
- Do no t use the wipe rs to cle ar a fros ted
window. Using the w ipers as a conven­
ient ice scraper will destroy the wiper
b lades .
(D Tips
- The w indshield wi pers are swi tched off
when the ignition is off . Activate the
windsh ield wipers after the ignition is
'
switched back on by moving the w ind ­
shield wiper lever to any position.
- Worn or d irty windshield wipe r blades
result in st reaking. This can affect the
rain sensor function . Check your wind­
shield wiper blades regularly.
- The washer fluid nozz les of the wind ­
shield washer system a re heated at low
tempe rat ures when the ignition is on .
- When stopping temporarily, e.g . at
a
traffic light, the set speed of the wind ­
shield wipers is automatically reduced by
one speed.
Replacing windshield wiper blades
Wiper blades in good condition help keep the
windshield clear .
Fig. 41 Re mov ing w in d sh iel d wipe r bl ades
Service position
... Switch the windshie ld w ipers off (position
@ Q page 45, fig . 40) .
.,. Switch t he ignit ion off and move t he wind ­
shie ld w iper lever to position@Q
page 45,
fig. 40.
Or
.,. Sele ct in the MMI: ICAR lfunction button>
Car sy stem s control button > Servicing
&
checks > Wiper service po sition > On . The
windsh ie ld wipers move in to the service po­
sition.
Removing the wiper blade
.,. Fold t he windsh ie ld w iper arm away from
t he wi ndshield .
.,. Press the locking knob
(D Q fig. 41 on the
wiper blade . Ho ld the wiper blade firmly . ..,.

.. Remove the wiper blade in the direction of
the arrow .
Installing the wiper blade
.. Inse rt the new wiper blade into the moun t
on the w iper arm @until you hea r it latch
i nto place.
.. Place the wiper arm back on the windshie ld .
.. Switch the ignition on.
.. Press the w indshield wiper lever.
Or .. Se lect : ICAR lf u nction button>
Car sy stem s
control button > Servicing & check s > Wiper
se rvice position
> Off .
A WARNING
-If the wi ndshield wipe rs smear the wind­
shield, clean the w iper blades with w ind­
shield washe r fl uid . If the wiper blades
are extremely d irty, yo u can also clean
th em with a soft sponge or cloth.
- For yo ur safe ty, you should replace the
wiper blades once or twice a year . See
yo ur aut horiz e d Aud i dea ler for rep lace­
me nt blades .
(D Note
-The wi ndshield wiper blades mus t only
b e fo lded away when in t he se rv ice posi ­
tion! Otherwise, you risk damaging the
paint on the hoo d or the wi ndshield wip­
e r mo to r.
- Y ou sho uld not m ove y our vehicle or
press the w indshie ld w iper lever when
the wiper arms are folded away from the
windsh ield . The windshield w ipers would
move back into the ir o rig inal position
and could damage the hood and w ind­
s h ield.
- To he lp prevent damage to the wiper sys­
tem, a lways loosen blades which are fro­
zen to the windsh ield before operat ing
wipers.
- To he lp prevent damage to w iper blades,
do not use gasoline, ke rosene, pa int
t hi nner, or othe r solve nts on or nea r th e
wipe r blades. Clear vi
sion 4 7

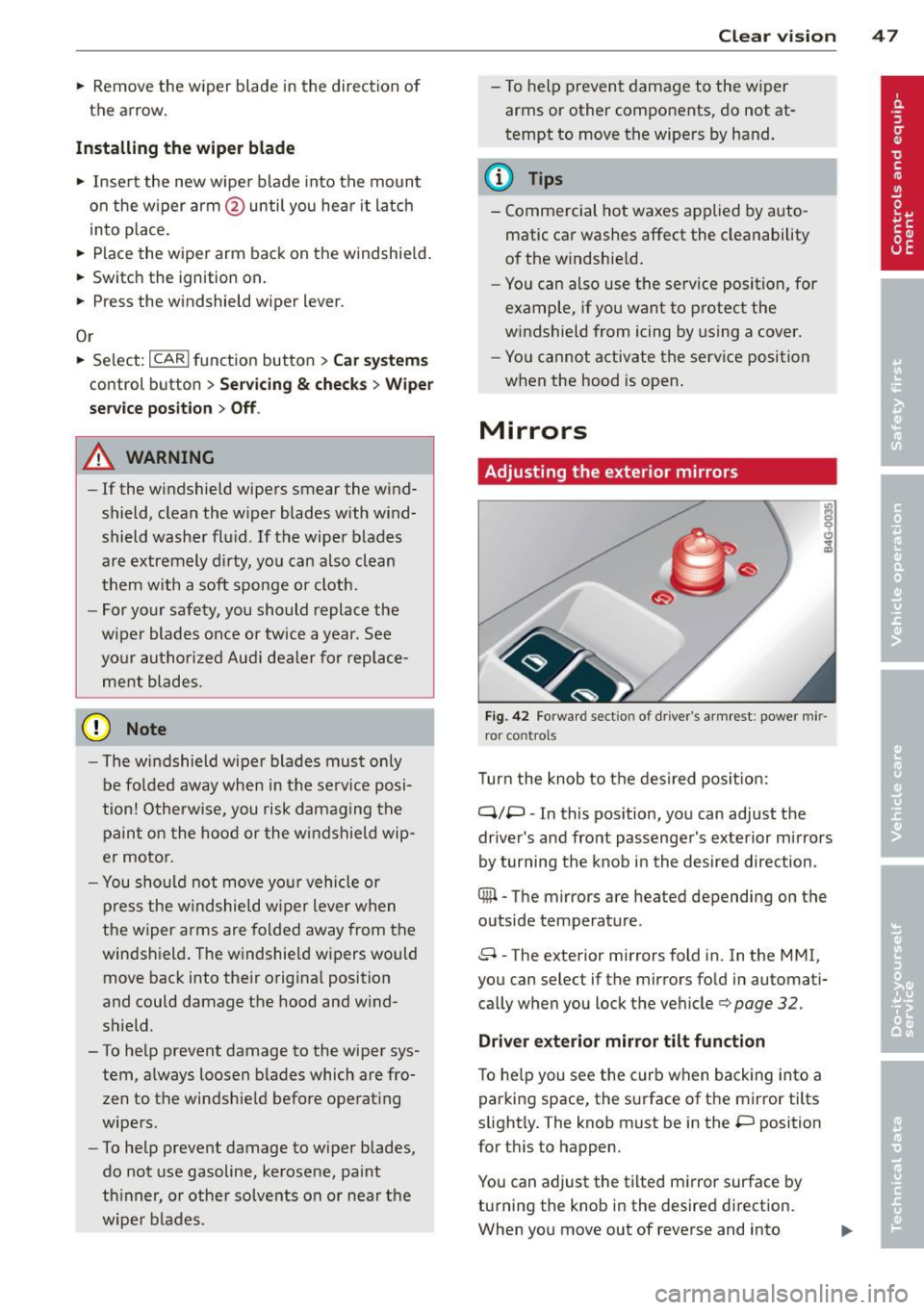

- T o help p revent damage to the wiper
arms or other components, do not at­
tempt to move the wipers by hand.
(D Tips
- Commercial hot waxes appli ed by a uto­
matic ca r washes affect the cleanability
o f the windshie ld .
- Yo u can also use the serv ice po sit ion, for
example, if yo u want to p rotect the
w indshield from icing by using a cover .
- Yo u cannot activate the se rv ice position
w hen the hood is ope n.
Mirrors
Adjusting the exterior mirrors
Fig. 42 Forwar d sect io n of dr ive r's ar mrest : power mir­
r o r cont rol s
Turn the knob to t he des ired po sition:
q;p -In this pos ition, you can adjust the
drive r's and fro nt pass enge r's exte rior mi rrors
by turning the knob in the desired d irection.
® -The mirrors are heated depending on the
outside temperature .
8 -The exterior mirrors fold in. In the MMI,
you can select if the mirrors fo ld in automati­
ca lly when you lock t he vehicle¢
page 32.
Driver exterior mirror tilt function
To he lp you see the curb when backing into a
par king space , the s urface of t he mirror tilts
slight ly. The knob must be in the
P position
for t his to happen .
You can adjust the tilted m irror surface by
turning the kno b in the desire d di rect ion.
When you move out of reverse and into

48 Clear vis ion
another gear, the new mirror position is stor ­
ed and assign ed to the key you a re using.
The mirror goes back in to its origina l posit io n
once yo u drive forward faster than 9 mph (15
km/h) or switch the ignition
off.
~ WARNING
- Curved ( i.e. convex) mirror s urfaces in­
crease your field of view. Remember that
vehicles or other objects will appear
smaller a nd fa rther away than when seen
in a flat m irror . If you use this mirro r to
est imate distances of following vehicles
when changing lanes, you cou ld estimate
incorrectly and cause an ac cident .
-
@ Note
-If the mirro r hous ing is moved uninten ­
t ionally (for example, whi le park ing your
vehicle), then you must first fo ld the mi r­
r or electri cally. Do not readjust the m ir­
r or ho us in g manua lly . You could damage
the motor which con trols the mirror .
- If you wash t he vehi cle in an au tomatic
c ar wash, yo u m ust fold the e xterior m ir­
rors in to reduce the risk of damage to
the mirrors. Never fold power fo lding ex ­
terior mi rrors* by hand. Only fold them
i n and out us ing t he power contro ls.
@ Tips
- The exterior mirror settings are stored
with the memory funct ion *
~ page 53.
- If there is a malfunct ion i n the elect rical
system, you can still adjust the exter ior
mirrors by pressing the edge of the mir­
ror.
Dimming the mirrors
F ig . 4 3 Auto ma tic d immin g rearview mirro r*
Manu al anti-glare adjustment
.,. Move the small leve r (located on the bot­
tom edge of the mirror) to the rear.
Automatically dimming mirrors*
.,. To dim the rearview m irror and both exteri­
or m irrors, press the@ button . The diode
® turns on . The rearview and exterior mir­
rors dim automatically when light shines on
them, for examp le from headlights on ave­
hicle to the rear .
A WARNING
=
Electrolyte fluid can lea k from automatic
d imm ing mirro rs if the g lass is broken .
E lectro lyte fluid can irr itate sk in, eyes a nd
r espira to ry system .
- Repeated or prolonged exposu re to e lec­
trolyte can ca u se irritation to the respira­
t ory sys tem, especially among people
wit h asthma or other resp iratory condi­
tions . Get fresh air immediately by leav ­
ing the vehicle or, if that is not possib le,
open w indows and doors all the way .
- If electrolyte gets into the eyes, fl ush
them thorough ly with large amou nts of
clean water for at least 15 minutes; medical attention is recommended.
- If electrolyte contacts skin, fl ush affect­
ed area with clean water for at least 15 minutes a nd then wash affected area
with soap and water; medical atte ntion
is recommended. Thoroughly wash af­
fect ed clothing and shoes before re use .
