sensor AUDI A7 2013 User Guide

@ Tips
The instrument illumination (for dials and
needles) lights on when the ign it ion is
sw itched on and the vehicle lig hts are
turned off. As the daylight fades, the ill u­
m ination of the dials likewise dims auto ­
mat ically and w ill go out comp lete ly when
the o utside lig ht is ve ry low . This fea ture is
meant to remi nd you t o swit ch on the
headl igh ts when o utside light condi tions
become poor.
Vision
Sun visors
( J
F ig . 39 Sun v isor
The sun visors for the driver and passenger
can b e released from their brackets and
turned tow ard the doors ¢
fig. 39@.
The mirror light switches on when the cover
over the vanity mirror @opens.
Sun shade
Applies to vehicles: with sun shade
The sun shade is located on the luggage com ­
partment shelf.
a a
F ig . 40 Sun s hade i n lowe red pos it io n
Clear vi sion 4 7
When the sun shade is in the lowered posi ­
tion, it is secured in t he retainer @.
1-To raise @the s un shade , remove it from
t he re tainer.
_& WARNING ..
Do not use t he sun shade to secure cargo .
The luggage compartment cove r is not a
surface for storing objects . Objects p laced
on the cover could endanger all ve hicle oc­
cupants dur ing sudden braking maneuvers
or i n a c rash .
Wiper and washer
system
Switching the windshield wipers on
Fi g. 4 1 Windshi eld wipe r leve r
Move the windshie ld w iper lever to the corre­
sponding position:
@ -Windshield wipe rs off
@ -Rain senso r mode . The windsh ield wipers
switch on once the veh icle speed exceeds ap ­
proximate ly 2 mph (4 km/h) and it is ra ining .
T he hig her the rain senso r sens it ivity is set
(sw itch @to th e r ight) , the earlier the wind­
shield wipers react to mois ture on the w ind­
shield. Yo u can deactivate rain sensor mode in
the MMI, which will then activate interm ittent
mode. Se lect: ICAR ifunct ion button>
(Car )*
systems
contro l button > Driver assist > Rain
sensor > Off .
In interm ittent mode, yo u can
adjust the interval time using the switch @.
@ -Slow w ip ing
@ -Fast wip ing

48 Clear vis ion
© -Single wipe . If you hold the lever in this
position longer, the wipers switch from slow
wiping to fast wip ing.
® -Clean the windshield . T he wipers wipe
one time after several seconds o f driv ing to
remove water drop lets . You can switch this
function off by moving the lever to position ®
within 10 seconds after the afterw ipe. The af­
terw ipe funct ion is react ivated the next time
you switch the ig nition on .
C leaning the headlights *. The headlight wash­
er system* operates on ly when the headlights
are on. If you move the lever to pos ition ®,
the head lights and the nig ht vision assistant
camera* are washed in intervals .
A WARNING
- The ra in sensor is only des igned to assist
and support the drive r.
It remains entire­
ly the dr iver's respons ibility to monito r
o utside wea ther conditions and to man­
ually activate the wipers as soon as rain
or drizzle reduces visib ility through the
windshield.
- The windshie ld must not be treated with
water-repe llent materials. They can in­
crease glare under poor visib ility condi­
t ions such as wetness, darkness, or when
the sun is low on the horizon. In addi­
t io n, they can cause the wi ndshield wip­
ers to chatter .
- Properly fu nctioning windshie ld w iper
blades are required fo r a clear view and
safe dr iv ing
c::> page 48, Replacing
windshield wiper blades .
(D Note
- In the case of frost, check whether the
winds hield wiper b lades a re frozen to
the windshie ld. Switching on the wind­
s h ield wipers can damage the wipe r
blades!
- Prior to using a car wash, the windshield
wipe r system must be switched off (lever
i n position @). This helps to prevent un­
i ntent ional sw itching on and damage to
the windshie ld w iper system. - Do not
use the w ipers to clear a frosted
w indow . Us ing the wipers as a conven­
ient ice scrape r will destroy the wiper
blades.
(D Tips
- The windshie ld w ipers are switched off
w hen the ignit ion is off. Activate the
w indshield wipers after the ign ition is
switched back on by moving the w ind­
shield wiper lever to any position .
- Worn or d irty windshield wiper blades
result in streaking. This can affect the
rain sensor function . Check your wind­
shield wiper blades regularly.
- The washer fluid nozz les of the wind­
shield washe r system a re heated at low
tempe rat ures when the ignition is on .
- Whe n stopping temporarily, e.g . at a
traffic light, the set speed of the wind­
shield w ipe rs is automatically reduced by
one speed.
Replacing windshield wiper blades
Wiper blades in good condition help keep the
windshield clear .
Fig. 42 Remov ing w indsh ie ld wiper b lades
Service position
.,. Switch the windsh ie ld w ipers o ff (position
@ c::>fig. 41).
.,. Switch the ignition off and move t he wind ­
shie ld w iper lever to position ©
c::> fig. 41.
Or
.,. Select in the MMI: ICAR I function bu tton >
(Car) * system s control b utton > Servicing &
check s > Wiper service position > On . The ..,.

86 Audi adapti ve cruise control and bra king gu ard
Audi adaptive cruise
control and braking
guard
Introduction
App lies to vehicles: with Audi adaptive cruise co ntrol
The adaptive cruise control system assists the
driver by regu lat ing vehicle speed and helping
to maintain a set distance to the vehicle
ahead, within the limits of the system.
If the
system detects a moving vehicle up ahead,
adaptive cruise control can brake and then ac­
celerate your vehicle. This helps to make driv­
ing more comfortable both on long highway
stretches and in stop-and-go traffic.
The braking guard system can warn you about
an impending collision and initiate braking
maneuvers
c:::> page 92.
Adaptive cruise control and braking guard
have technical limitations that you must
know, so please read this section carefully, un­
derstand how the system works and use them
properly at all times.
General information
General information
Applies to vehicles: with Audi adaptive cruise co ntrol
Fig. 86 Front of the veh icle: sensors and video camera
The areas that conta in the radar and ultrason­
ic sensors and the v ideo camera
c:::> fig. 86
must neve r be cove red by stic kers or other ob­
jects or obstructed w ith dirt, insects, snow or
i ce that will interfere with the adaptive cruise
control system and braking guard. For infor­
mation on cleaning, refer to
c:::> page 216. The same applies for any modifications made in
the front area.
T he function of the adaptive cru ise contro l
system and braking guard is limited under
some cond itions:
- Objects can only be de tected when they are
w ith in sensor range
c:::> fig . 89.
-The system has a limited ability to detect
objects that are a short d istance ahead, off
to the side of your vehi cle or mov ing into
your lane.
- Some kinds of ve hicles are hard to detect;
for examp le motorcycles, veh icles with high
ground clearance or overhanging loads may
be detected when it is too late or they may
not be detected at all.
-When driving through curves
c!,>page 87 .
-Stat ionary objec ts c:::> page 87.
& WARNING
A lways pay attention to traffic when adap ­
tive cruise contro l is switched on and brak­
ing g uard is active. As the dr iver, you are
still respons ible for starting and for main­
taining speed and distance to other ob­
jects. Braking guard is used to assist you .
The dr iver must a lways take action to avo id
a collis ion . The driver is a lways respons ible
fo r braking a t the co rrec t time.
- Imp roper use of adaptive cru ise control
can cause collisions, other acc idents and
serious pe rsonal in jury.
- Never let the comfort and convenience
that adaptive cruise control and braking gua rd offer d istract you from the need to
be alert to traffic condit ions and the
need to rema in in fu ll control of your ve­
h icle at a ll times,
- Always remember that the adaptive
cruise control and braking guard have
limits -they will not s low the vehicle
down or maintain the set distance when
you drive towards an obstacle or some­
thing on or near the road that is not
mov ing, such as vehicles stopped in a
traffic jam, a stalled o r disabled vehicle.
I f registered by the radar sensors,

Audi adapt ive crui se c ontrol an d bra kin g guard 8 7
vehicles or obstacles that are not moving
can trigger a collision warning and if con­
firmed by the video camera, an acute col­ lis ion warn ing.
- For safety reasons, do not use adaptive
cruise control when driving on roads with
many curves, when the road surface is in
poor condit ion and/or in bad weather
(such as ice, fog, gravel, heavy rain and
hydroplan ing). Using the system under
these cond itions cou ld result in a co lli ­
sion .
- Switch adaptive c ruise control off tempo­
rar ily when driv ing in turning lanes, on
expressway exits or in construction
zones . This prevents the vehicle from ac­
celerating to the set speed when in these
situations .
- The adapt ive cru ise control system w ill
not brake by itse lf if you put your foot on
the accelerator pedal. Doing so can over­ ride the speed and distance regulation .
- When approaching stationary objects such as stopped traffic, adaptive cruise
control will not respond and braking
guard w ill have limited function.
- The adapt ive cruise control system and
braking guard do not react to people , an­
ima ls, objects crossing the road o r on­
coming objects .
- The function of the radar sensors can be
affected by reflective objects such as
guard ra ils, the entra nce to a tunnel,
he avy rain or i ce.
- Never follow a veh icle so closely that you
cannot stop your vehicle safe ly. The
adaptive cruise cont ro l c anno t slow or
brake the veh icle safely when you follow
another vehicle too closely. Always re­
member that the automatic braking
funct ion cannot bring the veh icle to a
sudden or emergency stop under these
condit ions .
- To prevent unintended operation, always
switch ACC off when it is not be ing used. (D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. That cou ld affect the adaptive
cruise control system and brak ing guard .
Have your authorized Aud i dea le r or a u­
thorized Audi Serv ice Facility check their
funct ion.

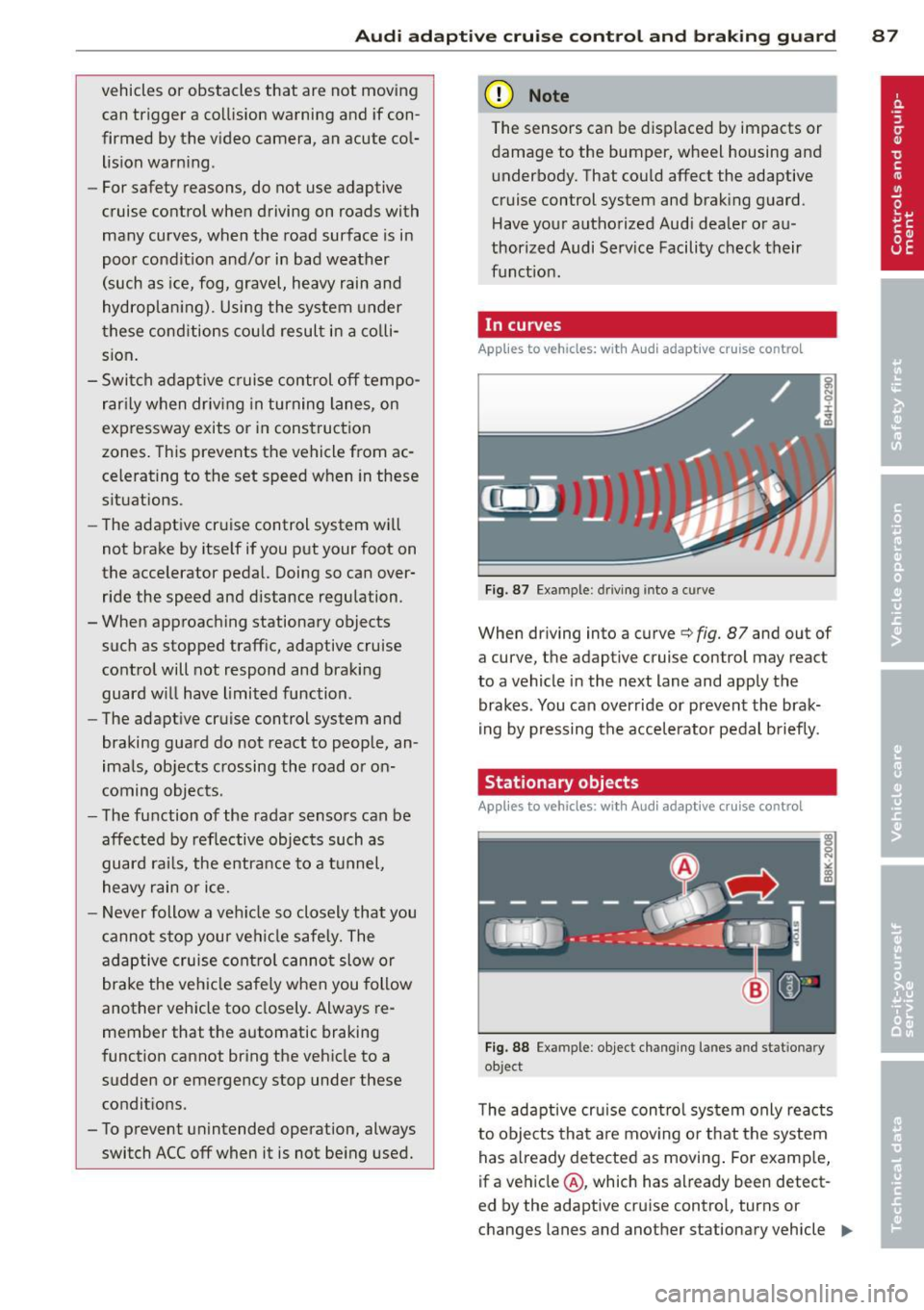

In curves
Applies to vehicles: with Audi adaptive cruise control
I
F ig. 8 7 Exampl e: dri vin g in to a curve
When dr iving into a curve c:> fig. 87 and out of
a cu rve, the ad aptive cruise con trol m ay react
to a vehicle in the next lane and apply the
brakes . You can override or prevent the brak­
i ng by pressing the accelerator pedal b riefly.
Stationary objects
Applies to vehicles: with Audi adaptive cruise control
Fig. 88 Ex ampl e: object chang ing l anes and s ta tio nar y
objec t
The adaptive cru ise con tro l system only reacts
to objects that a re mov ing o r th at the system
has a lready detected as moving . For examp le,
if a veh icle @, which has a lready been detect-
ed by the adaptive c ruise contro l, tu rns o r
changes lane s and another stationary vehicle .,._

92 Audi adaptive cruise control and braking guard
Audi braking guard
Descript ion
App lies to vehicles: with Audi adap tive cruise control
Fig. 96 Instrument cluster: approach warn ing
Braking guard uses radar sensors and a video
camera . It also functions within the limits of
the system when adapt ive cruise control is
switched off .
What can braking guard do?
When detected in time, the system can assess
situations when a vehicle ahead brakes sud­
denly or if your own vehicle is traveling at a
high speed and approaching a vehicle up
ahead that is moving more slowly . Brak ing
guard does not react if it cannot detect the
situation .
The system advises you of various situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time. If
the vehicle ahead brakes sharply, you will not be able to avoid a collision . The indicator
light
I in the display comes on .
- The
approach warning is given when a de­
tected veh icle up ahead in your lane is mov ­
i ng much more slowly than you are or if it
brakes sharply . When this warning is given,
it may only be possible to avoid a collision
by swerving or braking sharply. Th e indicator
light
I and indicato r in the display will warn
you about the danger¢
fig. 96. You will a lso
hear an acoustic signal.
If you do not react fast enough or do not react
at all to the situation, braking guard will inter-
ll This is not ava ilable in some co un tri es .
vene by braking and the message braking
guard intervention
wi ll appear.
- If a coll is ion is imm inent, the system wi ll
fi rst prov ide an
acute warning by briefly and
sharply applying the brakes.
- If you do not react to the acute warning,
braking guard can brake with increas ing
force within the limits of the system . This
reduces the vehicle speed in the event of a
collision.
- The system can initiate maximum braking
short ly before a co llision
1l . Full deceleration
at high speeds occurs only in vehicles with
adaptive cruise control and side assist (pre
sense plus) .
- If the braking guard senses that you are not
braking hard enough when a collision is im­
m inent, it can increase the braking force .
- The pre sense functions also engage when a
collision is imminent¢
page 194.
Which function s can be controlled?
You can switch braking guard and the dis­
tance/approach warning on or off in the MMI
i=> page 93, Settings in the MMI.
A WARNING
-
Lack of attention can cause collisions, oth-
er accidents and serious personal injuries.
The braking guard is an assist system and
cannot prevent a collision by itself . The
driver must always intervene. The dr iver is
a lways respons ible for braking at the cor­
rect time.
- Always pay close attention to traffic,
even when the braking guard is switched
on. Be ready to intervene and be ready to
take complete control whenever necessa­
ry. Always keep the safe and legal dis­
tance between your veh icle and vehicles
up ahead.
- Braking guard works within limits and
will not respond outside the system lim­
its, for example when approaching a
stopped vehicle or stationary obstacle ..,.

Audi adaptive cru ise control and brakin g guar d 93
(end of a traffic jam or veh icle t hat has
br oken down in traffic).
- Alw ays remember that the radar sensor
for the b raking guard works only within
defined detection and ra nge limits that
may prev ent the proper det ection of oth­
er ve hicles.
- The ra dar sensor's function and range
can be reduced by rain, snow and heavy
spray. Moving vehicles up ahead may not
be promptly detected or may not be de­
tected at al l.
- Reflective surfaces includ ing crash barr i­
ers or tunnel ent rances may impair the
function of the radar sensor.
(0 Tips
- You can cance l the braking w ith increas­
i ng fo rce that is initiated by the system
by braking yo urself, by accelerating no­
ticeab ly or by swerving.
- Brak ing guard error messages
<=> page 93.
-Keep in mind that braking guard can
brake unexpectedly. Always secure any
ca rgo or objec ts that you are transport ­
i ng to reduce t he risk of d amage o r in­
Ju ry.
Settings in the MMI
Appl ies to vehicles: with Audi adaptive cruise co ntrol
~ Se lect: ICARlf unct ion button> ( Car )* sys­
tems
contro l button > D river assi st > Audi
braking guard .
System -
Switch braking g ua rd On and Off .
When you sw itch the ignition on, the message
Audi braking guard off appears if the system
is switched off.
Early warning -The distance and approac h
warn ings in the display can be switched
On /
Off .
(D Tips
- Your settings are automatically stored
and assigned to the remote control key being used at the time the settings
are
ma de.
- If you switch the ES C to spo rt mode,
braking g uard switches off a utomatica lly
<=>page 198.
- Switch braking guard off when you a re
loading the vehicle onto a vehicle carrier,
t rain, ship o r other type of transporta­
t ion. This can prevent undesired warn­
ings from the braking guard system.
Messages
App lies to vehicles : wit h Audi ada ptive c ruise contro l
ACC unavail able
ACC and braking guard: unavailable
T he system cannot detect mov ing vehicles up
ahead co rrec tly and is switched off. The sen­
sors have been displaced or a re not worki ng
properly . The Audi pre sense func tions may a l­
so be affected. Drive to yo ur autho rized Audi
dealer or authorized A udi se rvice facility im­
med iate ly to have the malfunction corrected.
ACC: unavailable at this time. No sensor vi­
sion
ACC and braking guide: unavailable at this
time . No sensor vision
Th is message appears if the senso r view is ob­
structed, for examp le by leaves, snow, heavy
sp ray or d irt. C lean the sensors<=>
fig. 86 .
ACC: unava ilabl e at this time . Inclin e too
steep
The road exceeds the max imum possible an­
gle for proper adaptive cru ise control opera­
tion. Adaptive cru ise con tro l is switched off .
ACC: only selector lever positions D , S or M
available
Se lect t he D/S or M selector leve r pos ition.
ACC: unavailabl e at this time . Parking brake
s et
The adaptive cr uise cont rol system switches
off automatically if the park ing b rake is set. ..,.

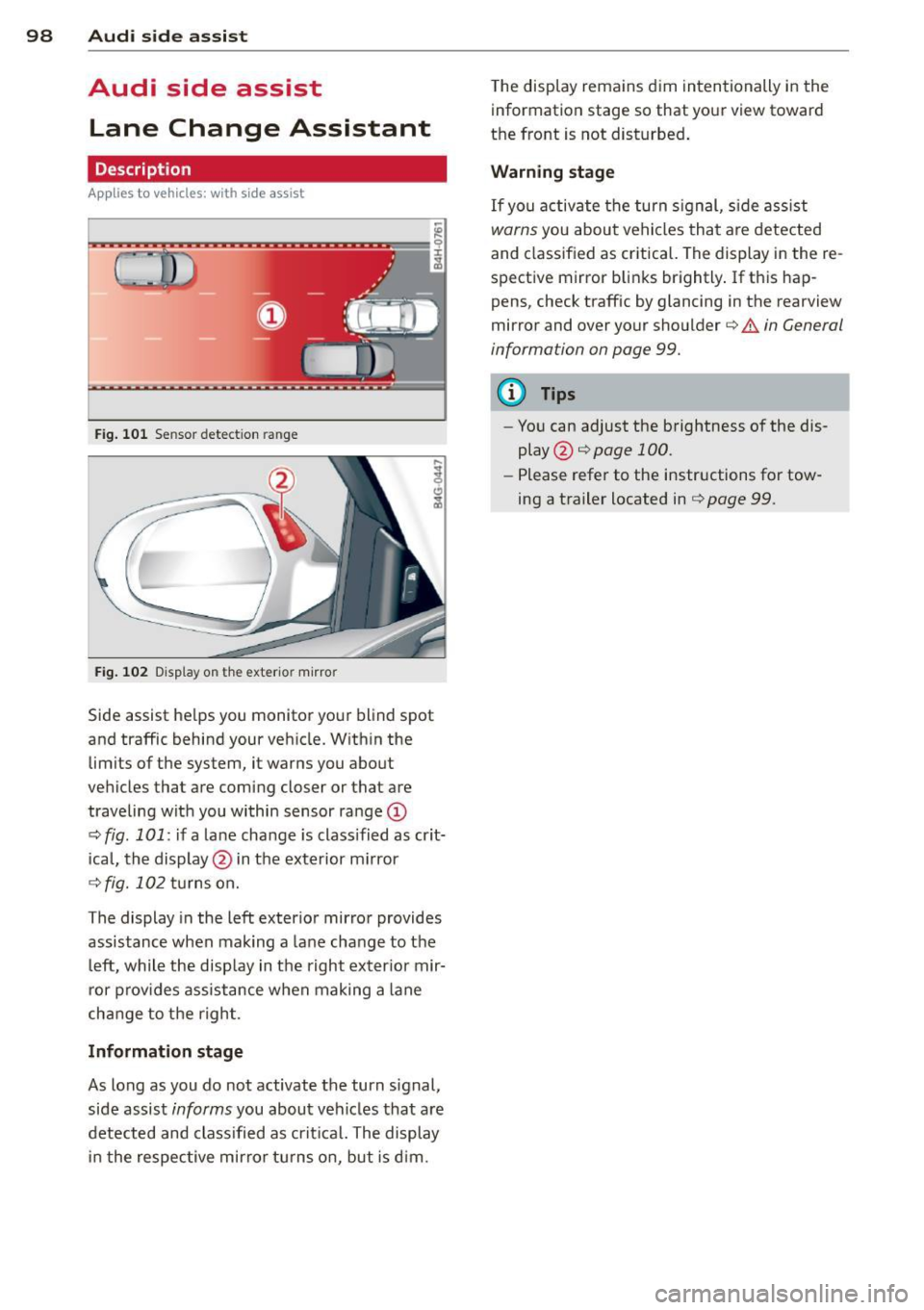

98 Audi side assist
Audi side assist
Lane Change Assistant
Description
App lies to vehicles: wit h side ass ist
Fig . 101 Sensor detectio n ran ge
Fig. 102 Display on the exterio r mirro r
Side assist helps you monitor your blind spot
and traffic behind your vehicle. Within the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling with you within sensor range
(D
c:> fig . 101: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
¢fig. 102 turns on.
The display in the left exterior mirror provides
assistance when mak ing a lane change to the
left, while the display in the right exterior mir·
ror provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critical. The display
in the respective mirror turns on, but is dim. The
display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed.
Warning stage
If you activate the turn signal, side assist
warns you about vehicles that are detected
and class ified as critical. The display in the re­
spective mirror blinks brightly. If this hap­
pens, check traffic by glancing in the rearview
mirror and over your shoulder c:>
.&. in General
information on page 99.
(D Tips
- You can adjust the brightness of the dis­
play @c:>
page 100.
-Please refer to the instructions for tow·
ing a trailer located in
¢ page 99.

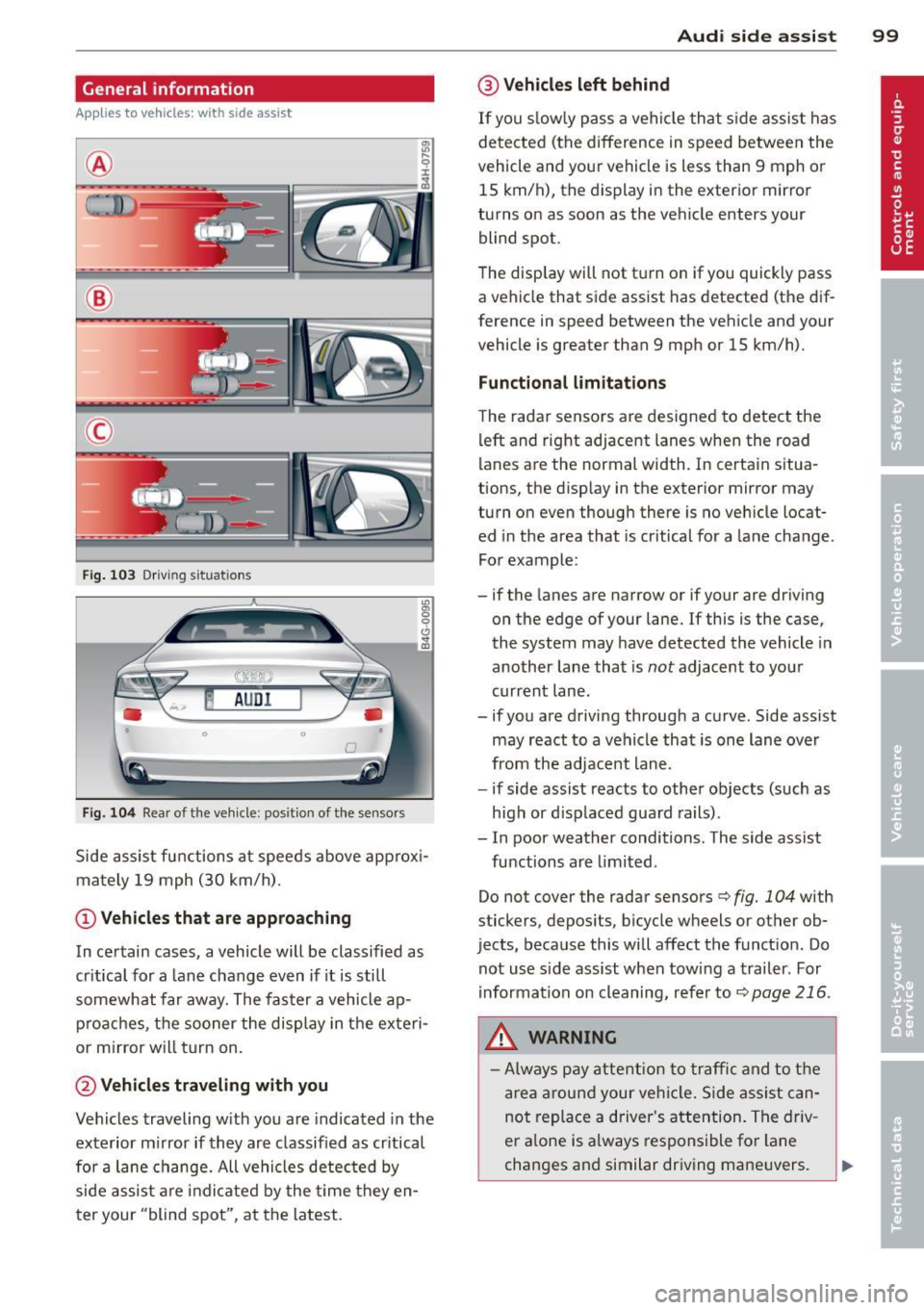

General information
Applies to vehicles: with side ass ist
®
©
Fig . 103 Dr iving situations
Fig. 104 Rear of t he ve hicle: positio n of t he se nsors
"' a, 0 0 " a,
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The faster a vehicle ap­
p roaches, the sooner the display in the exteri­
or m irror will t urn on.
@ Vehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
Audi side assist 99
@ Veh icle s left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph or
15 km/h), the display in the exterior mirror
turns on as soon as the vehicle enters your blind spot.
The disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the vehicle and your
vehicle is greater than 9 mph or 15 km/h).
Functi onal limitation s
The radar sensors are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the d isp lay in the exterior mirror may
turn on even though there is no veh icle locat­
ed in the area that is cr itical for a lane change.
For example:
- if the lanes are narrow or if your are dr iving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane .
- if you a re driving through a curve. Side assist
may react to a vehicle that is one lane ove r
from the adjacent lane.
- if side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are l imited .
Do not cover the radar sensors
c> fig. 104 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer. For
i nformation on cleaning, refer to
c> page 216 .
_&. WARNING
-Always pay attention to traffic and to t he
area around your ve hicl e. S ide assist can­
not replace a driver's attention. The driv­
er a lone is always responsible for lane
changes and similar driving mane uvers.

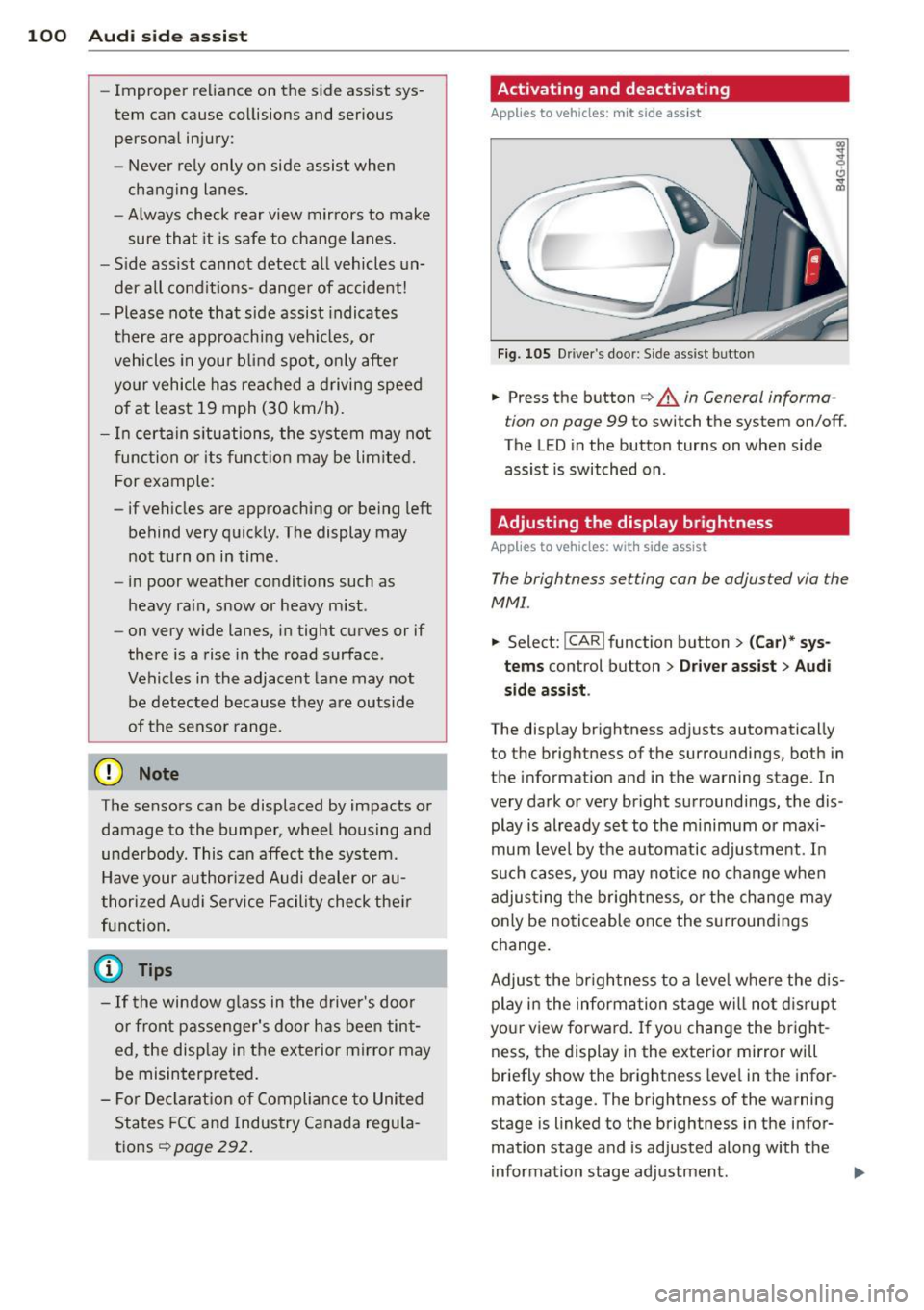

100 Audi side assist
-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if veh icles are approaching or being left
behind very quickly . The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system.
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
@ Tips
- If the window glass in the driver's door
or front passenger's door has been tint­ ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 292.
Activating and deactivating
Applies to vehicles: rnit s ide ass ist
Fig. 105 Driver's door: Side ass ist butto n
.. Press the button c> & in General informa­
tion on page 99
to switch the system on/off.
The LED in the button turns on when side
assist is switched on.
Adjusting the display brightness
Applies to vehicles: wit h side assist
The brightness setting con be adjusted via the
MMI.
.. Select: !CAR ! function button> (Car)* sys­
tems control button > Driver assist > Audi
side assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage. In
very dark or very bright surroundings, the dis­
play is already set to the minimum or maxi­
mum level by the automatic adjustment. In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the informa tion stage will not disrupt
yo ur view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness leve l in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor­
mation stage and is adjusted along with the
information stage adjustment .

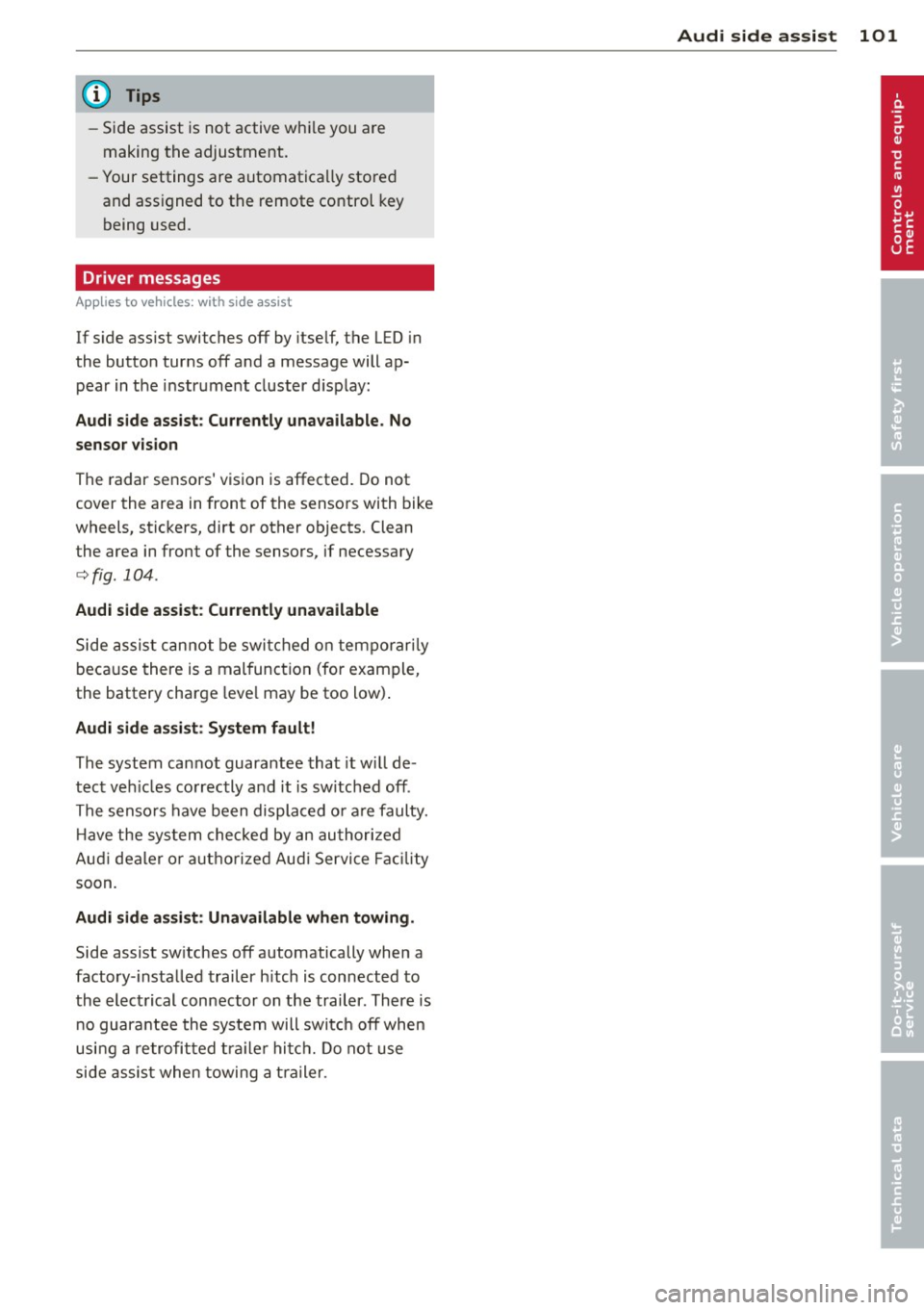

@ Tips
-Side assist is not active while you are
making the adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.
Driver messages
App lies to vehicles: with side assist
If side assist switches off by itself, the LED in
the button turns off and a message will ap­
pear in the instrument cluster display:
Audi side assist: Currently unavailable. No
sensor vision
The radar sensors' vision is affected. Do not
cover the area in front of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
c>fig. 104 .
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily
because there is a malfunction (for example,
the battery charge level may be too low).
Audi side assist: System fault!
The system cannot guarantee that it will de ­
tect vehicles correctly and it is switched off .
The sensors have been displaced or are faulty.
Have the system checked by an authorized
Audi dealer or authorized Audi Service Facility
soon.
Audi side assist: Unavailable when towing.
Side assist switches off automatically when a
factory-installed trailer hitch is connected to
the electrical connector on the trailer. There is
no guarantee the system will switch off when
using a retrofitted trailer hitch. Do not use
side assist when towing a trailer.
Audi side assist 101
