14 Instrum ent s and w arn ing /indic ato r light s
tm
USA models:
!!
Battery in remote control key
Ant i- lock b raking system (ABS)
¢ page 3 3
defective ,/
¢ page20
l:i
Defective light b ulb warn ing
¢page 22
I [I]
Canada model s:
Anti-lock b raking system (ABS)
II
Rear fog light(s)
defective ,/
¢page22
I ¢page20
•
Worn brake pads
II
Headlight range control
¢page22
¢ page 21
- -
:rm
Electromechanical parking brake
rll
adaptive light *
¢page22
¢page 78
g
Tire pressure monitoring system
m
Light-/rain sensor faulty
¢page 22
,I
¢page264
•
Audi active lane assist*
lliii~1 Tire pressure monitoring system ¢page96
¢page264 Transmission (tiptronic ®)
Electronic power contro l ,/
rm
Im
¢page 114
¢ page 21
R1
Transmission
I.
Malfunction indicator Lamp (MIL)
- S tronic® ¢page 114
,I
¢page21
•
Electronic steering column lock
.,
Engine speed limitation ¢page
18
¢ page 21
.,
Engine start system
•
Engine oil level ¢page
18
¢page 18
£1,ij
Electromechanical steering ./
•
Engine oil sensor ¢
page 201
¢ page 21
•
Air suspension*
-1
Battery ¢page
19
¢page 17
•
Sport differentia l*
Ill
Tank system ¢page
23
¢page22
11
Rear spoiler
•
Windshield washer fluid level ¢page
198
¢page22
m
Windshie ld wipers
¢ page22
!I
Remote control key
¢page 75
m
Remote contro l key
¢ page 78

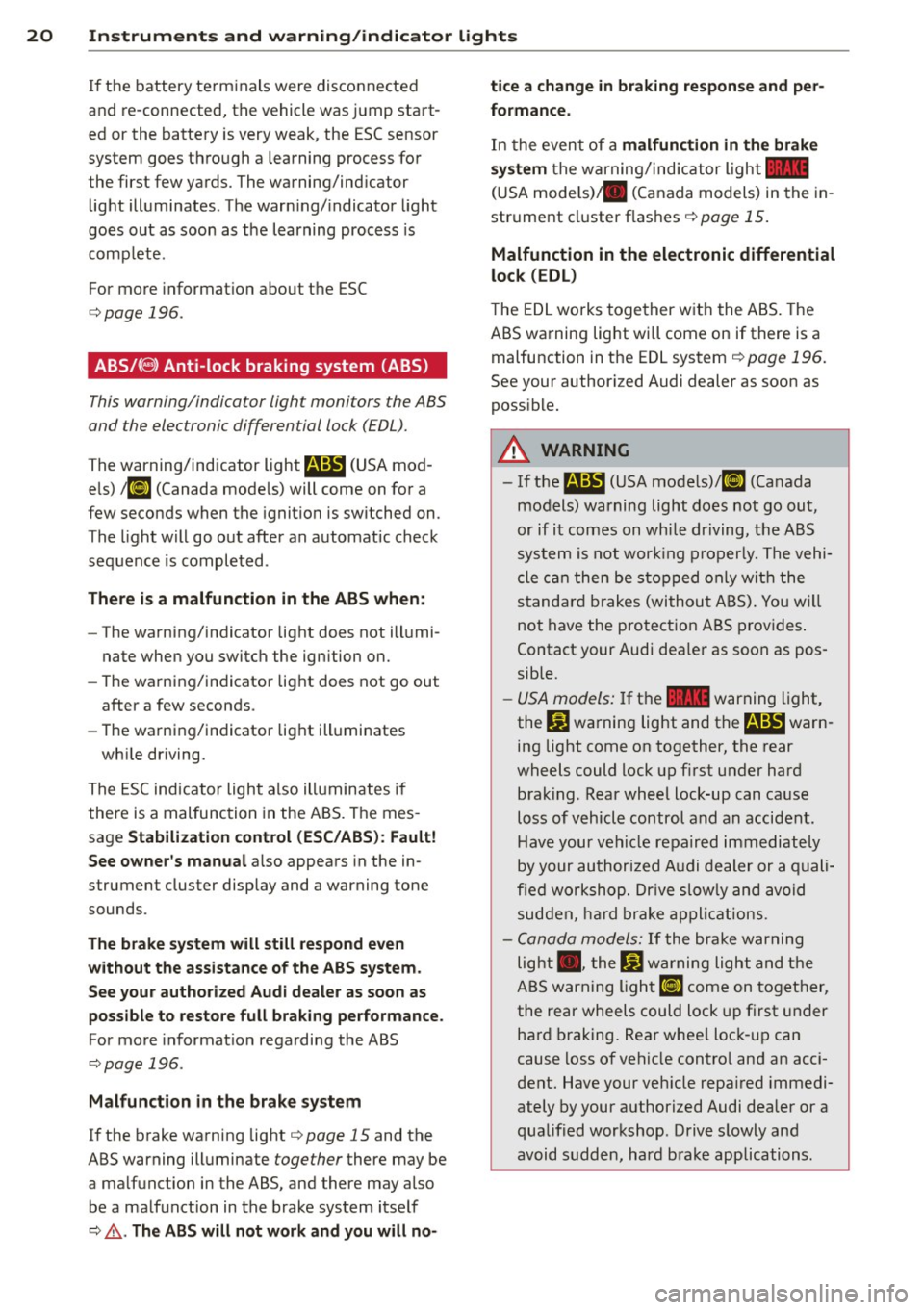

20 Instruments and warning/indicator lights
If the battery te rm inals were disconnected
and re-connected, the vehicle was j ump sta rt­
ed or the batte ry is very weak, the ESC sensor
system goes through a learning process for
the first few yards. The warning/ind icator
light illuminates . The war ning/ indicato r light
goes out as soon as the learning proc ess is
comp lete .
For more informat io n about t he ESC
¢ page 196.
ABS/( @) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differ ential lock (EDL).
The warning/indicator light E (USA mod­
e ls)
;£1 (Canada mode ls) will come on fo r a
few seconds when the ignition is switched on.
The light will go out after an a utomat ic chec k
se quence is completed .
There is a malfunction in the ABS when :
-The warning/ indicator lig ht d oes not ill umi ­
nate whe n you switch the ign ition on.
- The wa rning/i ndicator lig ht does not go out
after a few seconds .
- The warning/indicator lig ht illumi nates
wh ile driving.
T he ESC ind ic a tor light a lso ill umin ates if
the re is a mal func tion in the A BS. T he mes ­
sage
Stabilization control (ESC/ABS ): Fault!
See owner's manual
a lso appears in the in ­
strument cluster disp lay and a warning tone
s o unds .
The brake system will still respond even
without the assistance of the ABS system .
See your authorized Audi dealer as soon as possible to restore full braking performance.
For more informat io n regarding the ABS
¢ page 196.
Malfunction in the brake system
If the brake wa rn ing light ¢ page 15 and the
ABS warning ill uminate
together there may be
a ma lfunction in the ABS, and there may also
be a ma lf u nct ion in the brake system itself
c::> /1. . The ABS will not work and you will no- tice a change in braking respon
se and per­
formance .
In the even t of a malfunction in the brake
system
t he warning/ind ic at or ligh t 11111
(U SA mode ls)/ . (Canada models) in the in ­
str ument cl uster flas hes
c::> page 15 .
Malfunction in the electronic differential
lock (EDL)
The E DL works toge ther w it h the AB S. T he
ABS wa rnin g light wi ll come on if there is a
malfu nction in t he EDL system
c::> page 196.
See your author ized Audi dealer as soon as
poss ib le .
A WARNING
-- If the E (USA mode ls)/ rl] (Canada
mo dels) warning light does not go ou t,
or if i t com es on whi le driving, t he ABS
s y st em is not wor king pr ope rly. The vehi ­
cle can the n be st opped only wit h the
s ta nda rd b ra kes (withou t A BS) . Yo u w ill
not have the protect ion A BS provides .
Contact your Audi dea le r as soon as pos­
sible.
- USA models: If t he 11111 warning light,
the
J_j) wa rnin g light and t he E warn­
ing light come on together, the rear
wheels could lock up f irst under hard
b rak ing. Rear wheel lock-up can ca use
loss of vehicl e co ntrol and an accident.
Hav e your ve hicle repair ed imm ediat ely
by y our authori zed A udi deale r or a quali­
fi ed work sh op. Dr ive slo wly and avoid
sud de n, hard bra ke applicat ions.
-Canada models: If the br ake w arn ing
ligh t. , the
G1 wa rning light a nd th e
A BS warning ligh t
SJ come on together,
the rear wheels could lock up first under
ha rd br aking. Rea r whee l loc k-u p can
cause loss of vehicle con tro l an d an acci­
dent. Have your veh icle repa ired immedi ­
ately by your authorized Audi dealer or a
qualified works hop. Drive s lowly a nd
avoid sudde n, hard b ra ke app lications.
-

Instrument s and warnin g/indic ator ligh ts 21
(0 ) Worn brake pads
rl] Brak e pad s!
If the warn ing light illum inates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­
ed. On USA models the wa rning light
rl]
comes on togethe r with the warn ing light
.. . Both sets of b rake pads on an axle
must always be replaced at the same time .
~ WARNING
Driving with bad brakes can cause a coll i­
sion and serious personal injury.
- If the warning light rl] and the wa rning
light ..
1> with the message Bra ke
pads !
comes on in the instrument cluster
display, immediately contact your au­
thorized Aud i dea ler or qualified work­
shop to have all brake pads checked or
replaced if necessary .
EPC Electronic power control
This warning/indicator light monitors the
electronic power control .
The Im warning/ indicator light (Electron ic
Power Control) illuminates when you switch
the ignition on as a function check .
(!) Tips
If this wa rning/indicator light ill uminates
while you are dr iving, then there is a mal­
function in the engine electron ics . Have
the malfunction co rrected as soon as pos­
sible by you r autho rized Aud i dea le r or
qua lified repair fa cility.
o Malfunction Indicator Lamp (MIL)
The Malfunc tion Ind icator Lamp (M IL) is par t
of the On -Boa rd Diagnostic (OB D II) system.
The symbol ¢• tights up when the ignition is
switched on and w ill tur n off after the engine
has started and has sett led at a constant id le
1 ) - : USA mod els on ly
-
speed. This indicates that the M IL is work ing
properly .
T he wa rni ng lig ht ill uminates w hen the re is a
malfu nction in t he engine electron ic system .
Contact your a uth orized Audi dea ler and have
the malfunction corrected .
An imprope rly closed fuel fille r cap may a lso
ca use the M IL light to illuminate~
page 2 2 7 .
Fo r more information ~ page 29.
!?) Engine speed limitation
App lies to vehicles: wit h eng ine speed limitat ion
(I! Engine sp ee d maximum XXXX RPM
The eng ine speed is automatically limited to
the speed d isplayed in the driver information
system. Th is protects the engine from over­
heating.
The eng ine speed limitation deactivates once
the engine is no longer in the critical tempera­
tu re range and you have re leased the accelera­
tor pedal once.
If the engine speed limitation was activated
by an engine control malfunction, the indica­
tor light
Im a lso tu rns on. Make sure that the
speed does not go above the speed disp layed.
Drive to your authori zed A udi dealer immedi ­
ate ly to have the ma lfunction corrected.
~. Engine oil level
II Add oil, max. x qt (l). You may continue
dri ving
When the symbol II and driver message ap­
pear, add the amount of oil appearing in the
display at the next opportunity ~
page 235.
~tt• Engine oil sensor
Ill Oil level! Sensor defective
If the symbol illumina tes, contact yo ur au ­
thorized Audi dea ler and have the oil sensor
inspected. Until yo u have this done, check the .,..

22 Instruments and warning/indicator lights
oil leve l each time you re fuel just to be on the
safe side¢
page 235.
Bi) Fuel level indicator
II Please refuel
If the indicator light turns on fo r th e f irst
time and the message a ppears, there are
about 2 .6 gallons (10 liters) of f ue l left in the
tank . Time to refuel¢
page 226.
(I Tank sy stem malfunction! Contact dealer
If t he indicator light tu rns on and th is mes­
sage a ppears, t he re is a ma lfu nc tion in the
ta nk syste m.
D rive to yo ur autho rized Aud i deale r immedi­
ately to have the malfunction cor recte d.
<;;:> Windshield washer fluid level
-· Please refill wa sher fluid
If the symbol illum inates, add windshield
washer fluid to the washer system/headlight
washer system *¢
page 244.
~ Windshield wipers
t•5 Wind shield wiper defective
Th ere is a malfunct io n w ith the w indshield
wipers .
Drive to yo ur autho rized Aud i deale r immedi­
ately to have the malfunc tion cor rected .
i§il0$ Defective light bulb warning
ra'J -If the ind icator light turns on, a b ulb has
fa iled. The message indica tes the loca tion o f
the bulb .
II-if a rea r fog lam p has fa iled, the ind icator
light t urns on to indica te the locat ion on t he
ve hicl e.
Vehicle lights: malfunct ion
If the message appears, there is a mal func ­
ti on in the headlights or lig ht switch . D
rive to your authori zed A udi dealer immedi ­
ate ly to have the ma lfu nction corrected.
A WARNING
-- Light bu lbs a re p ress urized and could ex-
p lode w hile they are being changed ca us­
ing serio us pe rsonal i njury.
- Wo rk with due care when hand ling the
h igh-vo ltage sect io n o f gas discharge
(xenon) lights. Failure to d o so could re ­
sult in death or ser ious injury .
(D Tips
Have the b ulb re placed or the connect ion
r epaire d by y our authorized Audi Service
department .
§.0 Headlight range control
IS Headlight range cont rol : defective!
If the symbol illum inates, the headlig ht range
control is no longer work ing properly. Have
the system checked and repaired at you r A udi
deal er.
§: D Adaptive Light
Applies to veh icles: w it h Adapt ive Light
l;J Audi adaptive light: system fault
If the indicator light turns on and this mes­
sage appears , there is a malfunct ion in the
adaptive ligh t syst em. The head lights s till
f unct ion.
Go to an author ized dealersh ip to have the
headlights o r th e control un it for the Adaptiv e
Li ght re paired .
@) Light/rain sensor
II Automatic headlights /automatic wipers :
system fault
If the indicato r ligh t turns on and this mes­
sag e appea rs, the light/ rain senso r is not
f unc tioni ng co rrec tly.
For safety reasons the low beams are t urned
o n pe rmanently with the sw itch in
AUTO . II>-

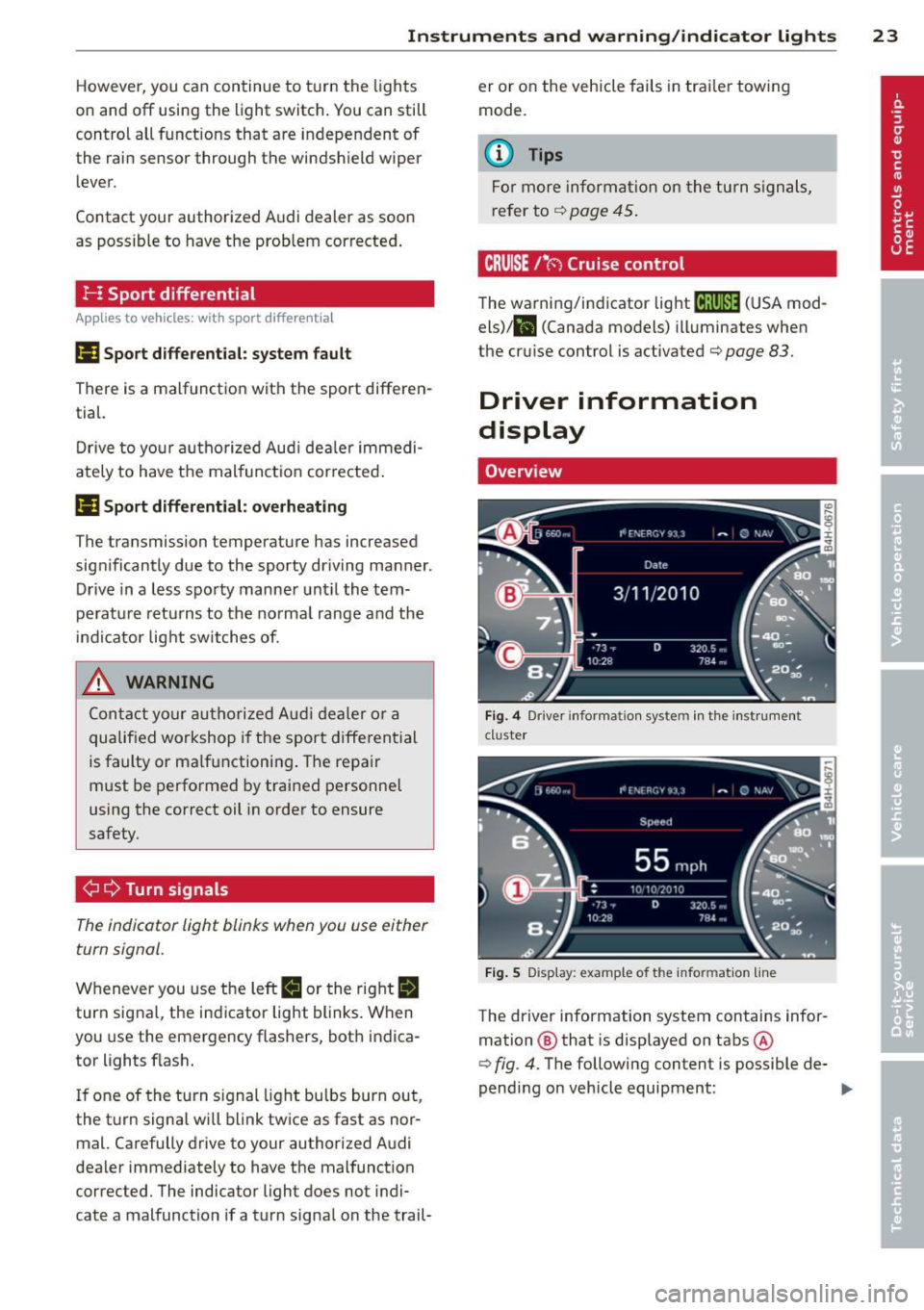

Instrument s and warning /indicator lights 23
However, you can continue to turn the lights
on and off using the light switch . You can still
control all funct ions that are independent of
the rain sensor through the windshield wiper
lever.
Contact your authorized Audi dealer as soon
as possible to have the prob lem corrected .
I--i Sport differential
Applies to vehicles: with spo rt differe ntial
(II Sport differential: system fault
There is a malfunction with the sport differen­
tial.
Drive to your authorized Aud i dealer immedi­
ately to have the mal function corrected .
(II Sport differential : overheating
The transmission temperature has increased
sign ificantly due to the sporty dr iving manner .
Drive in a less sporty manner until the tem­
perature returns to the norma l range and the
indicator light switches of.
& WARNING
Contact your authorized Aud i dealer or a
qualified workshop if the sport differential
is faulty or ma lfunctioning. The repair
must be performed by trained personnel
using the correct oil in order to ensure
safety .
¢i Q Turn signals
-
The indicator light blinks when you use either
turn signal .
Whenever you use the left. or the right a
turn signal, the indicator light blinks. When
you use the emergency flashers, both indica ­
tor lights f lash.
If one of the turn s ignal light bulbs burn out,
the turn signal will blink twice as fast as nor­
mal. Carefully drive to your authorized Audi
de aler immediately to have the malfunction
correc ted. The indicator light does not indi­
cate a malfunction if a turn signal on the trail- er or on the vehicle
fails in trailer towing
mode.
a) Tips
For more information on the turn signals,
refer to
¢ page 45.
CRUISE t •(-') Crui se cont rol
The warning/indicator light IB;(l)~i~ (USA mod­
els)/lil (Canada models) illuminates when
the cruise control is activated¢ page
83.
Driver information
display
Overv iew
Fig. 4 Drive r informat io n sys te m in th e in strument
cl uster
Fig. 5 Disp lay: example of t he info rmatio n line
The driver information system contains infor­
mation @that is displayed on tabs @
¢
fig. 4 . The following content is possible de-
pending on vehicle equipment: ..,.

-Do not leave children inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
- Applies to vehicles with power side door
closer*:
- When closing a door, make sure noth­
ing can interfere w ith the door. This
could cause serious personal injury.
- You can stop the door from clos ing at
any time by pulling on the inside or
outside door handle.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
ma tically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system should mal­
function, you can lock the driver's door
using the mechanical key¢
page 38.
-If the power locking system should fail,
you can still open the fuel tank flap in an
emergency
¢pa ge 228.
-You are we ll advised not to keep valua­
bles inside an unattended vehicle, visib le
or not . Even a properly locked vehicle
cannot provide the security of a safe.
- If the LED in the upper edge of the driv­
er's door pane l comes on for abo ut 30
seconds after the vehicle is locked, there i s a malfunction in the power locking or
the anti-theft warning system. Have the malfunction corrected by an author ized
Audi dealership or qua lified repair facili­
ty.
Setting power locking
The driver can determine the functions for
power locking in the MMI.
.,. Select: ICARI funct ion button> (Car)* sys­
tems
control button > Vehicle settings >
(Central locking)* .
Lock when driving -
If you selec t On , the vehi­
cle locks automatically when driving. All of
the doors and rear lid lock .
Opening and closing 35
Central locking
Unlock doors -
You can decide if All doors or
on ly the
Driver shou ld unlock. The rear lid al­
so unlocks when
All is selected . If you select
Driver in a vehicle with a convenience key*,
only the door whose hand le you pull will un­
lock.
If you se lect
Driver , all the doors and rear lid
will unlock if you press the
CD button on the re­
mote control master key twice .
Lock exterior trunk handle -If you select On ,
the rear lid handle is lock ed. In this case the
rear lid can be opened with the b utton
c:s on
the master key or with the
c:s button in the
driver's door. In vehicles with a convenience
key*, you can still open the rear lid using the
handle if an authorized master key is near the
proxim ity sensor .
Fold mirrors * -If you select On , the exterior
rearview mirrors fold in automat ically when
you press the
cfJ button on the remote control
master key or touch the sensor* in the handle.
Tone when locking -When you select On , a
confirmation tone sounds when you lock the
vehicle .
Locking and unlocking the vehicle with
the remote control
Fig. 20 Remote cont rol: fun ction butto ns
Eithe r the driver's door only or the entire vehi­
cle w ill unlock when the unlock button
0 (@ )
is pressed once, depending on the sett ings in
the MMI
¢ page 35 .
.,. Press button 0 (@ ) to unlock the vehicle
¢fig. 20.

36 Openin g and clo sing
• Press b utton ('f] (@ ) to lock the vehicle q A
in General description on page 3 4.
• Press button c:s (@ ) briefly to un lock the
rear lid.
• Push the red
!PANIC I button( @) to activate
the panic function . The horn sounds and the
turn s ignals flash. Push the red
I PANIC I but­
ton aga in to deact ivate the panic function.
If the vehicle is unlocked and no door, the rear lid or the hood is opened w ith in 60 seconds,
the vehicle locks itself again automatically .
This feature prevents the ve hicle from be ing
accidenta lly left unlocked ove r a long period
of time.
It depends on the sett ings in the MMI wheth­
e r the enti re veh icle is un locked or on ly cer­
tain doors
q page 35.
.&_ WARNING
Read and follow a ll WARNINGS¢ &. in
General description on page 34.
{!) Tips
- In order to make sure the locking func­
tion is working, you shou ld always keep
you r eye on the vehicle to make sure i t is
properly locked.
-
- Do not use the remo te control if you are
i nside the car, otherwise you may unin­
tentiona lly lock the vehicle, and then you
would set off the anti-theft ala rm when
you try to start the engine or open a
door. In case this happens anyhow, push
the un lock button @.
- The vehicle can on ly be locked when the
se lector lever is in the P posit ion.
- Use the panic funct ion only i f you are in
an emergency situation.
Locking and unlocking with convenience
key
Appl ies to vehicles : wi th convenience key
The doors and the rear lid can b e unlocked
and locked without operating the master key.
Fi g. 2 1 Convenience key: Lock ing the vehicle
Unlocking vehicle
• Take ho ld of the door handle. The door is
un locked automatically.
• Pull the hand le to open the door.
Locking vehicle
• Sele ct the P se lecto r lever po sit ion. Othe r­
w ise the vehicle cannot be loc ked.
• To lock the ve hicle, close the door and touch
the sensor in the door handle
once c:!;> fig . 21.
Do not reach inside the door handle.
T he vehicle can be locked and un locked at any
door . The master key must be within a range
of about 1.5 m from the appropriate door or
the rear lid. It makes no difference whether
the master key is in your jacket pocket or in
your brief case.
It is not possib le to re-open the door for a
brief period directly after closing it. This a l­
l ows you to ensure that the doors are properly
l ocked.
It depends on the settings in the MMI wheth ­
er the ent ire vehicle is unlocked or one of the
doors
c:!;> page 35 .
.&_ WARNING ~ -
Read and follow all WARNINGS q .&. in
General description on page 34 .

@ Tips
If your vehicle has been standing for an ex­
tended period, please note the follow ing:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second time to
open the veh icle.
- To prevent the battery from being dis­
charged and to preserve your veh icle's
ability to start for as long as possible,
the energy management system gradu­
ally switches off unnecessary conven­ i ence funct ions. It is possible that you
will not be able to unlock your vehicle us­
i ng these conven ien ce f unctions.
- Fo r De clarat ion of Compliance to United
Sta tes FCC and Indus try Canada regula­
tions
¢page 292.
Operating locks with the key
In the event of a failure of the power locking
system, the driver's door can be locked and unlocked at the lock cylinder.
Fig. 2 2 Key turns for opening and clos ing .
"' Remove the mechanical key¢ page 33 .
"' Turn the mechanical key to position @
q fig. 22 to unlock the driver's door .
"' Turn the key to position ® to lock the dr iv­
er's door¢ &,.
,& WARNING
Read and follow a ll WARNINGS ¢ & in
General description on page 34.
Op enin g an d clos ing
Locking and unlocking the vehicle from
inside
Fig . 23 Drive r's door: power locking switch
Fi g. 2 4 Rear power locking switch
"' Press the button l@J to lock the vehicle¢&, .
"' Press the button
@:I to unlock the veh icle .
If you lock the vehicle using the power locking
switch, p lease note the following:
- You cannot open the doors or the rear lid
from the
outside ( increased security, for ex­
ample when you are stopped at a red light).
- The d iodes in the power locking switches il-
luminate when all the doors are closed and
locked.
- Front doors: you can unlock and open the
doors from the inside by pulling on the door
handle.
- Rear doors: pull the door handle
once to re­
lease the lock. Pull the handle
again to open
the door.
- If you have a crash and the airbag is activat­
ed the doors automatically unlock .
,
A WARNING
-The power lock ing switch works with the
ig nit ion off and automat ica lly locks the
enti re veh icle when it is actuated.
3 7

44 Clear vision
& WARNING
-Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists. Always turn on
theheadlightssothatyoucanseeahead and so that others can see your car from
the back .
- Please observe legal regulations when
using the lighting systems described .
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
{D) Tips
- The light sensor* for automatic head­
light range control* is located in the rear
view mirror mount . You should therefore
not apply any stickers to the windshield
in this area in order to prevent malfunc­
tions or failures .
- In the event of a light sensor malfunc ­
tion, the driver is notified in the instru­
ment cluster display ~
page 22 .
-You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after
switching them on. This does not affect
the service life of the lighting.
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation .
Fig. 34 Ce nte r co nso le: em erg en cy flash er sw itc h
.. Press the switch I:;,,. ~fig. 34 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights
B Nin the instrument
cluster, as well as the light in the emergency
flasher switch
I:;,,. blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
-your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
.. Select: !CAR ! function button> (Car)* sys­
tems
control button > Vehicle settings > Ex-
terior lighting. ..,.

Automatic headlights
You can adjust the following settings in the
Automatic headlights menu:
Headlights activation time -You can adjust if
the headlights switch on
Early, Med . or Late
according to the sensitivity of the ligh t sensor.
Audi adaptive light* -You can switch adaptive
light
On and Off.
Daytime running lights
USA models:
You can switch the dayt ime run­
n ing lights
on and off .
Canada models :
The function cannot be
turned off . It is activated automatically each
time the ignition is switched on. This menu
item is shown "greyed out" .
Coming home, Leaving home
The coming home function illuminates the
area outside the vehicle when you switch the
ignition off and open the driver's door. To turn
the function on, select
Lights when leaving
car > On .
The leaving home function illuminates the
area outside the vehicle when you un lock the
vehicle. To turn the funct ion on, select
Lights
when unlocking car > On .
The coming home and leaving home functions
only operate when it is dark and the light
switch is in the
AUTO position. Clear
vision 45
Turn signals and high beam lever
The lever on the left side of the steering col­
umn is used to operate the turn signals and
the high beam as well as
the headlight flash­
er.
Fig. 35 Tu rn signal and high beam lever
The turn signal and high beam lever has the
following functions:
Turn signals ¢ 9 ©@
.. 0 .... ~
.,. Push the leve r up as far as it can go to turn
on the right turn signa l or down to turn on
the left tu rn s ignal ¢
fig. 35.
... Move the lever briefly until you meet resist­
ance and re lease it to flash three times.
.,. Move the lever (up or down) until you meet
resistance and hold it there to determine
the flashing time for the turn signals.
High beam ~D @
... Push the lever forward to switch on the high
beam .
.,. Pull the lever back towards you to sw itch
off
the high beam.
Headlight flasher ~D ©
... Pull the lever toward the steering wheel to
use the headlight flasher.
Notes on these features
-The turn signals on ly work w ith the ignition
sw itched on. The indicator l ights
B or Bin
the instrument cluster¢ page 12 also blink.
-After you have turned a corner, the turn sig-
n al switches
off automatically.
- The
high beam works only when the head-
lights are on. The indicator light
El in the .,.
