display AUDI A7 2014 User Guide

Instrument s and warning /indicator lights 2 7
Other equipment that is currently affecting
fuel consumption is listed in the efficiency
program. The display shows up to three other
items of equipment @. The equipment using
the most fuel is listed first. If more than three items using fue l are switched on, the equ ip ­
ment that is currently using the most f uel is
d isplayed .
A scale @ also shows the current total con­
sumpt ion of all other equ ipment .
Fuel economy messages
Fig. 9 Dis p lay: exa mple of a fue l eco no m y m essage
F ue l economy messages are disp layed when
fuel consumption is increased by certain con ­
ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump­
tion of fuel. The messages appear automati­
cally and are only disp layed in the eff ic iency
p rog ram. The fuel economy messages turn off
au tom atically after a certa in period of time.
~ T o turn a n economy message off immediate­
ly after it appears, p ress any b utton o n the
mult ifunct ion steer ing whee l.
@ Tips
-Once you have t urne d a fuel economy
m essage off, it will only appear again af­
te r you turn the ignition o n aga in.
- The fuel economy messages ar e not dis­
p layed in
every insta nce, but rat her i n in­
t e rva ls
ove r a period of t ime .
Cylinder on demand System
Applies to veh icles: w ith 4.0 TFSI engine
Fi g. 10 Inst rumen t cl us ter : fu el cons umption
To save fuel, the engine automatically turns
fo ur cy linders on or off, depend ing on the
amount of power needed . Th is act io n is not
felt by the passengers .
Displaying cylinder mode
Requirement: the on -board comp ute r is d is ­
played ¢
page 26.
~ Turn the thumbwheel u nti l the current fuel
cons umption display is shown in the instru ­
ment cluste r.
If the green bar is displayed,
y o u are driving in 4-cy linder mode.
Basic requir ements for 4 -cylinder mode
4 -cylinder drive mode is used a utomat ica lly if
certain basic requirements a re f ulfille d. These
incl ude :
-A low power ou tpu t re qui rement.
- Dr iving in t hird gear or hig her.
- Engi ne speed between 960 and 3,500 RPM .
-A warm eng ine.
Odometer
Fig. 1 1 Instrumen t cluste r: Odo mete r and rese t but­
to n

28 Instruments and warning/indicator lights
The odometer shows you how many miles
(kilometers) you have driven. You can switch
the display from miles to kilometers and vice
versa via the MMI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset. It can be used to meas­
ure short distances. The last digit indicates
1/10 of a mile (100 meters).
You can reset the trip odometer to zero by
pressing the Reset button~-
Lower odometer
The lower odometer shows the total number
of miles (kilometers) driven.
Malfunction message
If there is a malfunction in the instrument
cluster,
DEF will appear in the trip odometer
display area. Contact your authorized Audi
dealer to have the problem corrected .
Time and date display
Fig. 12 Instrument cluster : cloc k and date
You can set the time and the date display in
the MMI. Refer to the MMI owner's manual
for instructions .
When you open the driver's door, the date and
time appear in the instrument cluster display
for 30 seconds .
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 13 Instrument cluster: Serv ice interval display
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
accordingly. The display works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
switch the ignition on~
fig. 13.
After about 5 seconds the display switches
back to normal. The distance and time re­
maining are updated each time the ignition is
switched on until the date due for service is
reached.
Service due
When the due date for service is reached, the
message
Service due! appears in the instru­
ment cluster immediately after you switch the
ignition on. Additionally, a warning tone
sounds. After about 5 seconds the display
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the MMI display by selecting
the service interval display in the car menu.
Select the
ICARI function button > (Car)* sys­
tems
control button > Servicing & checks >
Service interval displays. In new vehicles, the
schedule can only be called up after approxi- mately 500 km. ..,.

Instrument s and warning /indicator lights 29
Resetting the service interval display
Your authorized A udi dealer w ill rese t the cor­
respo nding service sche dule after per forming
the approp riate service on yo ur vehicle. Yo u
also have the possibility to reset the oil
change schedu le after having performed an
oil change according to Audi specifications.
Select the
I CAR ! function button > ( Car) * sy s­
tems
control bu tton > Servicing & checks >
Service Int ervals > Re set oil change interval.
(D Note
If you disconnect the battery termina ls, no
calc ulations can be made for the serv ice
interval display d uring this time and no
s ervice re min der w ill appea r. Remembe r
t ha t obse rv in g the pr ope r se rv ice in tervals
is v itally impo rtant to ex ten ding the life o f
your vehicle, part icu larly the eng ine , and
maintaining its va lue . Even if t he mileage
driven is low, the maxim um period o f one
year from one se rvice to the next must not
be exceeded.
{!) Tips
- Do not reset the display between o il
c hanges, otherw ise the display will be i n­
cor rect.
- The information in the Service Reminder
r ema ins stored even when the veh icle
battery is discon nected .
Head-up Display
Applies to vehicles: with Head -up Display
F ig. 14 Examp le: indicators in the Hea d-up Disp la y
Fig . 15 In strumen t pa nel: k nob fo r th e Head -up D is ­
p lay
The Head -up D is p lay projec ts cer tain warnings
or se lected information from the ass istance
systems* o r navigation * on the windshie ld.
The display appears within the driver 's fie ld of
vision.
Switching on/off
.,. Press the knob~ to switch t he Head -up
Display on/off ¢
fig. 15 .
Adjusting the height
The heig ht of t he di s p lay can be adju sted to
the individua l driver .
.,. Ma ke sur e you are seated correc tly
i::o page 131 .
.,. Tur n t he kn ob~ to adjus t th e disp lay.
Settings in the MMI
.,. Select: !CAR !function button> ( Car) * sys ­
tems
control button > Driver Assist > Head­
up Display
> Head-up Display content or
Display brightness .
Display content
In the MMI, you can spec ify w hich information
sho uld be disp layed:
- Cr uise control system*
- Navigation information *
- Aud i adapt ive cr uise con trol *
- Aud i act ive lane ass ist*
- Night vision assistant* (pe destrian warning)
The speed d isp lay and some of the red indica-
tor lig hts cannot be hidden in the MMI. .,..

30 Instruments and warning/indicator lights
Display brightness
You can adjust the display brightness in the
MMI. The display brightness decreases auto ­
matica lly as the amo unt of light decreases.
The basic leve l of brightness is adjusted with
the instrument illumination
c:> page 47.
(D Note
To prevent scratches on the glass covering
the Head-up Disp lay, do not place any ob­
jects in the projection opening.
@ Tips
- Sunglasses with polarization fi lters and
unfavorable lighting conditions can af­
fect the display.
- A specia l windshield is needed for the
Head-up Display function.
- For information on cleaning, refer to
c:> table on poge 215.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) II! in
the instrument cluster is part of the On-Board
Diagnostic (OBD II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes o ut after
the engine starts and the idle has stabilized.
This indicates that the MIL is working proper­
ly .
If the light does not go out after the engine
is started, or illuminates while you are driv­
ing, a ma lfunction may exist in the engine sys­
tem. If the light illuminates, the catalytic con­
verter could be damaged.
Continue driving
with reduced power (avoid­
ing sustained high speeds and/or rapid accel­
erations) and have the condition corrected.
Contact your authorized Audi dealer .
If the light illuminates, the electronic speed
limiter may also be malfunctioning. For more information
r=.> page 31,
Electronic speed
limiter .
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
c:> page 221.
On-Board Diagnostics
Fig. 16 Locat ion of Data L ink Con nector (DLC)
On-Board D iagnost ics monitors the compo­
nents of your em iss ion control system . Each
monitored component in your engine system
has been assigned a code . In case of a mal­
function, the component will be identified
and the fault stored as a code in the control
module memory.
T he MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery sys­
tem.
If the light illum inates after a refuelling,
stop the vehicle and make sure the fuel filler
cap is properly closed
c:> page 221.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe ­
cial diagnostic equipment (generic scan tool
for OBD).
In order to connect the special diagnostic
equipment, push the plug into the Data Link
Connector (DLC). The DLC is located to the
right of the hood release
r=.> fig . 16 .
Your authorized Audi dea ler or a qualified
serv ice station can interpret the code and per­
form the necessary repair.
A WARNING
Do not use the diagnostic connector for
personal use. Incorrect usage can cause

42 Opening and closing
• Release the switch and then pull it again for
at least one second.
Valet parking
T he valet parking feature protects the lug ­
gage comportment from unauthorized access from the outside.
Fig . 32 Lu ggage compartment : valet park ing bu tton
With "valet parking" activated, the rear lid
cannot be opened from the outside.
• Remove the mechanical key
c> page 33 .
• Open the glove compartment and activate
c>fig . 32 the "valet parking " feature by
pressing the
I VA LE T I button. The ind icator
light in the switch illuminates.
• Close the glove compartment and lock it
with the mechanical key.
• Leave the master key with the service per­
sonnel for parking and keep the mechanical
key w ith you.
When the "valet parking" feature is activated :
- the unlocking button for the rear lid~ in
the driver's door is inact ive
- the button~ on the master key is inactive
- the open ing hand le in the rear lid is in active.
The vehicle can be driven and locked and un­ locked with the master key . Access to the lug­
gage compartment is blocked from the out ­
side.
When the valet parking function is switched
on, the message
Valet parking activated ap­
pears in the instrument cluster display when
you switch the ign it ion on .
Sliding/tilting sunroof
Operation
Fig. 33 Section o f th e head line r: Sliding/t iltin g sunroof
button
@ Tilting and sliding
• To t ilt the sunroof completely, press the
sw itch br iefly to the second level briefly.
• To close the sunroof completely, pull the
switch briefly to the second level
c> A_.
• To select an intermediate position, press/
pull the switch to the first level until the de­
sired position is reached .
@ Opening/sliding (version 1)
• To move the roof into the reduced w ind
noise position, press the button back briefly
to the second leve l. The roo f will open all
the way if you press the button back to the
second level again.
• To close the sunroof comp letely, press the
sw itch forward briefly to the second level
Q A_ .
• To se lect an intermediate posit ion, press/
pull the switch forward/back to the first lev­
el until the desired position is reached.
@ Opening/sliding (version 2)
• To open the sunroof completely, press the
sw itch back to just before the second level.
• To close the su nroof completely, press the
switch forward briefly to the second level
c>,& .
• To select an intermediate position, press/
pull the sw itch forward/back to the first lev ­
el unt il the desired position is reached.
T he sun shade can be opened and closed by
hand when the sunroof is closed . Th e solar

_& WARNING
-Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
(D Tips
- The light sensor* for automatic head­
light range control* is located in the rear
view mirror mount. You should therefore not apply any stickers to the windshield
in this area in order to prevent malfunc­
tions or failures.
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display ~
page 23 .
-You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after
switching them on. This does not affect
the service life of the lighting.
Clear vision 45
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation .
Fig. 35 Center consol e: eme rge ncy flash er sw itc h
.,. Press the switch & ~ fig. 35 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights
II Nin the instrument
cluster, as well as the light in the emergency
flasher switch
& blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you a re the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
.,. Select: !CAR ! function button> (Car)* sys­
tems control button > Vehicle settings > Ex-
terior lighting. ..,.

instrument cluster illuminates when the
high beams are on.
- The
headlight flasher works only as long as
yo u hold the lever -even if there are no
l ights turned on . The indicator light
El in
the instrument cluster illuminates when you
use the headlight flasher.
A WARNING
Do not use the hig h beam or headlight
flasher if you know that these could blind
oncoming traffic .
Interior lights
Front and rear interior lighting
Fig. 37 Headliner: Front interior l ights
F ig . 38 Rear headl iner: Read ing light
Press the appropriate button ¢ fig. 3 7:
§1 -Interior lighting on/off
1!1-Door contact switch . The interior lighting
turns on automatica lly when you unlock the
vehicle, open a door or switch the ignition off. The interior lighting turns off several seconds
after you close the doors, when you lock the
vehicle or when you switch the ignition on.
When a door is open, the light tu rns off afte r
a few minutes .
Clear vision 4 7
~ -Reading lights on/off
@ill-Switching the rear reading lights on/off
from the cockpit.
I ',; REARI* -Switching the rear read ing lights
on/off from the cockpit.
Ambience lighting
Applies to veh icles: w ith amb ience lighting
You can adjust the br ightness for the ambi­
ence lighting .
.,. Select in the MMI:
ICARI function button >
(Car)* systems control button > Vehicle set­
ting s
> Interior lighting > Brightnes s.
.,. To increase o r reduce the b rightness , turn
the knob and press it .
The ambience lighting turns on when yo u turn
the headlights on while the ign ition is swi tch­
ed on.
(0 Tips
The setting is automatically stored and as­
signed to the remote control key that is in
use.
Instrument illumination
You can adjust the brightness of the instru­
ment and display illumination as well as the
Head-up Display*.
Fig. 39 Ins trument illumina tion
.,. Press the knob to re lease it .
.,. Turn the knob toward"-" or"+" to reduce or
increase the br ightness.
.,. Press the knob aga in to return it to its origi-
na l posit ion .
~

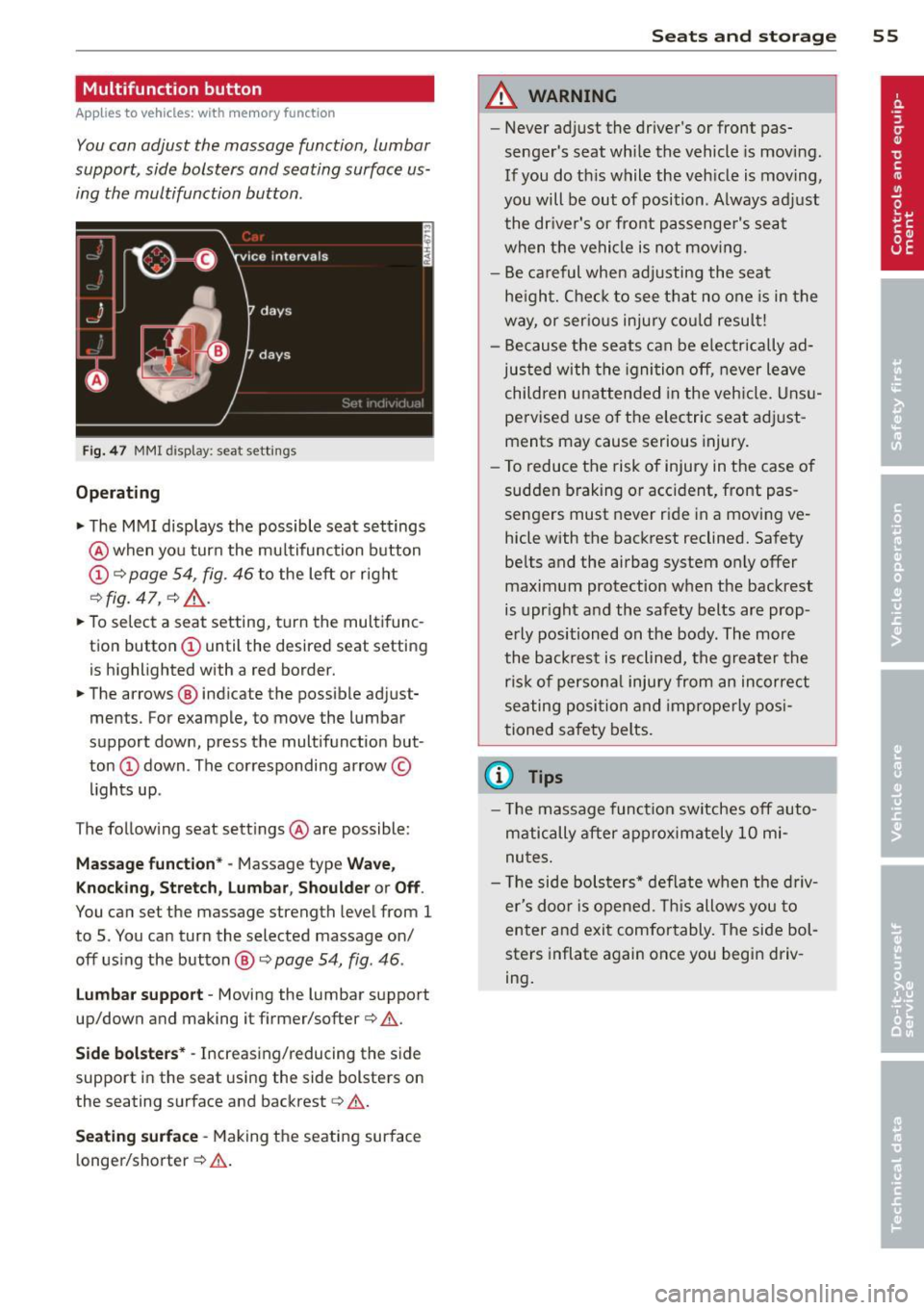

Multifunction button
Applies to vehicles: with memory function
You con adjust the massage function, Lumbar
support, side bolsters and seating surface us­ ing the multifunction button .
Fig. 47 MMI disp lay : sea t sett ings
Operating
.. The MMI displays the possible seat settings
@ when you turn the multifunction button
(D c:> page 54, fig. 46 to the left or right
~ fig. 47 , c:> ,& .
.. To select a seat setting, turn the multifunc­
tion button
(D until the desired seat setting
is highlighted with a red border.
• The arrows @ indicate the possible adjust­
ments. For example, to move the lumbar
support down, press the multifunction but ­
ton
(D down . The corresponding arrow ©
lights up.
T he follow ing seat settings @ are possible:
Massage function* -Massage type Wave,
Knocking, Stretch, Lumbar, Shoulder or Off .
You can set the massage strength level from 1
to 5. You can turn the selected massage on/
off using the button @~
page 54, fig . 46 .
Lumbar support -Moving the lumbar support
up/down and making it firmer/softer
c:> .&. .
Side bolsters * -Increasing/reducing the side
support in the seat using the side bolsters on
the seating surface and backrest
c:> A .
Seating surface -Making the seating surface
l onger/shorter
c:> .&. .
Seats and storage 55
A WARNING
-Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position . A lways adjust
the driver's or front passenger's seat
when the vehicle is not moving.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or serious injury could result!
- Because the seats can be electrically ad­
justed with the ignit ion off, never leave
children unattended in the vehicle. Unsu­
pervised use o f the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system on ly offer
maximum protection when the backrest
is upright and the safety belts are prop­
erly positioned on the body . The more
the backrest is reclined, the greater the
ris k of persona l inju ry from an incorrect
seating position and improperly posi­
tioned safety belts.
(D Tips
- The massage function switches off auto­
matically after approximately 10 mi­
nutes.
- Th e side bolsters* deflate when the driv­
er's doo r is opened. This allows you to
enter and exit comfortably. The side bol­
sters inflate again once you begin driv­
ing.

7 2 Warm and cold
Four-zone automatic climate control
Operation
Applies to vehicles: with four -zone automa tic clima te control
We recommend pressing the IAUTO I button and setting the temperature to 72 °F (22 °C).
Fig. 74 Fo ur-zone automat ic climate contro l: controls
Fig . 75 Fou r-zone automatic cl imate cont ro l: rear con ­
trol s
Press the buttons to turn the functions on or
off. Use the dials to adjust the temperature,
the blower speed and the air distribution. The
LED in a button will light up when the func­
tion is switched on. The settings are shown in
the climate control display and are also shown in the MMI display for a few seconds . The driv­
er and front passenger sett ings can be adjust­
ing separately.
The settings can also be adjusted in the rear
<::;> fig. 75.
IOFF j Switching the climate control
system on/off
The I O FFI button switches the climate control
system on or off .
It also switches on when you
turn the dia l or press any button. Airflow from outside is blocked when the
climate control
system is switched off .
You can activate the residual heat function
whe n the ignition is off by pressing and hold­
ing the ~ button. The residua l heat from the
coolant is used to heat the vehicle interior .
The residual heat function switches off auto­
matically after about 30 minutes.
!ACI Switching cooling mode on/off
T he air is not coo led and humidity is not re­
moved when cooling mode is switched off.
T his can cause fog on the windows. Cooling
mode switches off automatically when the
outside temperature is be low zero .
1- 1 Switching recirculation mode on/off
In recircu lation mode, the air inside the vehi ­
cle is circu lated and filtered. This prevents the
unfiltered air outside the vehicle from enter­
ing the vehicle interior . We recommend
switching recirculation mode on when driving
through a tunnel or when sitting in traffic ¢ .&, .
The
! AUTO I button or~ button switches rec i r-
cu lation mode off. .,.

78 On the road
switched off. It can a lso switch on again
after some time if the coolant tempera­
ture rises as the result of a heat buildup
or if the engine is hot and the engine
compartment is addit ionally heated by
the sun's rays.
(D Note
D o not stop the engine immediate ly afte r
hard or extended driving . Keep the engine
running for approximately two minutes to
prevent excessive heat build-up.
Driver message in the instrument
cluster display
Turn off ignition b efo re leaving car
This message appears and a war ning tone
sounds if yo u open the dr ive r's door when the
ignition is switched on.
Pres s brake pedal to start en gine
This message appears if you press the
I STAR T ENGINE ST OP ! button to start the en­
g ine and do not depress the brake pedal. The
engine can on ly be started if the brake pedal
i s depressed.
!I ls k ey in the vehicle ?
If the indicator light turns on and the mes­
sage appears, the remote control key was re­
moved from the vehicle while the engine was
running . If the ignit ion key is not in the vehi ­
cle you w ill not be ab le to switch on the ig ni­
tion o r restart the eng ine after it has been
switched off. Yo u wi ll also not be able to lock
the vehicle from the outside.
Shift to P , otherwise vehicle can roll away .
Doors do not lo ck if le ver i s not in P .
This message appears for safety reasons
along w ith an audib le warn ing tone if the P
selecto r lever posit io n is not engaged when
stopping the eng ine with the
I START ENGINE STOP! button. Select the P se­
lector lever posit io n. Otherw ise the veh icle
could roll and it cannot be locked.
mJ Ke y is not re cogni zed . H old back of ke y
a ga in st marked are a. See owner' s manual.
If the indicator ligh t turns on and this mes­
sage appears, there is a malf unct ion
r::!;> page 78.
Turn off ignition before l ea v ing car. B attery
i s d isc harging
This message appears if the driver's door is
opened wh ile the ignition is switched on. Al­
ways switch off the igni tion if you are leaving
the vehi cle. See also
r::¢,page 83.
Shift to P and turn off ignition before l eav ­
ing car, oth erwi se v ehicl e can roll away
This message appears if the driver's door is
opened wh ile the ignition is switched on and
t h e selecto r lever is not in the P posi tion. Shift
the selecto r lever into the P pos ition and
switch off the ignit ion when you exit the vehi­
cl e. Otherw ise the vehicle cou ld roll. See also
r::¢,page 83.
Starting the engine if there is a
malfunction
It may not be possible to start the engine un­
der certain circumstances, for example if the
battery in the vehicle key is drained, if inter­
ference has affected the key or if there is a
system malfunction.
F ig . 80 Ce nter console/master key: starting the eng ine
i f there is a malfunct ion
Requirement: The message Key not recog­
nized . Hold back of ke y against marked are a.
See o wne r's manual.
must appear and the in-
dicator light
ml must switch on. .,..
