display AUDI A7 2014 Owner's Guide

White Active l ane assist is sw itched on
line(s) and ready to p rov ide warnings
on the side that is ind icated
¢ fig. 100 .
Red line Act ive lane assist is warning you
(left or that you are about to leave your
right) lane
¢ fig . 100 . In addition, the
steeri ng wheel vibrates s light ly.
Gray Act ive l ane assist is switched on
line(s) but is not ready to provide warn-
ings
¢ fig . 101.
Mes sages in the instrument clu ster
display
When the active lane ass ist turns off automat ­
i cally, the i nstrument cluster ind icator goes
out and one of the fo llow ing messages ap­
pears on the display :
Audi active lane a ssist : Currently un availa­
bl e. No camera view
This message appears if the camera is no lon­
ger funct ional after the system has cont inous­
ly failed to detect the lane markings . This
could happen if :
- The camera field of view¢
page 96, fig. 99
is d irty or covered in ice. Clean the area on
the windshie ld.
- The camera field of view is fogged over. Wait
until the fog has cleared before switching
active lane assist on .
- The system has been unable to detect the
lanes for an extended period of time due to
road cond it ions . Switch active lane ass ist
back on when the lines are more visible .
Audi active lane a ssist : Currently un available
A temporary ma lf u nction is preventing lane
assist from operating. Try sw itching active
lane assist on again later.
Audi acti ve lane a ssist : S ys tem fault!
Drive to you r autho rized Aud i dea le r soon to
h ave the ma lfunction co rrec ted.
Audi active lane a ssist : Pl ea se take over
s te ering
Audi acti ve lane a ssis t 97
This message appears if yo u do not s teer the
vehicle yourself . If this is the case, active lane
ass ist does not switch off, b ut it does sw itch
to the "not ready" stat us. The system can help
you keep the ve hicle in the lane. However it is
your own responsibility to steer and control
t h e ve hicle .
Setting the steering wheel vibration
Applies to veh icles: w ith active la n e assist
11> Select: !CAR ! function button> (Car )* sys­
tem s
control button > Driver a ssis t > Audi
a ctive lan e as sis t.
You can switch the vibrat ing warn ing in t he
stee ring wheel
o n or off .
(D Tips
Your setting is a utomat ically stored and
assigned to the remo te control key being
used.

98 Audi side assist
Audi side assist
Lane Change Assistant
Description
App lies to vehicles: wit h side ass ist
Fig . 102 Sensor detectio n ran ge
Fig. 103 Display on the exterio r mirror
Side assist helps you monitor your blind spot
and traffic behind your vehicle. Within the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling with you within sensor range
(D
c:> fig . 102: if a lane change is class ified as crit­
ical, the display @ in the exterior mirror
¢fig. 103 turns on.
The display in the left exterior mirror provides
assistance when mak ing a lane change to the
left, while the display in the right exterior mir·
ror provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critical. The display
in the respective mirror turns on, but is dim. The
display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed.
Warning stage
If you activate the turn signal, side assist
warns you about vehicles that are detected
and class ified as critical. The display in the re­
spective mirror blinks brightly. If this hap­
pens, check traffic by glancing in the rearview
mirror and over your shoulder c:>
.&. in General
information on page 99.
(D Tips
- You can adjust the brightness of the dis­
play @c:>
page 100.
-Please refer to the instructions for tow·
ing a trailer located in
¢ page 99.

General information
Applies to vehicles: with side ass ist
®
©
Fig . 104 Dr iving situations
Fig. 105 Rear of t he ve hicle: positio n of t he se nsors
"' a, 0 0 " a,
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The faster a vehicle ap­
p roaches, the sooner the display in the exteri­
or m irror will t urn on.
@ Vehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
Audi side assist 99
@ Veh icle s left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph or
15 km/h), the display in the exterior mirror
turns on as soon as the vehicle enters your blind spot.
The disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the vehicle and your
vehicle is greater than 9 mph or 15 km/h).
Functi onal limitation s
The radar sensors are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the d isp lay in the exterior mirror may
turn on even though there is no veh icle locat­
ed in the area that is cr itical for a lane change.
For example:
- if the lanes are narrow or if your are dr iving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane .
- if you a re driving through a curve. Side assist
may react to a vehicle that is one lane ove r
from the adjacent lane.
- if side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are l imited .
Do not cover the radar sensors
c> fig. 105 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer. For
i nformation on cleaning, refer to
c> page 213 .
_&. WARNING
-Always pay attention to traffic and to t he
area around your ve hicl e. S ide assist can­
not replace a driver's attention. The driv­
er a lone is always responsible for lane
changes and similar driving mane uvers.

100 Audi side assist
-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if veh icles are approaching or being left
behind very quickly . The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system.
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
@ Tips
- If the window glass in the driver's door
or front passenger's door has been tint­ ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 288.
Activating and deactivating
Applies to vehicles: rnit s ide ass ist
Fig. 106 Driver's door: Side ass ist butto n
.. Press the button c> A in General informa­
tion on page 99
to switch the system on/off.
The LED in the button turns on when side
assist is switched on.
Adjusting the display brightness
Applies to vehicles: wit h side assist
The brightness setting can be adjusted via the
MMI.
.. Select: !CAR I function button> (Car)* sys­
tems control button > Driver assist > Audi
side assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage. In
very dark or very bright surroundings, the dis­
play is already set to the minimum or maxi­
mum level by the automatic adjustment . In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the informa tion stage will not disrupt
yo ur view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness leve l in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor­
mation stage and is adjusted along with the
information stage adjustment .

@ Tips
-Side assist is not active while you are
making the adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.
Driver messages
App lies to vehicles: with side assist
If side assist switches off by itself, the LED in
the button turns off and a message will ap­
pear in the instrument cluster display:
Audi side assist: Currently unavailable. No
sensor vision
The radar sensors' vision is affected. Do not
cover the area in front of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
c> page 99, fig . 105.
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily
because there is a malfunction (for example,
the battery charge level may be too low).
Audi side assist: System fault!
The system cannot guarantee that it will de ­
tect vehicles correctly and it is switched off .
The sensors have been displaced or are faulty.
Have the system checked by an authorized
Audi dealer or authorized Audi Service Facility
soon.
Audi side assist: Unavailable when towing.
Side assist switches off automatically when a
factory-installed trailer hitch is connected to
the electrical connector on the trailer. There is
no guarantee the system will switch off when
using a retrofitted trailer hitch. Do not use
side assist when towing a trailer.
Audi side assist 101

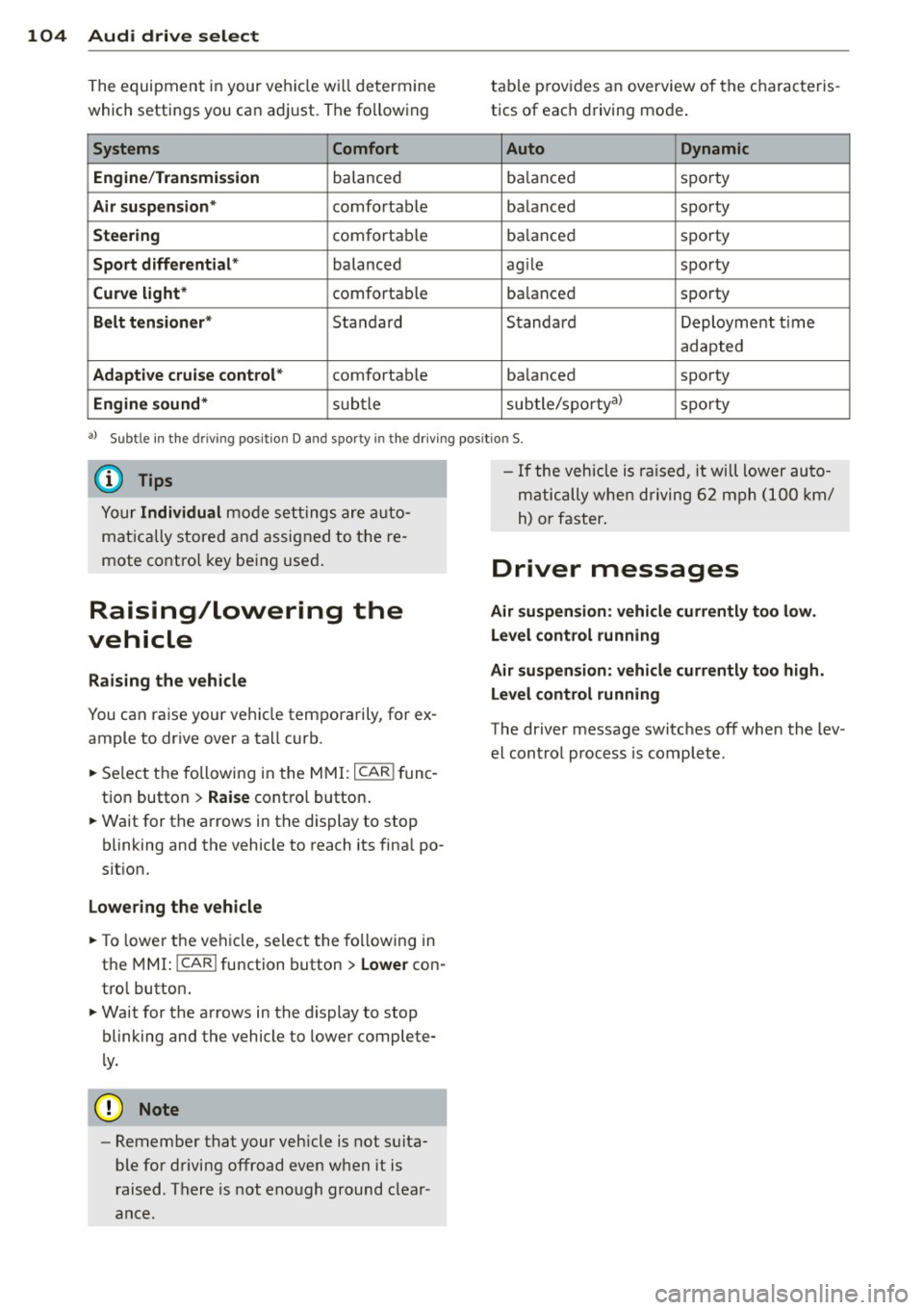

104 Audi drive select
The equipment in your vehicle w ill determine
which settings you ca n adj ust. The fo llowing
Systems Comfort
Engine /Tran smission
balanced
Air suspension * comfortable
Steering comforta ble
Sport d iff erent ial * balanced
Curve light* comfortab le
Belt tensioner * Standard
Adaptive cruise control * comfortable
Engine sound* subtle table p
rov ides a n overview of the characteris ­
tics of eac h driving mode .
Auto Dynamic
balanced sporty
ba lanced sporty
ba lanced spo
rty
ag ile sporty
ba lanced spo
rty
Standard Deployment time
adapted
ba lanced sporty
subtle/spo rtyal
sporty
al Subtle in the driving pos itio n D and sporty in th e d riving pos itio n S.
{DJ Tips
Your Individual mode se ttings are a uto­
mat ica lly store d an d assig ned to t he re­
mote co ntro l key being use d.
Raising/lowering the
vehicle
Raising the vehicle
You can ra ise your veh icle tempora rily, for ex­
ample to dr ive over a tall curb.
., Se lect the following in the
MMI: ICAR !f u nc ­
tion button >
Raise contro l button .
., Wait for the arrows in the display to stop
blinking and the vehicle to reach its fina l po­
s it ion.
Lowering the vehicle
., To lower t he veh icle, select the fo llowing in
the
M MI: ICARlfunction button> Lowe r con­
t ro l button .
., Wait for the a rrows in the display to stop
blinking and the vehicle to lower complete­
l y.
{(D Note
- Remember that your veh icle is not s uita­
ble for driving offroad even when it is
r aised. There is not enough ground clear­
ance. -
If the vehicle is ra ised, it will lower auto­
m at ically whe n driving 6 2 mph (1 00 km/
h) or faster .
Driver messages
Air suspen sion : vehicle currently too low .
Level control running
Air su spension : vehicle curr ently too high .
L e vel control running
The driver message switc hes off when the lev­
el cont rol process is comp lete .

Night vision assistant
Night vision assistant
with detected pedestrian marking
Description
App lies to vehicles: with night v isio n assistant
Fig . 108 Display: nig ht v is ion assistant
"N ight v is ion assistant with pedestrian detec­
tion" uses an infrared camera to monitor the
area in front of your vehicle at night. Within
the limits of the system , it can display objects
up to about 1000 feet (300 meters) away. The
heat image of a pedestrian detected by the
camera is shown in the instrument cluster dis­
play Q fig . 108. Warm areas appear lighter
and cold areas appear darker .
Pedestrian detection
Applies to vehicles: with n ig ht v ision ass istant
Fig. 109 Display : yellow pedestrian marking
Night vision assistant 105
Fig. 1 10 Disp lay: symbo l w hen infrare d image is not
visi ble
Night vision assistant can detect pedestrians
that are between about 50 and 300 feet (15
and 90 meters) in front of the vehicle, under
ideal conditions .
If a pedestrian is detected
when it is dark outside and the vehicle head­
lights are switched on, the pedestrian is high ­
lighted in yellow Qf/g. 109, Qpage 106,
General information. If another display such
as navigation replaces the image from the
night vision assistant, the symbo l~,, appears
in a tab Qfig. 110.
(D Tips
If the night vision assistant image does
not appear when the system is sw itched
on, you can access it with the buttons on
the multifunction steering wheel
Q page25.

106 Night visi on assis tant
Pedestrian warning
Applies to vehicles: with night vision assistant
Fig. 111 Display : pedestrian warning
Fig . 112 D is p lay: pedestrian warning w ith a nother dis­
p lay
I f a pedestrian is detected in an area in front
of the vehicle that the system considers criti­
cal, the pedestrian is high lighted in red
¢ fig . 111 and a warning tone sounds. This
area is based on the vehicle speed and steer ­
ing angle. The pedestrian warning prompts
you to pay even closer attention to the area in
front of the vehicle and to watch out for pe­
destrians.
If another display s uch as the tr ip computer
replaces the image from the night vision as­
sistant, the indicator light turns red when
there is a pedestrian warning.¢
fig. 112 .
The pedestrian warning . appears in the
Head-up Display *.
(D Tips
The pedestrian marking and warn ing tone
can be adjusted in the MMI
!:!) page 107.
General information
Applies to vehicles: with night vision assistant
Fig. 113 Fro nt of th e ve hicle: night v ision assistant
camera
T he following situat ions may affect the func­
t ion of the n ight vision assistant system:
- poor visibility such as snow, rain, fog or
heavy road spray
- dirty lens on the n ight vis ion assistant cam -
era
Make sure the night vision assistant camera
¢
fig . 113 is not covered by stickers, deposits
or any other obstructions because that can
prevent the camera from working properly.
For information on cleaning the lens, refer to
¢ page 213.
Pedestrian detection depends on the d iffer ­
ence in temperature between the person and
the background. Pedestr ians may not be de­
tected if the temperature diffe rence is too
small . Th e pedestrian highl ighting feature is
deactivated at tempe ratures above 77 ° F (25
°C) and when it is light outs ide.
A WARNING
Night vision assistant has limits and can­
not always detect pedestr ians. Always pay
close attention to traffic and the area
around your vehicle even when night vision
assistant is sw itched on .
- Night vision assistant can only warn
about people located within the visual
range of the infrared camera. The visual
range corresponds to the image in the in­
strument cluster display .
- Night vision assistant may not detect
-
peop le and highlight them if .,.

-they are not in an upright position, for
example if they are sitting, crouching
or lying down and/or
- if the outline in the display is incom­
plete or interrupted, for example be­
cause the person is partially hidden by
a parked vehicle .
(D Tips
-Pedestrian detection and the pedestrian
warming are limited to objects that are
detected as pedestrians. The system
does not detect animals . Even though
the shape and warmth radiated by each
object detected is evaluated, the system
does have limitations and it can give in­
correct warnings.
- For technical reasons , the image pauses
in split second intervals.
Switching on and off
Appl ies to vehicles: with night vision assistant
Fig. 114 Area around the light switch : nigh t vision as­
s istant button
.. Sw itch the ignition on and turn the light
switch to the
AUTO position or io.
.. To switch night vision assistant on, press the
~ button ¢
fig. 114. The image from the
night vision camera appears in the instru­
ment cluster display.
.. Press the button~ again to switch night vi ­
sion assistant off .
Night vision assistant 107
Settings in the MMI
Applies to vehicles: with night vision assistant
Fig. 115 Display : exa mpl e of pede strian detect ion and
warn ing tone switched off
.. Select: !CAR ! function button> (Car)* sys­
tems
control button > Driver assist> Night
vision assist.
Highlight pedestrians -
You can switch pedes­
trian detection
on and off. If you switch pe­
destrian detection off, the pedestrian warning
tone also switches off. The symbols
Ill and fa
appear in the upper right area of the instru­
ment cluster display
¢ fig. 115.
Warning tone -You can switch the tone for
the pedestrian warning
on and off. When the
warning tone is switched off, a yellow symbol
for the deactivated warning tone with a line
through it appears in the upper right of the in­
strument cluster display
¢fig. 115 .
Contrast -When the night vision assistant is
switched on and the image is visible in the in­
strument cluster display, you can adjust the
contrast in the image from
Min to Max .
Driver messages
Applies to vehicles: with night vision assistant
Night vision assistant: system malfunction!
The system cannot work properly and is
switched off. See your authorized Audi dealer
for assistance.
Night vision assistant: not available
The system cannot detect properly under cur­
rent conditions and is switched off temporari-
~ ~

Automatic Transmission
S tronic, tiptronic
Introduction
Applies to vehicles: with S tro nic/t iptronic
The automat ic transmission is controlled elec­
tronically. The transmission upshifts or down­
shifts automatically depending on which drive
program is se lected.
When a
moderate driving style is used, the
transmission selects the most economica l
driving mode. It will then change up early and
de lay the downshifts to give better fuel econ­
omy.
The transmission switches to a sporty mode
after a kick-down or when the driver uses a
sporty driving style characterized by quick ac­
celerator pedal movements, heavy accelera­
tion, frequent changes in speed and traveling
at the maximum speed.
If desired, the driver can also select the gears
manually (tiptronic mode) r:::> page 113.
Various automatic transmissions may be in­
stalled, depending on the mode l:
S tronic transmission
The 5 tronic is a dual-clutch transmission .
Power is transferred using two clutches that
work independently from one another . They
replace the torque converter used in conven­
tional automatic transmissions and allow the
vehicle to accelerate without a noticeable in­
terruption in traction.
tiptronic transmission
In the tiptronic transmission, power is trans­
ferred by a torque converter.
Automatic Transmission 109
Selector lever positions
App lies to vehicles: wit h S tronic/tiptro nic
Fig. 116 Display in the instrument cluste r: selector
lever pos ition
T he selector lever position engaged appears
next to the selector lever as well as in the in­
strument cluster display.
P -Park
In this selector lever position the transmis­
sion is mechanically locked. Engage P only
when the vehicle is
completely stopped Q .&.
in Driving the automatic transmission on
page 112.
To shift in or out of position P, you must first
press and hold the brake pedal and then press
the release b utton in the selector lever handle
whi le moving the selector lever to or from P.
You can shift out of this position only with the
ignition on .
R- Reverse
Select R on ly when the vehicle is at a full stop
and the engine is running at idle speed r:::> .&. in
Driving the automatic transmission on
page 112.
Before you move the selector lever to R, press
both the button in the hand le of the selector
lever
and the brake pedal at the same t ime.
When the ignition is on, the backup lights illu­
minate when the selector lever is moved into
R.
N -Neutral
The transmission is in neutral in this position.
Sh ift to th is position for standing with the ..,.
