12 Instrum ent s and w arn ing /indic ato r light s
-Never open the engine hood if you see or
hear steam, or if you see engine coolant
dripping from the engine compartment.
You could burn yourself . Let the engine
cool off first until you can no longer see
o r hear steam or coo lant escaping.
@ Note
- Mounting additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the rad iator . At h igh outside
temperatures or high eng ine load, the
engine could overheat.
- The front spo iler has been designed to
proper ly distribute the cooling air when
t h e ve hicle is moving.
If the spoiler is
dam aged, th is co uld red uce the cooling
effect and the engine co uld then over­
heat . Ask your authorized Audi dea ler for
assistance .
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
If engine RP M drops be low 1,500, yo u should
downshift to the next lower gear. The red a rea
at the end of the sca le indicates maximum
perm iss ib le engine RPM after the break-in pe­
riod. Before reaching this area, move these­
lector lever to position D/S (Drive) or ease
your foot off the accelerator pedal.
(D Note
The tachometer needle should on ly br iefly
be in the red zone: you could damage your
engine! The beginn ing of the red zone var­
ies depending on the engine .
@ For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.
Fuel gauge
The fuel gauge only works when the ignition is
on .
If the fuel level d rops below 2 . 6 ga llons (10 liters), the bottom LED turns red and the
indicator light
ll'J turns on r=> page 22. The
bottom LED blinks red when the fuel level is
very low.
T he possible range based on the current fuel
level is shown in tab@r=>
page 24, fig . 4 .
(D Note
Never run the tank completely dry. An ir ­
r egular supply of f uel can cause engine
misfiring and fuel could enter the ex ha ust
system . The catalytic converter could then
overheat and be damaged.
Warning/indicator Lights
Description
The ind icator lights in the instrument cluster
blink or turn on. They indicate funct ions or
malfunctions
r::!> ,& .
Messages may appear with some indicato r
lights. A warning signal will sound at the
same t ime. The indicator lights and messages
in the center of the displays may be rep laced
by other d isplays . To show them again, select
the tab for ind icator lights and messages us­
i ng the multifunction steering wheel
r::!> page 24. If t here are several malfunc­
t ions, you can display them one at a time us­
ing the thumbwheel.
Some indicato rs lights in the d isplay can turn
on in severa l co lors.
A WARNING
- F ailure to heed w arning l igh ts and other
important vehicle in forma tion may res ult
in ser io us personal inj ury or vehicle dam­
age .
- Whenever stalled or stopped for repair, move the vehicle a safe d istance off the
road, stop the engine, and turn on the
emergency flasher
r::!> page 45.
- The engine compartment of any motor
veh icle is a potentially hazardous area.
Before you chec k anything in the engine

M N <( (.J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Instrument s and warnin g/indic ator ligh ts 21
@ Tips
If this warning/indicator light illuminates
while you are dr iving, then there is a mal­
function in the engine electron ics. Have
the malfunction corrected as soon as pos­
sible by your authorized Aud i dealer or
qualified repair fac ility.
W Glow plug system
Appl ies to vehicles: with diesel e ngin e
The control light illuminates when the glow
plug system is active.
If the IJ indicator light illum inates, the glow
plug system is active. You should start the en­
gine immediately after the indicator light
switches off. The indicator light only illumi­ nates for approx imately 1 second if the en­
g ine is wa rm or if the outside temperature is
above 46 QF (8 Q().
@ Tips
- If the glow plug indicator light illumi­
nates while driving, there is an engine
control malfunction. The engine shou ld
be checked immediately.
- If the indicato r light does not illum inate
at all when switching the ignition on,
there may be a malfunction in the glow pl ug system . The engine should be
checked.
a Malfunction Indicator Lamp (MIL)
The Malfunction Ind icator Lamp (MIL) is part
of the On-Board Diagnostic (OBD II) system.
The symbol
(4 lights up when the ignit ion is
sw itched on and w ill turn off after the engine
has started and has sett led at a constant idle
speed. This ind icates that the M IL is working
p roperly.
The warning light illuminates when there is a
malfunct ion in the engine e lectronic system.
Contact your author ized Audi dealer and have
the ma lfunction co rrec ted.
An improperly closed fuel filler cap may also
cause the MI L light to illum inate
¢ page 219.
For more information ¢ page 29.
_, Diesel particulate filter clogged
Appl ies to vehicles: wi th diese l en gine a nd diesel particu­
late filter
II Pa rti cul ate filter : S ys tem f ault See own ­
er 's manual
When the II symbo l illuminates, you can a l­
te r you r d riving style to ass ist the filter se lf­
cl ean ing process. Drive for approximately 15
minutes with the se lector lever in the S posi­
tion at a minimum speed of 37 mph (60 km/ h) and an engine speed of approximately
2,000 RPM. The temperat ure increase that
will result from this can burn off the soot in
the fil ter. The symbol will switch off when the
cleaning is successful. After a successful
clean ing, there is no need to bring the car to
an authorized dea ler or qualified workshop
be cause th is is part of no rma l vehicle opera ­
t ion.
If the symbol II does not switch off, see your
authorized dea ler o r other qualified workshop
to have the p rob lem cor rected.
For more information on the diesel part icu­
late filter, refer to ¢
page 205.
A WARNING
Always adapt your speed to the current
wea ther, road and traffi c conditions. You
should never disobey traffic laws in order
to fo llow driving recommendations .
!7 Engine speed limitation
Applies to vehicles : wi th engine speed limitatio n
(m Engine speed ma ximum X XXX RPM
-
The eng ine speed is automatically limited to
the speed d isplayed in the driver info rmation
system. This pro te cts the engine from over ­
heating.
T he eng ine speed limitation deactivates once
the engine is no longer in the cri tical tempera­
tu re range and yo u have re leased the accelera-
tor pedal once.
Ill>

M N <( I.J "". rl I.O
"' rl
"' rl
Instrument s and warning /indicator lights 29
Adjusting the height
The height of the display can be a djus ted to
t he individual driver .
.. Make sure you a re seated cor rect ly
¢page 129.
.. Turn the knob~ to adjust the displ ay .
Settings in the MMI
.. Se lect: I CARI funct ion button > ( Car )* s ys­
tems
control button > D river Assist > Head­
up Display > Head-up Display content
or
Di splay brightne ss .
Display content
In the MMI, you ca n specify which information
should be displayed :
- Cruise contro l system*
- Navigatio n information*
- A udi adaptive cruise control *
- Audi a ct ive lane assist*
- Night vis ion assistant*
The speed display and some of the red indica­ tor lights cannot be hidden in the MMI.
Display brightness
You can ad just the display brightness in t he
MMI. The display brightness decreases auto­
mat ica lly as the amount of light decreases.
The basic leve l of brightness is adjusted with
the ins trumen t illum ina tion ¢ page 47 .
(D Note
To prevent sc ratches on t he g lass covering
the Head-up Disp lay, do not place any ob­
jects in the proj ection opening.
(D Tips
- Sung lasses w ith polar izat ion fi lters an d
unfavorable lighting condit ions can af­
fect the display.
- A specia l w indshield is needed for the
Head-up Display funct io n.
- Fo r information on cleaning, refer to
¢ table on page 214.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL )
The Ma lfunction Indicator Lamp ( MIL ) ¢'4 in
the instr ument cluster is part of the On-Board
Diagnostic (OBD II) system .
T he wa rni ng/indicator light ill uminates when
the ignit io n is switched on and goes out after
the engine sta rts and the id le has stab ilized.
This indicates that the MIL is working proper­
ly .
If the light does not go out afte r th e en gine
is started, or illuminates while you are dr iv­
ing, a mal function may exist in the engine sys ­
tem.
If the lig ht illum inates, the catalyt ic con­
verter could be damaged .
Contin ue driving
with reduced power (avoid­
ing s ustained high speeds and/or rapid accel­
erations) and have the cond ition corrected.
Contact your aut horized Audi dea ler.
If the light illuminates, the e lectronic speed
limiter may also be malfunct ioning . For more
information
c> page 30, Electronic speed
limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
c> page 219.
On-Board Diagnostics
Fig. 1 6 Location o f Data Li nk Co nnector (D LC)
On-Board Diagnostics monitors the com po­
nents of your emission cont ro l system. Each
monitored component in your engine system
Iii>-

30 Instruments and warning /indicator lights
has been assigned a code. In case of a ma l­
function, the component will be identified
and the fault stored as a code in the contro l
module memory.
The MIL light may a lso illuminate if there is a
leak in the on-board fue l vapor recovery sys­
tem .
If the light illuminates after a refue lling,
stop the vehicle and make sure the fuel filler
cap is properly closed ¢
page 219.
In order to make an accurate diagnosis, the
stored data can only be displayed using spe­
cial diagnostic equipment (generic scan tool
for OBD) .
In order to connect the special diagnostic
equipment, push the plug into the Data L ink
Connector (DLC). The DLC is located to the
right of the hood release¢
fig. 16.
Your authorized Audi dealer or a qualified
service station can interpret the code and per­
form the necessary repair .
A WARNING
Do not use the diagnostic connector for
personal use . Incorrect usage can cause
malfunctions, which can increase the risk
of a coll ision!
Electronic speed limiter
-
Your veh icle may be factory equipped with
tires that are rated for a maximum speed of
130 mph (210 km/h). This is less than the
maximum speed of you r vehicle. To reduce the
risk of sudden tire failure and loss of control if
the vehicle is operated at excessive speeds,
your veh icle also has an electronic speed limit­
er. The electronic speed limiter prevents your
vehicle from go ing faster than the tire speed
rating. For more informat ion ¢
page 260 .
If the engine control unit receives faulty vehi­
cle road speed s ignals, the Malfunction Indi­
cator Lamp (MIU
¢'4 will illuminate. If this
occurs, contact the nearest authorized Aud i
dealer for assistance. S models
Your
vehicle's top speed is elect ron icall y limit­
ed to 155 mph (250 km/h).
If the engine control unit receives faulty veh i­
cle roadspeed signals, the Malfunction Indica­
tor Lam p (MIL)
¢'4 will illuminate . If this oc­
curs, contact the nearest authorized Audi
dealer for assistance.
_& WARNING
-= -
Always observe the posted speed limits
and adjust your speed to suit prevailing
road, traffic and weather cond itions. Never
drive your vehicle faster than the maxi­
mum speed rating of the tires installed .

M N <( (.J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-When installing the roof rack, make sure it
is only mounted on the designated locations
on the roof¢
fig. 63 .
-We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner's literature in the
vehicle.
Wh en should th e roof rack be remov ed ?
- Before going through an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­
tion, wind noise and to guard against theft.
8_ WARNING
- Use of an unapproved roof rack or incor­
rect mount ing of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the road.
- Objects falling from the roof of a vehicle
can cause a crash and personal injury .
- Only mount the roof rack on the desig­
nated locations on the roof¢
fig. 63.
-The roof rack system must be installed
exactly according to the instructions pro­
vided .
- When driving with a roof rack system,
changes to the center of gravity and wind
resistance can change the veh icle han­
dling and lead to a collision . Always
adapt you r driv ing and your speed to the
c u rrent conditions.
(D Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using
r oof racks or mount ing structures not
approved by Audi for your vehicle . T he
same applies to damage resulting from
incorrect roof rack installa tion.
- Always check t he roof rack moun tings
and hardware before each trip and dur­
i ng a trip to make sure everything is se­
curely tightened . If necessary, retighten
the mount ings and check the entire sys­
tem from t ime to t ime.
S eat s an d sto rage 63
-After mounting a roof rack system, or
when you transport objects on the roof
of your vehicle, the heig ht of the veh icle
is naturally increased. Be careful when
dr iving under low bridges or in parking
garages for example. This cou ld cause
damage to the load and even the vehicle
itself .
- Make sure the open rear lid and the sun­
roof* do not come into contact w ith the
roof rac k.
Loading the roof rack
Always distribute loads evenly. Make sure
anything on the roof rack is securely tied
down.
"' Always distribute the loads on the roof rack
even ly.
"' Always attach items to the roof rack securely
befo re you dr ive off.
The maximum permissible roof weight is
220 l b (100 kg) . The roof weight is the total
of the we igh t of the roof rack, t he attach­
ments and the cargo you a re carry ing . You
must a lso not exceed the max imum load
weight for the roof rack yo u are using .
When using a roof rack system which has a lower load ca rrying capacity, you must not use
u p the tota l maximum permissible load car ry­
ing capacity specified above . Instead, you
sho uld load the roof rack system only to the
max imum capacity specified by the manufac ­
turer of the roof rack system.
8_ WARNING
Weak, damaged or improper straps used
to secure items to the roof rack can fail
du ring hard b raking o r in a coll is ion and
cause ser ious persona l injury.
- Make sure the roof rack is installed exact­
ly as specif ied above ¢
page 62.
- Always use su itable mount ing straps for
secur ing items to the roof rack to help
prevent items from sh ifting or flying for­
ward.

M N <( I.J "". rl I.O
"' rl
"' rl
Such damage will not be covered by your
New Vehicle Limited Warranty .
- If you p ut any amount of incorrect fue l in
t h e fue l tank, do not start the engine un­
der any circumstances. Immediately con­
tact the nearest author ized Audi dealer
or authorized Audi Service Facility for as­
s istance. These fuels contain substances
that can severely damage the fuel sys­
tem and the engin e if the engine is start­
ed.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the r ight rear
side panel behind the fuel f iller flap.
If the power loc king system should fail, you
can st ill open the flap manually -for detai led
instructions see ¢
page 221.
You can find the fue l tank capacity o f you r ve ­
hicle in
¢ page 292.
The label on the inside of the fuel filler flap
tells you the cor rec t f uel for yo ur vehicle . For
more in formation about fuel specificat ions,
see
¢ page 217 .
Your veh icle fuel tank has an on board refue l­
ling vapor recove ry system . T his feature he lps
to p revent fuel vapo rs from escaping from the
tank and polluting the environment whi le you
refuel your ve hicle. In order to fill the tank
properly whi le protect ing the e nv ironment,
p lease follow t his refueling procedure careful­
ly .
& WARNING
Under no rma l operating condi tions, neve r
car ry add itiona l fuel containe rs in your car.
G as can iste rs a nd other c ontaine rs used to
t ran sport fue l can be dange rous. Such con­
t ainers, full or empty, may lea k and co uld
cause a fi re in a co llision . If you must
transport fue l to use for yo ur lawn mower,
snow blower, etc., be very ca refu l and al­
ways observe local and state laws regard­
ing the use, transportat io n and storage of
Fu el suppl y and filli ng your fuel t ank 219
such fuel containe rs . M ake certa in the con­
tainer meets industry standa rds (ANSI/
ASTM F852 -86).
(D Note
Neve r drive your vehicle until the fuel tank
i s completely empty. T he irreg ular s upply
of fue l can ca use m isfir ing. Gasoline cou ld
enter t he exhaust system and damage the
catalytic converter .
Refuelling
Fig. 1 84 R ig ht rea r ve hicle s ide : Open ing t he fuel filler
flap
F ig . 185 Fu el f ille r fla p with attac hed fuel cap
When act ivat ing the centra l locking, the fuel
filler flap is a utomatically unlocked o r locked .
Ref uel the vehicle wi th t he ignition switched
off.
Taking the fuel cap off
.,. Press the left side of the fuel f iller flap to
open it ¢
fig. 184 -arrow -.
.,. Unsc rew fue l filler cap counte r-clockw ise
and ha ng it on the fue l filler flap ¢
fig. 185.
.,. Check t he label on t he ins ide of the f uel fill­
er f lap t o dete rm ine if the veh icle mus t be
fue led with gasoline or diese l fuel. ..,.

220 Fuel supply and filling your fuel tank
Refuelling procedure
.. Inse rt the fue l nozzle from the gasoline
pump into the fue l filler neck as far as it will
go.
.. Se lect a medium refuelling rate so that the
no zzle switches off automatica lly when the
tank is full.
Putting the fuel cap back on
.. After filling your tank, twist the fuel fi ller
cap clockwise as far as it will go.
.. Close the fuel filler flap.
To avoid fuel spi lling or evaporating from the
fuel tank always close fuel fi ller cap properly
and completely. An improperly closed fuel fill­
er cap may a lso cause the MIL lamp
q poge 29
to come on.
A WARNING
Improper refueling or handling of fue l can
cause fire, explosion and severe burns .
- Fuel is highly flammable and can cause
severe burns and other injuries.
- Failure to shut the engine off while refu­
eling and/or to insert the pump nozzle
fully into the fuel filler neck could cause
fuel to spray out of filler neck or to over­
flow. Fuel spray and overflow ing fuel can
c ause a fi re.
- Never use a cellular telephone wh ile re­
fueling. The electromagnetic radiation
can cause sparks that can ign ite fue l va­
pors and cause a fire.
- Never get back into you r vehicle while re­
fueling. If in exceptiona l circumstances
yo u must get back in your vehicle whi le
refue ling, make certain that you close
the door and touch metal to discharge
static electricity before touching the fill­
er nozzle again. Static electricity can
cause sparks that can ignite fuel vapors
released during refueling.
- Never smoke or have an open flame any­
where in or near your vehicle when refu ­
eling or filling a portable fuel container .
- For your safety, we strongly recommend
that you do not travel w ith a portable fuel container in your vehicle. The con­
tainer, full or empty may leak and could
cause a fire, especially in a crash.
- If, under exceptional circumstances, you
must transport a portable fuel container,
please observe the following:
- Never fill a portable fuel container
whi le it is anywhere in or on the vehicle
(for example, in the luggage compa rt­
ment, or on the trunk) . Static electrici­
ty can build up while filling and can ig­
nite fuel vapors causing a fire.
- Always place a portab le fue l container
on the ground before fi lling.
- Always keep the filler nozzle complete­
ly inside the portab le container before
and during filling.
- If filling a portab le container made of
metal, the f iller nozzle must always be
in contact with the container. This will
help prevent static electricity from d is­
c harging and cause a fire.
- Never spill fuel inside the vehicle or
luggage compartment. Fuel vapors are
highly flammable .
- Always observe local and state/provin­
cial laws regarding the use, storage
and transportation of fuel containers .
- Make certain the fuel container meets
industry standards (ANSI/ ASTM
F852 -86) .
(D Note
If any fuel has spilled onto the car, it
should be removed immediately to prevent
damage to the paint .
@) For the sake of the environment
As soon as the correctly operated no zzle
switches off automatically for the first
time, the tank is full. Do not try to add
more fuel because fuel may spill out . In
addition, the expansion space in the fuel
tank will be filled -causing the fuel to
overflow when it becomes warm and pol­
l ute the environment .

M N <( I.J ' "' rl
"' rl
(D Tips
-Running yo ur engine while refuelling
may cause vapors to escape or even
cause fue l to spill out of the tank. This
would then shut off the fuel nozzle be­
fore the tank is full.
- Do not refuel your veh icle w ith the igni­
tion switched on . The fuel gauge may
otherwise not indicate the correct fuel
level afte r refuelling.
- Diesel veh icles * are equipped w ith a die­
se l m isf ueling protector. It allows the
vehicle to be f ueled on ly w ith a diesel
fuel pump nozzle . A wo rn o r damaged
no zzle or a nozz le tha t is too small may
no t be able to open the d iesel misfueling
protector. If this is the case, try turning
the nozz le before inserting it in the fue l
filler neck, use a different fuel p ump or
see your authorized Audi dealer or au­
thorized repa ir facility for assistance.
- The fuel filler flap of your vehicle is not locked when you lock the vehicle from
the i nside.
Fuel filler flap emergency release
You con open the fuel filler flop by hand if the
power locking system should fail.
Fi g. 18 6 Luggage compa rtme nt: open ing t he s ide t rim
Fu el suppl y and filli ng your fuel t ank 221
N
N
0
0
di
Fig . 1 8 7 Right s ide tr im pane l in t he luggage com part ·
men t: emerge ncy re lease m echan is m
Opening the sid e trim
.,. To remove the right side t rim, first remove
the retainer from the mounts ¢
fig. 186.
.. Tu rn both lock ing mechanisms 90° to the
left using a coin or a similar object and re­
move the locking mechanisms .
.. Tilt t he retainer upward and pull the trim
out. Lay the trim down o n its s ide, beca use
there is an e lectr ica l w ire on the back.
Fuel filler door em ergency release
The emergency release mechanism is located
behind the right side trim panel in the lug­
gage compartment .
.. Loosen the loop
<=> fig. 187from th e retainer
and then pull on the loop carefully
<=> CD .
.. Press on the left side of the fue l filler door
to open
<=>page 219, fig. 184.
(D Note
Only p ull on the loop until yo u feel resist­
ance. You w ill not hea r it release. Other­
wise you could damage the eme rgency re­
l ease mechanism.
Selective catalytic
reduction
General information
App lies to vehicles: wit h diesel engine
On vehicles with se lective cata lytic reduct ion,
an urea solution (AdB lue) is injected into the
exhaust system before a nitrogen ox ide cata­
lytic co nve rter to reduce nitrogen emissions. ..,

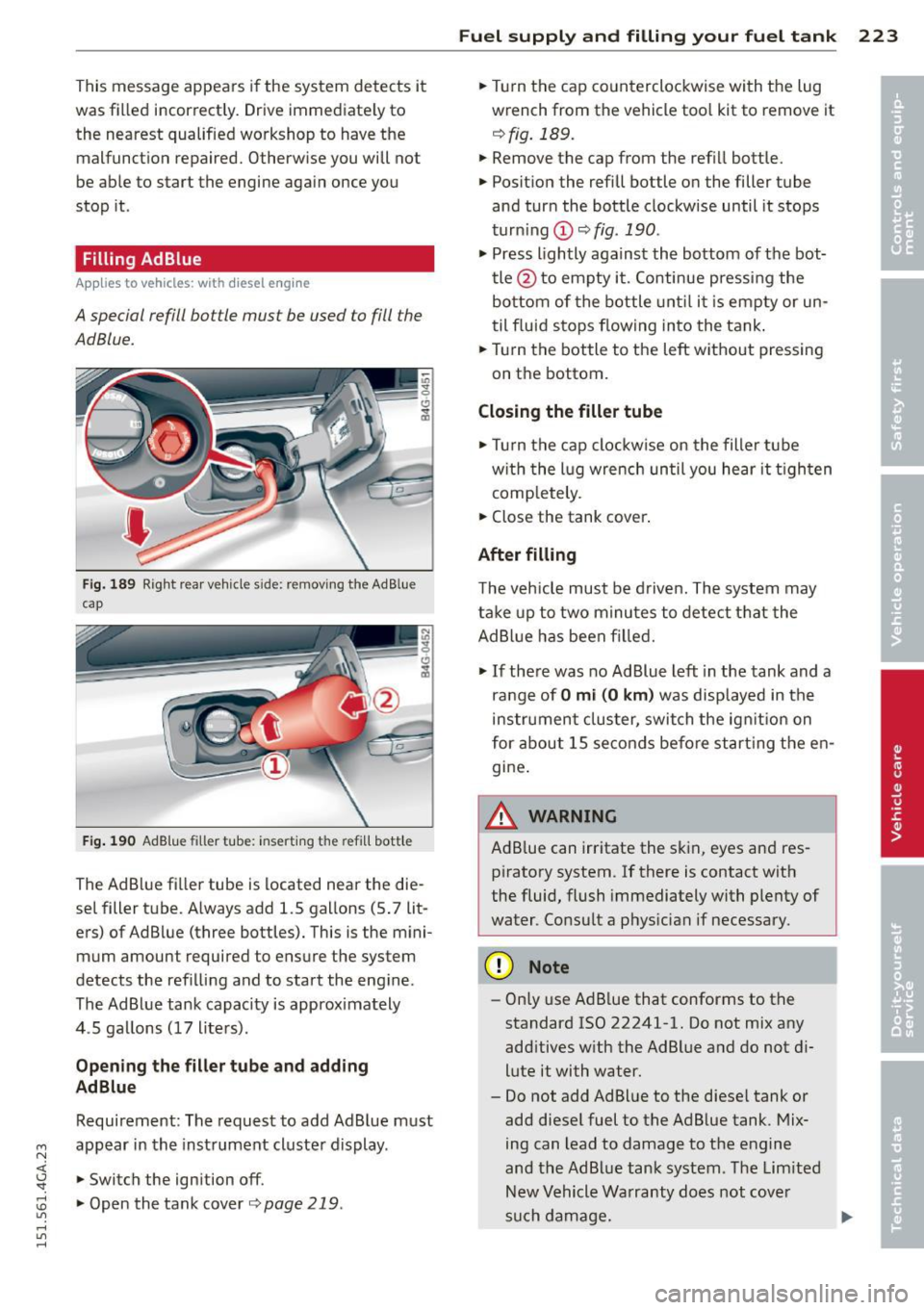

This message appears if the system detects it
was filled incorrectly. Drive immediate ly to
the nearest qualified workshop to have the malfunct ion repaired. Otherwise you will not
be able to start the engine aga in once you
stop it.
Filling AdBlue
Ap plies to vehicles: with diesel e ng in e
A special refill bottle must be used to fill the
AdBlue.
Fi g. 189 Right rea r veh icle s ide: re m ov ing the Ad Blue
cap
Fig. 190 Ad Bl ue fitter t ube: insert ing the refill bott le
The Ad Blue f iller tube is located near the die­
se l filler t ube. A lways add 1.5 gallons (5 .7 lit­
ers) of AdBlue (three bottles). This is the m ini­
mum amount required to ensure the system
detects the refilling and to start the eng ine.
The Ad Blue tank capacity is approximately
4.5 gal lons ( 17 lite rs).
Opening the filler tube and adding
AdBlue
Requirement: The request to add Ad B lue must
"' appear in the inst rument cluste r display.
N <(
~ • Switch the ignition off.
:0 • Open the tank cover r=>page 219.
"' ,....,
"' ,....,
Fuel suppl y and filli ng your fuel t ank 223
• Tur n the cap co unterclockwise with the lug
w rench from the vehicle too l kit to remove it
r=>fig. 189.
• Remove the cap from the refill bottle.
• Position the refill bottle o n the filler tube
and tur n the bottle clockw ise until it stops
tur ning
(I) ~ fig. 190.
• Press lightly against the bottom of the bot­
tle @ to empty it. Continue p ressi ng the
bo ttom of the bottle unt il it i s empty or un­
t il fluid s tops flow ing in to the tank .
• Turn the bottle to the left w ithout pressing
on the bottom.
Closing the filler tube
• Tu rn the cap clockw ise on the fille r tu be
w ith the l ug wrench until you hear it t ighten
c ompletely.
• Close the tank cover .
After filling
The vehicle must be d riven. The system may
t ak e up to two m inu te s to dete ct t hat the
AdB lue has been filled .
• If the re was no Ad Blue left in the tank and a
ra nge of
O m i (0 km ) was displayed in the
instrument clus ter, switch the ig nition on
for about 15 se con ds befo re st art ing the e n­
gine .
WARNING
Ad B lue can irritate the sk in, eyes an d res­
p iratory system. If there is contact with
the fluid, flush immediately with plenty of
water. Co nsu lt a phys ician if necessary.
(D Note
- On ly use Ad B lue that conforms to the
standard ISO 22241-1. Do not mix any
add itives w ith the AdBl ue a nd do not d i­
lute it with water.
- Do not add Ad Bl ue to the diese l tank or
add diese l fuel to the Ad B lue tank. Mix­
ing can lead to damage to the engine
and the AdBl ue tank system. The Lim ited
N ew Vehicle Warranty does not cove r
su ch dam age .

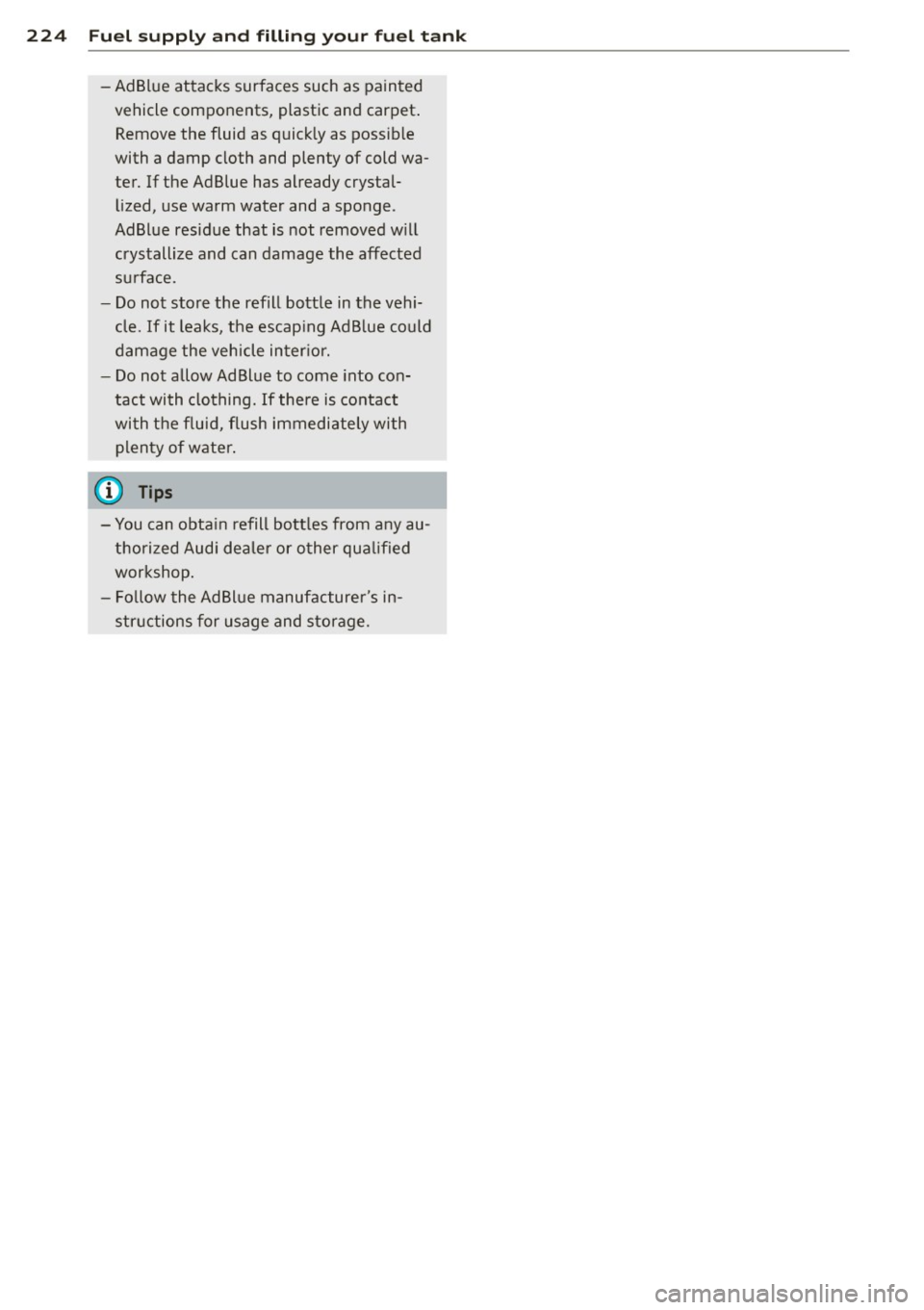

224 Fuel su ppl y and fillin g yo ur fu el t an k
- Ad Blue attacks surfaces such as painted
vehicle components, plastic and carpet .
Remove the fluid as quick ly as possib le
with a damp cloth and plenty of cold wa­
ter. If the Ad Blue has already crystal­
li zed, use warm water and a sponge .
AdBlue residue that is not removed w ill
crystallize and can damage the affected
surface.
- Do not store the refill bottle in the vehi­
cle. If it leaks, the escap ing Ad Blue could
damage the vehicle inter ior.
- Do not allow Ad Blue to come into con­
tact with clothing.
If there is contact
with the f luid, flush immediately with
plenty of water .
@ Tips
-You can obtain refill bott les from any au­
thorized Audi dealer or other qualified
workshop.
- Fo llow the Ad Blue manufacturer 's in­
str uctions for usage and storage.
