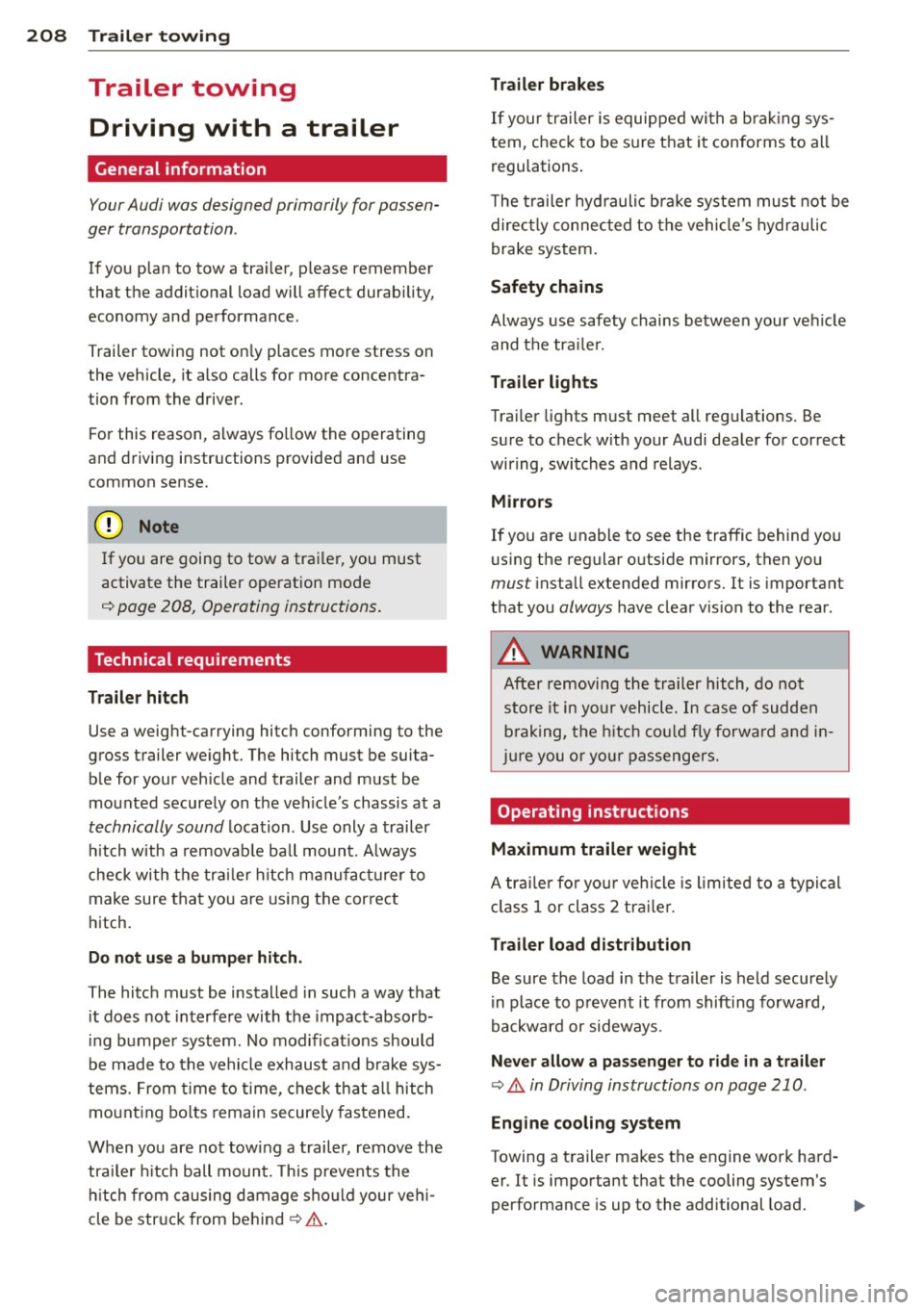

208 Trailer towing
Trailer towing
Driving with a trailer
General information
Your Audi was designed primarily for passen­
ger transportation .
If you plan to tow a trailer, p lease remember
that the additional load will affect durability,
economy and performance .
Trailer towing not on ly places more stress on
the vehicle, it also calls for more concentra­
tion from the driver.
For this reason, always follow the operating
and driving instructions provided and use
common sense.
@ Note
If you are going to tow a trai ler, you must
activate the trailer operation mode
c:::> page 208, Operating instructions.
Technical requirements
Trailer hitch
Use a weight-carrying hitch conforming to the
gross trailer weight. The hitch must be suita­ ble for your vehicle and trailer and must be
mounted securely on the vehicle's chassis at a
technically sound location . Use only a trailer
hitch with a removable ball mount. Always
check with the trailer hitch manufacturer to
make sure that you are using the cor rect
hitch.
Do not use a bumper hitch.
The hitch must be installed in such a way that
it does not interfere with the impact-absorb­
ing bumper system. No modifications should
be made to the vehicle exhaust and brake sys­
tems . From time to time, check that all hitch
mounting bolts remain securely fastened.
When you are not towing a trailer, remove the
trai ler hitch ball mount. This prevents the
hitch from causing damage should your vehi­
cle be struck from behind
c:::> A.
Trailer brakes
If your trailer is equipped with a brakin g sys­
tem, check to be sure that it conforms to all
regulations.
T he trailer hydraulic brake system must not be
directly connected to the vehicle's hydraulic
brake system .
Safety chains
Always use safety chains between your veh icle
and the trailer.
Trailer lights
Trailer lights must meet all regulations. Be
sure to check with your Audi dealer for correct
wiring, switches and relays.
Mirrors
If you are unable to see the traffic behind you
using the regular outside mirrors, then you
must install extended mirrors. It is important
that you
always have clear v is ion to the rear .
A WARNING
--
After removing the trailer hitch, do not
store it in your vehicle . In case of sudden
braking, the hitch could fly forward and in­
jure you or your passengers.
Operating instructions
Maximum trailer weight
A trailer for your vehicle is limited to a typical
class 1 or class 2 trailer.
Trailer load distribution
Be sure the load in the trailer is held securely
in place to prevent it from shift ing forward,
backward or sideways.
Never allow a passenger to ride in a trailer
c:::> A in Driving instructions on page 210.
Engine cooling system
Towing a trailer makes the engine work hard­
er . It is important that the cooling system 's
performance is up to the additional load.

238 Check ing and filling
cracked an d weake ned when the battery
froze.
- Charge the battery in a we ll ventilated
area. Keep away from open flame or elec­
trical spark. Do not smoke. Hydrogen gas
generated by the battery is explosive.
- To reduce the danger of explosion, never
connect or disconnect charger cables
wh ile the charger is operating.
- Fast charg ing a battery is dangerous and
should only be attempted by a compe­
tent technician w ith the proper equip­
ment.
- Battery acid that may spill during charg­
ing should be washed off w ith a solution
of warm water and baki ng soda to neu­
t rali ze the acid.
~ Note
Never use a fast charger as a booster to
start the engine. This will seriously dam­
age sensitive el ect ronic components, such
as co ntrol units, relays, rad io, etc., as we ll
as th e batte ry charge r.
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery.
I ntell igent energy management in your vehi­
cle is respo nsible for d ist ributing the electr i­
cal energy throughou t you r vehi cle
~ page 201. The inte lligen t energy manage­
ment system w ill keep the engine battery
charged better than vehicles without t his sys­
tem . To make sure the additional electrical en ­
ergy is available once again after you have
changed the battery, we recommend that you
install batteries of the same type and manu­
facture only (the same as those installed at
the t ime your vehicle was delivered). Specifi­
cations a re listed on the battery hous ing. You r
author ized de aler m ust code the battery in
the energy management system to enable yo u
to use the energy managemen t fu nctions co r­
rectly after replacing the battery. T
he new battery must have the same capacity,
vo ltage ( 12-volts), amperage, construction
and plug sealing.
When ins tall ing t he battery, make su re the ig­
nition and a ll elect rical consume rs are switch ­
ed off.
(D Note
Make sure the ven tilat ion hose on the side
of the ba ttery is connecte d, otherwise
fumes or batte ry acid can lea k out .
- Ve hicles with the Start-S top-System * are
equip ped with a spec ial cycle-proof AGM
battery . Install ing a d iffe rent type of
battery can cause problems in the vehi­
cle e lectr ica l system. Whe n replac ing the
vehicle battery, always install one w ith
t he same specifications as the o rigi na l
battery.
@) For the sake of the environment
Because of the prob lem of proper disposal
of a battery, we recomme nd your author­
i zed Audi dealer change the battery fo r
you. Batteri es contain sulfur ic acid and
l ead and must a lways be di spo sed o f prop­
erly in comp liance wi th all envi ronmental
regulations. Disposing of vehi cle batter ies
imprope rly is very dange rous to the envi­
r onment.
Windshield/headlight*
washer container
F ig . 1 99 Engine compartment: cover on the windshield
a n d headl ight * was her fl ui d reservo ir
ll>

M N <( (.J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,
Emergency situations
General
This chapter i s intended for trained emer­
gency crews and working personnel who have the necessary tools and equipment to
perform these operations.
Starting by pushing or
towing
(D Note
Ve hicles w ith an au tomatic tra nsmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine shou ld fail to start because of a
discha rged o r wea k battery, the battery can be
connected to the battery o f
another vehicle,
using a
pair of jumper cables to start the en­
g ine.
Jumper cables
Use only jumper cables of sufficiently la rge
c ross section to carry the starter c urrent safe­
l y. Refer to the man ufacturer's specifications.
Use only jumper cables with
insulated te rm i­
na l clamps wh ic h are d istinctly marked:
plus(+) cable i n mos t cases co lore d red
minu s(-) cable
in most cases colored black .
A WARNING
Batterie s contain e lec tricity, ac id, an d gas.
A ny of these can cause ve ry ser io us or fatal
inju ry. Follow the instructions below f or
safe han dling of your veh icle's b attery .
- Alway s shield you r eyes and avoid lean­
ing over the bat te ry whenever possib le.
- A dis ch arged battery c an free ze at tem­
peratures ju st be low 32 °F ( 0 °C ). Befo re
Emergency situations 285
connecting a jumpe r cab le, you must
thaw the fr ozen battery c omp lete ly, ot h­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Fl ush any contacted area with
wate r immediately.
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batter ies genera te exp losive gas­
es. Keep spar ks, flame and lighted c iga ­
rettes away from batte ries.
- Do not try to jump start any ve hicle w ith
a low ac id leve l in the battery.
- The vo ltage of the booste r batte ry m ust
a lso have a 12-volt rating. The capacity
(Ah) of the booster battery sho uld not be
lowe r tha n that of the discharged bat­
tery . U se of batte rie s of d iffe ren t voltage
or substantially diffe rent "Ah" rat ing
may c au se an exp losion and persona l in­
JU ry.
- N ever cha rge a fro zen battery. Gas trap­
pe d in the ice may cause a n ex plosion.
- Never cha rge or use a batte ry tha t h as
been fr ozen. T he battery case may have
be weakened.
- Us e of b atter ies of differe nt voltage or
sub stant ia lly diffe ren t ca pa city (Ah) ra t­
i ng may c ause an ex plosion an d injury .
Th e capac ity (Ah) of the booster bat tery
should not be lower than that of the dis ­
charged batte ry .
- Before you chec k any thing in the engine
compa rtment, always read and hee d all
WARNINGS
¢page 225.
(D Note
-App lyin g a higher vo ltage booster ba t­
t ery w ill cause expens ive damage to se n­
sit ive e lectronic com ponents, such as
cont ro l units, relays, rad io, etc.
- The re must be no electrical contact be­
tween the vehicles as ot herwise c urrent
co uld a lready start to f low as soon as the
p o sit ive(+) term inals a re connected. ..,. •
•
