-Be fore yo u chec k any thing in the engine
compartment, a lways read and heed a ll
WARNINGS
c:::> page 193 .
(D Note
Impro per hook-u p of jum per cables c an r uin
the gene rato r.
-Always connect P OSITIVE( +) to POS ITIV E
( + ), and NEG ATIVE( -) to NEGATI VE( -)
g round post of t he battery manage r contro l
unit.
- Check that a ll sc rew p lugs on t he battery
ce lls are screwed in f irmly . If not, t ighten
plugs p rior to connecting clamp on negative
b attery termi nal.
- Please note t hat the procedure fo r con nect­
i ng a jumper cab le as desc ribed above ap­
pli es specifica lly to the case of yo ur vehicle
b eing jump starte d. W hen you are giv ing a
ju mp s ta rt to ano ther vehicle , d o
no t con­
ne ct t he negative( -) cable to the neg ative
(-) t ermin al on the disch arged b attery @
c:::> fig . 212 . In stead , securely connec t the
n egative ( -) cable to either a solid metal
com ponent that is firm ly bolted to the e n­
gine block or to the engine bloc k itsel f. If
the battery that is be ing charged does not
vent to the outs ide, escap ing battery gas
could ignite and ex plode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The follow ing informa tion is to be used by com­
mercia l tow tr uck operators who know how to op ­
e rate the ir equip men t sa fely.
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
around the brake line s.
- To prevent unnecessary damage, your Audi
must be transported with a flatbed tru ck .
a co -To load the vehicle on to the flatbed , use the ,...,
~ towing loop found in the vehicle tools and at-N ,...,
0 00 <.,;) ' Emergency situations
tach to the front or rear anchorage
c:::> pag e 249 and c:::>page 250 .
A WARNING
-
A veh icle bei ng towed is not safe for passen-
gers . N ever allow anyone to ride in a vehicle
being towed, for any reason.
Front towing loop
Fig. 213 Front bu mpe r: co ve r
Fig. 214 Front bu mper: i nst all ing the tow ing loop
T he t hreaded o pen ing for th e towing loop is lo­
cated be hind a cover on the r ight side of the front
bumper .
.,. Remove the towing loo p from the vehi cle too l
k it
c:::> page 2 3 3 .
.,. Press the cap inward with brief, force ful p res ­
su re
c:::> fig. 213 . The cap will loosen from the
bumper.
.,. T ighten the towing loop in the threaded open ­
ing until it sto ps
c:::> fig . 214 and then tighten it
w ith a wheel w re nch .
.,. After usi ng, p lace the tow ing loop back i n the
veh icle tool kit.
..,.
249

Emergency situations
& WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled out when towing the vehicle and that
could cause an accident.

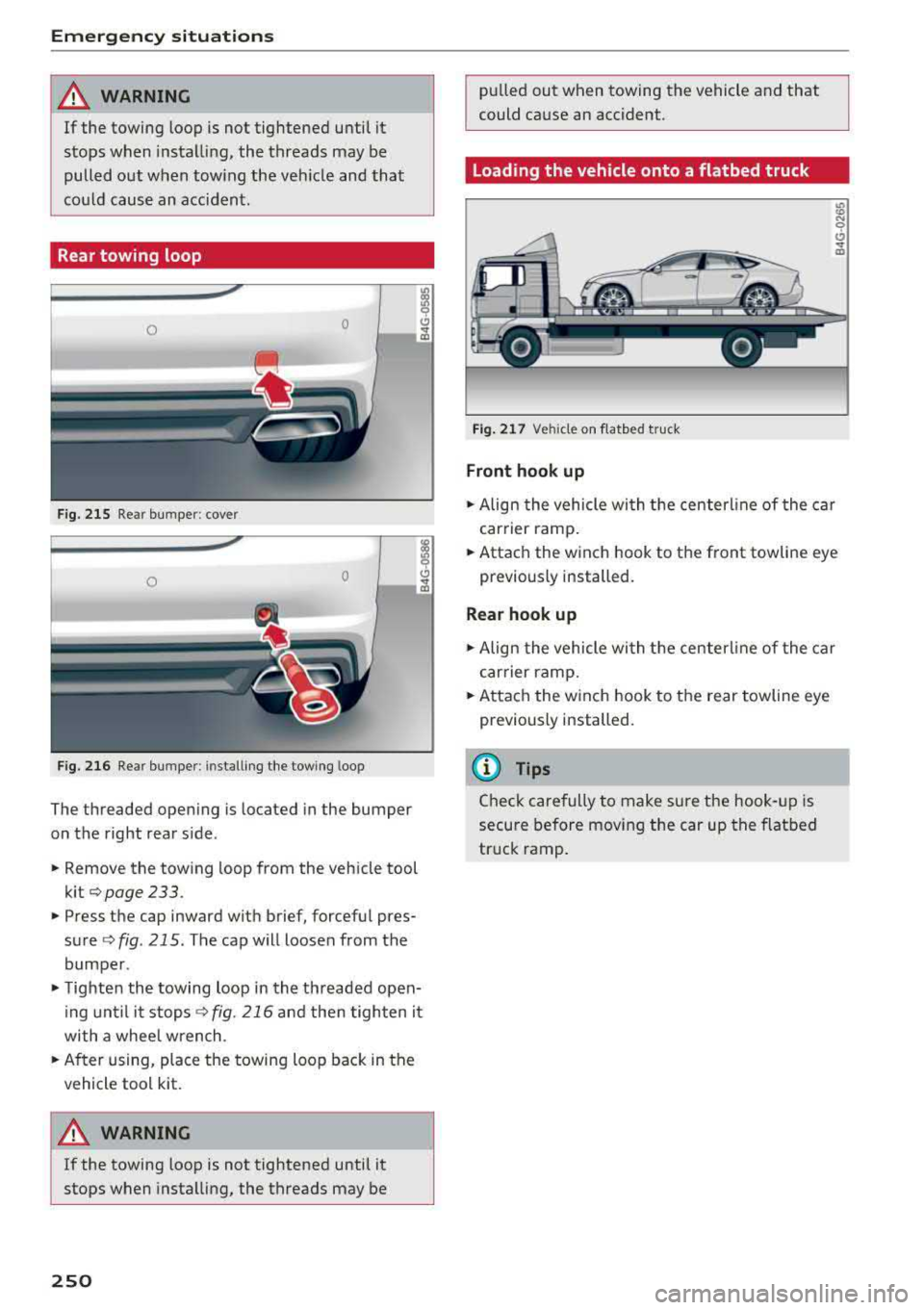

Rear towing loop
0 0
F
ig. 215 Rear bumper : cover
0 0
F
ig. 216 Rear bumper : installi ng the towing loop
The threaded opening is located in the bumper
on the right rear side .
.. Remove the towing loop from the vehicle tool
kit
o page 233 .
.. Press the cap inward with brief, forceful pres­
sure
o fig . 215 . The cap will loosen from the
bumper .
.. Tighten the towing loop in the threaded open­
ing until it stops
<=?fig. 216 and then tighten it
with a whee l wrench .
.. After using, place the towing loop back in the
vehicle tool kit.
A WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
250
-
pulled out when towing the vehicle and that
could cause an accident .
Loading the vehicle onto a flatbed truck
Fig. 217 Vehicle on f latbed truck
Front hook up
l8 N 0
CJ .., m
.. Align the vehicle with the centerline of the car
carrier ramp .
.. Attach the winch hook to the front towline eye
previously installed.
Rear hook up
.. Align the vehicle wi th the centerl ine of the car
carrier ramp .
.. Attach the winch hook to the rear towline eye
previously installed.
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .

a co ,...,
N
" N ,...,
0 00 <.,;) ' Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be lift ed at the lifting
points illus tr at ed.
Fig. 218 Fro nt lift in g poin t
Fig. 219 Re ar lift ing poin t
.,. Read and heed WARNING c::> &, .
.. Activate the veh icle ja ck mode* in the M MI:
I CAR I funct ion button> (Car) * systems contro l
bu tton >
Servicing & checks > Air susp.: jack
mode > On .
.. Loca te lift ing po ints c::> fig . 218 and c::>fig . 219 .
.. Adju st lifting arms of wo rkshop hoist o r floo r
jack t o match vehicle li fting poin ts.
.. In se rt a rubb er pa d between the floor jack/
wor kshop ho ist a nd the lifting points .
T he vehicle ja ck m ode* mus t be activa ted so that
the au tomatic a djustment of the Ad aptive Air
Suspension * does no t make it more difficult to
raise the ve hicle wit h the floor jac k.
If you must lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this purpose . Emergency situations
Front lifting point
T he lifting poin t is locate d on the floor p an rein ­
f o rcement about at the same level as the ja ck
mounting point
c::> fig . 218 . Do not lift the vehi­
cle at the vertical sill reinforcement .
Rear lifting point
T he lifting p oin t i s lo cate d on the ve rtic al rei n­
f o rceme nt o f th e lower s ill for the on- bo ar d jac k
c::>fig. 219.
Lifting with vehicle jack
Refer to c::> pag e 238 .
A WARNING
- To reduce the r is k of se rious inju ry and veh i­
cle dama ge.
-Always lift the vehicle o nly at the specia l
wor kshop h oist a nd f loor jack lift points
il­
l ustrated c::> fig. 218 and c::> fig. 219.
-Failure to lift t he ve hicle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy compo­
n en ts such as the eng ine block o r trans­
missi on a re removed .
- Whe n re mov ing heavy comp onents like
these, an ch or veh icle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rio us pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing po ints b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
-To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points .
.,.
251

Emergency situations

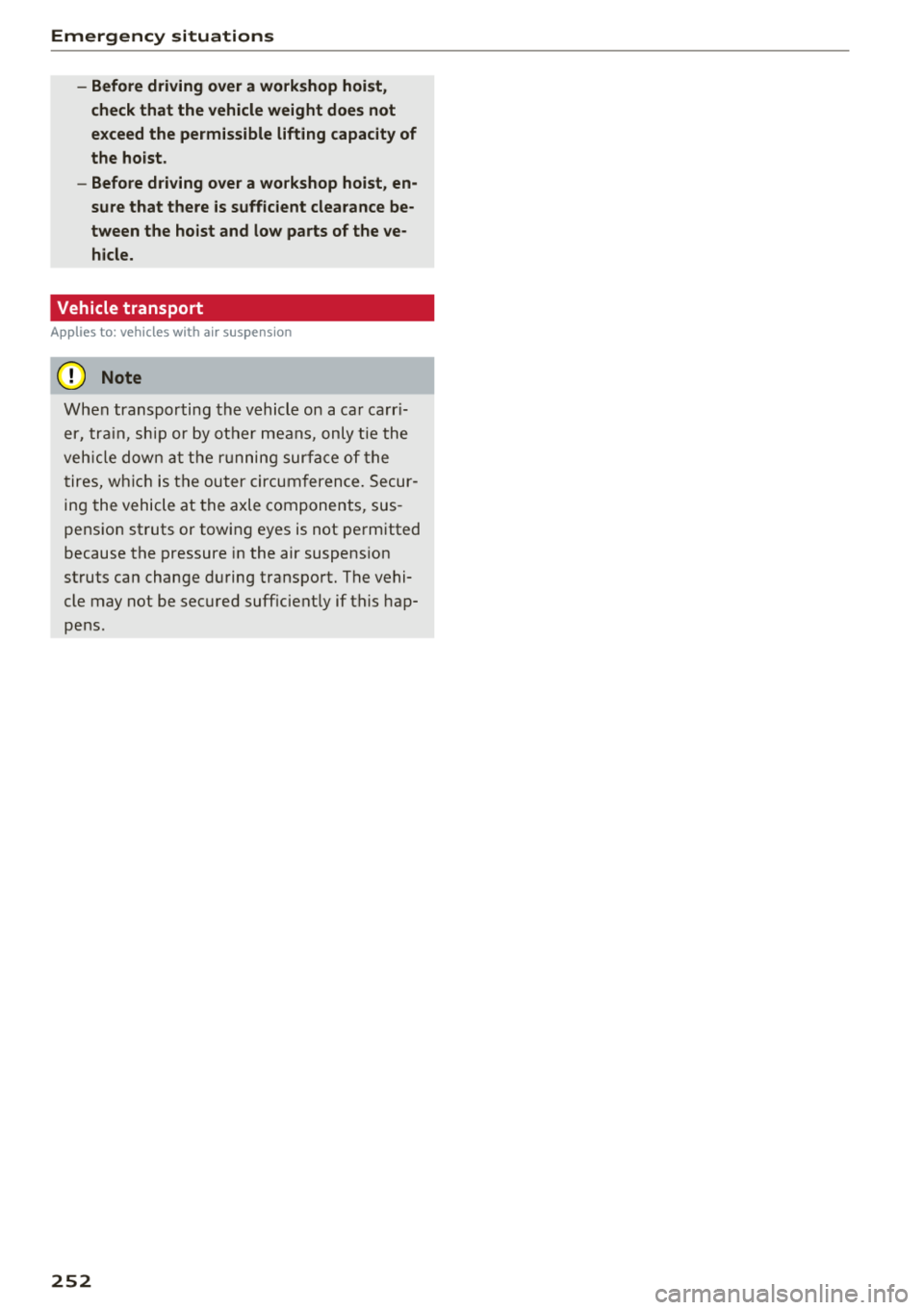

-Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist.
-Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­ hicle.
Vehicle transport
Applies to: vehicles with air suspension
~ Note
When transporting the vehicle on a car carri­
er, train , ship or by other means, only tie the
vehicle down at the running surface of the
tires, which is the outer circumference. Secur­
ing the vehicle at the axle components, sus­
pension struts or towing eyes is not permitted
because the pressure in the air suspension
struts can change during transport. The vehi­
cle may not be secured sufficiently if this hap­
pens.
252

a co ,...,
N
" N ,...,
0 00 <.,;) ' Technical data
Vehicle specifications
XXXXX XX -X -XXXX XXX XX
®-+ : ::::::. XXXXXXXX XX X XX XXX XXX
IYP /lffl XXX XXX
XX XXXXXXX XX X X XX
XXX KW XXX
®i ~=-:~~ XXXX XXX XXX
©+ ~ rur:i~ xxxx I xxxx XXX I xx
II. · AIJSlit I OPTIONS
EOA 7D 5 4U B 6XM SSG SR W
2 EH JO Z 1LB 1AS 1BA
3FC SM U 7Xl
F O A 9G3 OG7 O YH OJF
TL 6 3 KA 8EH UlA X 9B OZ7
l XW
803
908 8Z4 020
7 T6 CV7
71<0 4X3 21< 2
3L4 4 KC 3YO 413 5 02
1S A 7GB
01A 4GQ
XX . X XX X XX X XXXX
Fig. 220 Vehicle ident ifica tion labe l
Vehicle Ident ifi cation Number (VIN )
The VIN number is located in the following pla­
ces :
-In the Infotai nment system: select: the !CARI
function button > (C ar) * systems contro l but­
ton
> Service & control > VIN numbe r.
-on the vehicle identification label
Dimensions
0
0
~ :x: Technical data
-At the front under the windshield *
Vehicle identification label
The vehicle identification label~ fig. 220 is loca t·
ed in the luggage compartment unde r the cargo
floor cover.
The vehicle identification label informat ion can
also be found in the Wa rranty and Maintenance
booklet .
The st icker contains the follow ing vehicle data :
© Vehicle Identification Number (VIN)
@ Vehicle type, eng ine output, transm ission
@ Engine and transmission codes
@ Paint and interior codes
® Optional equipment numbers
Notes about technical
data
T he values may vary based on special equipment
as well as market-specif ic equipment and meas­
u ring methods .
Please note that the specific ations listed in the
vehicle documen tat ion a lways take preceden ce.
{i) Tips
M issing tec hni cal data was not ava ilable at
t he time of pr int ing.
Length (in (mm)) Width (in (mm ))
Width across the Height at curb
mirrors (in (mm )) weight (in (mm))
A7 Sportback 196.2
(4,984) 75.2 (1,911) 84.2 (2,139) 5S.9 (1,420)
RS 7 Spo rtba ck 197.3 (5,012)
75. 2 (1 ,911) 84 .2 (2,139) 55.9 (1,419)
S7 Sportback 196.3 (4,985) 75.2 (1,911) 84.2 (2,139) 55.0 (1,398)
253

Technical data
Capacities
Gasoline engine fuel tank
Windshield washer system
Windshield and headlight washer system*
Weights
CX)
t;==(t)== ~== ~~ =~i
=I= = I= = I= cm>
-
Aud i
Fig. 221 Safety ce rtifi cate
Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight (D of the
vehicle is given on the safety certificate on the
side area of the door or on the driver 's side door
post.
Gross Axle Weight Rating (GAWR)
The maximum permitt ed load on the front axle
@or th e rear ax le ® is given on the safety certif ­
icate on the side area of the door or on the driv­
er's side door post.
Load
The max imum pe rmitted load is give n on the tire
p ress ure labe l on the driver's s ide door post.
Roof load
The max imum perm iss ibl e roof load is 220 lbs
(100 kg) .
254
Approximate capaci-
ties
19.8 gal (75 .0 L)
3.7 qt (3.5 L)
5.2 qt (4.9 L)

a co .... N
" N .... 0 00 \.J ' Consumer Information
Warranty coverages
Your Audi i s co vered by the following warran­
tie s:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobiles meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana­
da differ from vehicles sold in other countries.
If you p lan to take you r vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the possibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a conside rably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing eq uipment;
- r eplacement parts may not be readily available.
- Navigation systems for veh icles built for the
U.S .A . and Canada w ill not necessarily work in
Eur ope, and may not wo rk in other countries
outside North America.
Consumer Information
@ Note
Audi cannot be responsib le for mechanical
damage that could resu lt from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction. Se rvice ma nuals and literature
are available to order from the Audi Tec hni cal Lit ­
erature Orde ring Center at :
www .aud i.techliterature .com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliab ility . For detailed vehicle
maintenance consult your Warranty
& Mainte­
nance booklet .
Under difficult operating conditions, for exam­
ple at extremely low outside temperatures, in
very dusty regions, etc., some service work
shou ld be performed between the intervals speci ­
fied. This applies particula rly to:
- oil changes, and
- cleaning or replacing the a ir filter .
@ For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emiss ion standards are
maintained, thus min imizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, soph isticated
fuel injection and emission control systems, and
the genera lly increasing technica l comp lexity of
today's automobiles, have steadily reduced the
.,.
255

Consum er Info rmation
scope of maintenance and repairs which can be
carried out by vehicle owners.
Al so , sa fet y and
en vironment al
concerns place very strict limits
on the nature of repairs and ad justments to en­
g ine and transmission parts wh ich an owner can
perform .
Maintenance, adjustments and repairs usually re­
qu ire special tools, testing devices and other
equ ipment available to specially trained work­
shop personnel i n order to assure proper per ­
formance, reliab ility and safety of the veh icle and
its many systems .
Improper maintenance, adjustments and repairs
can impair the operation and reliab ility of your
veh icle and eve n void your vehicle warranty .
Therefo re, proof of servicing in accordance w ith
the ma intenance sc hedule may be a condition fo r
up hold ing a possible wa rra nty claim made wi thin
the warranty pe riod.
Above all , operational safety can be adversely af­
fected, c reating unnecessa ry risks fo r you and
your p assengers.
If in doubt about any servicing, have it done by
your author ized Audi dealer or any other properly
eq uipped and qualified workshop . We strongly
urge yo u to g ive your author ized Audi dealer the
opportu nity to pe rform a ll scheduled ma inte ­
nance and necessary repairs. Your dealer has the
facilities, origina l parts and train ed sp ecialists to
keep your veh icle running properly.
Performing limited maint enance yourself
The fo llow ing pages describe a limited number of
procedures w hich can be performed on your ve hi­
cle with ordinary tools, should the need arise and
trained personne l be unavai lable . Before pe r­
forming any of these procedures, always thor­
ough ly read a ll of the app licab le text and carefu l­
ly follow the instructions g iven . A lways rigorously
observe the
WARNING S provided .
Before you check anything in the engine com ­
partment , alw ays read a nd heed all WARNINGS
c> .&. and c> .&. in Working in the engine compart­
ment on page 193 .
256
A WARNING
- Ser ious personal in jury may occur as a result
of imp roperly performed maintenance, ad­
justments or repairs .
- Always be extreme ly careful when work ing
on the vehicle . Always follow commonly ac­
cepted safety practices and general com­ mon sense. Never r is k personal in jury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fu lly fam il iar with these
or other proce dures with respect to t he ve­
hicle, or are uncertain how to proceed.
- Do not do any work wi thout the prope r tools
an d equi pmen t. H ave the necessary wo rk
done by your authorized Au di dealer or an ­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi ­
cle is a potentially hazardous area . Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiato r fan switches on au­
tomatically when the coolan t reaches a cer­
tain tempe rature and w ill cont inue to run
until the coolant temperature d rops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supp lied with the veh i­
cle is no t adequate fo r th is pu rpose a nd
could collapse causing serious personal in­
jury .
- If you must wor k unde rneath the vehicle
w ith the wheels on the g round, always make
sure the vehicle is on level ground, that the
wheels a re always sec urely blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic t ransm iss ion) is in P (Park
position) and the pa rk b rake is applied .
Ill>

a co .... N
" N .... 0 00 \.J ' @ For the sake of the environment
-Changing the engine settings wi ll adversely
affect emission leve ls. Th is is detrimental to
the env ironment and increases fuel con ­
sumption.
- A lways observe environmenta l regu lations
when disposing of old engine o il, used brake
flu id, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Mate­
rial -spec ial handl ing may apply, see
www .dtsc.ca .gov/hazardouswaste/perch lo­
r ate. When the vehicle or pa rts of t he re­
stra int system includi ng a irbag mod ules
s af ety be lts with pretens ioners a re scrap ­
ped, a ll applicab le laws and regulations
must be observed. Your a uthorized Audi
dealer is fam iliar with these requirements
and we recommend that you have your dea l­
er perform this service for you.
Accessories and
technical changes
Additional accessories and parts
replacement
Always consult on authorized Audi dealer before
purchasing accessories.
Audi ve hicles that are constructed with advanced
materials like Steel/Aluminum (Hybrid construc­
tion), Aluminum (Aud i Space Frame), and/or Alu­
minum/Carbon Fiber (Ultra Advanced Light
We ight Materials) are as unique as the ir dr ivers .
Therefo re, the ava ilability of certain parts needed
for repa ir , restorat ion, or reconstruction w ill be
rest ricted , or pa rts will be unava ilable, if the ve ­
hicl e is not repa ired at an a uthorized Aud i co lli­
sion repair facility . This includes but is not limi t­
ed to structura l parts which require specia lized
training and equipment to restore their crash ­
worthiness back to the original NHTSA and IIHS performance.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
Con sum er In form ation
This safety could be compromised by non -ap ­
proved changes to the vehicle. For t his reason, if
parts have to be rep laced, p lease observe the fol ­
lowing points when install ing additional accesso­
ries:
Approved Audi accessories and genuine Audi parts are avai lab le from authorized Aud i dea lers.
T hese dea le rs a lso have t he necessa ry fa cilit ies,
tools and trained specialists to install the pa rts
and accessories proper ly .
A WARNING
--
Using the wrong spare parts or using non -ap­
p roved accessories can cause damage to the
vehicle and serious personal injury.
- Use on ly accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe­
cially designed to be used on your vehicle.
- Do not use license p late brac kets in the
front area that are d ifferent from the one
installed at the factory, or add additional
li­
cense plate brackets.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w ith in the airbag deployment zones . Do­
ing so will increase the risk of injury if a ir­
bags a re tr iggered in an accident!
- Before you check anyth ing in the eng ine
compa rtment, always read and heed all
WARN INGS
~page 193.
@ Note
- If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repa ir work is not per­
form ed according to specified methods, th is
c an result in seve re damage to you r vehi­
cle's eng ine and body (s uch as cor rosion)
and adve rsely affec t your ve hicle's warranty.
- If emergency repa irs m ust be pe rformed
elsew here, have the vehicle ex am ined by an
authorized A udi dealer as soon as possib le .
- Th e manufac ture r ca nnot be he ld liable fo r
damage wh ic h occur s d ue to fail ure to com ­
ply with these stipulations.
257

Consum er Info rmation
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications are made .
Always consult an authorized Audi dealer before
starting work on any modificat ions.
This will he lp ensure that vehicle function, per ­
formance and safety are not impaired
c> &. .
Attempting to work on e lectronic components
and the software used with them can cause mal­
functions. Because of the way electronic compo ­
nents are interconnected with each other, such
malfunct ions can also have an adverse affect on
other systems that are not directly involved. This
means that you risk both a substantial reduction
in the operational safety of your veh icle and an
i n creased wea r of ve hicle parts
c> ,&. .
Author ized Audi dealers w ill perform this work in
a profess io nal and competent manner or, in spe ­
cial cases, refer you to a p rofessional company
that spec ializes in such modificat ions.
.&_ WARNING
Improper repa irs and modificat ions can
c hange the way veh icle systems work and
c ause damage to the veh icle and ser ious per ­
sonal injury.
(UJ) Note
I f emergency rep air s mus t be pe rformed else ­
where, have the vehicle ex am ined by an a u­
thorized A udi dealer as soon as possib le .
Declaration of
compliance for telecom­ munications equipment
and electronic systems
The manufacturer is not liable fo r rad io m alfu nc ­
tions that are caused by unauthori zed changes to
the equipment.
Equipment
The fo llow ing equipment comp lies w it h F CC sec­
tion 15 and RSS -Gen:
258
- Audi adaptive cru ise control *
- Aud i side assist*
- Remote cont rol key
- Garage door opener (Homel ink)*
- Cell phone package*
- T ire pressure monitoring system*
FCC Part 15.19
This device complies with part 15 of the FCC
Rules . Operation is subject to the fo llowing two
conditions: ( 1) This device may not cause harmful
i nterference, and (2) this device must accept any
i nterference rece ived, includ ing interference that
may cause undesired operation.
FCC Part 15.21
Changes or modifications not express ly approved
by the party responsible for compliance cou ld
vo id the user's authority to operate the eq uip­
ment .
RSS-Gen
This device complies with Ind ustry Canada's li­
cense-exempt RSSs . Operation is subject to the
fo llowing two conditions:
(1) This dev ice may no t cau se inte rference; and
(2) This dev ice must accept any interference, i n­
clud ing inte rfe rence that may cause undes ired
ope ration of the dev ice.
CNR-Gen
Le present appare il est conforme aux CNR d'In­
dustrie Canada appl icables aux appare ils radio
exempts de licence . L'explo itation est autor isee
aux deux conditions su ivantes :
1) l'appareil ne doit pas produire de brouillage;
2) l'appareil doit accepter tout brouillage
radioe ­
lectr ique s ubi, meme si le bro uillage est suscept i­
ble d'en compromettre le fonct ionnement.
