AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-1


Cooling system components,
removing and installing

WARNING!

The cooling system is pressurized when the
engine is warm. When opening the expansion
tank, wear gloves and ot

Page 2 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual
When installing coolant hoses, make sure they
are free of stress and do not come into contact
with other components (the arrows which are
located on the coolant pipes and coolant hoses
must

Page 3 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-2


Cooling system components (on body)

1 -
Radiator
Removing and installing   page 19
-17
After replacing, completely replace coolantWith ATF cooler on vehicles with automatic
transmission

Page 4 of 40

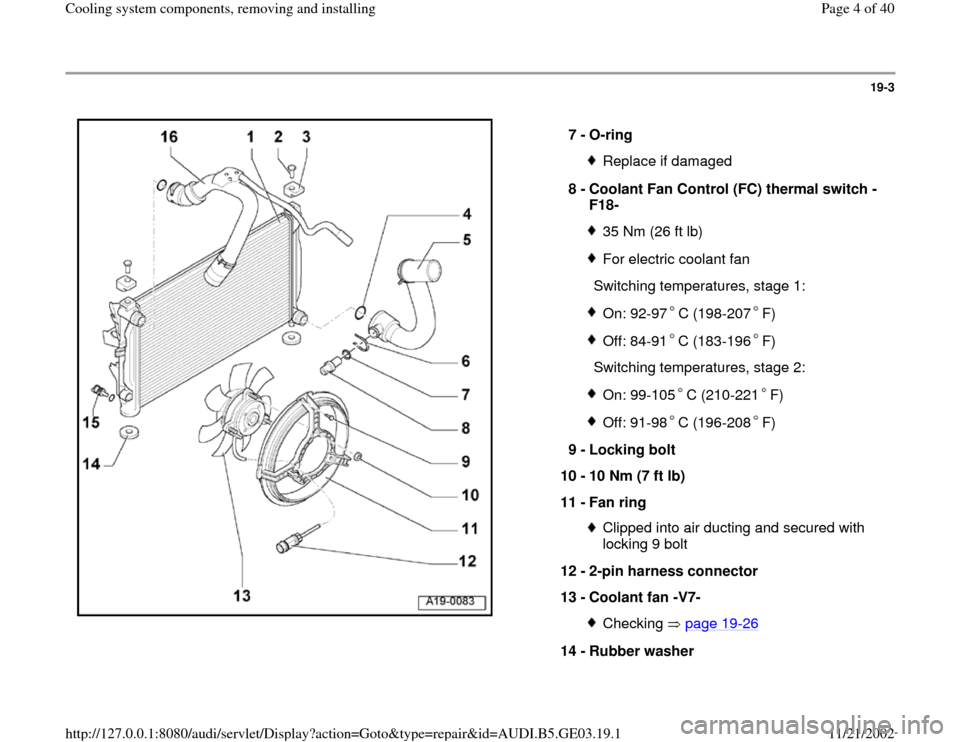

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-3


7 -
O-ring
Replace if damaged
8 -
Coolant Fan Control (FC) thermal switch -
F18- 35 Nm (26 ft lb)For electric coolant fan
  Switching temperatures, stage 1:On: 92-97 C (198-207 F)Off: 84-

Page 5 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 15 -
Coolant drain plug
10 Nm (7 ft lb)
Pa
ge 5 of 40 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUD

Page 6 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-4


16 -
Upper coolant hose
Secured to radiator with retaining clipMake sure hose is securely seatedCoolant hose connection diagram   page 19
-9
Pa
ge 6 of 40 Coolin
g system com
ponents, rem

Page 7 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-5


Cooling system components (on engine)

1 -
Connection
For thermostat
2 -
O-ring Always replace
3 -
Coolant thermostat Removing and installing   page 19
-23
Note installation position

Page 8 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-6


7 -
Engine Coolant Temperature (ECT) sensor
-G62-
For Engine Control Module (ECM)If necessary, release pressure in cooling
system before removing Checking   Repair Manual, 2.8 Liter V6

Page 9 of 40

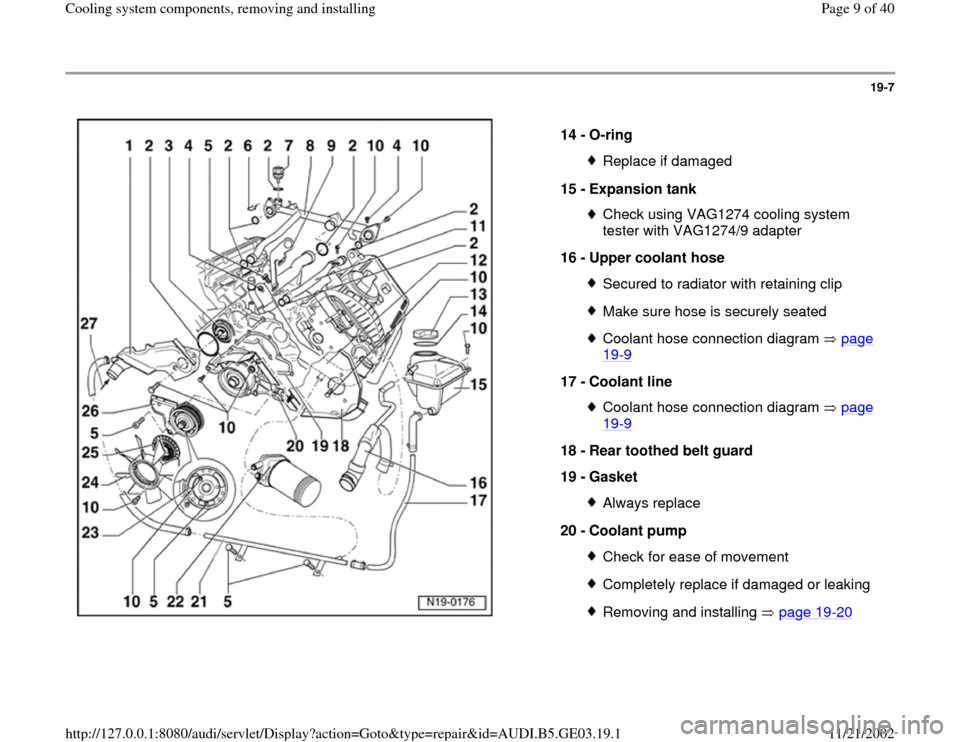

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-7


14 -
O-ring
Replace if damaged
15 -
Expansion tank Check using VAG1274 cooling system
tester with VAG1274/9 adapter
16 -
Upper coolant hose Secured to radiator with retaining clipMake

Page 10 of 40

AUDI A8 1996 D2 / 1.G AHA ATQ Engines Cooling System Components Workshop Manual 19-8


21 -
Lower coolant line
Coolant hose connection diagram   page 19
-9
22 -
Oil cooler
23 -
Belt pulley
For viscous fan
24 -
Fan wheel for viscous fan
25 -
Viscous fan coupling Note
