AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-128


Differential, removing and
installing Notes:

General repair notes   page 00
-27
 .
 Secure final drive to assembly stand   page 39
-123
 .
 Adjustments are required when replacing
co

Page 2 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-129


3 -
Large tapered roller bearing outer race
1)
Driving out   Fig. 7
 ,   page 39
-147
Pressing in   Fig. 8
 ,   page 39
-148
4 -
Adjustment shim "S1"
Note thicknessAdjustment overview

Page 3 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-130


9 -
Right drive flange
Removing and installing   Fig. 1
10 -
Oil filler plug - 35 Nm
11 -
Differential with ring gear
1)
Disassembling and assembling   page 39
-
136

12 -
Oil dra

Page 4 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-131


16 -
Shim "S2"
Note thicknessList of adjustments   page 39
-170
17 -
Left gasket
Always replace   page 39
-113
18 -
Left drive flange
Removing and installing   Fig. 1
19 -
Socket he

Page 5 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-132

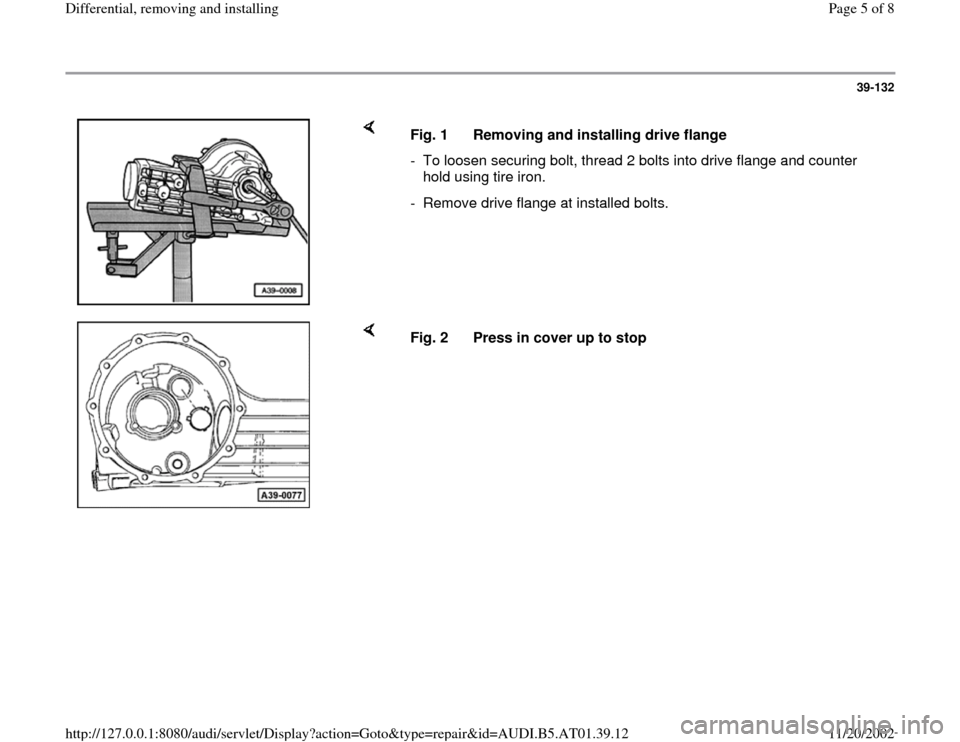

Fig. 1  Removing and installing drive flange
-  To loosen securing bolt, thread 2 bolts into drive flange and counter
hold using tire iron.
-  Remove drive flange at installed bolts.

Page 6 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-133


The breather sleeve must protrude 13 mm (measurement -a-) out of
housing after pressing in.
The slot in the rubber valve is parallel to direction of travel.  Fig. 3  Installed positio

Page 7 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-134

Differential, removing and installing

Rear final drive removed

Special tools and equipment

Removing
VAG1306 drip tray
-  Secure complete rear final drive to assem

Page 8 of 8

AUDI A8 2000 D2 / 1.G 01V Transmission Rear Differential Remove And Install Workshop Manual 39-135

Installing
      Installation is reverse of removal, noting the
following:

- Install differential.

-  Replace O-ring for final drive cover and oil for
installation.
