116 Advanc ed Parking S ystem
Rear vi ew cam era co ve ra ge area
The MM I display shows the area covered by
the rear view camera
c::> fig. 123 @ . Objects
that are not in the area covered @are not
shown on the MMI display.
We recommend that you p ractice park ing with
the rear view camera in a t raffic -free location
or parking lot to become familiar with the sys ­
tem, the orientation lines, and their function.
When doing th is, there sho uld be good light
and weather conditions.
In the MMI disp lay, objects or vehicles appear
closer or further away if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
s lope,
- you are d riving in reverse gear toward pro ­
truding objects,
- the vehicle is carrying too much load in the
rear.
The accuracy of the orientation lines and blue
surfaces dim inishes if:
- the adaptive air suspension/sport* is faulty, the vehicle is lifted or dynamic mode is se­
lected
c::> page 103,
- the rear view camera does not provide a reli­
able image, for examp le, in poor visibility
cond it ions or if the lens is dirty,
- the image on the screen is not visible due to
sun glare and reflect ion.
Car in g for the rear view came ra lens
The rear view camera is located above the rear
license plate bracket . For the parking system
to operate, the lens
c::> fig . 124 must be kept
clean:
- Dampen the lens with a household alcohol­
based glass cleaner, and then wipe the lens
clean with a dry cloth
c::> CD.
- Remove snow with a hand brush and ice
preferably with a de-icing spray
c::> (D .
A WARNING
,-
- Senso rs have blind spots in which objects
cannot be detected . Pay special attention to small children and animals because
the sensors cannot always detect them.
- The parking system cannot replace the
driver's attention. The driver alone is re­
sponsible for parking and similar driving maneuvers.
- Always keep your eyes on the vehicle 's
surroundings, us ing the rear view mirror
as well.
- Do not allow yourself to be distracted
from traffic by the rear view camera p ic­
tures.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end col lis ion, do not continue
to use the system for safety reasons .
H ave it checked by a qualified dea le rship.
(D Note
- Low obstacles a lready s ignaled by a
warning can disappear from the system's detection range as they are approached
and w ill not cont inue to be signaled. Ob­
jects such as ba rr ier chains, trailer draw
bars, thin painted vert ica l poles or fen­
ces may not be detected by the system,
posing risk of damage .
- N ever use warm or hot water to remove
snow or ice from the rear view camera
lens - this could ca use the lens to crack!
- When cleaning the lens, never use prod ­
ucts that are abrasive.

Switching on and off
Applies to vehicles: with parking system advanced
The rear view camera switches on automati­
cally together with the acoustic and visual
park assist when you put the vehicle in re­
verse .
Fig. 125 Cen ter con sol e: Pa rking syst em swi tc h
Fig. 126 MMI display: visual distan ce di splay
Switching on
• Switch the MMI on
• Activate
comfort or auto mode in Audi drive
select
¢ page 103.
• Shift into reverse or
• Press the switch
Pw.!l. in the center console
¢
f ig. 125. A short confirmation tone
sounds and the ind icator light in the sw itch
light s up .
Switching between the rear view camera
and visual display
• Press the Graphic control button
¢
page 118 , fig . 127 @to see the visual
display .
• Press the
Rearview control button to see
the rear view camera image¢
fig. 126 .
Switching off
• Dr ive faste r than 6 mph (10 km/h), or
Advanced Parking System 11 7
• press the switch P1#.!l. or
• switch off the ignit ion .
Segments in the visual display
The red segments in front of and behind the
vehicle
¢ fig. 126 help you to determine the
distance between yo u and an obstacle. As
your vehicle comes closer to the obstacle, the
segments move closer to the veh icle. The co l­
lision area has been reached when the next to
las t segmen t is displayed . Do not continue
driving farther ¢.&
in General Information
on page 116!
A WARNING
- The MMI display cannot show, or cannot
adequately show, certain objects (such as
small posts or grating), recesses in the
g ro und and protruding parts on another
car.
- Only use the rear view camera to assist
you if it shows a good, clear picture . For
examp le, the image may be affected by
the sun s hining into the lens, dirt on the
lens or if there is a defect.
- Use the rear view camera on ly with the
rear lid comp lete ly closed . Make sure any
objects you may have mounted on the
rear lid do not block the rear v iew cam­
era.
(D Tips
- The sensors must be kept clean and free
of snow and ice for the park assist to op­
erate.
- If your ve hicle is near an obstacle, an ad­
ditional v isual ind icator appears in the
rearview camera image. Th is superim­
posed image is there to help you to de­
termined which area of the vehicle is af­
fected .
- You can change the volume and pitch of the signals as well as the display
r:!;; page 119.
-What appears in the display is time-de­
layed .

120 Advanc ed Parking S ystem
Off -when the parking system is switched off,
only audible signa ls are given.
Warning tones
Front v olume -front sensor volume
Rea r vo lu m e -rear sensor volume
Front frequ ency -front sensor frequency
Rea r frequ enc y -rear sensor frequency
Mu sic vo lume whil e parking -when the park­
ing system is switched on, the volume of the
active audio sou rce is lowered.
The newly adjusted value is briefly heard from
the signa l generator.
(Di Tips
- The warning tones can a lso be adjusted
directly by the v isual display or the p ic­
ture from the rear v iew camera. Simp ly
press the
S ett ing s cont ro l button.
- Changed settings are activated when
parking system is switched on again .
-The sett ings are automatically stored
and ass igned to the remote control key .
Error messages
Applies to vehicles: with parking system advanced
There is an error in the system if the LED on
the
P'ljA switch is blinking and you hear a con­
tinuous alarm for a few seconds afte r switch­
ing on the parking system or when the pa rk­
ing system is already act ivated. Have your au ­
thor ized Audi dealer correct the error .
(D Tips
If
the error is not corrected before you
switch off the ignition, when you switch on
the par king system aga in , the LED in the
? ljA switch will blink.

-Always make sure the forward-facing
seat has been des igned and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Never put the forward-facing child re­
straint up aga inst or very near the instru­
ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the fo rward -facing child restraint. T he
b ackres t m ust be adjus ted to an upr igh t
posit ion.
- Make su re that the
PASSENGER AIR BAG
OFF
light comes on and s tays on all the
t ime whenever the ignition is switched
on .
Advanced Airbag System components
The front passenger seat in your vehicle has a
l ot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing mat, sensors, wiring, brack­
ets, and more . The function of the system in
the front passenger seat is checked by the
e lectronic control un it when the ign it ion is on .
The control un it mon itors the Advance d Air ­
bag Sys tem and turn s the a irbag i ndica tor
light on when a ma lfunction in t he system
compo nents is detected . The function of the
ai rbag indicator light is described in greater
deta il below. Because the front passenger
seat contains important parts of the Ad­
va nced A irbag System, you must take care to
prevent it from being damaged . Damage to
the seat may p revent the Advanced A irbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag System
consists of the following:
- Crash senso rs in the front of the veh icle that
measu re ve hicle accelera tion/decele ra ti on
to provide info rm ation to the Advanced Air ­
bag System abo ut the severity of the crash.
A irbag system 149
-An elect ron ic cont ro l unit, with integrated
crash sensors for front and side impacts .
The control un it "decides" whether to f ire
the front a irbags based on the informat ion
received from the crash sensors. The control
unit also "decides" whether the safety belt
prete nsione rs shou ld be act iva ted.
- An Advanced A irbag w it h gas generator and
cont ro l valve for the d river ins ide the steer ­
ing wheel h ub.
- An Advanced A irbag w ith gas generator and
cont ro l valve inside the instrument pa ne l for
the front passenger .
- A weight -sensing mat unde r the upho lstery
padding of the front passenge r seat cushion
that measures the to tal weight o n the seat.
The info rmat ion reg iste red is sent continu­
ously to the elect ronic con trol u nit to regu ­
la te deployment of the front Advanced Air ­
bag on the passenger side .
- An airbag moni tor ing sys tem and ind icator
light in the instr ument cluster
¢ page 153.
-A sen sor in each fron t seat regis ters the dis ­
t ance betwee n the respec tive seat and the
steering whee l or instrument panel. The i n­
formation registered is sent cont inuo usly to
the electron ic contro l unit to regulate de­
ployment of the front Advanced A irbags .
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center o f the instr u­
ment panel¢
page 153, fig. 148 and tells
you whe n the front Advanced Airbag on the
passe nger side has been tu rned off.
- A sensor below the safety belt latch for the
front seat passenger to measure t he tension
on the safety belt. The tension o n the safety
be lt and the weight regis tered by the
weigh t-sensi ng ma t he lp the control uni t
"de cide" whe ther the front airbag fo r the
front passenge r seat should be turned off or
not ~
page 144, Child restraints on the
front seat -some important things to
know.
- A sensor in t he safety be lt latch fo r the d riv­
er and for the front seat passenger that
senses w hethe r th at safety belt is latched or
not and transmits this information to the
electronic control unit.
•
•

150 Airbag sys te m
_& WARNING
Damage to the front passenger seat can
prevent the front airbag from working
properly.
- Improper repair or disassembly of the
front passenger and driver seat wi ll pre­
vent the Advanced A irbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by q ualified and properly
trained workshop personnel.
- Never remove the front passenger or
dr iver seat from the veh icle.
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat . If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-se nsing mat and send the
wrong info rmation to the airbag control
unit.
- Never store items under the front pas­ senger seat. Parts of the Advanced Ai r­
bag System under the passenge r seat
c ou ld be damaged, prevent ing them and
the a irbag sys tem from working proper ­
ly .
- N ever place sea t covers or replacement
upholstery that have not been specifical­
ly approved by A udi on the fron t seats.
- Seat covers can preven t th e Advanced
Airbag System from recognizing child re ­
st raints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploy ing prop­
er ly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat. The add itiona l padd ing will prevent
the weight-sensing mat in the seat from
accu rately reg iste ring the c hild restra int
-
or person on the seat and prevent the
Advanced Airbag System from function­
ing p roperly.
- If you must use a child restraint on the
front passenger seat and the child re­
straint manufacturer's instructions re­
qu ire the use of a towel, foam cushion or
something e lse to prope rly pos ition the
child restraint, make certain t hat the
PASSENGER AIR BAG OFF lig ht comes
on and stays on whenever the ch ild re­
straint is installed on the front passen ­
ge r seat .
- If the PASSENGER AIR BAG OFF light
does not come on and stay on, immedi ­
ately insta ll child restraint in a rear seat­
ing position and have the ai rbag system
inspected by your Audi dea ler.
How the Advanced Airbag System
components work together
T he front Advanced Airbag System and the
s ide a irbags supp lem ent the p rotection of­
fered by the front three-po int safety belts
with pre tensione rs and load lim iters and the
adjustable head res train ts to help redu ce the
risk of in jury in a wide ra nge of accident and
crash situations . Be s ure to read the impor­
tant information about safety and heed the
WARNINGS in th is chapter.
Deployment of the Adv a need Airbag System
and t he activation of the safety belt preten ­
s ioners depend on the deceleration measured
by the crash sensors and registered by the
electron ic co ntrol unit. The amount of infla­
t ion of t he front airbags can a lso be adapted
to the front seat pos ition, depending on the
distance between the respective front seat
and t he steer ing w heel or instrument panel as
regis tered by sensors in the seats. C rash se ­
verity depends on speed and dece leration as
well as the mass and st iffness of t he vehicle
or object involved in the crash .
On t he passenger side, rega rdless of sa fe ty
belt use, the airbag w ill be turned off if the
weight on the passenger seat is less than the ..,.

Monitoring the
Advanced Airbag
System
I ( USA models) /!{ (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN­
GER AIR BAG
OFF light.
The Advanced Airbag System (including the
electronic control unit, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioning properly
whenever the ignit ion is on. Each time you
switch on the ignition, the airbag monitoring
indicator light
m (USA mode ls)/ m (Canada
models) will come on for a few seconds (self
diagnostics).
The system must be inspected when the indicator light
(I (USA models);Ei
(Canada models):
-does not come on when the ignition is
switched on ,
- does not go out a few seconds after you
have switched on the ignition, or
- comes on while driving.
If an airbag system malfun ction is detected,
the indicator light will first start flashing to
catch the driver's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immediately.
If a mal function occurs that turns the front
airbag on the passenger side
off, the PASSEN­
GER AIR BAG
OFF light will come on and stay
on whenever the ignition is on.
A WARNING
An airbag system that is not funct ioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be something
wrong with the Advanced Airbag System .
It is possible that the airbag will inflate
Airbag system 153
when it is not supposed to, or will not in­
flate when it sho uld.
- Have the airbag system inspected imme­
diate ly by your Audi dealer.
PASSENGER AIR BAG OFF light
Fig . 148 Sect ion from t he instru ment panel: PASSEN ­
GER AIR BAG OFF light
The PASSENGER AIR BAG OFF light is located
in the center of the instrument panel
<=>fig . 148 .
The PASSENGER AIR BAG OFF light wi ll come
on and stay on to tell you when the front Ad­
vanced Airbag on the passenger s ide has been
turned
off by the electron ic control unit . Each
time you sw itch on the ign ition, the
PASSEN­
GER AIR BAG
OFF light will flash for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small ch ild or child
restraint on the front passenger seat,
- will go out if the front passenger seat is oc­
cupied by an adult as registered by the
weight-sensing mat.
The
PASSENGER AIR BAG OFF light must
come on and stay on
if the ignition is on and
- a car bed has been installed on the front
seat, or
- a rearward-facing child restraint has been
installed on the front passenger seat, or
- a forward -facing chi ld restraint has been in­
stalled on the front passenger seat, or
- the weight reg istered on the front passen­
ger seat is equal to or less than the com -
bined weight of a typical 1 year-o ld
llJl>

154 Airbag sys te m
restrained in one of the rear -facing or for­
ward-facing infant restraints listed in Feder­
al Motor Vehicle Safety Standard 208 with
which the Advanced Airbag System in your
vehicle was certified.
If the front passenger seat is not occupied,
the front airbag will not deploy, and the
PAS ­
SENGER AIR BA G OFF
light will stay on. Nev­
er install a rearward-fac ing ch ild restra int on
the front passenger seat, the safest place for
a child in any kind of child restraint is at o ne
of the seat ing pos itions on the rear seat
~ page 144, Child restraints on the front seat
- some important things to know
and
~ page 166, Child Safety .
If the PASSENGER AIR BAG OFF light come s
on
when one of the conditions listed above is
met, be sure to check the light regularly to
make certain that the
PA SSENGER AIR BA G
OFF
light stays on continuo usly whenever the
ignition is on. If the
PA SSENGER AIR BAG
OF F
light does not appear on and does not
stay on all the time, stop as soon as it is safe
to do so and
- reactivate the system by switching the igni­
t ion off and then switching it on again;
- remove and reinsta ll the chi ld restraint.
Make sure that the child restraint is properly
insta lled and that the safety be lt for the
front passenger seat has been correct ly
routed throug h the child restraint as descri­
bed in the child restraint manufacturer's in ­
structions;
- make sure that the convert ible locking fea­
tu re on the safety belt for the front passen­
ger seat has been activated and that the
safety belt has been pulled t ight. The belt
mus t not be loose or have loops of slack so
that the sensor below the safety be lt latch
on the seat can do its job
~ page 175 .
-make su re that th ings that may increase the
weight of the chi ld and child seat are not be­
ing transported on the front passenger seat;
- make sure that the safety belt tension sen ­
sor is not b locked. Shake the safety be lt
l atch on the front passenge r seatback and
forth; -
If a strap or tether is be ing used to tie the
child seat to the front passenger seat, make
sure that it is not so t ight that it causes the
weight-sensing mat to measure more
weight than is actually on the seat.
If the PASSENGER AIR BAG OFF light still
does not come on
and does not stay on con­
t in uous ly (when the ignition is switched on),
- take the child restraint off the front passen -
ger seat and install it proper ly at one of the
rear seat positions. Have the airbag system inspected by your Audi dealer immed iate ly.
- move the child to a rear seat position and
make sure that the child is properly restra in­
ed in a ch ild restra int that is appropriate for
its size and age.
The
PASSENGER AIR BAG O FF light should
NO T come on when the ignit ion is on and an
adult is s itting in a proper seating position on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
light comes on and stays on or
flashes fo r about 5 seconds w hile driving, un­
der these cir cumstances, make sure that;
-the adult on the front passenger seat is
properly seated on the center of the seat
cushion with his or her back up aga inst the
backrest and the backrest is not recl ined
~ page 12 5, Proper oc cupant seating posi­
tions,
- the adult is not tak ing we ight off the seat by
holding on to the passenger assist handle
above the front passenger door or s upport ­
ing their weight on the armrest ,
- the safe ty belt is be ing properly wo rn and
t ha t the re is not a lot o f slack in the safety
be lt webbing ,
- accesso ry sea t covers or cushions o r other
t hings that may cause an incorrec t reading
or impression on the weight -sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not bee n left in
the sa fety belt latch for the front passenger
seat .
In addition to the
PASSENGER AIR BAG OFF
li ght in the center of the instrument panel, .,..

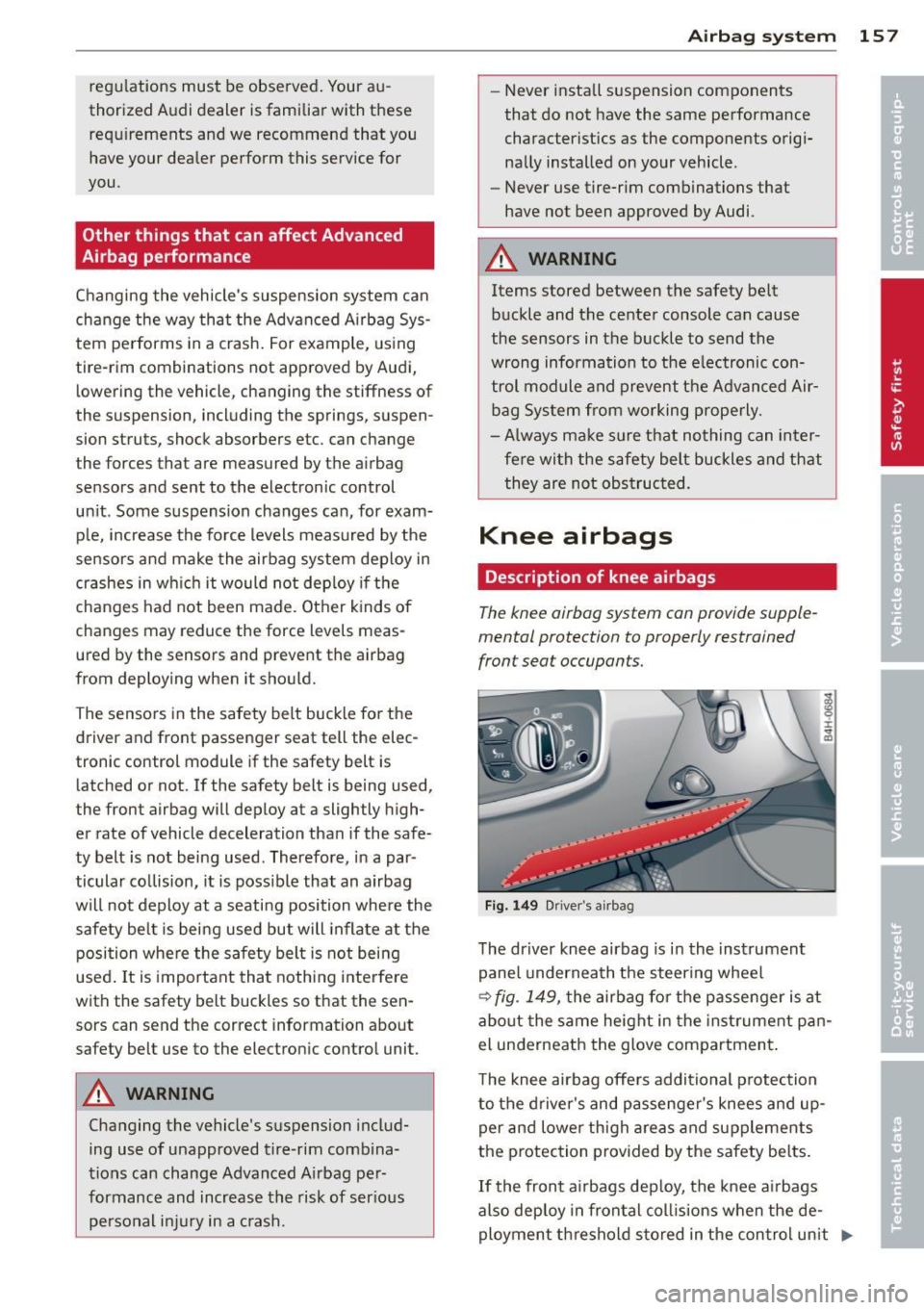

regulations must be observed. Your au­
thorized Audi dealer is familiar with these requirements and we recommend that you
have your dealer perform this service for
you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-rim combinations not approved by Audi, lower ing the vehicle, changing the stiffness of
the suspension, including the springs, suspen­ sion struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic control
un it . Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in which it would not dep loy if the
changes had not been made. Other kinds of
changes may reduce the force Levels meas­
ured by the sensors and prevent the airbag
from deploying when it should.
The sensors in the safety belt buckle for the
driver and front passenger seat tell the elec­
tronic control module if the safety belt is
latched or not. If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular collision, it is poss ible that an airbag
will not deploy at a seating position where the
safety belt is being used but will inflate at the
position where the safety belt is not being
used. It is important that nothing interfere
with the safety belt buckles so that the sen­
sors can send the correct information about
safety belt use to the electronic control unit.
A WARNING
Changing the vehicle's suspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag per­
formance and increase the risk of serious personal injury in a crash.
Airbag system 157
-Never install suspension components
that do not have the same performance
characteristics as the components origi­
nally installed on your vehicle .
- Never use tire-rim combinations that
have not been approved by Audi.
A WARNING
-
Items stored between the safety belt
buckle and the center console can cause
the sensors in the buckle to send the
wrong information to the electronic con­
trol module and prevent the Advanced Air­
bag System from working properly.
- Always make sure that nothing can inter­
fere with the safety belt buckles and that they are not obstructed.
Knee airbags
Description of knee airbags
The knee airbag system con provide supple­
mental protection to properly restrained
front seat occupants.
Fig. 149 Driver 's airbag
The driver knee airbag is in the instrument
panel underneath the steering wheel
¢ fig . 149, the airbag for the passenger is at
about the same height in the instrument pan­
el underneath the glove compartment.
The knee airbag offers additional protection
to the driver's and passenger's knees and up ­
per and Lower thigh areas and supplements
the protection provided by the safety belts.
If the front airbags deploy, the knee airbags
also deploy in frontal col lisions when the de­
ployment threshold stored in the control unit .,,.

160 Airbag system
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
---
Fig. 151 Side a irbag locat ion in the dr iver 's seat
The s ide airbags are located in the sides of the
front sea t backrests
c::>fig. 151 and the rear
backrest facing the doors. They are identified
by the word "AIRBAG" .
Th e s ide a irbag syste m basically co nsists of:
- the electronic control module and external
s ide impact sensors
- the two side airbags located in the sides of the front backrests
- two rear side airbags
- the airbag warning light in the instrument
cluster.
The airbag system is monitored electronica lly
to make certain that it is functioning properly
at all times. Each time you switch on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics) .
The side airbag system supplements the safe­
ty belts and can help to reduce the risk of in­
jury to the driver's, front and rear passenger's upper torso on the side of the vehicle that is
struck in a side collision . The airbag deploys
only in side impacts and on ly when the veh icle
acceleration registered by the control unit is h igh enough . If this rate is below the refer­
ence value programmed into the control un it,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision. It is not possible to de ­
fine an airbag triggering range that will cover every possible ang
le of impact, since the cir­
cumstances will vary considerably between
one collis ion and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc.
c::> page 161, Important
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a side
collision so that the side airbags ca n provide
protection .
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overall oc ­
cupant restra int system in your vehicle. Al­
ways remember that the side airbag system can on ly help to pro tect you if you are wearing
yo ur safety belt and wearing i t properly. This
is another reason why you should always wear
your safety belts, not just because the law re­
quires yo u to do soc::>
page 134, General
notes.
It i s important to remember that wh ile the
supplementa l side airbag system is designed
to reduce the likelihood of serious injuries,
other injuries, for example, swelling, bruis ing,
and minor abrasions can also be associated
with deployed side airbags. Remember too,
s ide airbags will dep loy only once and only in
certain kinds of accidents - your safety belts
are always there to offer protection .
Vehicle damage, repair costs or even the lack of veh icle damage are not necessarily an indi­
cat ion of ove r-sensitive or failed airbag act iva­
t ion. In some coll is ions, both front and side
airbags may inflate. Remembe r too, that air­
bags will deploy only once and on ly in certain
k inds of collisions -your safety belts are al­
ways there to offer protection in those acci­ dents in which airbags are not supposed to
deploy or when they have already deployed .
The s ide airbag sy stem will not d eplo y:
-when the ignit ion is switched off
- in side co llisions when the acceleration
measured by the se nsor is too low
- in front-end collisions

162 Airbag system
-Always make sure that the side airbag
can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys .
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built-in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­ thorized Audi dealership. -
Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must
always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 166, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor ­
rectly measure increasing air pressure in­
side the doors when air escapes through
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed .
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
