Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants .
Fig. 1 53 Side cur ta in airbags, d river 's side: side curta in
ai rb ag location
The s ide curtain airbags are located on both
sides of the interior above the front and rear
side w indows
r=:> fig . 153 . They are identified
by the word "AIRBAG " on the windshie ld
frame and the center roof p illar.
The s ide curtain airbag system supp lements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struc k
i n a side collision . Th e side curta in a irbag in­
flates in s ide impacts and on ly when the veh i­
cle acce leration reg istered by the cont ro l u nit
is high enough . If th is rate is be low the refer ­
ence va lue programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision .
It is not possible to de­
fine an a irbag trigger ing range that w ill cover
eve ry possible angle of impact , since the ci r­
cumsta nces wi ll vary conside rably between
one co llision and ano ther. Import ant factors
include, for e xamp le, the nat ure ( hard o r soft)
of the impacting object, the ang le of impact ,
ve hicle speed, etc .
r=:> page 164, How side cur­
tain airbags work.
Aside from the ir normal safety function , safe ­
ty belts work to he lp keep the dr iver or front
passenger in position in the event of a co lli-
A irba g sy stem 163
sion so that the side curtain airbags can pro­
v ide protection.
T he airbag system is no t a subs titu te for your
sa fe ty be lt . Rather, it is part of the overa ll oc­
c u pant restra int system in your vehicle . A l­
ways remember that the airbag system can
only he lp to protect you if you are wearing
yo ur safety be lt and wearing it properly. This
is another reason why you should always wear
your safety be lts, not just because the law re ­
quires you to do so
r=:> page 134, General
notes .
It is important to remember that wh ile the
s ide curtain airbag system is designed to help
reduce the likelihood of ser ious injuries, other
injur ies, for examp le, swelling, bru is ing, and
minor abrasions can also be associa ted wi th
these airb ags upon deployment. Remember
too, these airbags will deploy only once and
only in certain kinds of acc idents -your sa fety
belts are always there to offer protection.
The side curtain airbag system basically
con sists of:
-The e lectronic control module and external
side impact sensors
- The side curtain airbags above the fron t and
rea r side windows
- The airbag i ndicator light in t he instr ument
pane l
T he airbag system is mo nitored e lectronically
to make ce rtain i t is func tioning prope rly at all
t imes. Each t ime you sw itch on the ign ition,
the ai rbag system indicator light will come on
for a few seconds (self diagnostics).
The s ide curtain airbag is not activated :
-if the ignition is sw itched off,
- in side co llisions when the accele ration
measu red by the sensor is too low,
- in rear-end coll is ions,
- in rollovers.
A WARNING
-,
-Safety belts and the airbag system will
only provide protection when occupants

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Child Safety 167
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

168 Child Saf ety
seat. The weight of a child restraint and its
"footprint" vary for different kinds of chi ld re­
straints and for the d ifferent models of the
same kind of child restraint offered by child
restra int manufacturers.
The weight ranges for the individual types,
makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-old child have been
stored in the control unit of the Advanced A ir­
bag System. When a ch ild restrai nt is being
used on the front passenger seat with a typi ­
cal 1 yea r-old ch ild, the Advanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the in formation stor­
ed in the electronic control unit.
The ele ctron ic cont rol unit also registers the
tension on the front passenge r safety belt.
The tension on the safety be lt fo r the front
passenger seat will be different for an ad ult
who is properly using the safety belt as com­
pared to the tension on the belt when it is
used to attach a child restraint to the seat.
The sensor below the latch for the safety belt
for the front seat passenger measu res the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whe ther there is a ch ild restraint w ith a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards a nd has been certified by its manu­
facture r fo r u se w ith an airbag. Always be s ure
that t he ch ild res traint is p rope rly insta lled at
one o f th e rear seat ing pos itions. If in excep­
tional c ircu mstances you must use it on the
front passenger seat, caref ully read all of the
info rmation on c hild safety and Advanced Air­
bags and heed all of the applicable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weig ht-sensing mat
inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag stat us is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light.
Many types and models of child res traints
have been available over the years, new mod­
els are introduced regu larly incorporating new
and improved des igns and older models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typically have d ifferent weights and sizes
and diff erent 'footpr ints,' the s ize and shape
of the bo ttom of the ch ild restra int that sits
o n t he seat, when they a re inst alled on a vehi­
cle sea t. Th ese d ifferences make it vir tually
impossible to certify compliance with the re ­
quirements for advanced airbags with eac h
and every child restra int that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For th is reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of specific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle w ith the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are:
Subpart A - Car bed child restraints
Model
Angel Guard Angel R ide AA 2403FOF
Manufactured on or
after
September 25, 200 7
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartFit Dece mber 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base
22-999W HO
Evenf lo Discove ry Ad -December 1, 1999
just Right 212
I
....

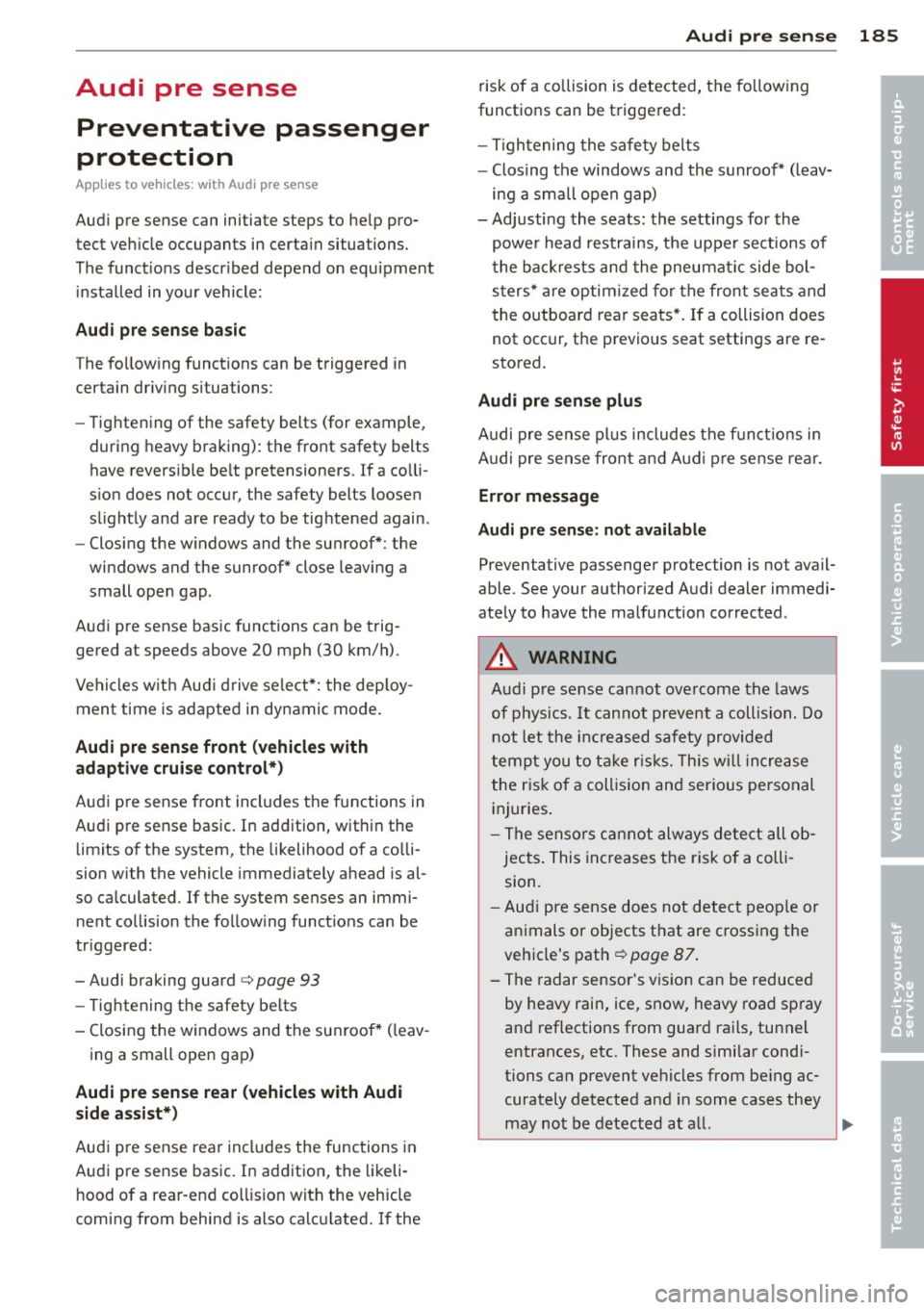

Audi pre sense Preventative passenger
protection
App lies to veh icles: with Audi p re se nse
Audi pre sense can initiate steps to help pro­
tect vehicle occupants in certain situations.
The funct ions descr ibed depend on equipment
installed in your vehicle:
Audi pre sense basic
The following functions can be triggered in
certain driving situations:
- Tightening of the safety belts (for example,
during heavy braking) : the front safety belts
have reversible belt pretensioners. If a colli ­
sion does not occur, the safety belts loosen
slightly and are ready to be tightened again.
- Closing the windows and the sunroof*: the
windows and the sunroof" close leaving a
small open gap .
Audi pre sense basic functions can be trig­
gered at speeds above 20 mph (30 km/h).
Vehicles with Audi drive select*: the deploy­
ment time is adapted in dynamic mode.
Audi pre sense front (vehicles with
adaptive cruise control*)
Audi pre sense front includes the functions in
Audi pre sense basic. In addition, within the
limits of the system, the likelihood of a colli­
sion with the vehicle immediately ahead is al­
so calculated . If the system senses an immi­
nent collision the following functions can be
tr iggered:
- Audi braking guard
c> page 93
-Tightening the safety belts
- Closing the windows and the sunroof* ( leav-
ing a small open gap)
Audi pre sense rear (vehicles with Audi
side assist*)
Audi pre sense rear includes the functions in
Audi pre sense basic. In addition, the likeli­
hood of a rear-end col lision with the vehicle
coming from behind is also calculated. If the
Audi pre sense 185
risk of a collision is detected, the following
functions can be triggered:
- Tightening the safety belts
- Closing the windows and the sunroof* (leav-
ing a small open gap)
- Adjusting the seats: the settings for the
power head restrains, the upper sections of
the backrests and the pneumatic side bol­
sters* are optim ized for the front seats and
the outboard rear seats*. If a collision does
not occur, the previous seat settings are re­
stored.
Audi pre sense plus
Audi pre sense plus includes the funct ions in
Audi pre sense front and Audi pre sense rear.
Error message
Audi pre sense: not available
Preventative passenger protection is not avail­
able. See your authorized Audi dealer immedi­
ately to have the malfunction corrected .
A WARNING
Audi pre sense cannot overcome the laws
of physics.
It cannot prevent a collision. Do
not let the increased safety provided
tempt you to take risks. This will increase
the risk of a collision and serious personal
injuries.
- The sensors cannot always detect all ob­
jects . This increases the risk of a colli­
sion.
-Audi pre sense does not detect people or
animals or objects that are crossing the
veh icle's path
c> page 87.
- The radar sensor's vision can be reduced
by heavy rain, ice, snow, heavy road spray
and reflections from guard rails, tunnel
entrances, etc. These and similar condi­
tions can prevent vehicles from be ing ac­
curately detected and in some cases they
may not be detected at all.
Ill-
•
•

186 Audi pre sen se
The sensors can be displaced by impacts or
damage to the bumper, whee l housing and
underbody. This can affect the function of
the Audi pre sense system. Have your au­
thorized Audi dealer check to make sure
that the system is working properly .
@ Tips
-Certain Audi pre sense functions are not
available when ASR is sw itched off (sport
mode) or w hen driv ing in reverse.
- The Audi pre sense functions may not be
available if there is a malfunction in the
ESC system or the airbag control mod­
ule.
- The Audi pre sense front/plus functions
are not available if the re is a ma lfunction
i n the adapt ive cru ise control* system
¢page 94.
- The Audi pre sense rear/plus functions
are not available if there is a ma lfunction
i n the Aud i side assis t* system
¢ page 94 .

192 Intelligent technology
be advisable to mount winter tires (or all-sea­
son ti res) for improved driveability and brak­
ing: these t ires must be mounted on
all four
w heels .
See also c> page 250, Winter tires.
Snow chains
Where snow cha ins are mandatory on certa in
roads, this normally a lso applies to vehicles
with A ll Wheel Driver=:>
page 251, Snow
chains.
Replacing wheels /t ire s
Vehicles w it h All Wheel Dr ive must always
have tires of the same size . Also avoid tires
with different tread depths. For details see
page
c> page 246, New tires and replacing
tires and wheels.
Off-Road driv ing?
Your Audi does not have enough ground clear ­
ance to be used as an off -road vehicle.
It is
therefore best to avoid rough tracks and un ­
even terrain as much as possible. Also refe r to
i=>page 195.
A WARNING
Always adjust your driving to road and traf­
fic condit ions. Do not let the extra safety
afforded by All Whee l Drive tempt you into
taking extra risks.
-Although the All Whee l Drive is very ef­
fective, a lways remember that b raking
capacity is limited by t ire traction. You
should the refore not dr ive at excessive
speeds on icy or slippery road su rf a ces.
- On wet road su rfaces, be careful not to
dr ive t oo fast becau se t he front wheels
co uld beg in to s lide on top of the wa ter
(aquaplaning) .
If this should occ ur, you
wi ll have no warning from a sudden in­
crease in engine speed as with a front­
wheel drive vehicle. A lways drive at
speeds wh ic h are suited to the road con­
ditions -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting the engine.
If a vehicle with a conventiona l energy system
is not driven for a long per iod of t ime, t he bat­
te ry is discharged by idling current consume rs
(e.g. immobili ze r). In certa in circumstan ces it
ca n res ult in the re be ing insufficien t energy
available to start the eng ine.
Intelligent energy management in your vehi­
cl e ha ndles the dist rib ution o f electr ica l ene r­
gy. Start ing abili ty is m arkedly improved and
the life of the battery is extended .
Bas ica lly, energy management consists of
batt ery diagnosis , idling current manage­
ment
and dynamic energy management .
Battery diagnosis
Battery diagnosis continuously determines
the state of the batte ry. Sensors determine
batte ry voltage, battery cu rr e nt and battery
tempe ratu re. This de termines the cur ren t
state o f cha rge and t he power o f th e battery.
Idling current management
Idli ng current management reduces energy
consumpt ion while the vehicle is standing.
With the ig nition sw itched off, it controls the
energy supp ly to the variou s ele ctri ca l compo ­
nen ts. Da ta from ba ttery d iagnos is is co nsid­
ered.
Depend ing on the batte ry's state of cha rge,
i ndivid ual con sume rs a re g radually turned off
to prevent excessive discharge o f the battery
and th us main tain starting capabi lity.
Dynamic energy management
While the vehicle is being d riven, dynamic en­
ergy ma nagement distr ib utes the energy ge n­
era ted a ccord ing to t he needs of the individ u-
al components.
It r egula tes consumption, so
t h at more e lectrical energy is not being used ..,.

-Never w ash your ca r in bri ght sunlight.
Drops of water act as magnifying lenses
and may damage your paint.
- When yo u wash your car in the winter : if
you rinse your vehicle with a hose , be
careful not to aim the stream of water
direct ly at locks, or at door or hatch
openings -they can freeze shut.
- Never use sponges des igned to remove
i nsects, or any kitchen scouring sponges
or similar products . They can damage
you r paint finish .
- Never use a dry cloth or sponge to clean
the headlights . Only use wet cloths or
sponges to prevent scratches . It is best
to use soapy water.
- You should remove debris (such as in­
sects) from the headligh t lenses on a
regular basis , fo r example when refuel­
i ng yo ur vehicle. Never clean the he ad­
l ights w ith a dry clo th or sponge. Use a
wet cloth or sponge . It is best to use
soapy water.
@ For the sake of the environment
I n the interes t of the envi ronment, the ve­
hicle sho uld only be washed in specia l
wash bays.
Washing your vehicle with a power
washer
Cleaning the exter ior of your car with a high­
pressure power washer is safe as long as you observe a few simple rules.
~ Befo re using the power washe r, make sure
you have read and understood the WARN­
INGS
c> A in General information on
page 203 .
~ Always follow the operating instructions for
the power washer .
~ Make sure that the jet o n the spray hose
produces a "fan shaped spray ".
~ Do not hold the spray no zzle too close to
soft materia ls.
W hen clea ning the vehi cle w it h a powe r wash­
e r
always fo llow the operating instruc tions.
Cleaning and protec tion 205
This applies particu la rly to the operating
pre ssure and the spraying di stance. Keep a
distance from soft materia ls such as rubber
hoses or insulating material as we ll as sensors
and camera lenses.
Do not use a jet which sprays water in a direct
stream or one that has a rotating jet.
Water tempera ture sho uld no t exceed 140 ° F
(60 °().
A WARNING
N eve r wash t ires with a jet that sprays wa­
ter in a direct stream . T hi s could cause in ­
v isib le damage to the t ires and weaken
them, even i f the spray is from a re lative ly
long distance and for a sho rt time. Dam­
aged and weakened tires can fail and cause
accidents and personal i njury .
(D Note
To avoid damaging your vehicle, a lways
make sure that the re is suffic ient d istance
between the spray head and soft materials
li ke rubber hoses, plast ic pa rts and sound­
deaden ing ma ter ia ls as well as sensors
and camera lenses. Never a im th e sp ray
head at the same point for a long time .
This also applies to cleaning headlights
and painted bum pers. Remembe r: the
cl oser the nozzle is to the surface of the
mater ia l, the greater the stress on the ma­
terial.
Sensoren und Kameralinsen
- Entfernen S ie Schnee m it einem Handfeger
und Eis bevo rzugt mit einem losungsm ittel­
fre ien Enteisu ngsspray .
- Reinigen Sie die Sensoren (adaptive cruise
cont ro l*, Einparkhi lfe*) mit losungsm itte l­
fre iem Re inigungsmi tte l und einem weiche n
t ro ck enen Tuch .
- Befeuchten Sie die Kameralinse m it handel­
si.iblichem Glasrein ig ungsm ittel a uf Al ko­
holbasis und reinigen Sie die Linse mi t ei­
nem trockenen Tuch . Beim lane assist* wird
de r Bereich vor der Linse im Normalfall .,..
•
•

206 Cleaning and protec tio n
durch den Scheibenwischer und beim Nacht­
sichtassistent* durch die Scheinwerferreini ­
gungsan lage gereinigt. Bei starker Versch­
mut zung ki::innen Sie den Bere ich mit Glas­
reiniger und einem weichen trockenen Tuch
reinigen .
@ Note
- Wenn Sie Ihr Fahrzeug mit e inem Hoch­
druckrein iger waschen,
- halten Sie geni.igend groBen Abstand
zu den Sensoren, die s ich im vorderen
oder hinte ren StoBfanger befinden.
- rein igen S ie Kameralinsen und den Be­
reich um diese nicht mit dem Hoch­
druckre iniger .
- Entferne n Sie niemals Schnee und Eis
von de r Kameralinse m it warmem oder
heiBem Wasser -Gefahr einer Rissbi l­
dung in der Linse!
- Verwenden S ie bei der Re inigung der Ka­
meralinse niemals Pflegemittel mit
Schleifwirk ung.
Waxing and Polishing
Wa xing
A good wax coating protects t he vehicle paint
to a large extent aga inst the environmental
factors listed under ¢page 203, Washing and
even against slight scratches .
You can use a liquid car wax to protect your
pa int as soon as one week after your veh icle
has been delivered.
Even if you regularly use a
w ax ing process in
automatic car washes, we recommend that
you manua lly app ly a coat of wax to give the
pa int extra protection, particular ly if water no
longer beads o n the clean paint .
Protect p lastic body parts with car wax in the
same way as the vehicle body.
During warm weather dead insects tend to
collect on the front bumper and on the for­
ward area of the hood. They are much easier
to remove from paint that is waxed often.
Polishing
Polish yo ur vehicle only if the paint has lost its
shine and the gloss cannot be brought back
with wax .
If the pol ish used does not conta in p reserva­
t ive compounds, the pain t must be waxed a f­
te rwards.
A WARNING ~
A lways read and heed all WARNINGS and
other info rmation
¢ page 203.
(D Note
Do not use car wax on
- matte o r anodized meta l trim
- rubber or rubber-like t rim.
Trim strips
Metal trim needs special care .
For environmental reasons, Audi fabricates
the bright trim strips and trim p ieces from
pure chromium-free aluminum.
Dirt and ma rks on the trim st rips sho uld be
removed with a
pH -balanced cleaning agent
(do not use a chrome cleaner). Audi dealers
carry clea ning products which have been tes t­
ed fo r use on your vehicle and are not harmful
to the environment.
To avoid corrosion on the exter ior trim strips,
only a pH-ba lanced solution should be used
for the windsh ield washer .
A WARNING
-Always read and heed all WARNINGS and
other i nformation
¢ page 203.
Plastic and vinyl
Plastic needs special care .
U se a clean, damp cloth or sponge to remove
dust and light surface dir t. For other soil, use
a lukewa rm all-purpose cleaning so lution or a
mild saddle soap for v inyl tr im . Remove water
spots and traces of soap with a clean, damp ..,.

228 Checking and filling
the level may be slightly above the "max"
marking.
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration
¢ page 221.
To obtain an accurate reading, the engine
must be switched off.
The expansion tank in your vehicle is equipped
with an electric coolant level sensor.
When the coolant level is too low, the warning light in the Auto-Check System¢
page 15 will
illuminate until you add coolant and the level
has been restored to normal. Even though
there is an electric coolant level sensor , we
still recommend you check the coolant level
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cooling
system. In the event of coolant loss, the cool­
ing system should be inspected immediately
by your authorized Audi dealer.
It is not
enough merely to add coolant.
In a
sealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheating.
_& WARNING
The cooling system is under pressure and
can get very hot. Reduce the risk of scald­
ing from hot coolant by following these
steps. -
- Turn off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefully in
a counter-clockwise direction while ap­
plying light, downward pressure on the
top of the cap .
- To avoid being burned, do not spill anti­ freeze or coolant on the exhaust system
or hot engine parts. Under certain condi­
tions, the ethylene glycol in engine cool­
ant can catch fire .
(D Note
Do not add any type of radiator leak seal­
ant to your vehicle's engine coolant. Add­
ing radiator repair fluid may adversely af­
fect the function and performance of your
cooling system and could result in damage not covered by your New Vehicle Limited
Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anything in the engine com­
partment,
always read and heed all WARN­
INGS ¢&. in Working in the engine compart ­
ment on page 219.
.. Turn off the engine .
.. Let the engine cool down.
.. Place a thick rag over the coolant expansion
tank
¢ page 227, fig . 179 and carefully
twist the cap counter-clockwise ¢,&. .
.,. Add coolant.
.. Twist the cap on again
tightly.
Replacement engine coolant must conform to
exact specifications
¢ page 22 7, Coolant. We
recommend using only coolant additive G12+
+, G3 or in an emergency G12+ . Do
not use a
different additive. In an emergency use plain
water until you can get the correct additive
and can restore the correct ratio. This should
be done as soon as possible .
If you have lost a considerable amount of
coolant , then you should add cold antifreeze
and cold water only when the engine is cold.
Always use
new engine coolant when refilling.
Do not fill coolant above the
"MAX" mark . Ex­
cess coolant will be forced out through the
pressure relief valve in the cap when the en­
gine becomes hot.
_& WARNING
-= -- The cooling system is under pressure and
can get very hot. Reduce the risk of ..,_

254 Tires and wheels
remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your veh icle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Appl ies to vehicles: with tire pressure monitoring sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 188 Display: underinflation warning
Fig. 189 Display: System malfu nction
Using the ABS sensors, the tire pressure moni­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instru- ment
cluster with a warning symbol
[I] and a
message
r=> fig. 188.
The tire pressure monitoring system must be
reset via MMI each time the pressures are ad­
justed (e.g. when switching between partial
and full load pressure) or after changing or re­
plac ing a tire on your vehicle
r=> page 255. You
can find the recommended tire pressures for
your vehicle on the Label on driver's side 8-pil­ lar
¢ page 239.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat -
ed or replaced but the TPMS was not reset
r=> page 255.
Warning symbols
[I] Loss of pressu re in at least one tir e ¢ ,&. .
Check the tire or tires and replace or repa ir if
necessary. The indicator light
[I] in the instru­
ment cluster also illuminates
¢page 11 .
Check/correct the pressures of all four tires
and reset TPMS via MMI.
IIQllfl (Tir e Pressure Monitoring System) Tire
pressure! System malfunction .
If IIQIS, appears after switching the ignition
on or while driving¢
fig. 189 and the indica­
tor light
[I] in the instrument cluster blinks
f or approximately one minute and then stays
on, there is a system malfunction . See your
authorized Audi dealer as soon as possible.
A WARNING
-- If the tire pressure indicator appears in
the instrument cluster display, one or more of your tires is significant ly under­
inflated. Reduce you r speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the tires and their pressures. In­
flate the tire pressure to the proper pres-
sure as indicated on the vehicle's tire .,..
