- The buttons for the power sun shades* in
the side windows,
- The buttons for the power sun shade* in the
rear window,
- Front passenger power seat adj ustment *
button.
_& WARNING
- When you leave your vehicle -even if on­
ly briefly- always take the ignition key
with you. This applies particularly when
children remain in the veh icle. Otherw ise
the ch ildren could start the engine or op­
erate electrical equ ipment (e.g. power
w indows) . The power windows are func­
t ional until t he driver's door or passeng­
er's door has been opened.
- Be careful when closing the windows.
Check to see that no one is in the way, or
serious injury could result!
- When lo cking the veh icle from outside,
t he ve hicle must be unocc upied s in ce the
w indows can no longer be opened in an
emergency.
(D Tips
- The dr iver can lower or raise the power
sun shades * in the side windows by us ing
swi tches © and
@.
-After the ignition has been switched off,
the windows can still be opened o r
closed for about 10 minutes . The powe r
windows are not switched off until the
driver's door or passenger's door has
been opened.
What to do after a malfunction
The one-touch open and close function must
be reactivated if the battery hos been discon ­
nected.
• Pull and hold the power window switch un­
ti l the window is fully closed.
• Release the switch and then pull it again for
at least one second .
Openin g an d clos ing 39
Valet parking
The valet parking feature protects the lug­
gage comportment from unauthorized ac­
cess.
F ig. 30 Valet par king button
Wi th "valet parking" a ctivated, the rear lid
cannot be opened.
• Remove the mechanical key
c::;, page 29 .
• Open the glove compartment and activate
c::;, fig. 30 the "valet parking" feature by
pressing the
! VALET I b utton. The indicator
light in the swi tch illuminates.
• Close the glove compartment and lock it
w ith the mechanical key.
• Leave the master key with the se rvice per ­
sonnel for park ing and keep the mechanical
key with you.
When the "valet parking" feature is activated:
- the unlocki ng button fo r the rear l id
c:s in
the dr ive r's door is inactive
- the button
c:s on the mas ter key is inac tive
- the opening handle in the rear lid is inact ive .
The vehicle can be driven and locked and un­
locked with the master key. Access to the lug­
gage compartment is blocked.
When the valet parking function is switched
on, the message
Vale t par king acti vated ap­
pears in the instrument cluster display when
you sw itch the ignition on.

40 Opening and clo sing
Sliding/tilting sunroof
Operation
Fig . 31 Section of the headliner: Slid ing/t ilt ing sunroof
b u tton
@ Tiltin g and sliding
.,. To tilt the sunroof completely, press the
switch briefly to the second leve l~
fig. 31
br iefly.
.,. To close the sunroof comple tely, pull the
swit ch briefly to the second level
Q .&_ .
.,. To select an intermediate position, press/
pull the switch to the first leve l until the de­
sired position is reached.
@ Opening and clo sing
.,. To open the s unroof complete ly, slide the
button back briefly to the second leve l.
.,. To close the sunroof complete ly, slide the
button forward briefly to the second leve l
QA .
.,. To select a partially open position, slide the
button forward/back to the first level until
the roof reaches the desired posit ion .
A w ind deflector integrated into the sliding/
tilt ing su nroof adapts automatically to the
speed and sunroof position . T hi s reduces w ind
noise to a m in imum in all sun roof positions.
You can still close or open the sunroof for up to ten m inutes after you have sw itched the ig­
n ition off . The switch is deactivated once the
d river 's o r front passenger's door is opened .
Solar p rotection
The solar protection opens automatically
when the sunroof opens . Vehicles with a g
lass pane l sunroo f: the sun
shade can be opened and closed by hand
when the sunroof is closed .
Vehicles wi th a solar panel sunroof*: the
cl osed s unshade opens automatically when
t h e sunroof opens.
A WARNING
-
Pay careful attention when closing the
sliding/tilt ing sunroof -otherwise serious
in jury c ould result! Always take t he key
with you w hen leav ing the veh icle.
(D Note
-
A lways close your sliding/tilting sunroof
when leaving y our veh icle. S udden rain can
cause damage to the interior equ ipment of
your vehicle, pa rticularly the e lectronic
equipment.
(D Tips
Information regarding t he solar r oof*
Q poge 78 .
Emergency closing of the sliding/tilting
sunroof
If the s unroof detects an object in its path
when it is clos ing, it w ill open again automati­
ca lly. I n this case, you can close the roof with
t h e power emergency closing function .
.,. Within five seconds a fter the sunroo f opens
automatically, p ull the switc h until the roof
closes.

Panoramic sunroof
Opening/closing the roof
Applies to vehicles: with panoram ic sunroof
Fig. 32 Section of the front headliner: panoramic sun­
roof button
Fig. 33 Rear doo r: panoram ic sunroof button
@ Tilting the front segment of the roof
• To tilt the sunroof completely, press the
button up br iefly to the second level~-
• To close the sunroof completely, pull the
button
1.,,,1 down briefly to the second level
¢ & .
• To select a tilted position, press/pull the
button
l "'-' I to the first level until the desired
position is reached.
@ Sliding the front segment of the roof
• To ope n the su nroof complete ly, slide the
button
l=I back to just before the second
level
<=>fig . 32.
• To close the sunroof completely, slide the
button
l=I forward brief ly to the second lev­
el<=> &.
• To select a partially open position, slide the
button
l-"'I forward/back to the first level un­
til the desired position is reached.
Opening and closing 41
Tilting the rear segment of the roof
The rear segment of the roof can be operated
both from the cockpit and from the rear seat.
• To tilt the sunroof completely, press the
button[;] in the rear door briefly to the sec­
ond level
c:> fig. 33.
• To close the sunroof completely, pull the
button[;] up briefly to the second level
Q & .
• To select a tilted position, press/pull the
button~ to the first level until the desired
position is reached. Or
• To operate the roof from the cockpit, press
the
I REAR MODE ! button¢ fig. 32. You can
now open/close the rear segment of the roof
using the button
l=I in the headliner. The
LED in the front of the headliner turns on
when the rear roof segment is tilted.
After the ignition is switched off, you can still
operate the panoramic sunroof for about
10
minutes. The switch is deactivated once the
driver's or front passenger's door is opened.
WARNING
Be careful when closing the panoramic
sunroof- otherwise serious injury could re­
sult! For this reason, always remove the ig­
n ition key when leaving the vehicle.
(D Note
A lways close your panoramic sunroof when
l eav ing your vehicle. Sudden rain can cause
damage to the interior equipment of your
vehicle, particularly the electronic equip­ ment.
(D Tips
- Information regarding convenience
opening/clos ing
i=>page 31.
- To prevent both roof segments from col­
liding with one another, you do not need
to
- tilt the rear roof segment if the fron t
roof segment is already open.
- close the front roof segment if the rear
roof segment is already tilted.

42 Opening and closing
Opening/closing the sun shade
Applies to vehicles: with pa noramic sunroof
© Front sun shade
.. To open the sun shade completely, slide the
button
G;J back to just before the second lev­
el¢
page 41 , fig. 32 .
.. To close the sun shade comple tely, slide the
button
G;J forward briefly to the second lev­
el.
.. To select a partially open position, slide the
button ~ to the first level until the desired
position is reached.
© Rear sun shade
.. To open the su n shade completely, press
the button ~ in the rear door briefly to the
second level ¢
page 41, fig. 33 .
.. To close the sun shade completely, pu ll the
button
G;J up to the second level¢.&_ .
.. To select a partially open position, press/
pull the button
G;J to the first level until the
desired position is reached. Or
.. To operate the sun shade from the cockpit,
press the
I REAR MODE I button ¢ page 41,
fig. 32. You can now open/close the rea r sun
shade using the button
r;;J in the headliner.
A WARNING
-
Be careful when closing the panoramic
sunroof - otherwise serious injury could re­
sult! For this reason, always remove the ig­
nition key when leaving the vehicle.
Roof segment/sun shade emergency
closing
A ppl ies to vehicles: with pa noramic sunroof
If the roof segment or sun shade detects an
object in its path when it is clos ing, it will
open again automatica lly. In this case, you
can then close it with the power emergency
closing function .
.. Within five seconds after the roof segment
or sun shade opens automatically, pull the
switch until it closes.

Clear vision Lights
Switching the headlights on and off
Fig . 34 Instrument pane l: lig ht sw itc h wit h all -weath­
er lights•
The headlights only wo rk when the ignition is
switched on. Wh ile start ing the eng ine o r
when switching off the ign ition, the head­
lights will go off and on ly the side marker
lights will be on .
If the system is not operating p rope rly, a
war ning symbol in the dr iver information dis­
p lay is d isplayed
c::> page 21 .
Light switch ·'t!- -
Tu rn the switch c::> fig . 34 to the correspond ing
position . When the lights a re switched on, the
oD o: symbo l tu rns on .
0 -The lig hts are off or the dayt ime runn ing
lights are on:
- USA models: The day time running ligh ts
will come on automatically when the igni­
t ion is on and the light switch
c::> fig . 34 is in
the
O posit ion or the AUTO position (only in
daylight cond itions). The
Daytime running
light s
function can be turned on and off in
the MMI
c::> page45, c::>A .
-Ca nada model s: The daytime running lig hts
will come on automa tically when the igni­
t ion is on and the light switch
c::> fig . 34 is in
the
O position, the : Do: pos ition or the AUTO
position (only in daylight conditions) c::> A .
AUTO -Automatic headlights swi tch on and
off depend ing o n brightness, for example i n
tw ilight, during rain or in tunnels
c::> &. .
:Do: -Side marke r lights
io -Low beam headlights
Clear vi sion 43
lm -Fog lights* (vehicles with Xenon p lus
headlights *)
~ -All-weather lights * (vehicles with L ED
headligh ts*)
c::> fig. 34
@TI -Rear fog lights* . When the rear fog lights
are on, the symbol
0$ on the switch will illu­
minate .
All-weather lights*
In vehicles wi th all -wea ther lights, the front
lights are adjusted au tomat ically so that you
are less like ly to see glare from your own
headlights, for example when dr iving on a wet
ro ad.
Automatic dynamic headlight rang e
control*
Your vehicle is equipp ed with a headlight
range contro l system so that the headlights
do no t blind oncoming traff ic if the vehicle
load changes. The headlig ht range a lso ad­
justs automatically when braking and acceler­
at ing .
Light function s
The following light funct ions are availab le de­
pend ing on vehicle equipment and on ly func­
t ion when t he light switch is in the AU TO posi ­
tion . You can deactivate these functions i n the
MM I under
Audi adapt ive light c::> page 45 .
Static corner ing light* (vehicles with L ED
headlights or adaptive light) -the cornering
ligh t sw itches on automat ica lly w hen the
stee ring wheel is turned at a ce rtain angle at
speeds up to approxima tely 44 mph (70 km/
h) and when the turn sig nal is act ivate d at
speeds up to approximately 25 mph (40 km/
h) . The area to the side of the veh icle is illumi­
nated bette r when tur ning .
Dynamic curve light * (vehicles with adap tive
light) -the curve ligh t only functions at
speeds betwee n approximately 6 mph (10
km/ h) and 110 km/h and adapts itself to the
curves in the road.
Ill>

44 Clear vision
Highway light function* (vehicles with LED
headlights) -this function adapts the lighting
for highway driving based on vehicle speed.
.&_ WARNING
- Automatic headlights are only intended
to assist the driver. They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights §.0
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
@ Tips
- The light sensor* for automatic dynamic
headlight range control* is located in the
rear view mirror mount. You should
therefore not apply any stickers to the
windshield in this area in order to pre­
vent malfunctions or failures .
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display¢
page 21 .
- You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after switching them on. This does not affect
the service life of the lighting.
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle ore in an emer ­
gency situation.
,--~
,_'
. ;.' --- --~-.sc-
Fig. 35 Center console: emergency flasher switch
.,. Press the switch 11 ¢ fig. 35 to turn the
emergency flashers on or off .
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
s ignal ind icator lights
ea in the instrument
cluster, as well as the light in the emergency
flasher switch
11 blink likewise. The emergen­
cy flasher also works when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
(D Tips
You should turn on the emergency flashers
when:
- you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
-your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.

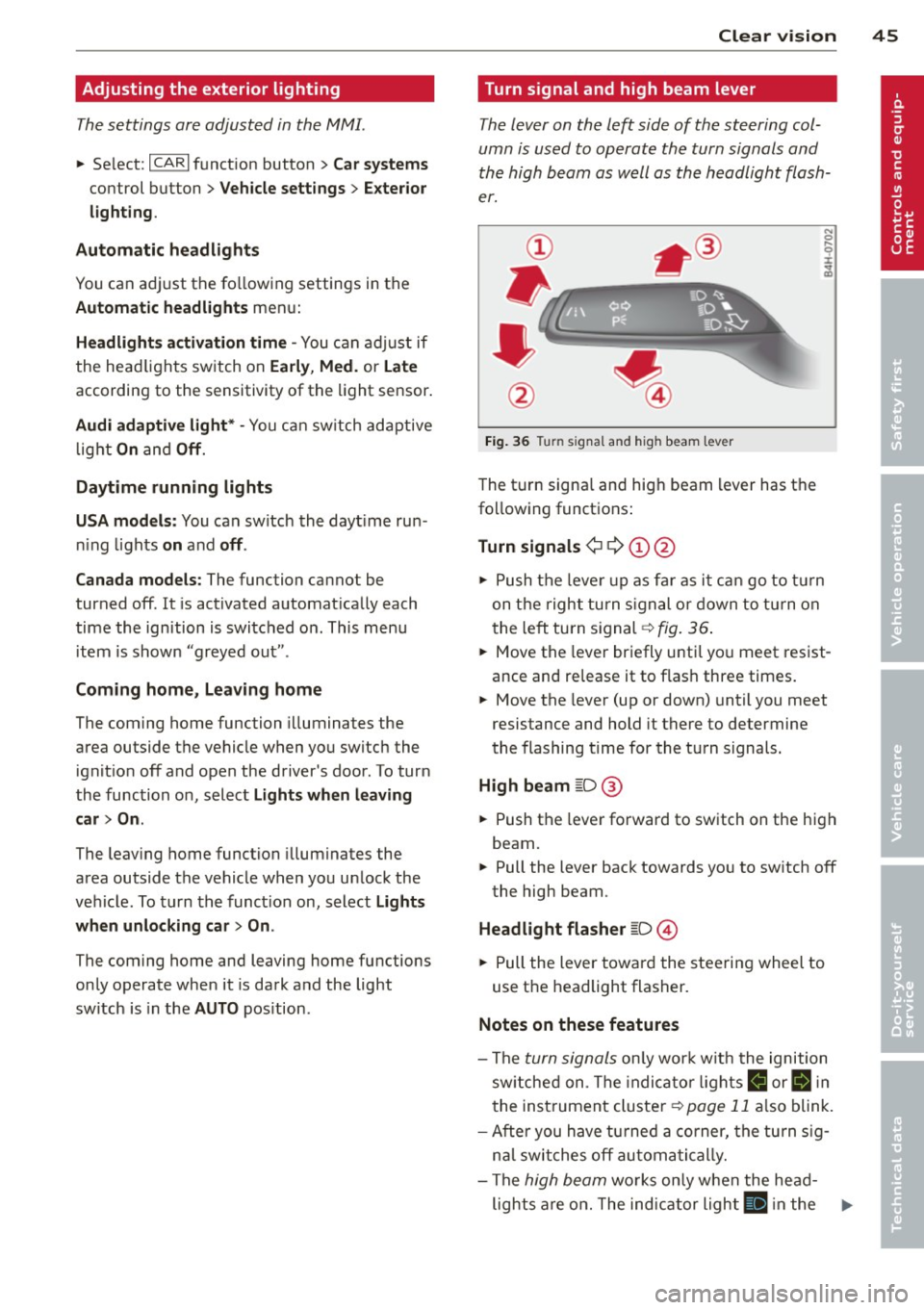

Adjusting the exterior lighting
The settings are adjusted in the MMI.
• Se lect: ICARI f u nct ion button> Car systems
control button > Vehicle sett ings > E xterior
lighting .
Automatic headlights
You can a djust the fo llow ing settings in the
Automatic headl ights men u:
Headlight s activation time -You can adjus t if
the hea dlights sw itch on
Early , Med . or Late
according to the sensitivity of the light se nsor .
Audi adaptive light* -You can sw itch adaptive
l ig ht
On a n d Off .
Daytime running lights
USA models :
You can switch the dayt ime ru n­
ni ng lights
on and off .
Canada models:
The function ca nnot be
turned off. It is activated a utomat ica lly each
time the ignition is switc hed o n. This menu
item is shown "gr eyed out" .
Coming home, Leaving home
The coming home function illuminates the
area outside the vehicle when yo u switc h the
i gn it io n off and open the driver's door. To tur n
the function o n, select
Lights when leaving
car > On .
The leav ing home function illuminates the
area outside the vehicle when yo u unl ock the
ve hicle. To turn th e f unc tion on, select
Lights
when unlocking car > On .
The com ing home and leaving home fu nctions
only operate whe n it is da rk a nd the light
sw itch is in the
AUTO p os itio n.
Clear vision 45
Turn signal and high beam lever
The lever on the left side of the steering col ­
umn is used to operate the turn signals and
the high beam as well as th e headlight flash­
er.
Fig. 36 Turn signal and high beam lever
The t urn signa l and hig h beam lever has t he
fo llow ing funct ions :
Turn signals ¢ Q ©@
N 0 ,._
± .. a,
• Pu sh t he leve r up as fa r as i t can go t o tur n
on t he righ t turn s igna l or d own to t urn on
t he le ft turn s ignal -=>
fig. 36 .
• Move the leve r br iefly u ntil yo u meet res ist ­
ance and release it to f lash three times.
• Move the lever (up or down) until you meet
resistance and hold it there to determine
the flashing t ime for the tu rn signals.
High beam ~D @
• Push t he leve r forward to sw itch on the hig h
beam.
• Pull the lever bac k towards yo u to sw itch off
the high beam.
Headlight flasher ~D ©
• Pull the lever towar d the stee rin g wheel to
use t he headlight flasher .
Notes on these features
-The turn signals o nl y wor k w ith t he ignition
sw itche d on. T he indi ca tor light s
R or II in
t he inst rumen t cluste r¢
page 11 also blink .
- Afte r yo u h ave t urned a corner, the tu rn s ig -
n al swi tches off au tom atic a lly .
- The
hig h beam wo rks o nly w he n the he ad-
lights a re on . The ind ic a tor ligh t
II in the .,,.

46 Clear vis ion
instrument cluste r illuminates when the
high beams are on.
- T he
headlight flash er works only as long as
yo u hold the lever - even if there are no
l ights turned on . The ind icator light
Bl in
the instrument cluster i lluminates when you
use the headlight flasher.
A WARNING
Do not use the high beam or headlight
flasher if you know that these could blind
oncoming traffic.
Interior lights
Front and rear interior lighting
Fi g. 37 Headl iner: Front in te ri or lig hts
F ig . 3 8 Re ar headli ne r: Rea din g lig ht
Press the appropriate b utton q fig . 3 7:
El -Interior lighting on/off
1!1-Door contac t switch . The inter ior light ing
turns on automatica lly when you unlock the
vehicle, open a door or switch the ignition off.
The interior lighting turns off several seconds after you close the doors , when you lock the
vehicle or when you switch the ignition on .
When a door is open, the light t urns off afte r
a few minutes .
L:!l-Read ing lights on/off
~ - Switching the rear read ing lights on/off
from the cockpi t.
IREAR MODEt* - Sw itch ing the rea r readi ng
lights on/off from the cockpit : pr ess the
I REAR MODE i button and t hen t he appropriate
button
L:!l i n t he cockpit .
Ambience lighting
Applies to vehicles: with ambience lighting
You can select a color profile and br igh tness
for the ambience light ing in various areas of
t h e ve hicle, called zones .
Turning ambience lighting on .,. Sele ct in the
M MI: ICAR lfun ction bu tton>
Car sy stem s control b utton > Vehicle set­
ting s
> Interior lighting > On.
Ad justing/turning off the brightness
.,. Select in the
MMI: ICA Rlfunction button>
Car sy stem s control b utton > Vehicle set­
ting s
> Interior lighting > Brightne ss .
.,. Tur n the knob to the desired veh icle area
and p ress the knob. The bar that appears in ­
dicates the selected brightness .
.,. To increas e or reduce the brightness, turn
the knob and press it .
Select ing a color p rofile*
.,. Select in the
MMI: ICAR lfunction button>
Car sy stem s control b utton > Vehicle set­
ting s
> Interior lighting > Color profile .
T he ambience ligh ting tu rns on when the
f unct ion is act ivated in the
MMI and w hen you
turn the headlights on while the ign ition is
switched on .
Adjusting the brightness
You can adjus t the br igh tness fo r the fou r
zones Front top , Front footwell , Re ar top and
Rear footwell or for All areas at the same
t ime . ..,.

Selecting a color pr ofile
You can select from the Iv ory , Polar and Ru­
b y/ Pol ar
color profiles .
(D Tips
The settings are automa tically sto red and
assigned to the remote con tro l key that is
in use.
Instrument illumination
You con adjust the brightness of the instru ­
ment and display illumination .
Fig . 39 In strument ill um ination
• Press the knob to release it.
• Turn the knob toward"-" or"+" to reduce or
increase the brigh tness .
• Press the knob again to return it to its or igi ­
nal position .
Q Tips
The instrument illumination (for dials and
needles) lights on when the ig nitio n is
sw itched on and the vehicle lig hts are
turned off. As the daylight fades, the ill u­
m ina tion of the dials likewise dims auto­
mat ica lly and will go out com plete ly when
t he o utside light is very low . This fea ture is
meant to remind you to switch on the
headlights when o utside light conditions
become poor. Clear vi
sion 4 7
Vision
Sun visors
E J
Fig . 4 0 Sun viso r
The sun visors for the driver and passenger
can be re leased from their bracke ts and
turned toward the doors
c:> fig. 40 (D . They
can a lso be moved back and forth lengthwise
in th is position .
The m irror light switches on when the cover
over the vanity m irror @opens.
T here is a shade between the dr iver 's and pas­
senge r's s un visors that can be used to cover
the gap above the rearview mirror.
. Sun Shade
Fi g. 41 Cock pit: Sun shad e swit c h
Fig. 4 2 Rear doo r: S un s had e butto n

48 Clear vis ion
Extending /retracting th e re ar window
s h ad e*
• To extend or retract the sun shade from the
cockpit ,
press the rn button in the center
console
c> fig . 41 .
• To extend or retract the sun shade from the
r e ar of th e vehicle,
press the liiil button in
the door
c> fig . 42 .
Extending the re ar door sun shade s*
• Close the window in the rear door.
• To extend the sun shade
from the d rive r's
s eat ,
pull the left/right rear power window
switch~ in the driver's door .
• To extend the sun shade from the
rear of
th e v ehi cle,
pull the power window sw itch
~ in the left/right rear door.
Re tra cting the re ar doo r sun shades*
• To retract the sun shade from the driv er's
sea t,
press the left/right rear power window
switch~ in the driver's door .
• To retract the sun shade from the
re ar of
th e vehi cle,
press the power window swit ch
~ in the left/ right rear door .
You can adj ust the settings for the rear sun
shade so the shade ret ra cts automa tically
when you selec t the reve rse gear. Select:
CAR
function button > C ar sys tems control button
> Vehicle set tings > Aut omatic rear blind >
On. T he sett ings are automat ica lly stored and
assigned to the remote control key . The sun
shade extends again as soon as the veh icle be­
g ins traveling forward at a speed greater than
9 mph (1S km/h), as long as the ignition has not been switched off in th e mea ntime .
& WARNING
When lowe ring or raisi ng the sunshade,
make s ure there is no thing in its way and
t ha t it has a free path to trave l. This could
cause personal injury.
{D) Tips
- Pressing the b utton rn several times
consecutively can tr igger the overload
protection . The sun shade can only be ex- tended/retracted again after a brief wait­
ing period.
- The rear window sun shade on ly func­
tions when the vehicle interior is warmer
than 14°F (-10°C) .
Vanity mirror in the rear
Applies to vehicles: with vanity mirrors in the rear
Fig. 43 Rear hea dliner: van it y m irror
• Press the b utton to fold the m irror open.
The mir ro r li ght ing turns on automatically.
• To c hange the mir ro r's ang le, move it for ­
ward/back with your hand .
Wiper and washer
system
Switching the windshield wipers on
Fig . 44 Winds hield w iper leve r
Move the windshie ld wiper lever to the corre­
sponding posit ion :
@ -Windshield wipers off
(D -Rain sensor mode. The windshield wipers
switch on once the vehicle speed exceeds ap­
proximate ly 2 mph (4 km/h) and it is raining.
The higher the rain sensor sensit ivity is set
(sw itch @ to the right), the earlier the
